Water Butt Valve Kit – ¾″ BSP Connector & ¾″ Barb Elbow

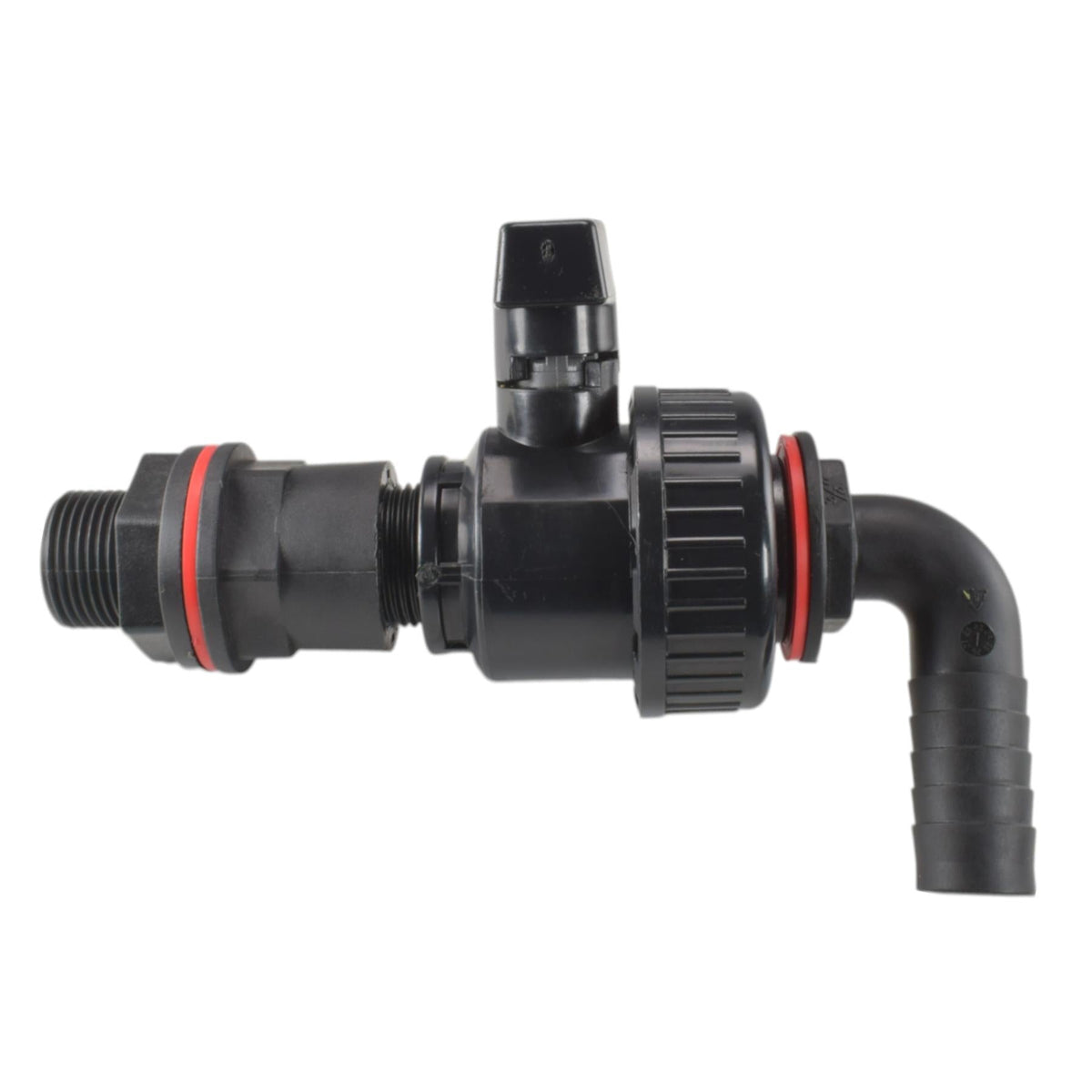

Add manual shut-off and a right-angle hose outlet to a compatible water butt. This three-part kit combines a tank connector, a polypropylene single-union ball valve and a 90° barbed elbow.

Product details

• Tank connector: ¾″ BSP male mounting thread with female outlet
• Valve: full-flow single-union ball valve
• Valve material: polypropylene (PP)
• Valve threads: ¾″ BSP female/male
• Elbow: 90°, ¾″ BSP male thread to ¾″ hose barb
• Control: manual lever
• Kit reference: WB34MF-KIT024

What is included

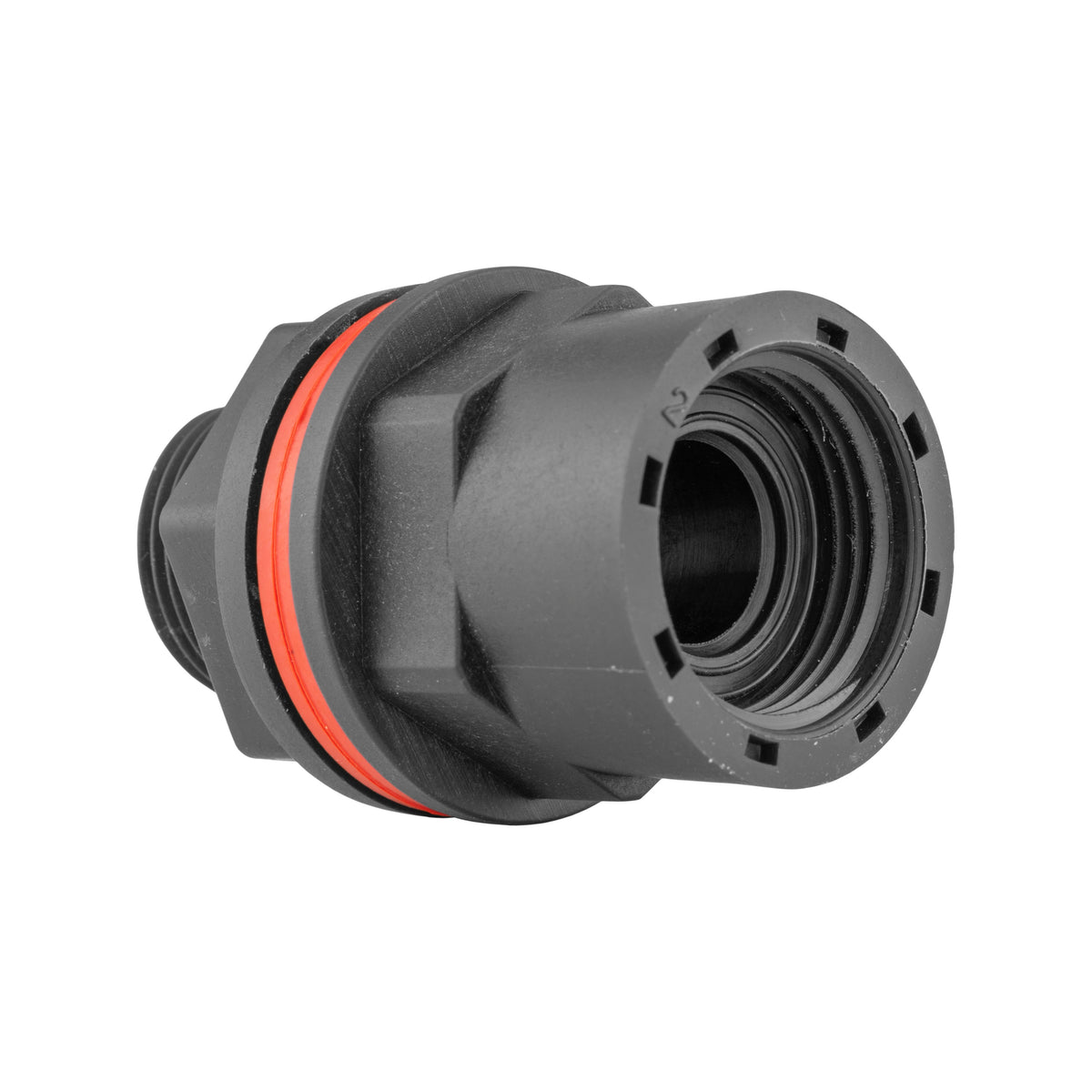

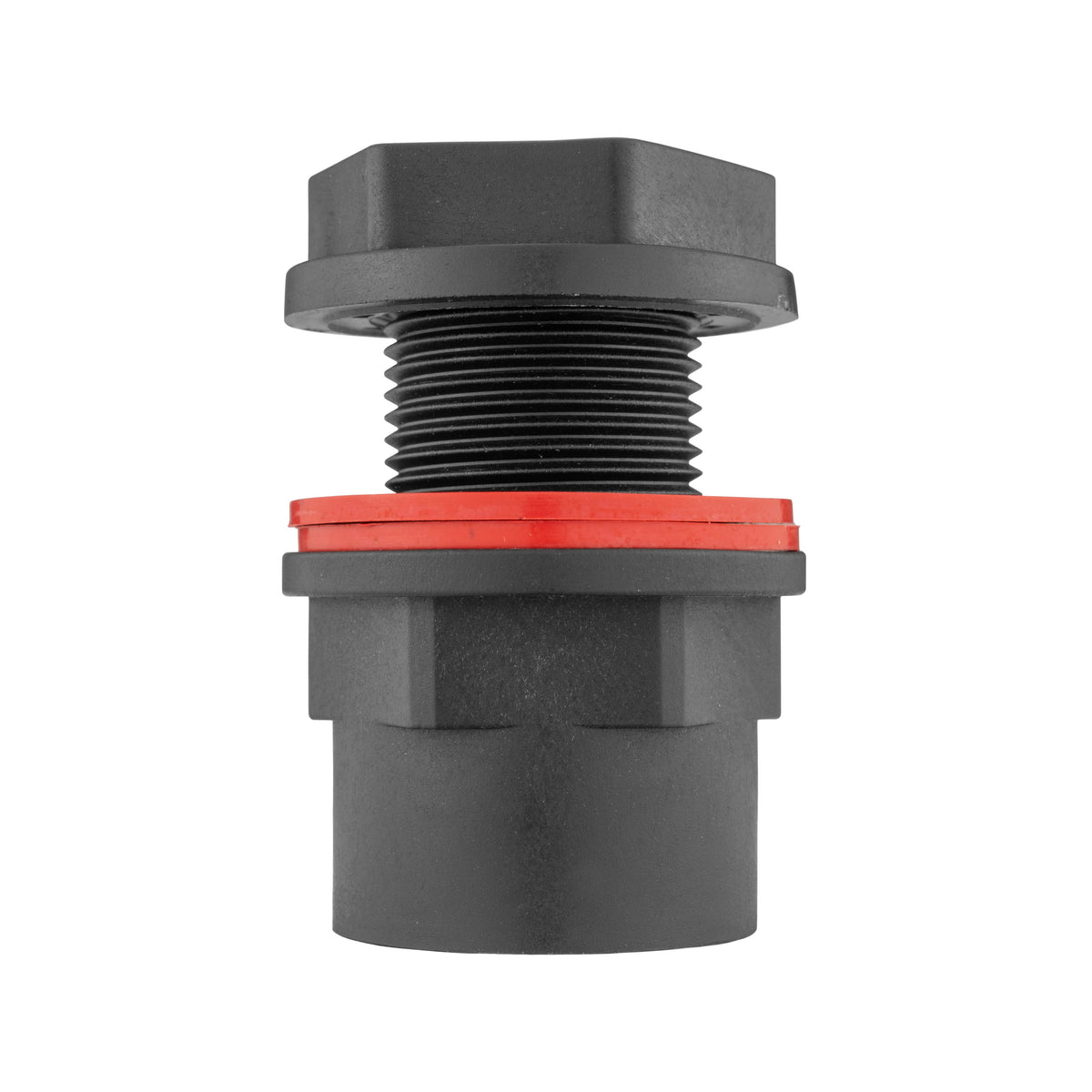

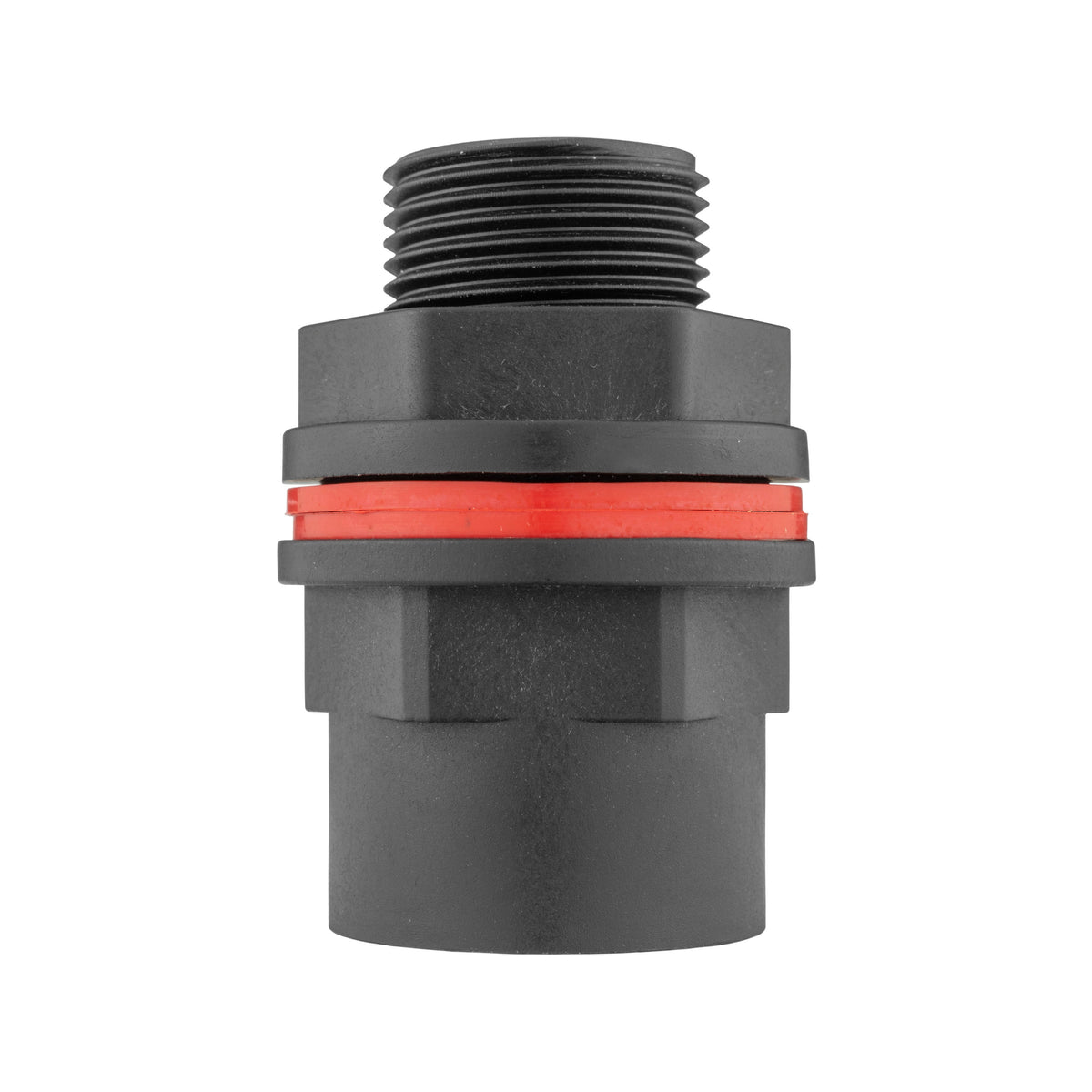

• 1 × plastic water-butt connector with ¾″ BSP male thread, female outlet, back nut and washers (BUTT34BSPM-F)

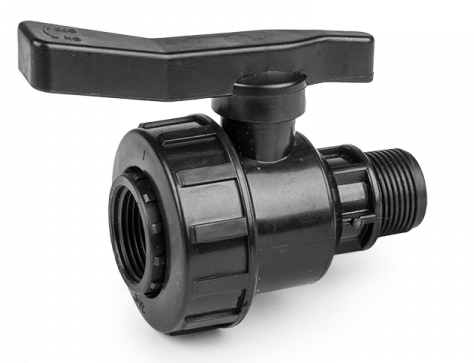

• 1 × polypropylene full-flow single-union ball valve with ¾″ BSP female/male threads (VALVE34BSPM-F-LARGE)
• 1 × 90° elbow with ¾″ BSP male thread, ¾″ hose barb, washer and nut (BUTT-ELB-34BSPM-34B)

Check compatibility

Check the tank wall, connector dimensions, thread sizes and hose fit before ordering. The nominal ¾″ BSP thread size is not a drilling-hole diameter. Use matching hose with suitable fastening at the barb. Check all threaded joints before filling or opening the valve. The single union lets the valve connection be separated for maintenance after the water supply is stopped. Water butt, hose and separate hose clips are not included.
