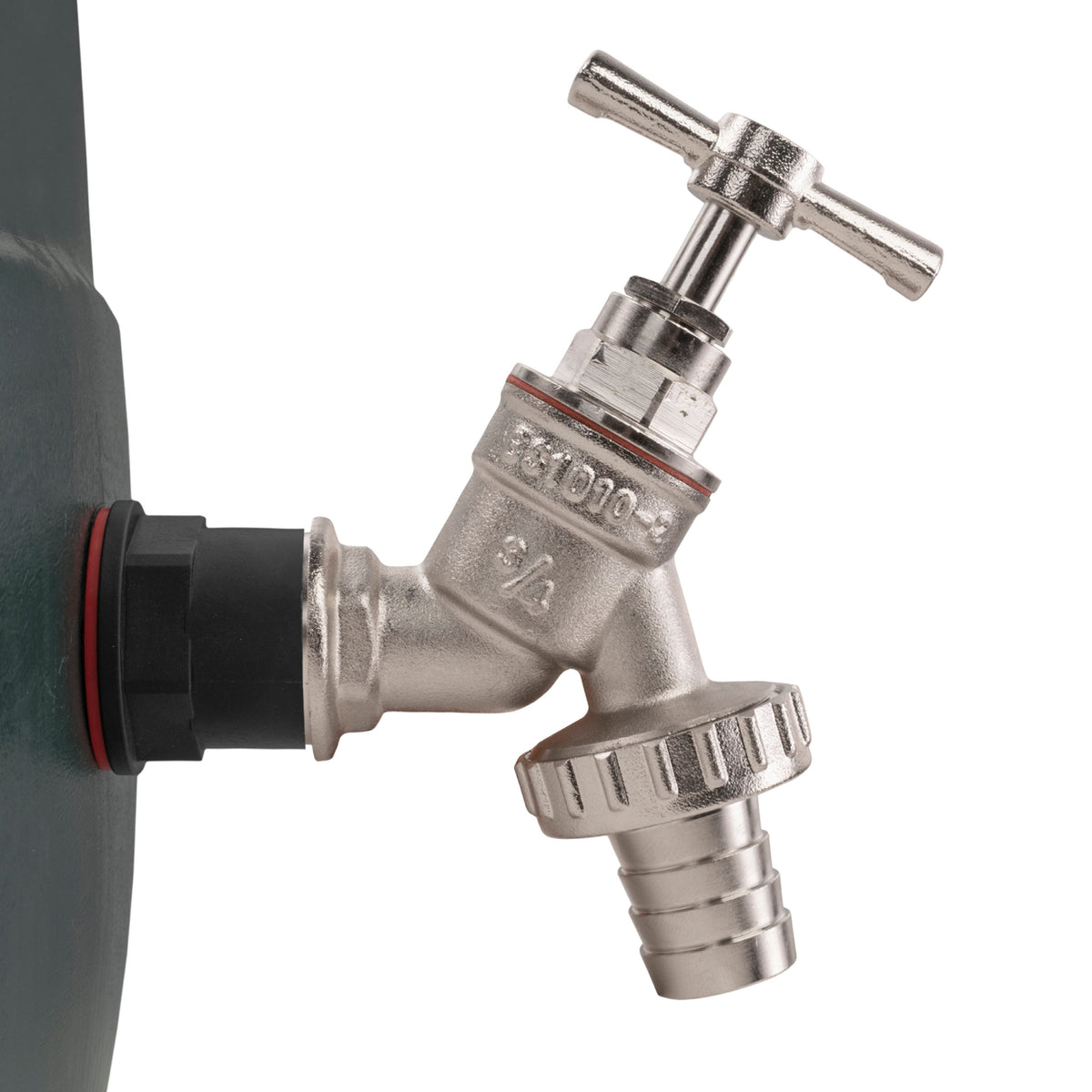

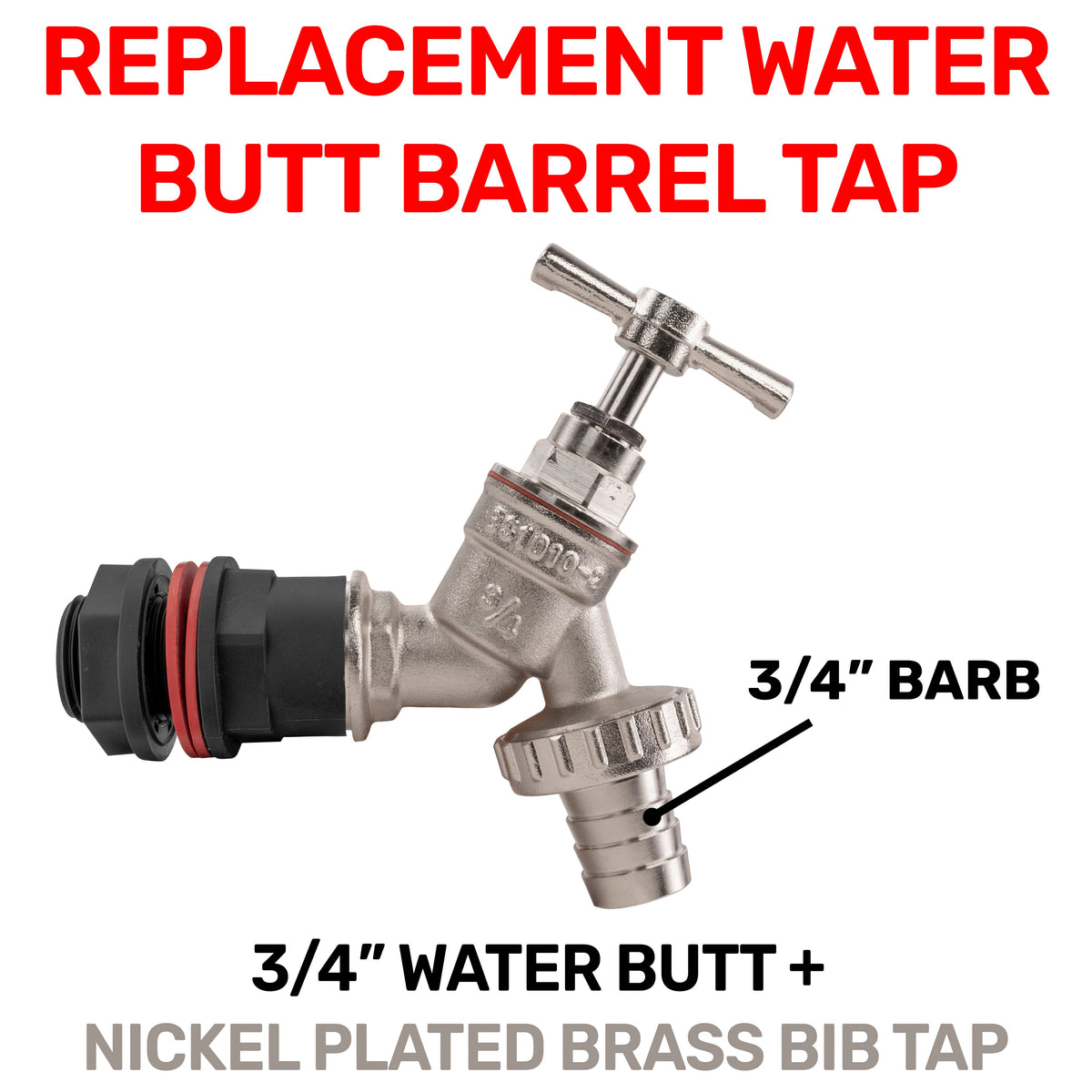

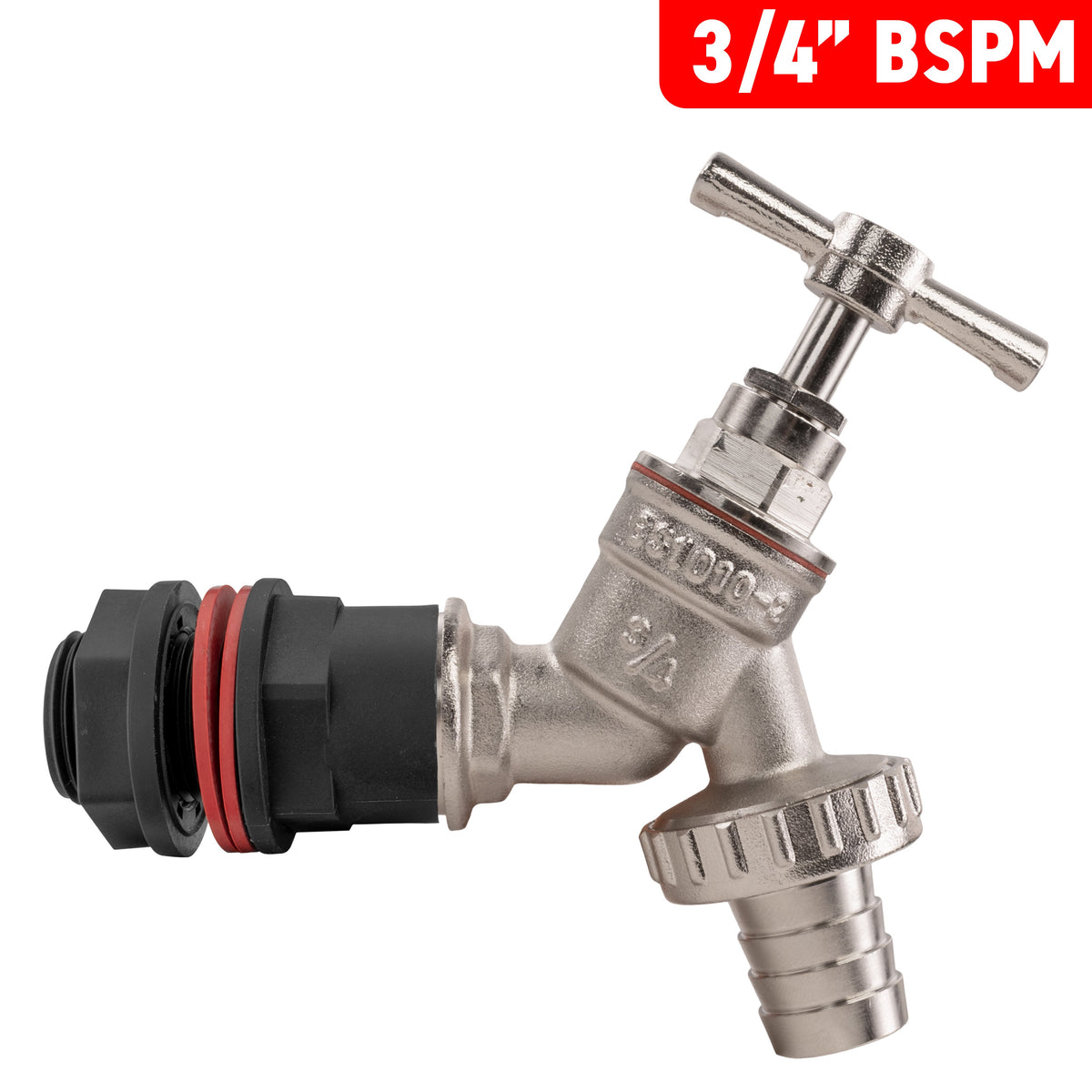

Fit a manually controlled nickel-plated brass bib tap to a matching tank connection with the supplied plastic fitting and seals.
Product details
Tank mounting thread: ¾″ BSP male
Tank connector outlet: ¾″ BSP female
Tank fitting: plastic
Supplied sealing parts: 1 back nut and 2 washers
Tap inlet: ¾″ BSP male
Tap body: nickel-plated brass
Finished outlet: ¾″ hose barb
Reference: WB34MF-KIT021

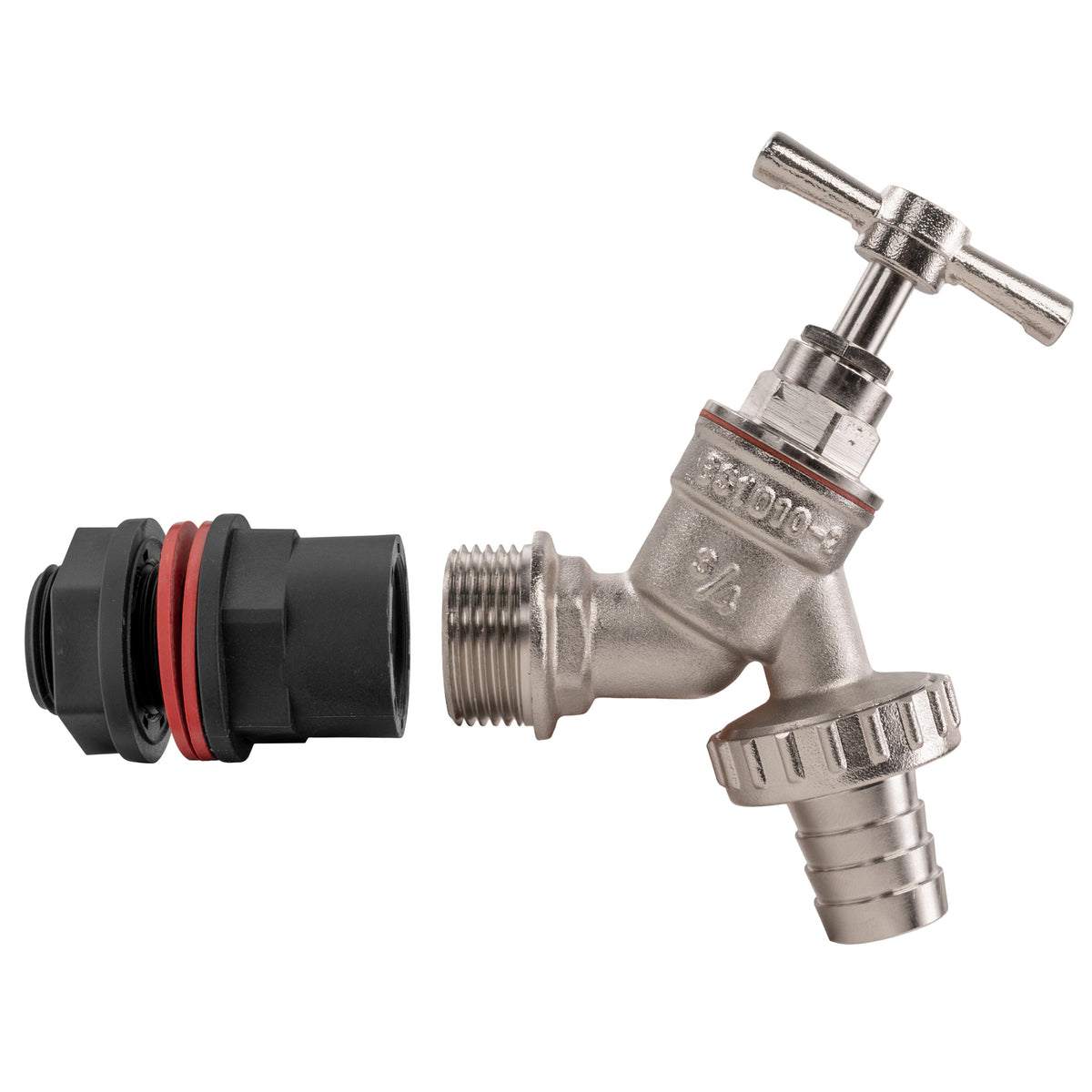

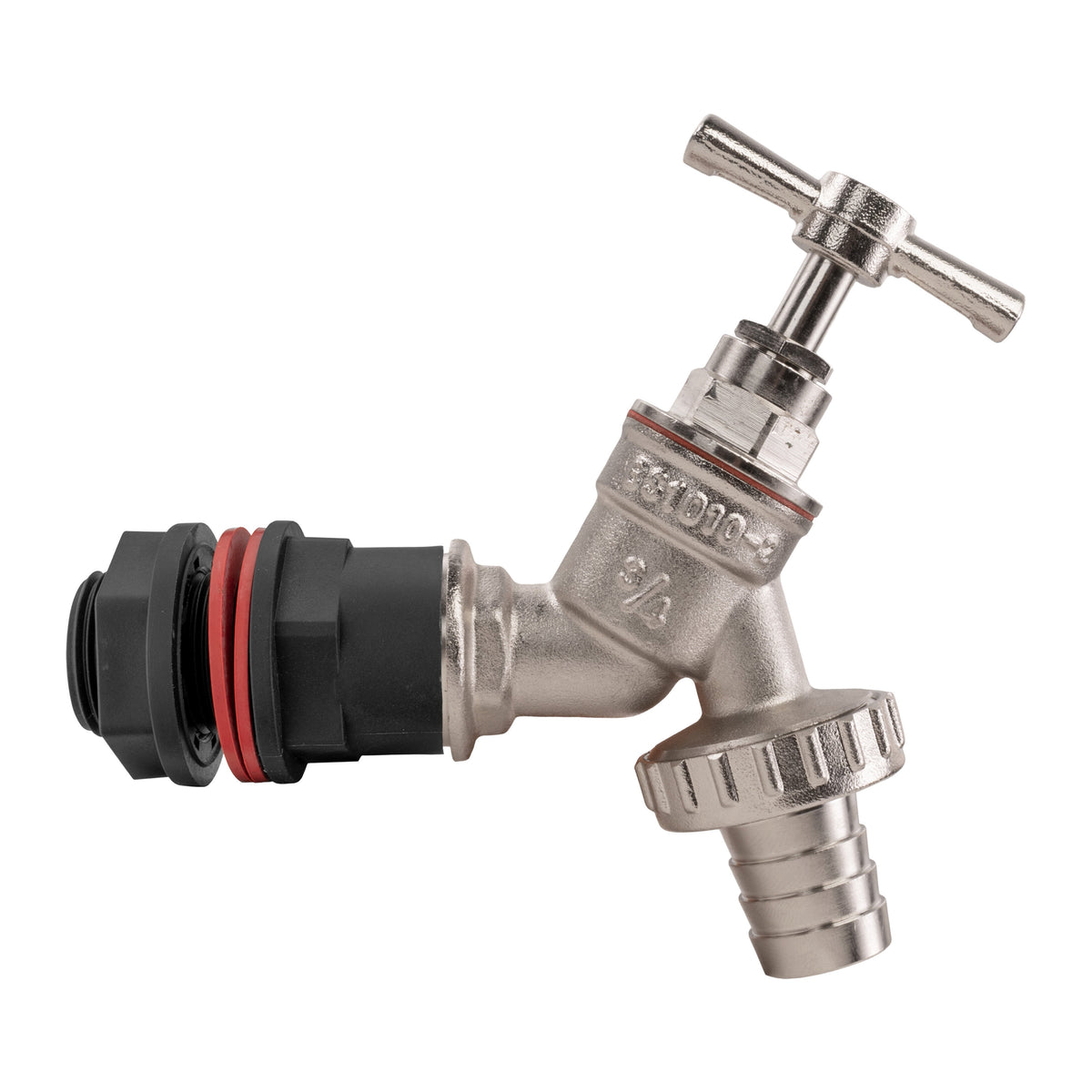

What is included
1 × plastic tank connector, ¾″ BSP male/female
1 × back nut
2 × sealing washers
1 × nickel-plated brass bib tap with ¾″ BSP male inlet and removable hose-tail attachment
Fitting your product
Match the actual tank fitting or wall and the final hose or pipe connection before installation. Measure the supplied tank connector and follow its installation instructions before drilling a new hole. Assemble and inspect all joints before filling the tank. Tank, pipe, hose, separate hose clips and PTFE tape are supplied separately unless listed below. Match the hose bore to the stated barb and use suitable fastening.
