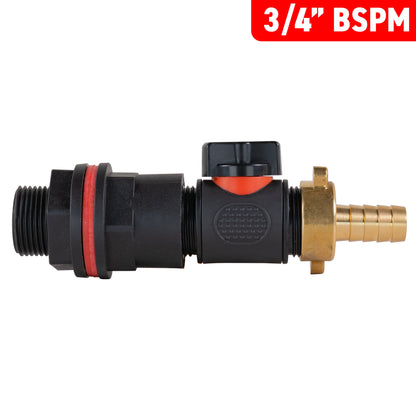

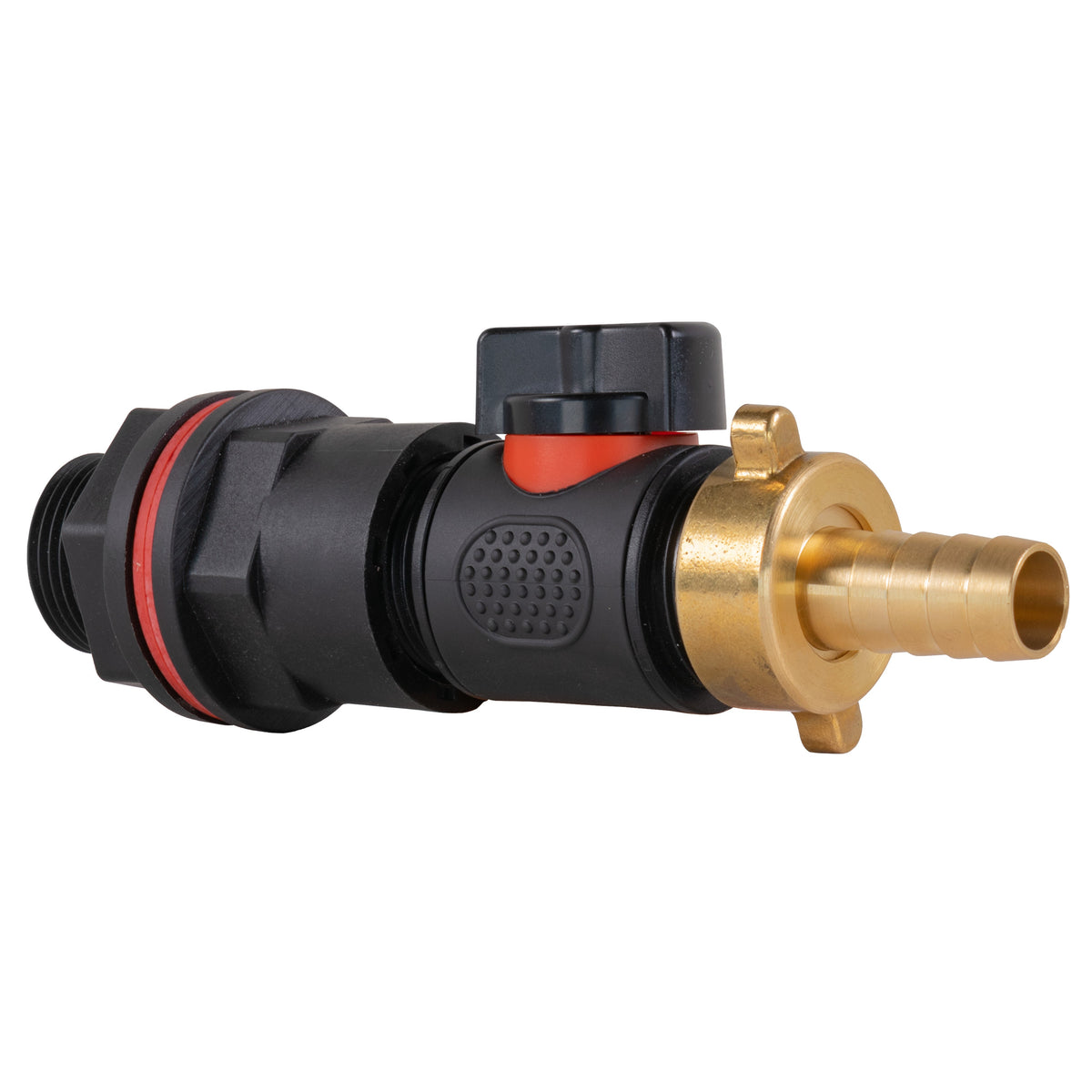

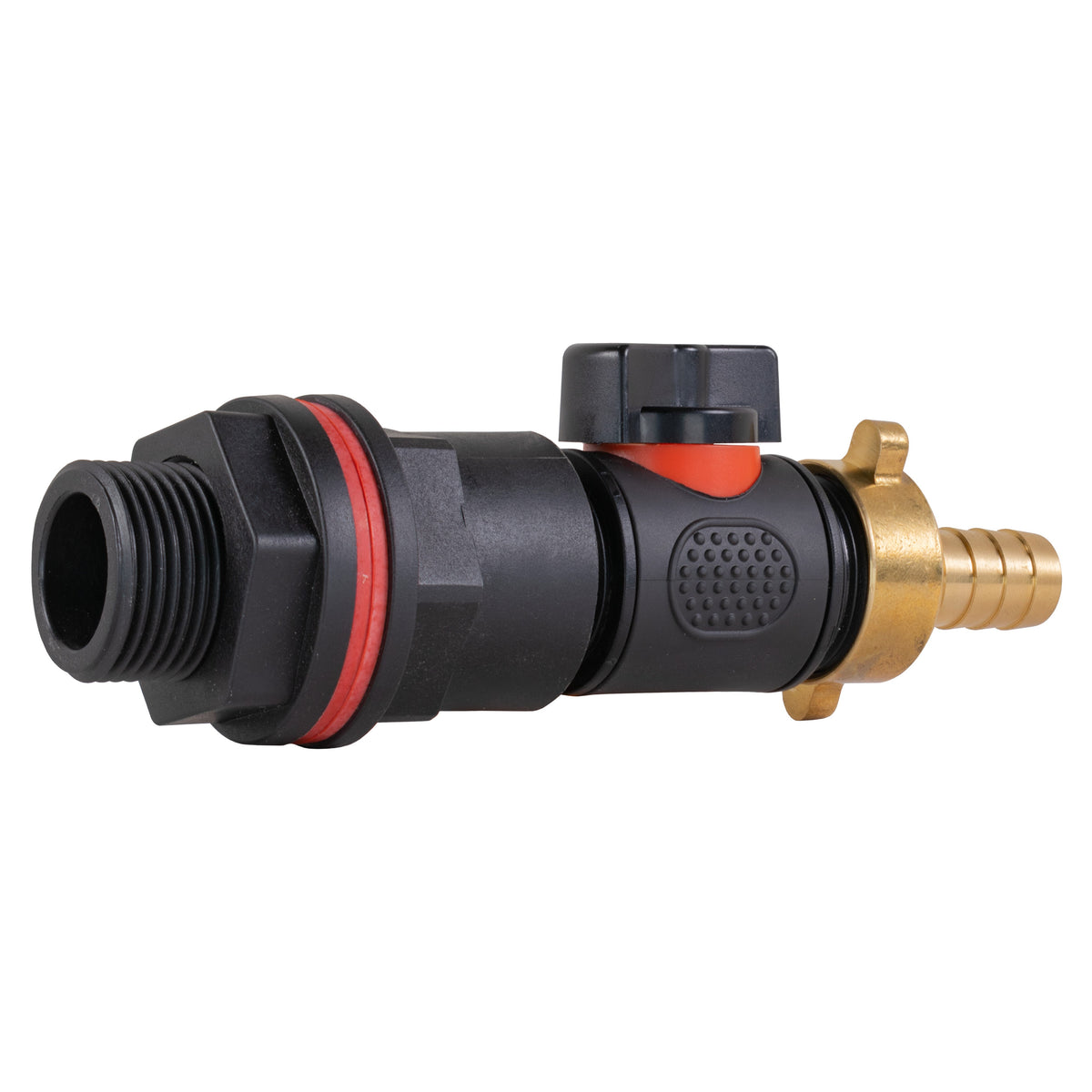

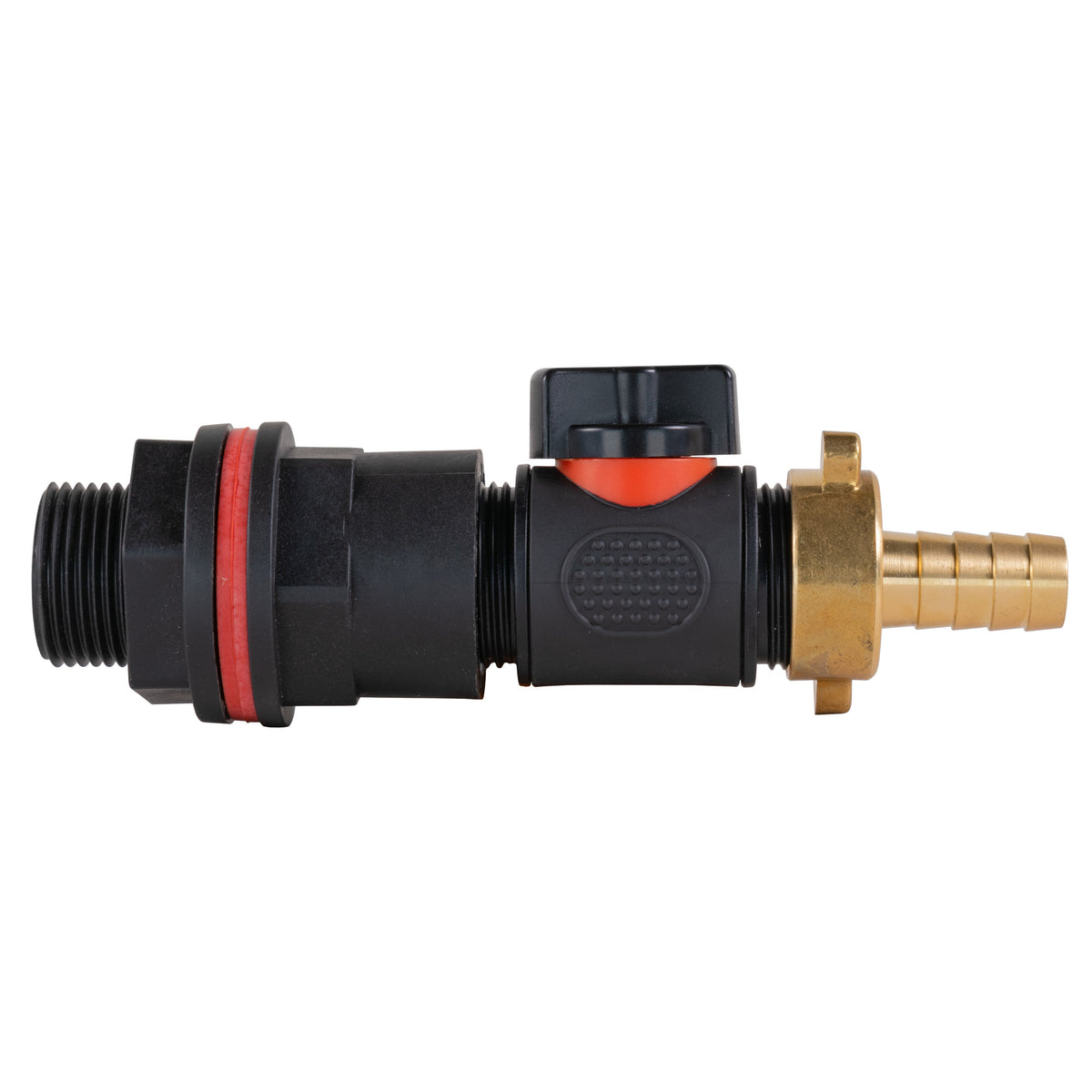

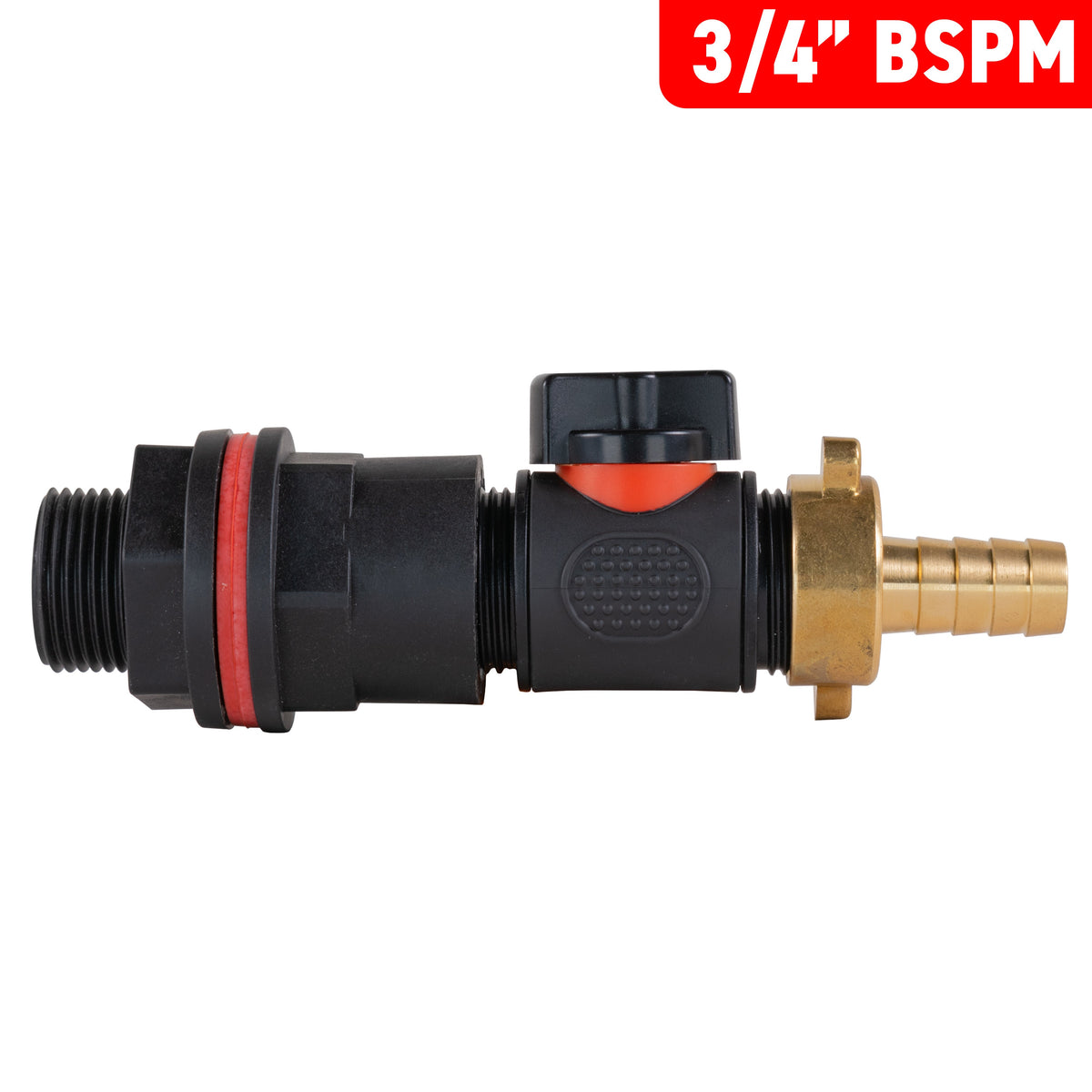

¾″ Water Butt Kit – 13mm Brass Barb Valve & Cutter

Add manual flow control to a compatible rainwater tank. This kit includes a plastic tank adapter with a ¾″ BSP male mounting thread, the listed tap or valve assembly and a 27mm hole cutter. Its finished connection is 13mm brass hose barb.

Product details

• Tank adapter material: plastic
• Tank mounting thread: ¾″ BSP male
• Adapter outlet: ¾″ BSP female
• Finished outlet: 13mm brass hose barb

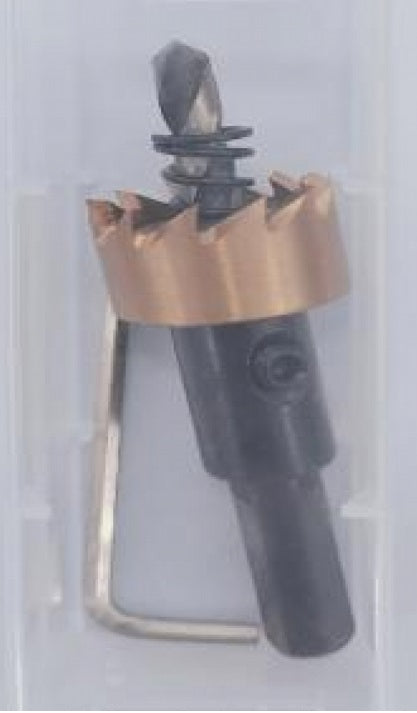

• Supplied cutter: 27mm HSS hole cutter
• Kit reference: WB34MF-KIT015+DB

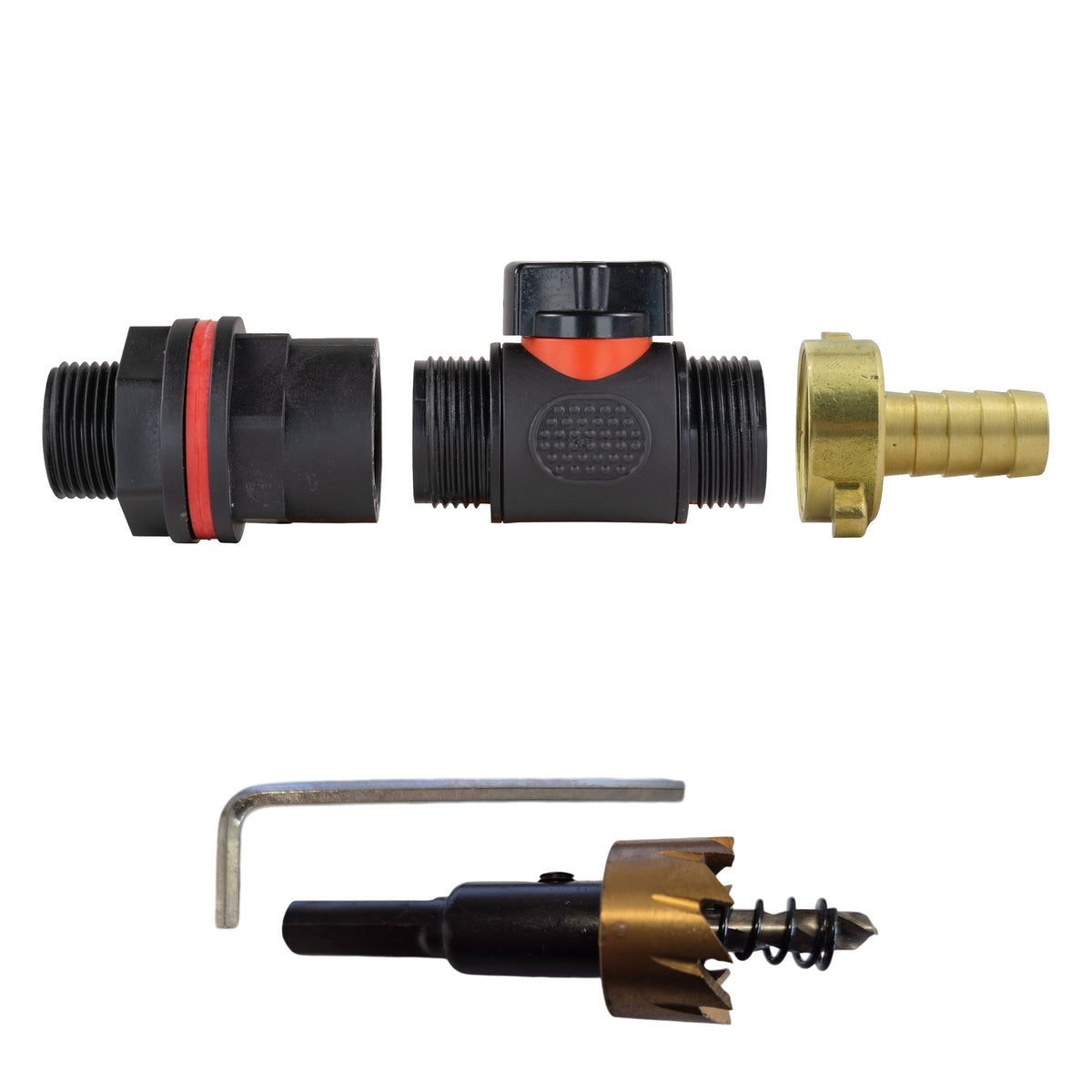

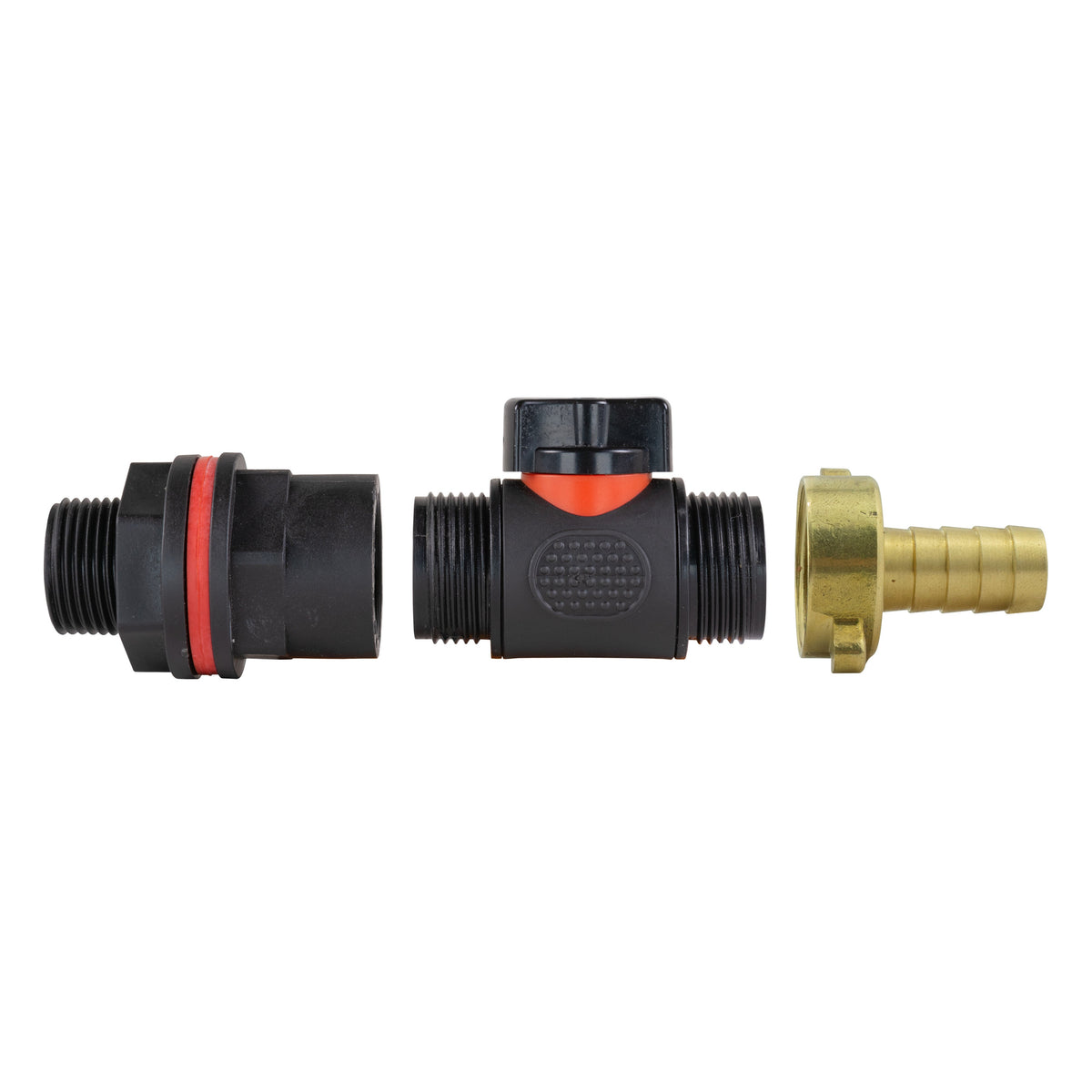

What is included

• 1 × plastic tank adapter with ¾″ BSP male mounting thread and ¾″ BSP female outlet
• 1 × back nut
• 2 × sealing washers
• 1 × black plastic manual inline valve with ¾″ BSP male threads at both ends
• 1 × 13mm brass hose-tail adapter with ¾″ BSP female thread
• 1 × 27mm HSS hole cutter

Check compatibility

Check tank-wall thickness, material and actual connector dimensions before cutting or fitting. BSP is a thread designation, not a measured drilling diameter. The supplied cutter is 27mm. Match the hose or irrigation pipe to the stated barb and use suitable fastening. Tank, drill, pipe/hose and separate hose clips are not included. Assemble and check all joints before filling or opening the supply. PTFE tape is supplied separately.
