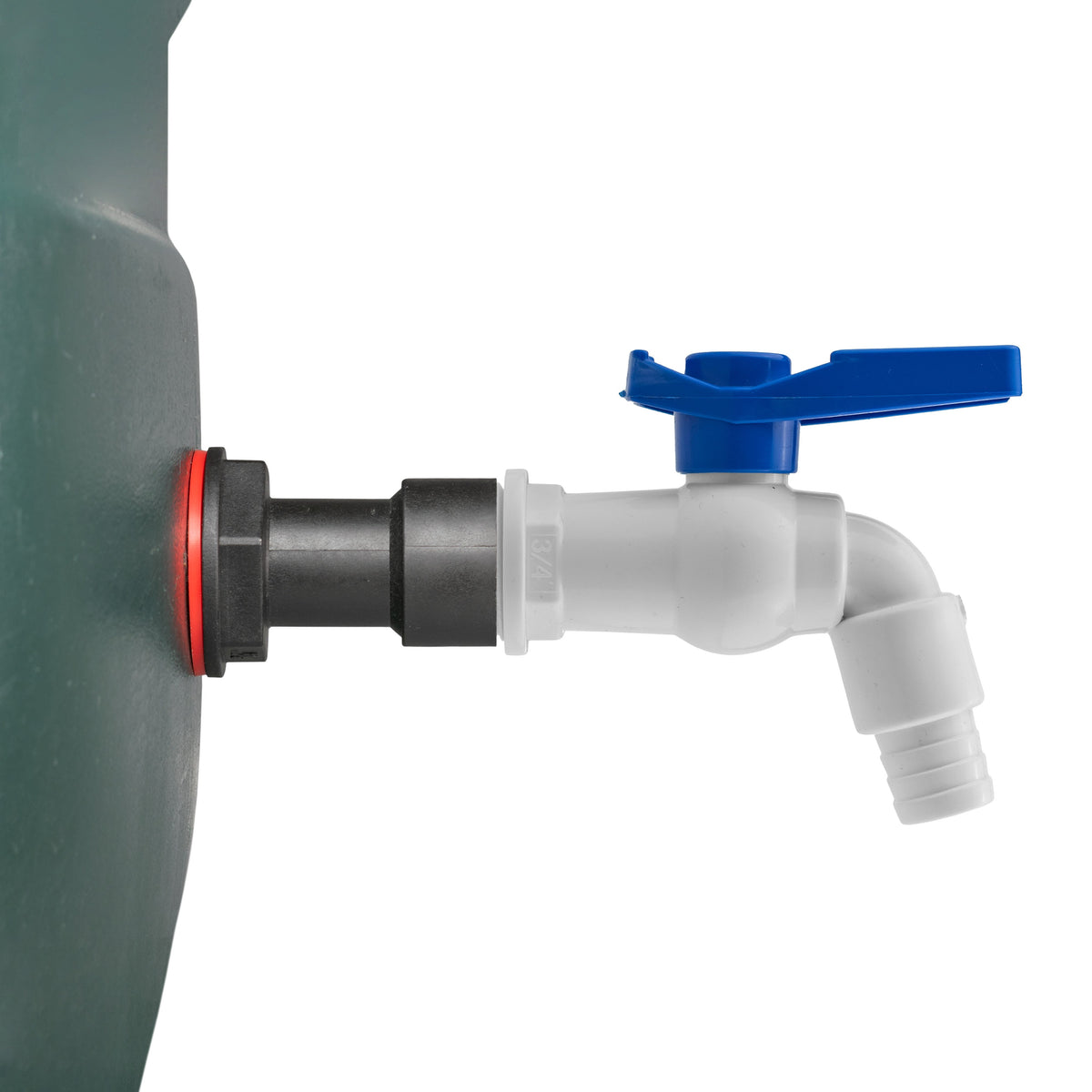

¾″ BSP Water Butt Extension – White PVC Tap

Add a manually controlled garden tap with extra clearance from a tank wall using the supplied plastic extension and seals.

Product details

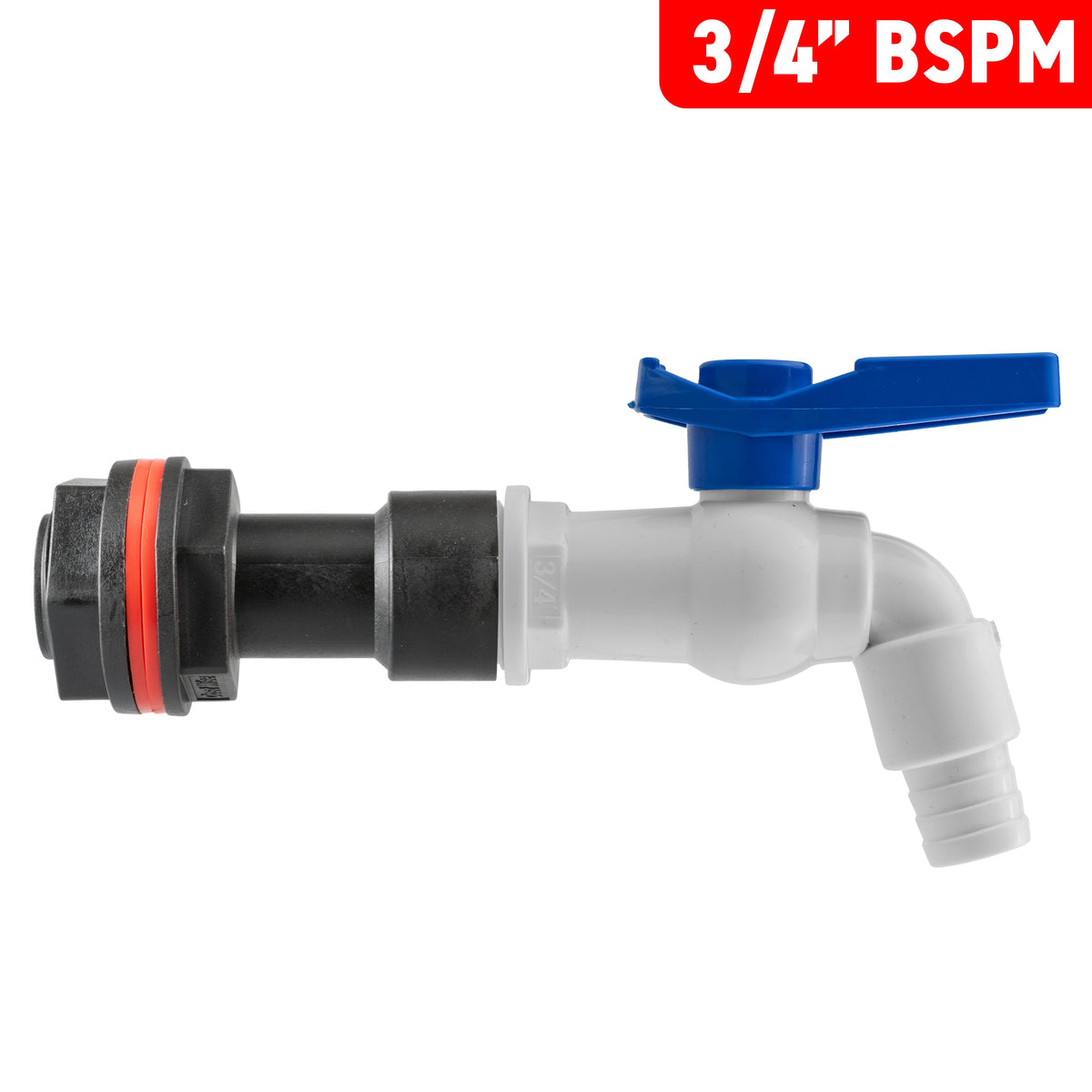

• Tank mounting thread: ¾″ BSP male
• Tank connector outlet: ¾″ BSP female
• Tank fitting: plastic
• Supplied sealing parts: 1 back nut and 2 washers
• Extension: 50mm, supplier-stated connector extension
• Tap inlet: ¾″ BSP male
• Tap: white PVC, blue lever
• Finished outlet: ½″ hose barb
• Reference: WBEX34MF-KIT006

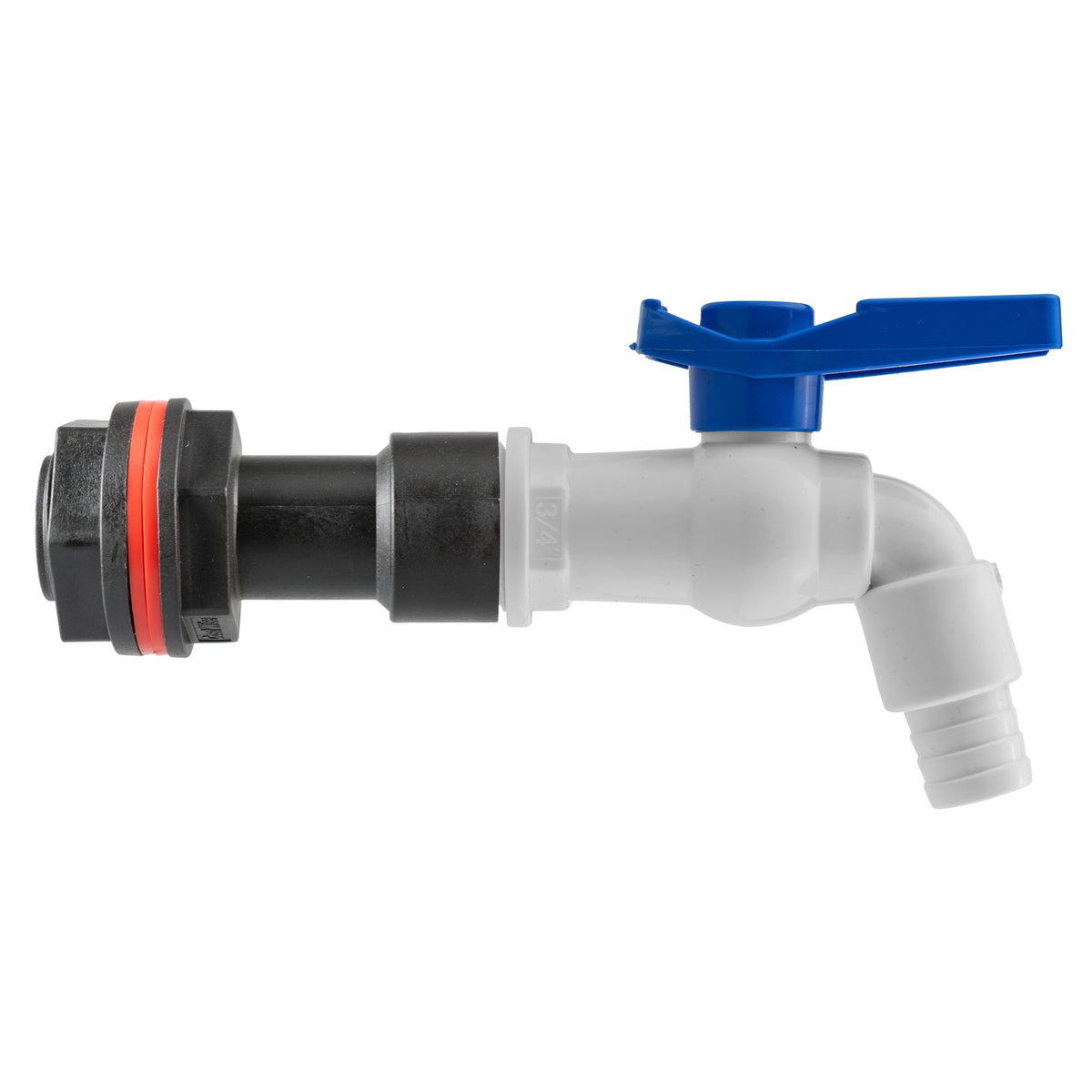

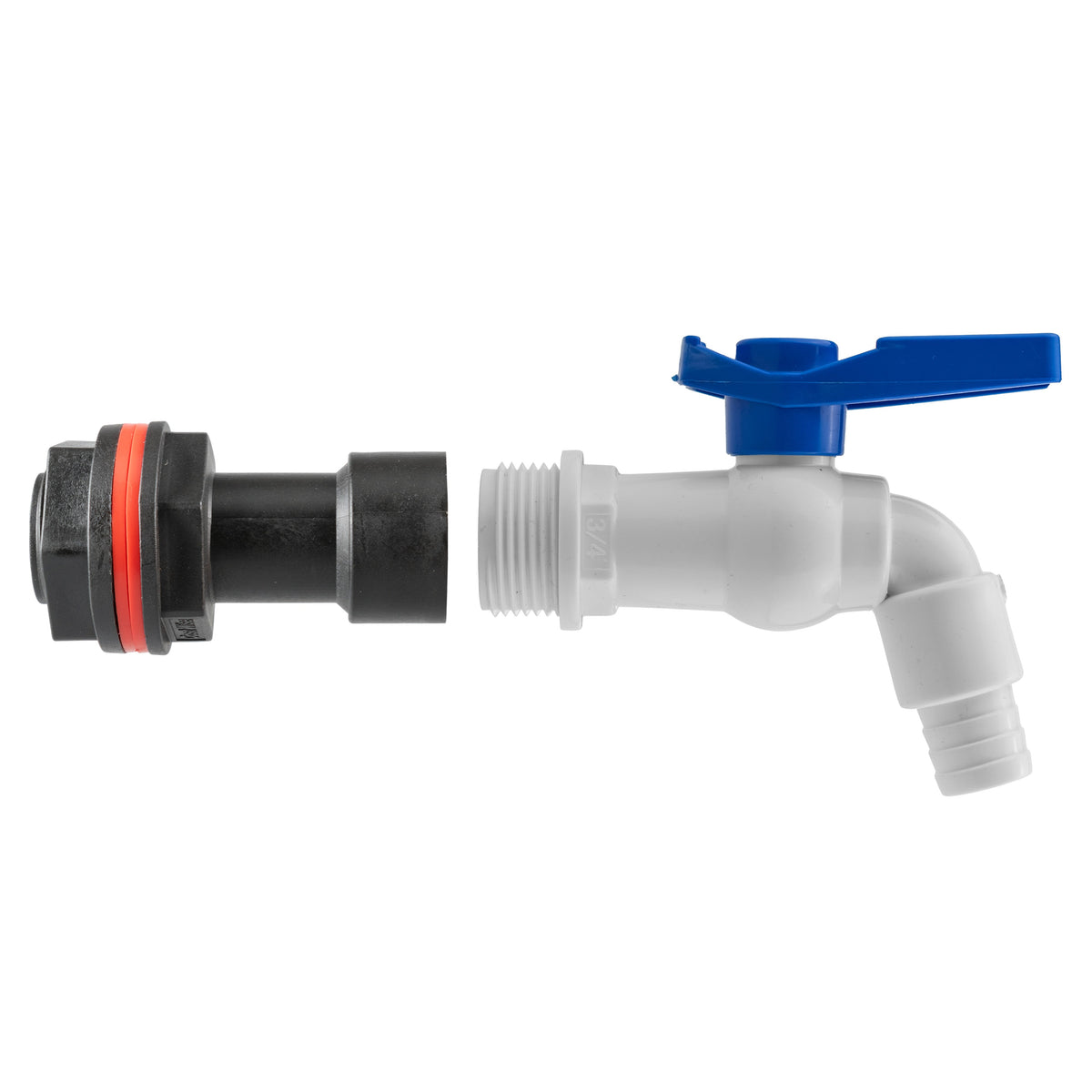

What is included

• 1 × 50mm extension tube, ¾″ BSP male/female
• 1 × back nut
• 2 × sealing washers
• 1 × white PVC tap with ¾″ BSP male inlet and ½″ hose barb

Fitting your product

Match the actual tank fitting or wall and the final hose or pipe connection before installation. Measure the supplied tank connector and follow its installation instructions before drilling a new hole. Assemble and inspect all joints before filling the tank. Tank, pipe, hose, separate hose clips and PTFE tape are supplied separately unless listed below. Match the hose bore and use suitable fastening.
