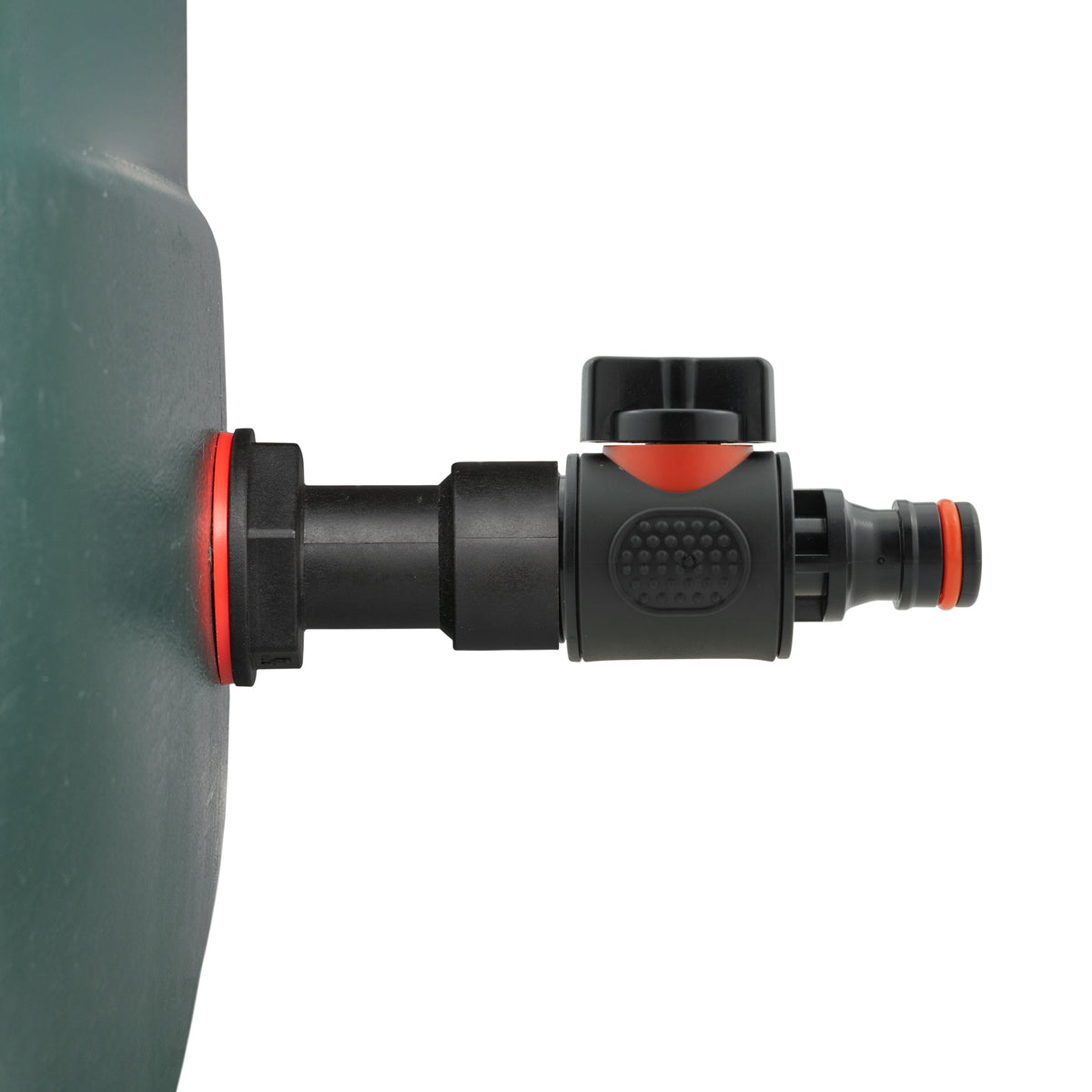

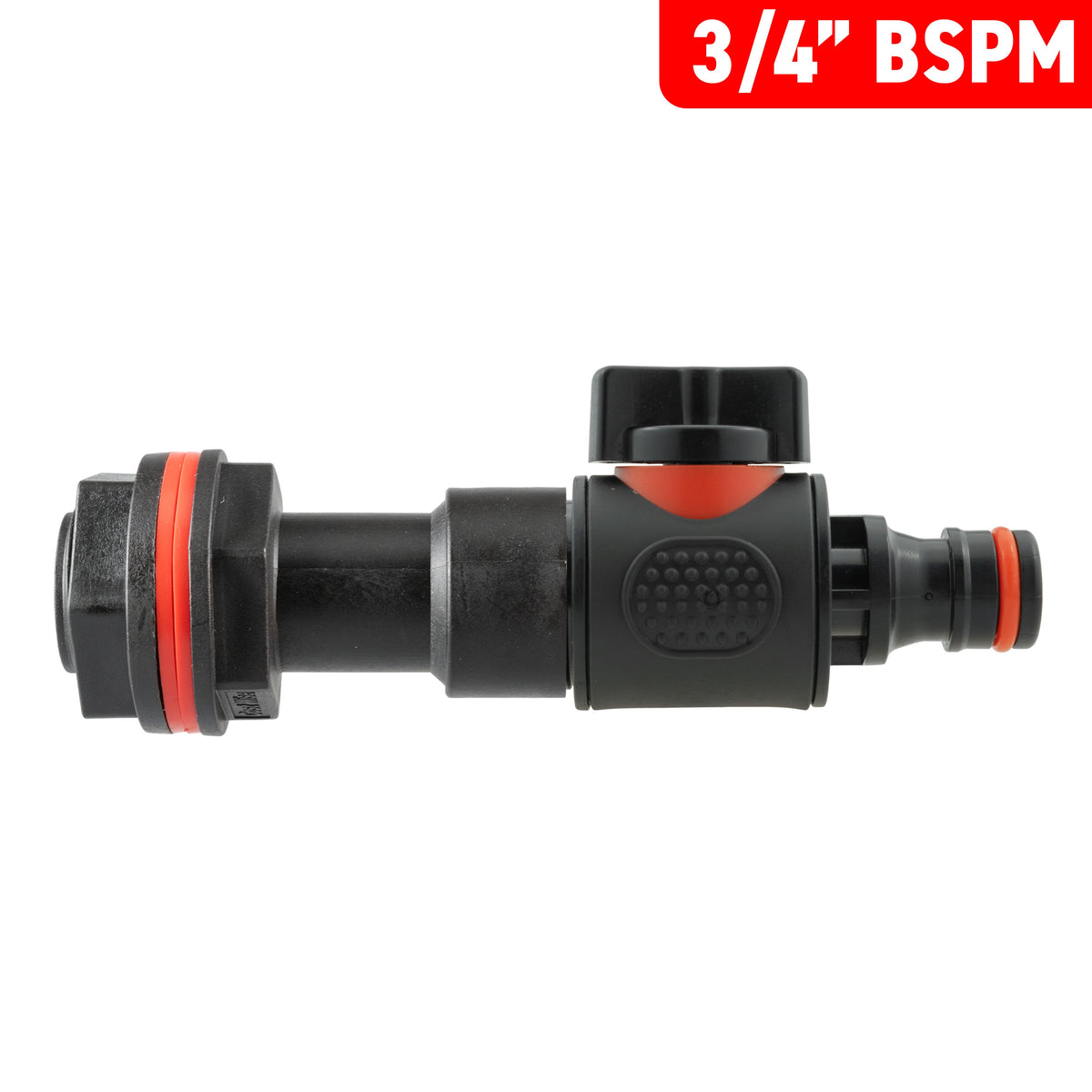

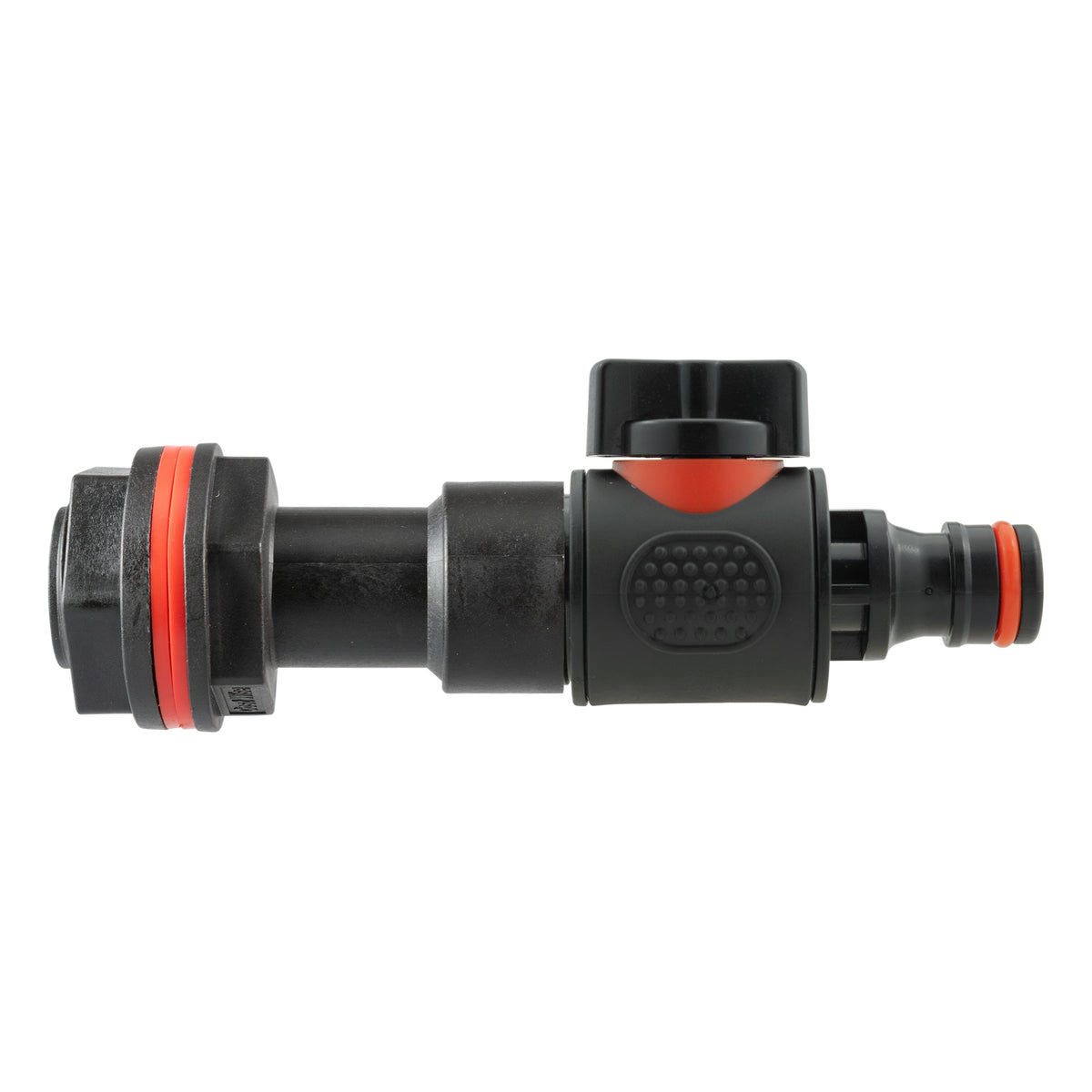

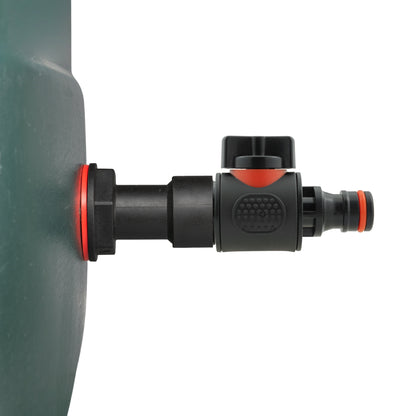

¾″ Water Butt Extension – Quick-Connect Valve & Cutter

Bring a water-butt outlet 50mm further out from the tank and add manual flow control. This set combines the tank fitting, listed tap or valve assembly and a 27mm HSS hole cutter. Its finished connection is male snap-on plug.

Product details

• Mounting thread: ¾″ BSP male
• Extension outlet: ¾″ BSP female
• Outward extension: 50mm
• Finished outlet: male snap-on plug
• Supplied cutter: 27mm HSS hole cutter
• Kit reference: WBEX34MF-KIT023+DB

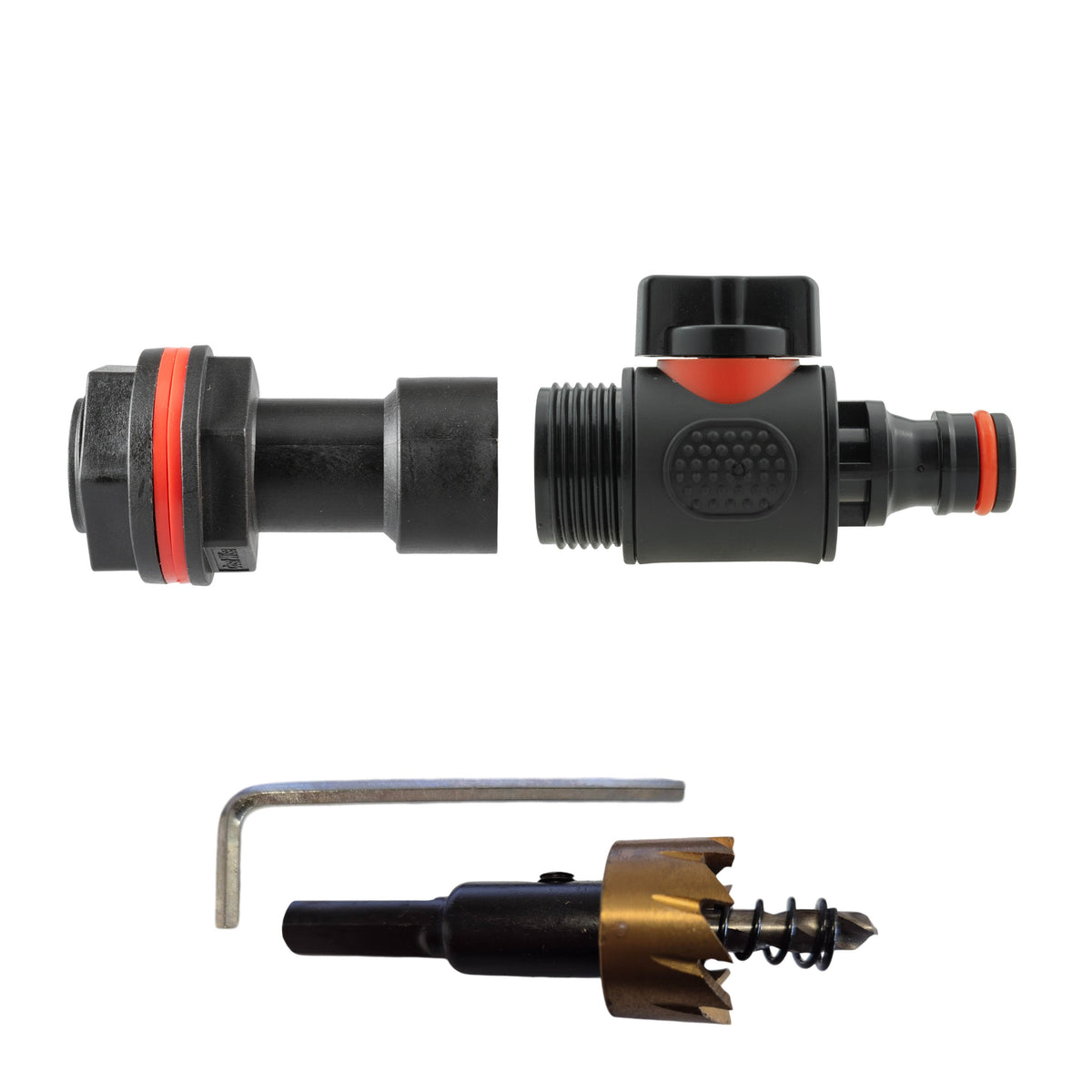

What is included

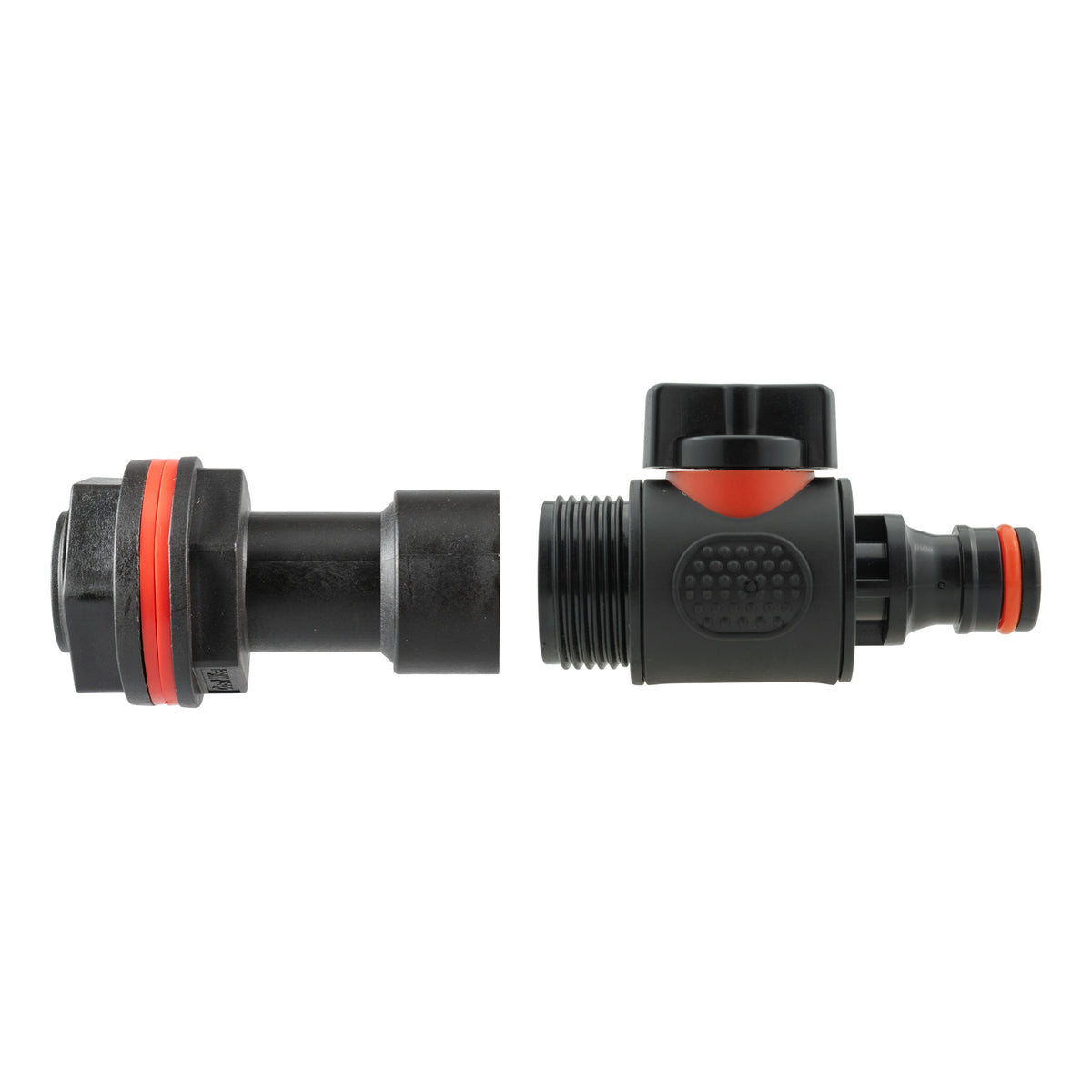

• 1 × 50mm water-butt extension with ¾″ BSP male mounting thread and ¾″ BSP female outlet
• 1 × back nut
• 2 × sealing washers
• 1 × black/orange plastic manual valve with ¾″ BSP male inlet
• 1 × 27mm HSS hole cutter

Check compatibility

Check the tank-wall thickness, material and actual connector dimensions before cutting or fitting. BSP is a thread designation, not the drilling diameter. The supplied 27mm cutter is listed separately from the mounting thread. Matching female hose couplings are required for male snap-on plugs and are supplied separately. Tank, drill, pipe/hose and separate hose clips are not included. Assemble and check all joints before filling or opening the supply. PTFE tape is supplied separately.
