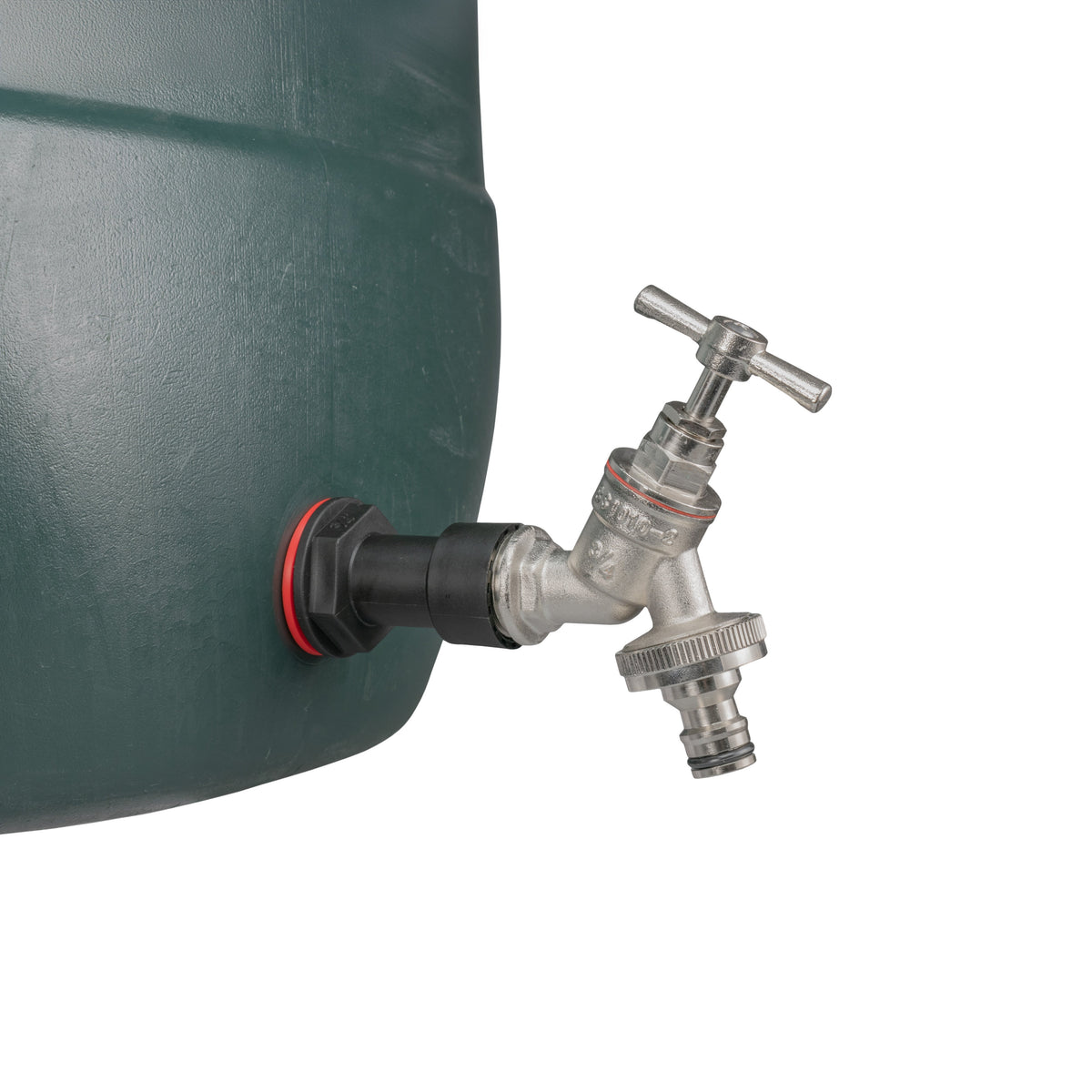

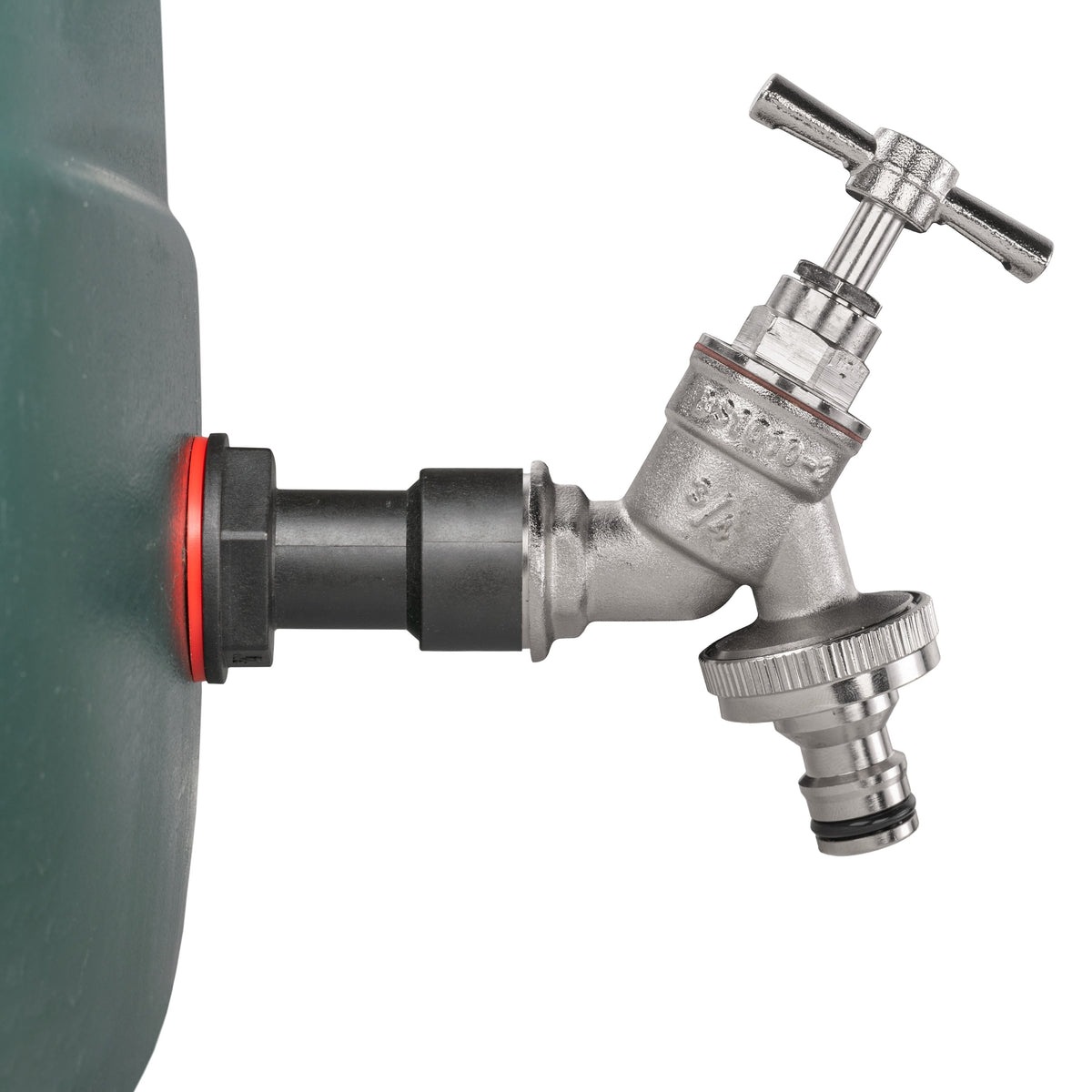

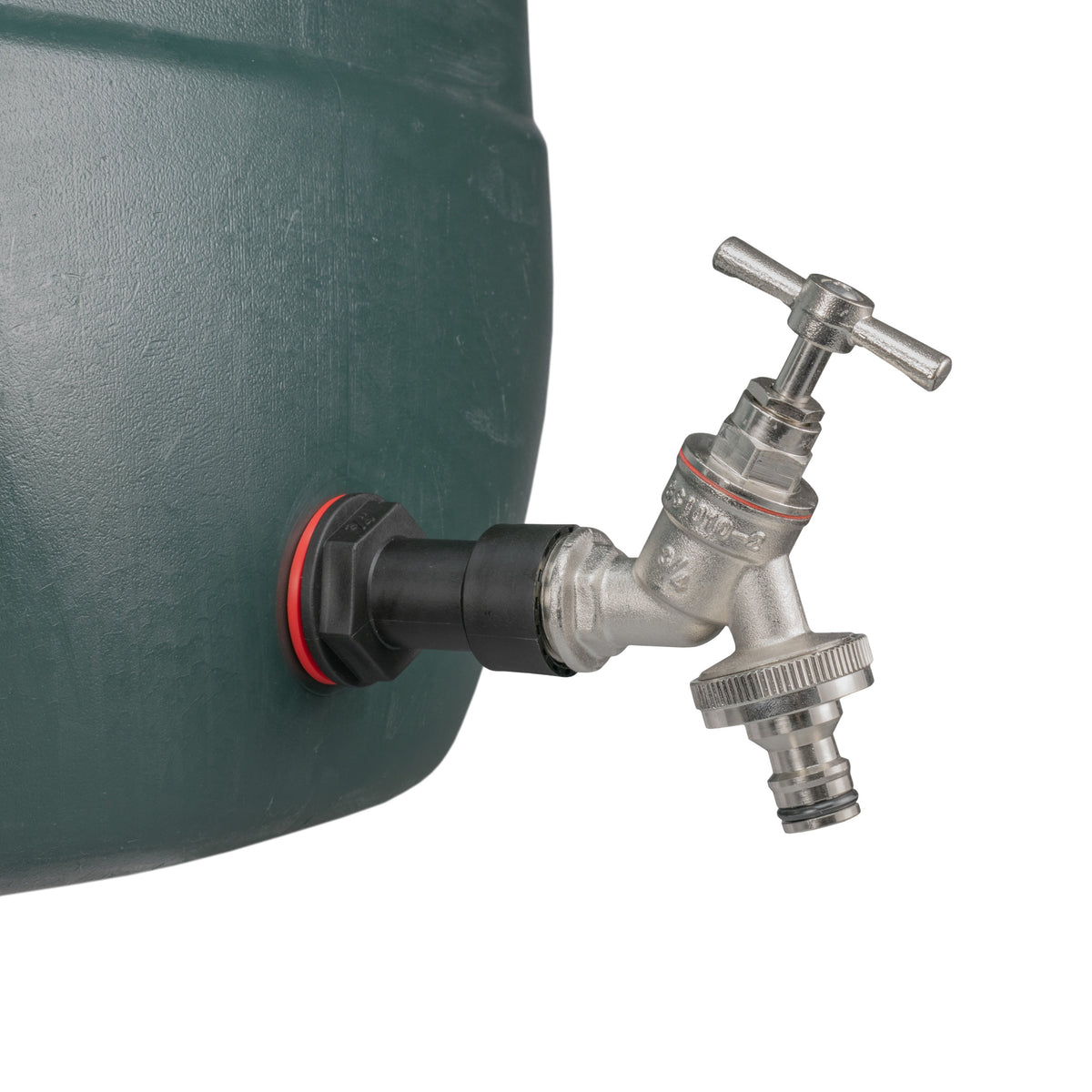

Bring a water-butt outlet 50mm further out from the tank and add manual flow control. This set combines the tank fitting, listed tap or valve assembly and a 27mm HSS hole cutter. Its finished connection is male snap-on plug.
Product details

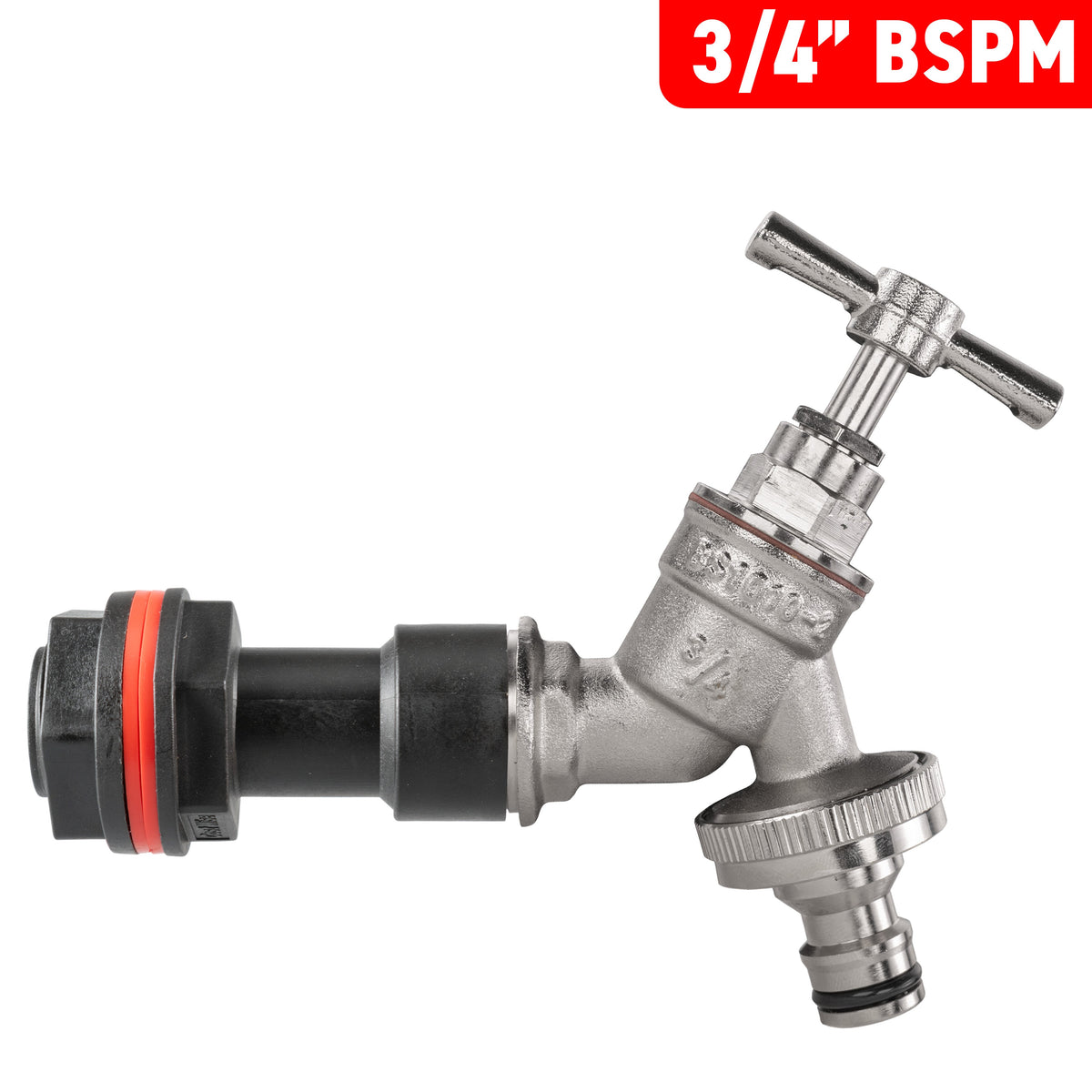

Mounting thread: ¾″ BSP male
Extension outlet: ¾″ BSP female
Outward extension: 50mm
Finished outlet: male snap-on plug
Supplied cutter: 27mm HSS hole cutter
Kit reference: WBEX34MF-KIT022+DB

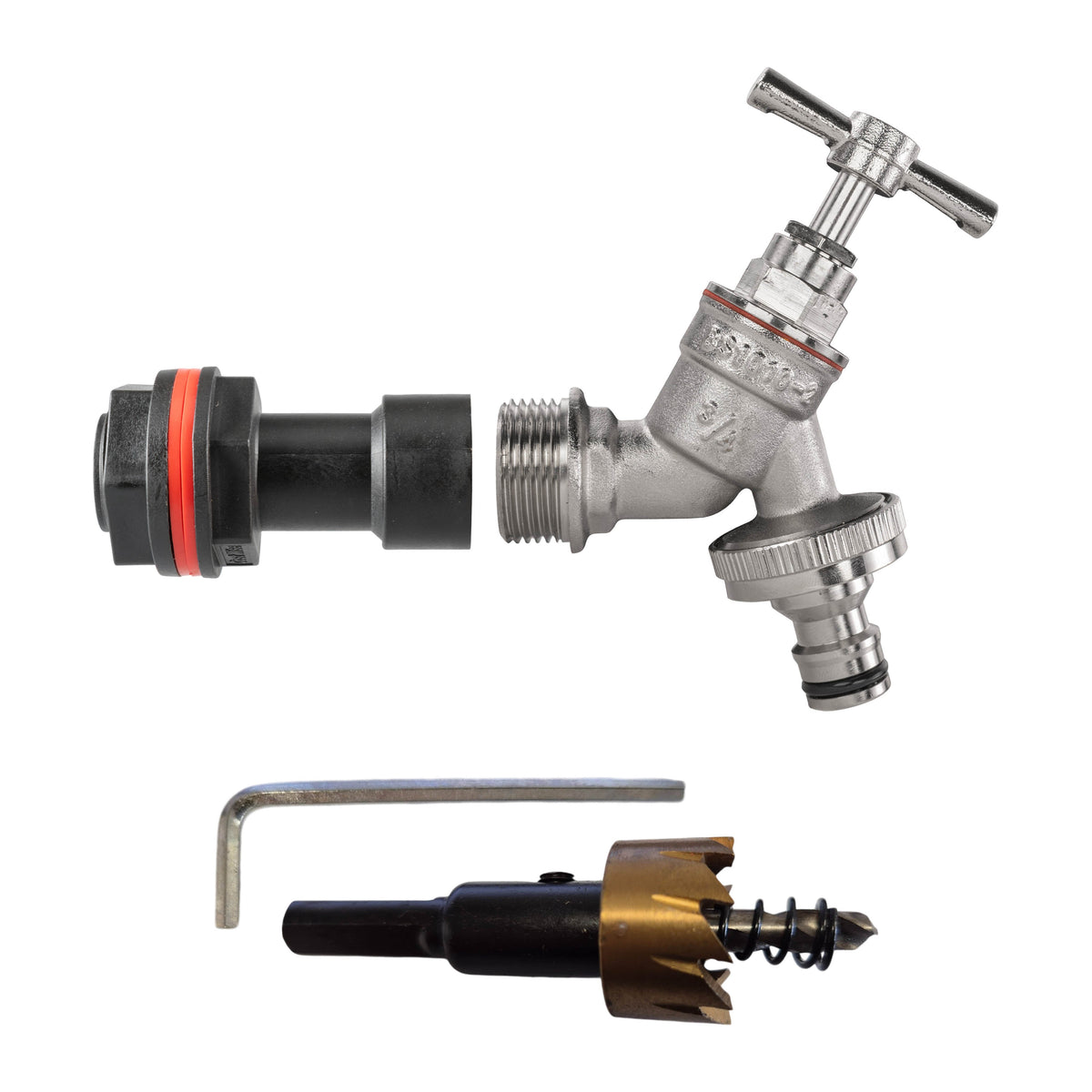

What is included

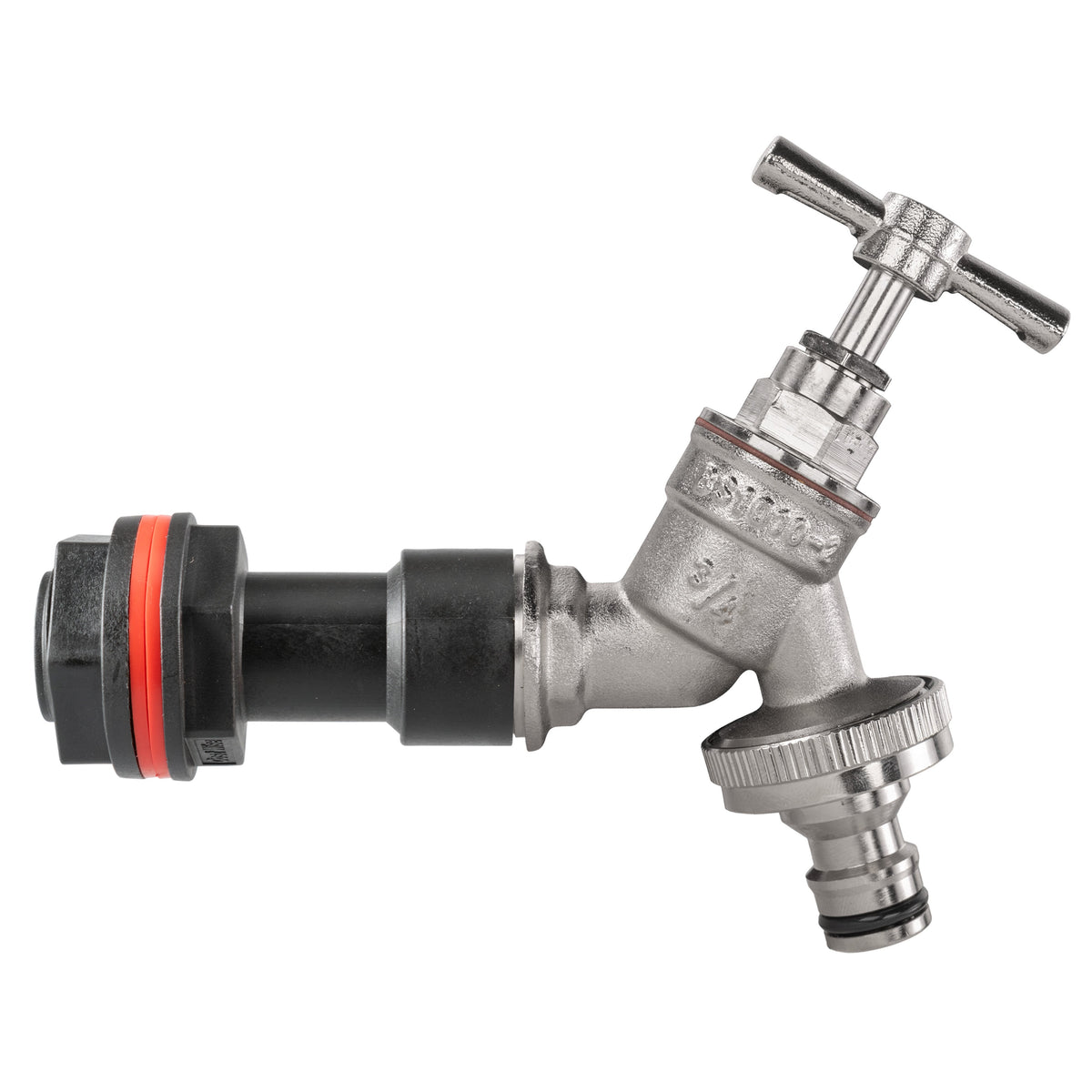

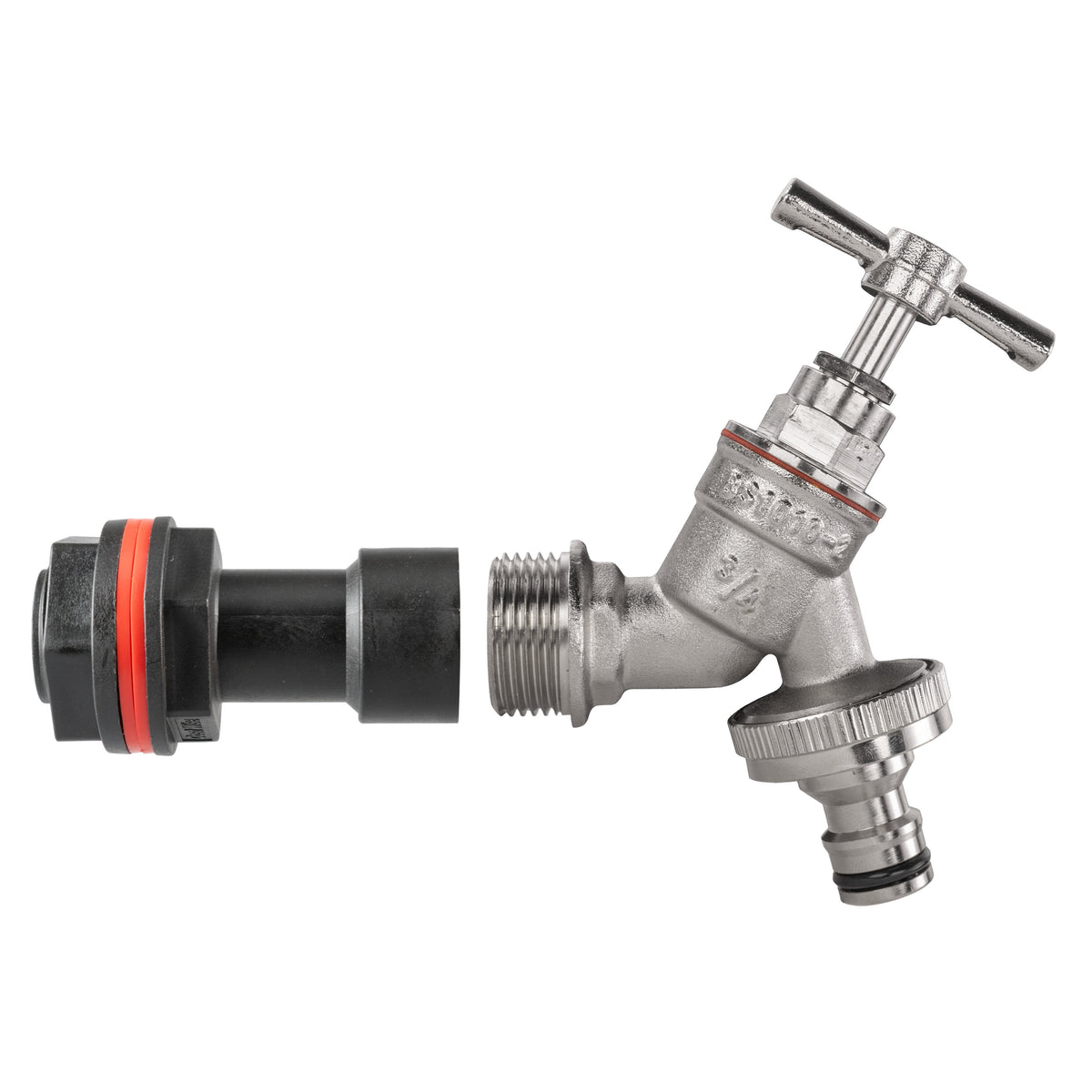

1 × 50mm water-butt extension with ¾″ BSP male mounting thread and ¾″ BSP female outlet
1 × back nut
2 × sealing washers
1 × nickel-plated brass bib tap and 1″ BSP female-threaded male snap-on adapter
1 × 27mm HSS hole cutter
Check compatibility
Check the tank-wall thickness, material and actual connector dimensions before cutting or fitting. BSP is a thread designation, not the drilling diameter. The supplied 27mm cutter is listed separately from the mounting thread. Matching female hose couplings are required for male snap-on plugs and are supplied separately. Tank, drill, pipe/hose and separate hose clips are not included. Assemble and check all joints before filling or opening the supply. PTFE tape is supplied separately.
