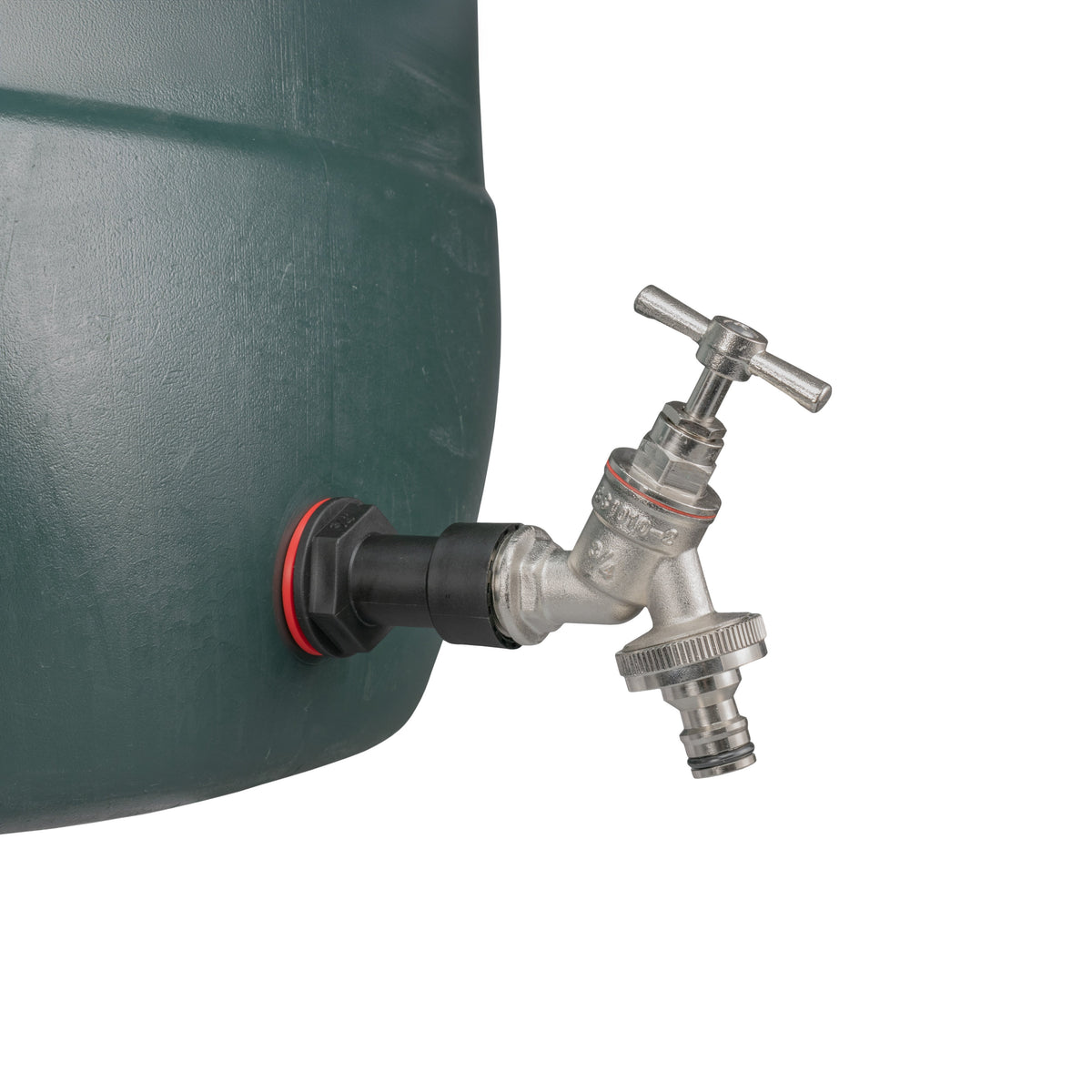

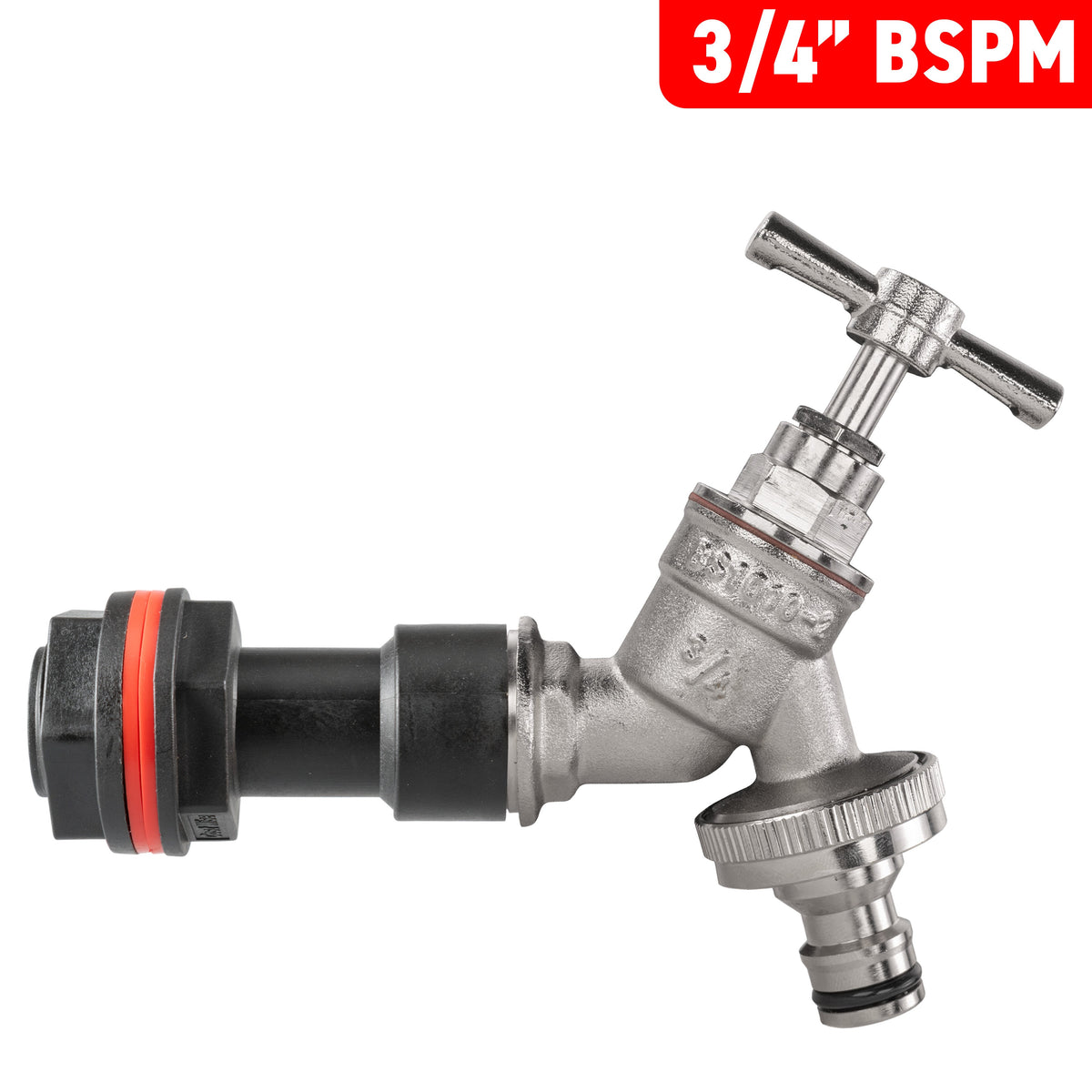

¾″ BSP Water Butt Extension – Nickel-Plated Quick Tap

Fit a manually controlled nickel-plated brass bib tap to a matching tank connection with the supplied plastic fitting and seals.

Product details

• Tank mounting thread: ¾″ BSP male
• Tank connector outlet: ¾″ BSP female
• Tank fitting: plastic
• Supplied sealing parts: 1 back nut and 2 washers
• Extension: 50mm, supplier-stated connector extension
• Tap inlet: ¾″ BSP male
• Tap body: nickel-plated brass
• Finished outlet: male snap-on plug
• Reference: WBEX34MF-KIT022

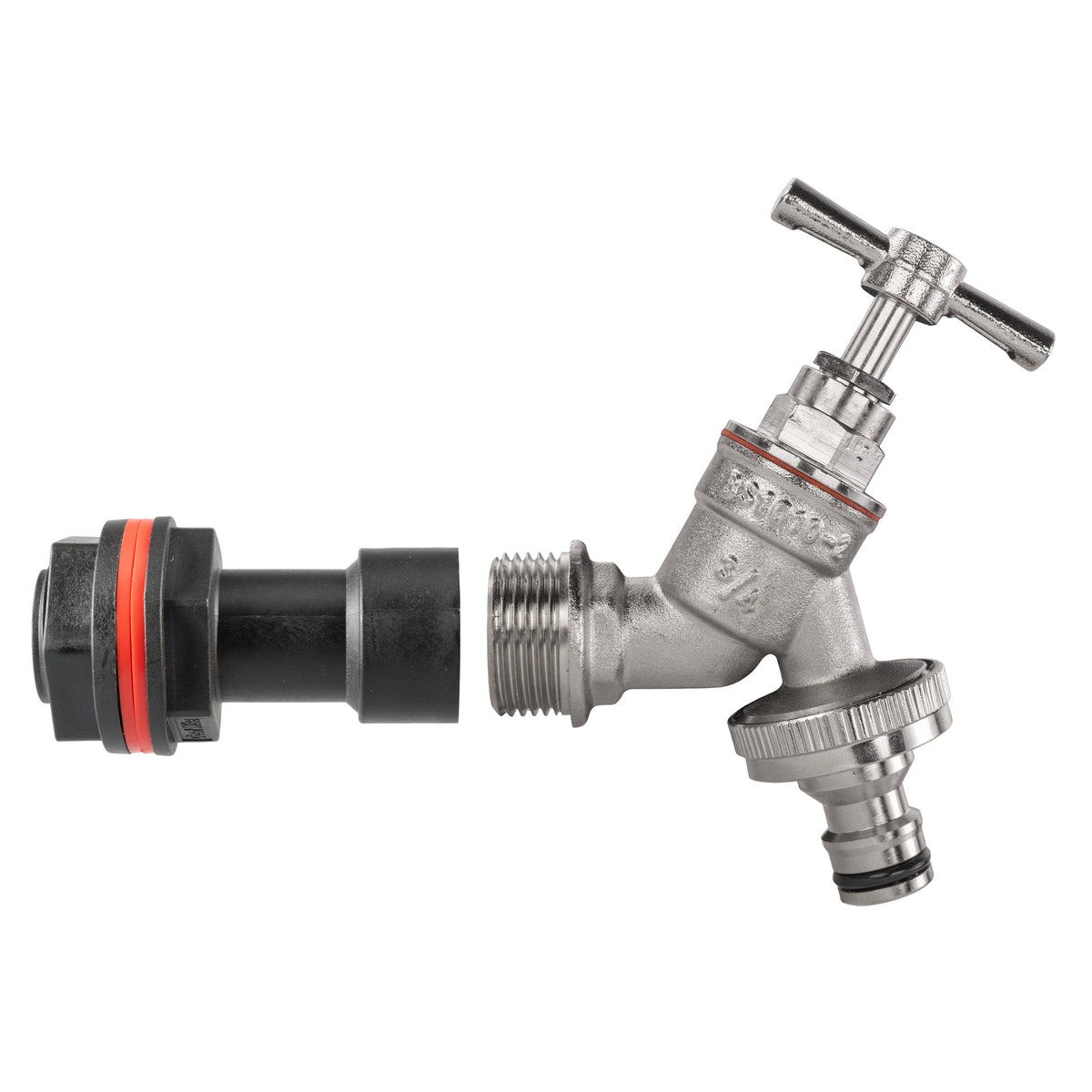

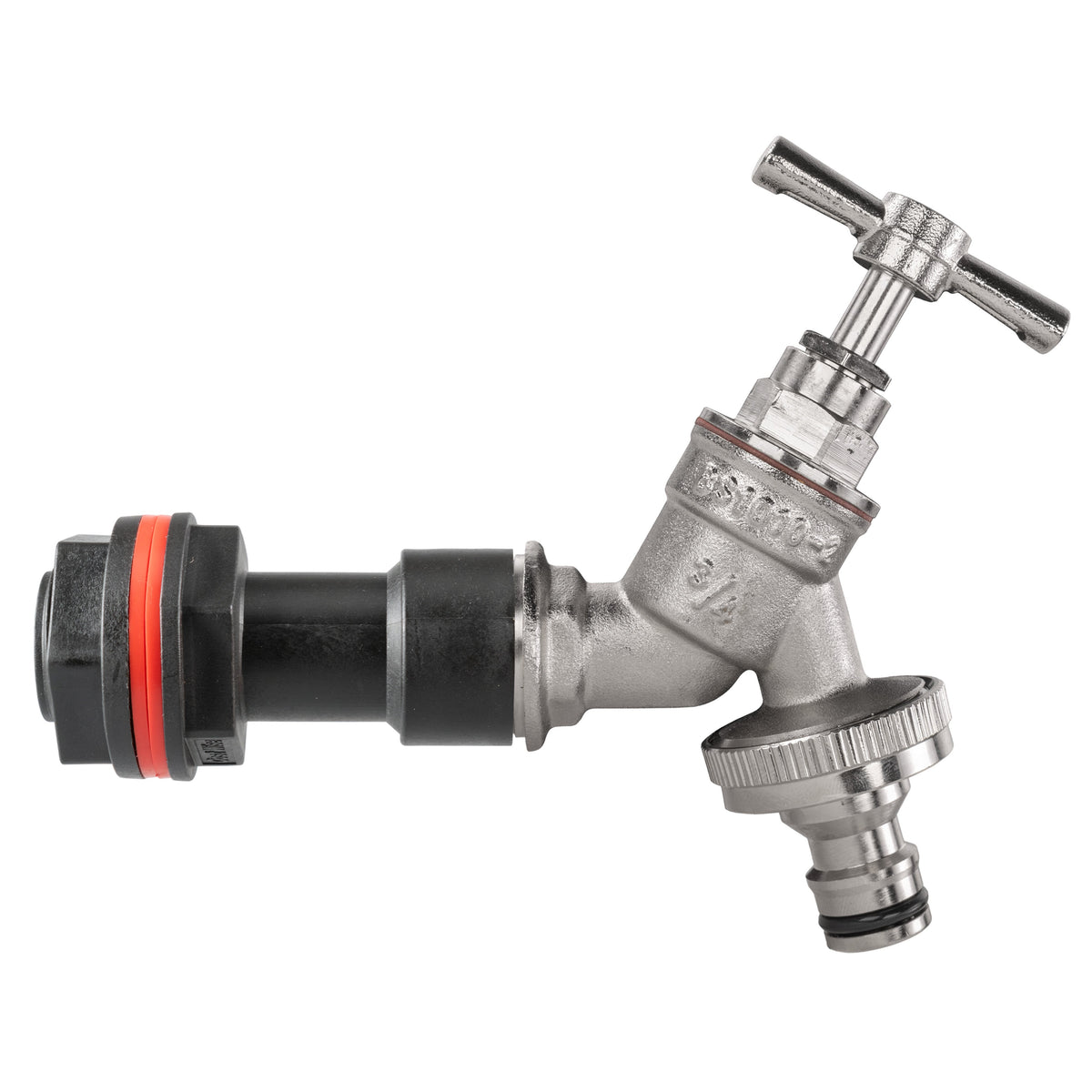

What is included

• 1 × 50mm extension tube, ¾″ BSP male/female
• 1 × back nut
• 2 × sealing washers
• 1 × nickel-plated brass bib tap with ¾″ BSP male inlet and removable hose-tail attachment
• 1 × nickel-plated brass male snap-on adapter with 1″ BSP female thread

Fitting your product

Match the actual tank fitting or wall and the final hose or pipe connection before installation. Measure the supplied tank connector and follow its installation instructions before drilling a new hole. Assemble and inspect all joints before filling the tank. Tank, pipe, hose, separate hose clips and PTFE tape are supplied separately unless listed below. Replace the removable hose-tail attachment with the supplied snap-on adapter. A compatible female snap-on hose coupling is supplied separately.
