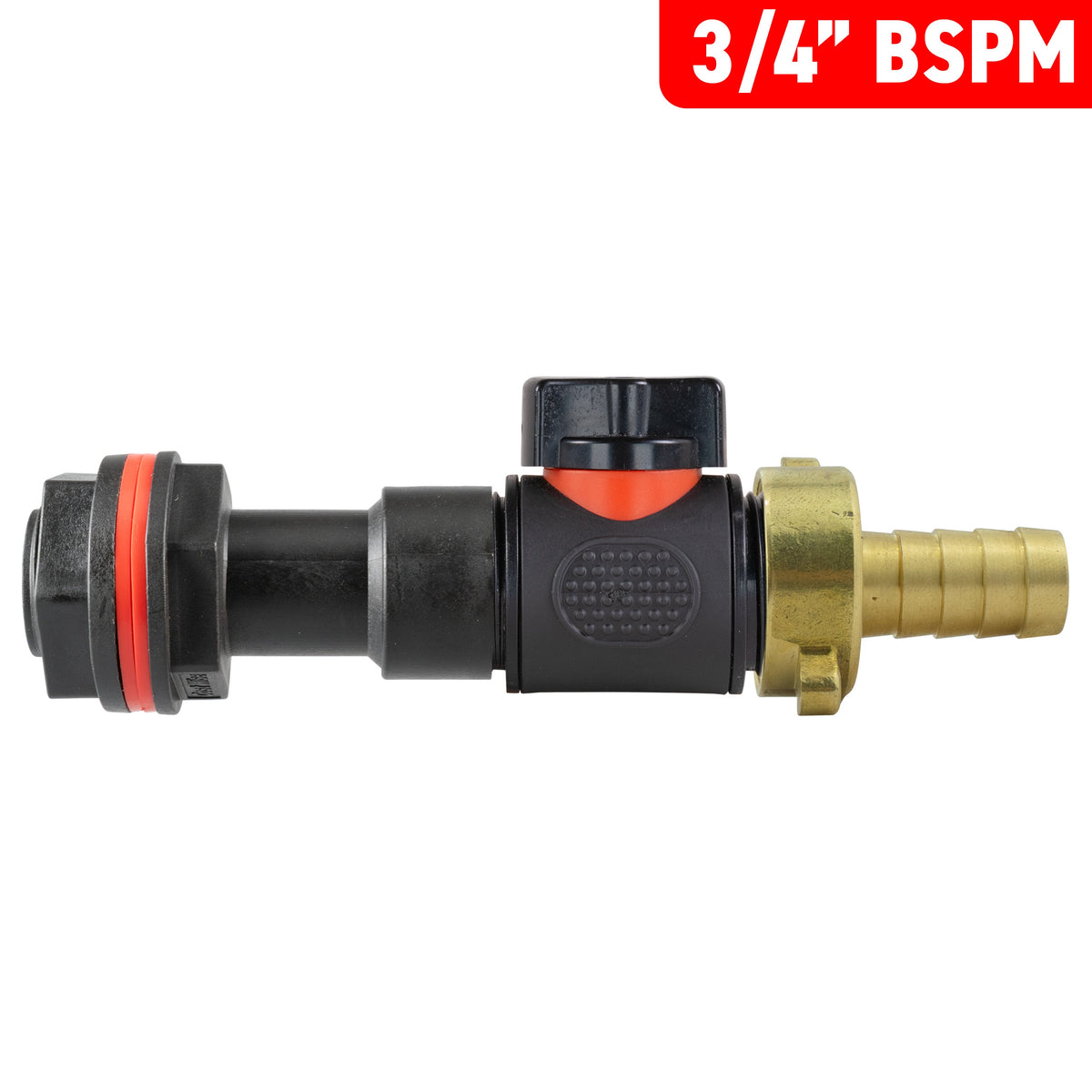

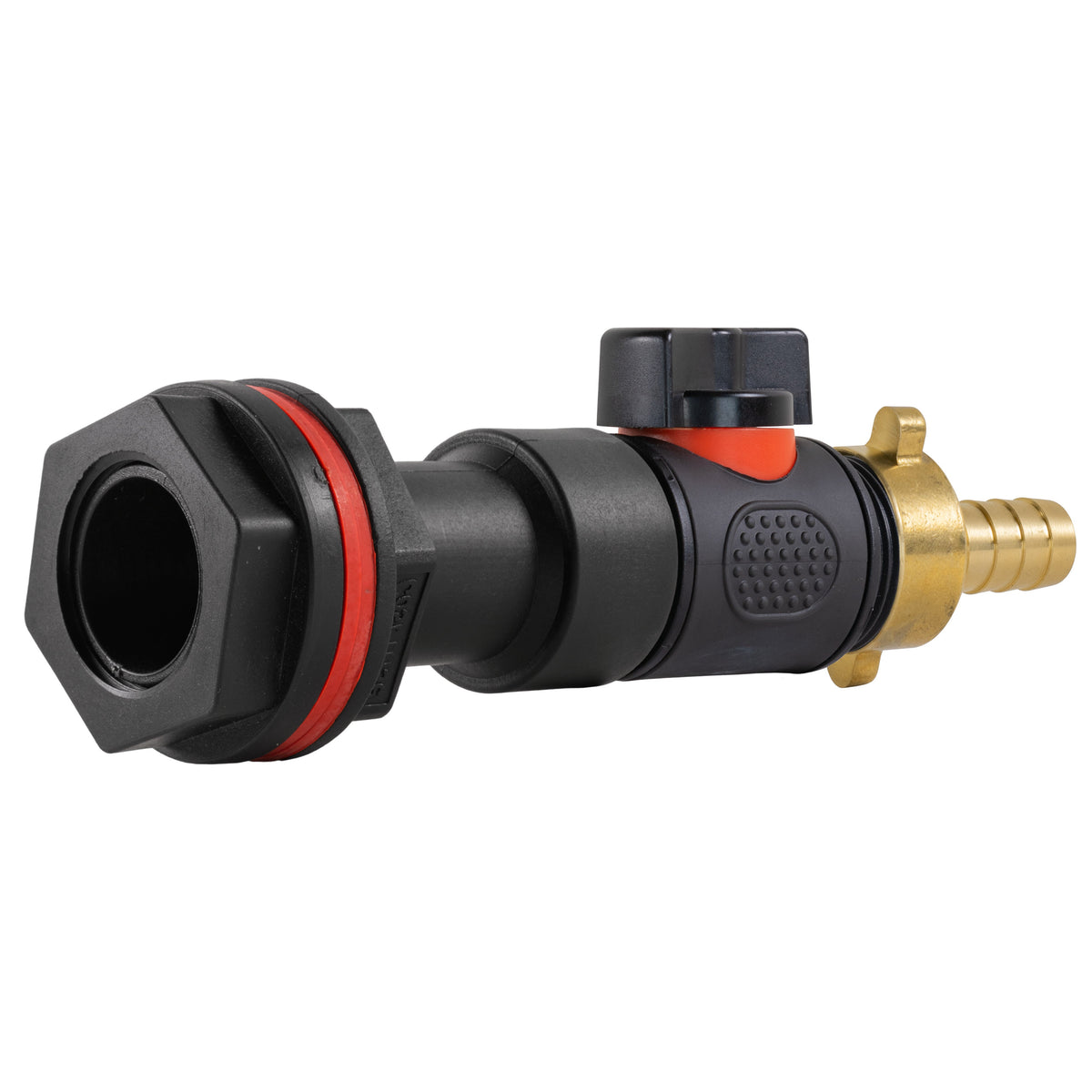

¾″ Water Butt Extension – 13mm Brass Barb Valve & Cutter

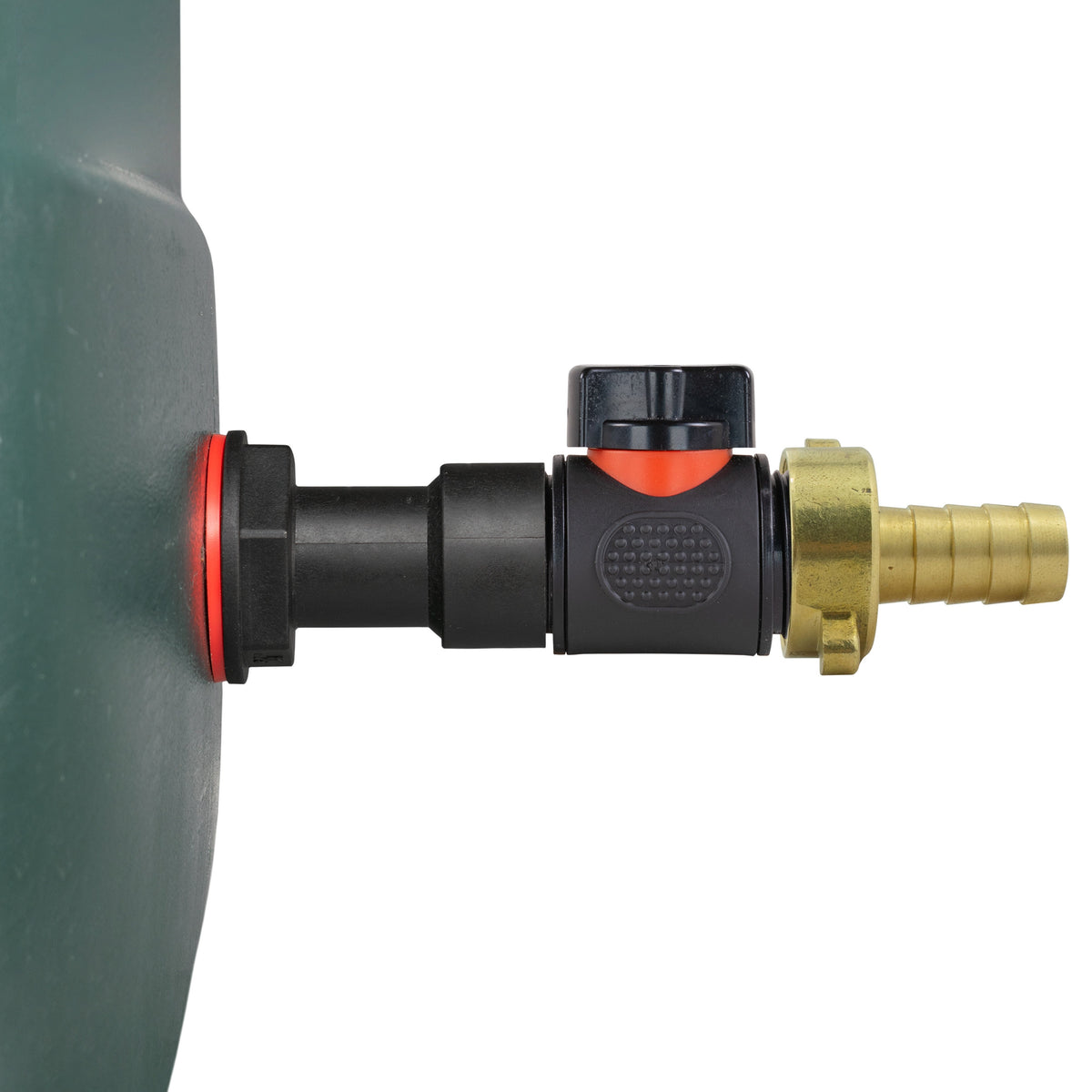

Move a compatible water-butt outlet 50mm outwards and add manual water-flow control. This kit includes the extension, sealing hardware, the listed tap or valve assembly and a 27mm hole cutter. Its finished connection is 13mm brass hose barb.

Product details

• Mounting thread: ¾″ BSP male
• Extension outlet: ¾″ BSP female
• Outward extension: 50mm
• Supplied cutter: 27mm HSS hole cutter
• Valve: manual plastic inline valve,¾″ BSP male/male
• Finished outlet: 13mm brass hose barb
• Kit reference: WBEX34MF-KIT015+DB

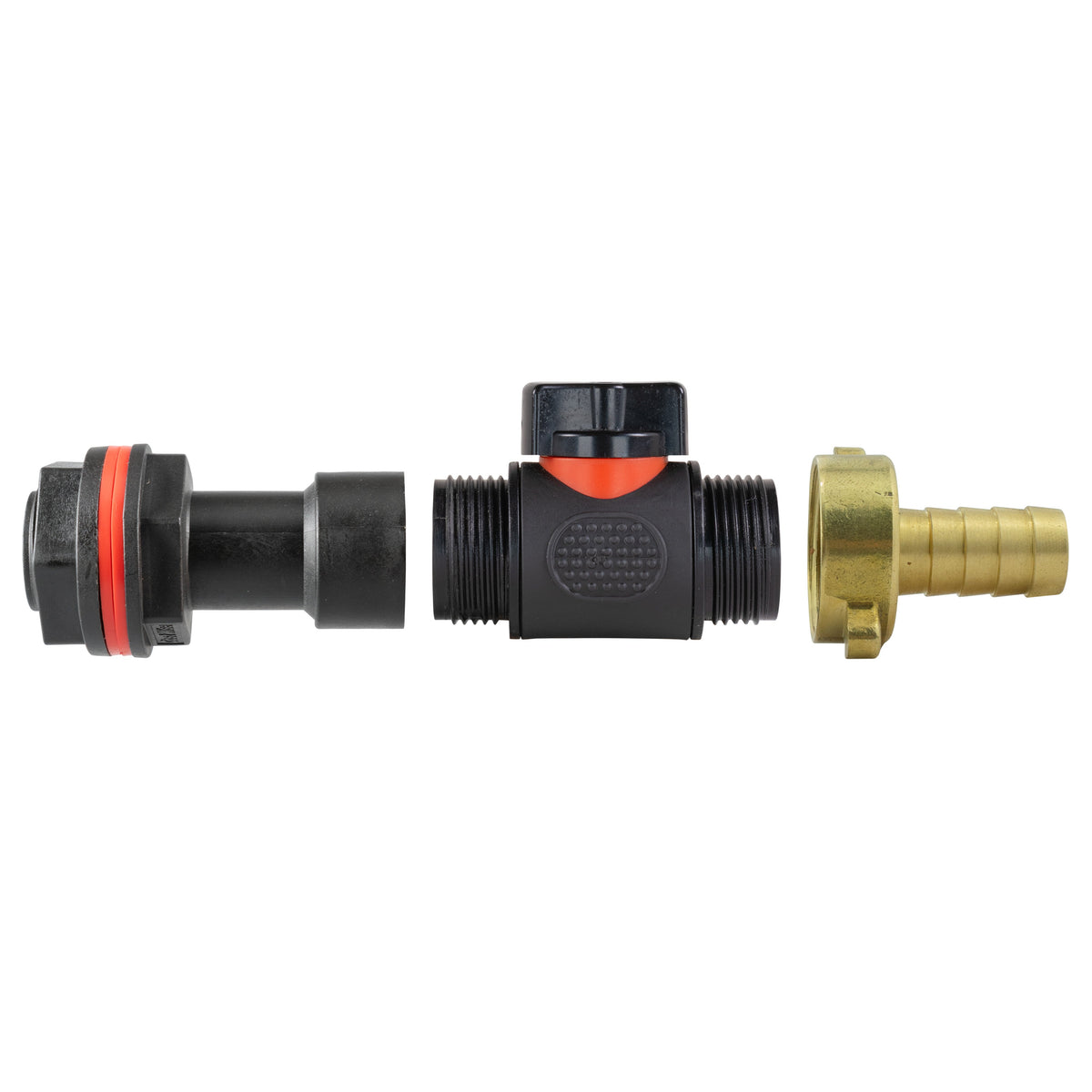

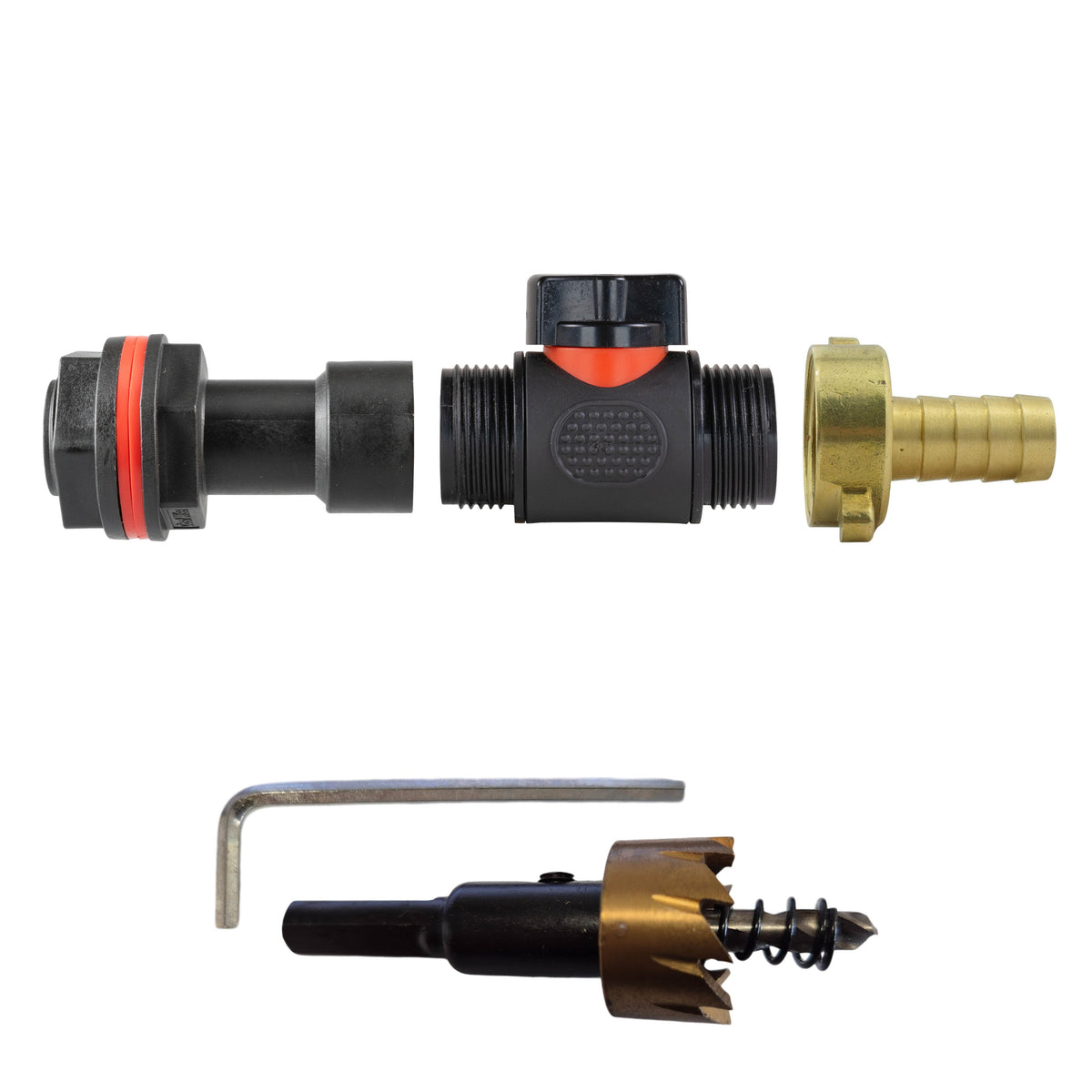

What is included

• 1 × 50mm water-butt extension with ¾″ BSP male mounting thread and female outlet
• 1 × back nut
• 2 × sealing washers
• 1 × black plastic inline valve with ¾″ BSP male threads at both ends
• 1 × 13mm brass hose-tail adapter with ¾″ BSP female thread
• 1 × 27mm HSS hole cutter

Check compatibility

Check tank-wall thickness, material and actual connector dimensions before cutting or fitting. The 27mm measurement describes the supplied cutter; the BSP designation describes the thread. Match the hose or irrigation pipe to the finished barb and use suitable fastening. Tank, drill, pipe/hose, separate hose clips and PTFE tape are not included. Assemble and check all joints before filling or opening the supply.
