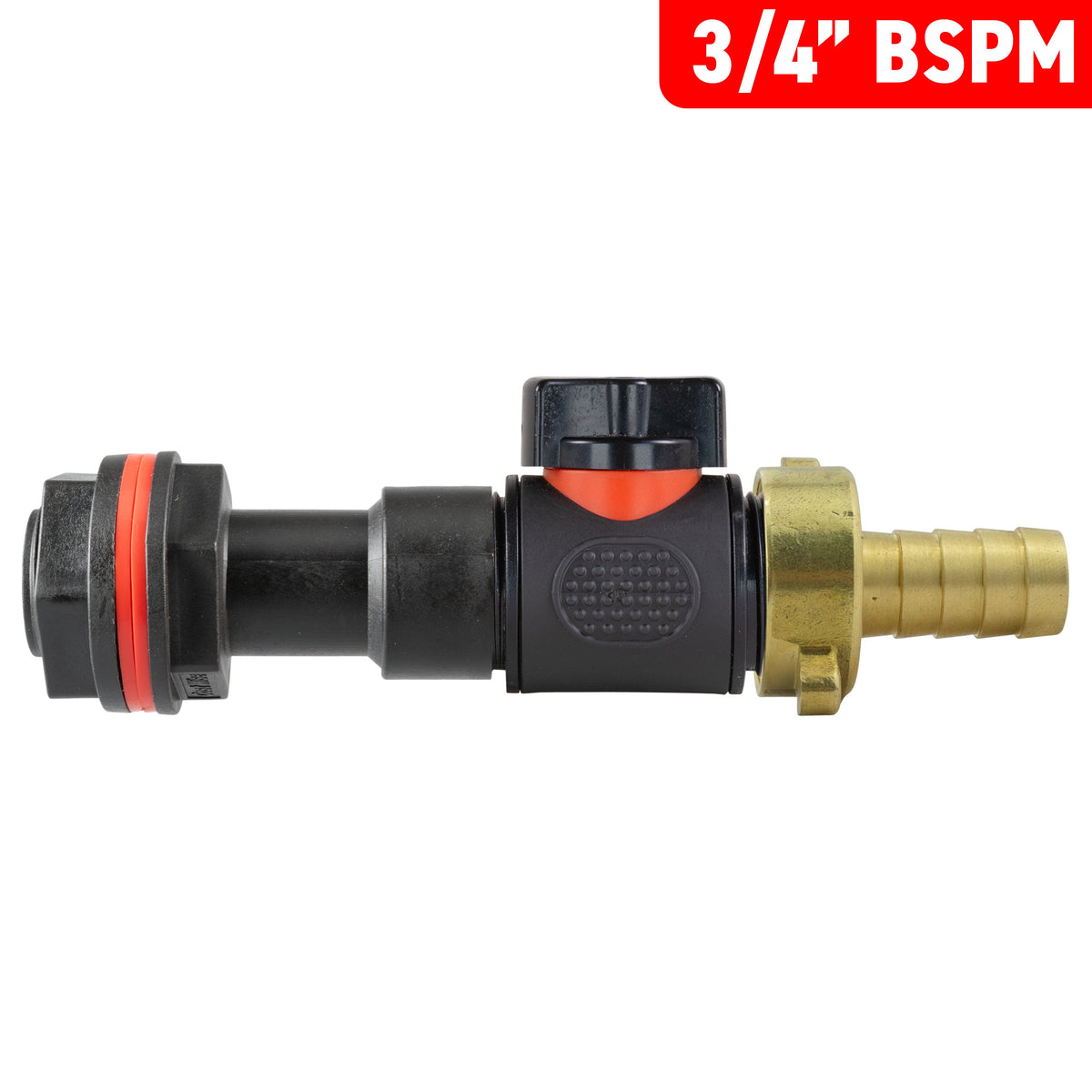

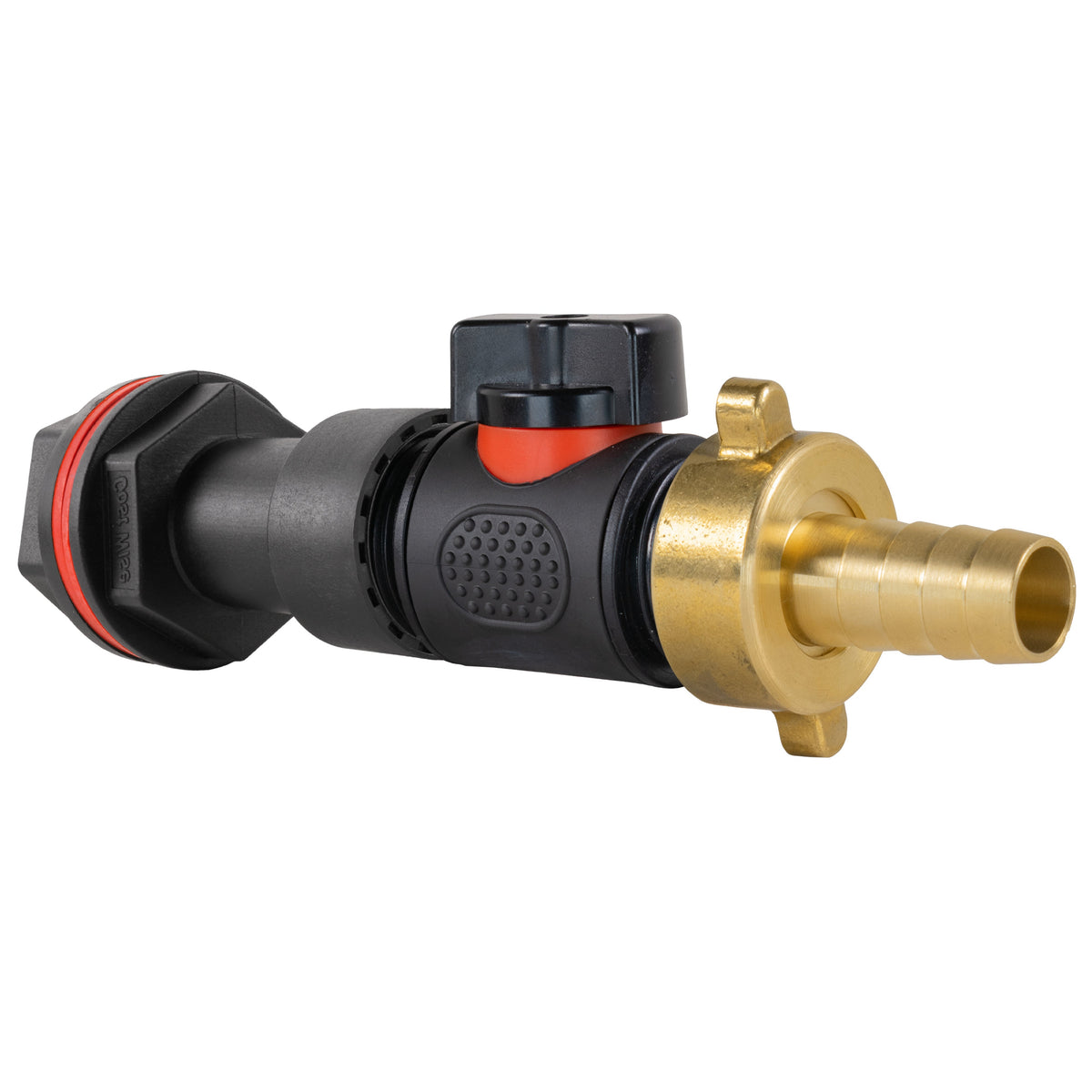

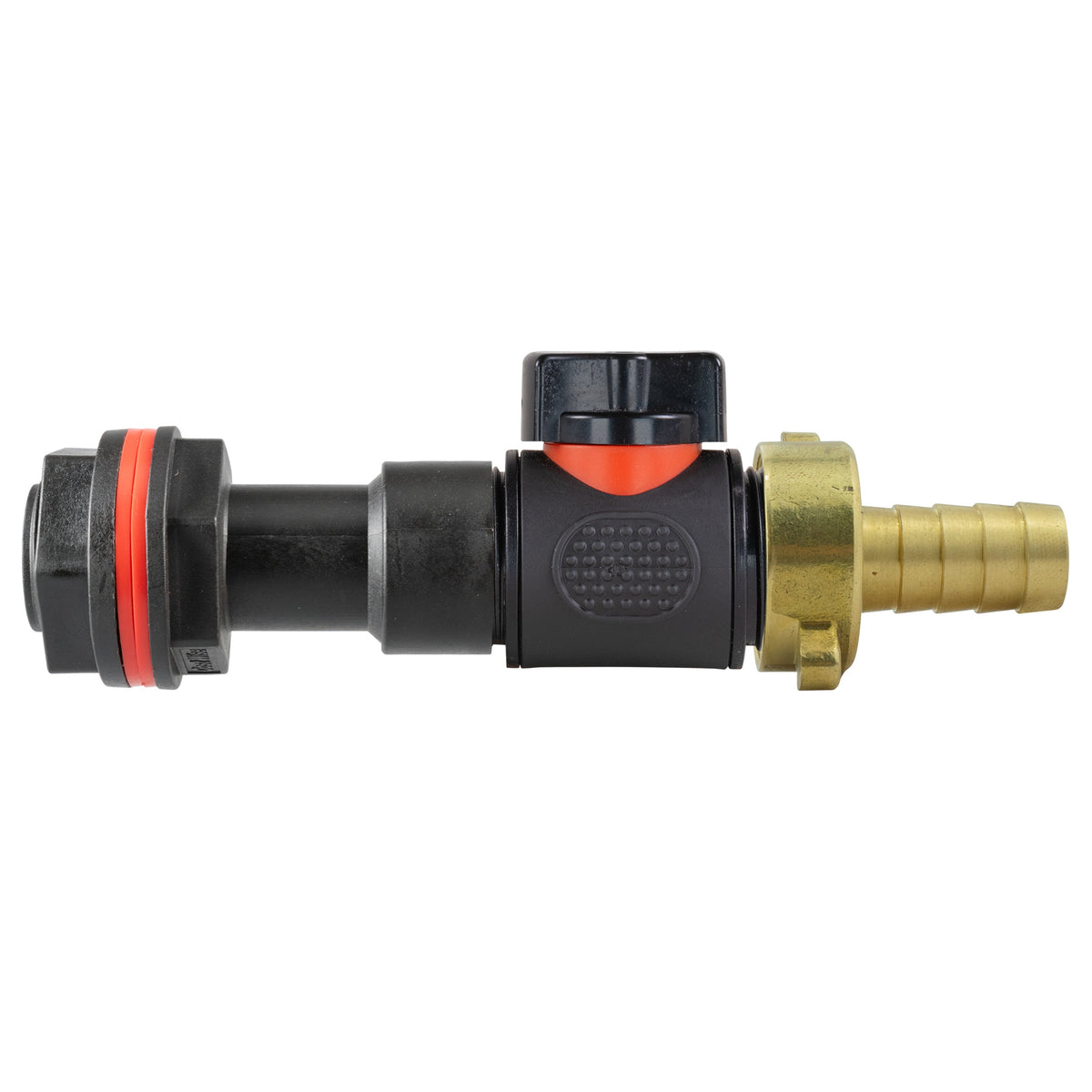

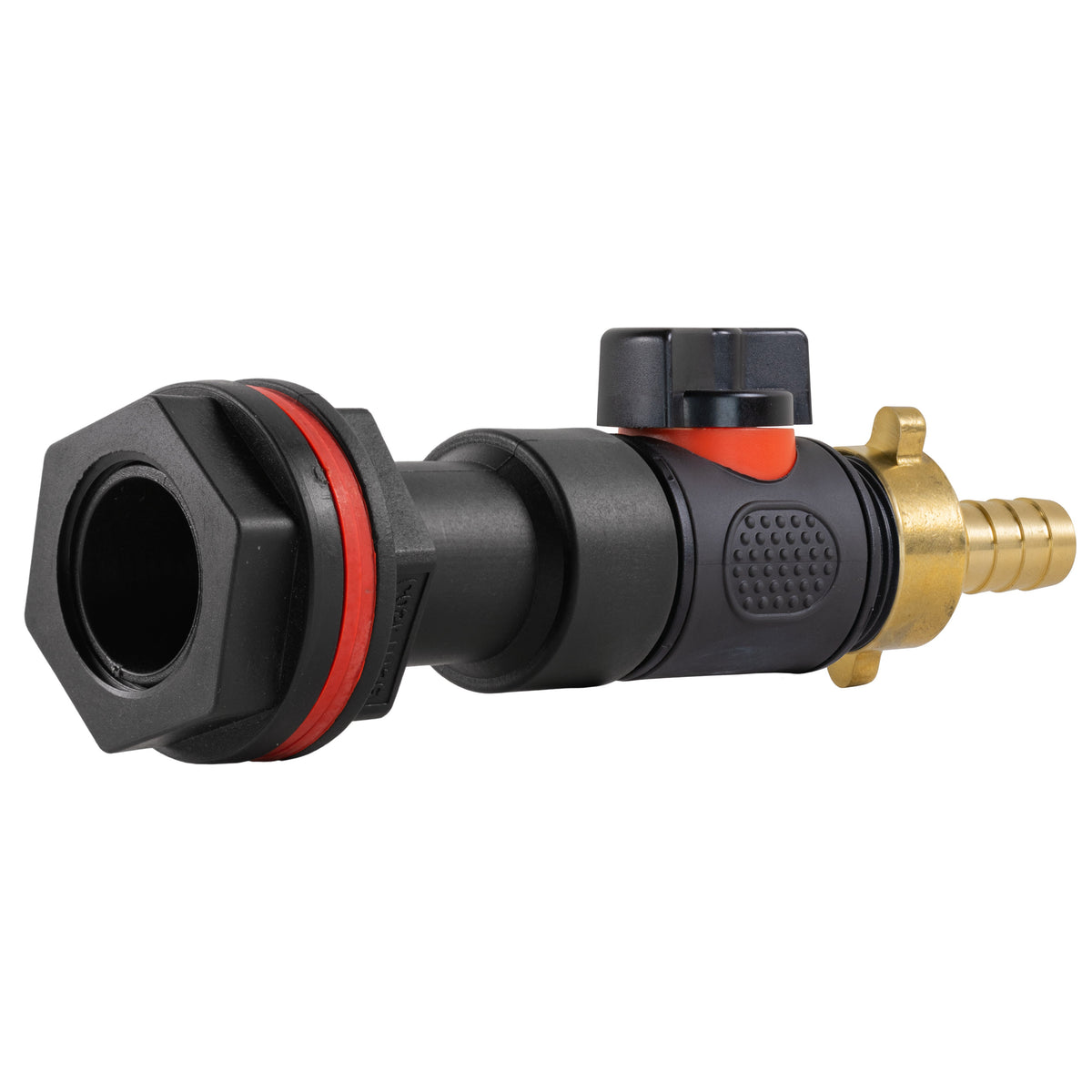

¾″ BSP Water Butt Extension – Valve & 13mm Brass Barb

Add accessible manual flow control at a rainwater tank with the supplied plastic tank fitting and inline valve.

Product details

• Tank mounting thread: ¾″ BSP male
• Tank connector outlet: ¾″ BSP female
• Tank fitting: plastic
• Supplied sealing parts: 1 back nut and 2 washers
• Extension: 50mm, supplier-stated connector extension
• Valve: black/orange manual plastic valve, ¾″ BSP male/male
• Finished outlet: 13mm brass hose barb
• Reference: WBEX34MF-KIT015

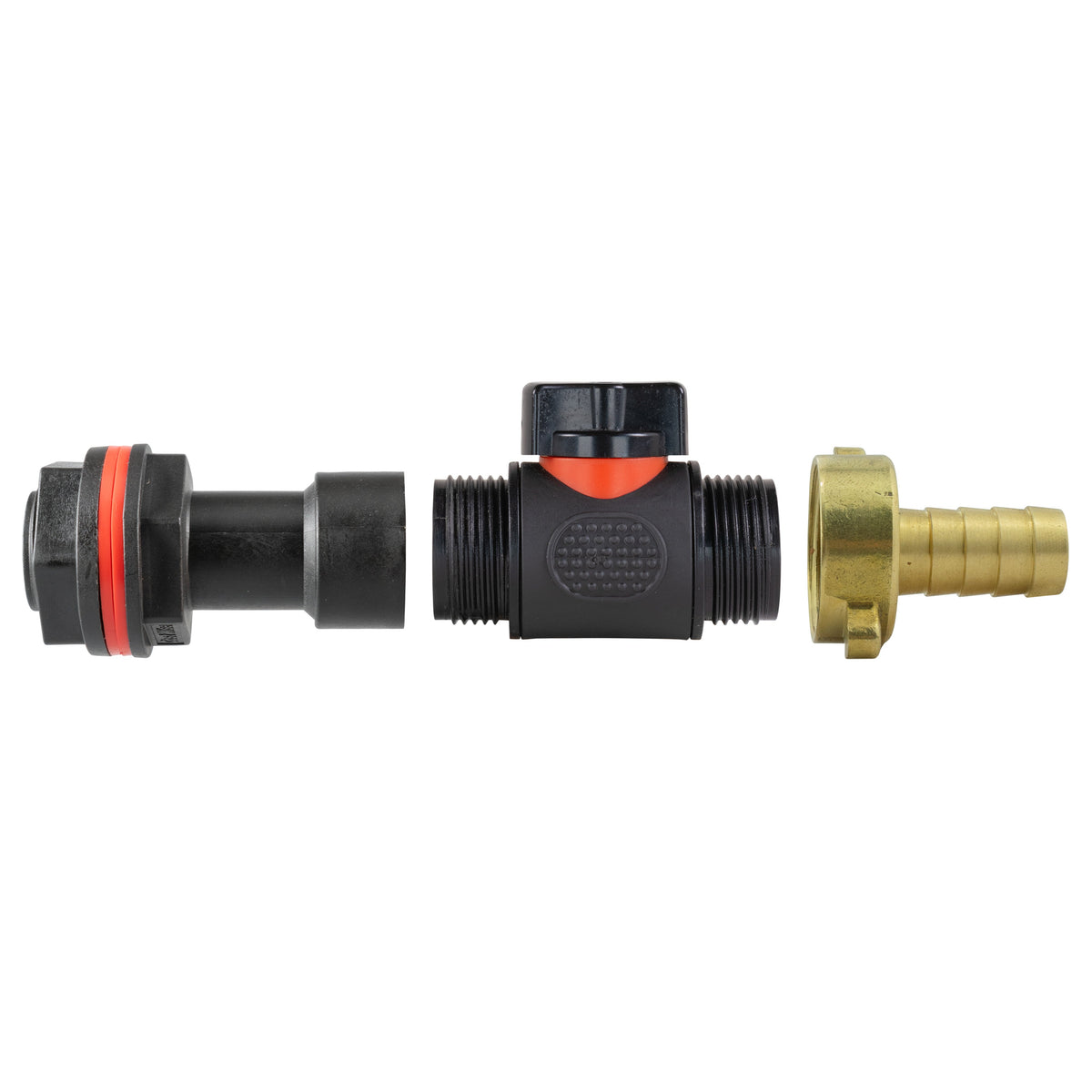

What is included

• 1 × 50mm extension tube, ¾″ BSP male/female
• 1 × back nut
• 2 × sealing washers
• 1 × black/orange manual inline valve, ¾″ BSP male/male
• 1 × brass hose tail, ¾″ BSP female to 13mm barb

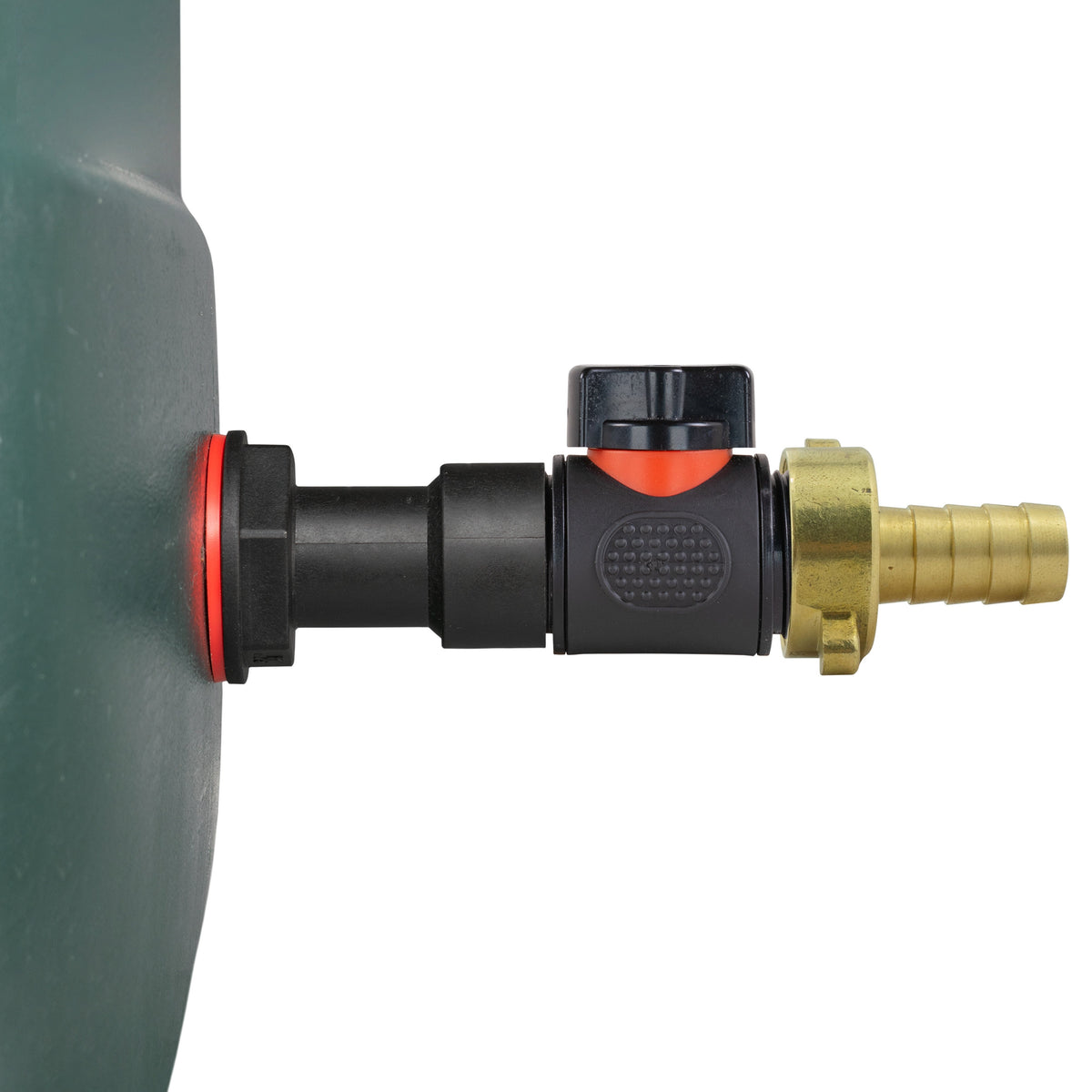

Fitting your product

Match the actual tank fitting or wall and the final hose or pipe connection before installation. Measure the supplied tank connector and follow its installation instructions before drilling a new hole. Assemble and inspect all joints before filling the tank. Tank, pipe, hose, separate hose clips and PTFE tape are supplied separately unless listed below. Match the hose bore and use suitable fastening.
