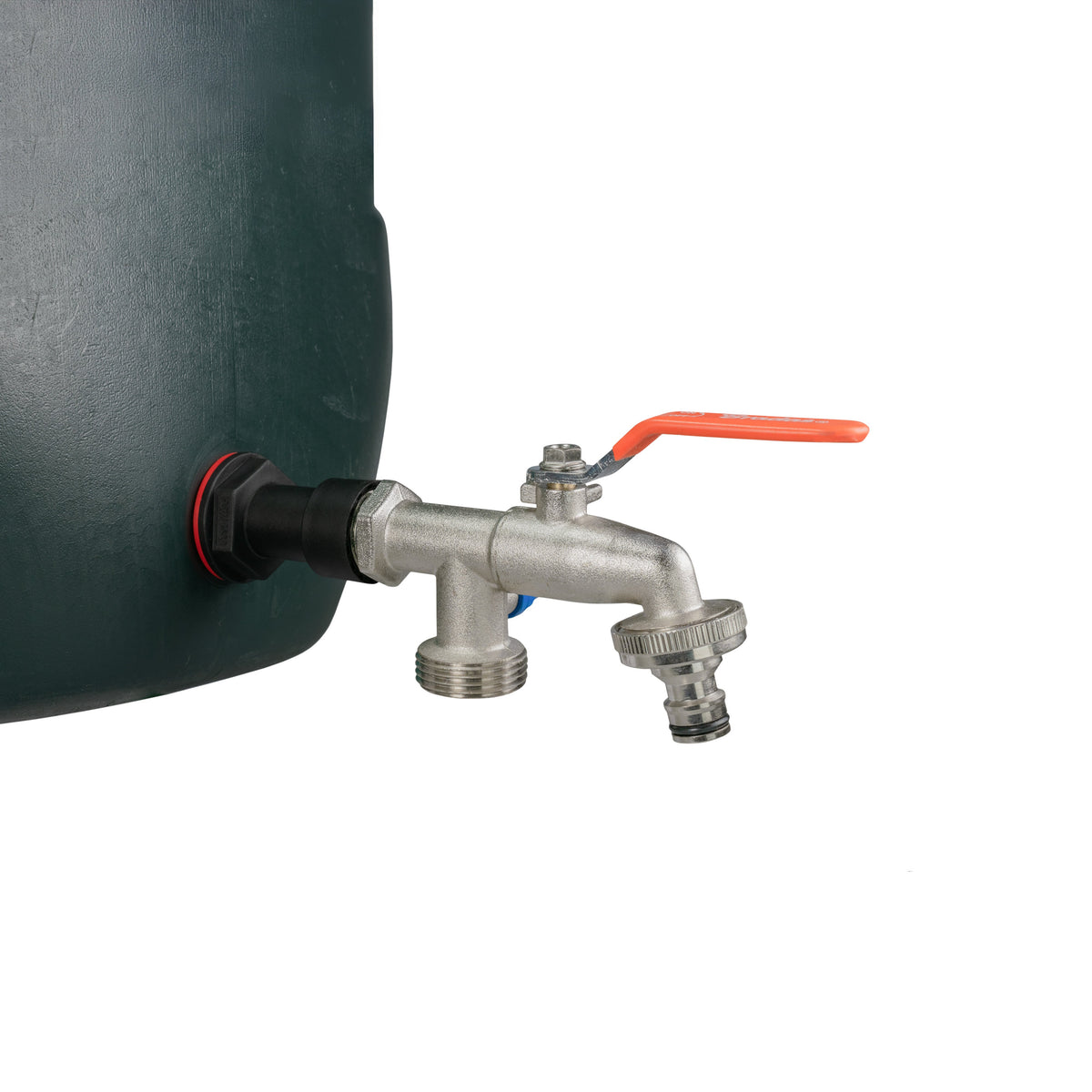

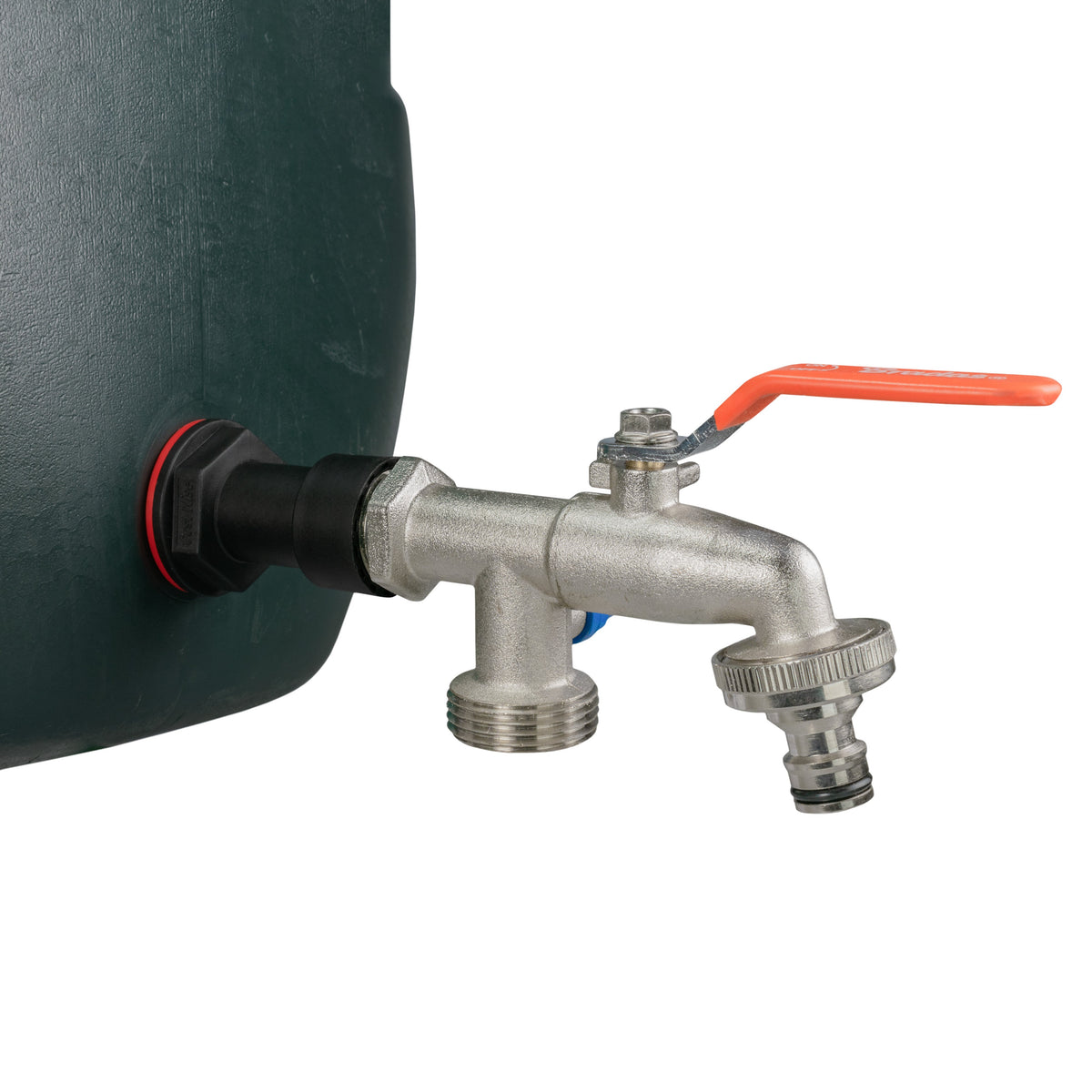

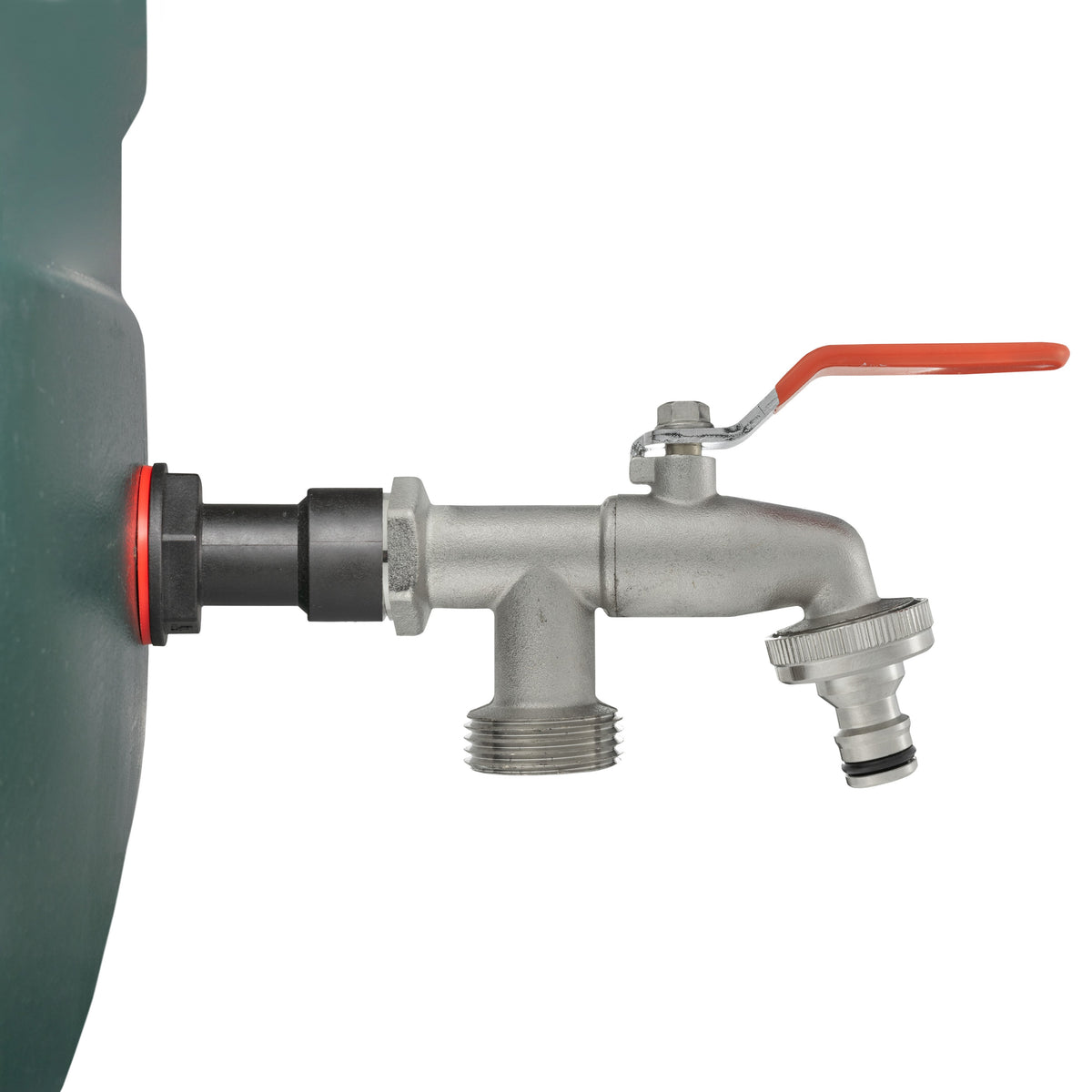

¾″ BSP Water Butt Extension – Double Garden Tap

Supply two independently controlled water outlets from a tank with a plastic extension and nickel-plated brass double tap.

Product details

• Tank mounting thread: ¾″ BSP male
• Tank connector outlet: ¾″ BSP female
• Tank fitting: plastic
• Supplied sealing parts: 1 back nut and 2 washers
• Extension: 50mm, supplier-stated connector extension

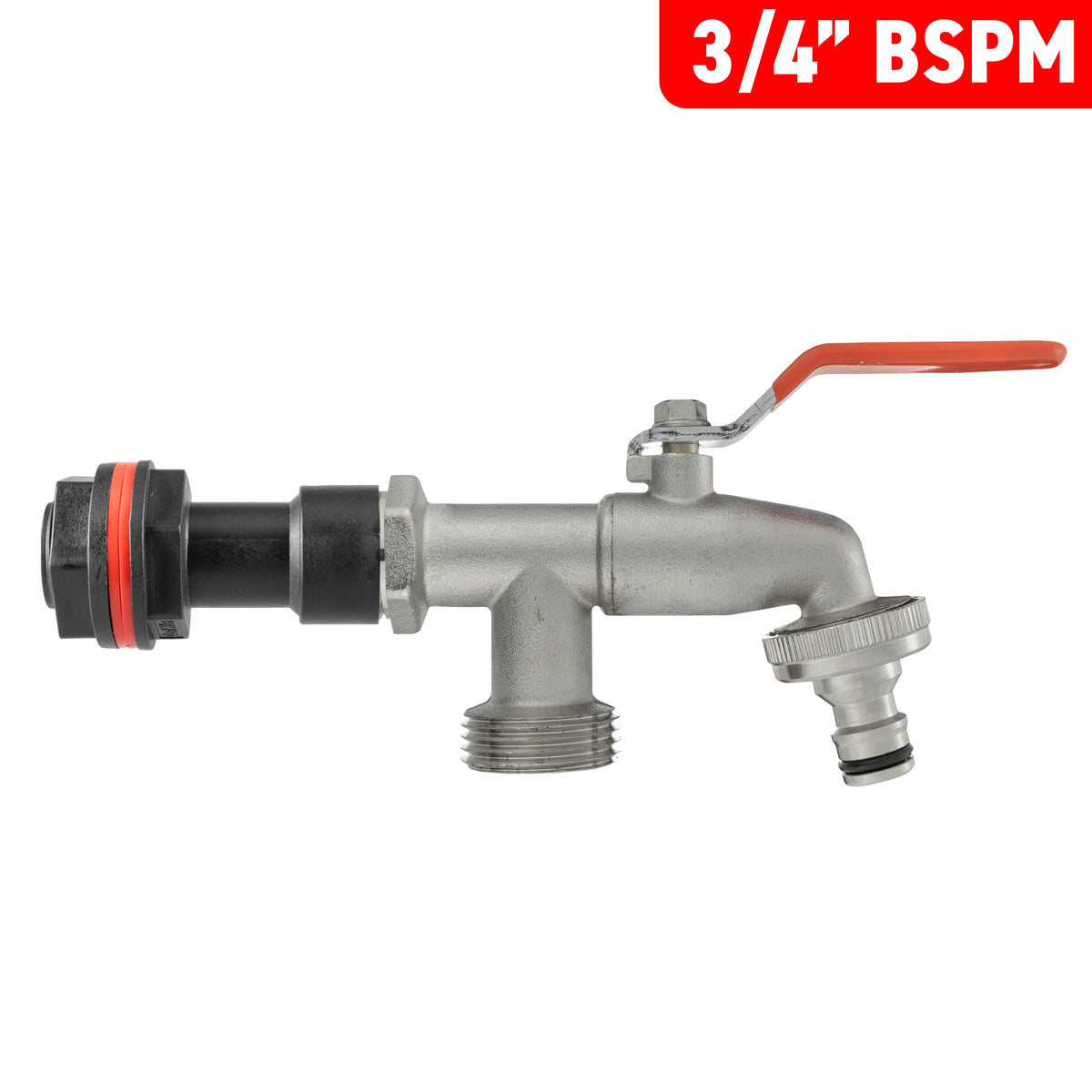

• Tap inlet: ¾″ BSP male
• Tap body: nickel-plated brass
• Outlets: male snap-on connection and separately controlled BSP-threaded outlet
• Reference: WBEX34MF-KIT005

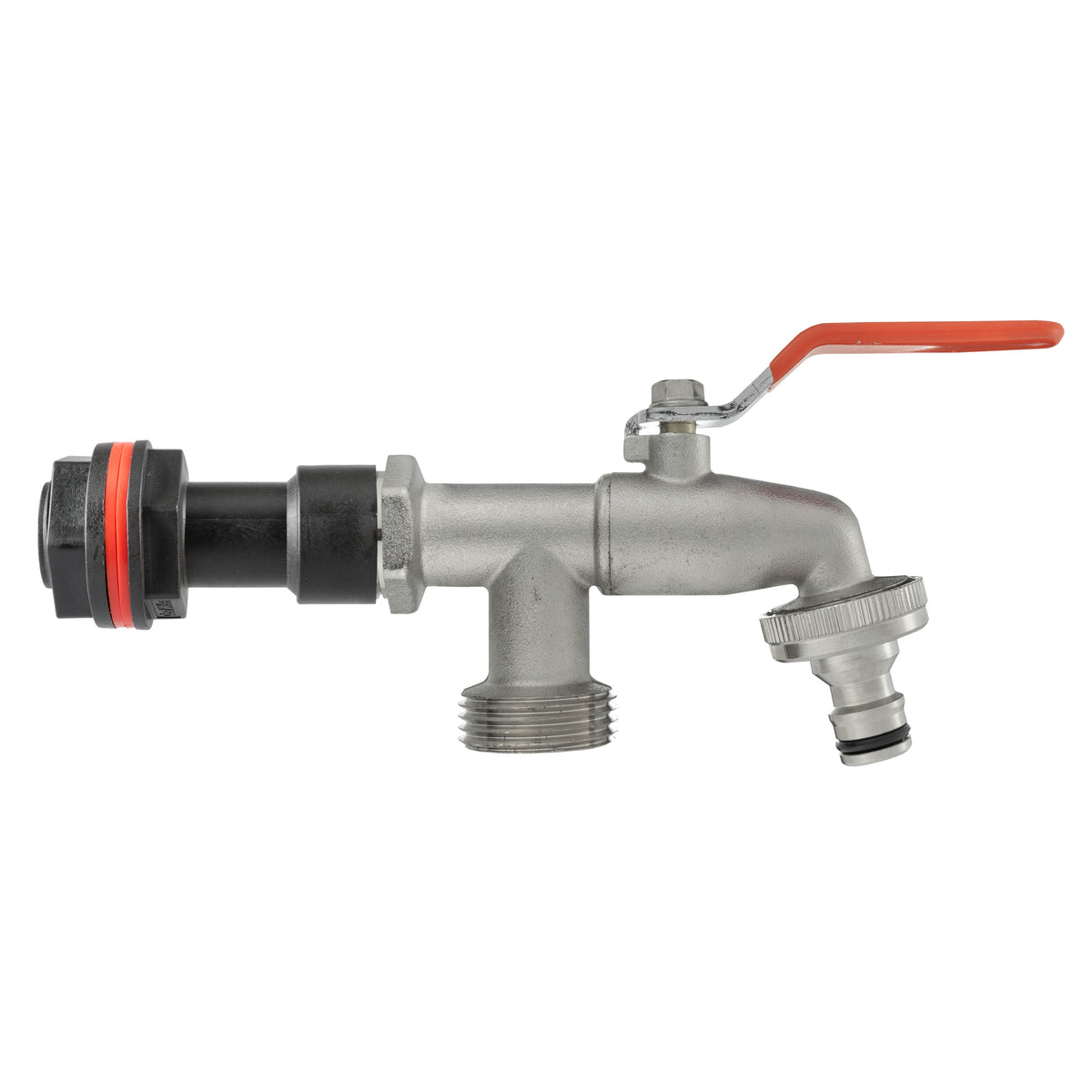

What is included

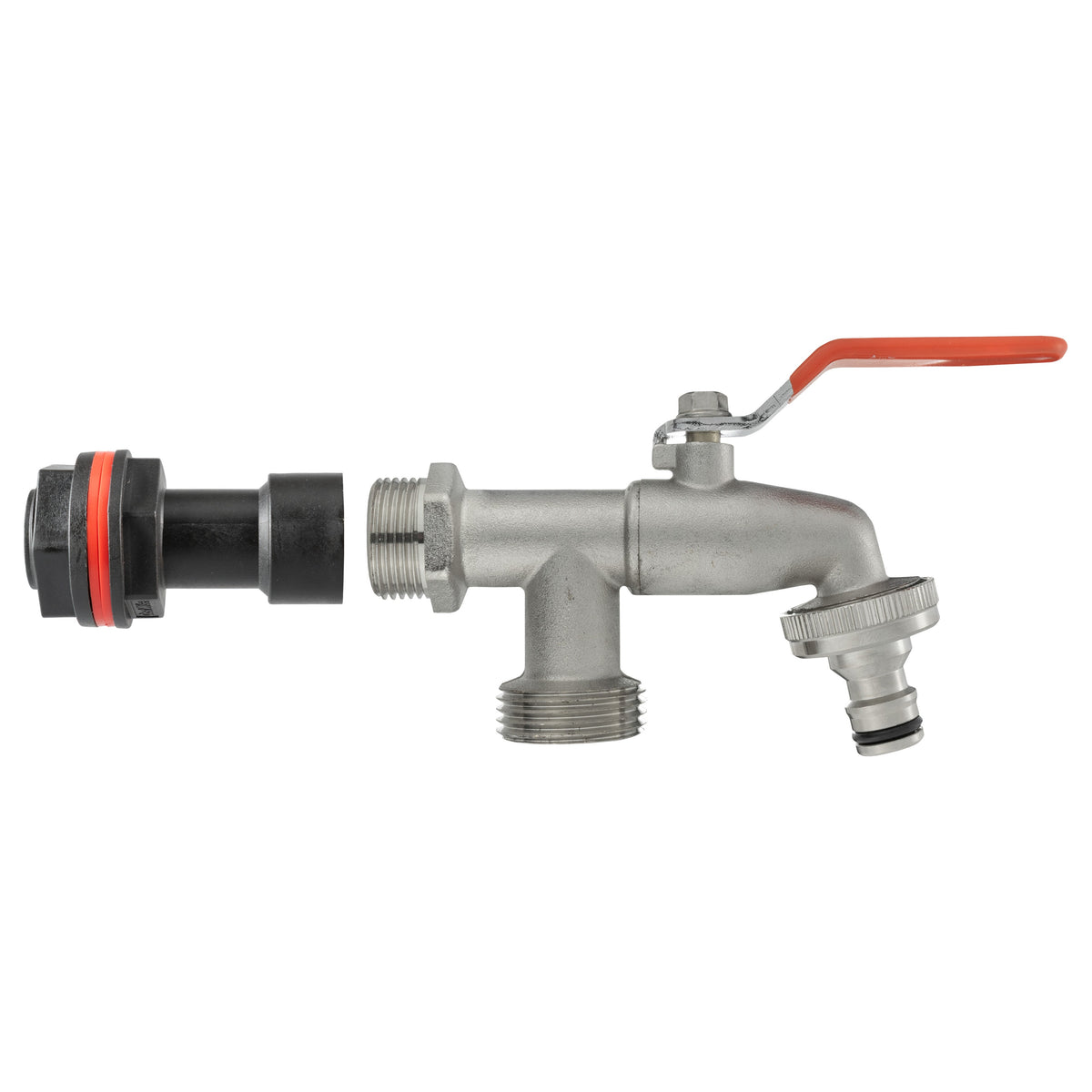

• 1 × 50mm extension tube, ¾″ BSP male/female
• 1 × back nut
• 2 × sealing washers
• 1 × nickel-plated brass double garden tap with ¾″ BSP male inlet

Fitting your product

Match the actual tank fitting or wall and the final hose or pipe connection before installation. Measure the supplied tank connector and follow its installation instructions before drilling a new hole. Assemble and inspect all joints before filling the tank. Tank, pipe, hose, separate hose clips and PTFE tape are supplied separately unless listed below. Match the hose-side fittings to the two outlet connections; separate hose connectors are supplied separately.
