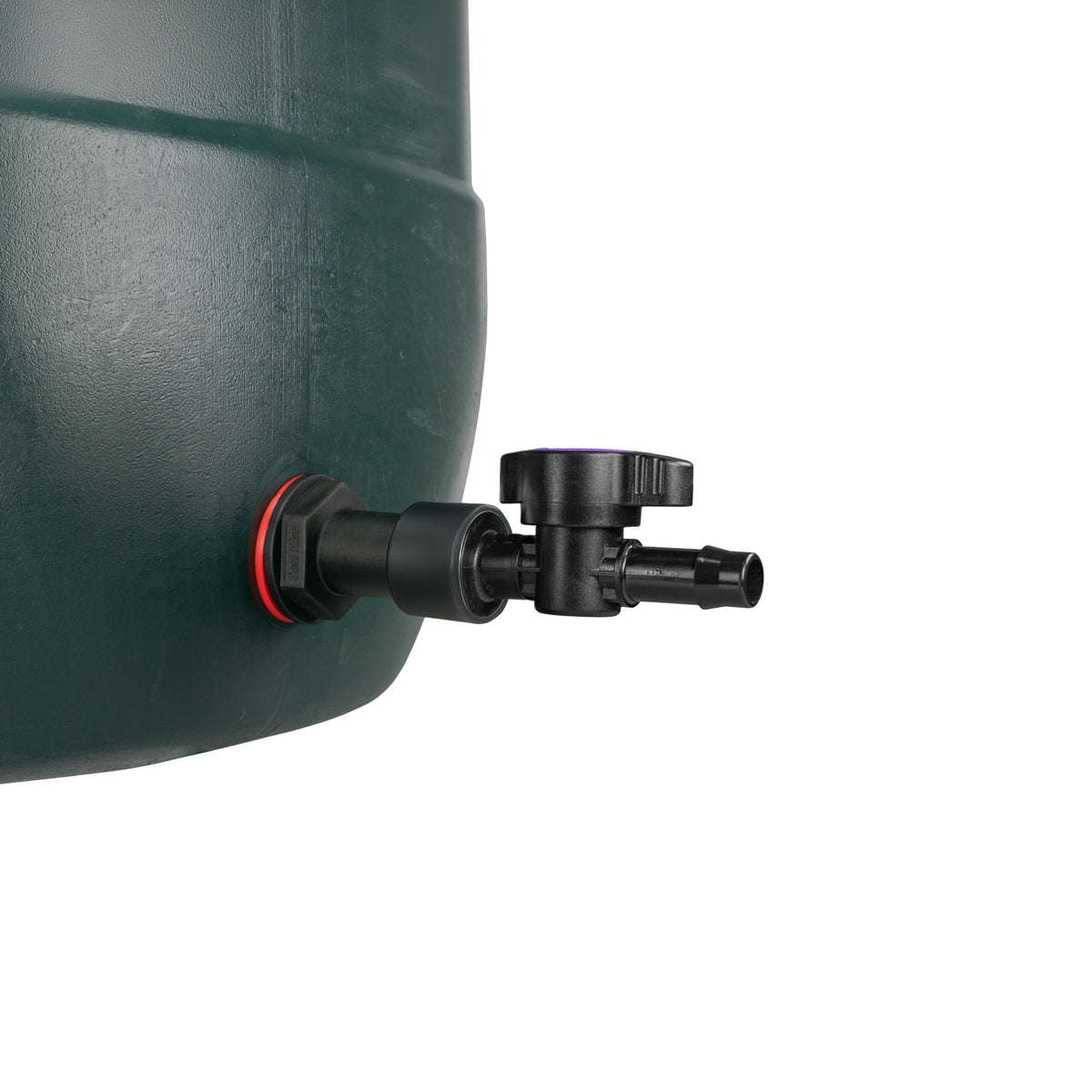

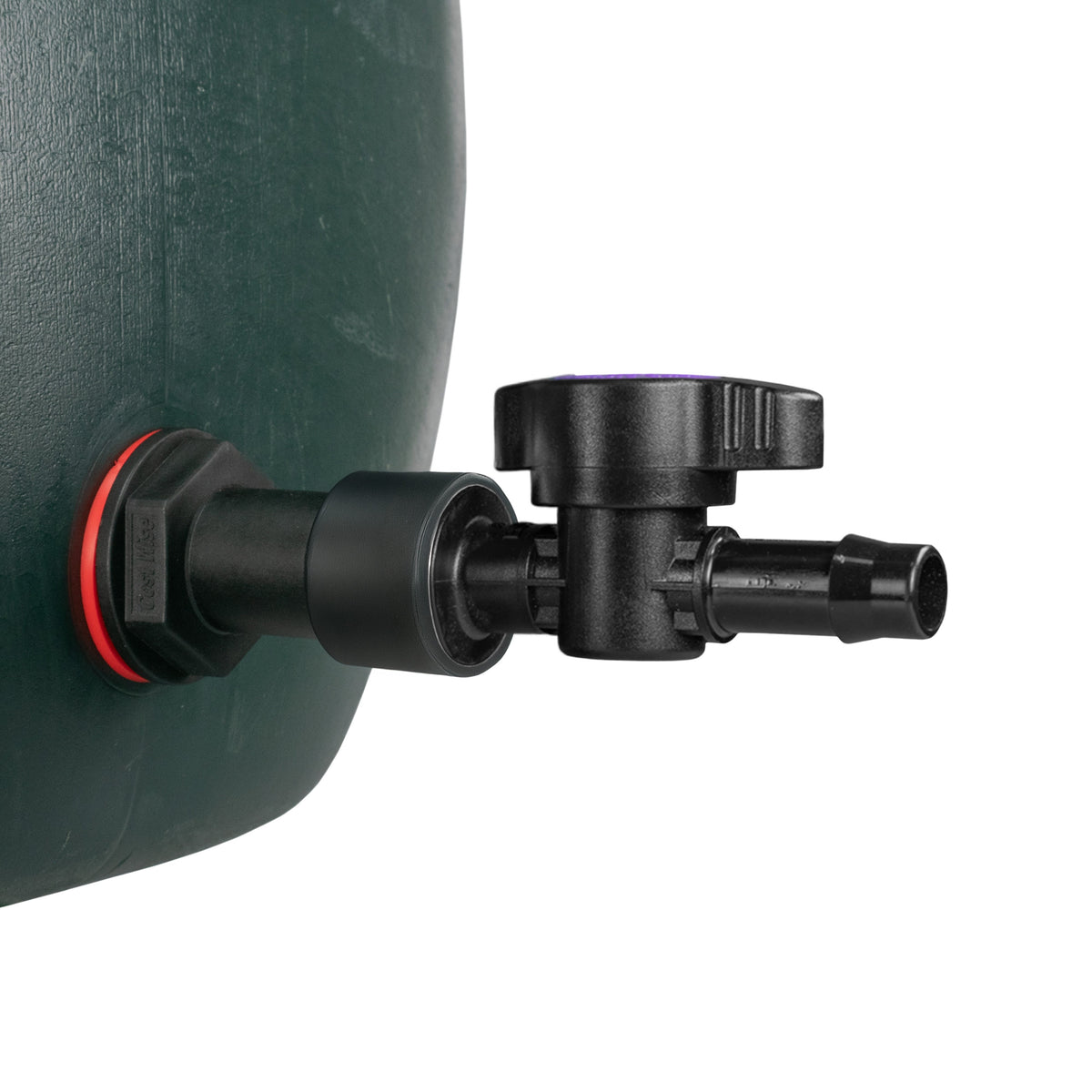

Move a compatible water-butt outlet 50mm outwards and add manual water-flow control. This kit includes the extension, sealing hardware, the listed tap or valve assembly and a 27mm hole cutter. Its finished connection is 13mm irrigation barb.
Product details

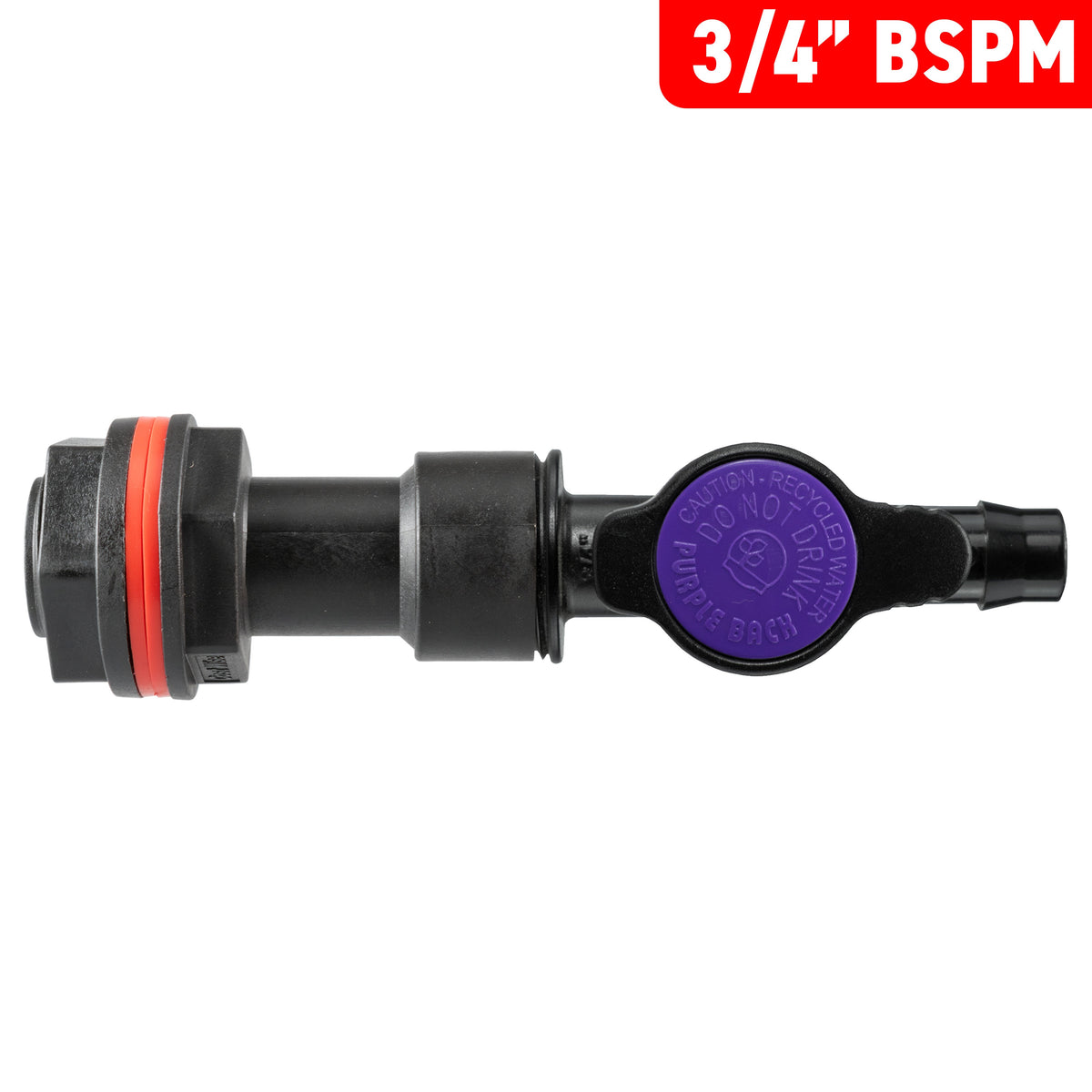

Mounting thread: ¾″ BSP male
Extension outlet: ¾″ BSP female
Outward extension: 50mm
Supplied cutter: 27mm HSS hole cutter
Control: manual irrigation valve
Finished outlet: 13mm irrigation barb

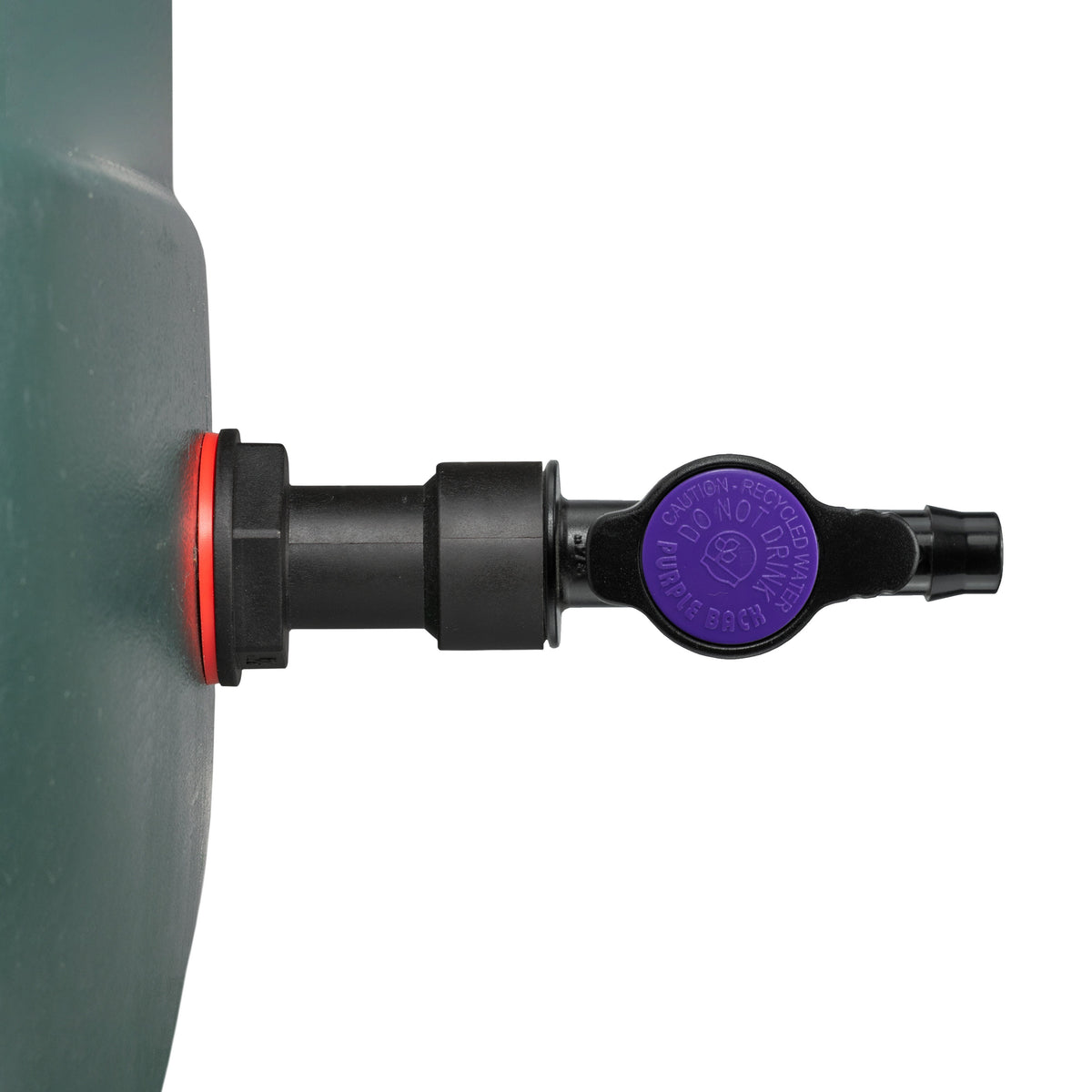

Valve marking: purple cap for recycled-water applications
Kit reference: WBEX34MF-KIT020+DB

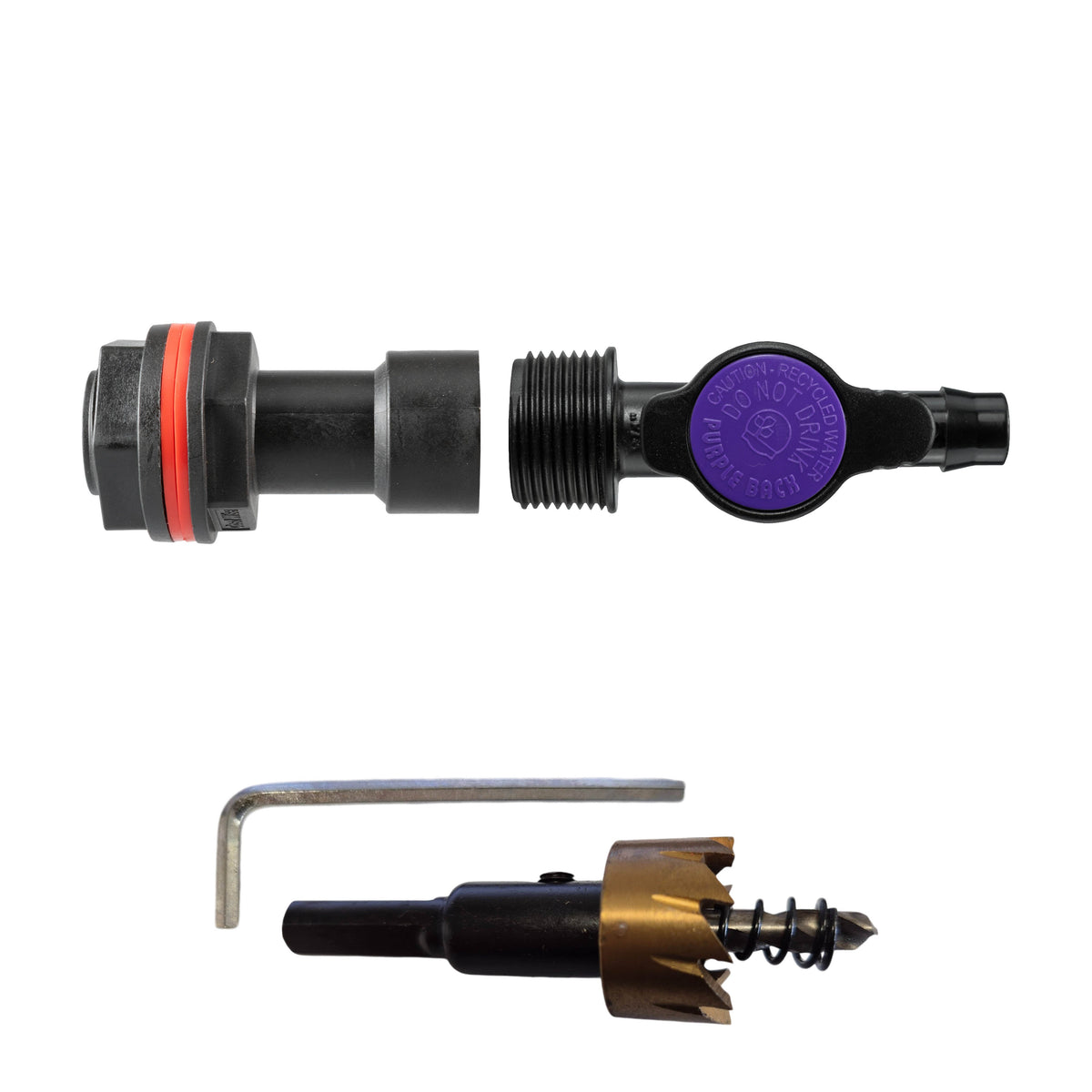

What is included

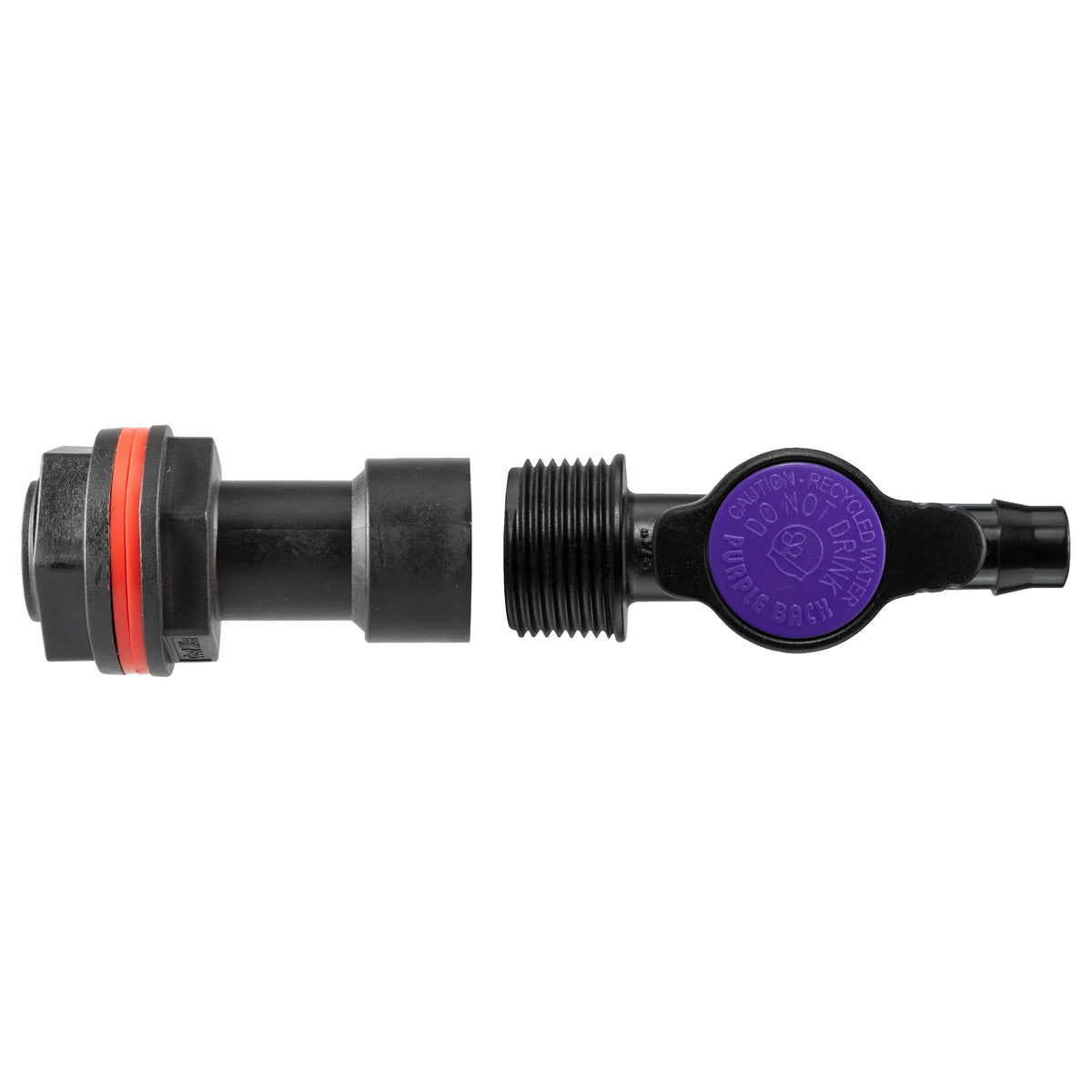

1 × 50mm water-butt extension with ¾″ BSP male mounting thread and female outlet
1 × back nut
2 × sealing washers

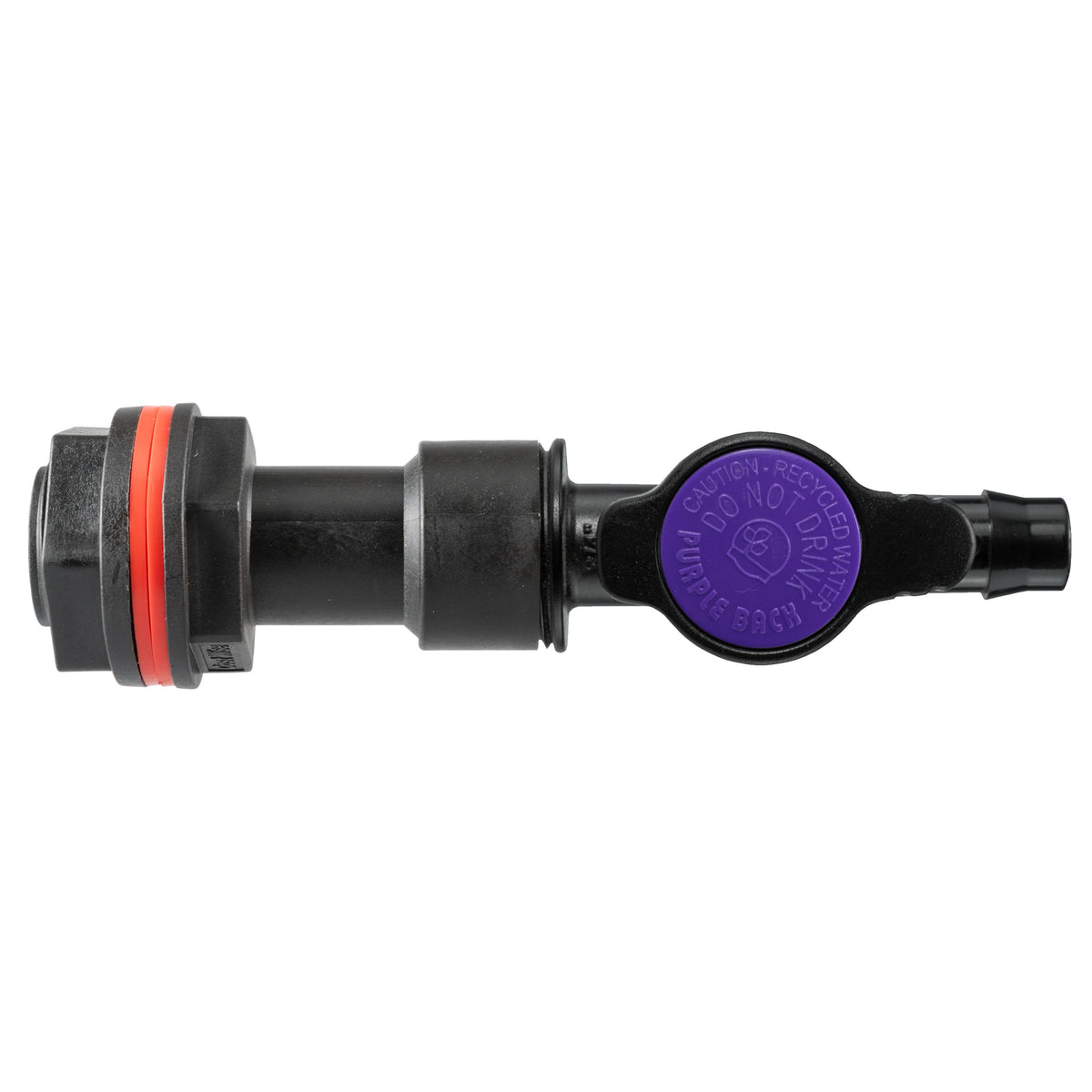

1 × purple-cap irrigation valve with ¾″ BSP male thread and 13mm barb

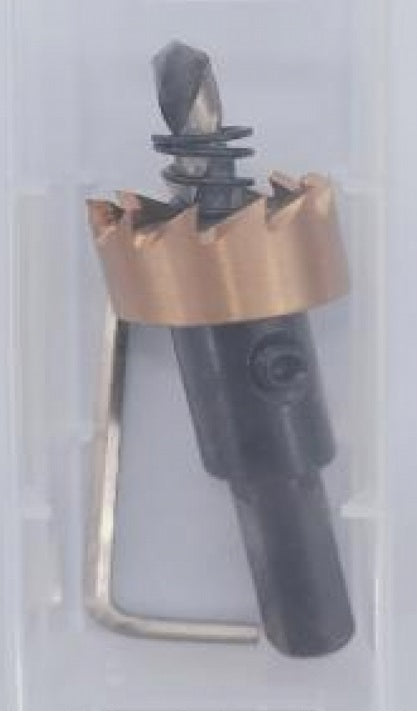

1 × 27mm HSS hole cutter
Check compatibility
Check tank-wall thickness, material and actual connector dimensions before cutting or fitting. The 27mm measurement describes the supplied cutter; the BSP designation describes the thread. Use matching 13mm irrigation tubing and appropriate retention. The purple cap identifies the valve’s recycled-water application; it is not a drinking-water approval. Tank, drill, pipe/hose, separate hose clips and PTFE tape are not included. Assemble and check all joints before filling or opening the supply.
