¾″ BSP Water Butt Extension – Antelco 13mm Irrigation Valve

Create a low-pressure irrigation outlet with a tank extension and purple-backed Antelco 46705 manual valve.

Product details

• Tank mounting thread: ¾″ BSP male
• Tank connector outlet: ¾″ BSP female
• Tank fitting: plastic
• Supplied sealing parts: 1 back nut and 2 washers
• Extension: 50mm, supplier-stated connector extension
• Valve inlet: ¾″ BSP male
• Finished outlet: 13mm irrigation barb
• Valve designation: purple back for recycled-water irrigation
• Reference: WBEX34MF-KIT020

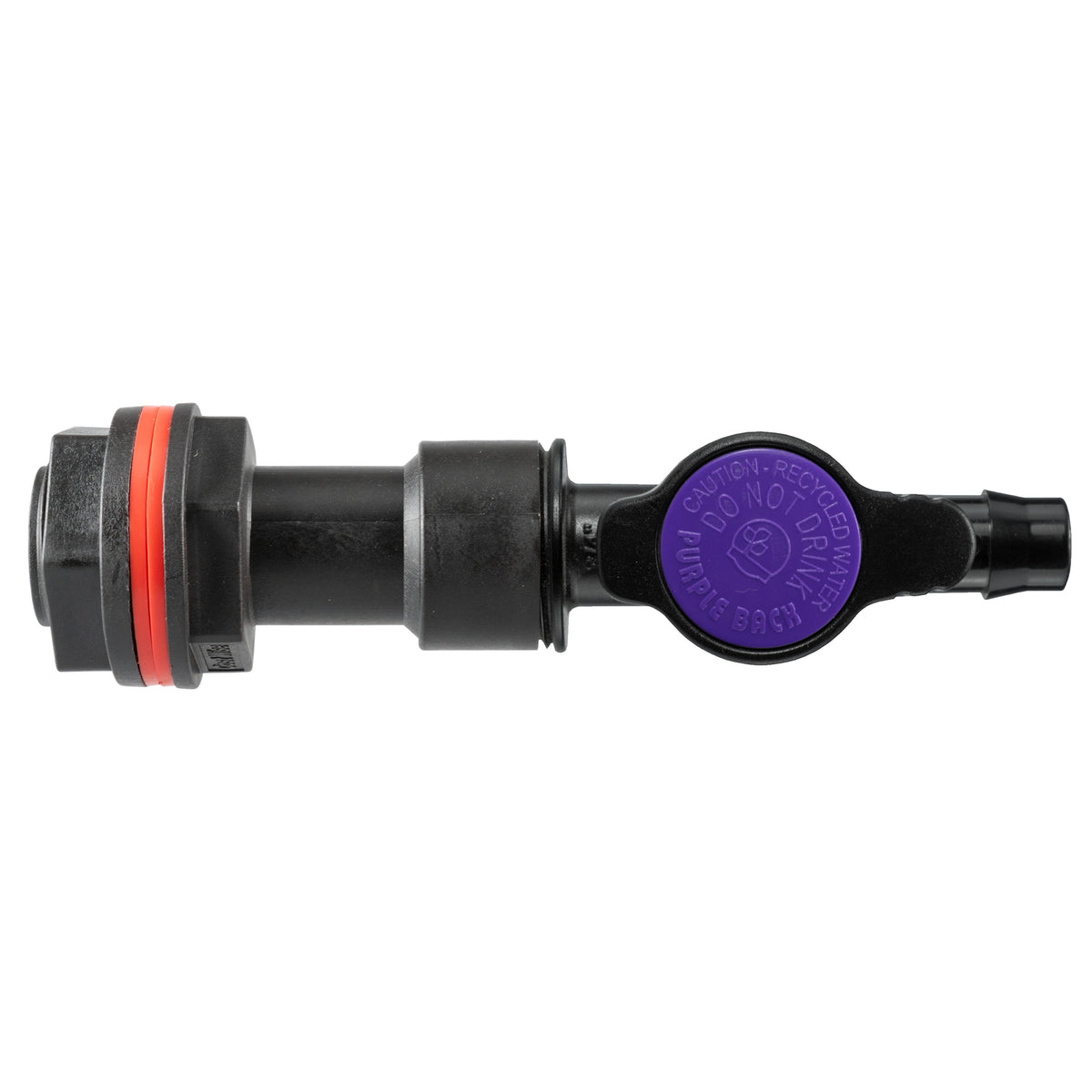

What is included

• 1 × 50mm extension tube, ¾″ BSP male/female
• 1 × back nut
• 2 × sealing washers
• 1 × Antelco 46705 irrigation valve, ¾″ BSP male to 13mm barb

Fitting your product

Match the actual tank fitting or wall and the final hose or pipe connection before installation. Measure the supplied tank connector and follow its installation instructions before drilling a new hole. Assemble and inspect all joints before filling the tank. Tank, pipe, hose, separate hose clips and PTFE tape are supplied separately unless listed below. Match the irrigation hose bore and secure it appropriately; the valve is designated for recycled-water irrigation by the supplier.
