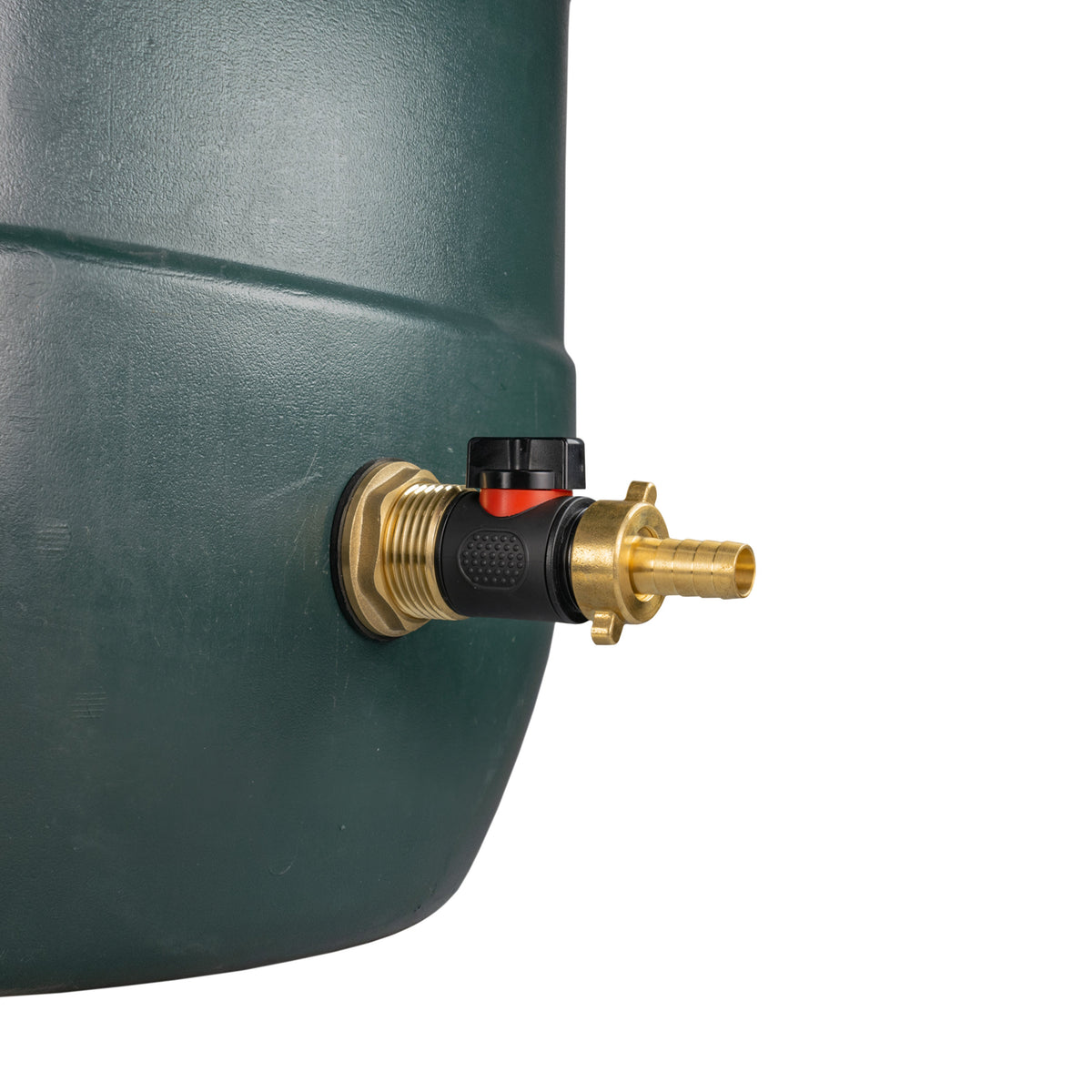

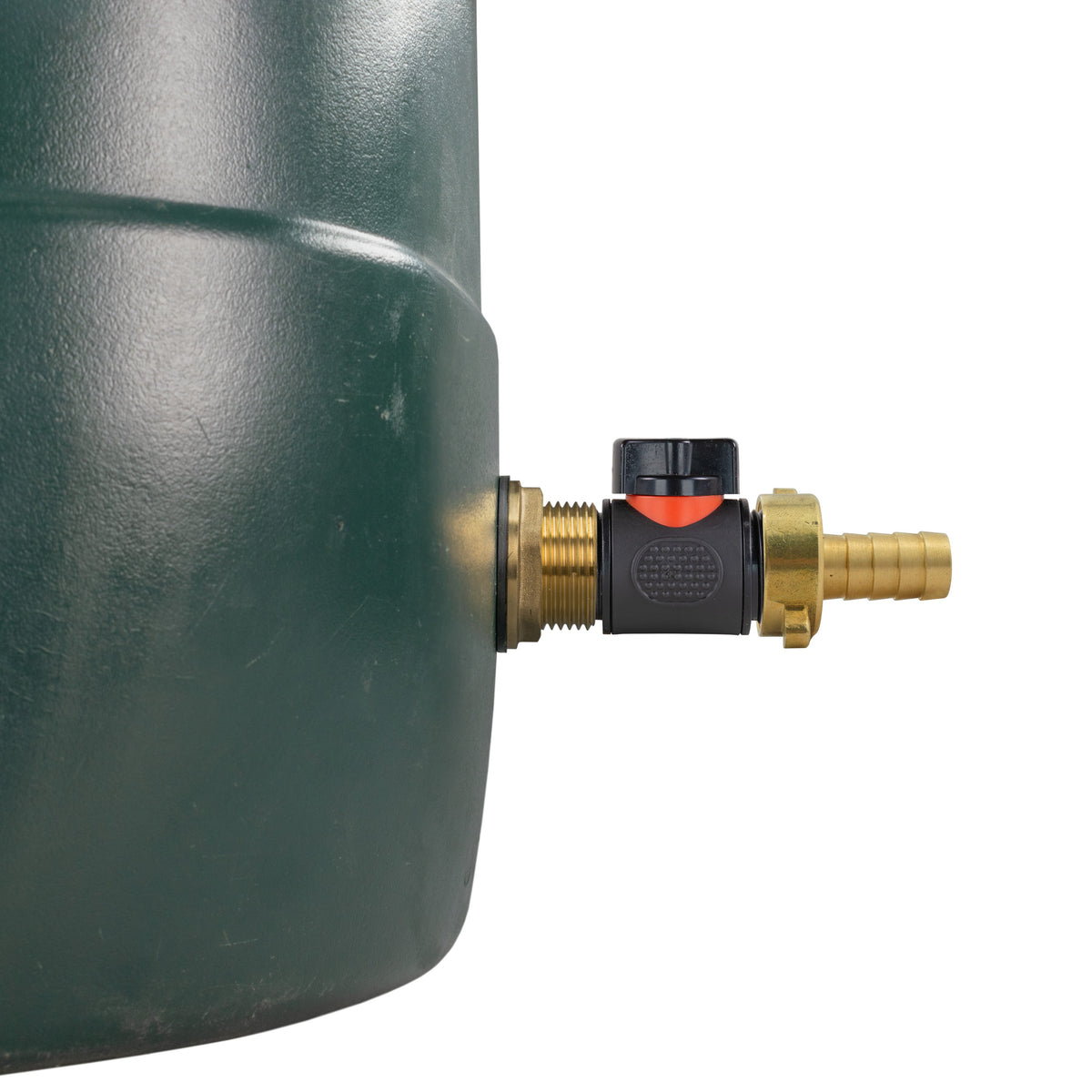

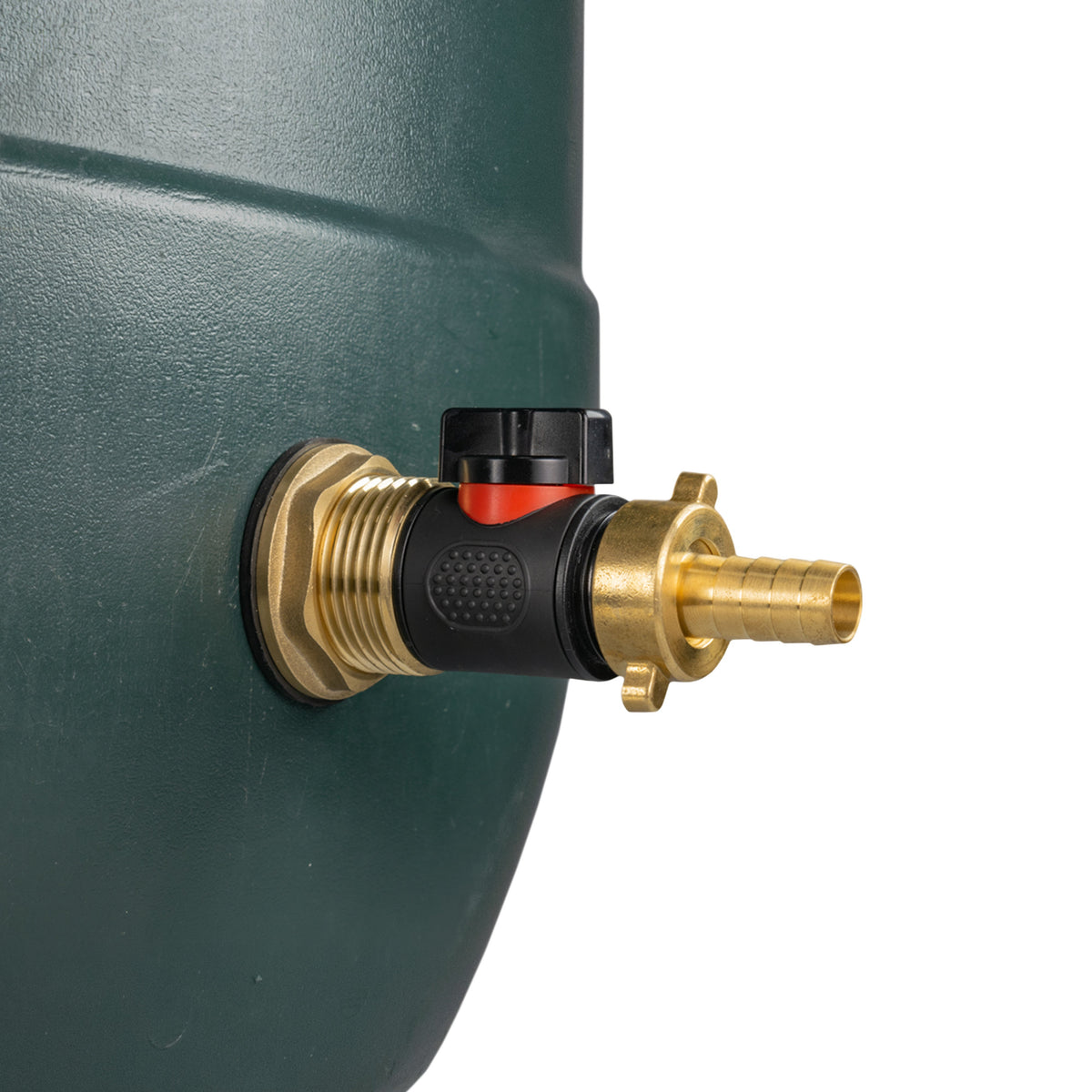

Add a controlled outlet to a compatible water butt or rainwater tank. The brass tank adapter has a 1″ BSP male mounting thread and a ¾″ BSP female outlet for the supplied tap or valve. This set combines the tank fitting, listed tap or valve assembly and a 34mm HSS hole cutter. Its finished connection is 13mm brass hose barb.
Product details
Tank adapter material: brass

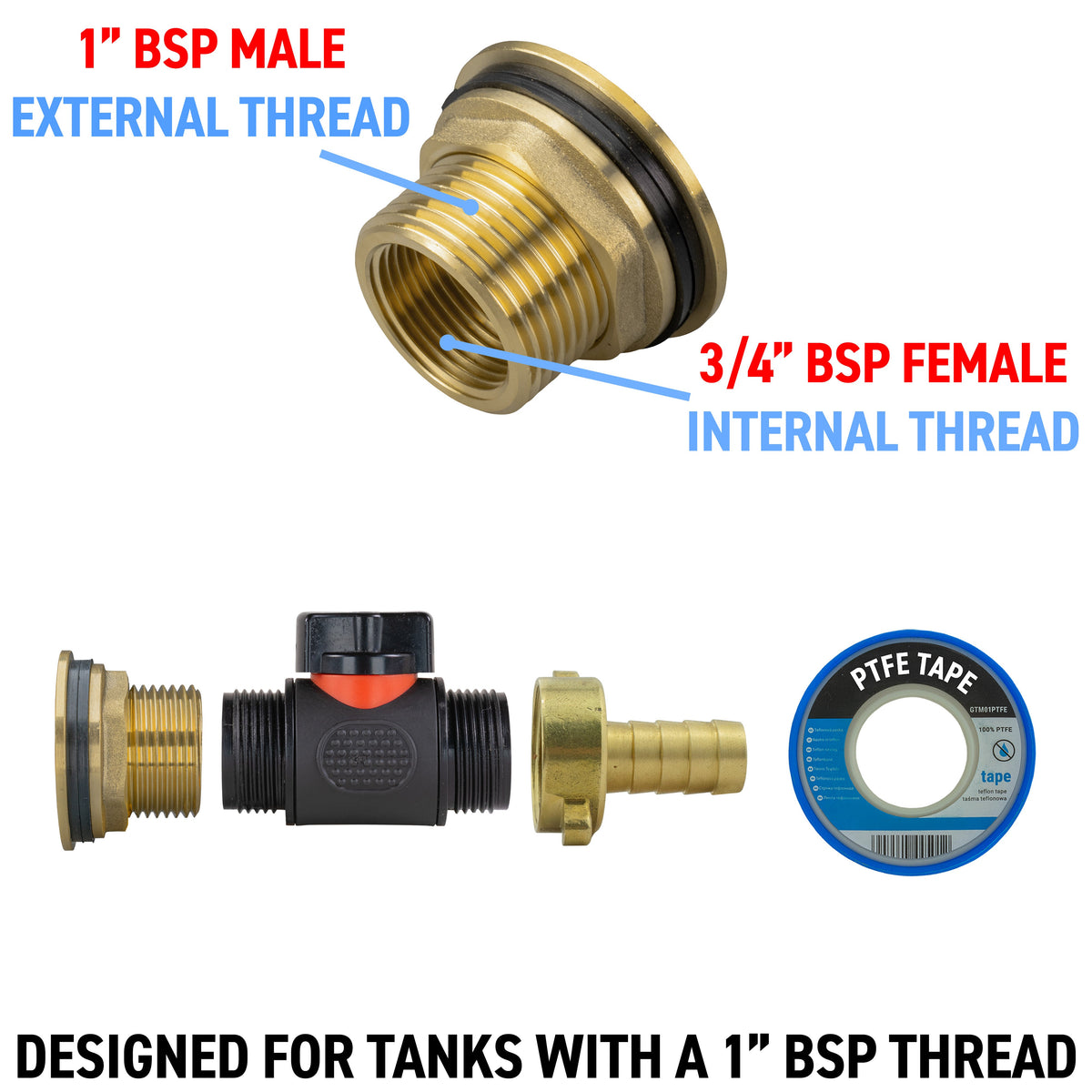

Mounting thread: 1″ BSP male
Adapter outlet: ¾″ BSP female
Finished outlet: 13mm brass hose barb
Supplied cutter: 34mm HSS hole cutter
Kit reference: WB34-BRASS-KIT-015+DB+

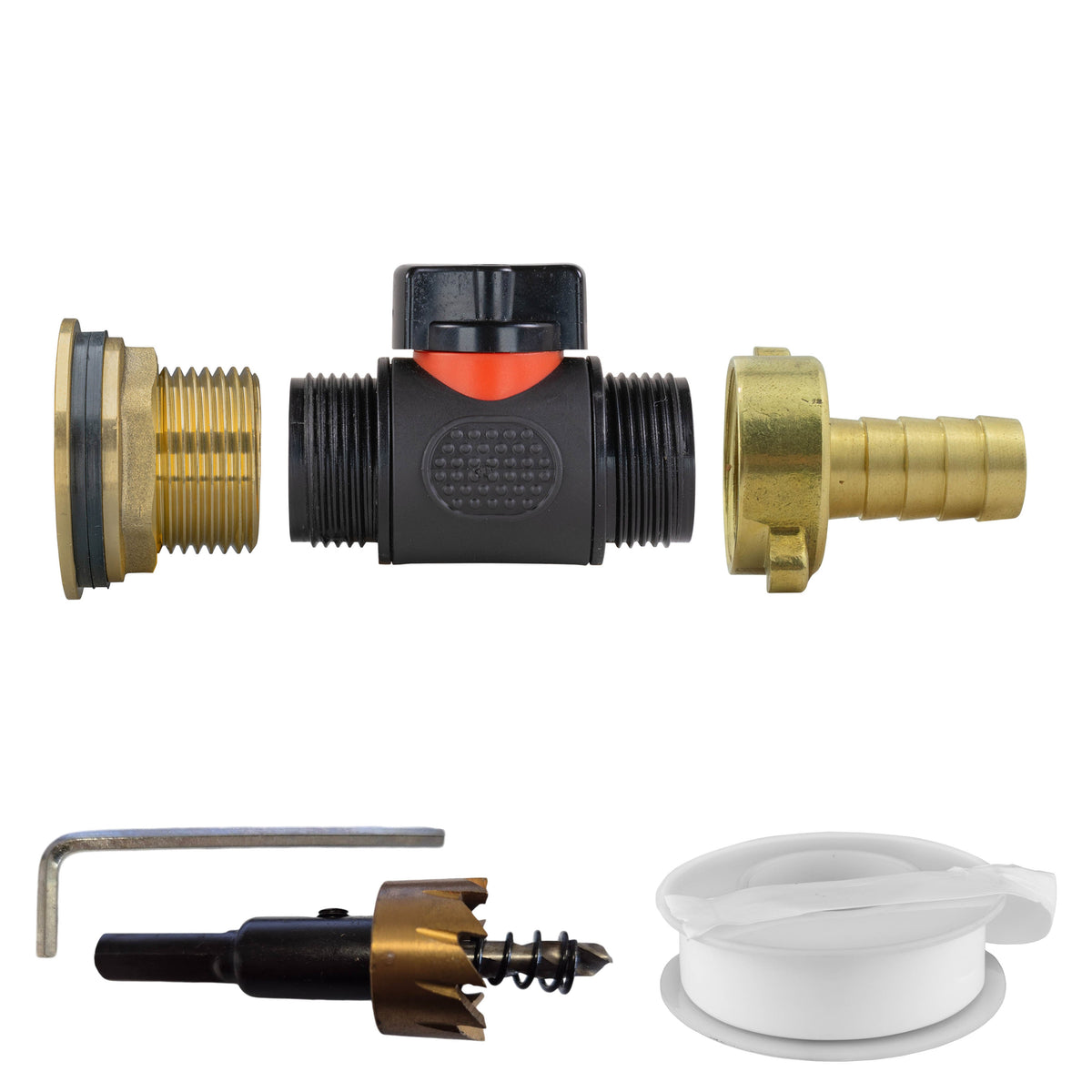

What is included

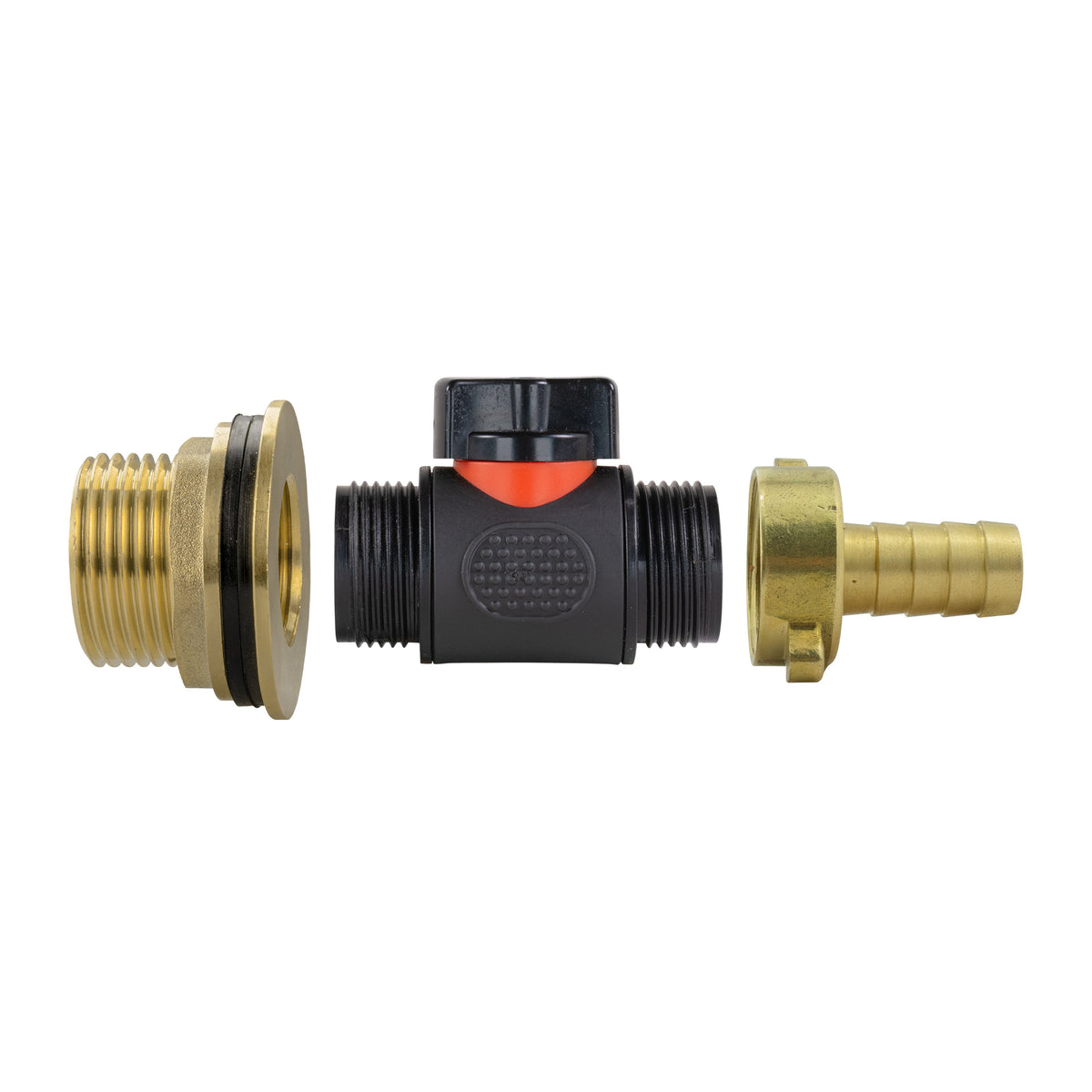

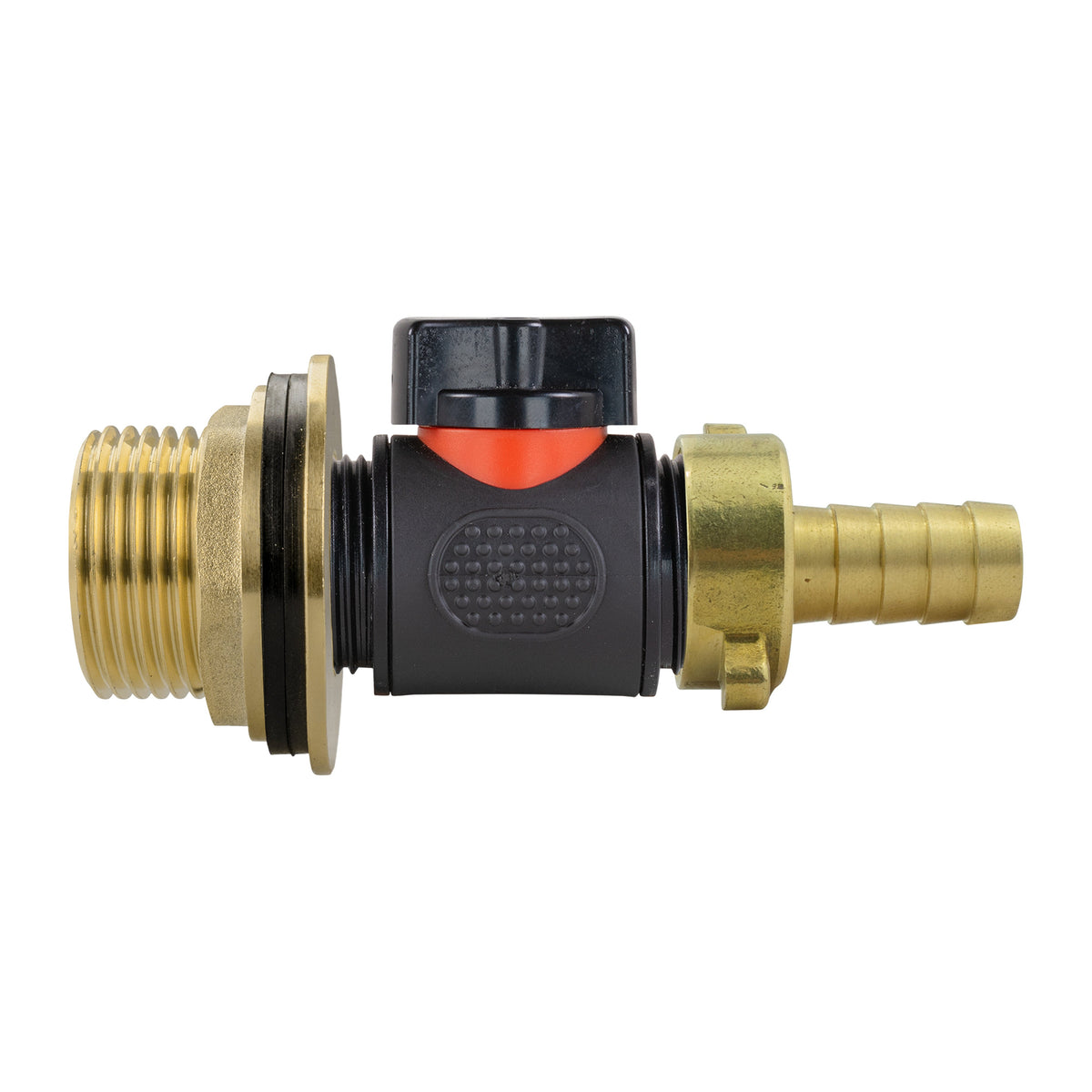

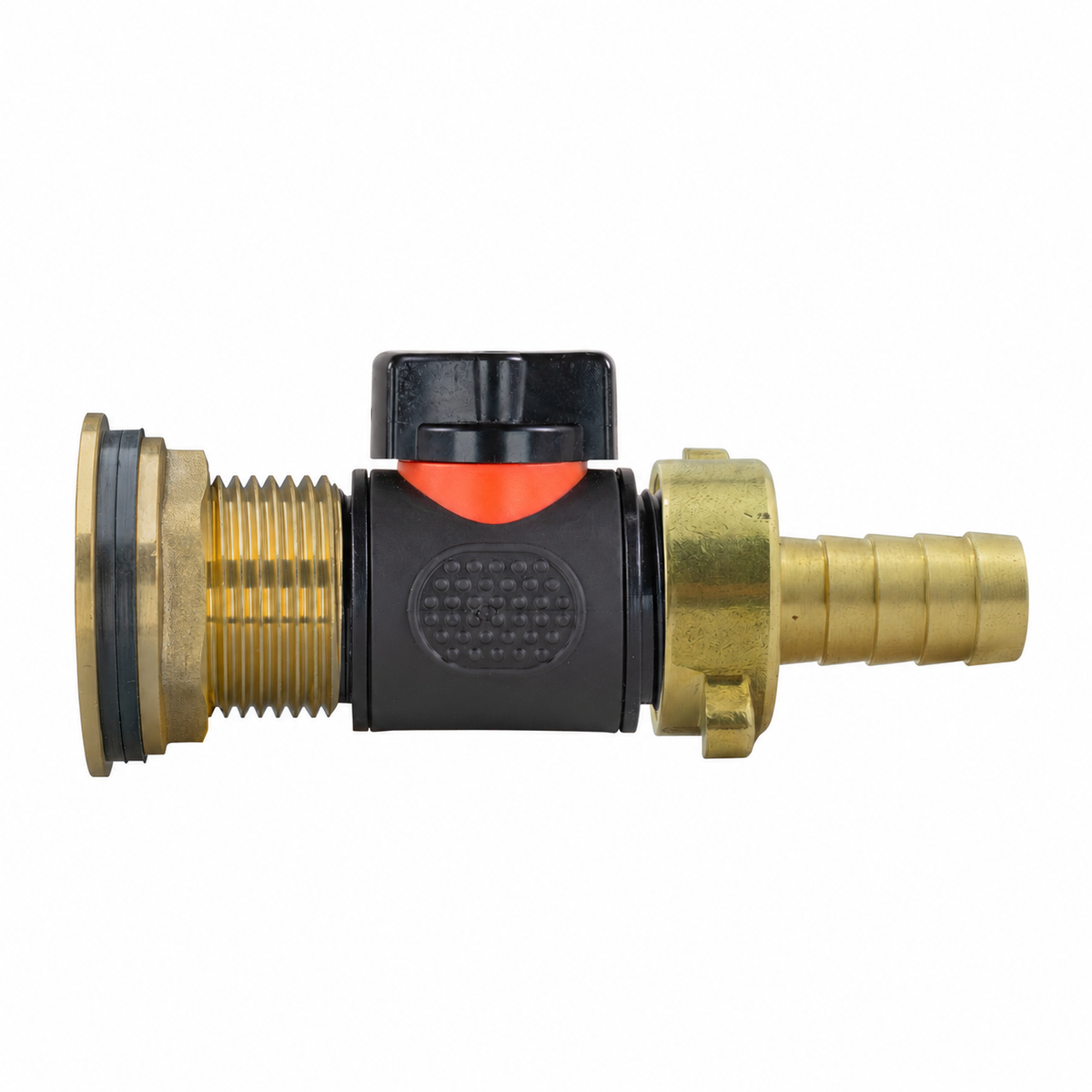

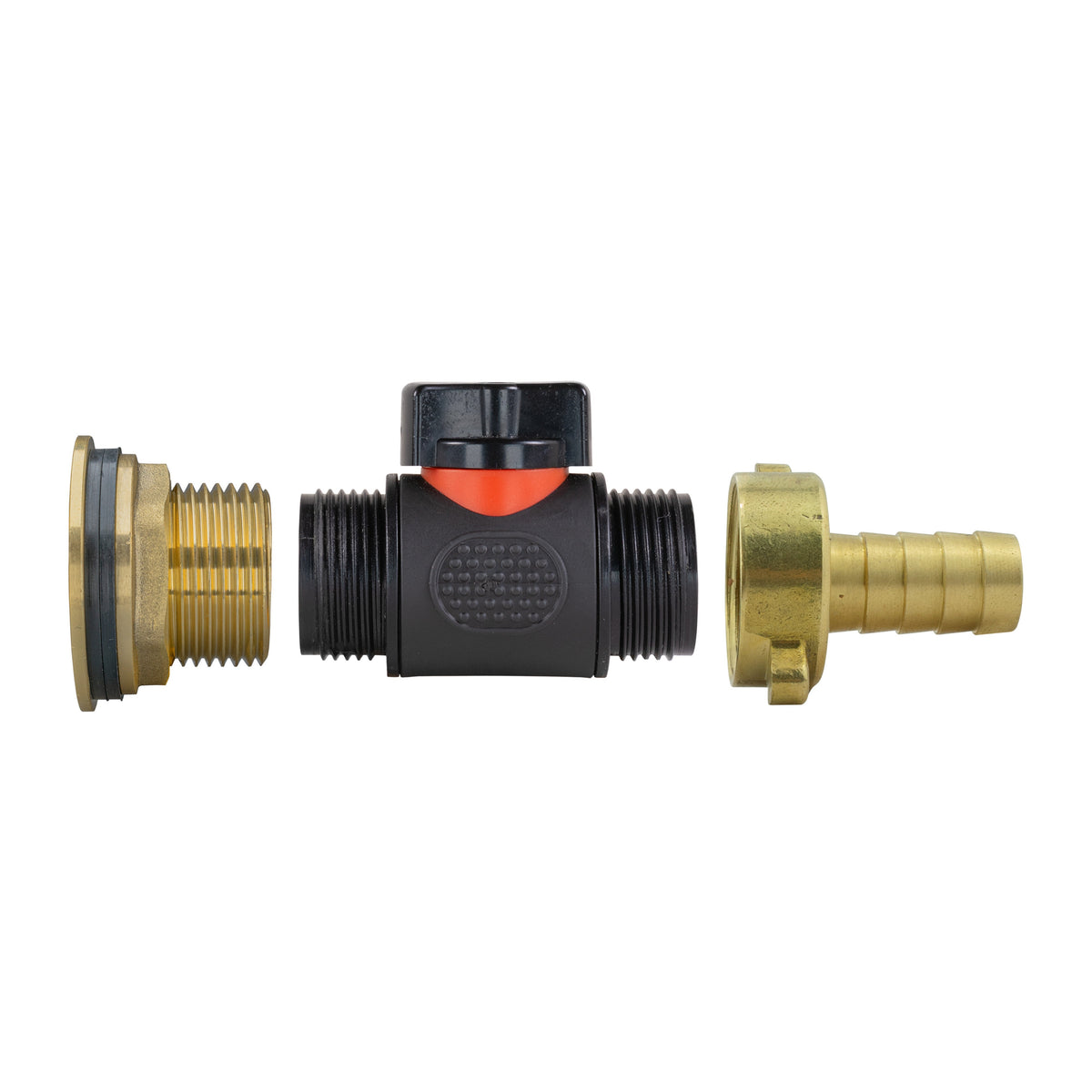

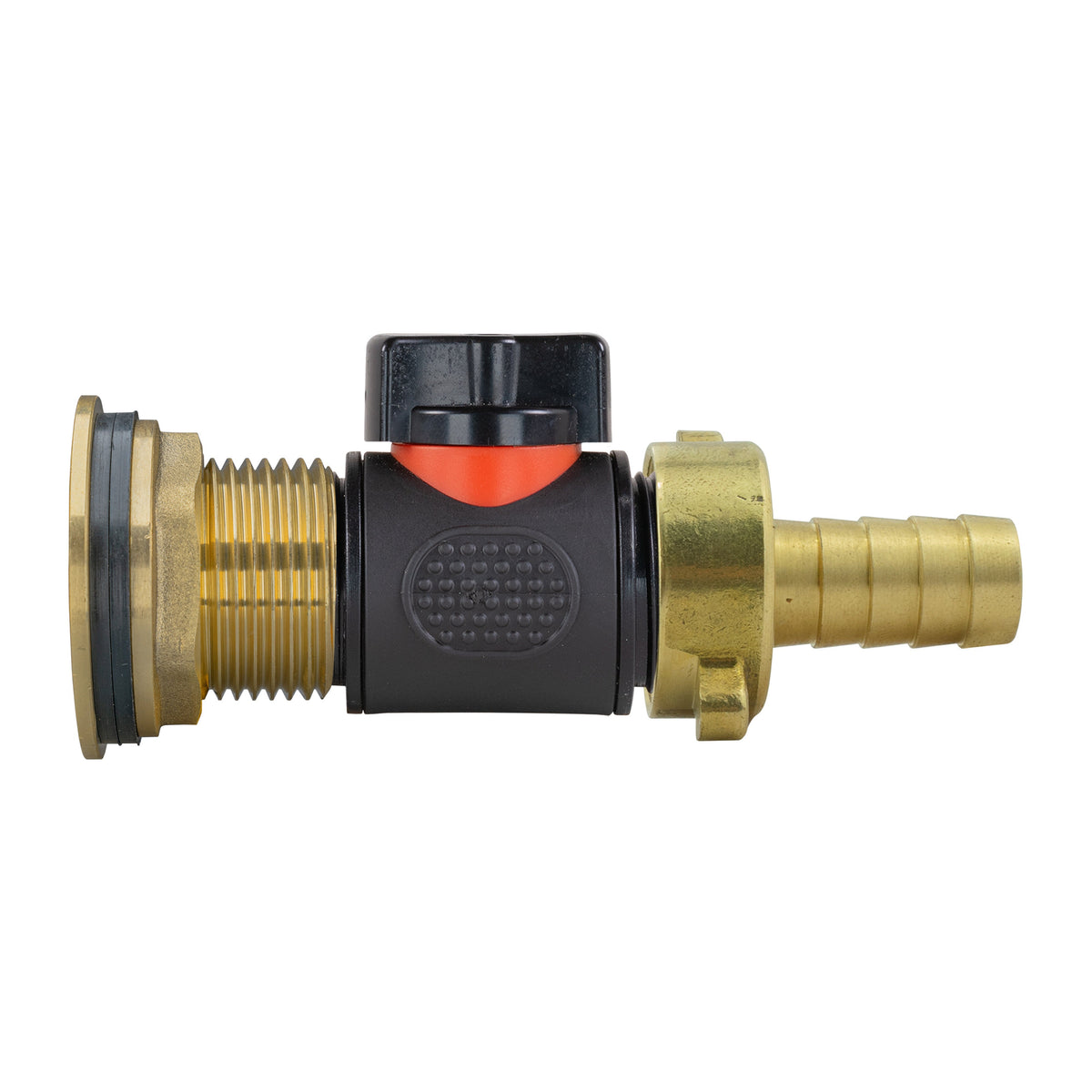

1 × brass tank adapter, 1″ BSP male mounting thread to ¾″ BSP female outlet, with back nut and sealing washers
1 × roll of PTFE thread-seal tape
1 × black plastic manual inline valve with ¾″ BSP male threads at both ends
Check the tank-wall thickness, material and actual connector dimensions before cutting or fitting. BSP is a thread designation, not the drilling diameter. The supplied 34mm cutter is listed separately from the mounting thread. Match the hose or irrigation pipe to the stated barb and use suitable fastening. Tank, drill, pipe/hose and separate hose clips are not included. Assemble and check all joints before filling or opening the supply.
