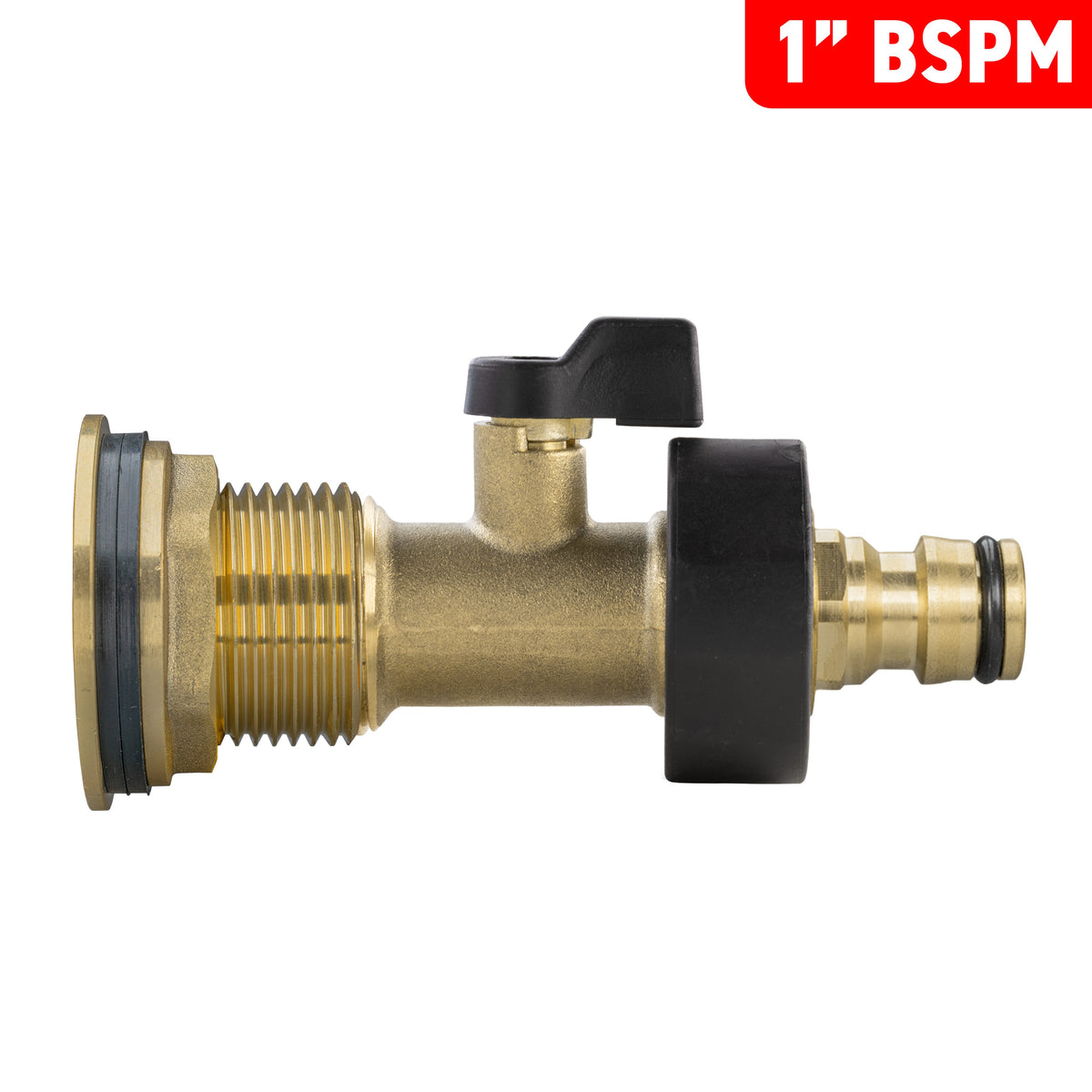

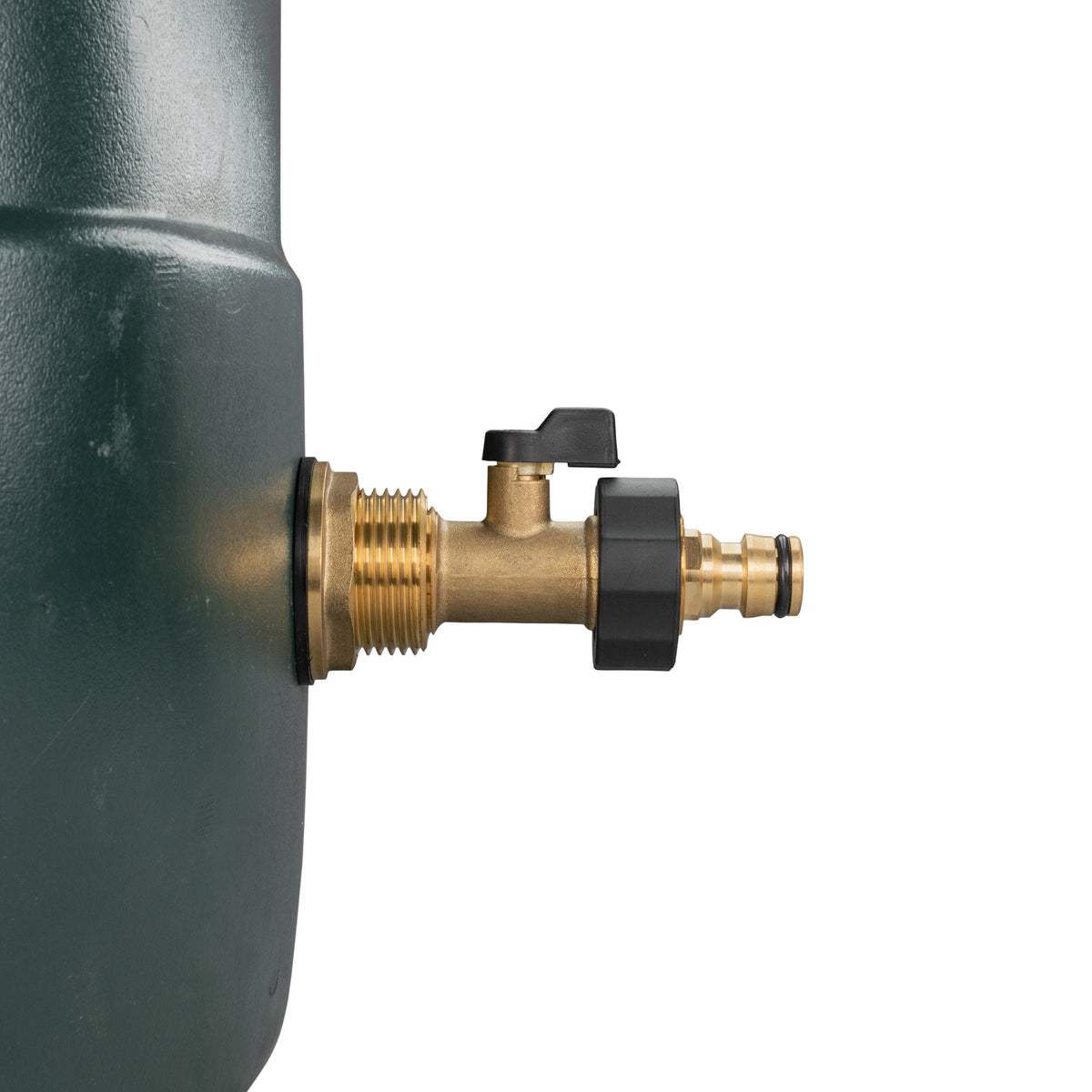

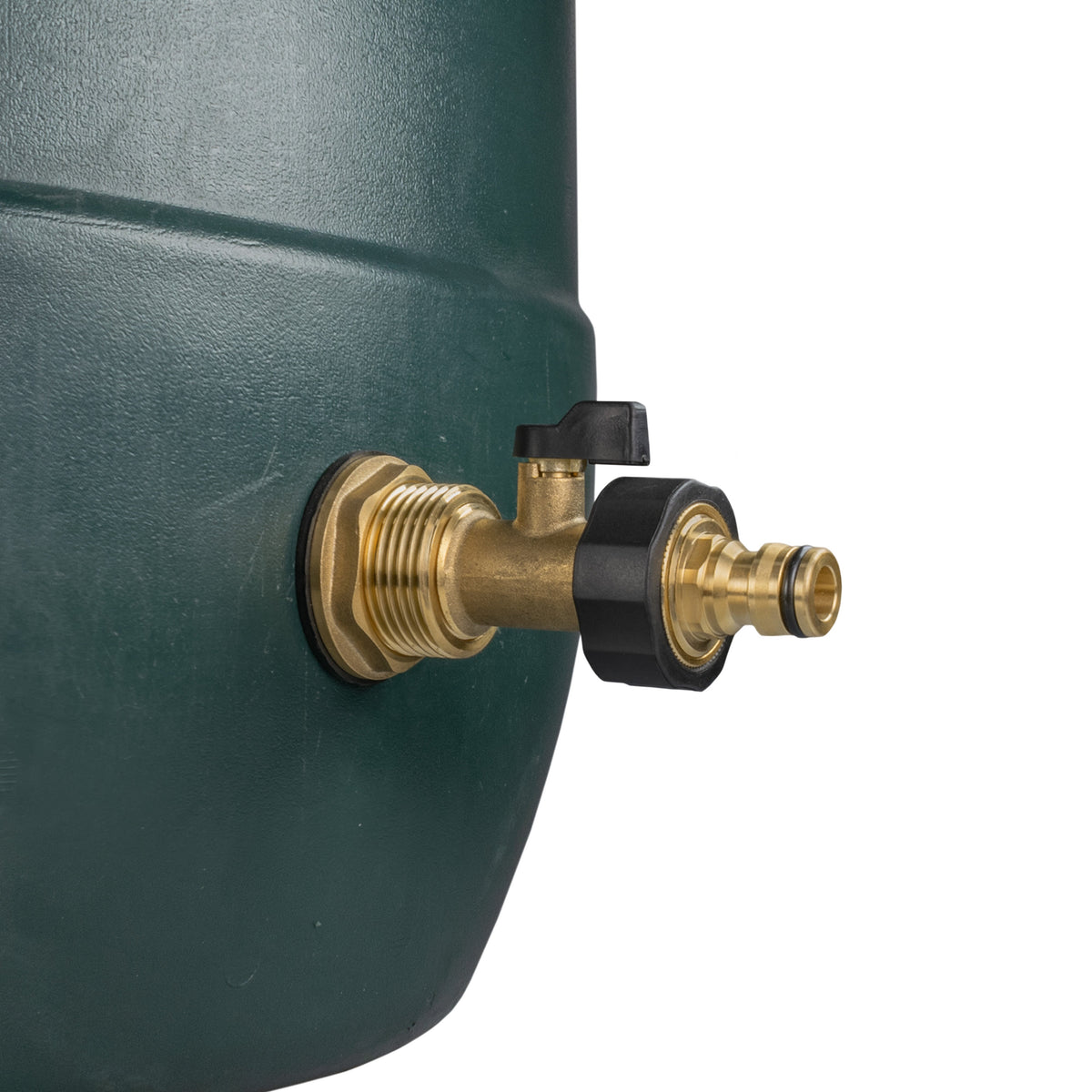

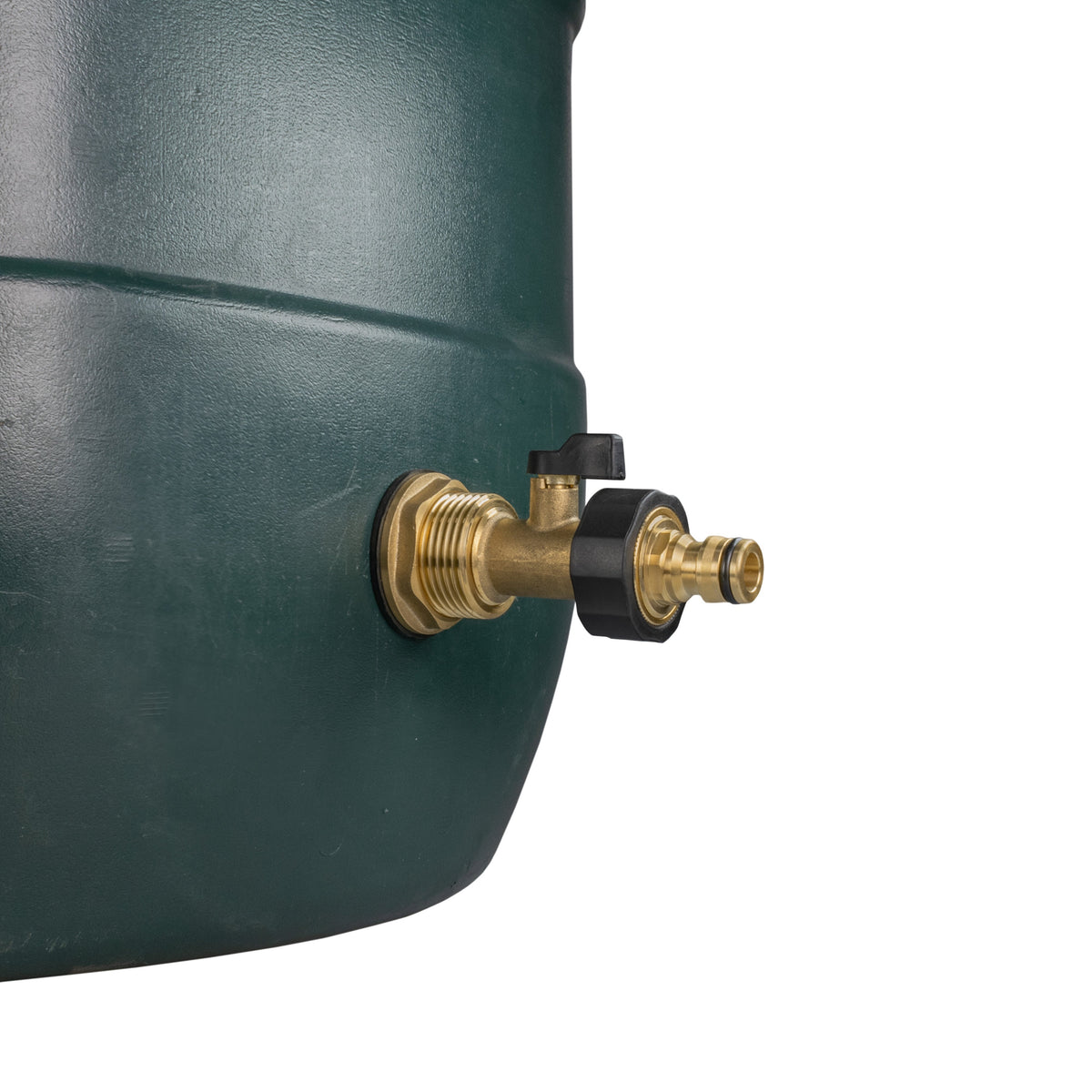

Add a controlled outlet to a compatible water butt or rainwater tank. The brass tank adapter has a 1″ BSP male mounting thread and a ¾″ BSP female outlet for the supplied tap or valve. This set combines the tank fitting, listed tap or valve assembly and a 34mm HSS hole cutter. Its finished connection is male snap-on plug.
Product details
Tank adapter material: brass

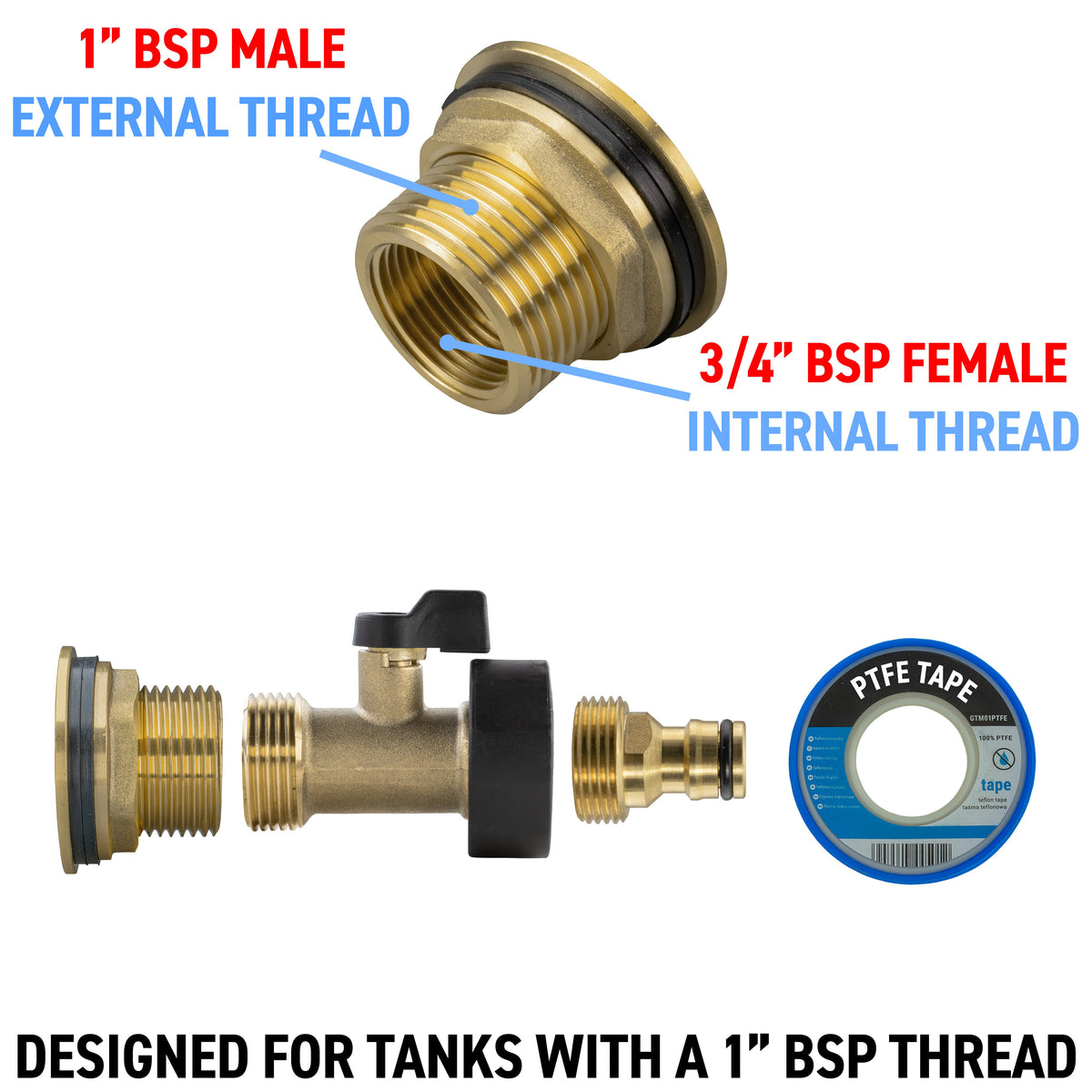

Mounting thread: 1″ BSP male
Adapter outlet: ¾″ BSP female
Finished outlet: male snap-on plug
Supplied cutter: 34mm HSS hole cutter
Kit reference: WB34-BRASS-KIT-025+DB+

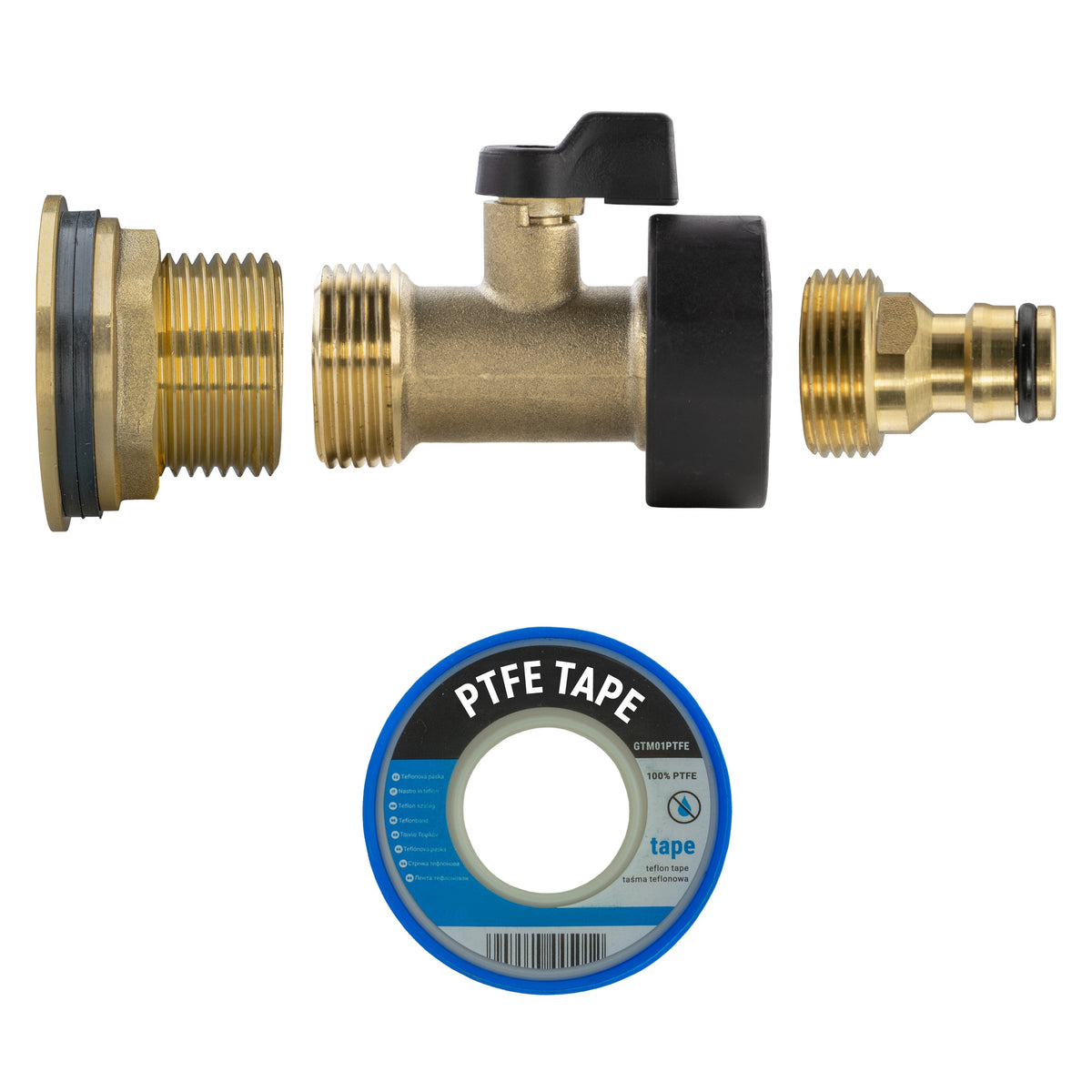

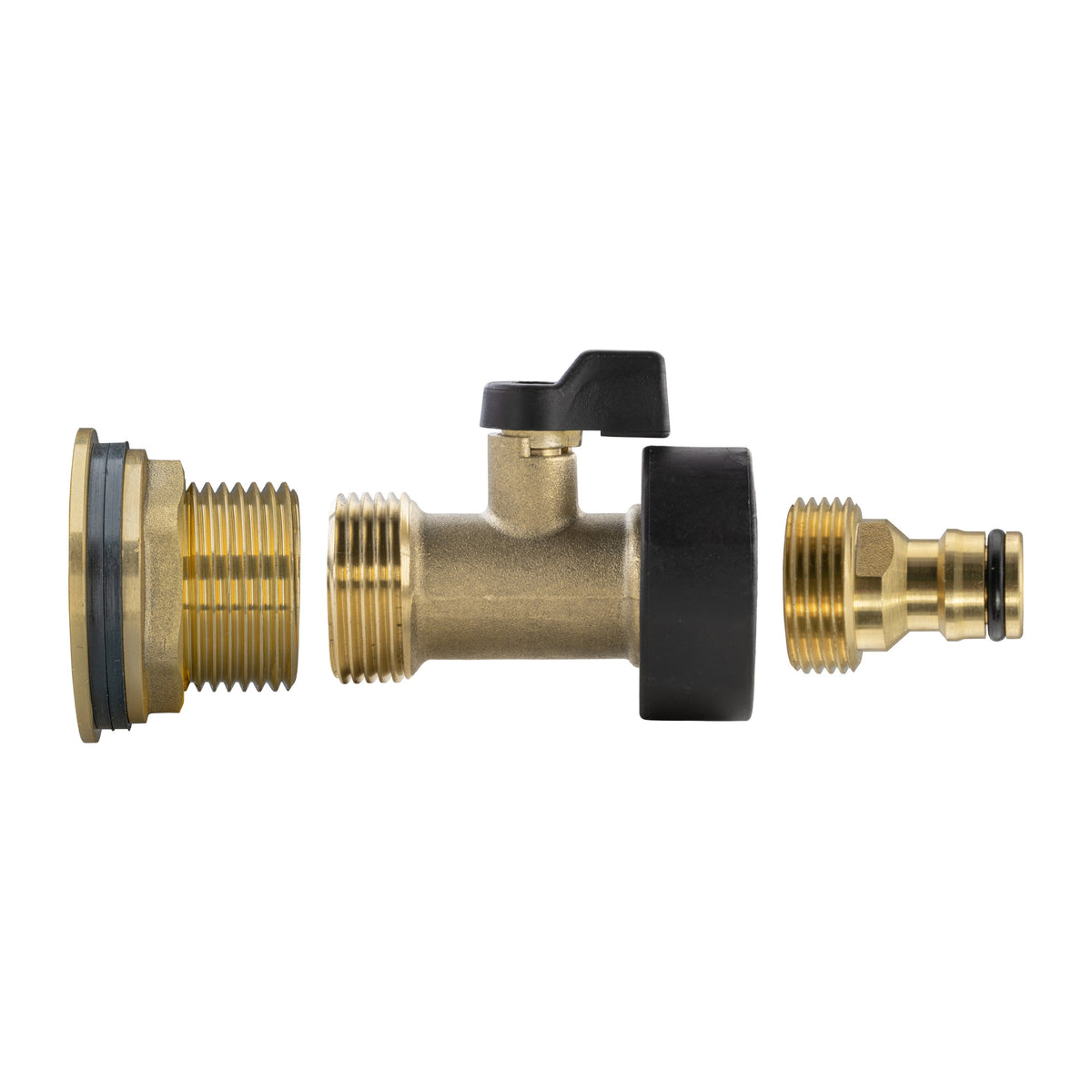

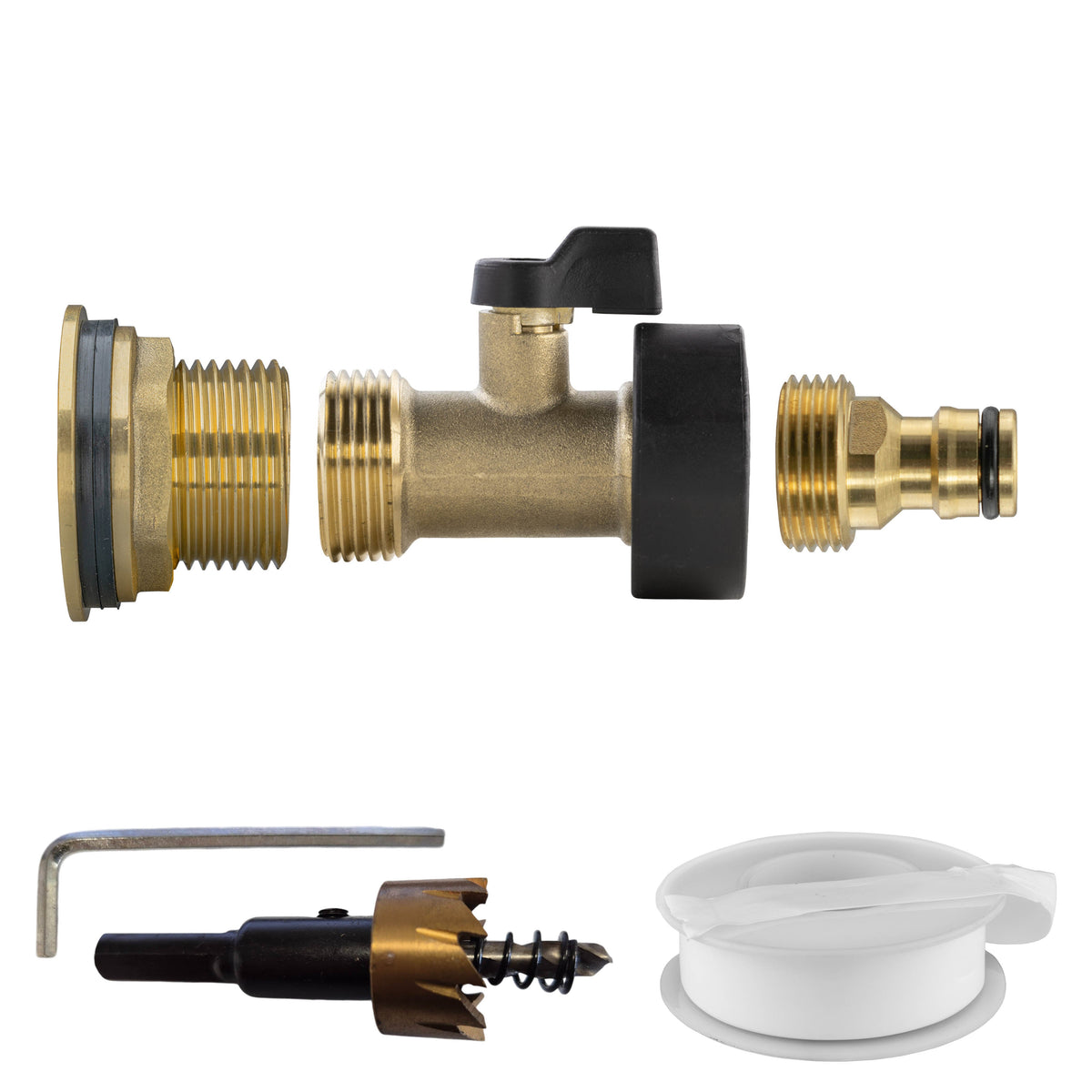

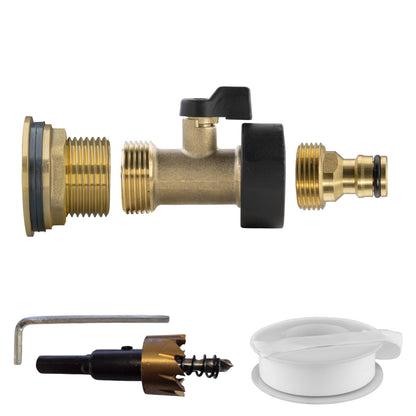

What is included

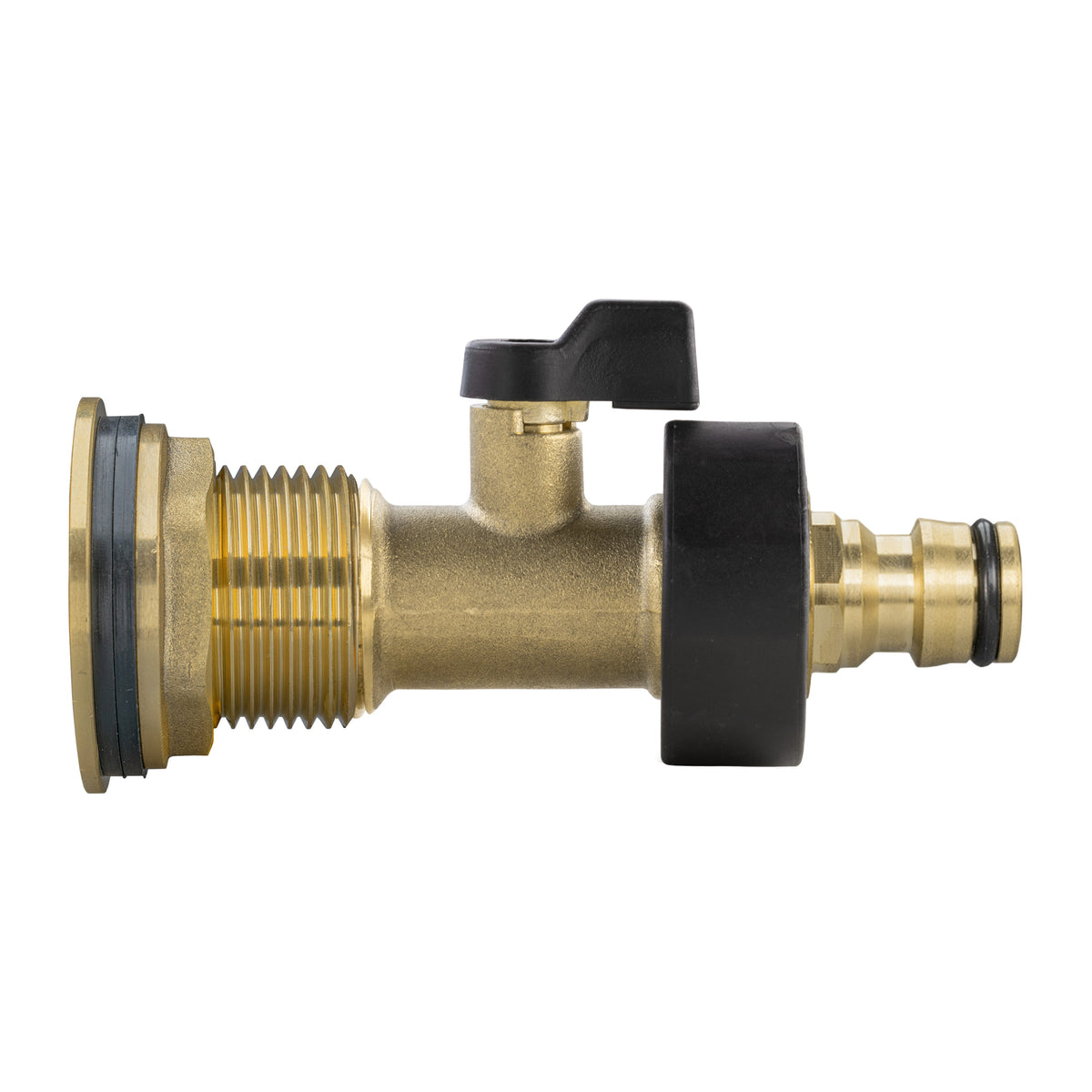

1 × brass tank adapter, 1″ BSP male mounting thread to ¾″ BSP female outlet, with back nut and sealing washers
1 × roll of PTFE thread-seal tape
1 × brass inline manual valve with ¾″ BSP male and female threads
1 × brass male snap-on tap connector with ¾″ BSP male thread
1 × 34mm HSS hole cutter
Check compatibility
Check the tank-wall thickness, material and actual connector dimensions before cutting or fitting. BSP is a thread designation, not the drilling diameter. The supplied 34mm cutter is listed separately from the mounting thread. The snap-on plug needs a matching female hose coupling, supplied separately. Tank, drill, pipe/hose and separate hose clips are not included. Assemble and check all joints before filling or opening the supply.
