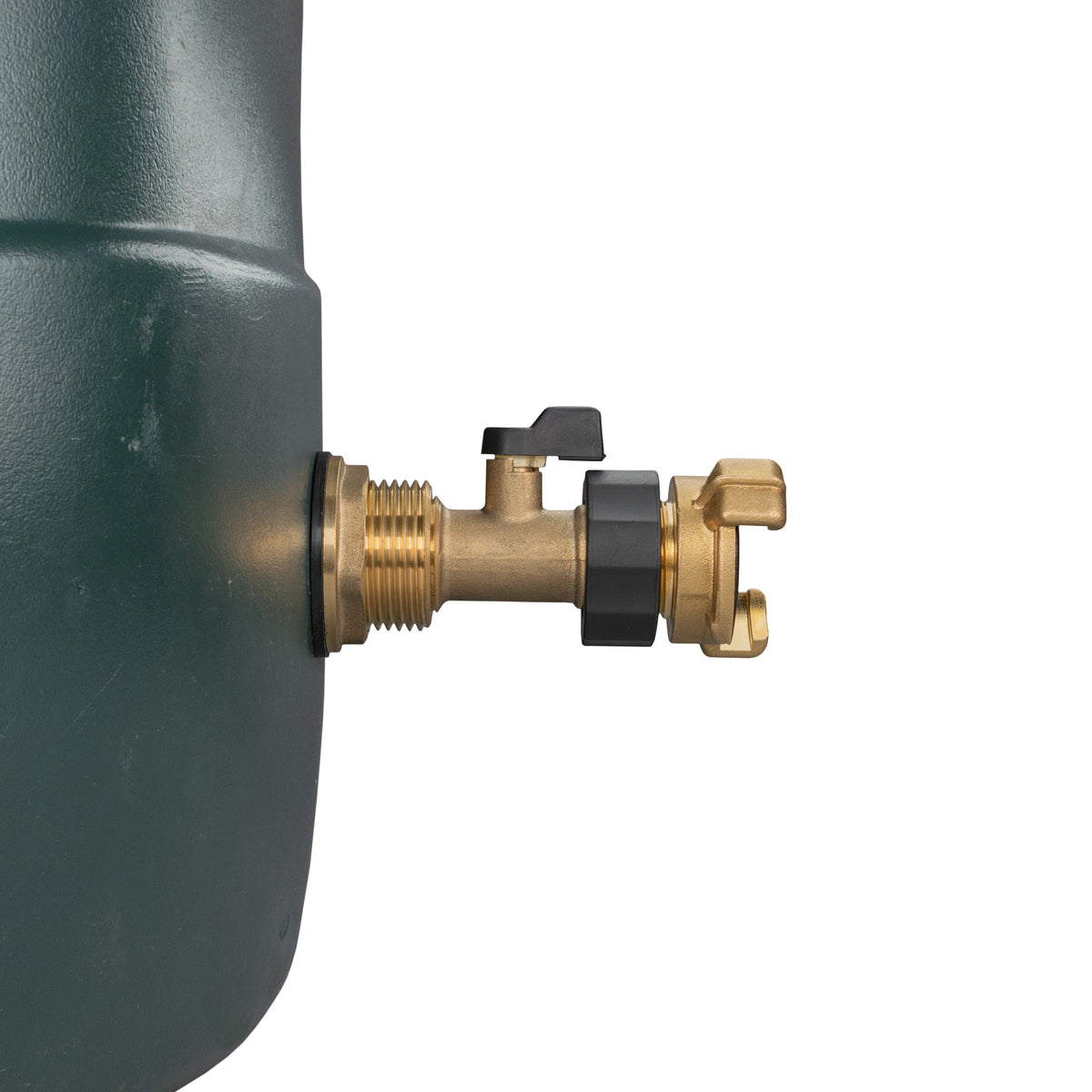

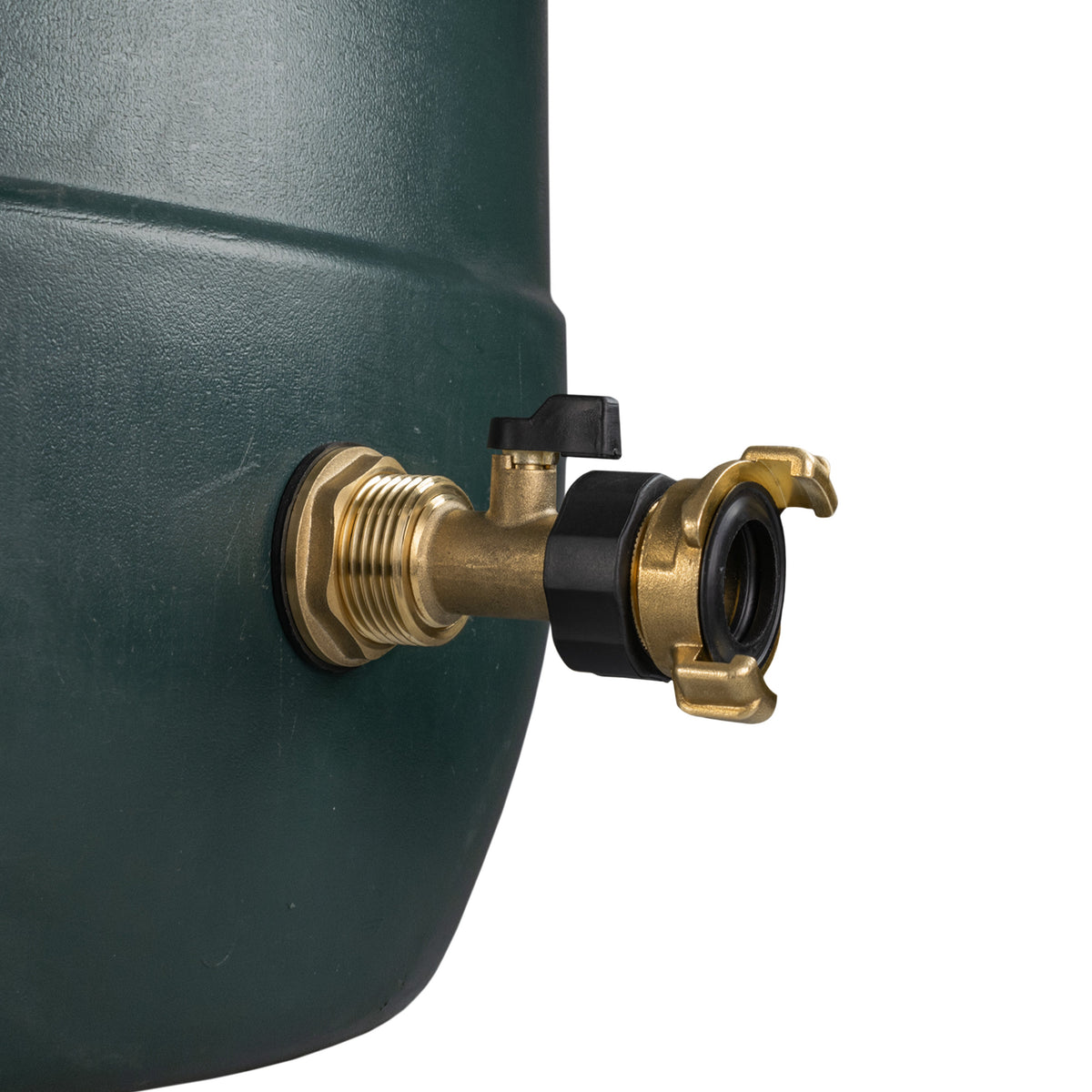

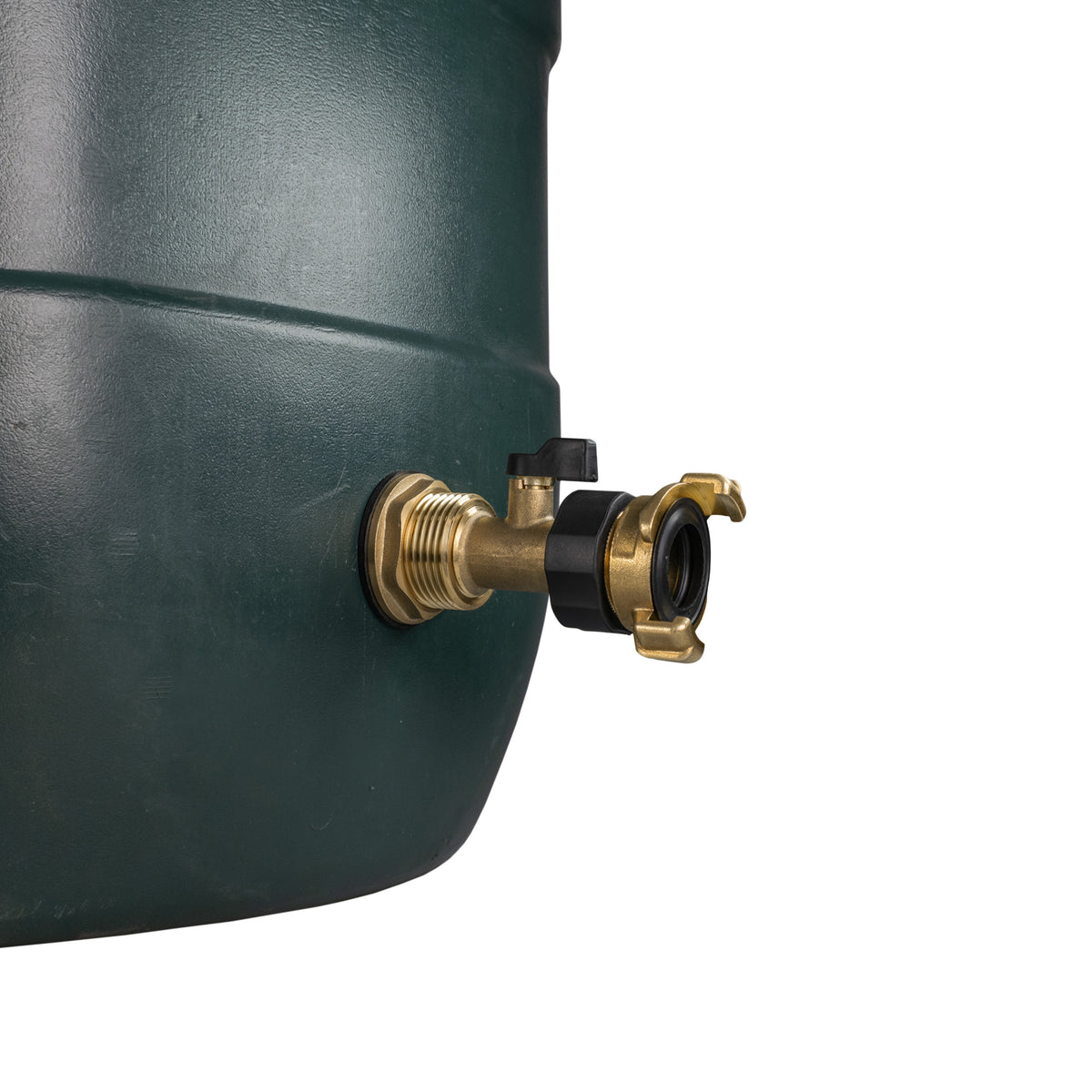

Add a controlled outlet to a compatible rainwater tank. This kit pairs a brass tank adapter with the listed valve assembly and a 34mm hole cutter; its finished connection is Geka-type brass claw coupling.
Product details

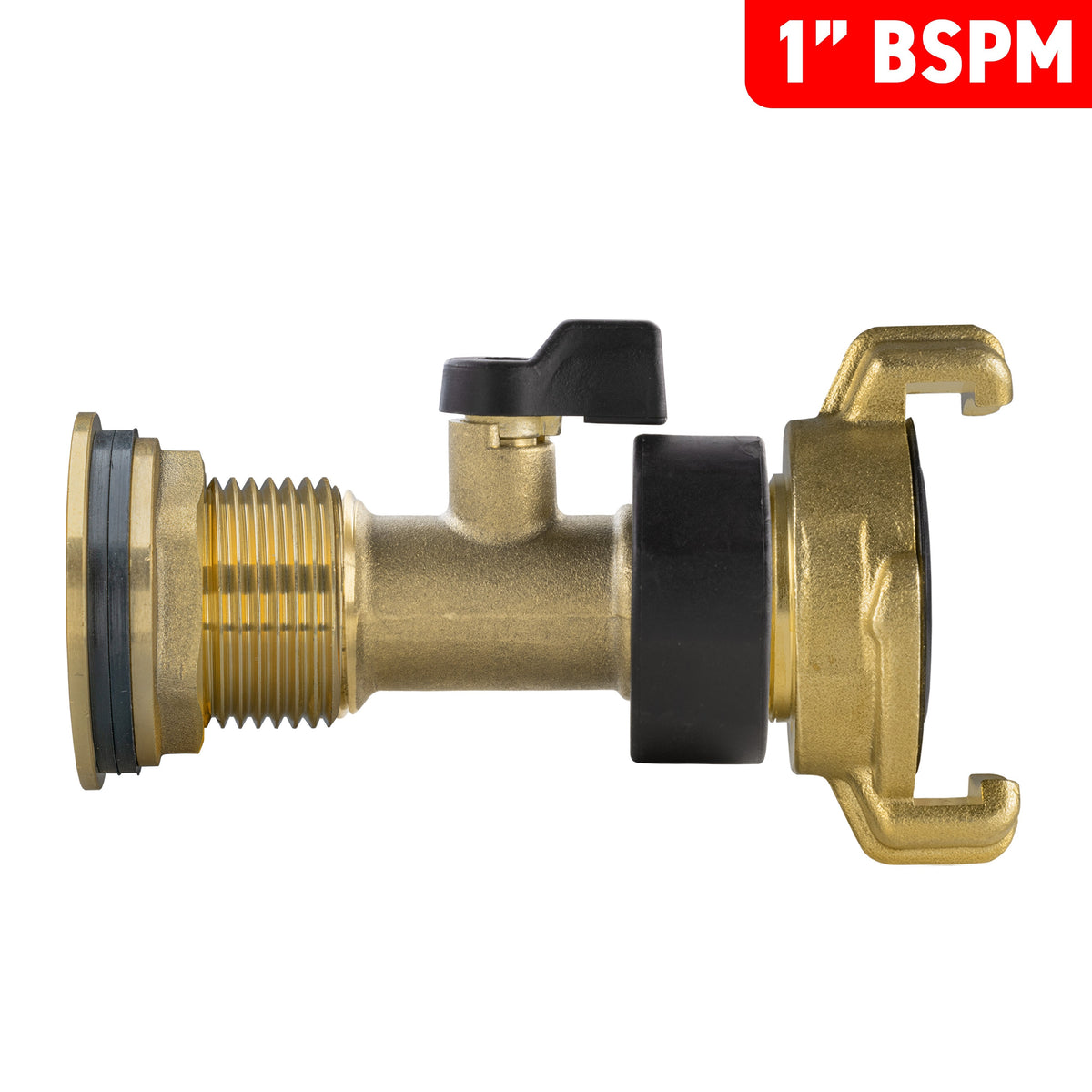

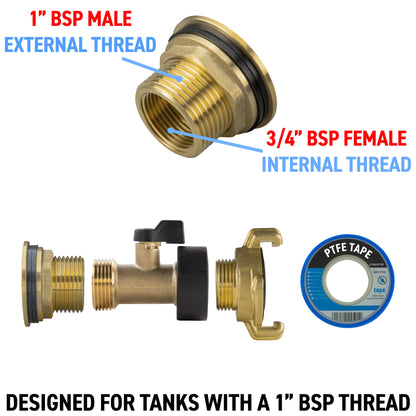

Mounting thread: 1″ BSP male
Adapter outlet: ¾″ BSP female
Supplied cutter: 34mm HSS hole cutter
Finished outlet: Geka-type brass claw coupling
Reference: WB34-BRASS-KIT-028+DB+

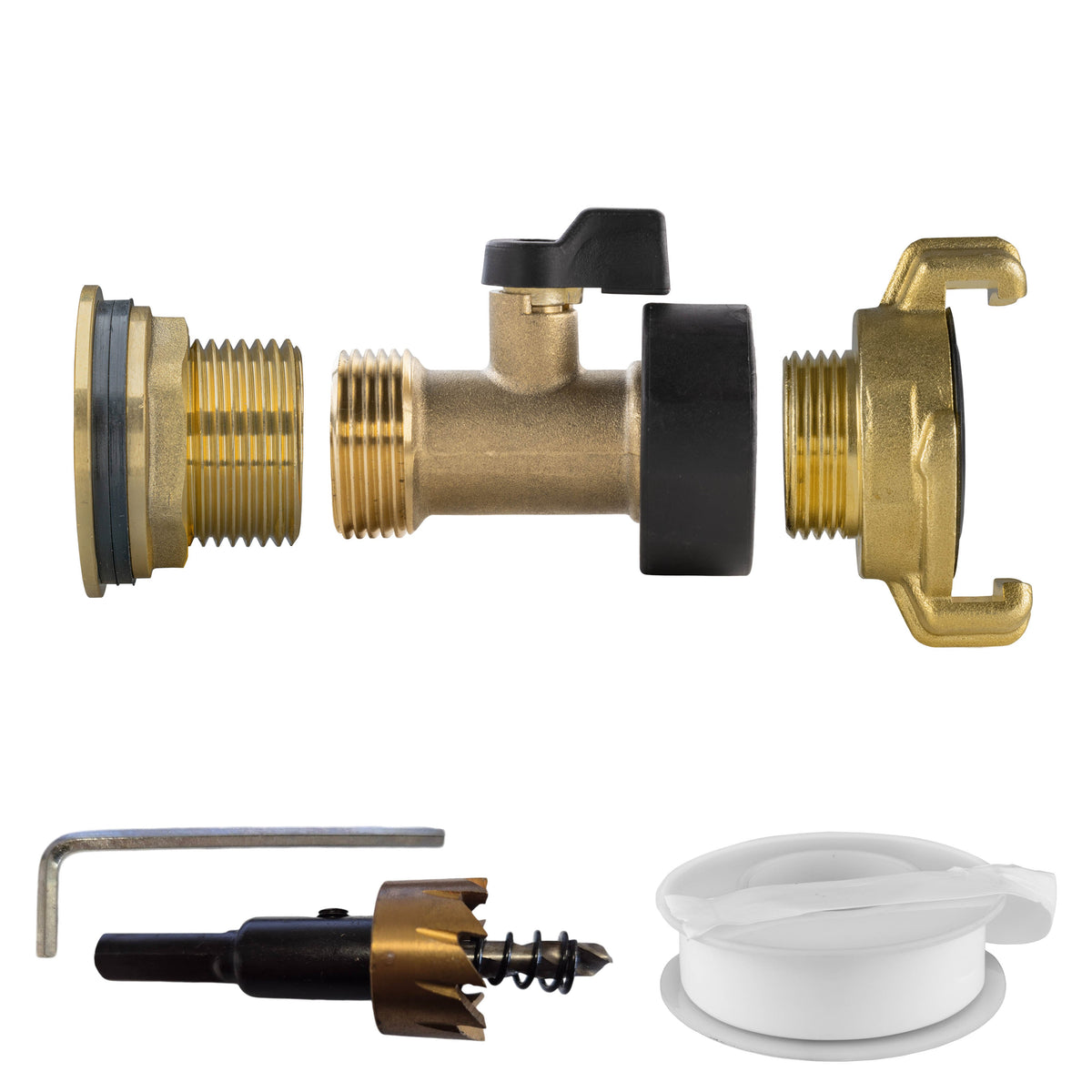

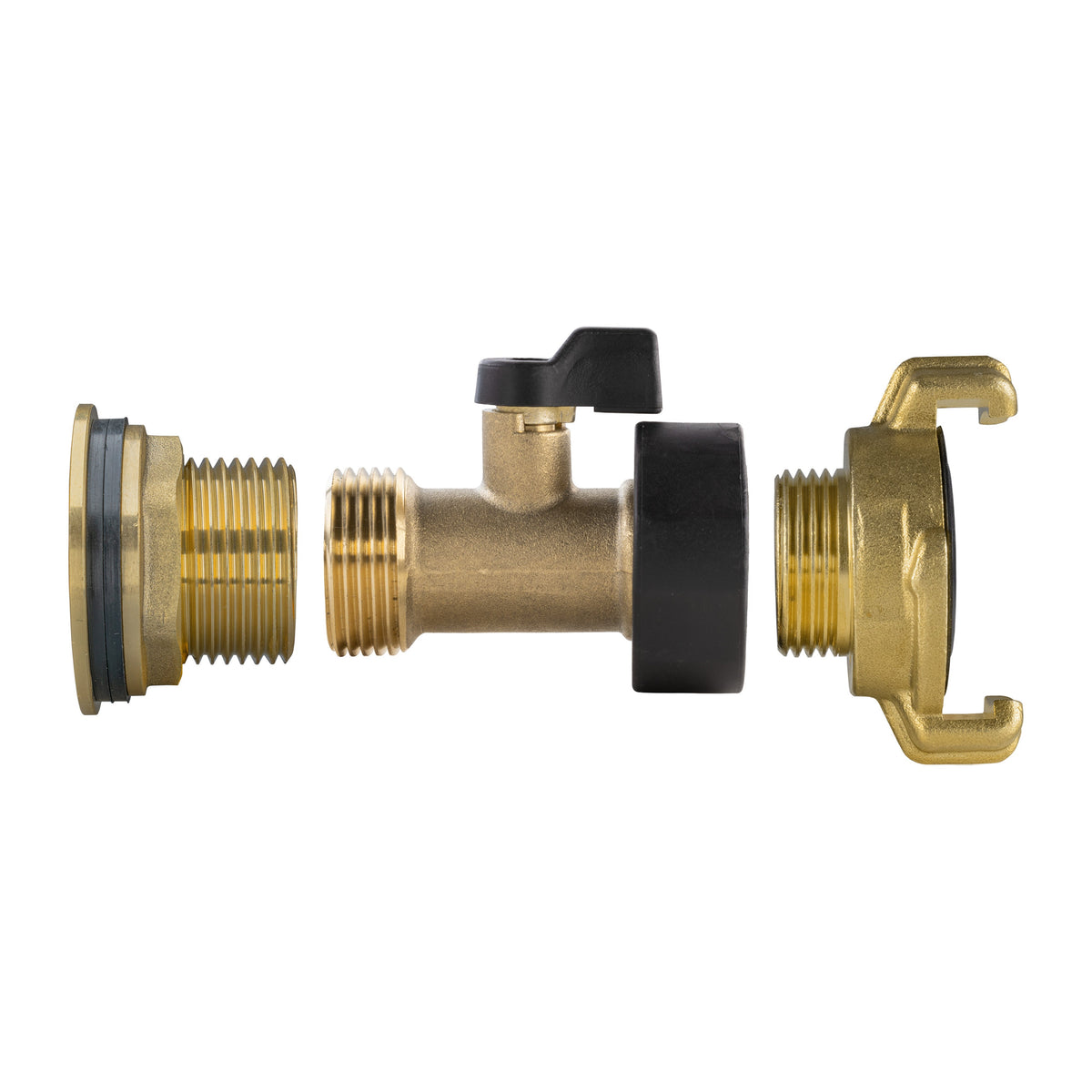

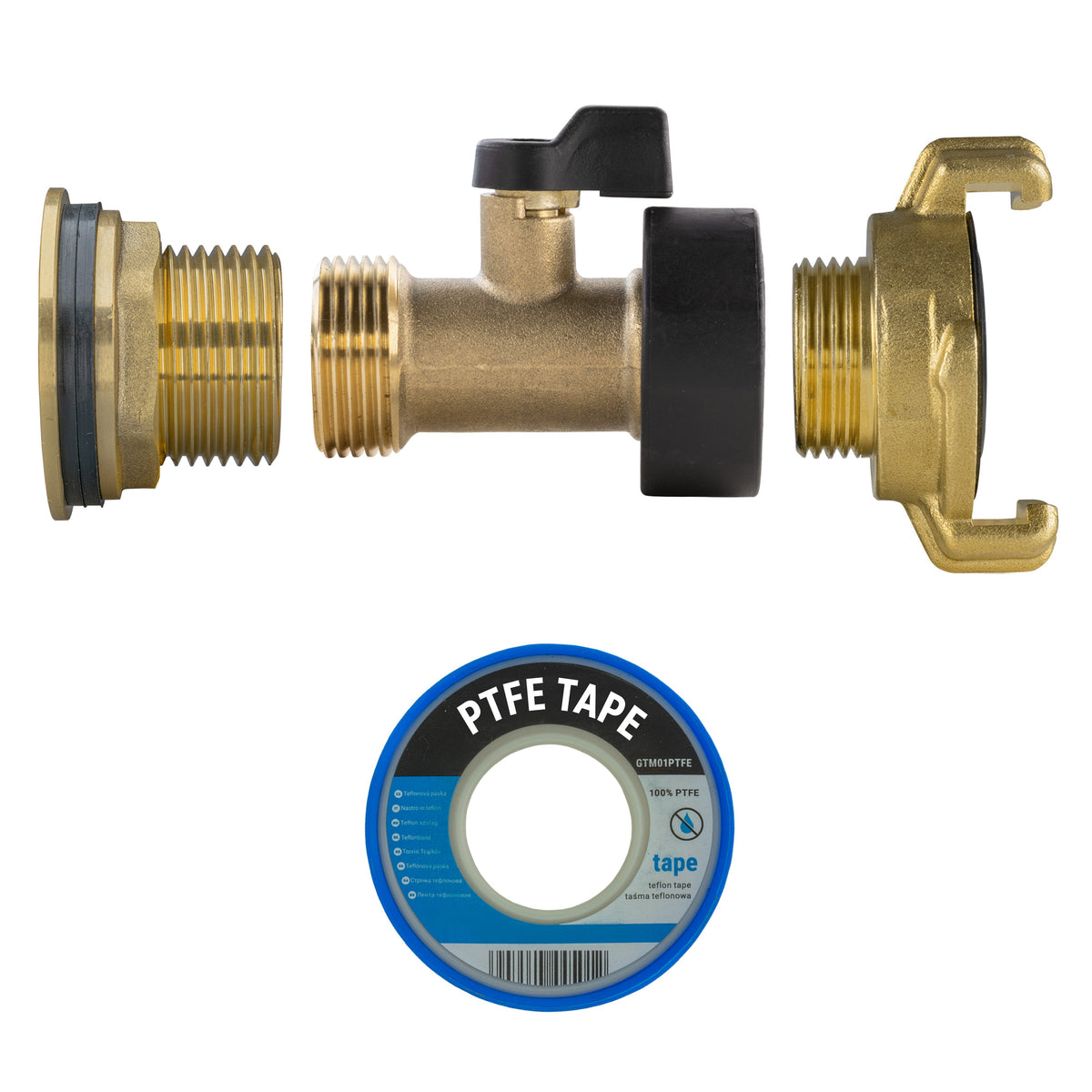

What is included

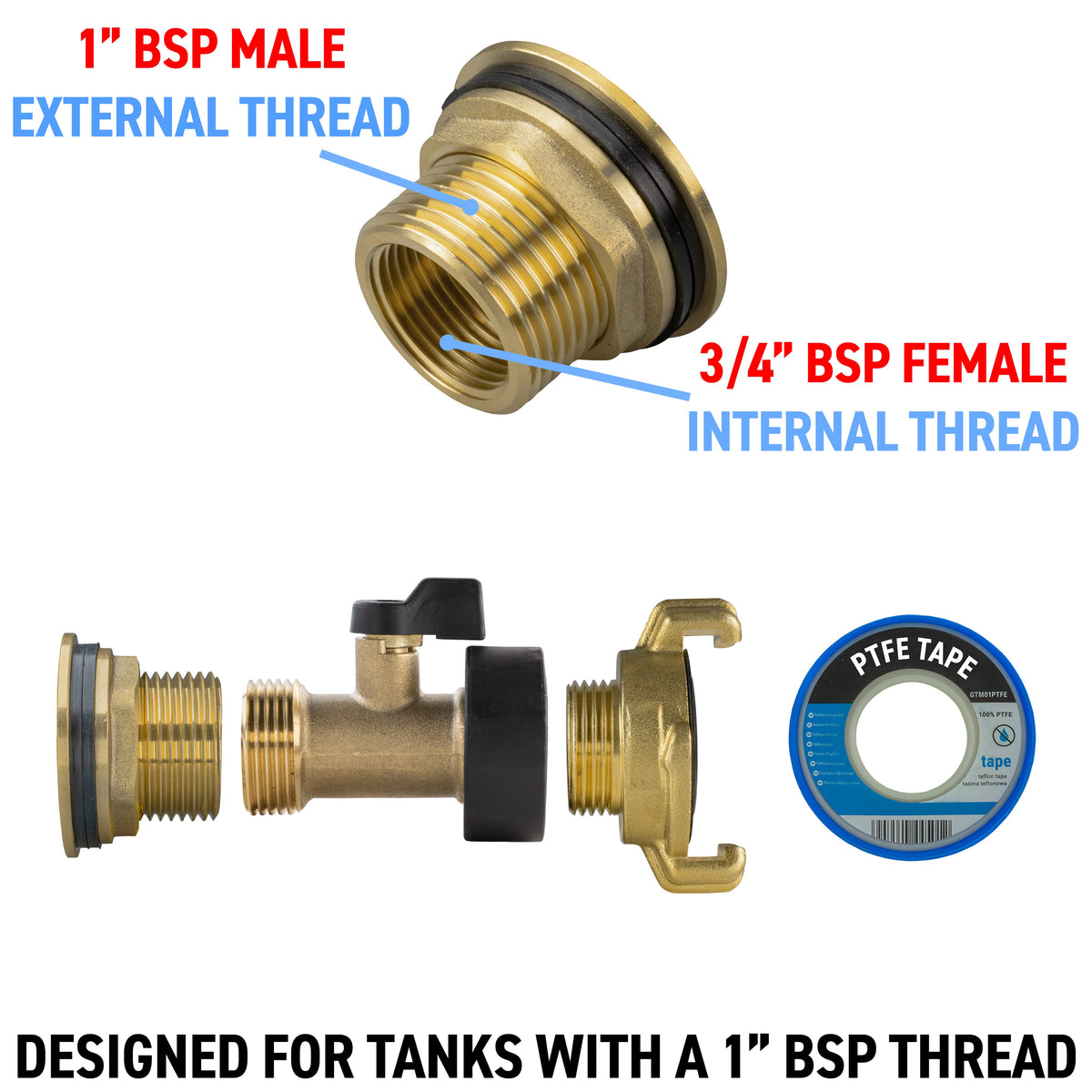

1 × brass tank adapter with 1″ BSP male mounting thread and ¾″ BSP female outlet, back nut and sealing washers
1 × roll of PTFE thread-seal tape

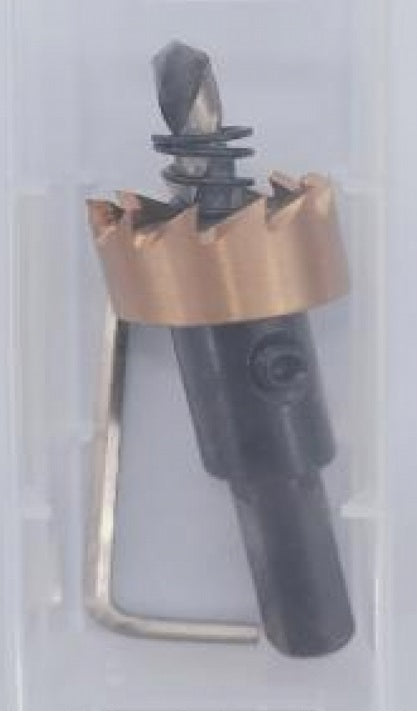

1 × 34mm HSS hole cutter
1 × brass inline valve with ¾″ BSP male and female threads
1 × brass Geka-type claw adapter with ¾″ BSP male thread
Using your product
Check tank-wall thickness, material and actual connector dimensions before cutting. The 1″ BSP designation is the mounting thread; 34mm describes the supplied cutter. Check each joint and finished connection before filling the tank. Match the mating claw profile; a hose-side claw fitting is supplied separately. Tank, drill, hose and separate hose clips are not included.
