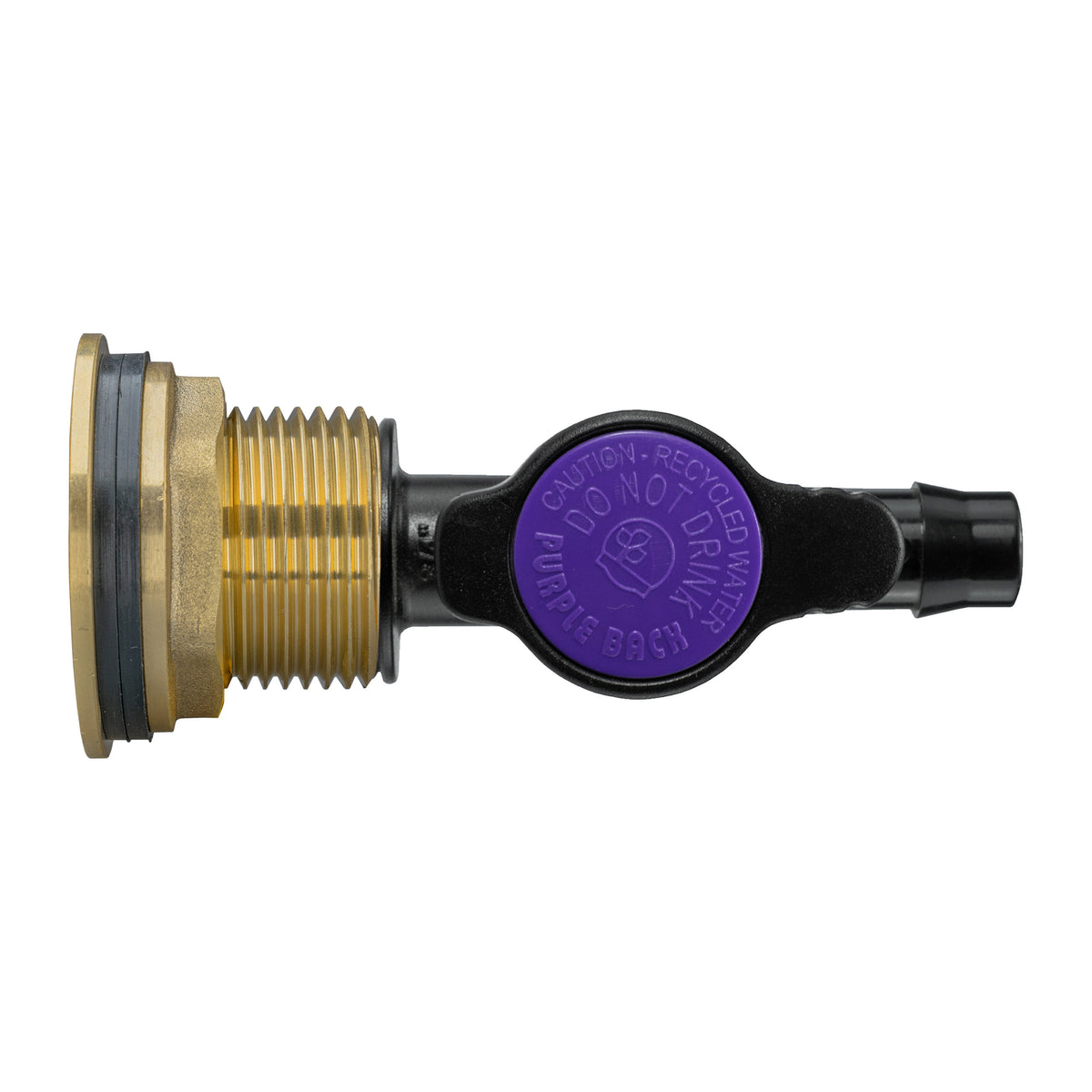

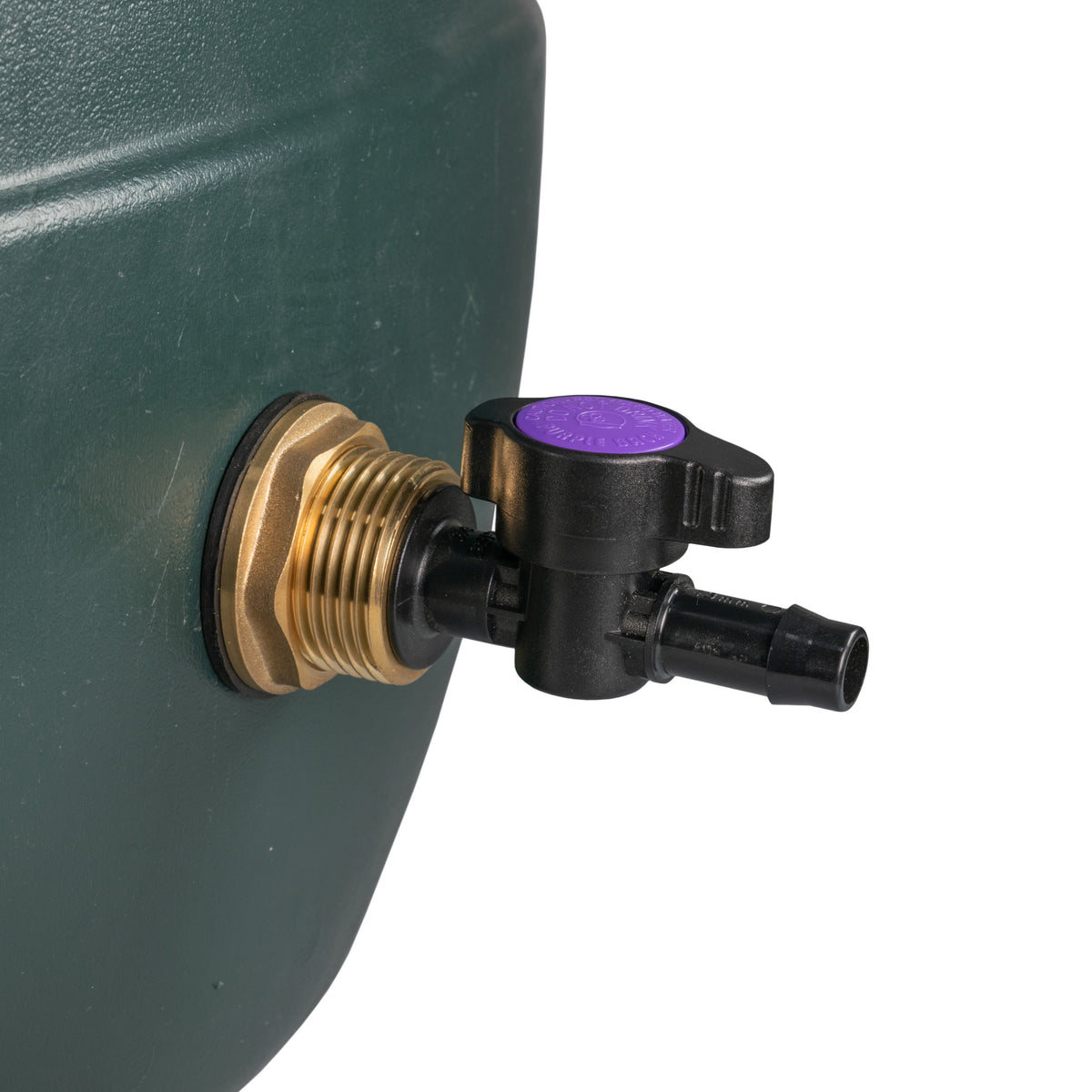

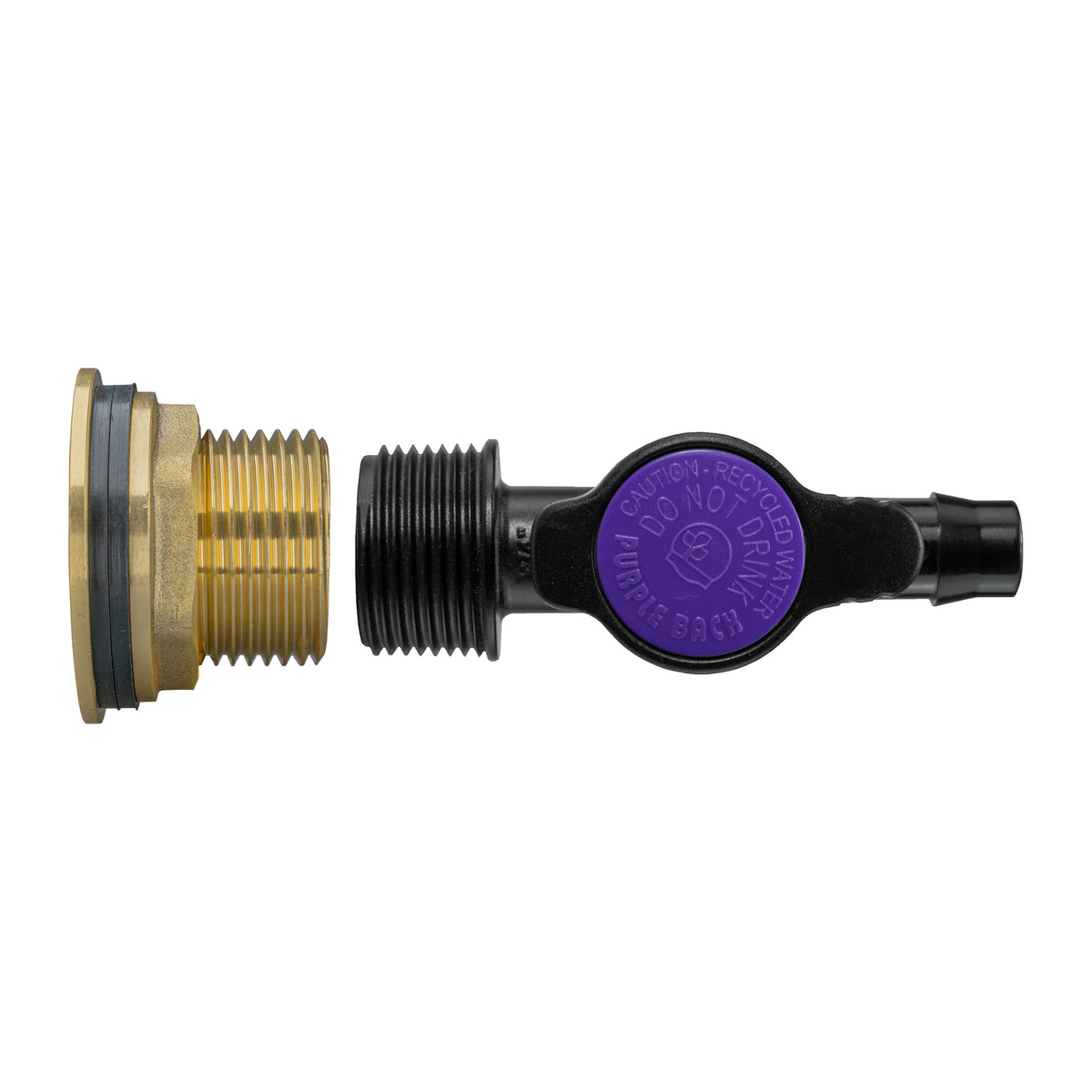

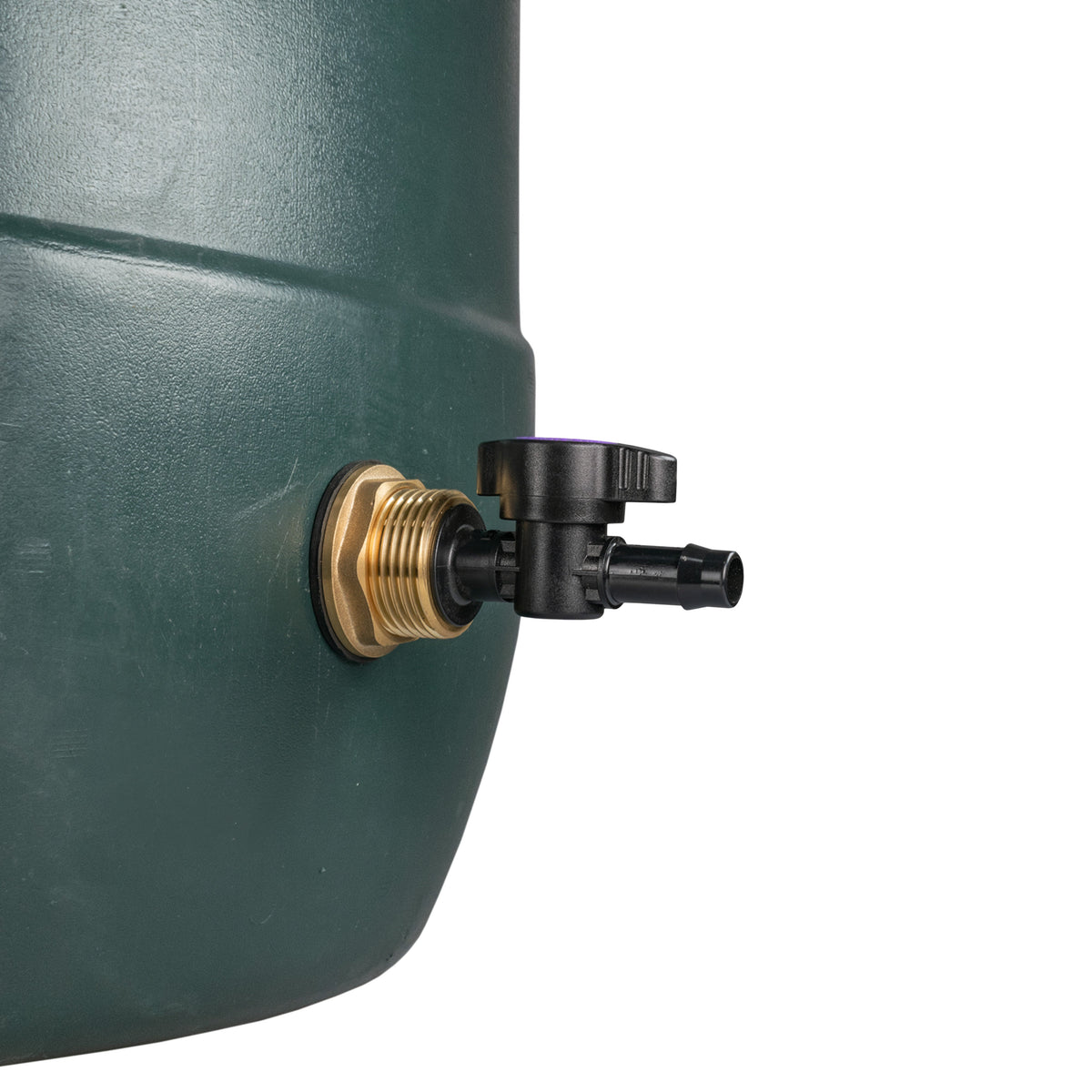

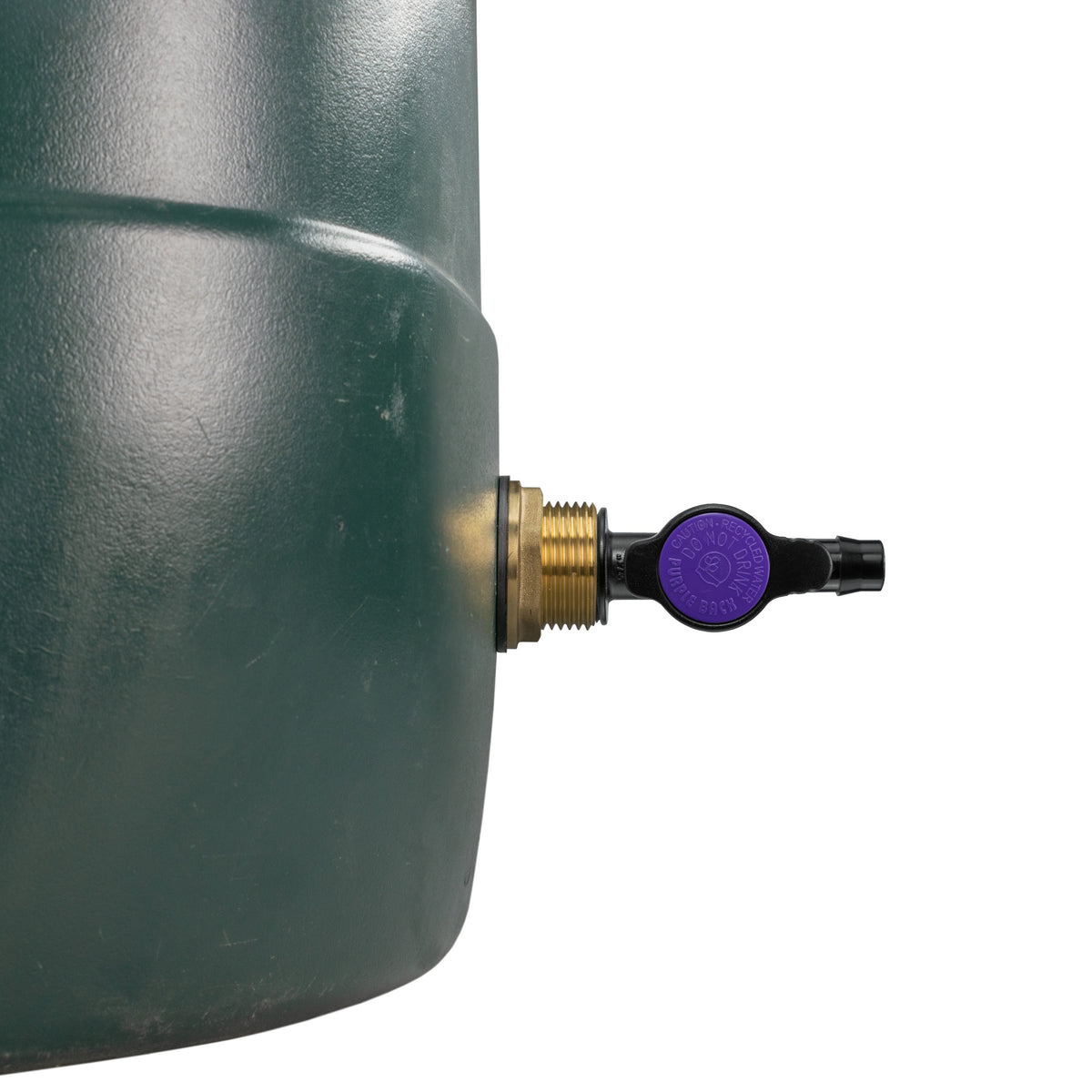

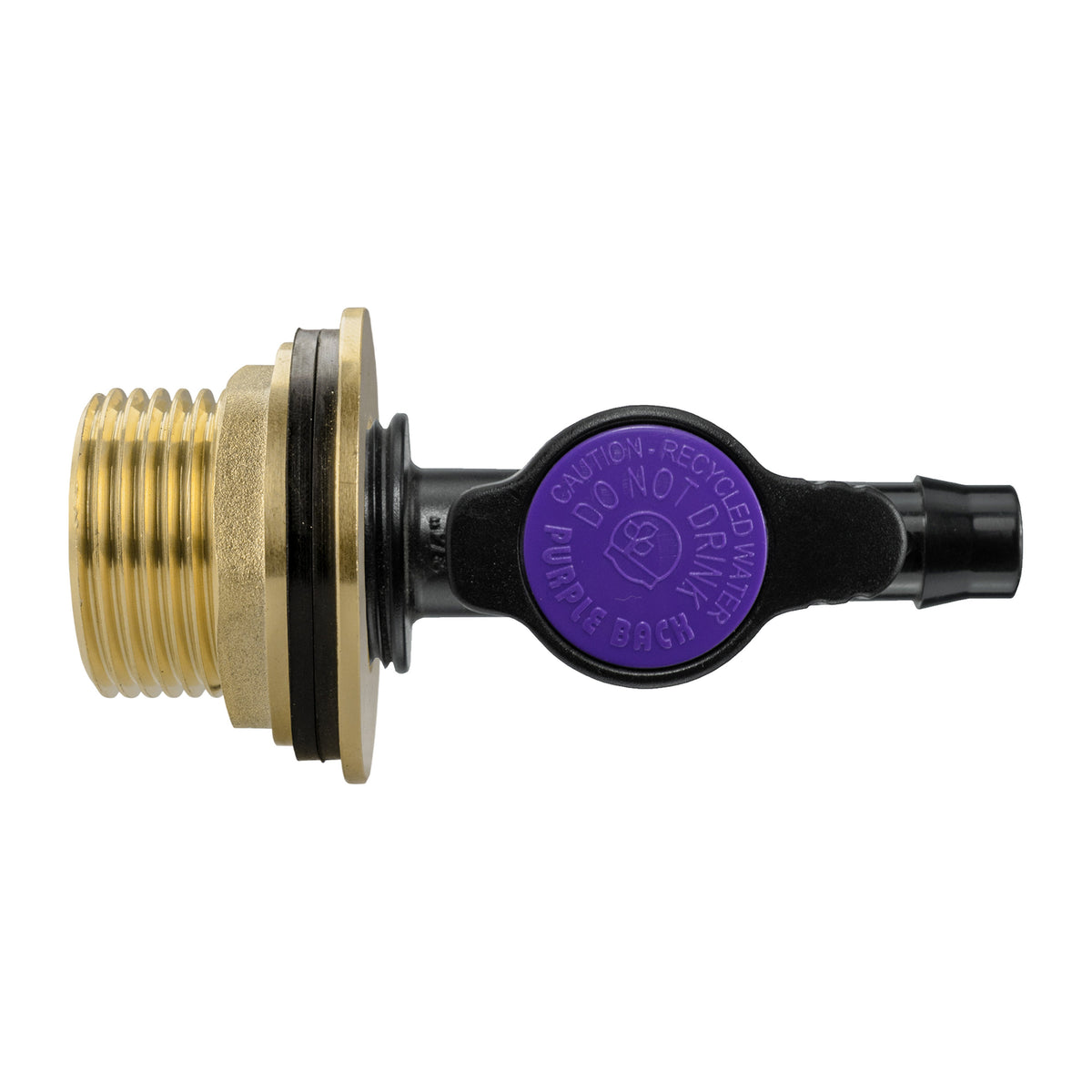

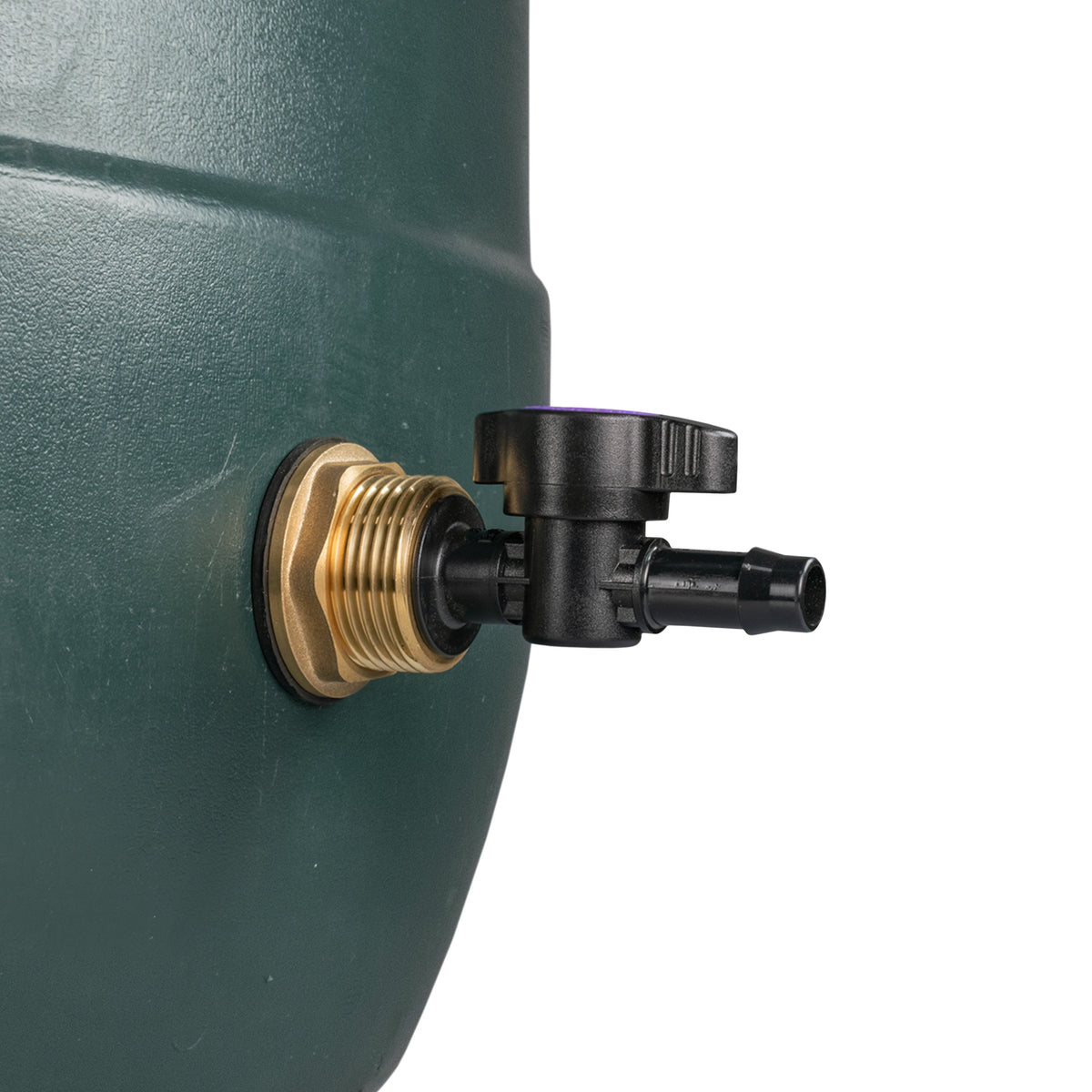

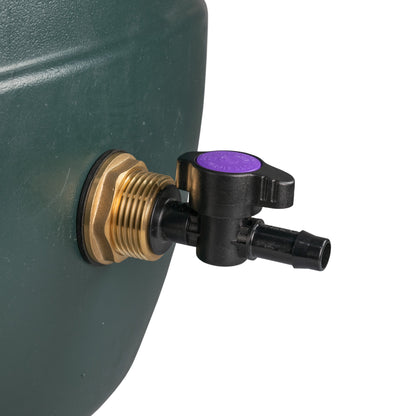

Add a controlled outlet to a compatible water butt or rainwater tank. The brass tank adapter has a 1″ BSP male mounting thread and a ¾″ BSP female outlet for the supplied tap or valve. This set combines the tank fitting, listed tap or valve assembly and a 34mm HSS hole cutter. Its finished connection is 13mm irrigation barb.
Product details

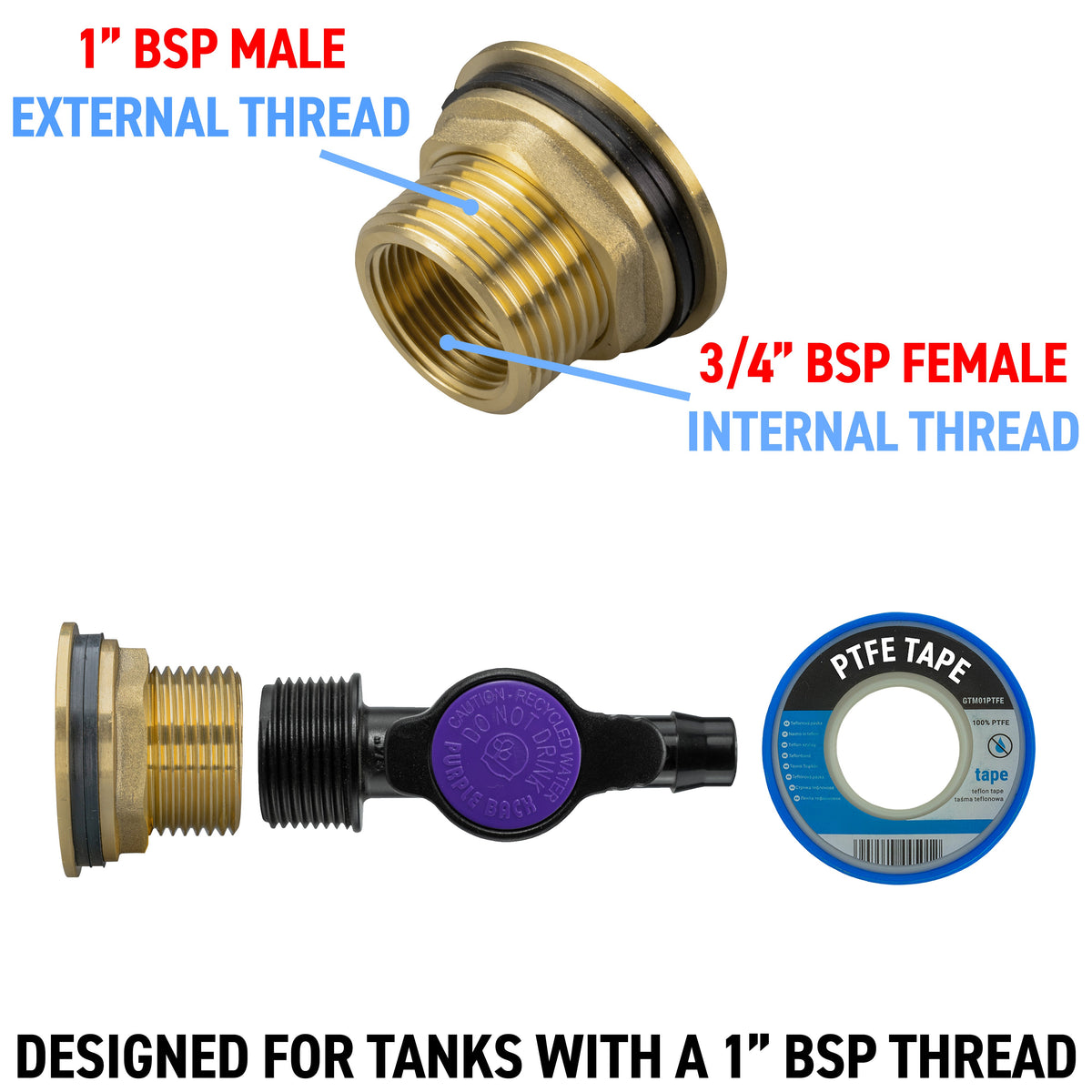

Tank adapter material: brass

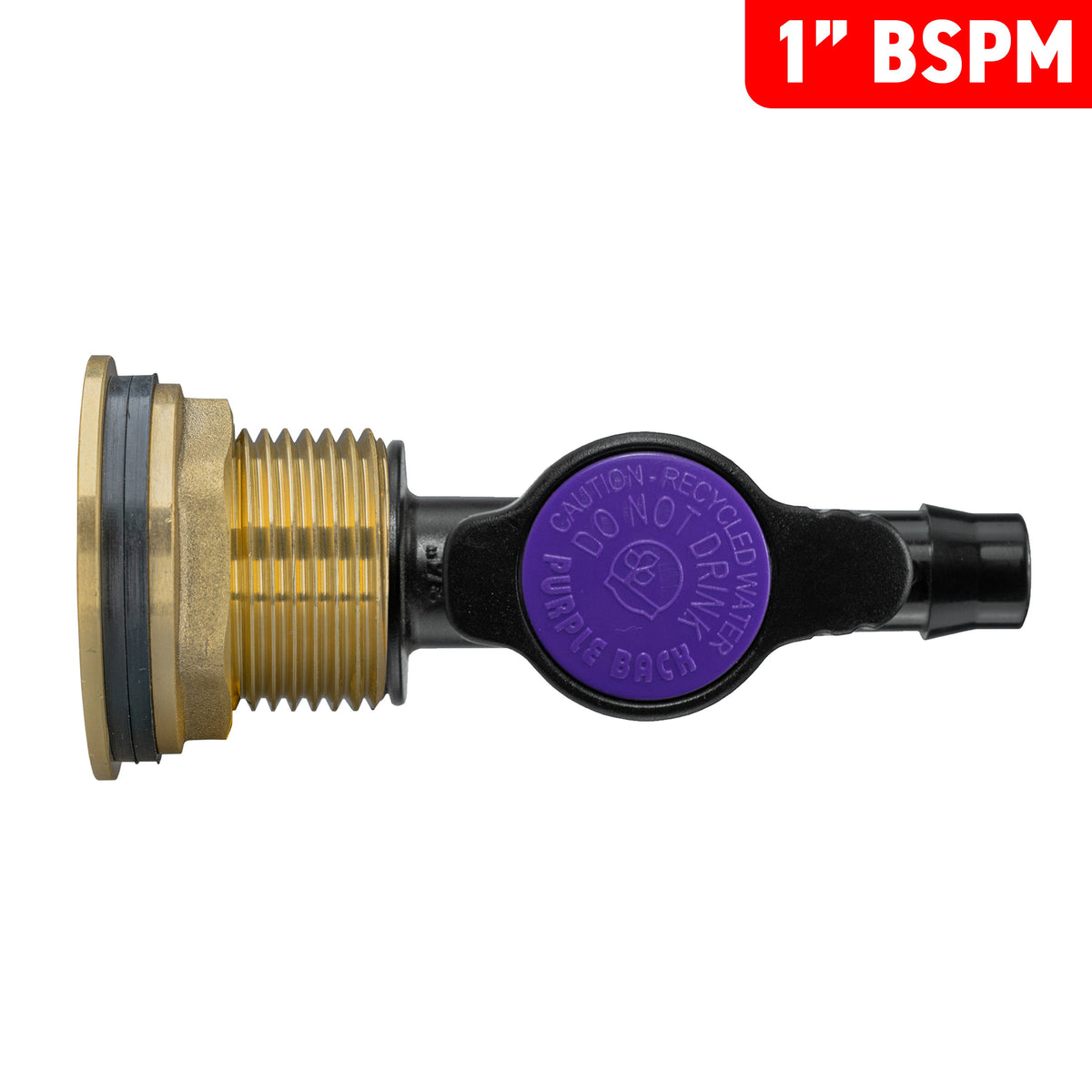

Mounting thread: 1″ BSP male
Adapter outlet: ¾″ BSP female
Finished outlet: 13mm irrigation barb
Supplied cutter: 34mm HSS hole cutter
Kit reference: WB34-BRASS-KIT-020+DB+

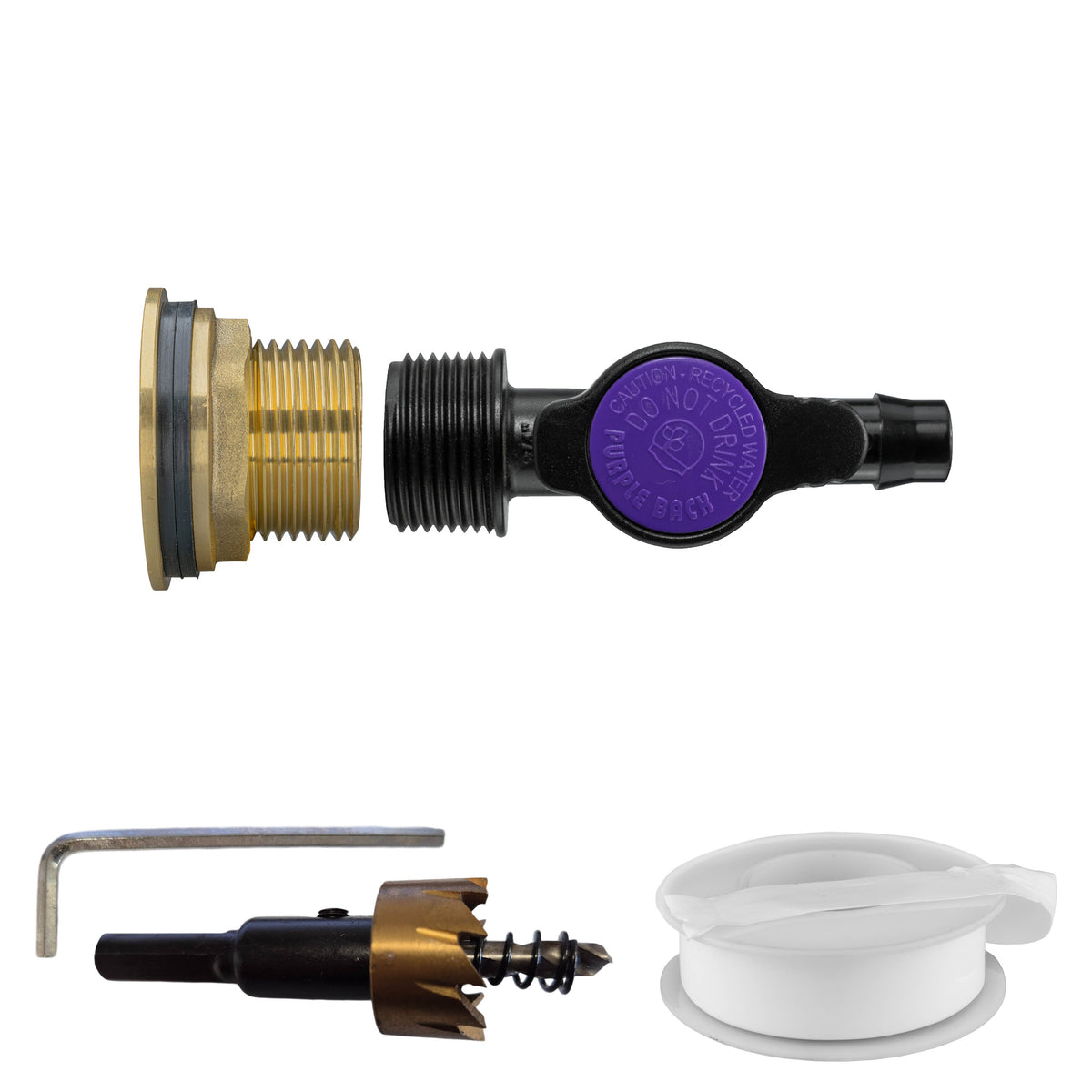

What is included

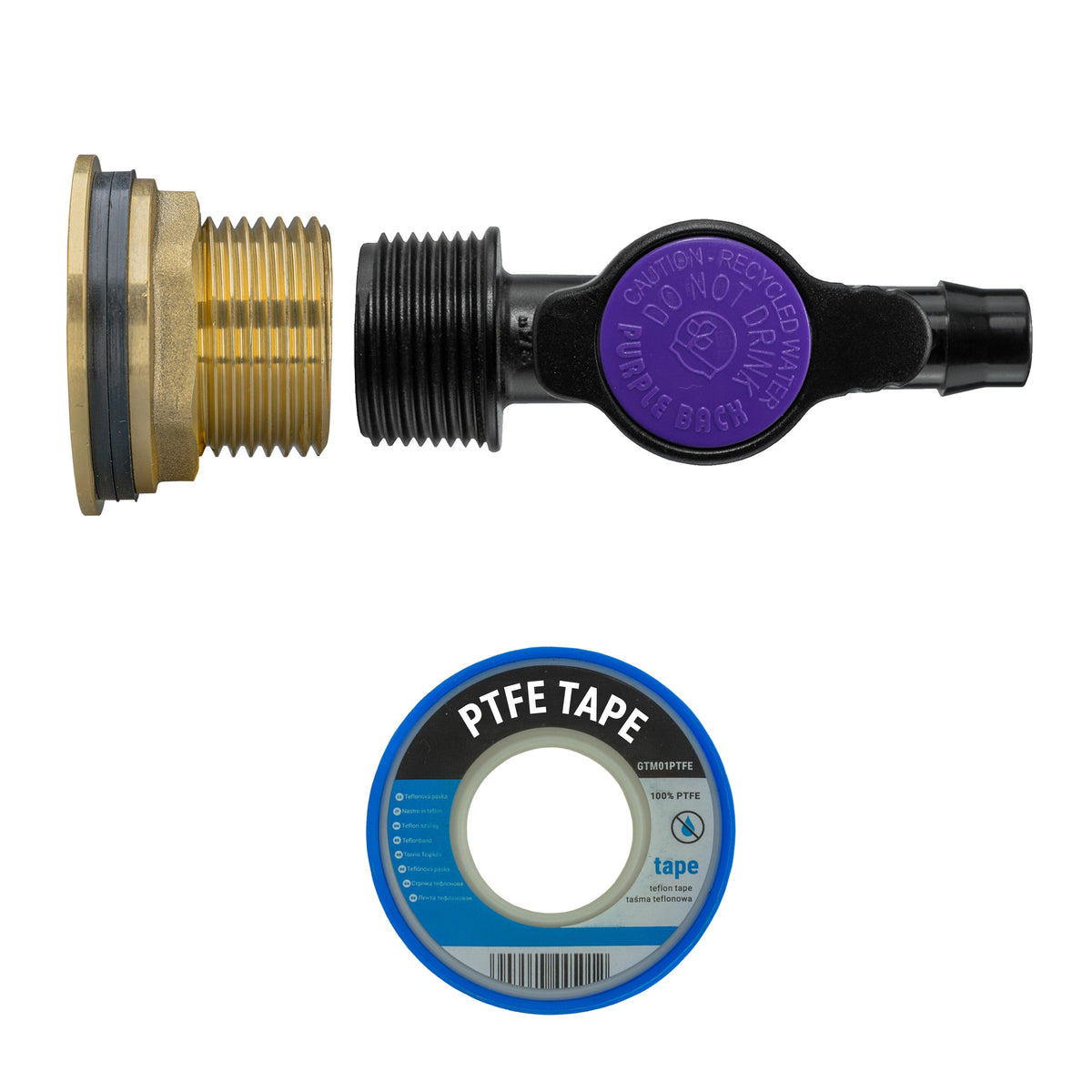

1 × brass tank adapter, 1″ BSP male mounting thread to ¾″ BSP female outlet, with back nut and sealing washers
1 × roll of PTFE thread-seal tape
1 × manual purple-cap irrigation valve with ¾″ BSP male inlet
1 × 34mm HSS hole cutter
Check compatibility
Check the tank-wall thickness, material and actual connector dimensions before cutting or fitting. BSP is a thread designation, not the drilling diameter. The supplied 34mm cutter is listed separately from the mounting thread. The purple cap identifies the valve’s recycled-water application. Match 13mm irrigation tubing to its barb. Tank, drill, pipe/hose and separate hose clips are not included. Assemble and check all joints before filling or opening the supply.
