32mm MDPE Wall Kit – ¾″ Camlock B+E & Separate Valve

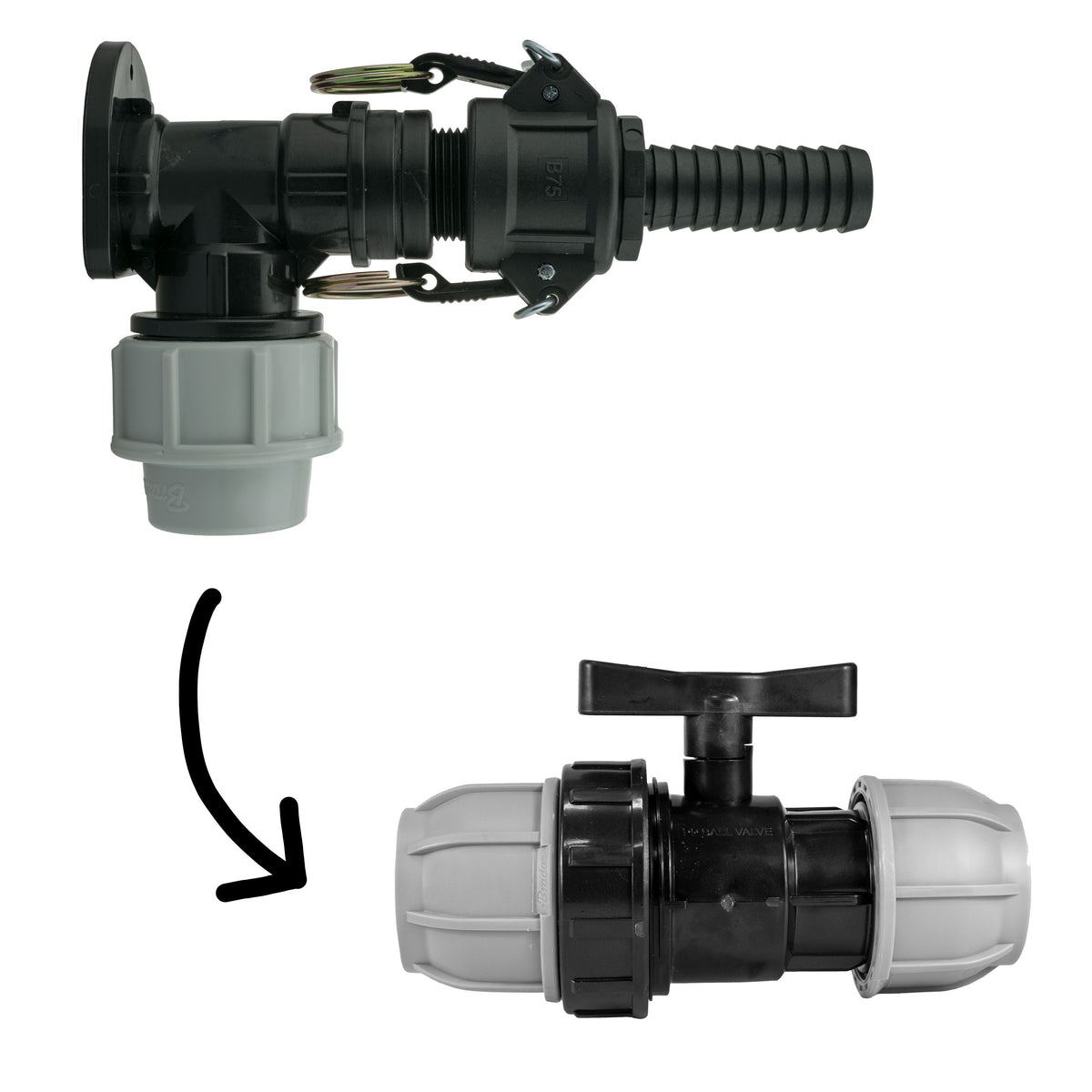

Create a wall-mounted garden water connection from a compatible 32mm MDPE supply pipe. A separate compression valve is included for the pipe run; it does not screw directly into the wall flange.

Product details

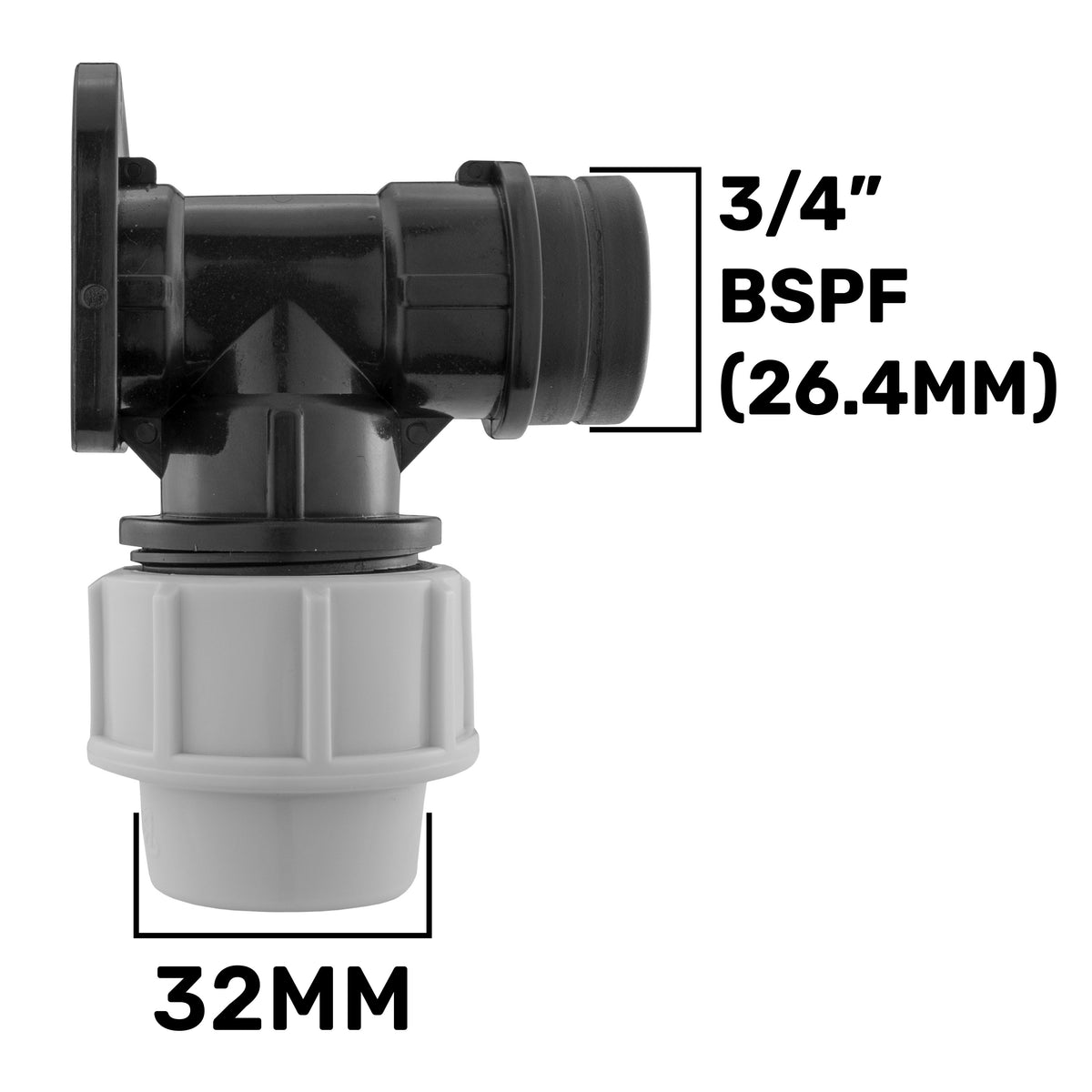

• Supply pipe: 32mm outside-diameter MDPE
• Wall-flange port: ¾″ BSP female
• Outlet arrangement: ¾″ camlock B+E pair with hose tail
• Kit reference: WF32KIT031

What is included

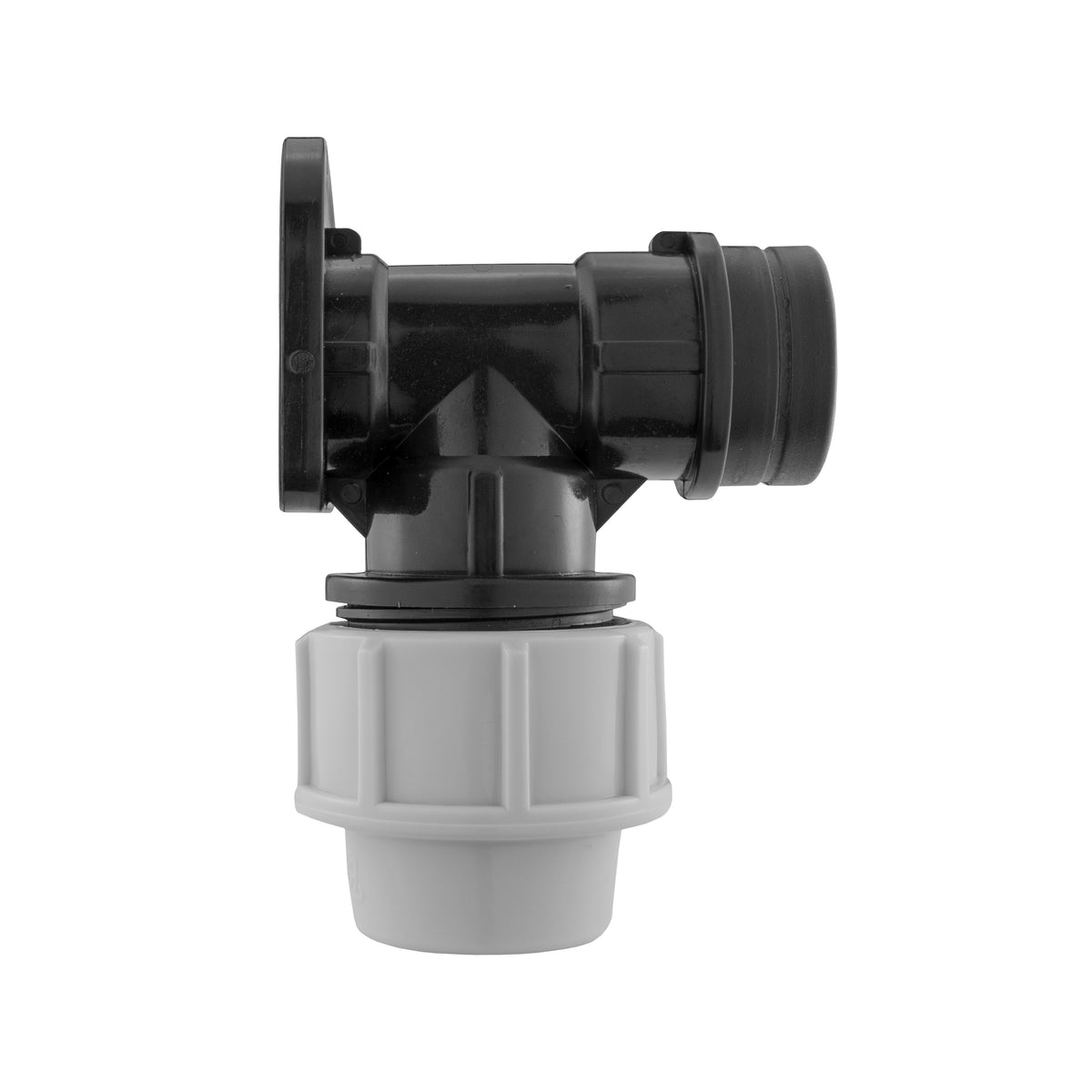

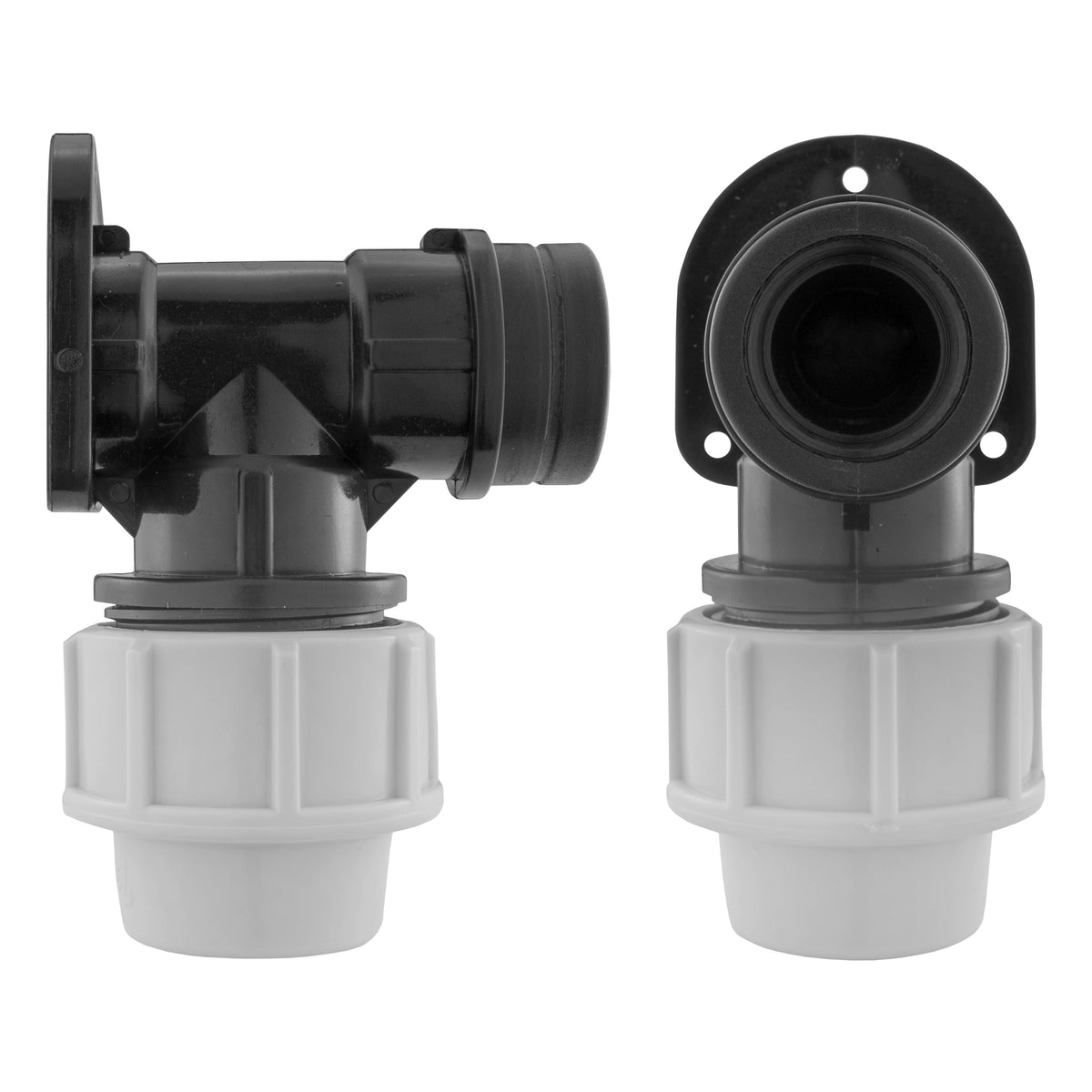

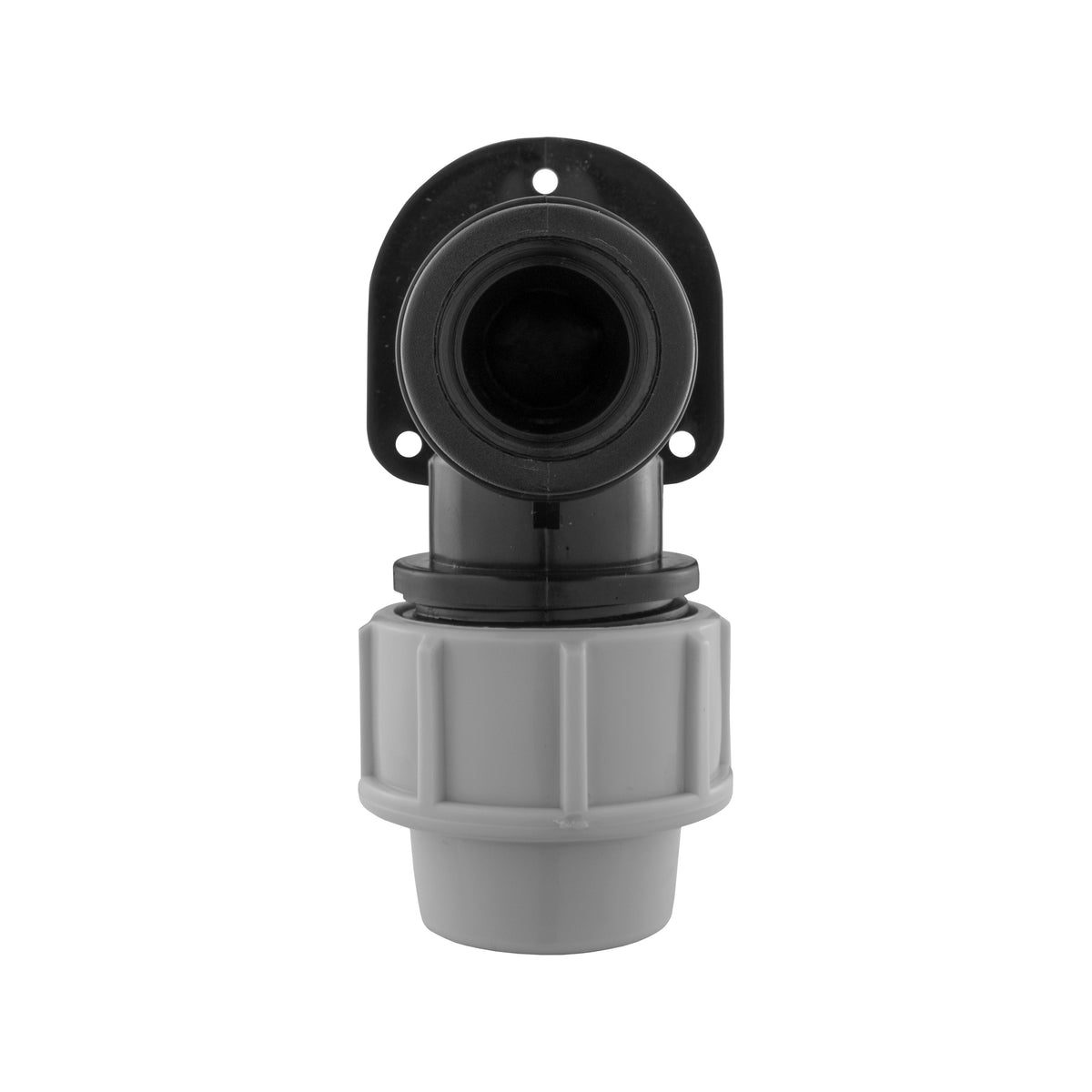

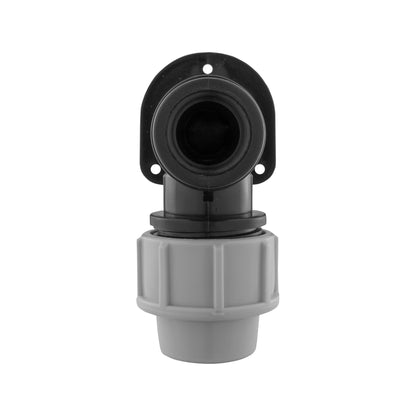

• 1 × 32mm MDPE wall flange with ¾″ BSP female port
• 1 × ¾″ Type B polypropylene female camlock coupler with male thread
• 1 × ¾″ Type E polypropylene male camlock adapter with hose tail

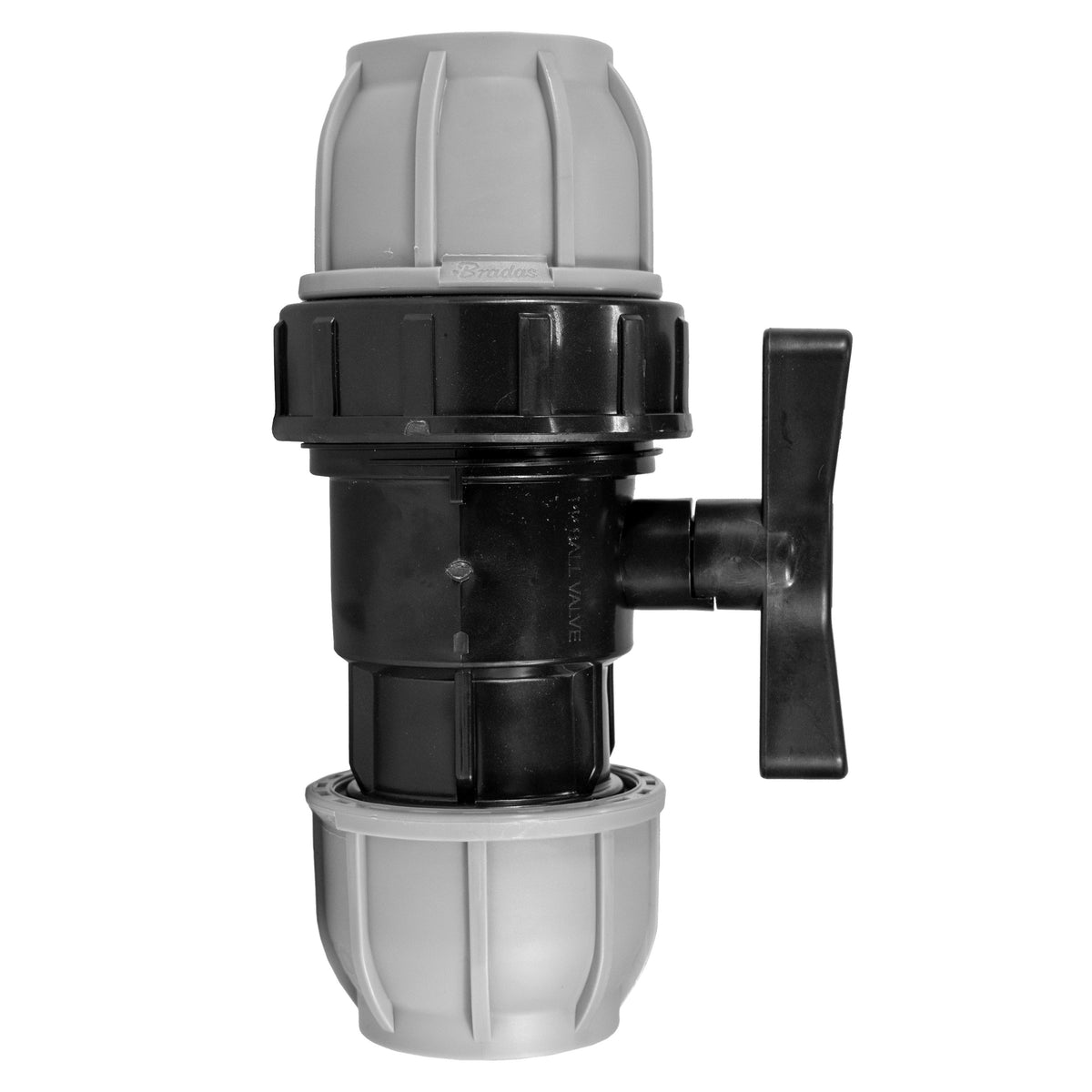

• 1 × Separate valve with two 32mm MDPE compression ends

Fitting and use

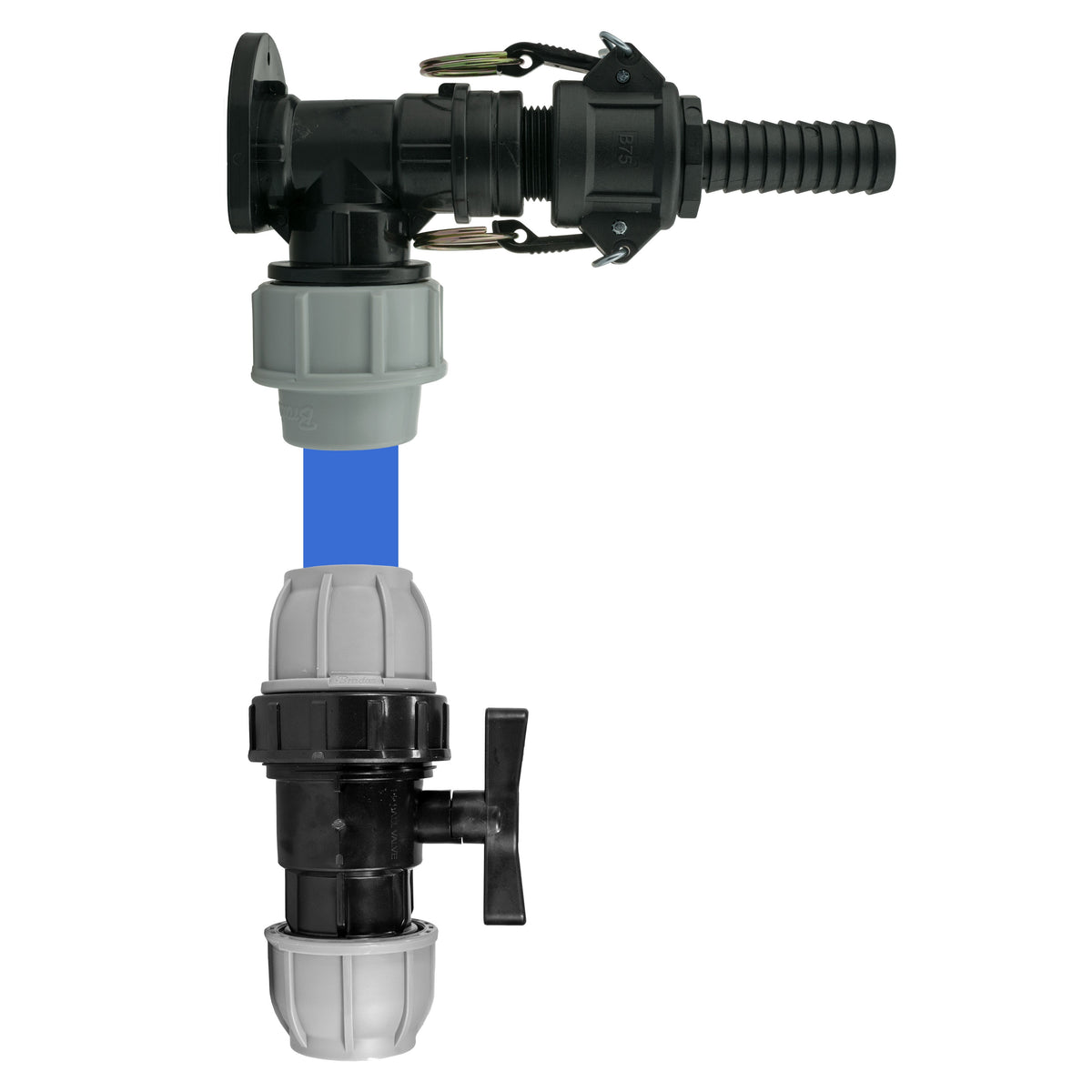

Match the supply pipe and outlet connection before ordering. BSP sizes are nominal thread sizes, not measured outside diameters. Select suitable wall fixings and check all connections after assembly. Pipe, hose, wall fixings and PTFE tape are supplied separately. Confirm the working limits of the complete assembly for your water supply. A suitable length of 32mm MDPE pipe is required between the separate compression valve and flange. Blue pipe shown in an assembly view is an installation example and is not included. Check the nominal camlock size, mating coupling type and hose-tail fit. The camlock parts are polypropylene; confirm suitability for your application.
