32mm MDPE Wall Kit – Separate 32mm MDPE Valve

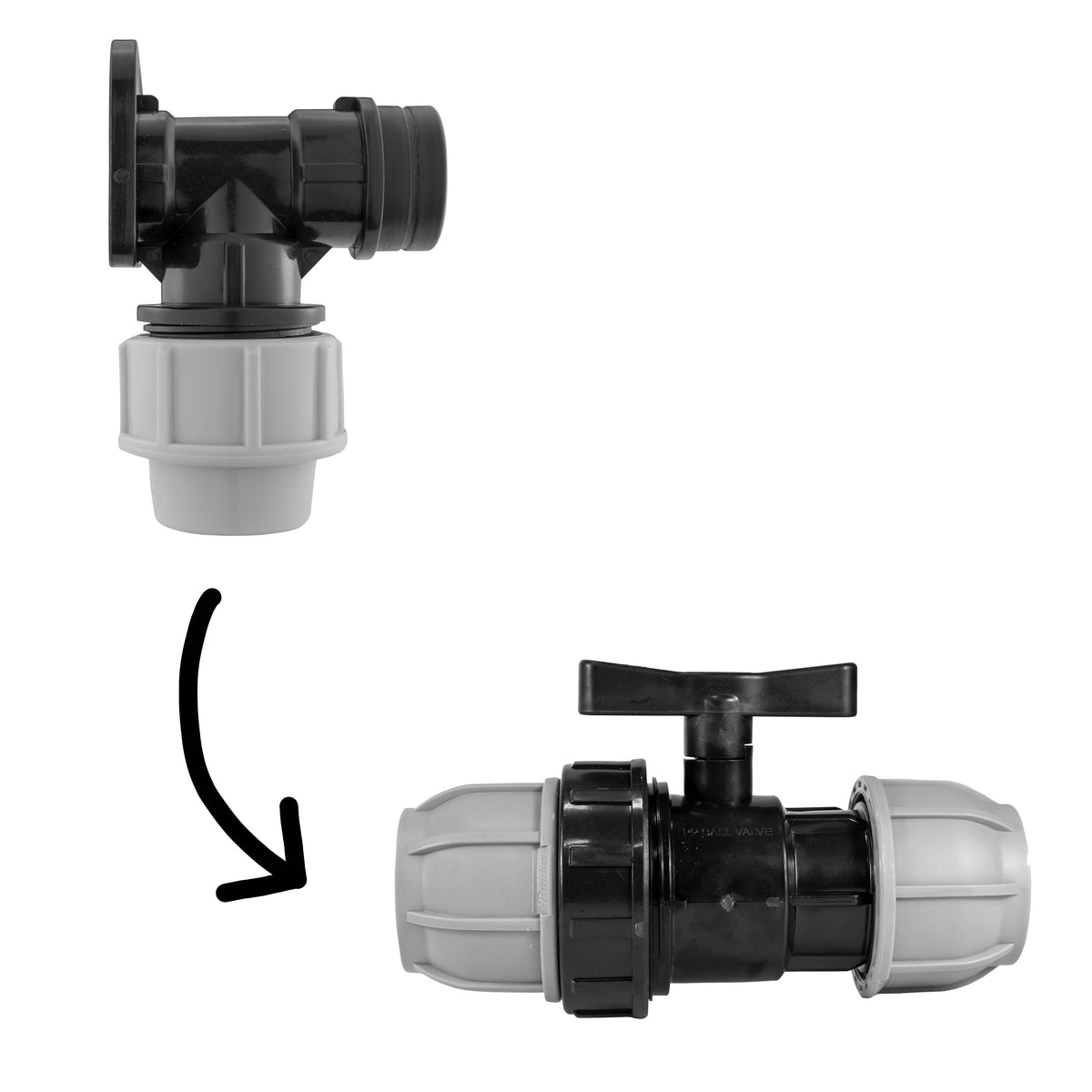

Create a wall-mounted garden water outlet from a compatible 32mm MDPE supply pipe. A separate compression valve is supplied for the pipe run; it does not screw directly into the flange.

Product details

• Supply pipe: 32mm outside-diameter MDPE
• Flange port: ¾″ BSP female
• Outlet arrangement: ¾″ BSP female flange port; separate 32mm compression valve
• Reference: WF32KIT022

What is included

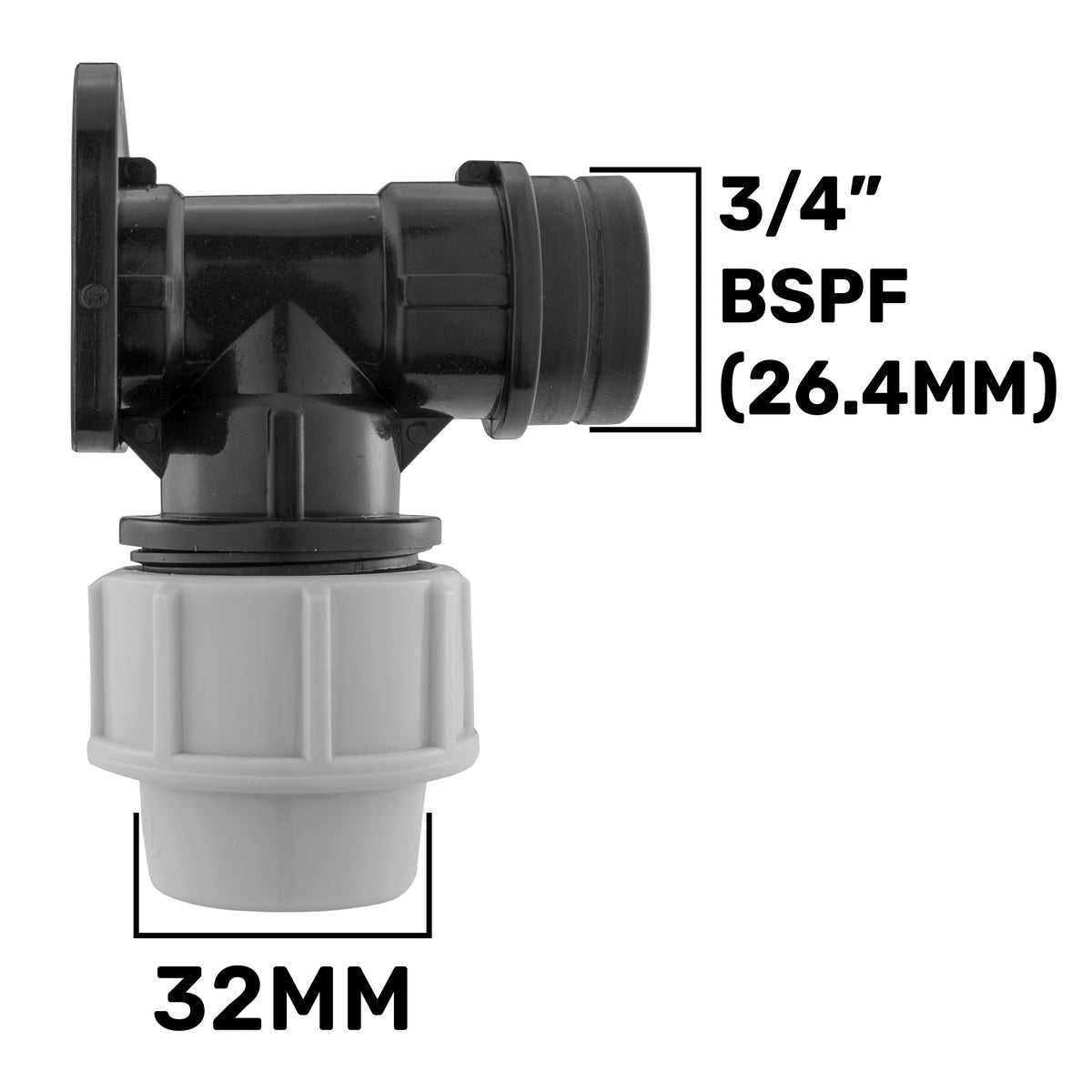

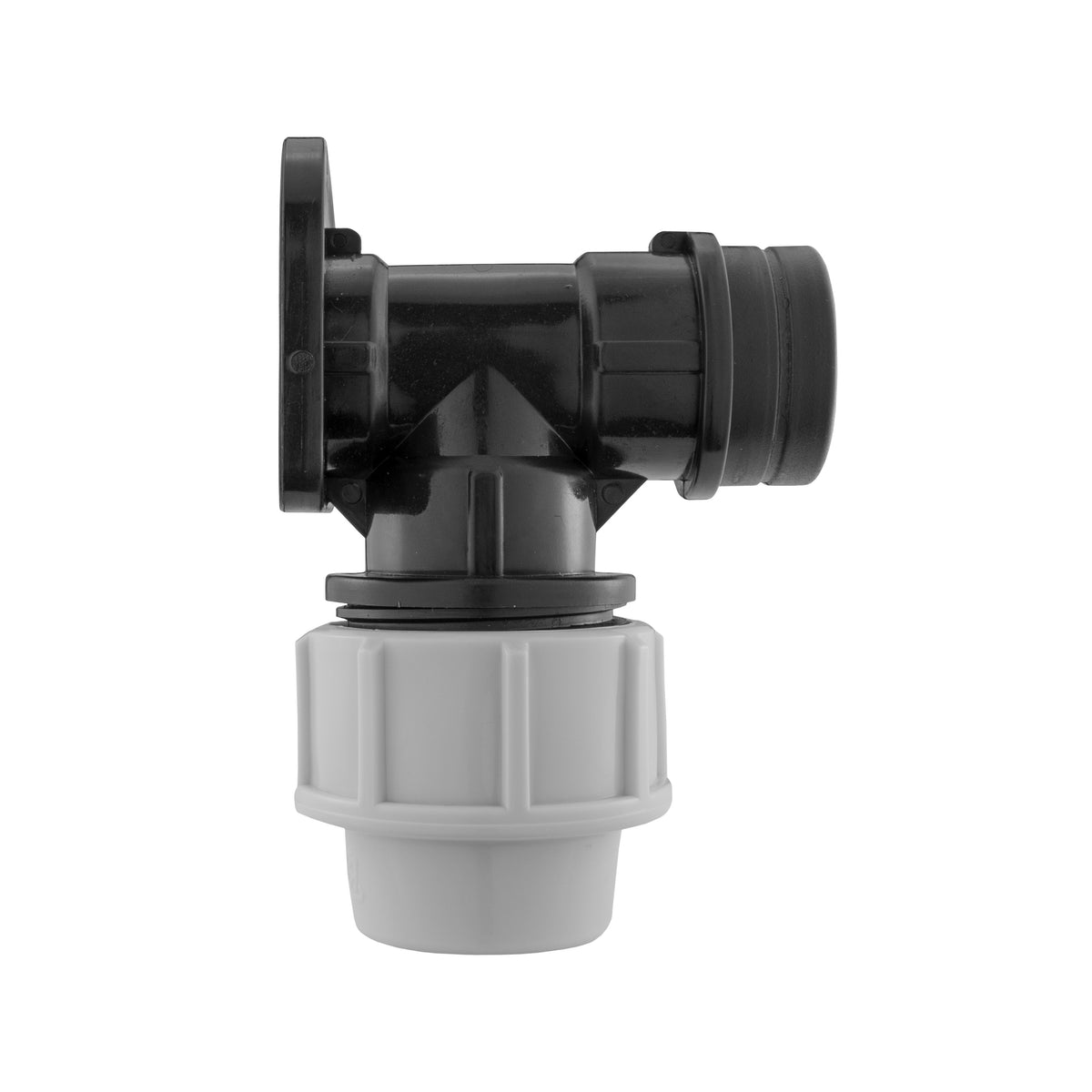

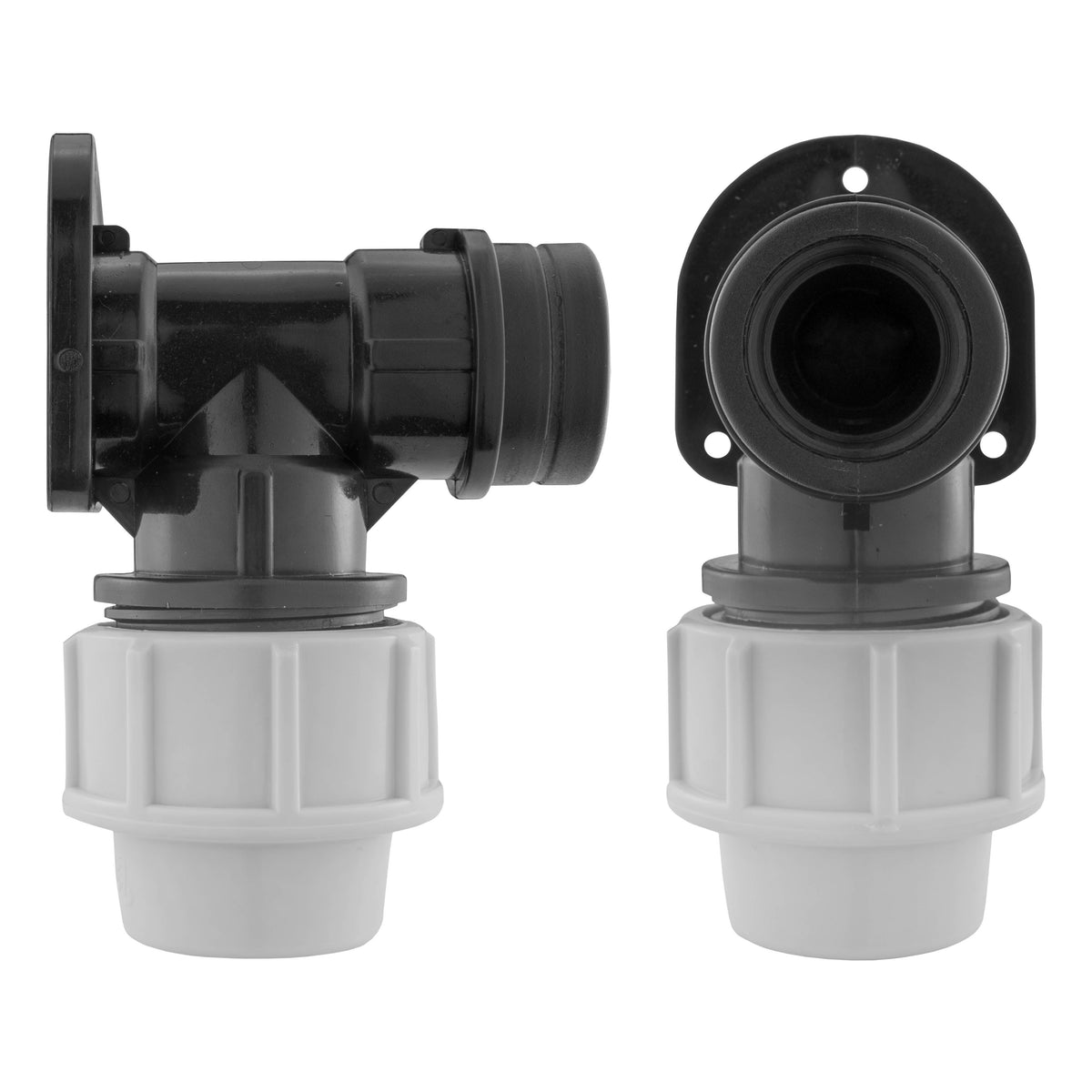

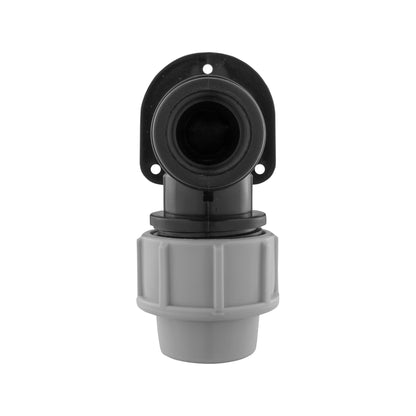

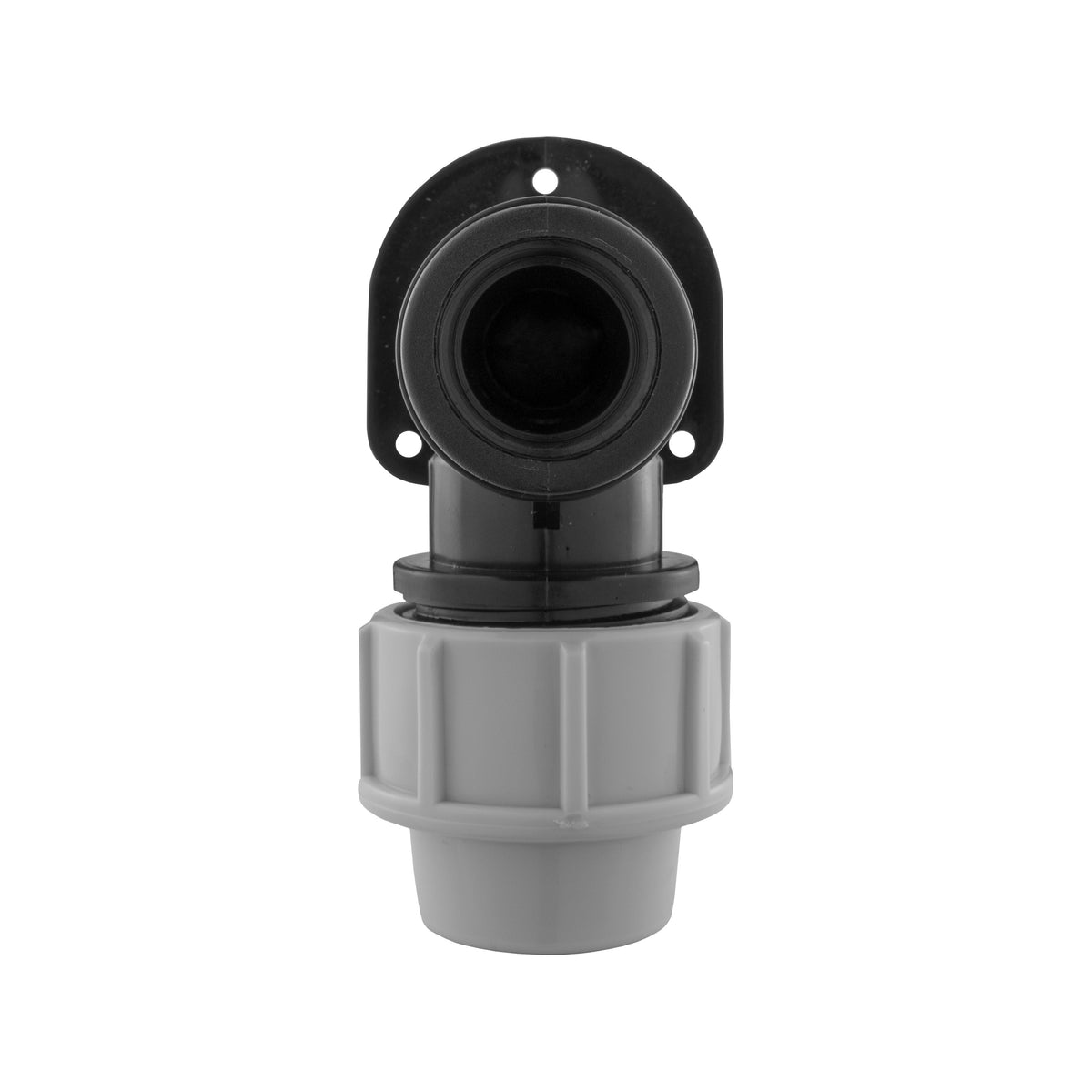

• One 32mm MDPE wall flange with ¾″ BSP female port

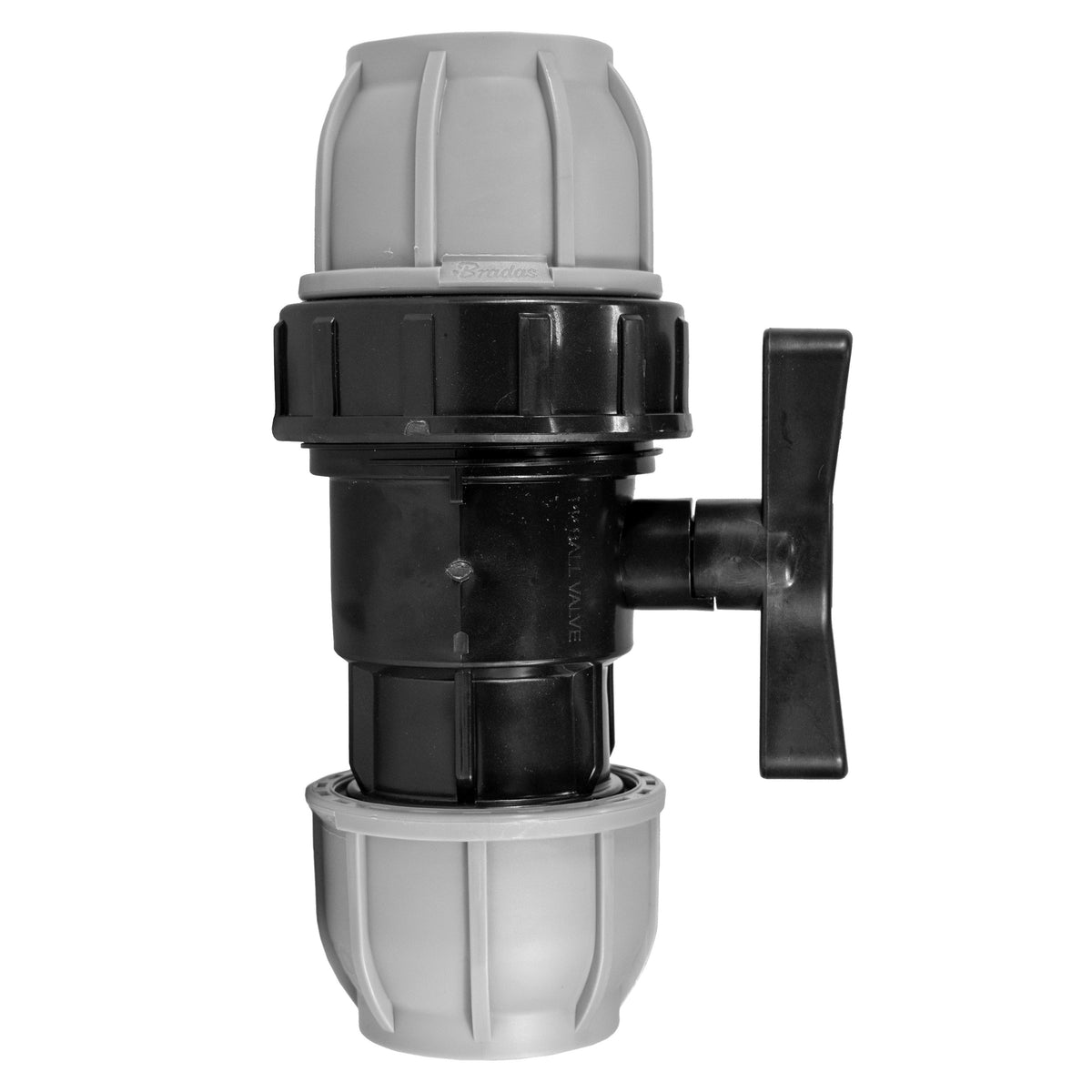

• One Separate valve with two 32mm MDPE compression ends

Fitting and use

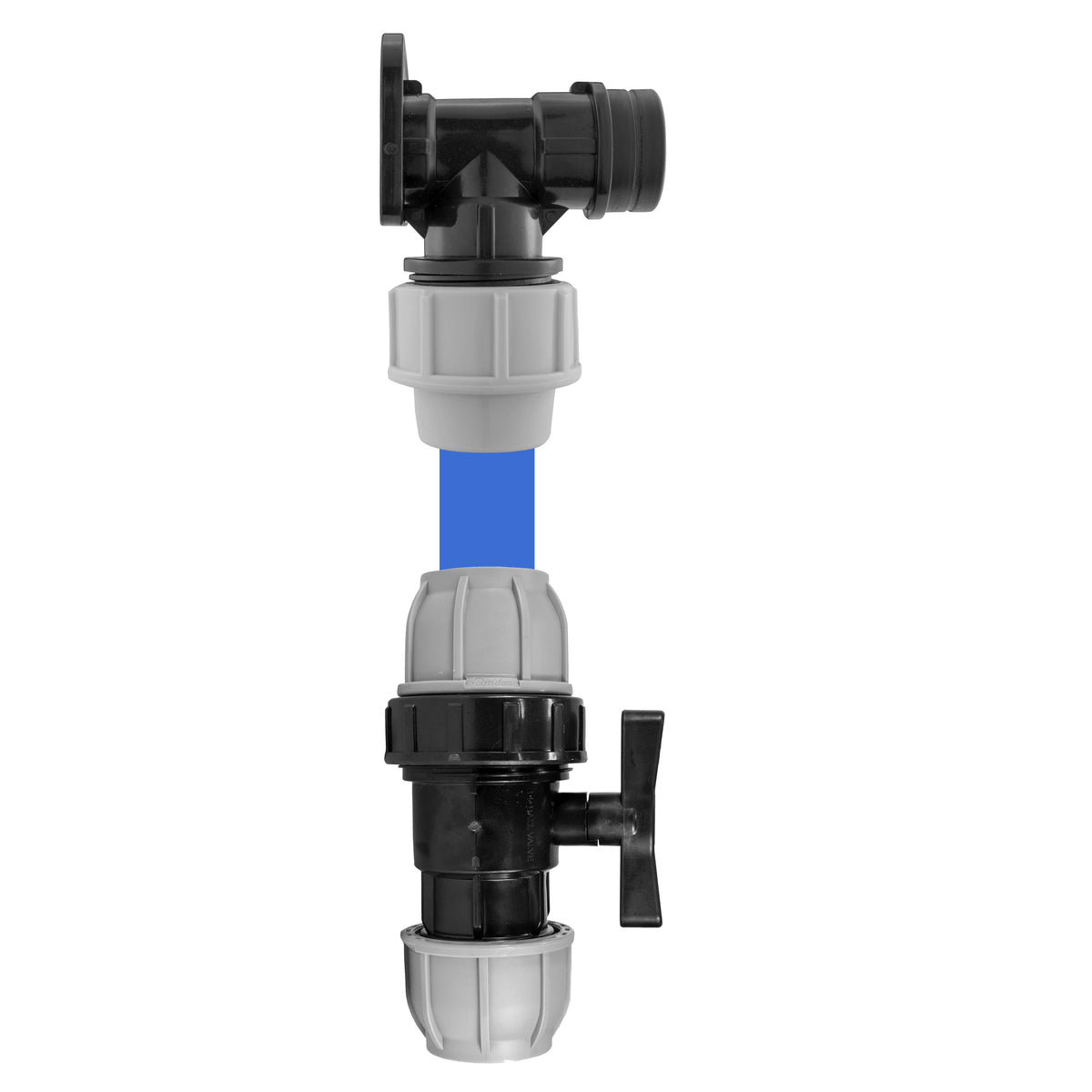

Check the pipe outside diameter and mating outlet connection before ordering. BSP sizes are nominal thread sizes, not measured outside diameters. Select suitable mounting fixings and check the assembled joints and working limits. Pipe, hose, wall fixings and PTFE tape are supplied separately. A suitable length of 32mm MDPE pipe is required between the separate compression valve and flange. Blue pipe shown in an assembly example is not included.
