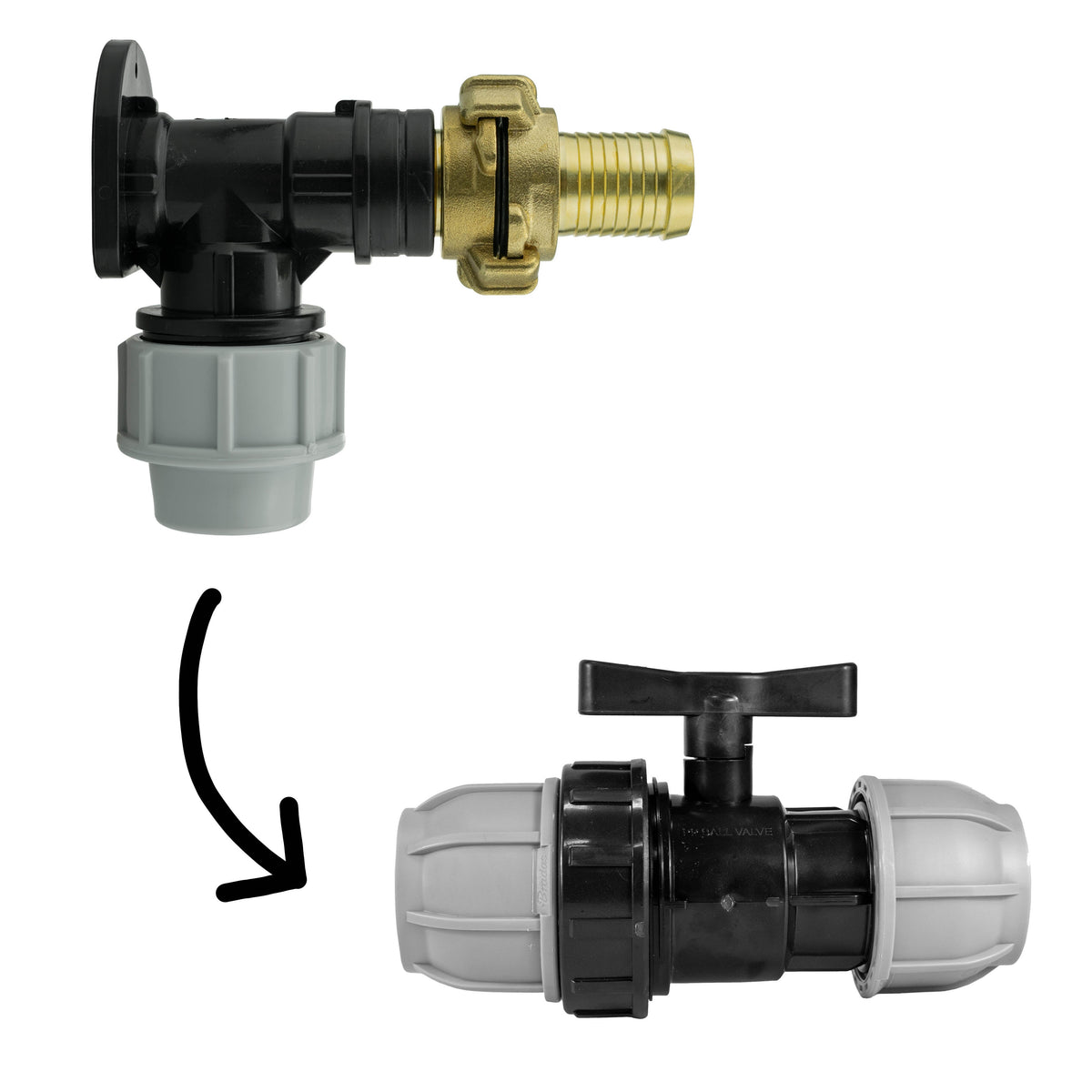

Connect a matching 25mm MDPE supply pipe to a wall-mounted garden water outlet with this flange-and-fitting kit. A separate 25mm MDPE valve is supplied for installation in your pipe run; it does not screw directly into the wall flange.
Product details
Supply connection: 25mm MDPE compression
Wall-flange port: ¾″ BSP female

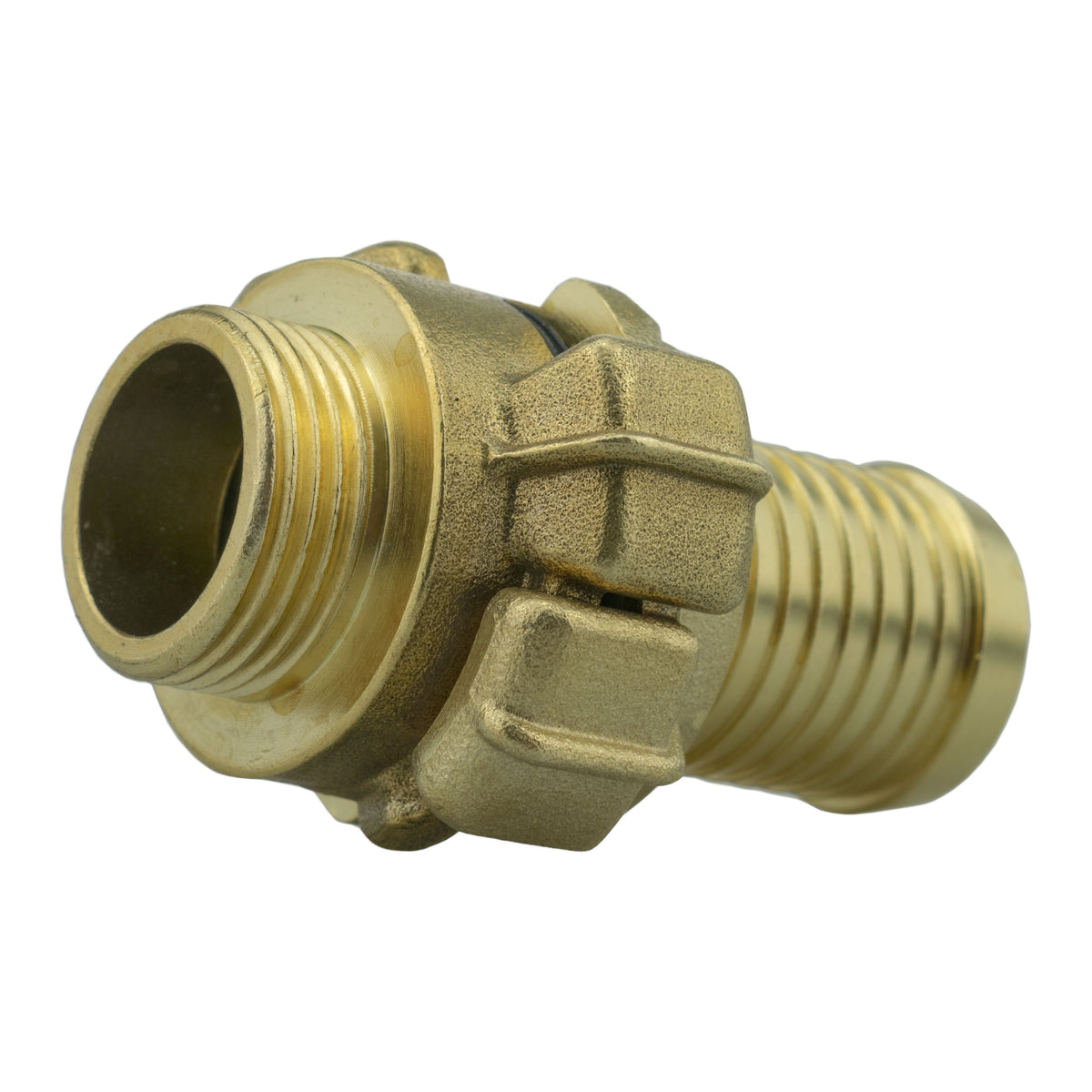

Outlet arrangement: 25mm brass hose barb via a claw-coupling pair
Kit reference: WF25KIT020
What is included

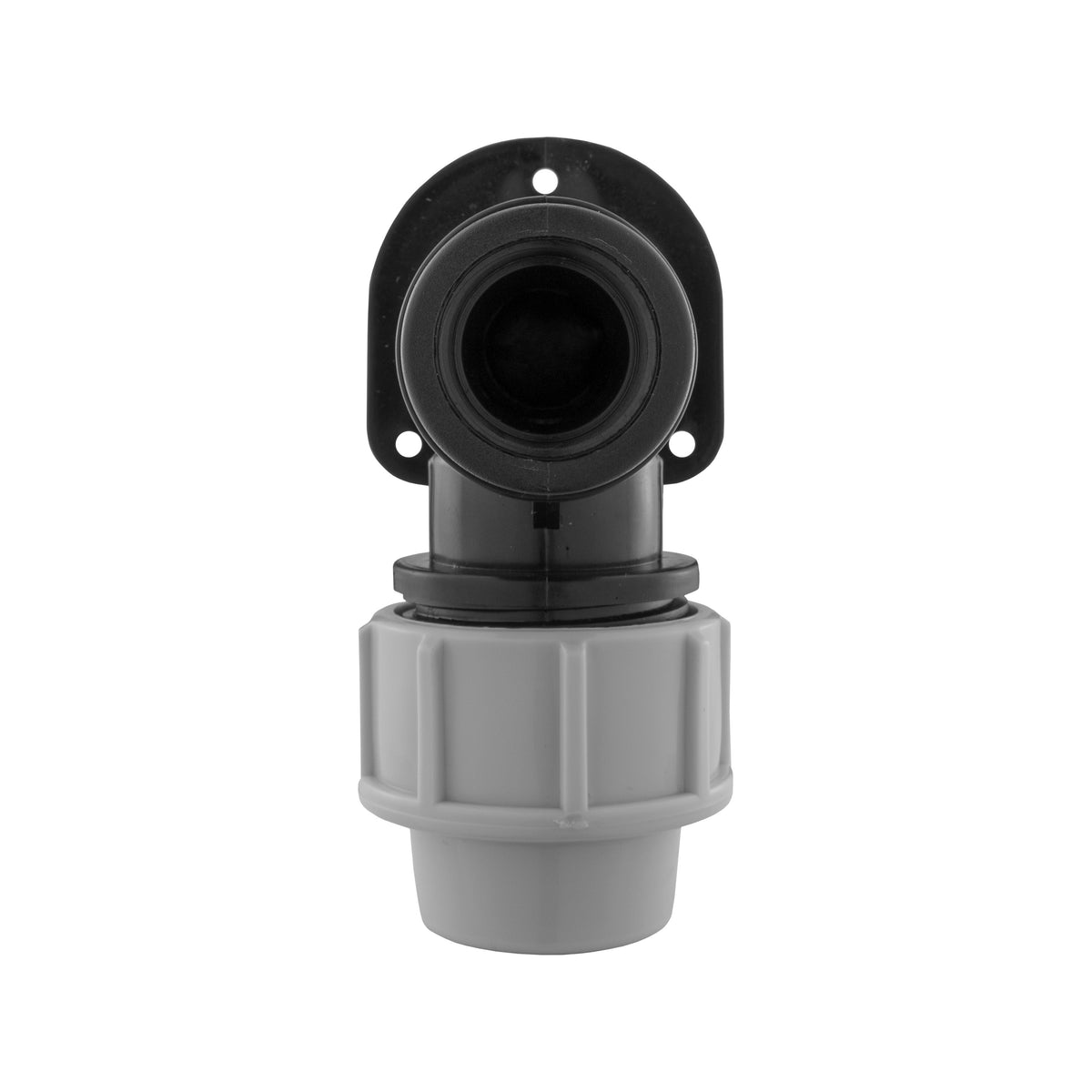

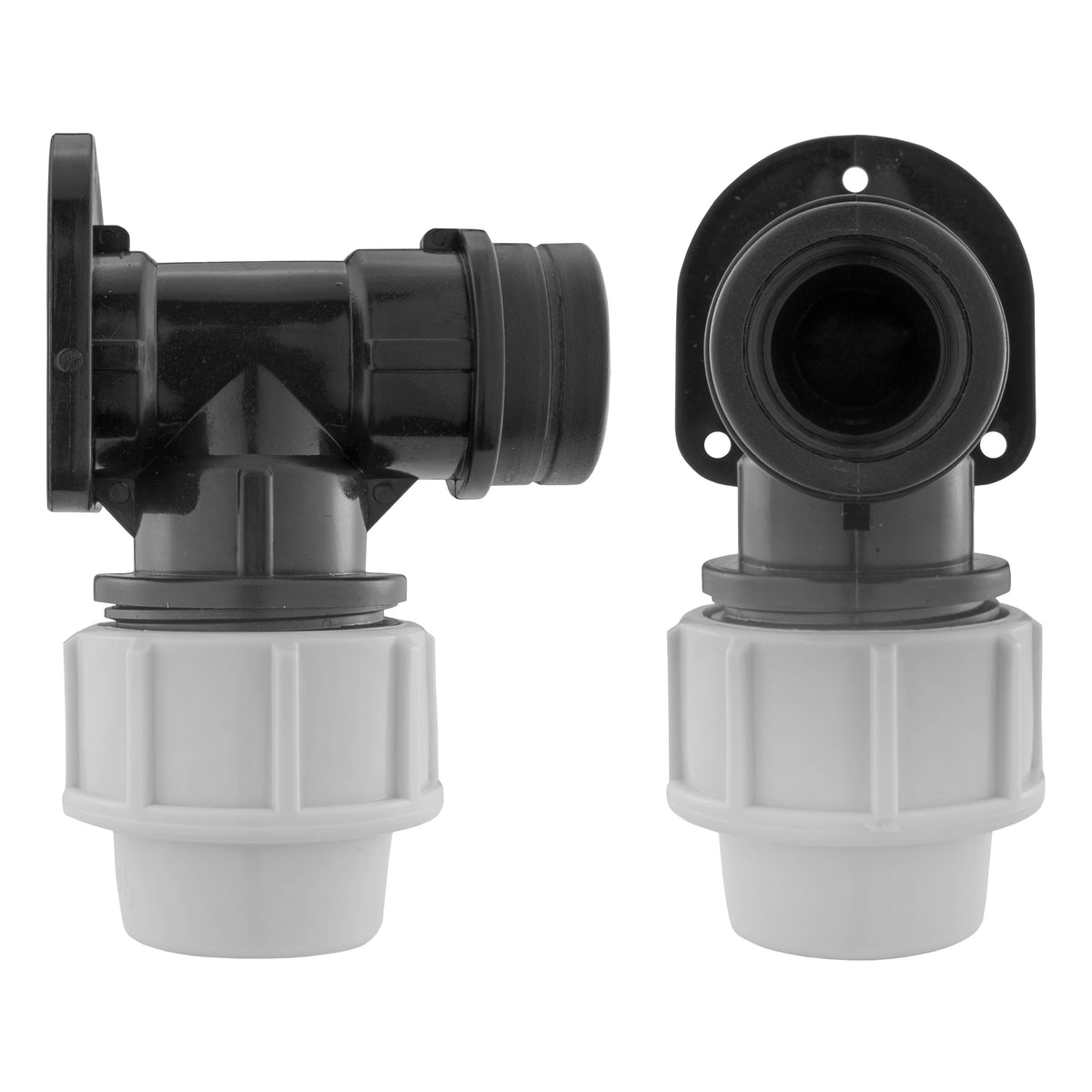

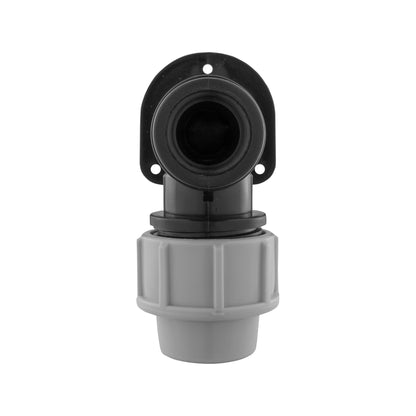

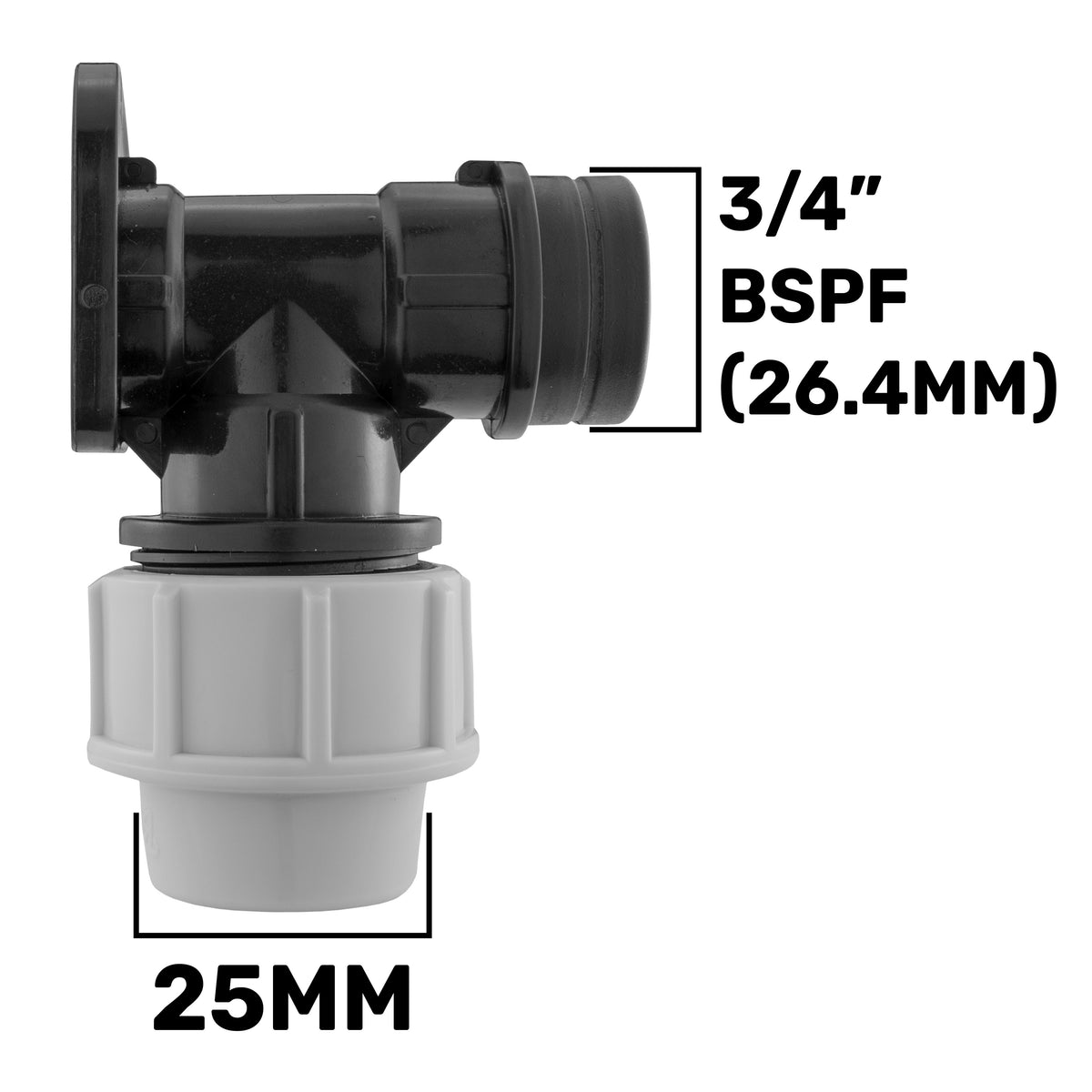

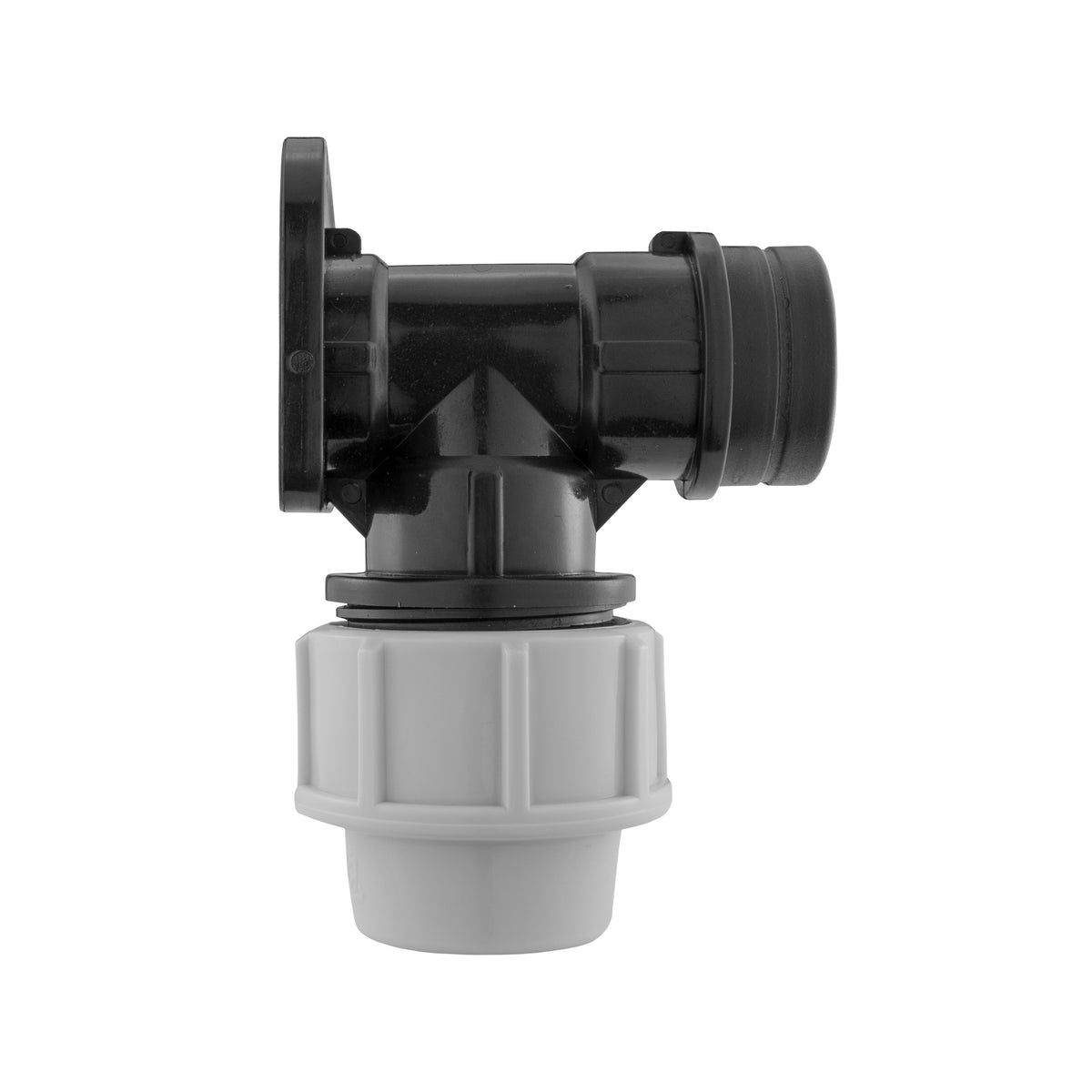

1 × 25mm MDPE wall flange with ¾″ BSP female port

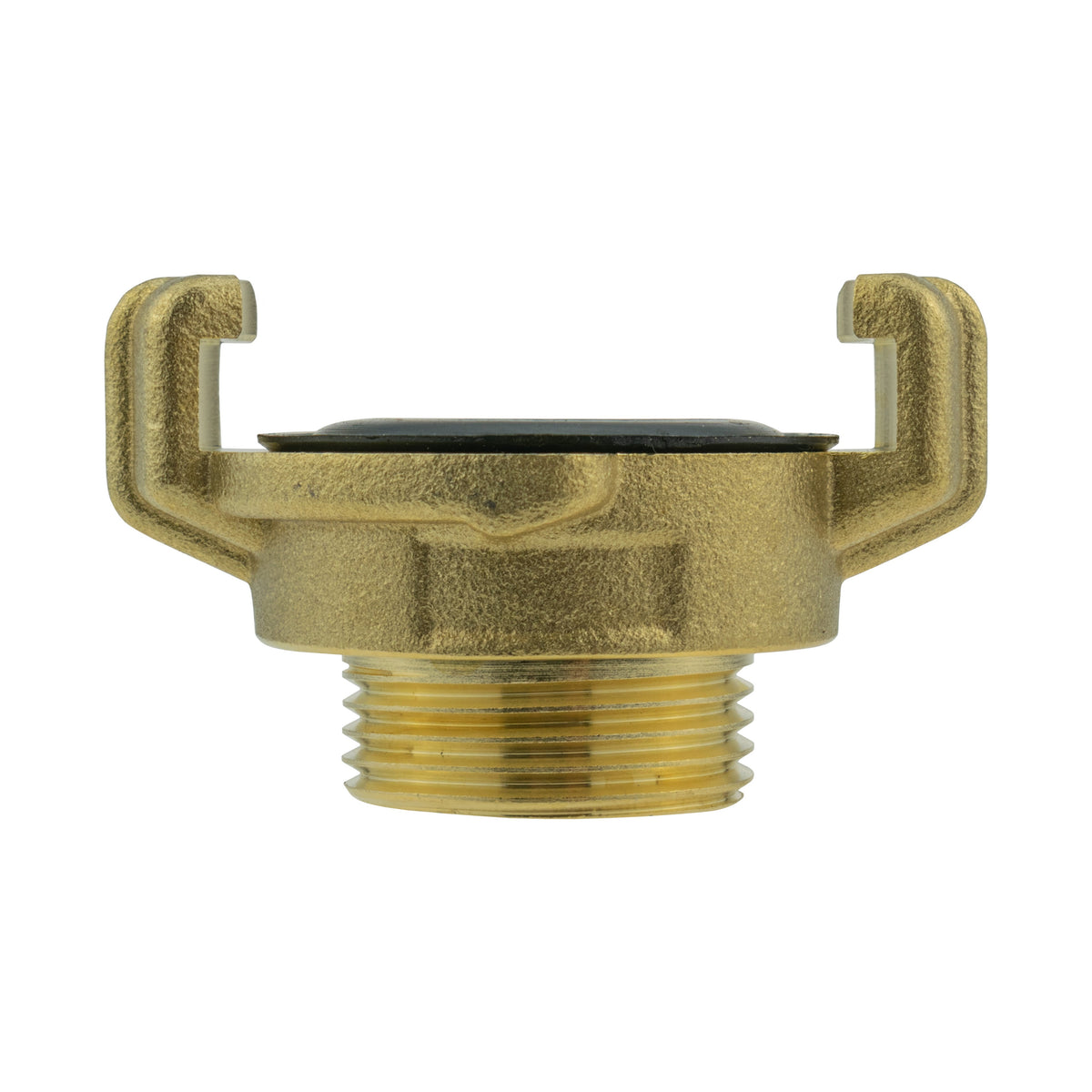

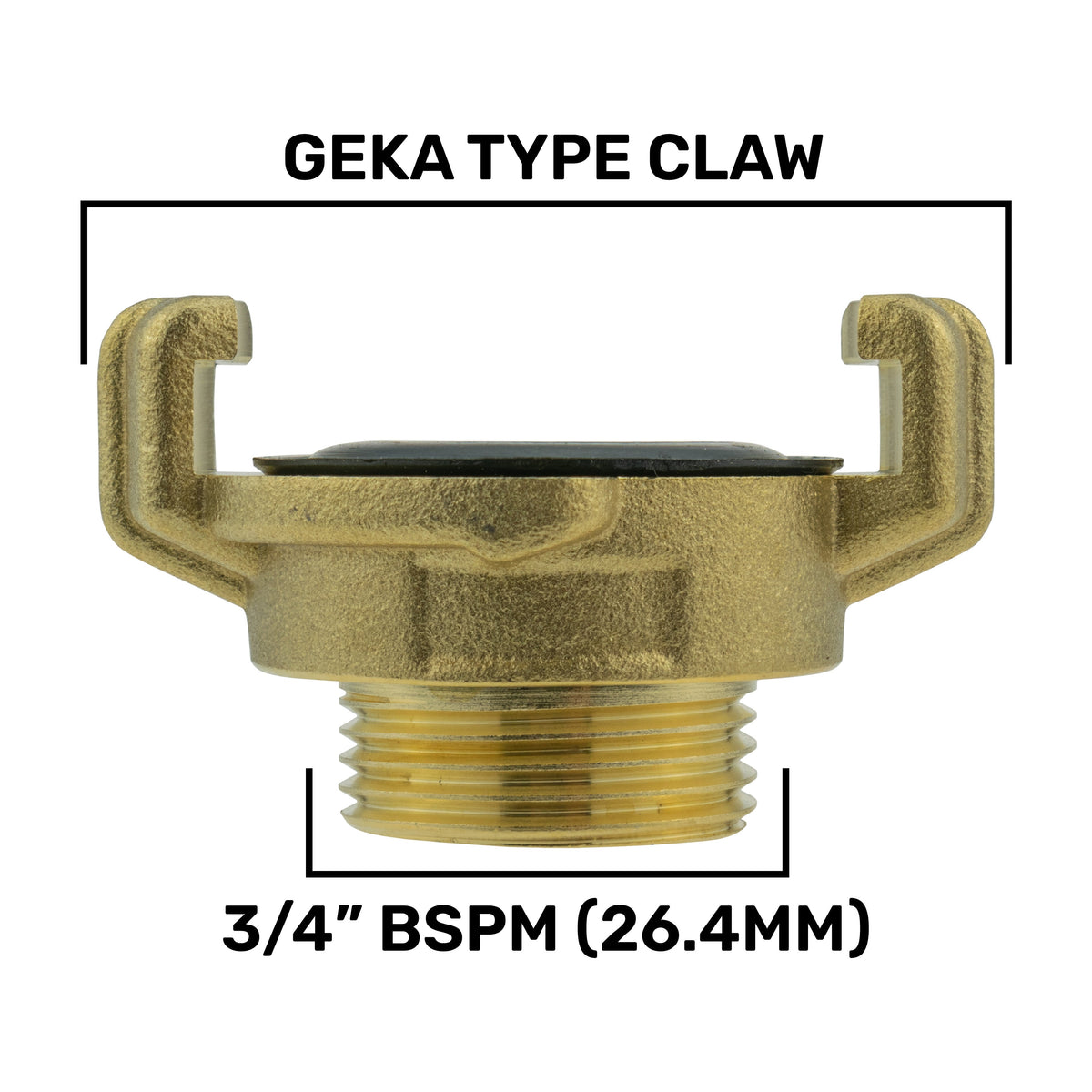

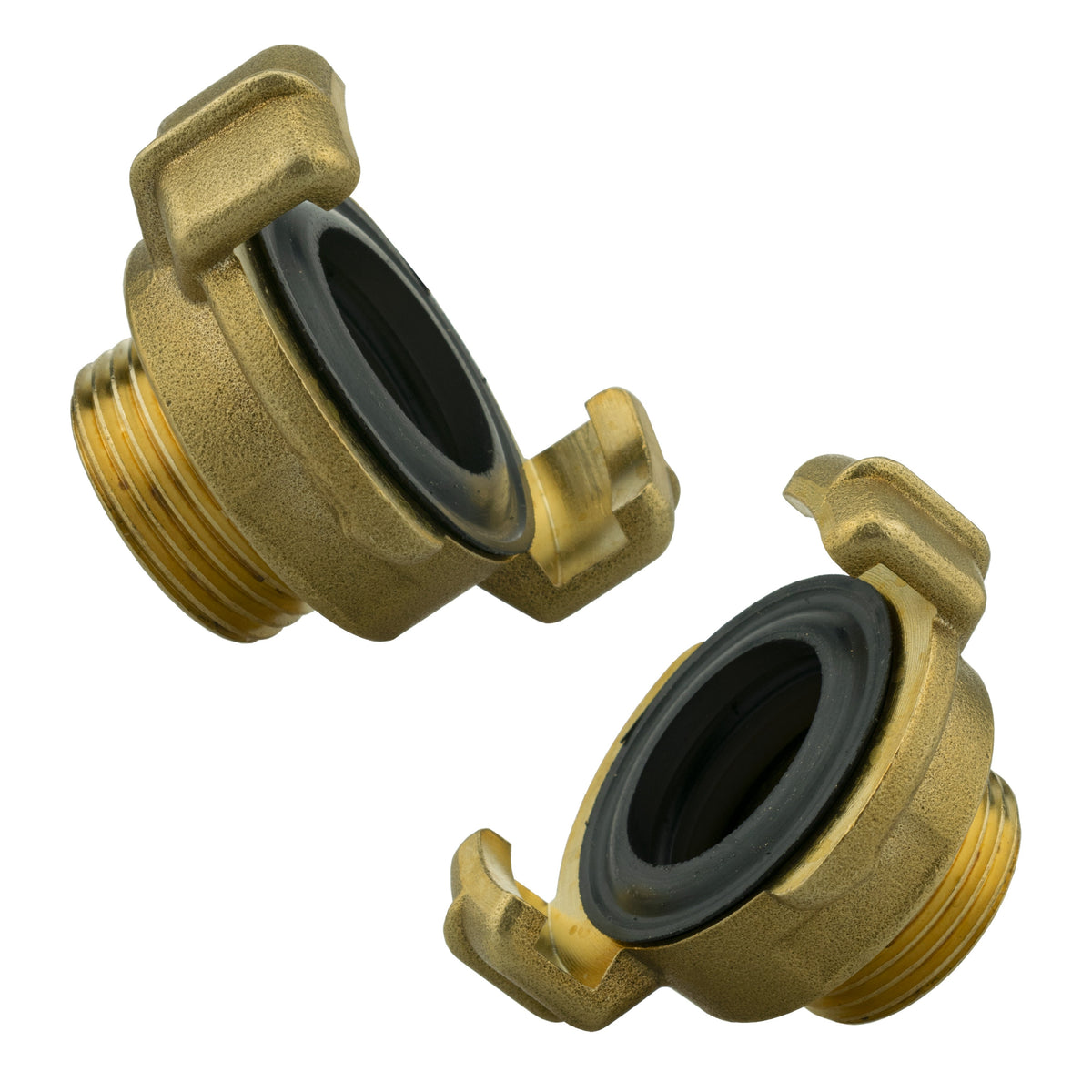

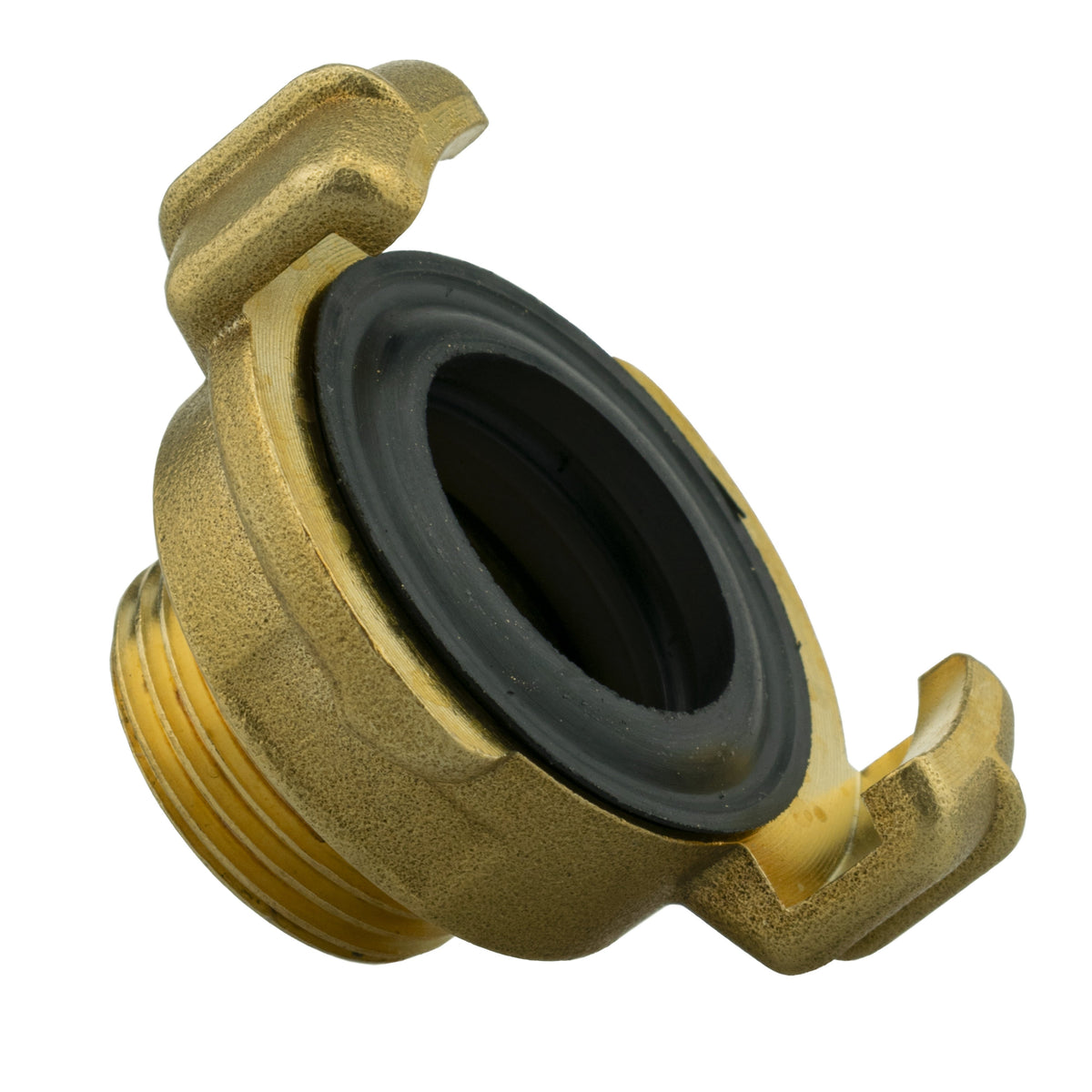

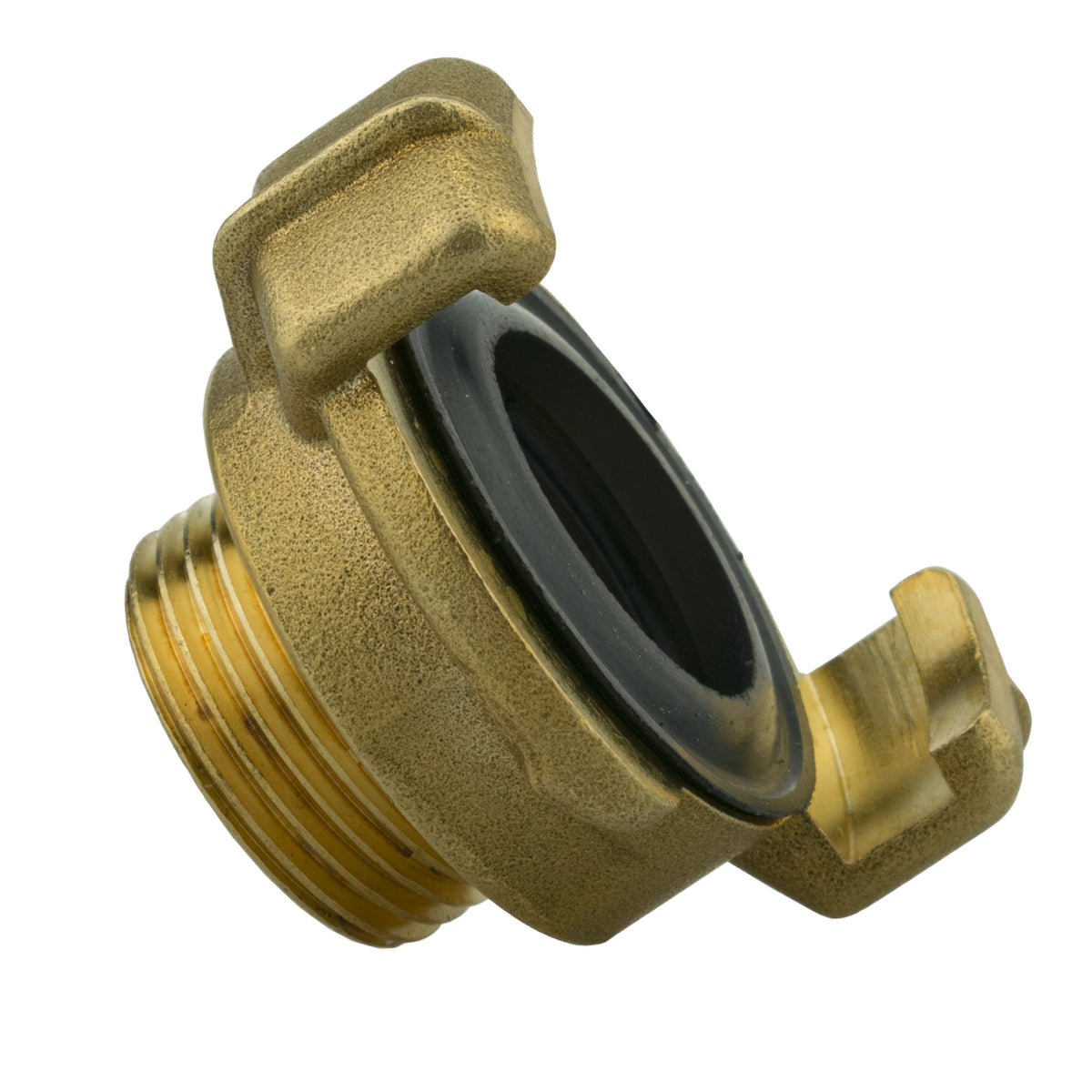

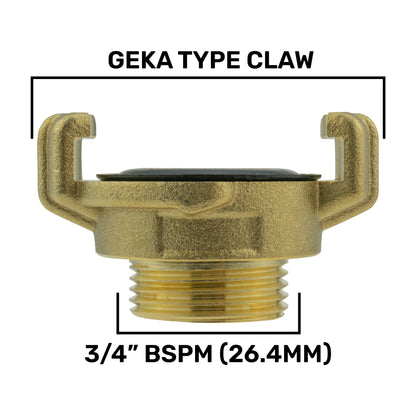

1 × Geka-type brass claw adapter with ¾″ BSP male thread

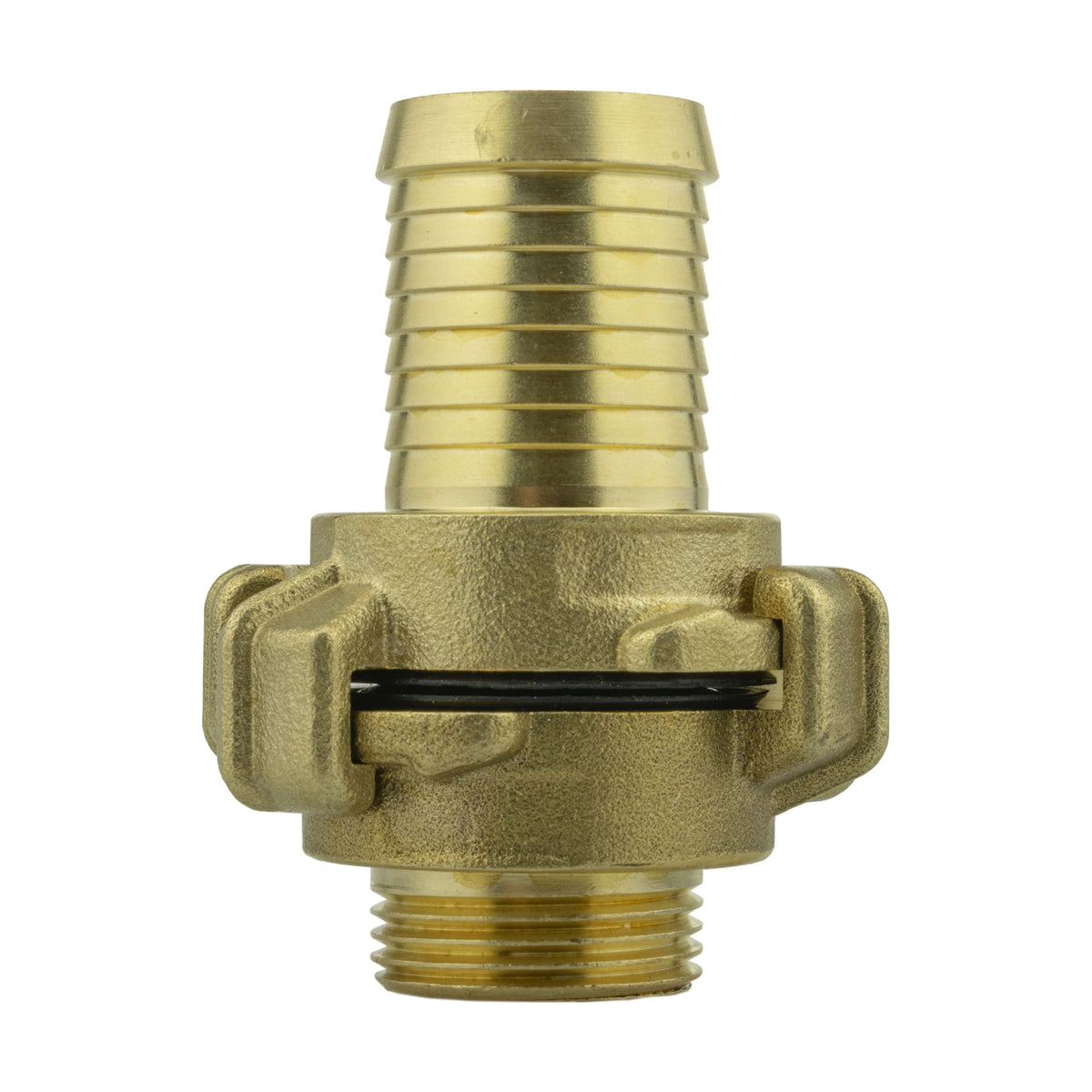

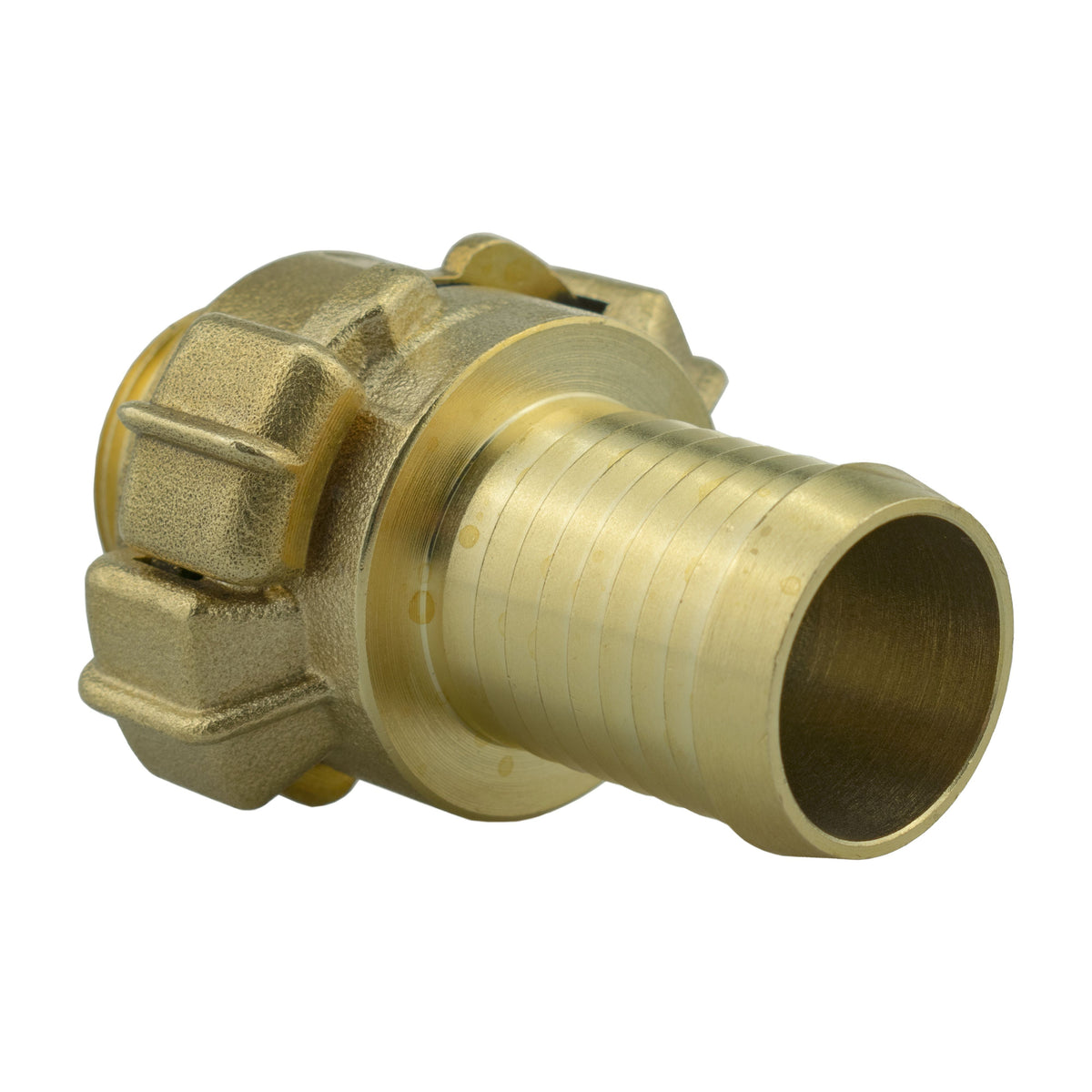

1 × Geka-type brass claw coupling with 25mm hose barb

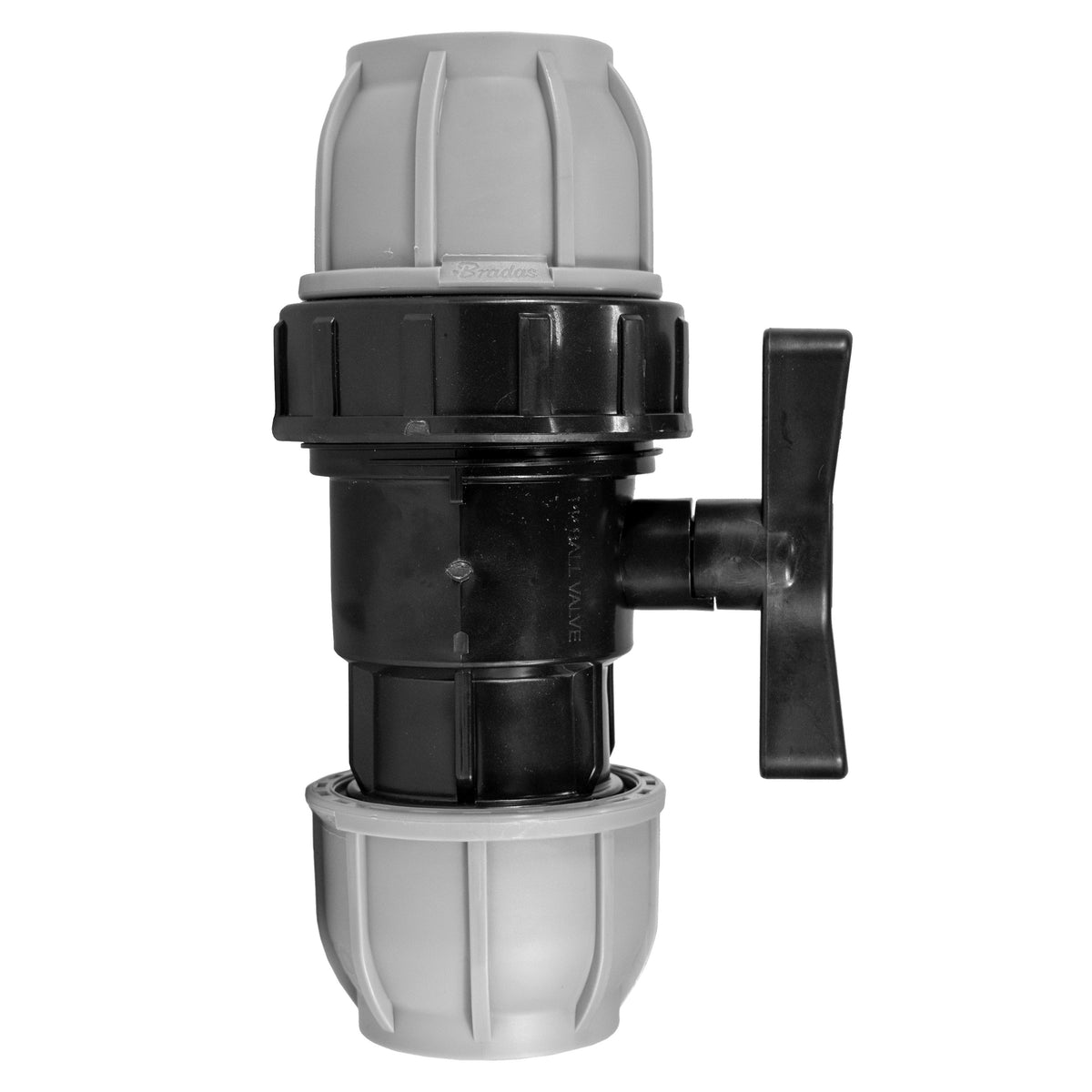

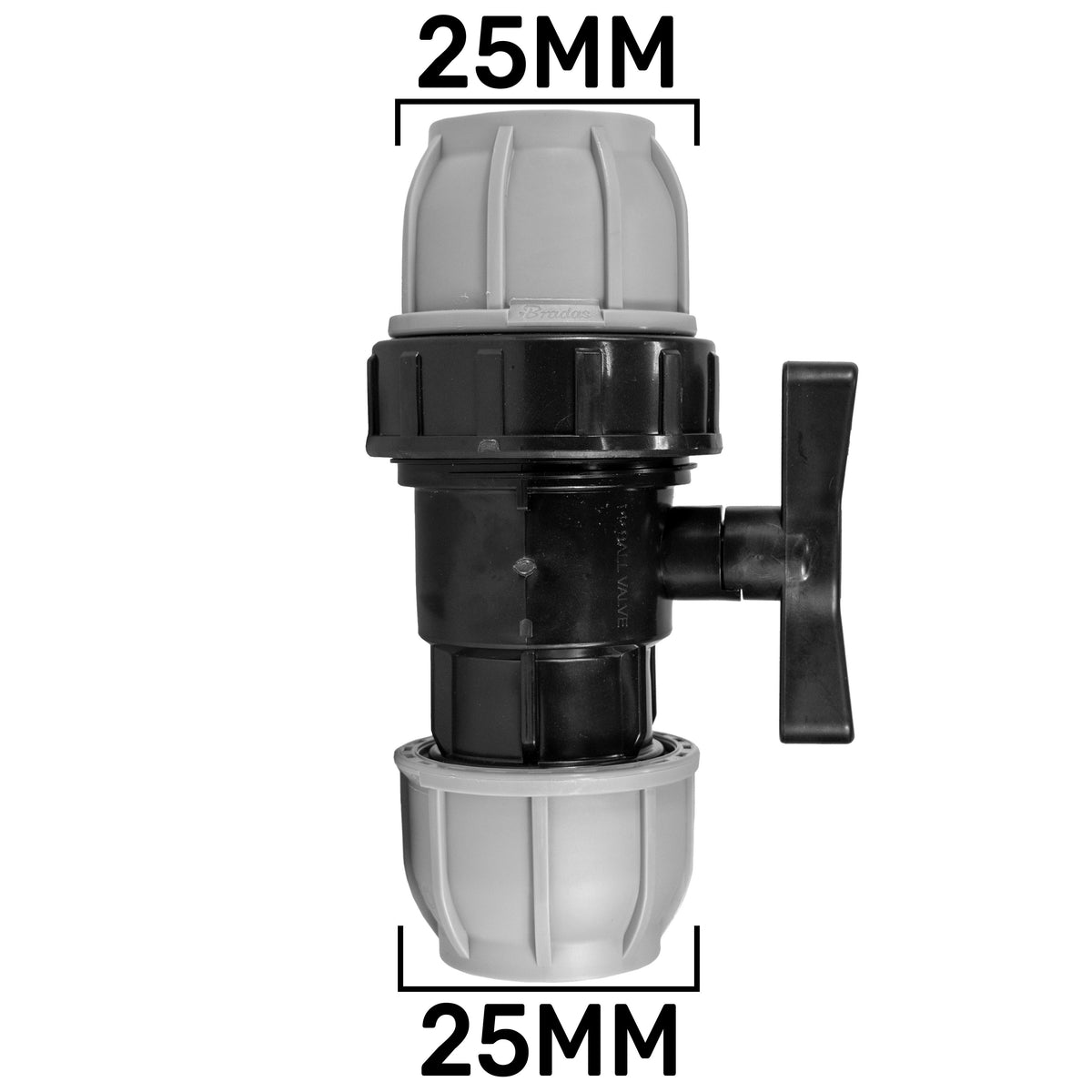

1 × Separate 25mm MDPE compression valve
Check compatibility

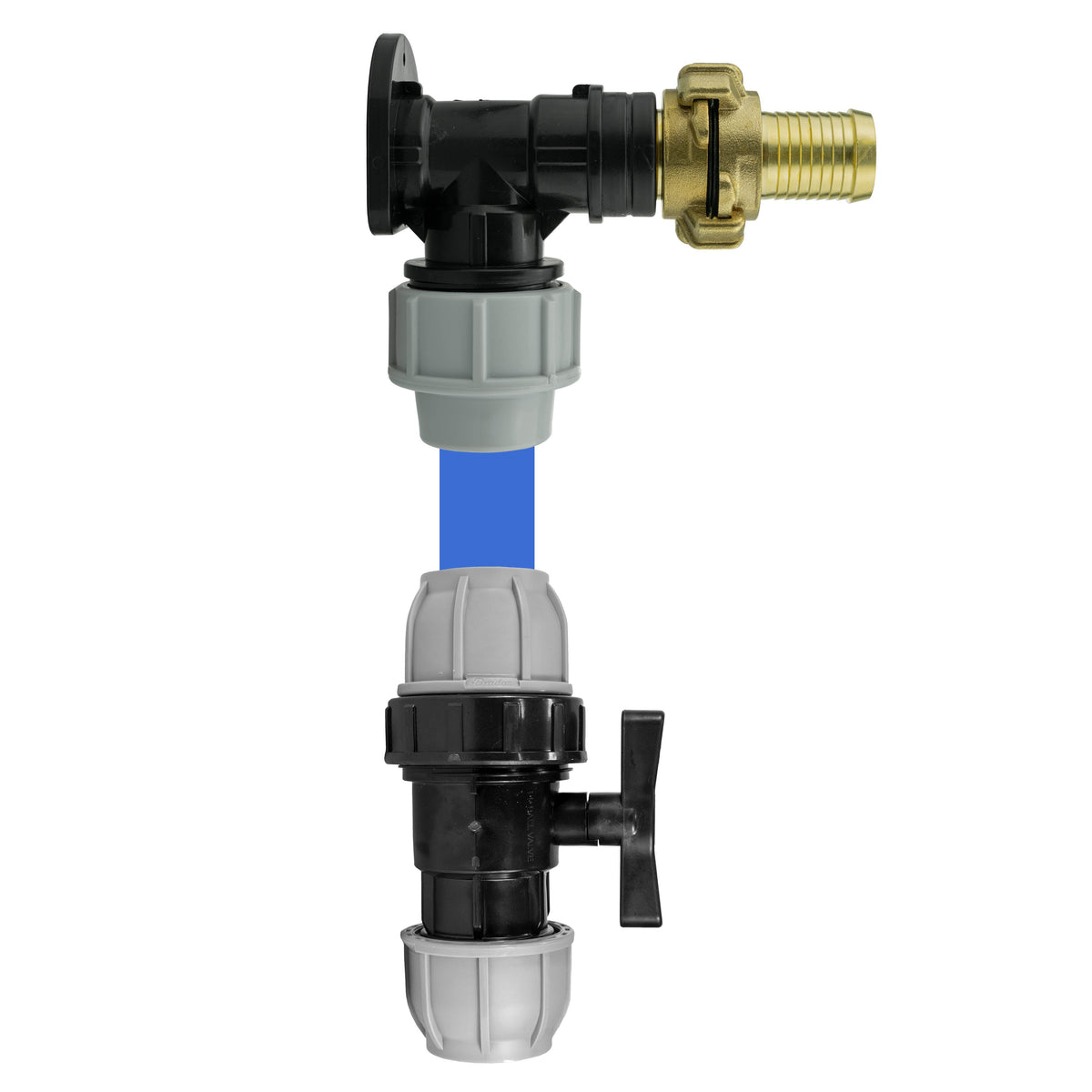

Check the supply-pipe outside diameter and the mating outlet connection before ordering. Pipe, hose, wall fixings and PTFE tape are not included. Choose fixings suitable for the mounting surface and check all assembled connections before turning on the water. A suitable length of 25mm MDPE pipe is needed to connect the separate compression valve. Any blue pipe shown in the assembly example is not supplied. Claw fittings are Geka-type. Check the mating claw profile; universal compatibility and genuine-brand manufacture are not established.
