Create a surface-mounted garden water point from matching 20mm MDPE supply pipe with this wall-flange kit. The separate 20mm compression valve fits into your supply pipe run; it does not screw straight into the wall flange.
Product details

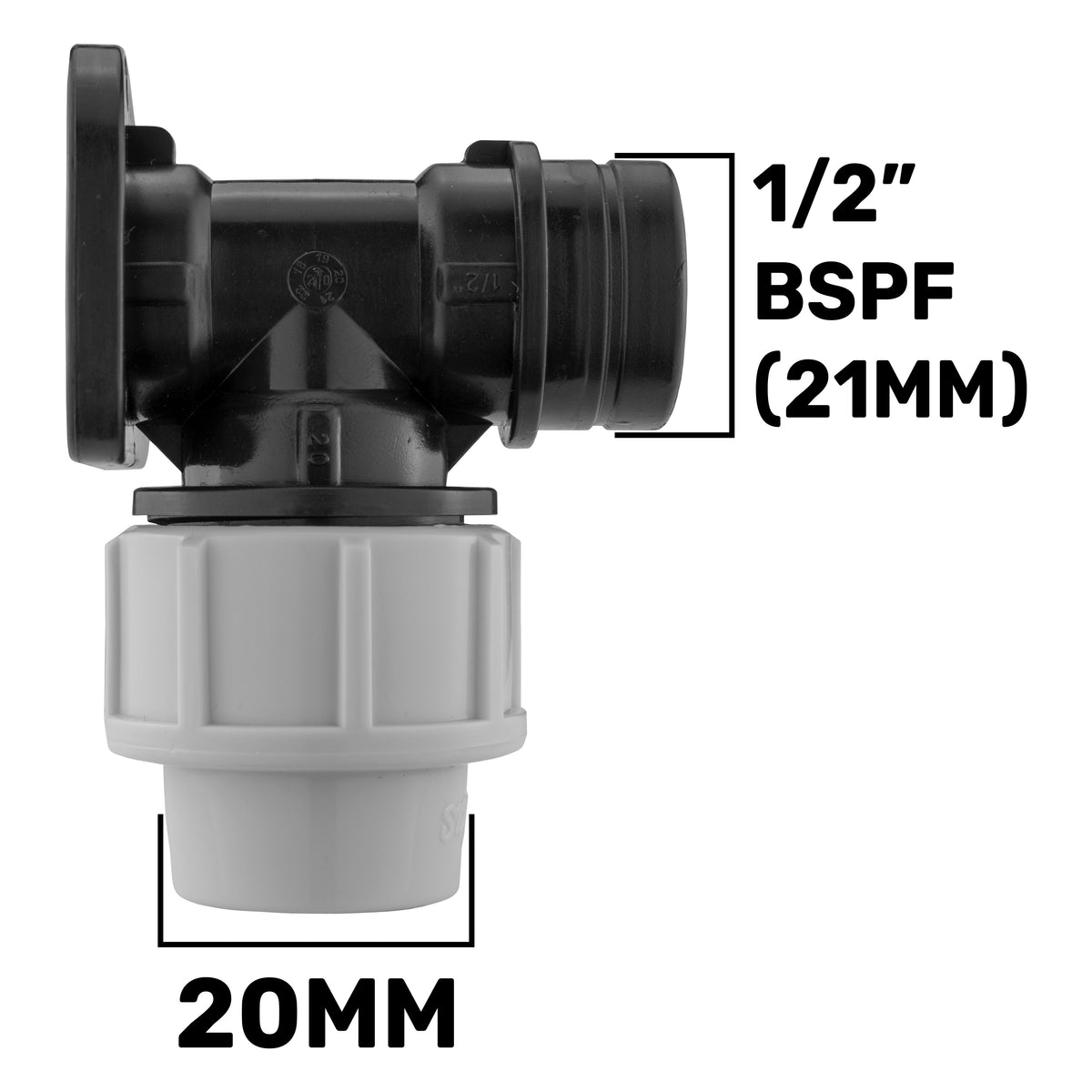

Supply connection: 20mm MDPE compression
Wall-flange port: ½″ BSP female
Finished outlet: White Line male snap-on plug
Kit reference: WF20KIT009
What is included

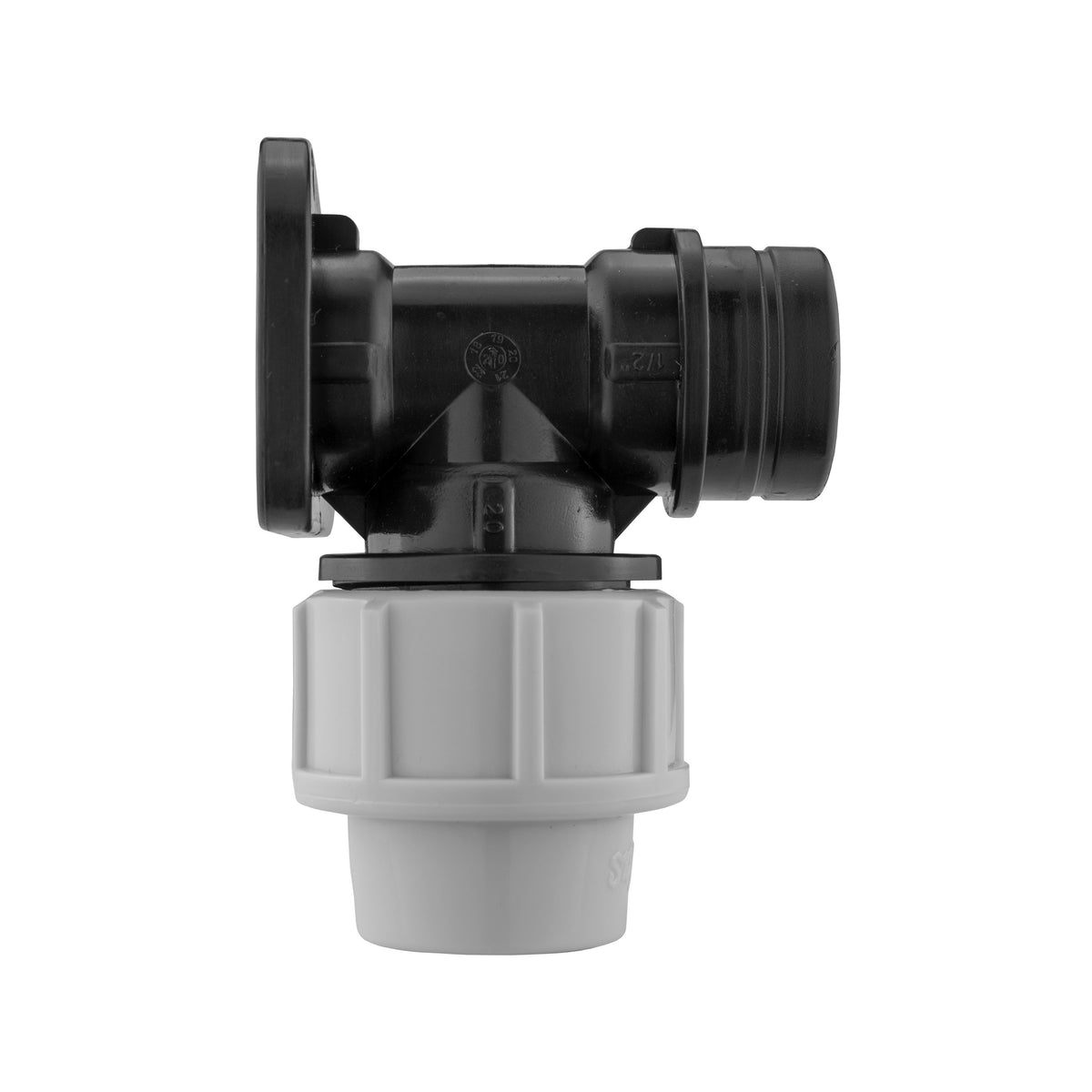

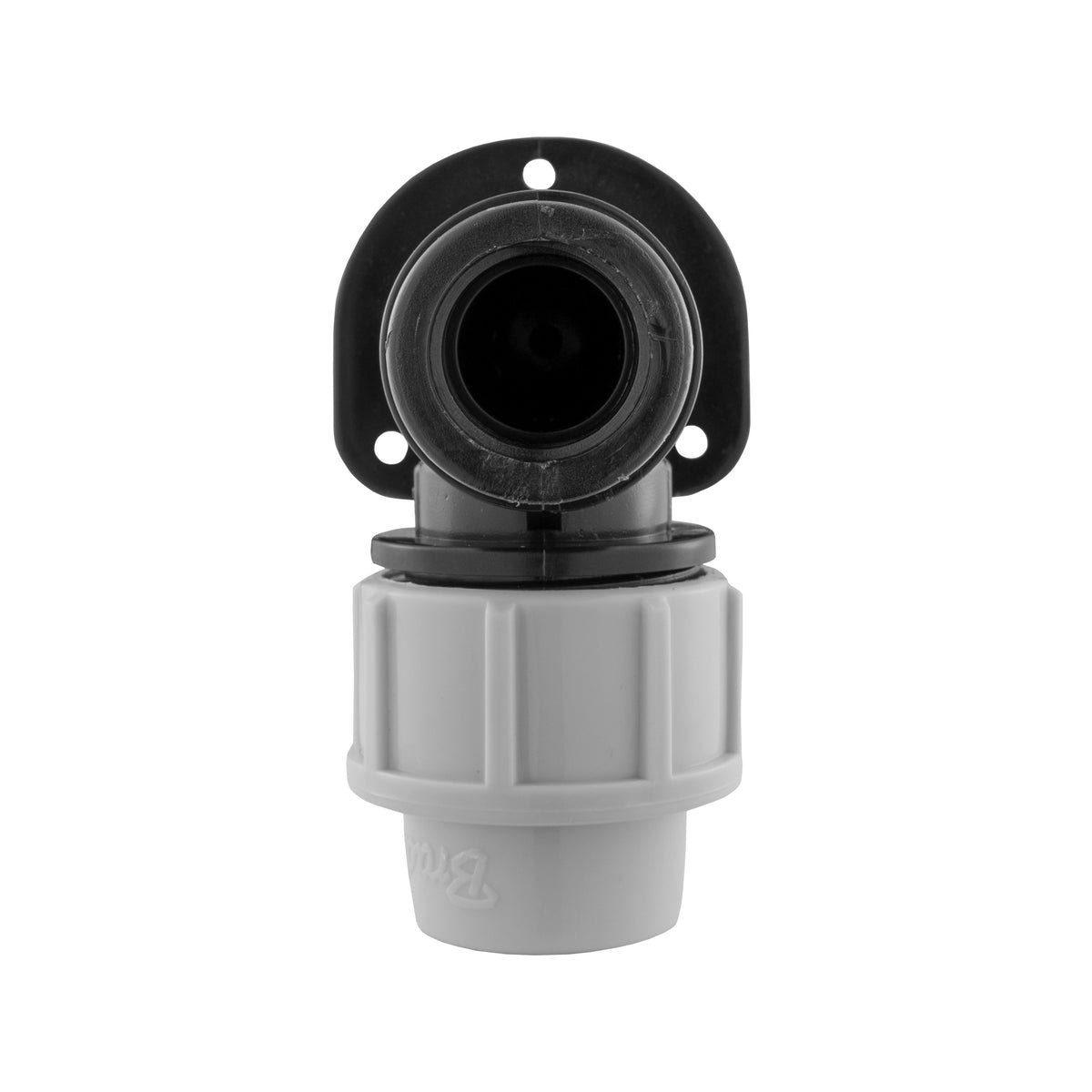

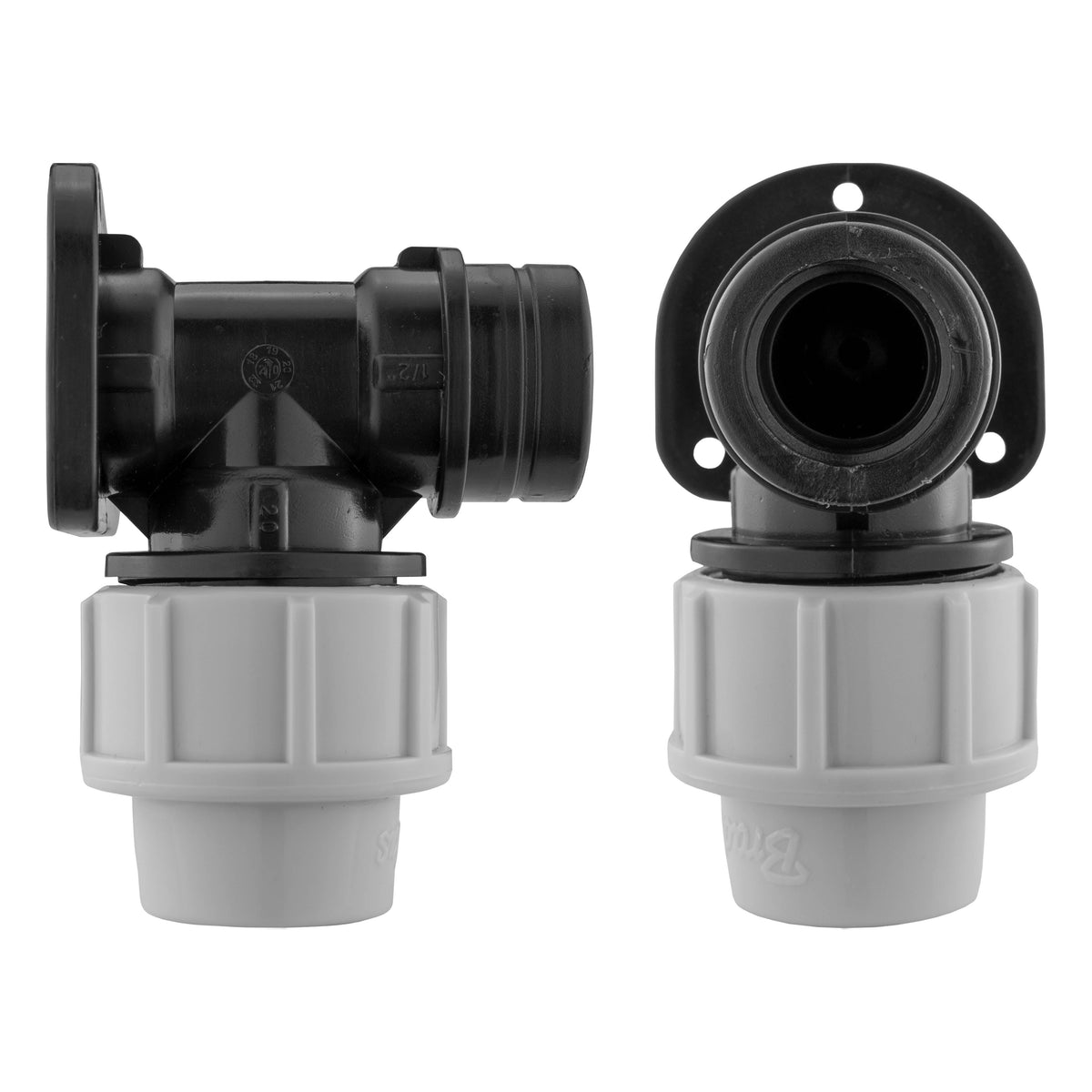

1 × 20mm MDPE wall flange with ½″ BSP female port

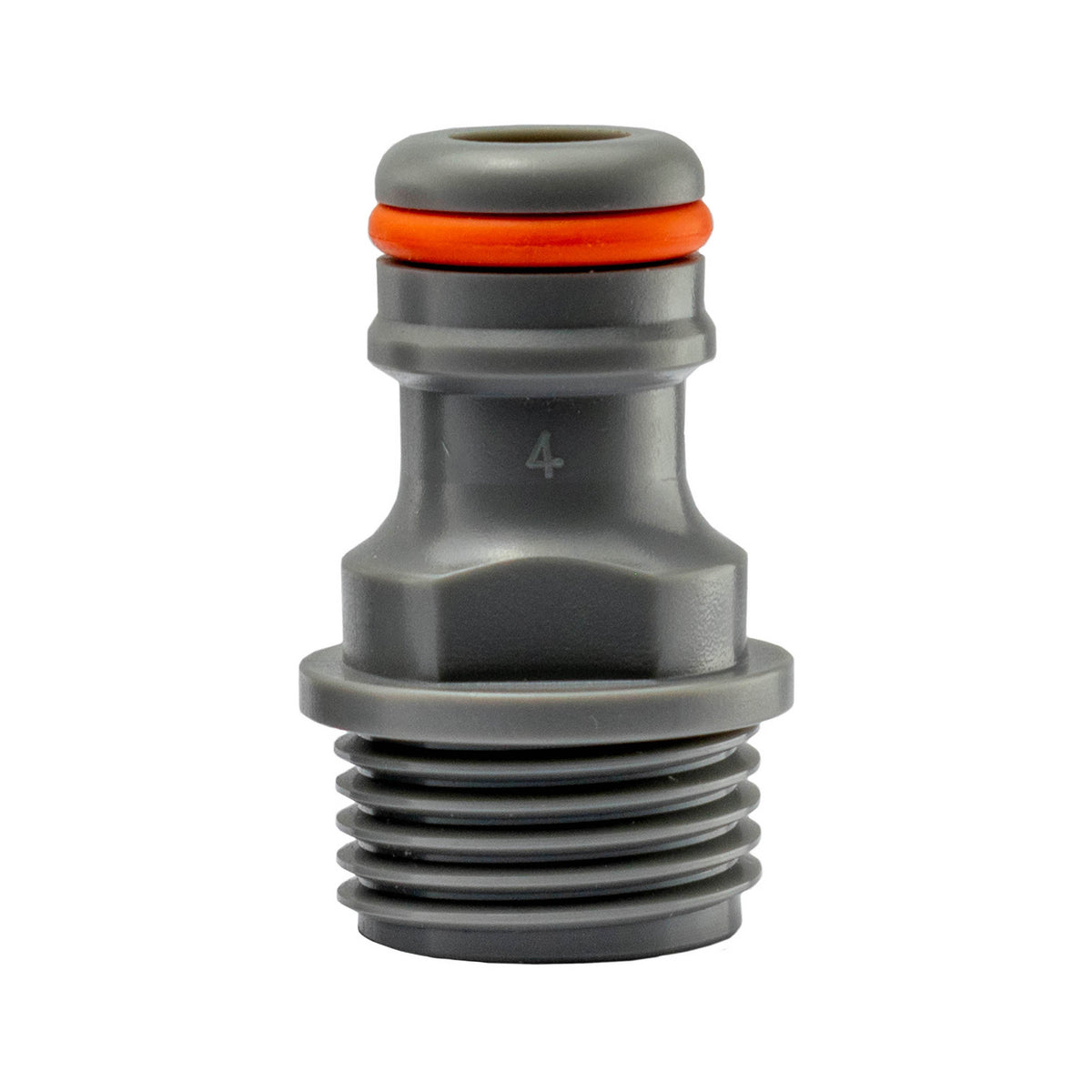

1 × White Line male snap-on plug with ½″ BSP male thread

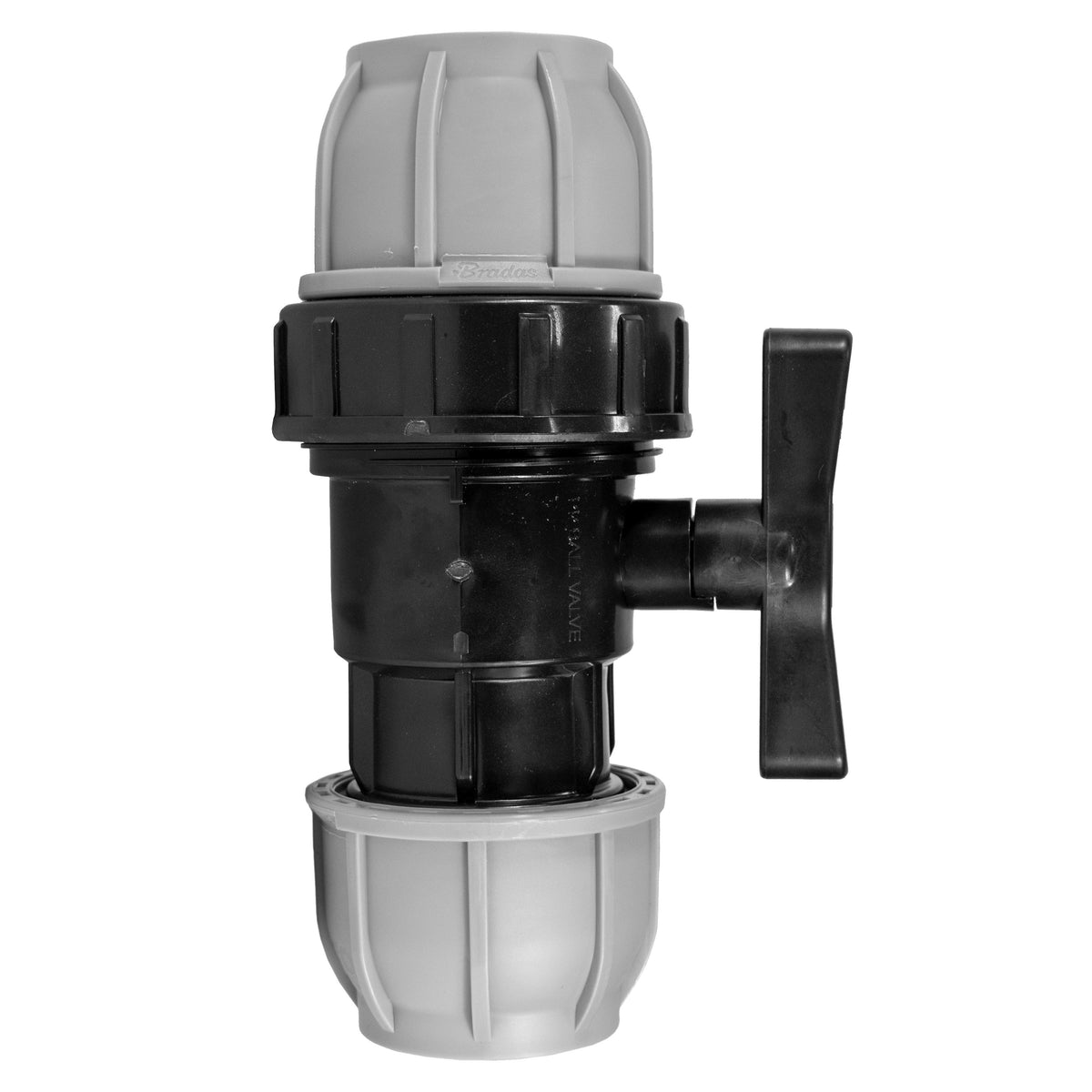

1 × Separate 20mm MDPE compression valve
Check compatibility

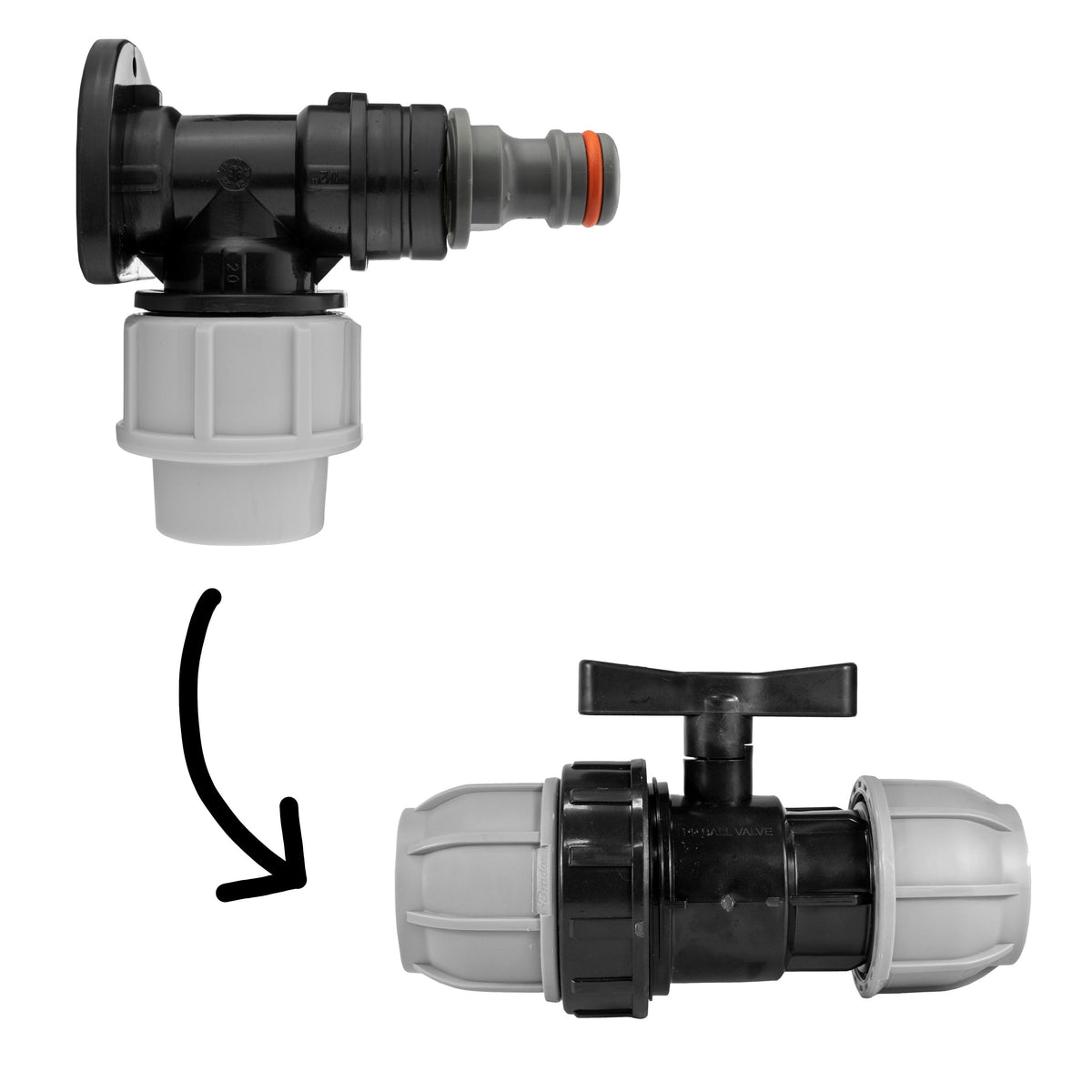

Check the supply-pipe outside diameter and the required hose or outlet connection before ordering. Pipe, hose, wall fixings and PTFE tape are not included. Choose fixings for the mounting surface and check the assembled connections before turning on the water. A suitable length of 20mm MDPE pipe is needed to join the separate valve. Blue pipe in the assembly example is not supplied. Female hose couplings are required and are not included in this version.
