Create a surface-mounted garden water connection from matching 20mm MDPE supply pipe with this wall-flange kit. A separate 20mm compression valve is included for installation in the pipe run; it does not screw directly into the flange.
Product details
Supply connection: 20mm MDPE compression
Wall-flange port: ½″ BSP female
Finished outlet: 13mm brass hose barb
Kit reference: WF20KIT016
What is included

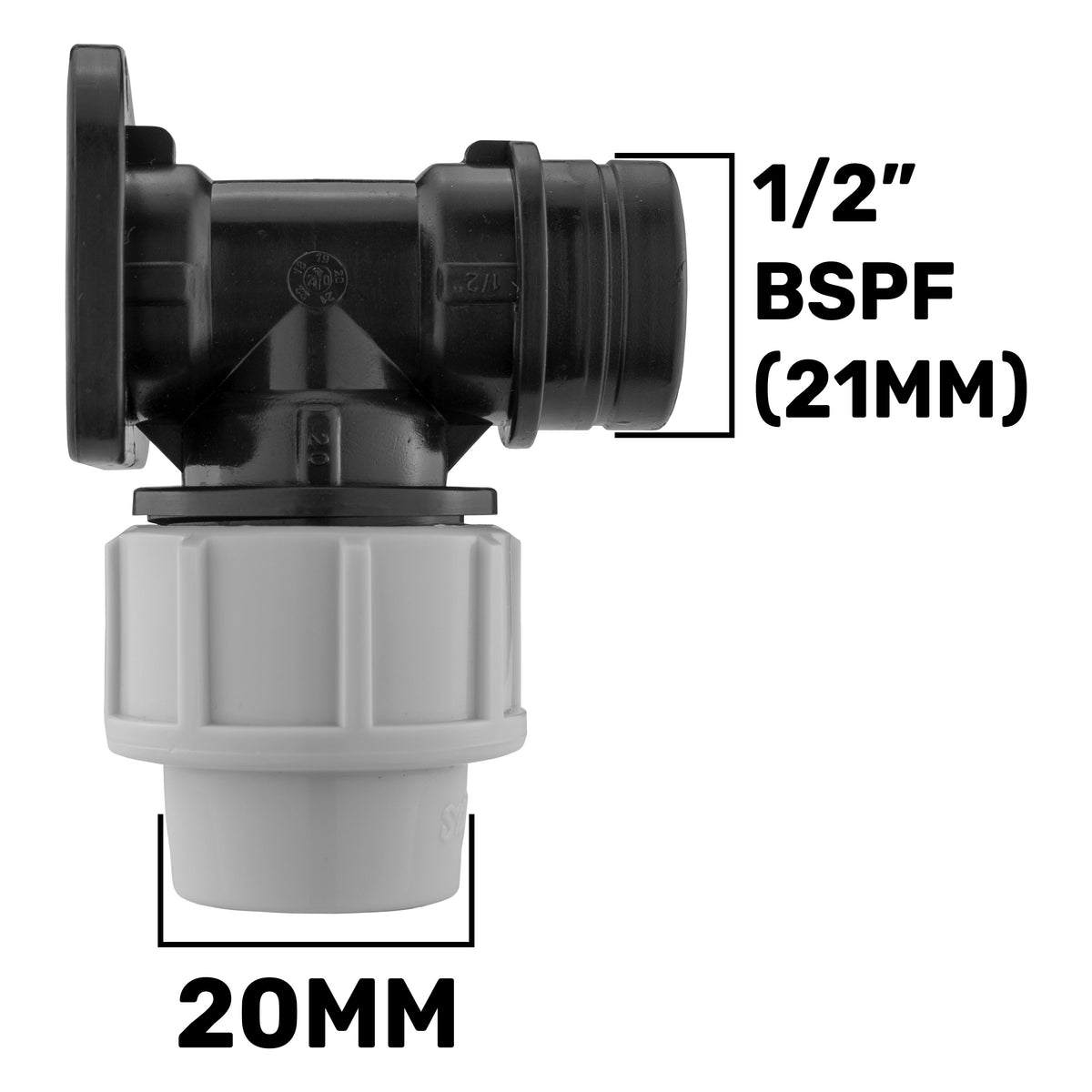

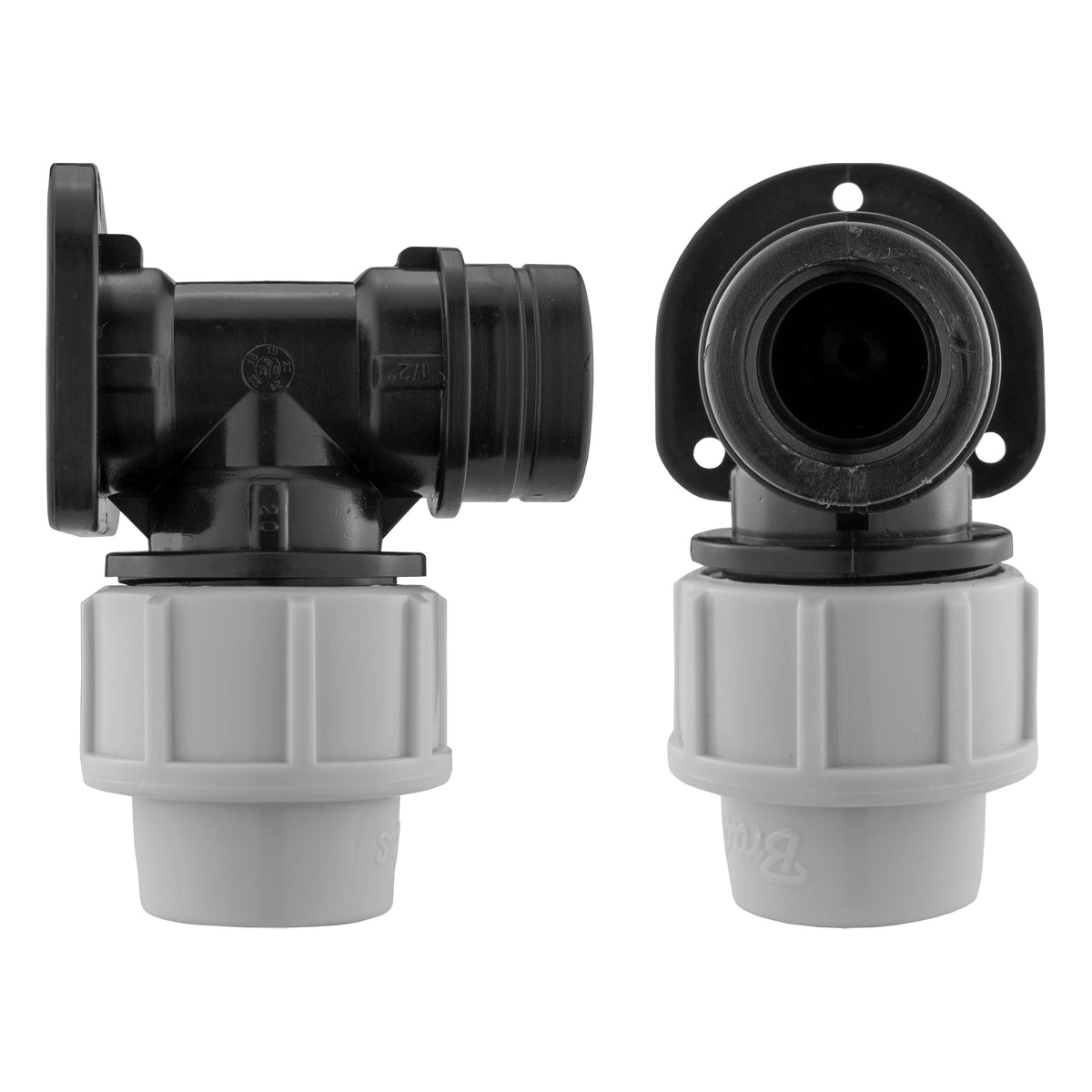

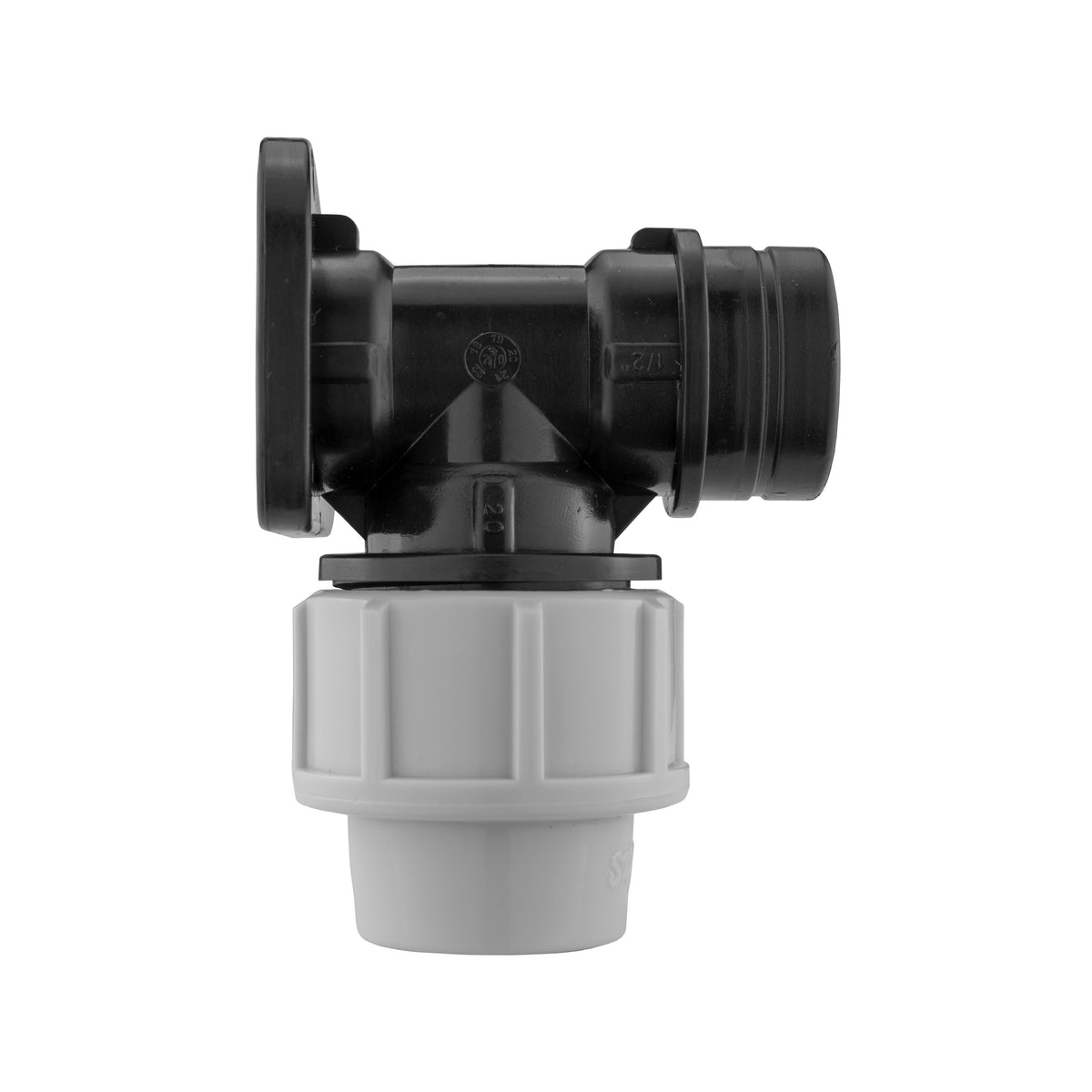

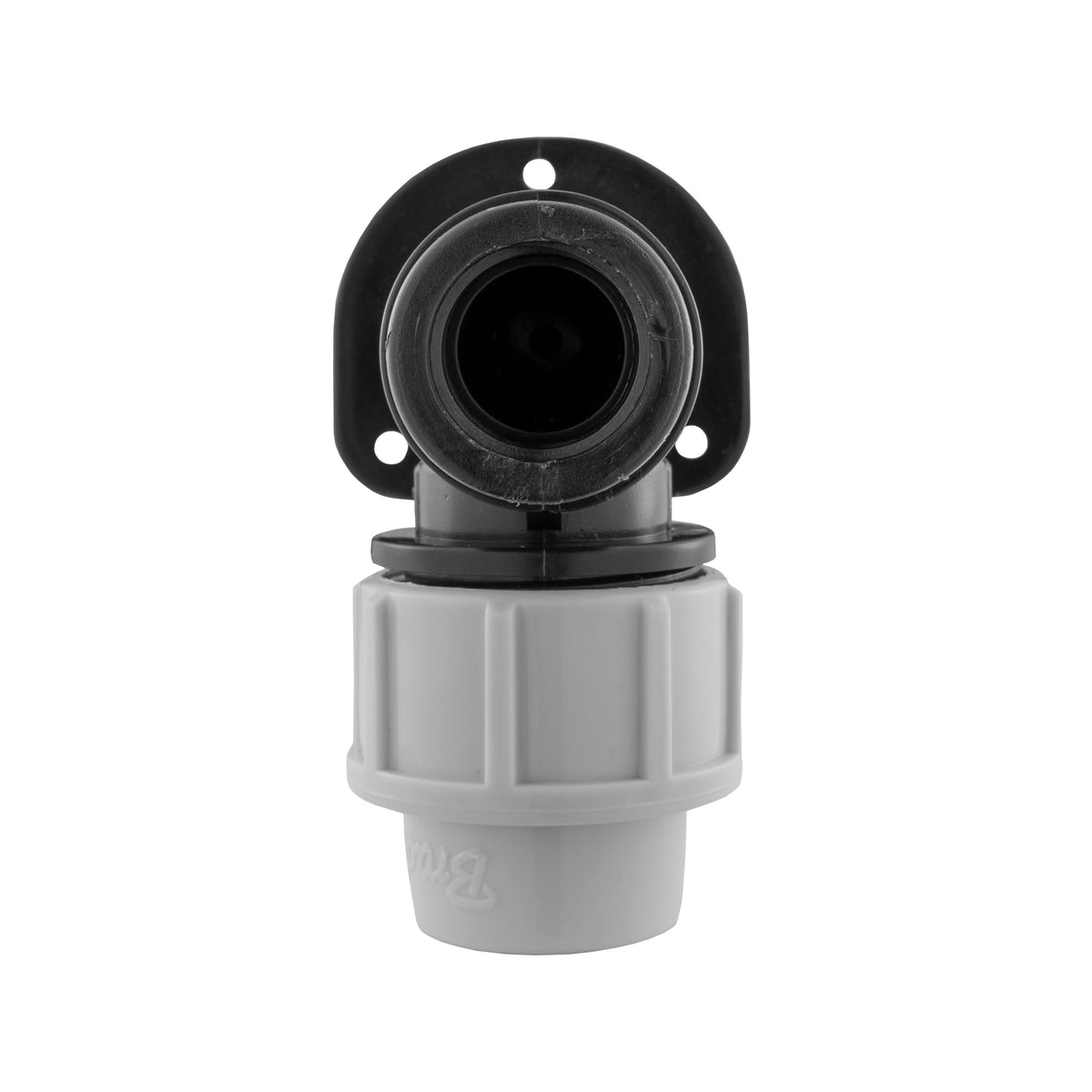

1 × 20mm MDPE wall flange with ½″ BSP female port

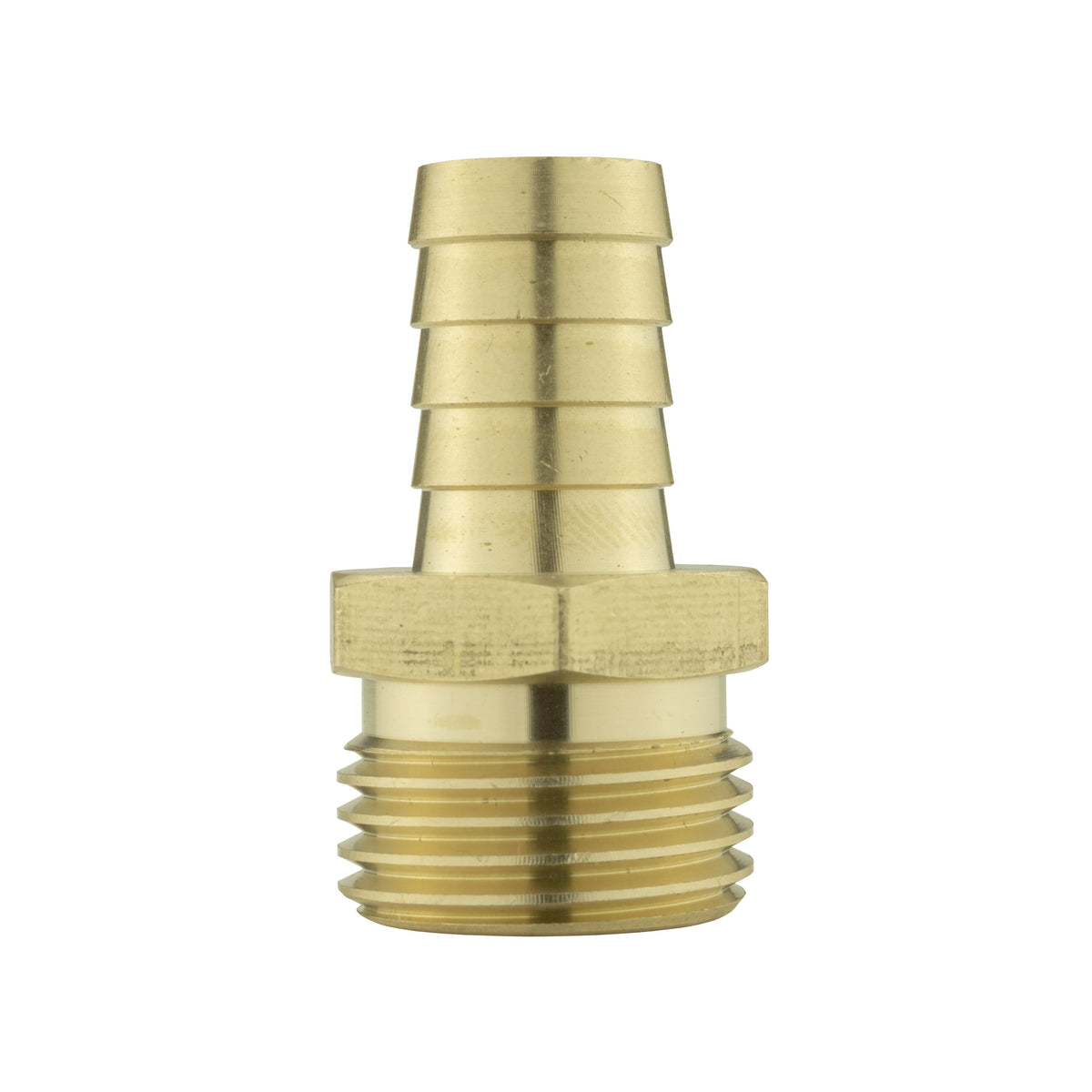

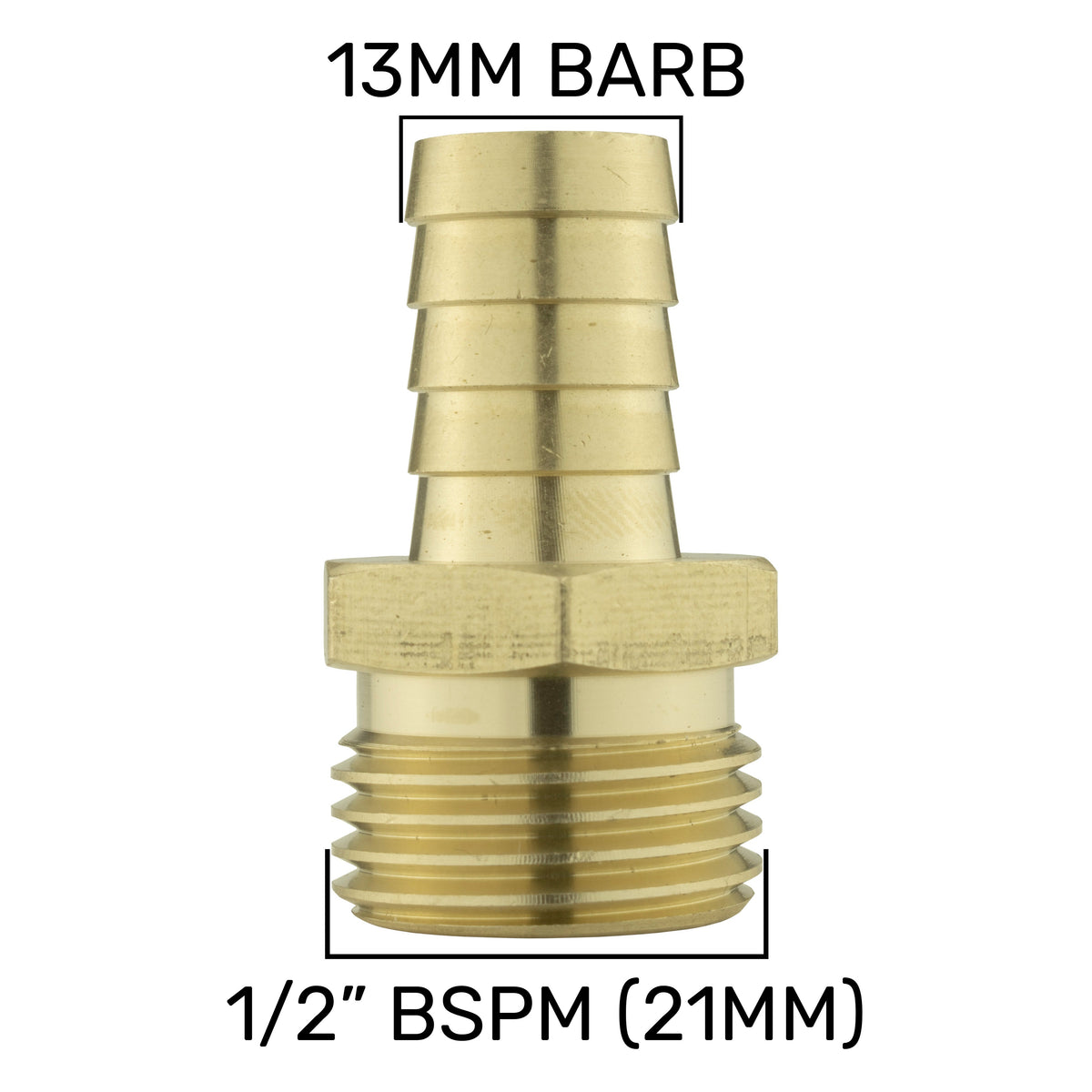

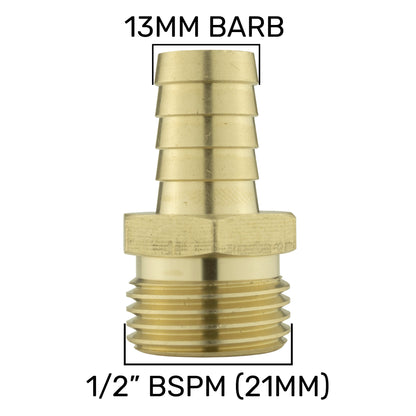

1 × 13mm brass hose-tail adapter with ½″ BSP male thread

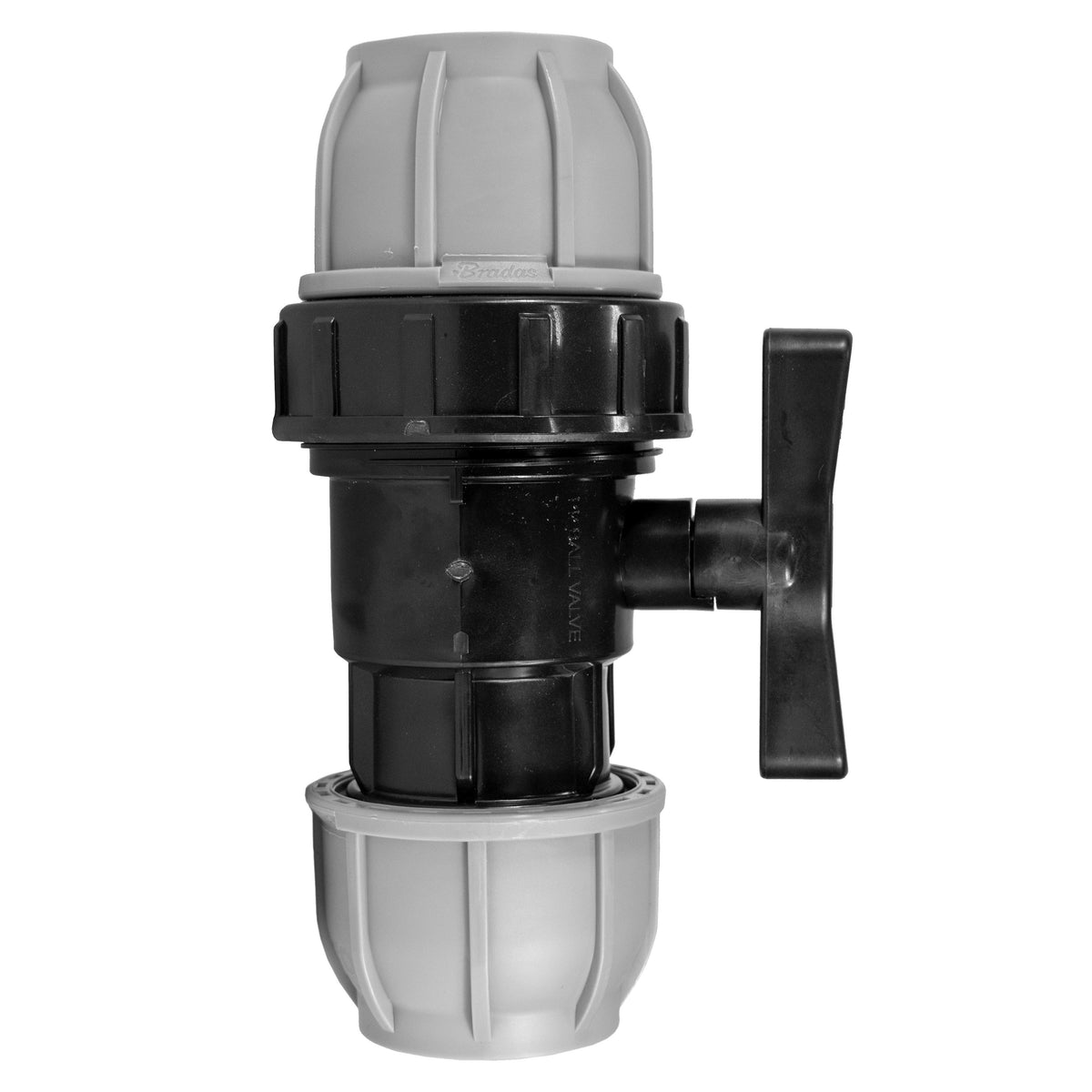

1 × Separate 20mm MDPE compression valve
Check compatibility

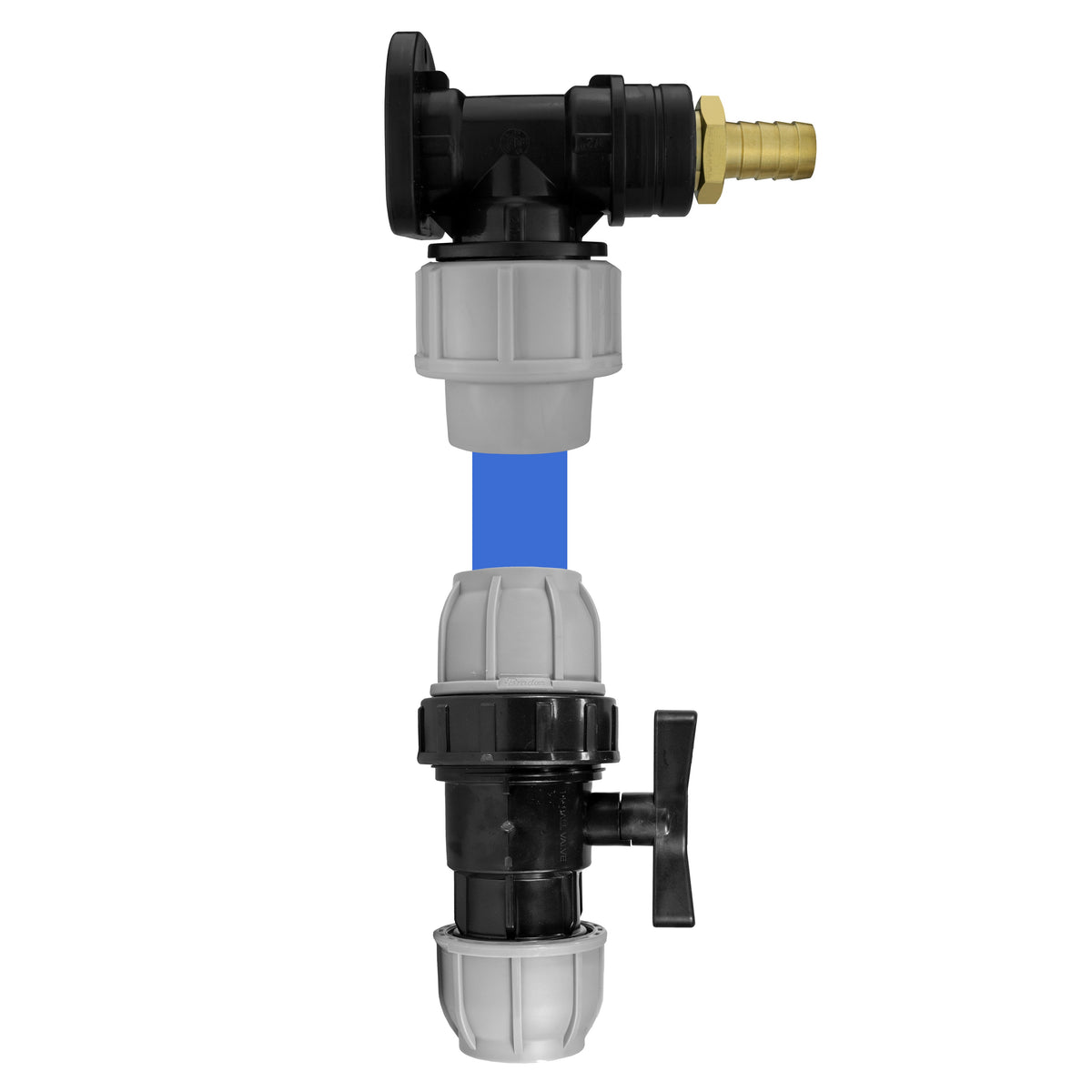

Match the supply-pipe outside diameter and the outlet connection before ordering. Pipe, hose, wall fixings and PTFE tape are not included. Use fixings suitable for the mounting surface and check the assembled connections before turning on the water. A suitable length of 20mm MDPE pipe is needed to join the separate valve. Blue pipe shown in example assemblies is not supplied.
