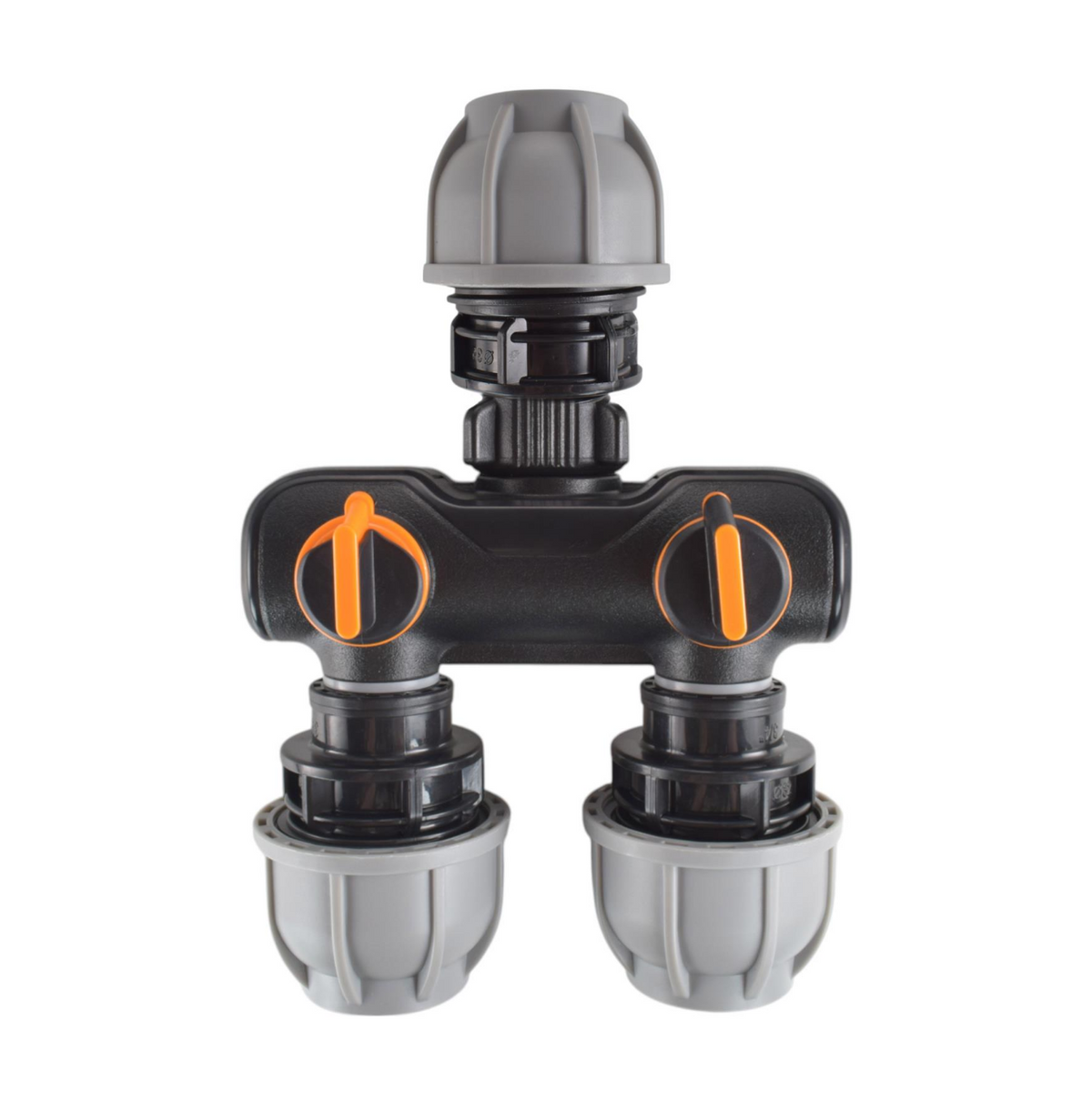

25mm MDPE 2-Way Manifold Kit – Straight inlet

Create two manually controlled pipe branches using a two-way garden manifold and matching compression adapters.

Product details

• Pipe size: 25mm outside diameter

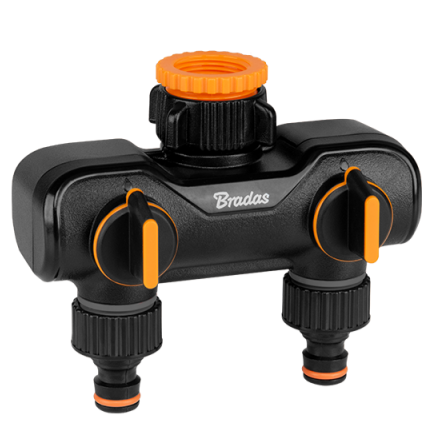

• Manifold: one ECO-PWB3052 two-way splitter with manual valves

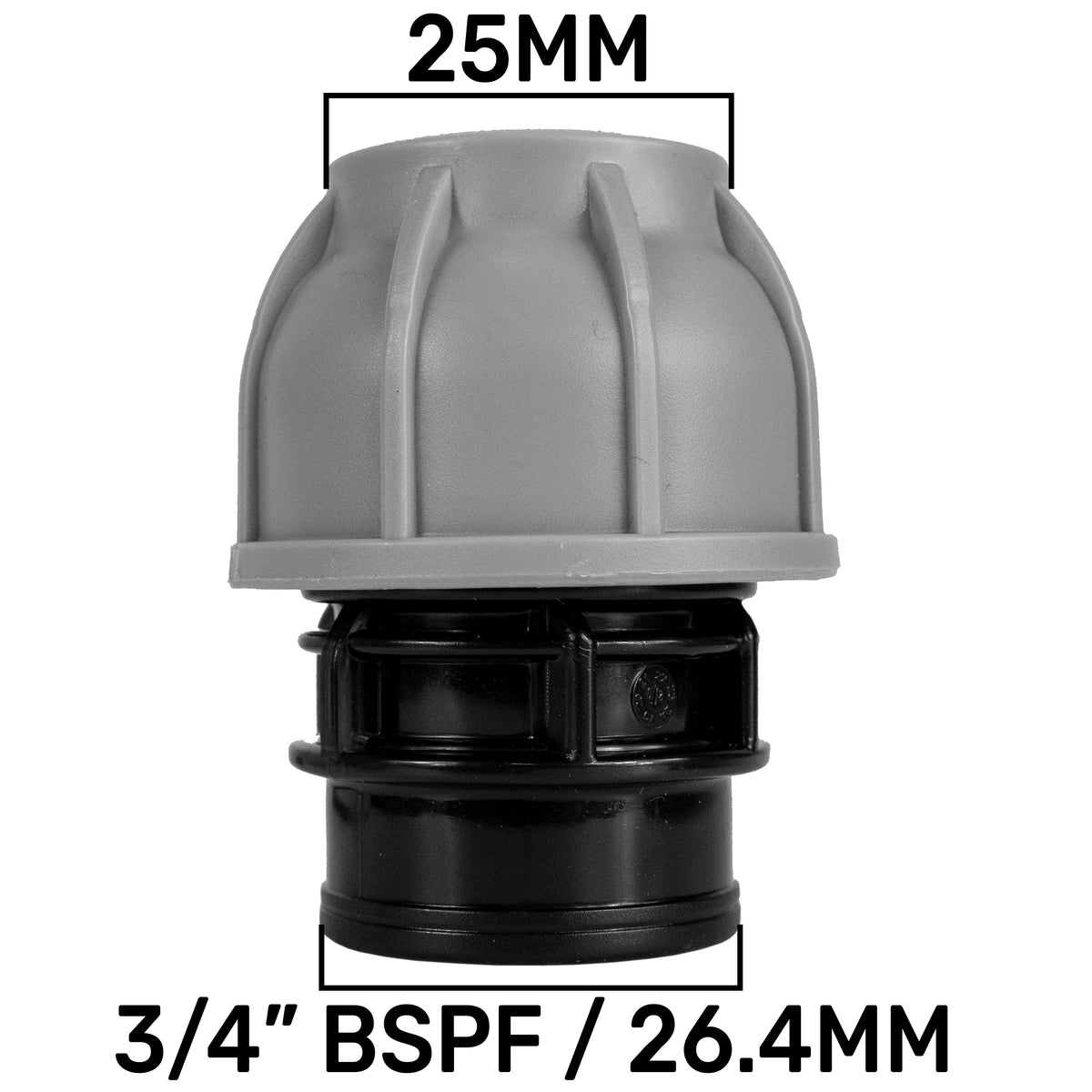

• Outlet adapters: 2 × 25mm compression to ¾″ BSP female straight adapters

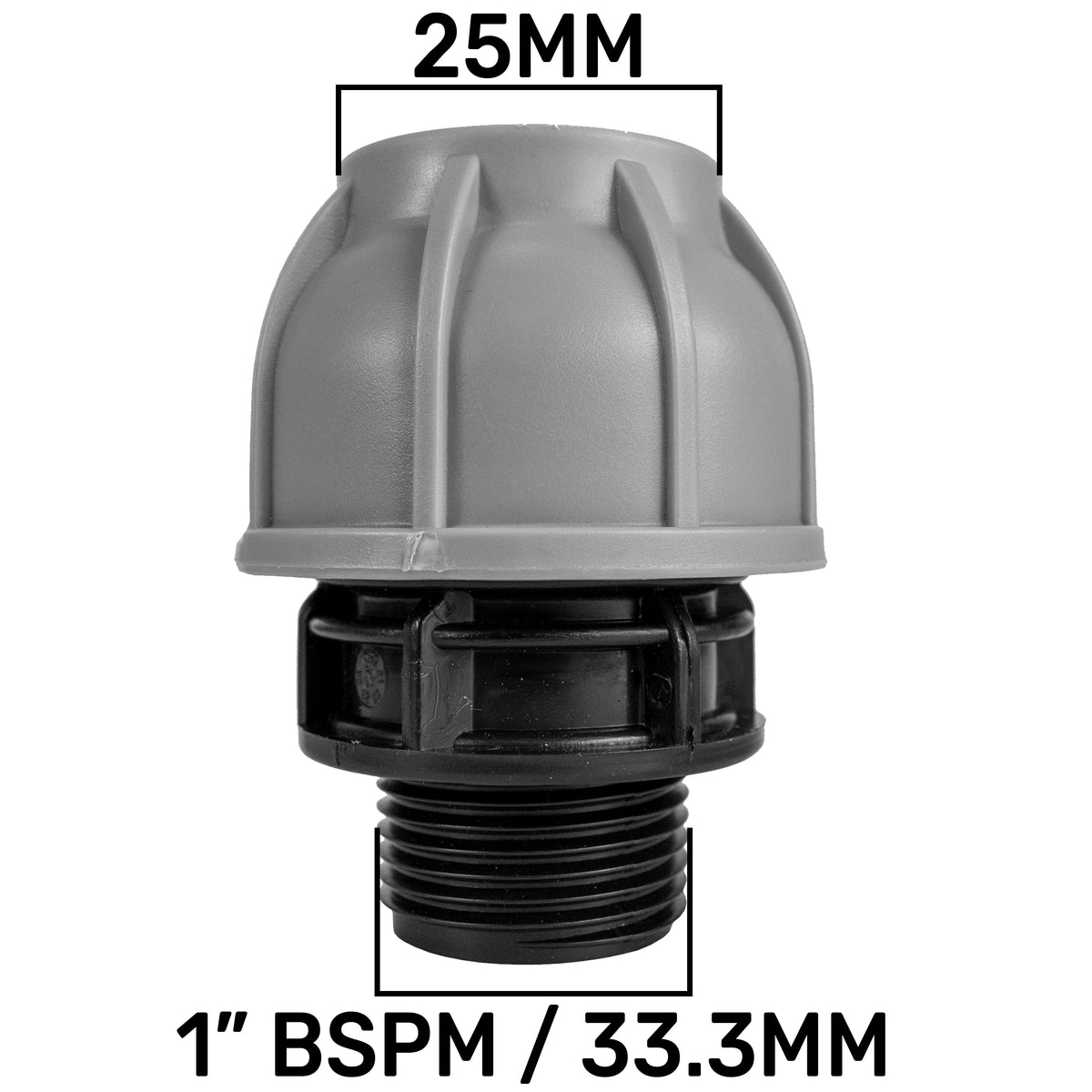

• Inlet adapter: 1 × 25mm compression to 1″ BSP male straight adapter
• Reference: MDPE-2WAY3052-25MM-STR

What is included

The manifold, two outlet adapters and straight inlet adapter listed above

Fitting and use

Match the pipe outside diameter, insert it fully and assemble the compression fittings correctly. Connect the matching BSP threads using an appropriate sealing method. Confirm the operating limit of the complete kit; an individual adapter pressure designation does not establish the garden manifold rating. Pipe and sealing materials are supplied separately.
