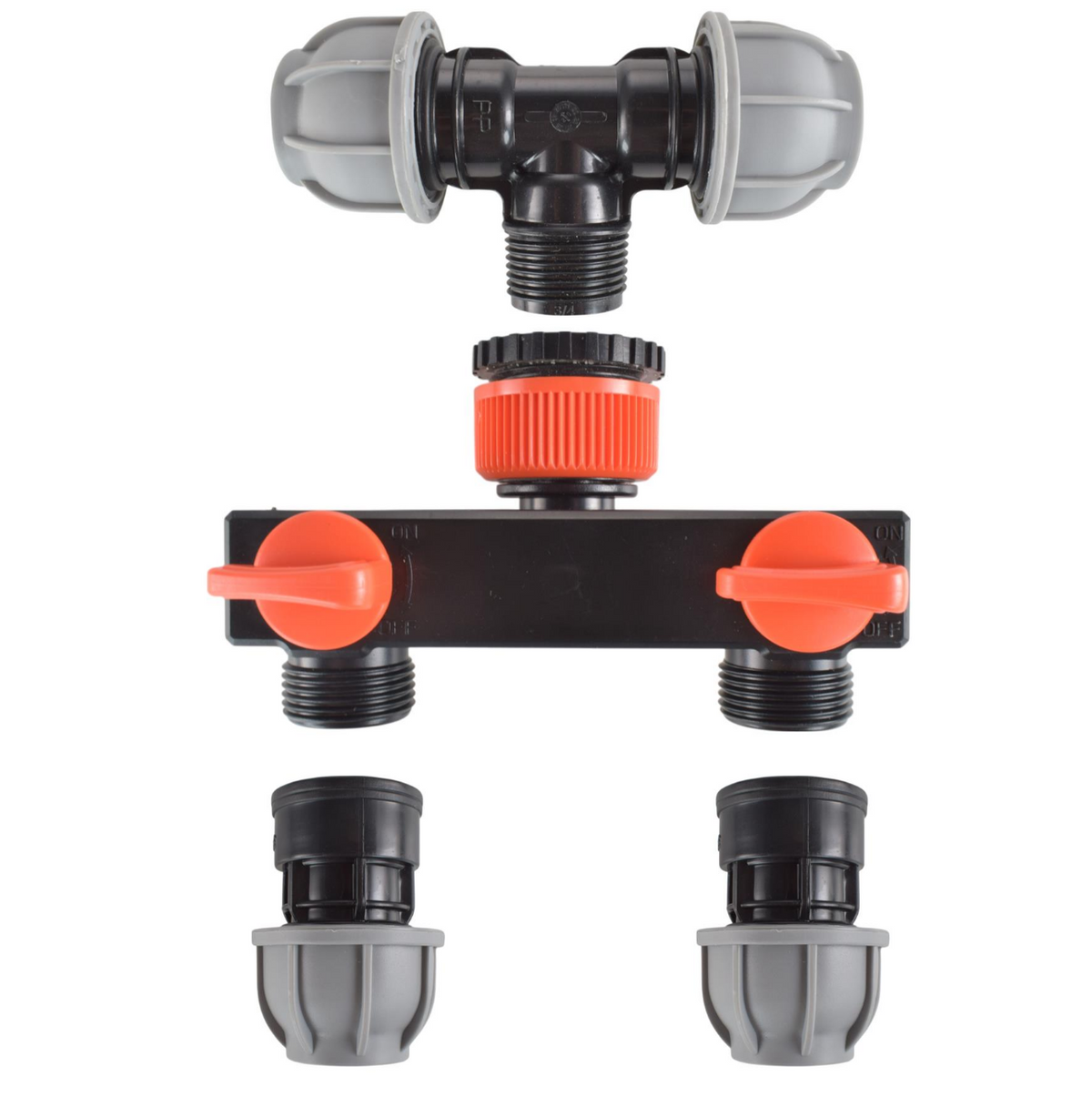

20mm MDPE 2-Way Manifold Kit – Tee Inlet

Create 2 separately controlled pipe branches with a garden splitter and matching 20mm compression adapters.

Product details

• Manifold: one TC2-WAY-H-001BL two-way splitter with manual valves

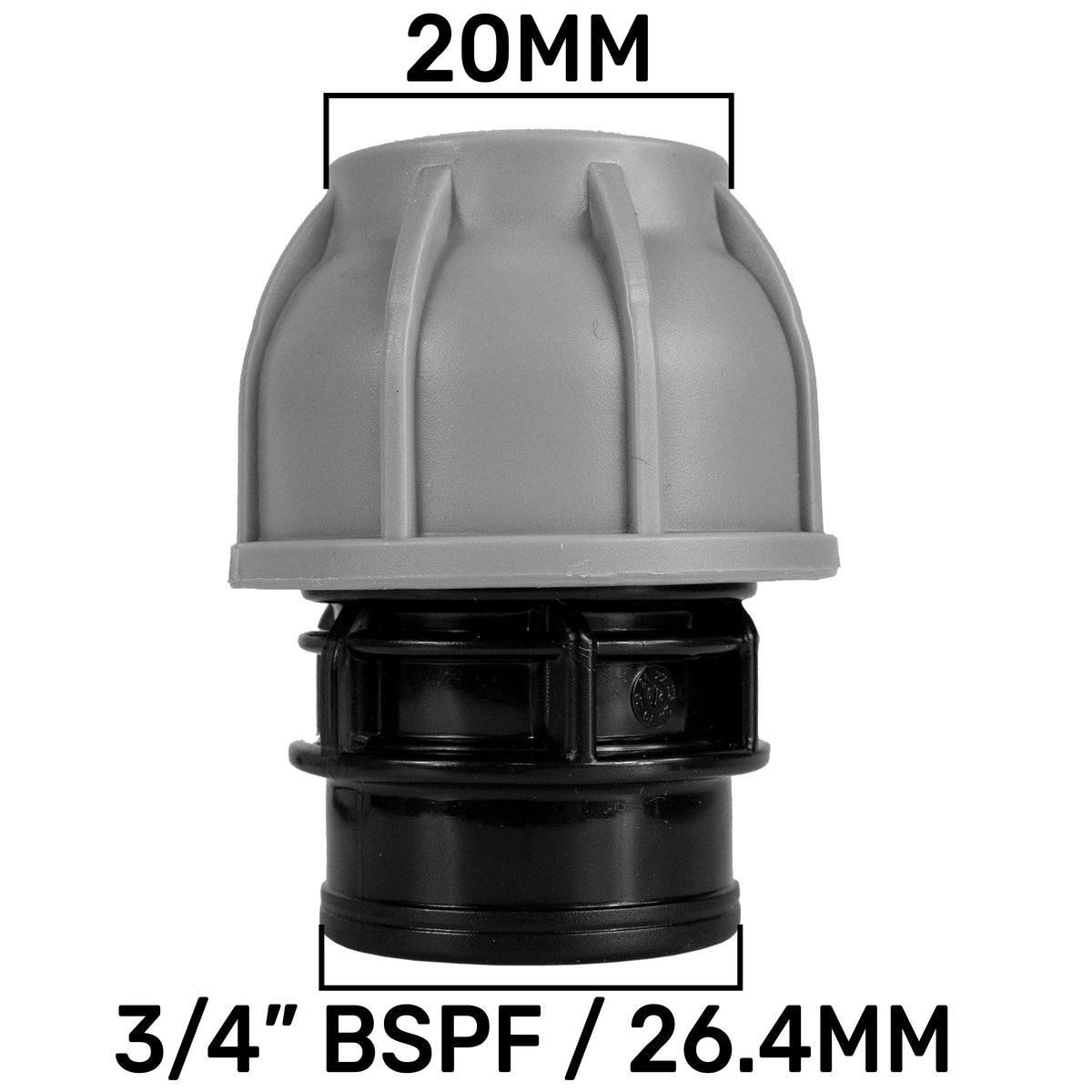

• Outlet adapters: 2 × 20mm compression to ¾″ BSP female

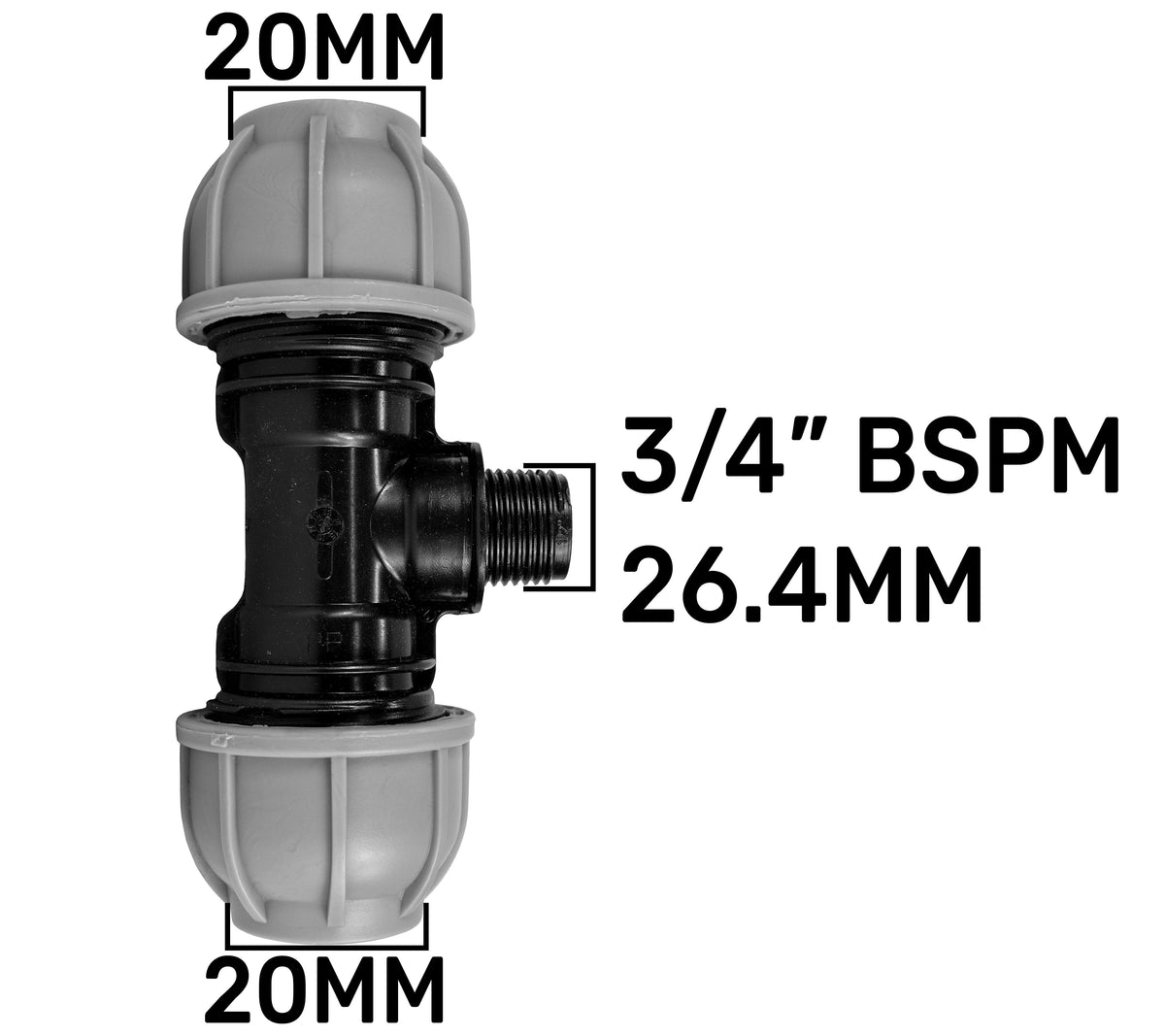

• Inlet adapter: one 20mm × ¾″ BSP male × 20mm tee
• Pipe size: 20mm outside diameter
• Reference: MDPE-2WAY-H012BL-20MM-TEE

What is included

One manifold, 2 outlet adapters and the tee inlet adapter

Fitting and use

Match the pipe outside diameter and assemble each compression joint correctly. Connect the matching BSP threads using an appropriate seal. An individual adapter PN10 designation does not establish the garden splitter kit rating; confirm limits for the complete assembly. The outlets are configured with the supplied pipe adapters rather than simultaneous pipe and quick-connect fittings. Pipe and sealing materials are supplied separately.
