S60×6 IBC Extender & Valve Kit – 25mm MDPE Tee

Connect a compatible IBC outlet to MDPE pipe with an extended adapter, manual single-union valve and the listed compression fitting.

Product details

• Tank connection: S60×6 female adapter; check the actual tank outlet thread
• Intermediate threads: 1″ BSP
• Pipe connection: 25mm outside-diameter MDPE
• Outlet fitting: tee with two equal compression ports and threaded branch
• Valve: polypropylene single-union ball valve with large lever
• Reference: IBC029H

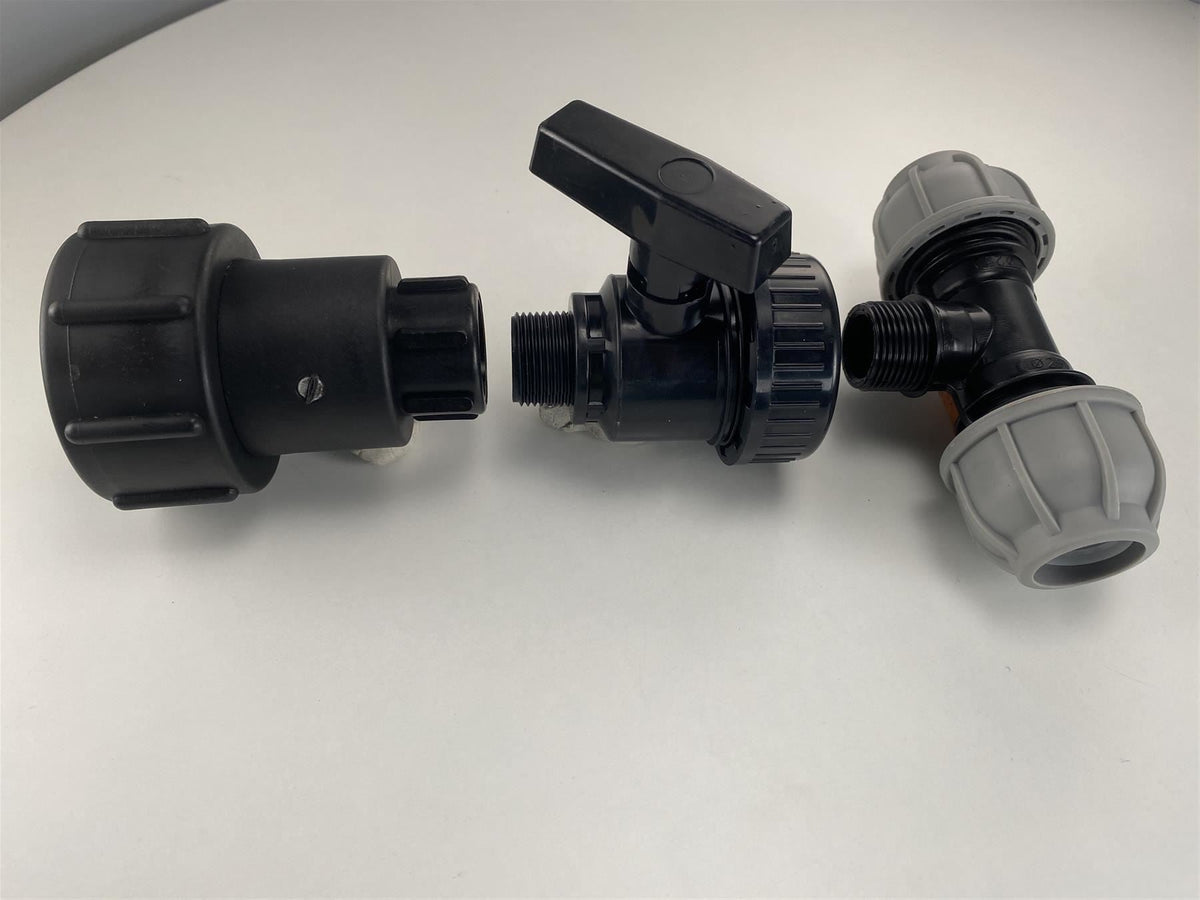

What is included

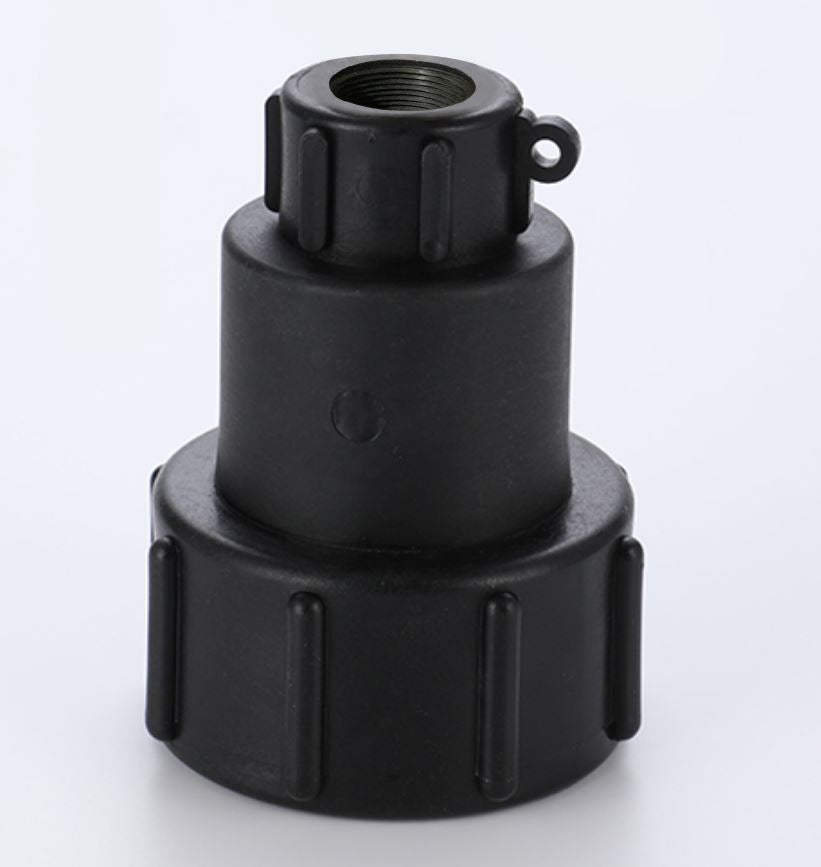

• One extended S60×6 female to 1″ BSP female adapter

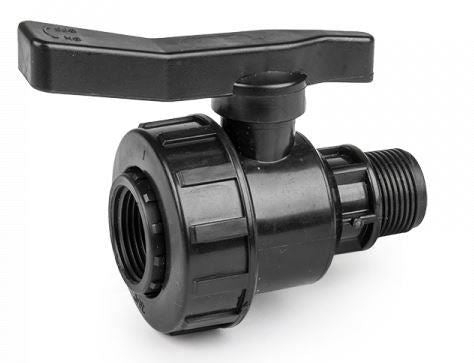

• One 1″ BSP male/female single-union polypropylene valve

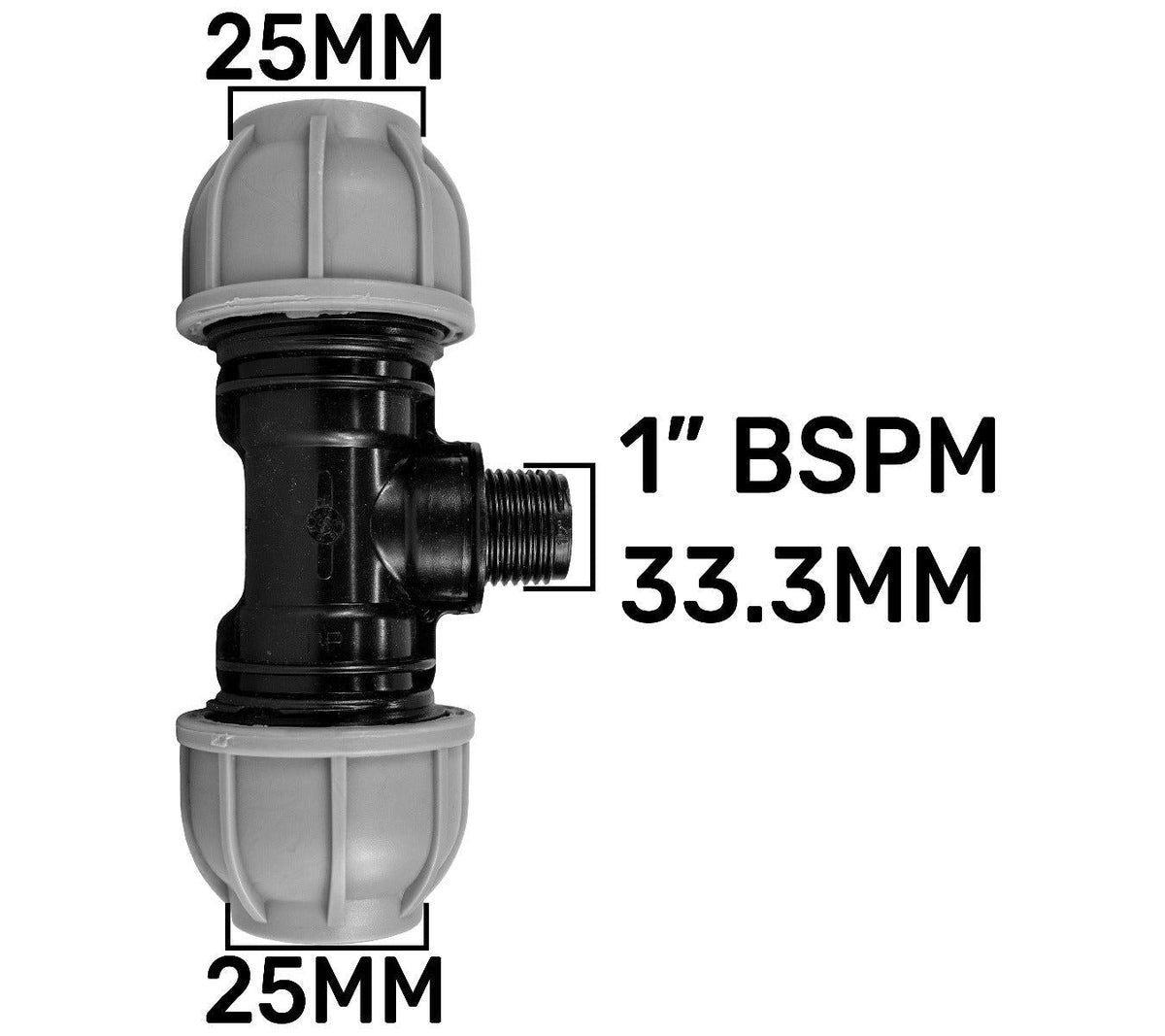

• One 25mm MDPE tee fitting with 1″ BSP male thread

Fitting and use

Check the IBC outlet thread rather than relying on the tank capacity or its appearance. S60×6 tank threads and BSP pipe threads are different connections. Match the MDPE pipe outside diameter and check the seals and complete assembly working limits. Pipe and tank are supplied separately. Do not assume a complete-kit pressure rating from an individual MDPE fitting designation.
