Twin Through-Wall Garden Tap Set – Polished Brass Barb Taps

Prepare two outdoor water points with matched through-wall plates, flexible connections, self-cutting supply valves and the listed taps and fixings.

Product details

• Water points: two
• Wall plates: two brass plates, each with 350mm of 15mm copper pipe and ½″ BSP female tap connection

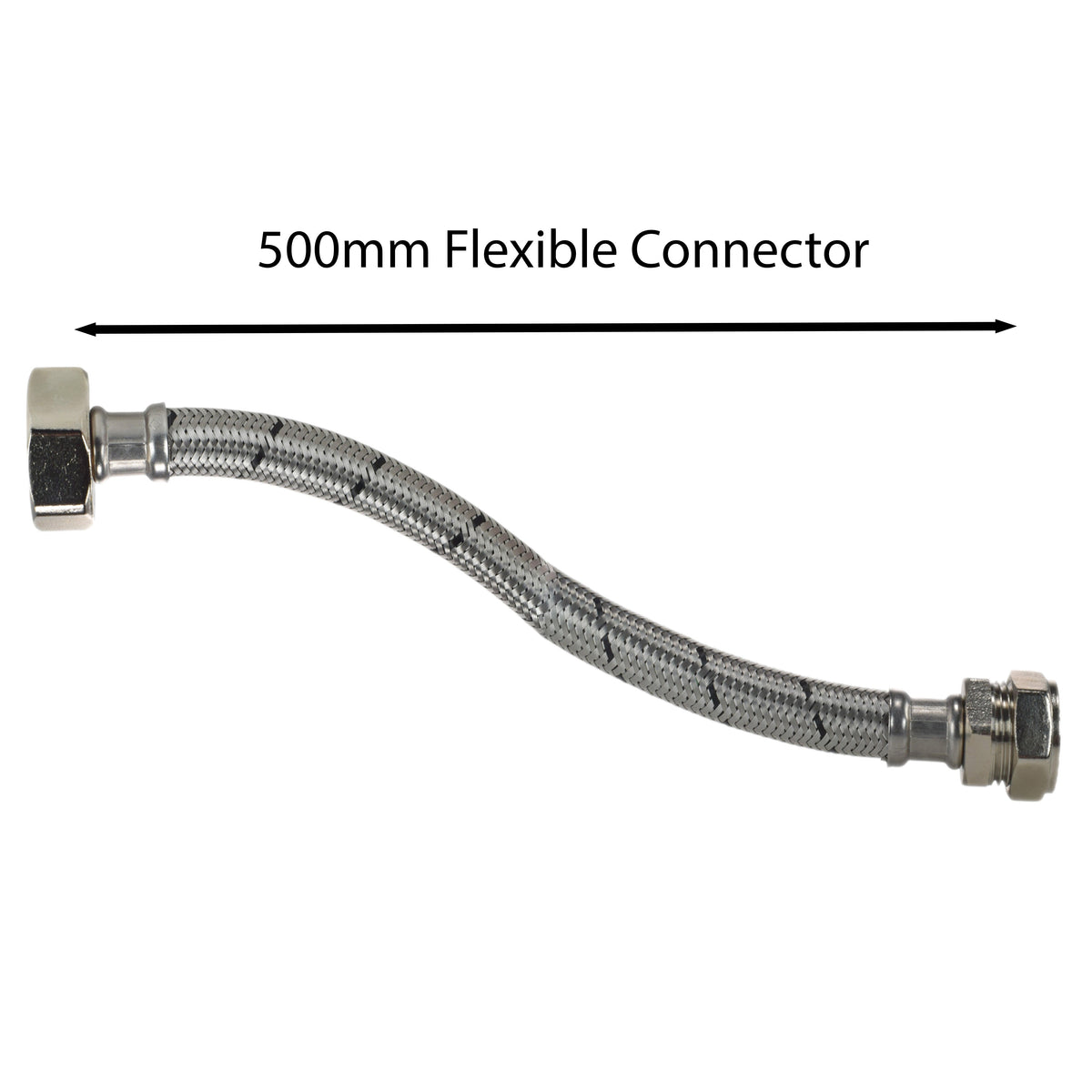

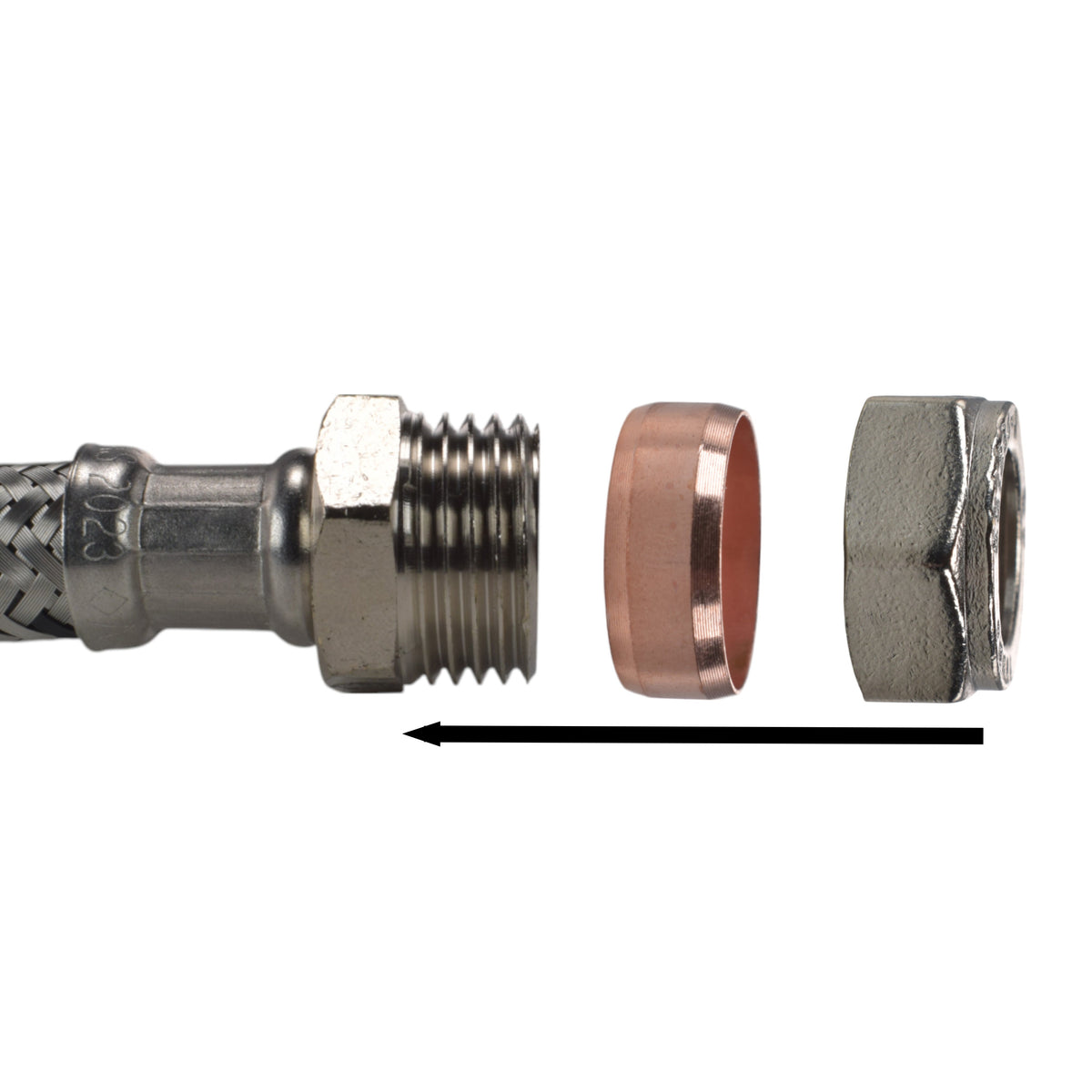

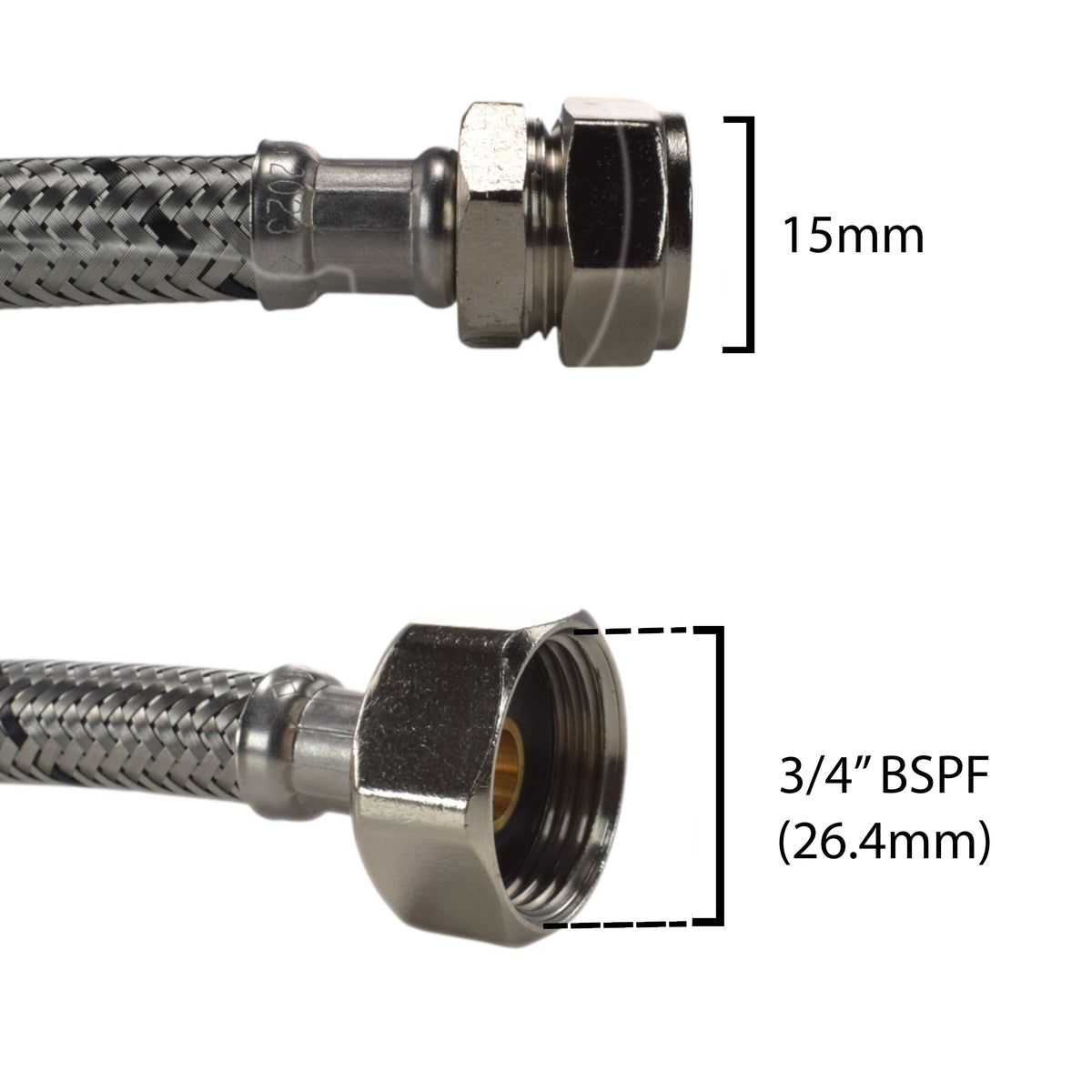

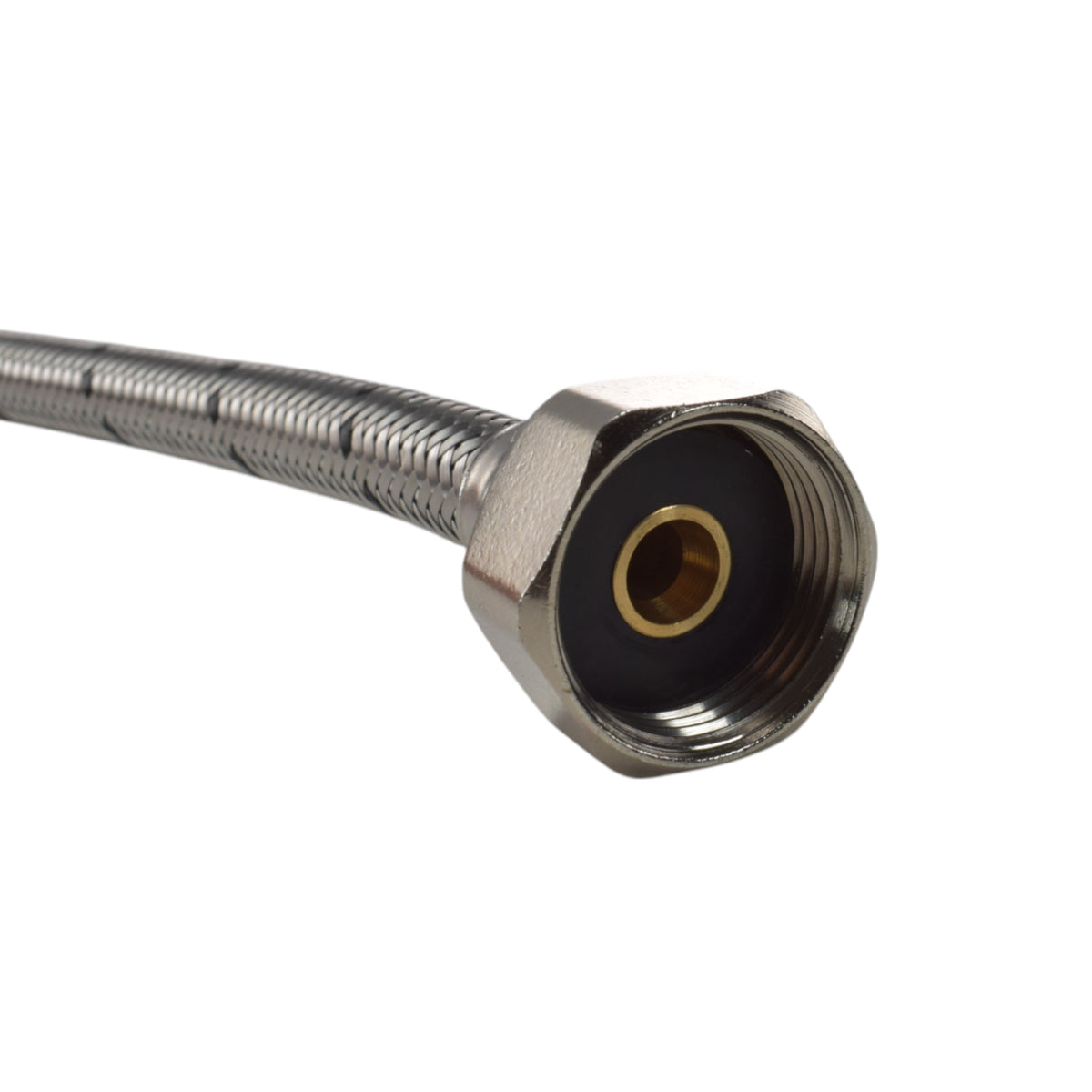

• Flexible hoses: two 500mm braided hoses with 15mm compression and ¾″ BSP female connections

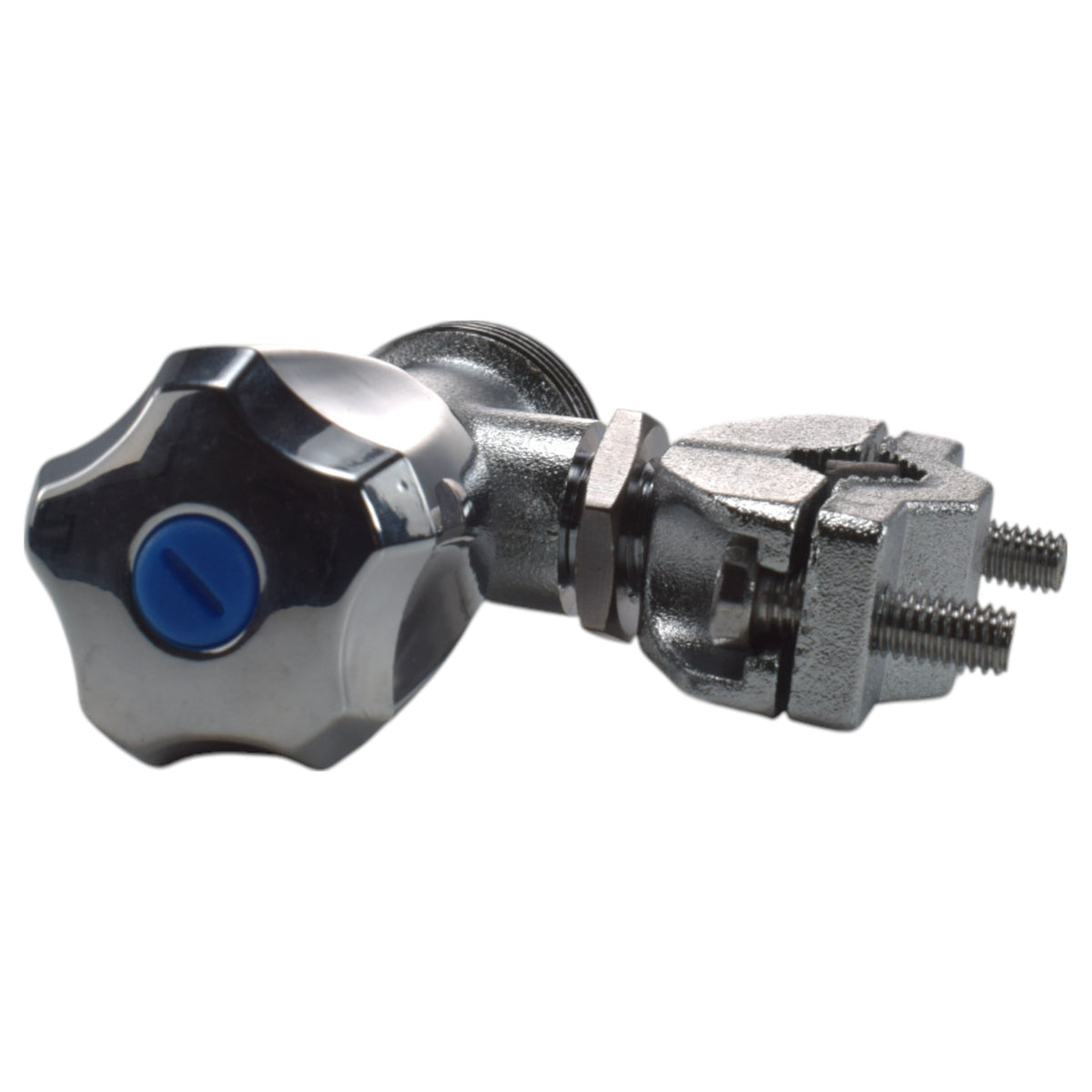

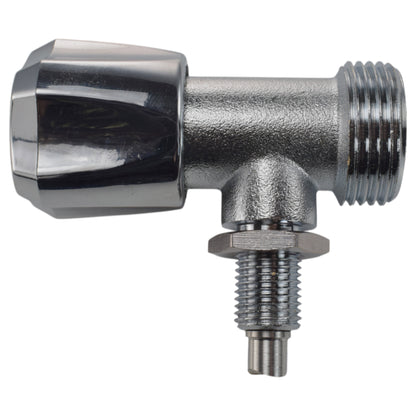

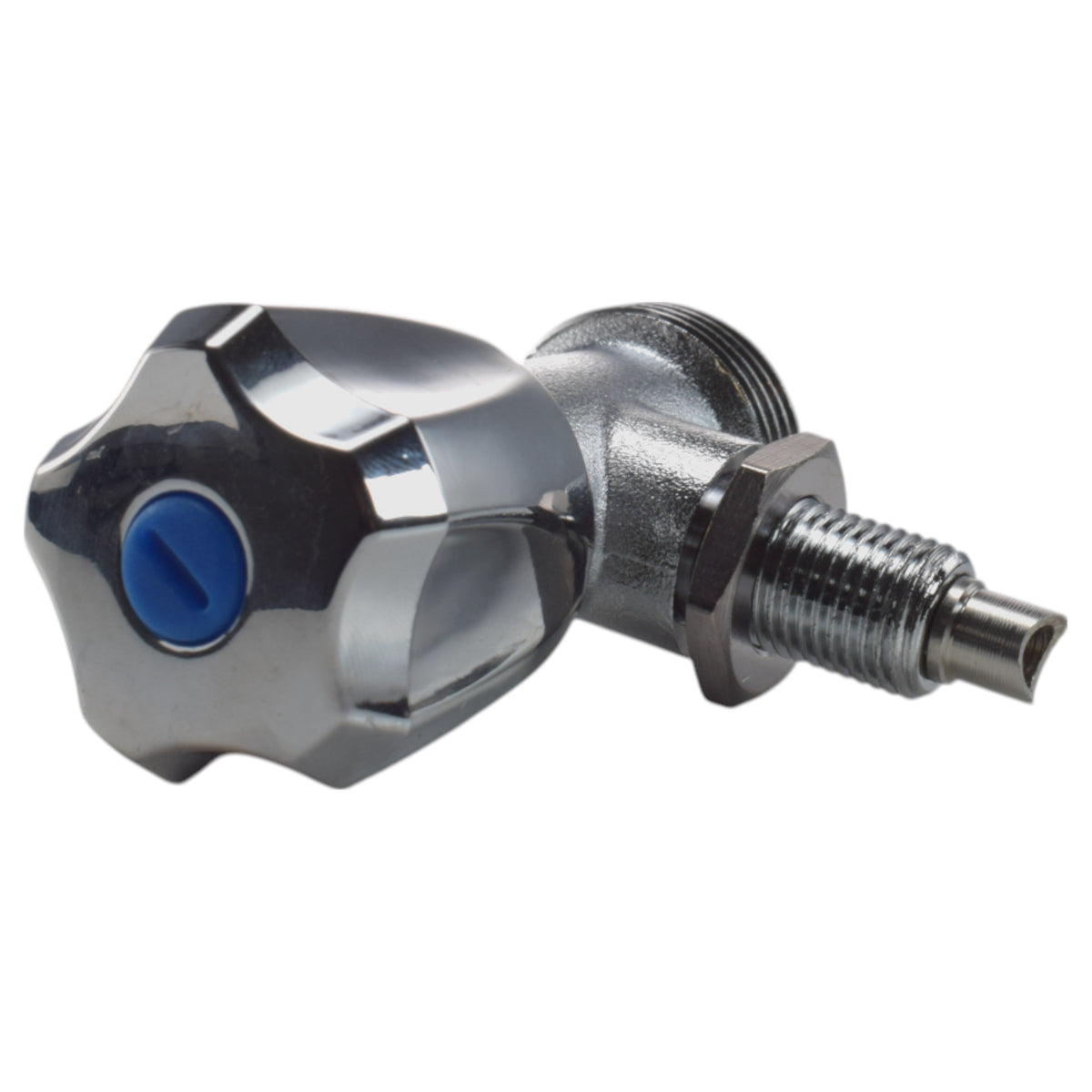

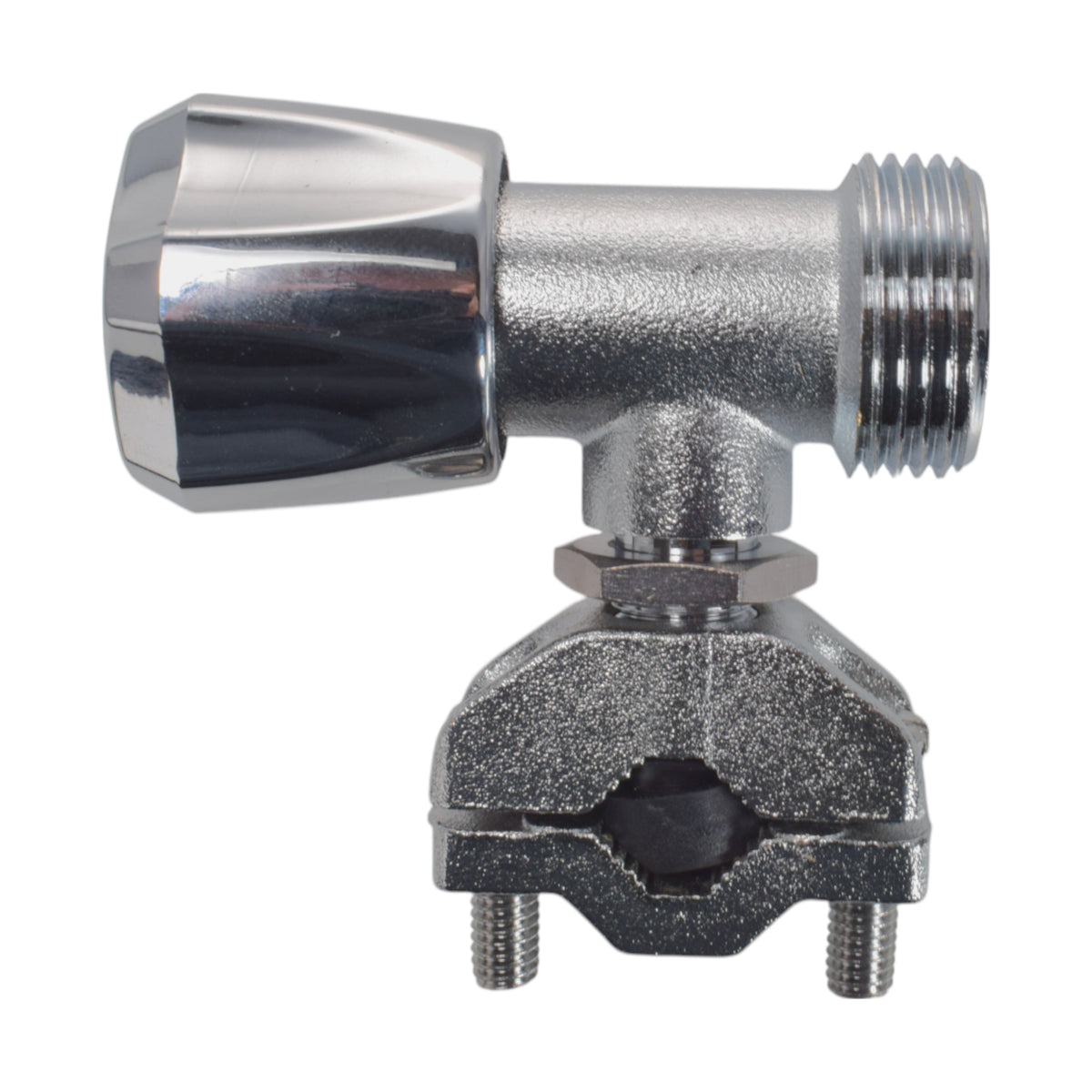

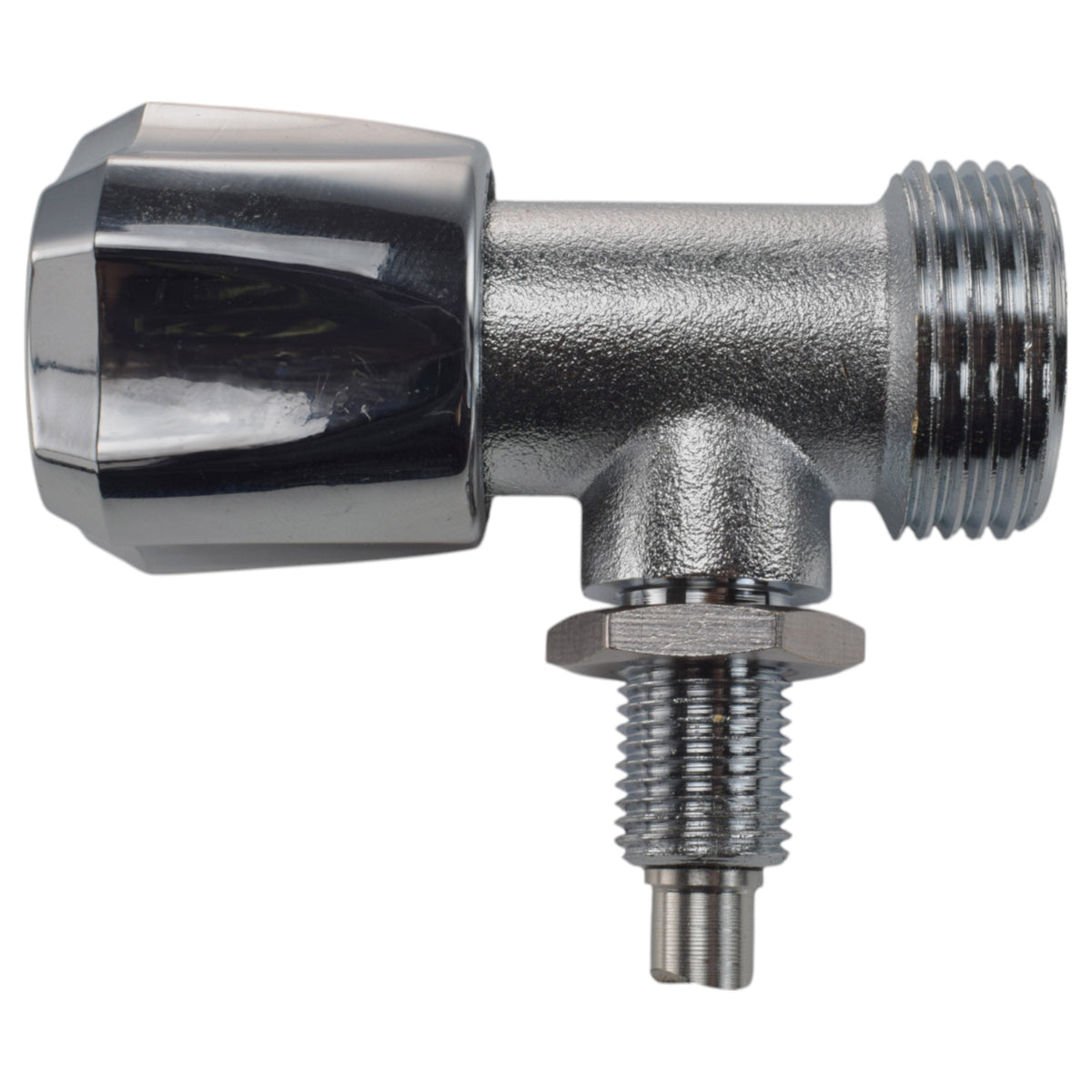

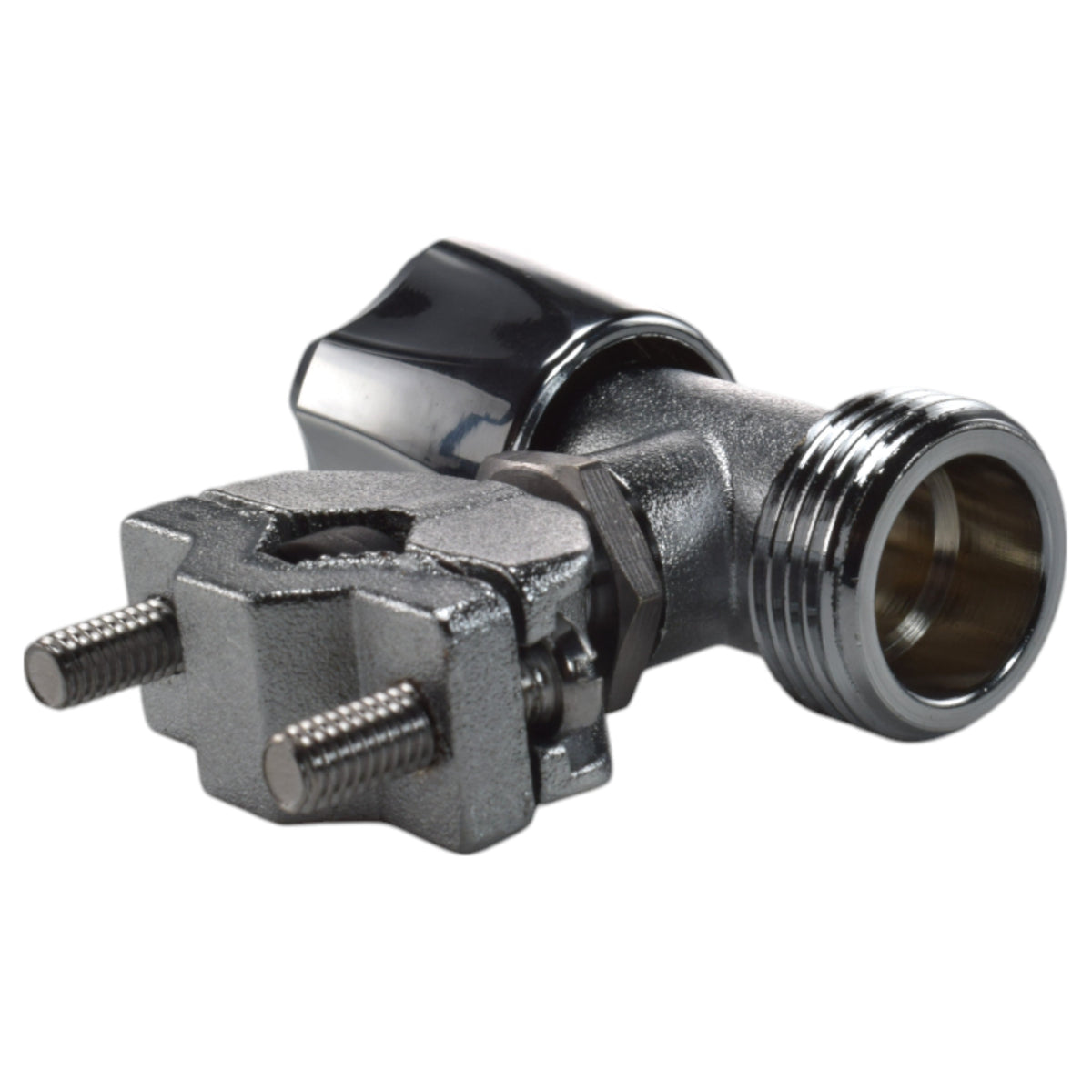

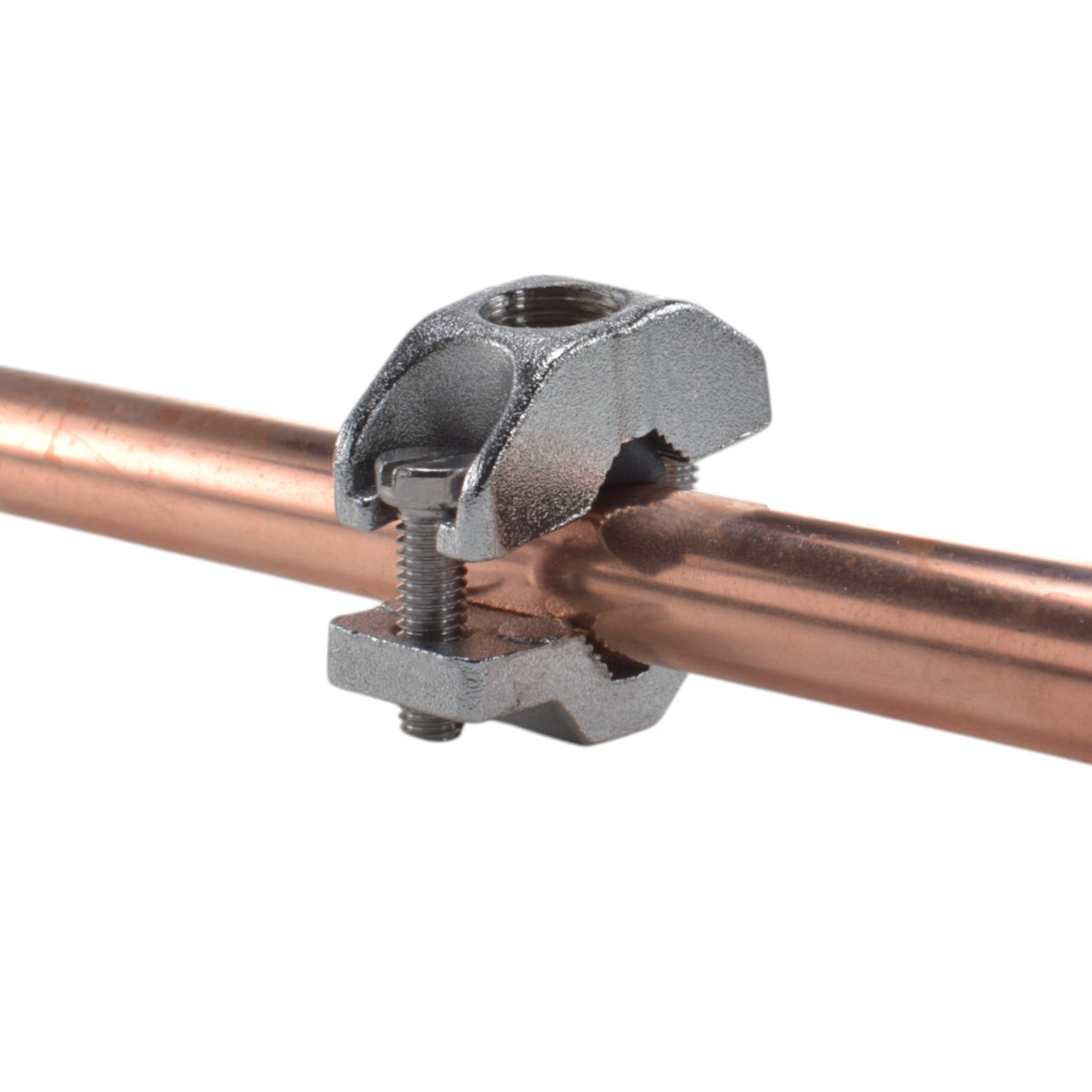

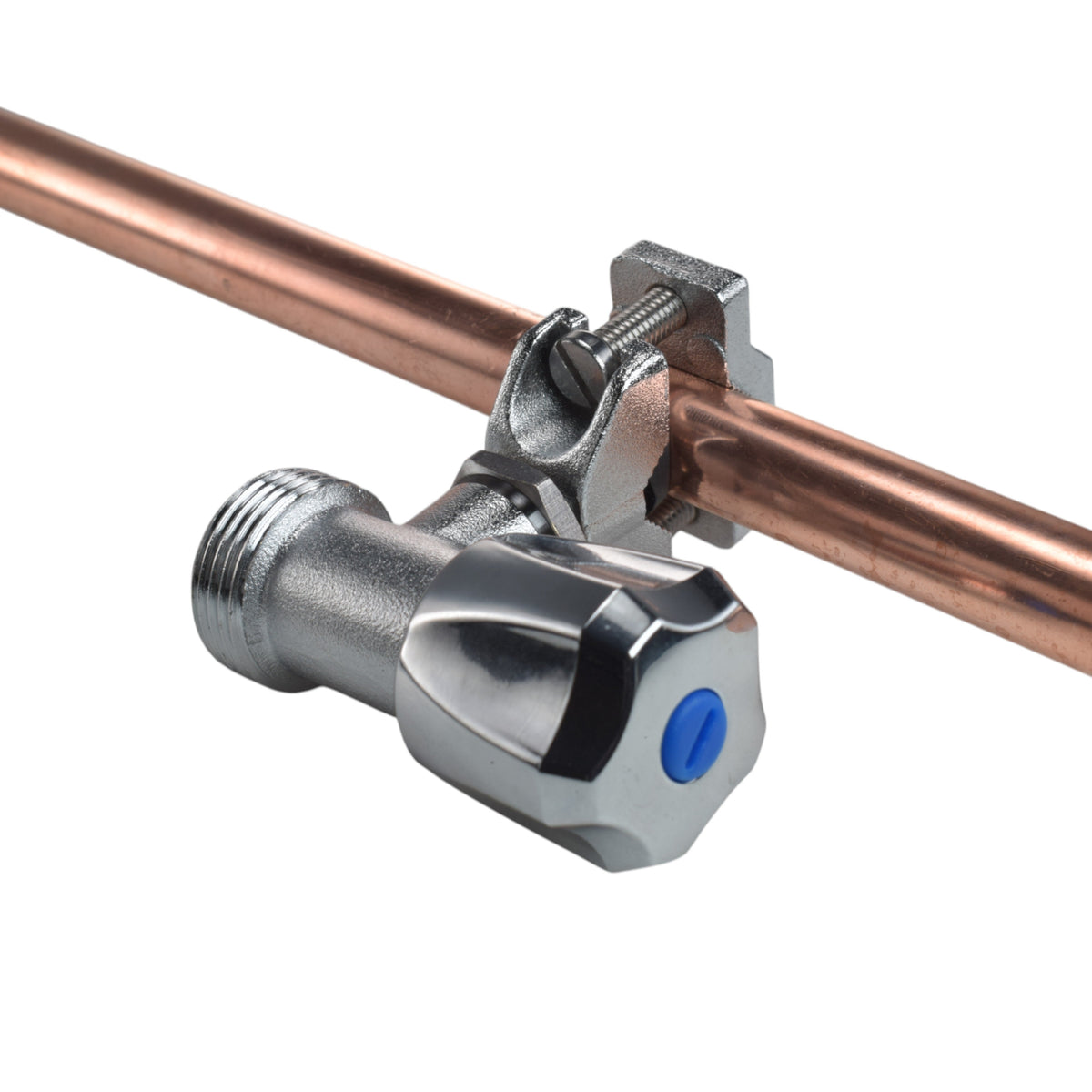

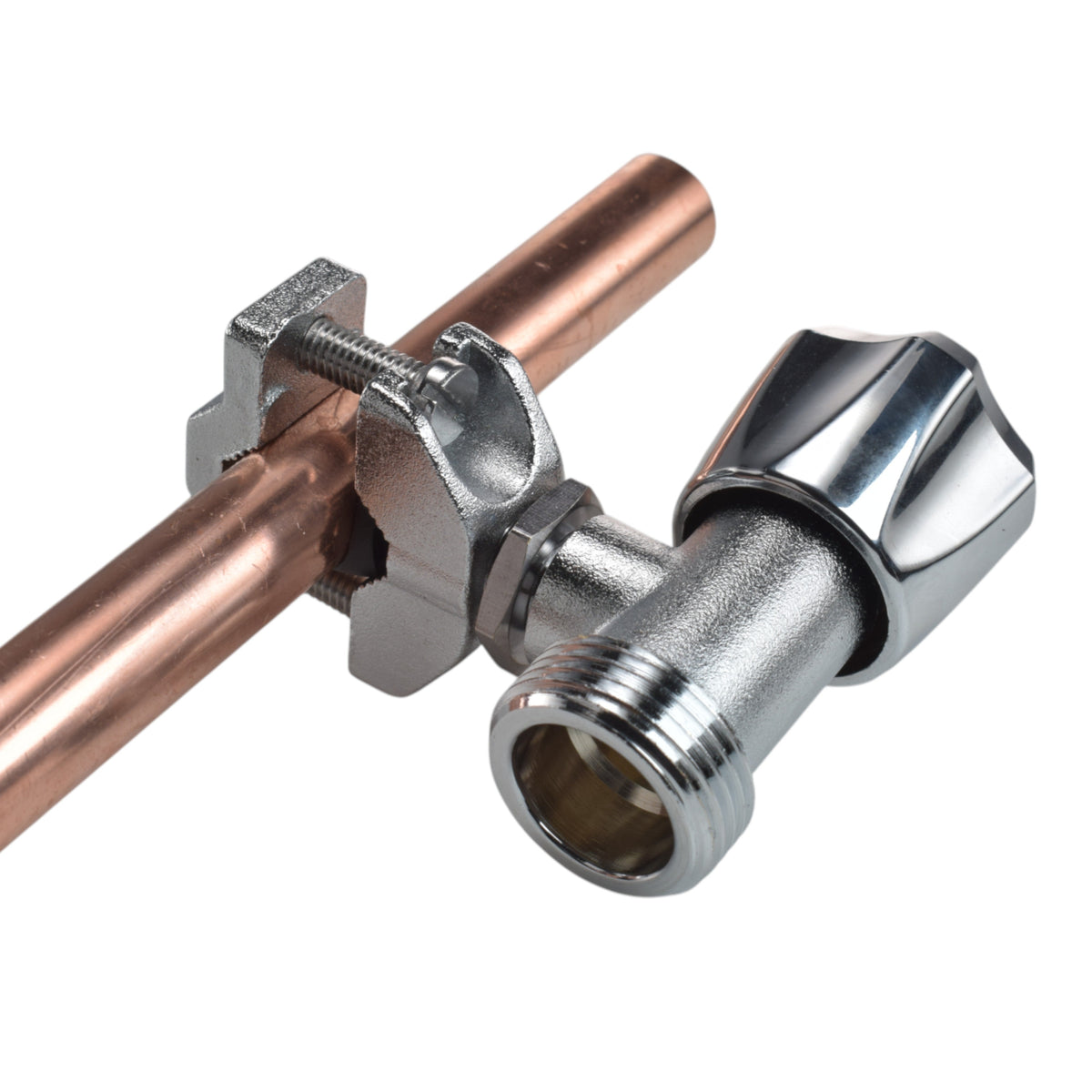

• Supply valves: two self-cutting valves for suitable 15mm copper pipe
• Taps: polished brass bib taps with ½″ BSP male inlets and 13mm hose barbs
• Hose-connector choices: base two-tap set, or the same set with two selected female hose sockets
• References: WP-SET-SC-Cx2, WP-SET-SC-Cx2-HCWL, WP-SET-SC-Cx2-HCLIME, WP-SET-SC-Cx2-HCLG, WP-SET-SC-Cx2-HCGRAY, WP-SET-SC-Cx2-HCBRASS, WP-SET-SC-Cx2-HCGREEN, WP-SET-SC-Cx2-HCBLACK, WP-SET-SC-Cx2-HCY

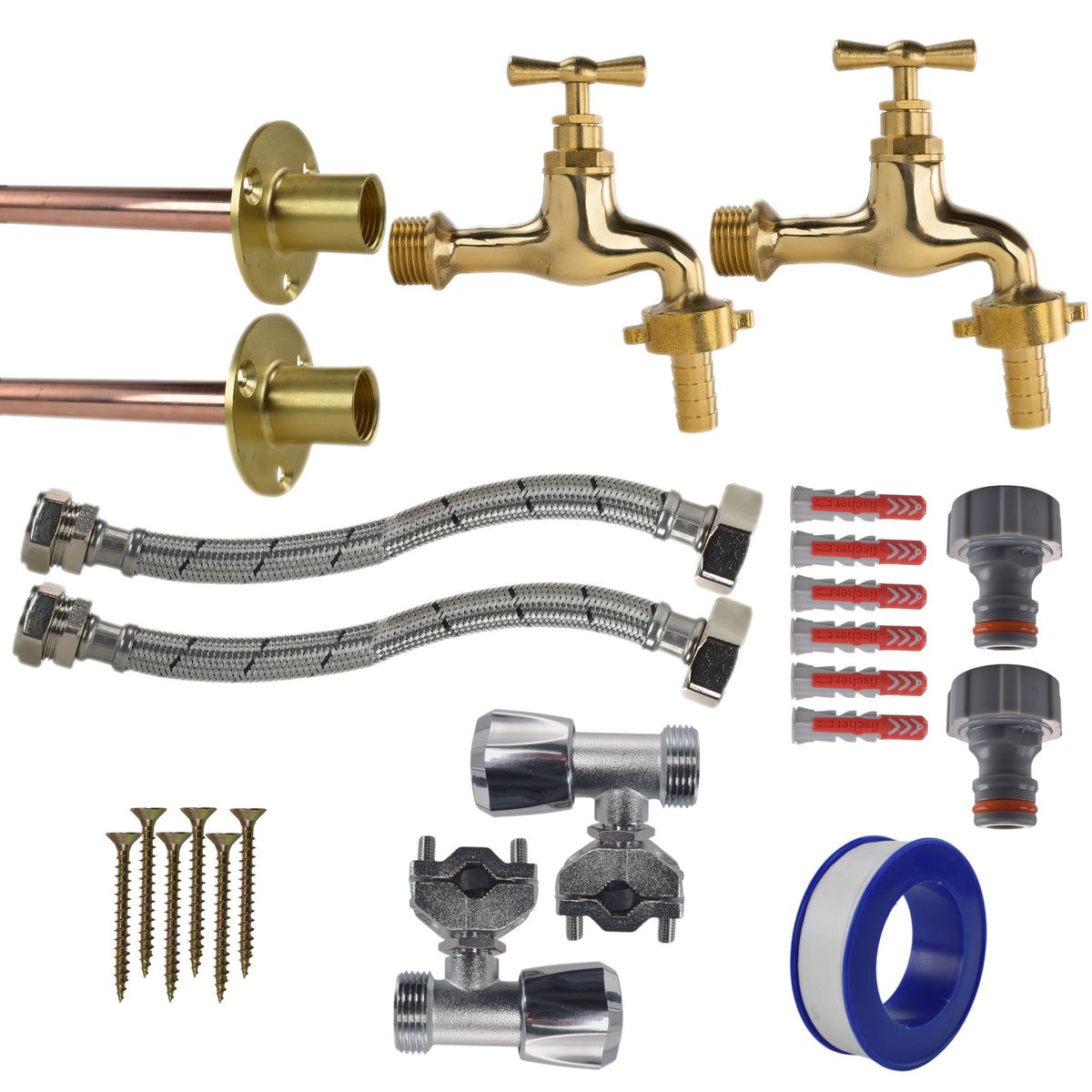

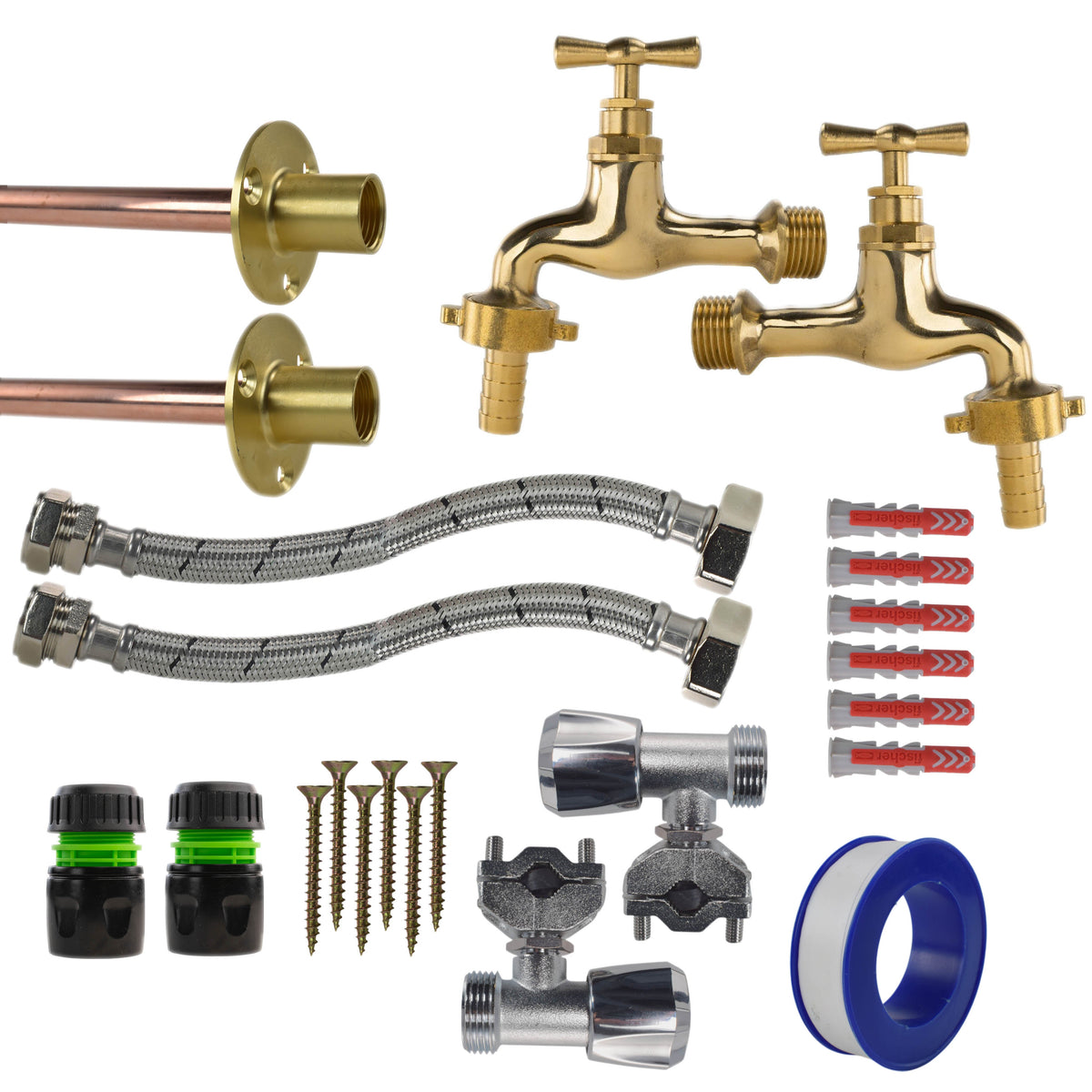

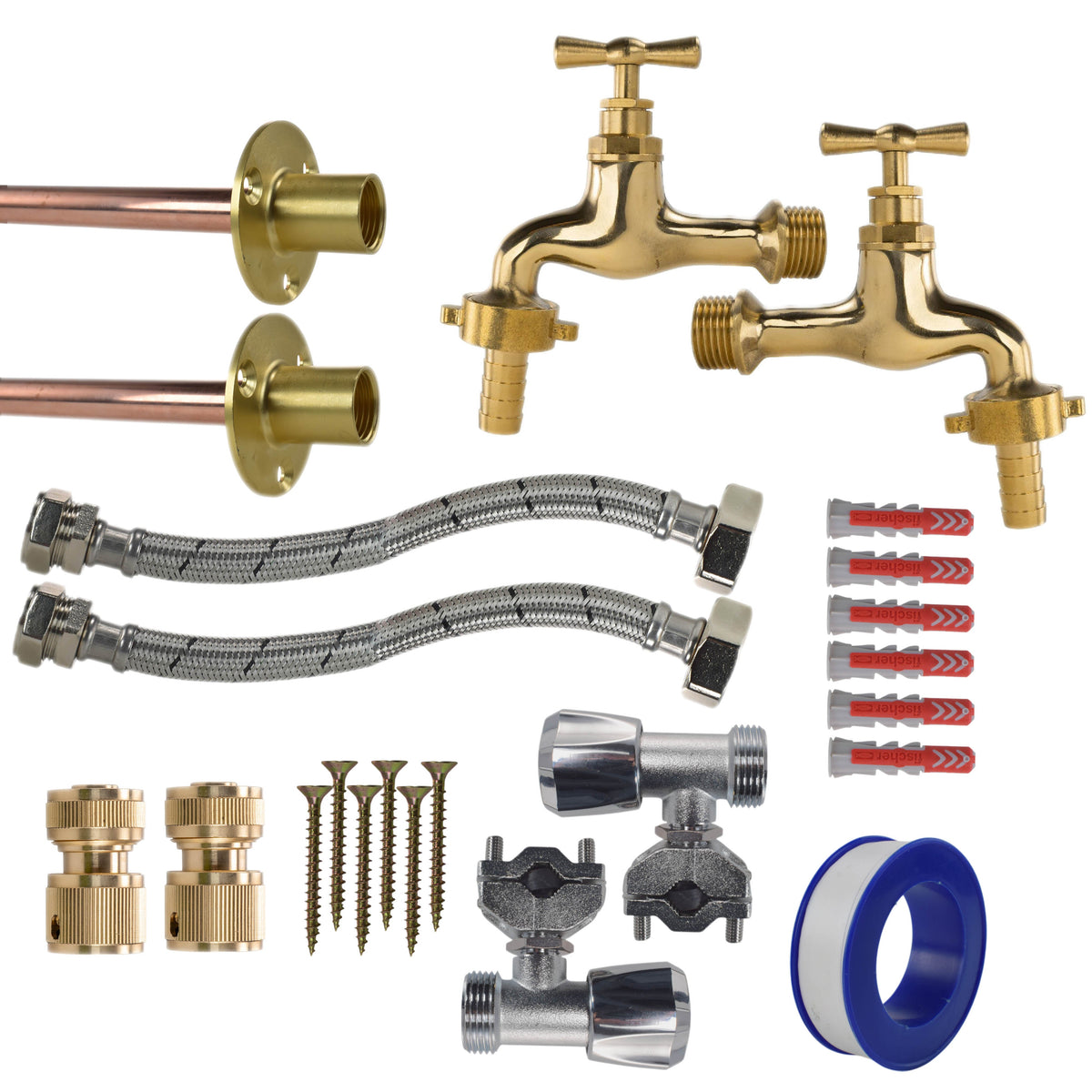

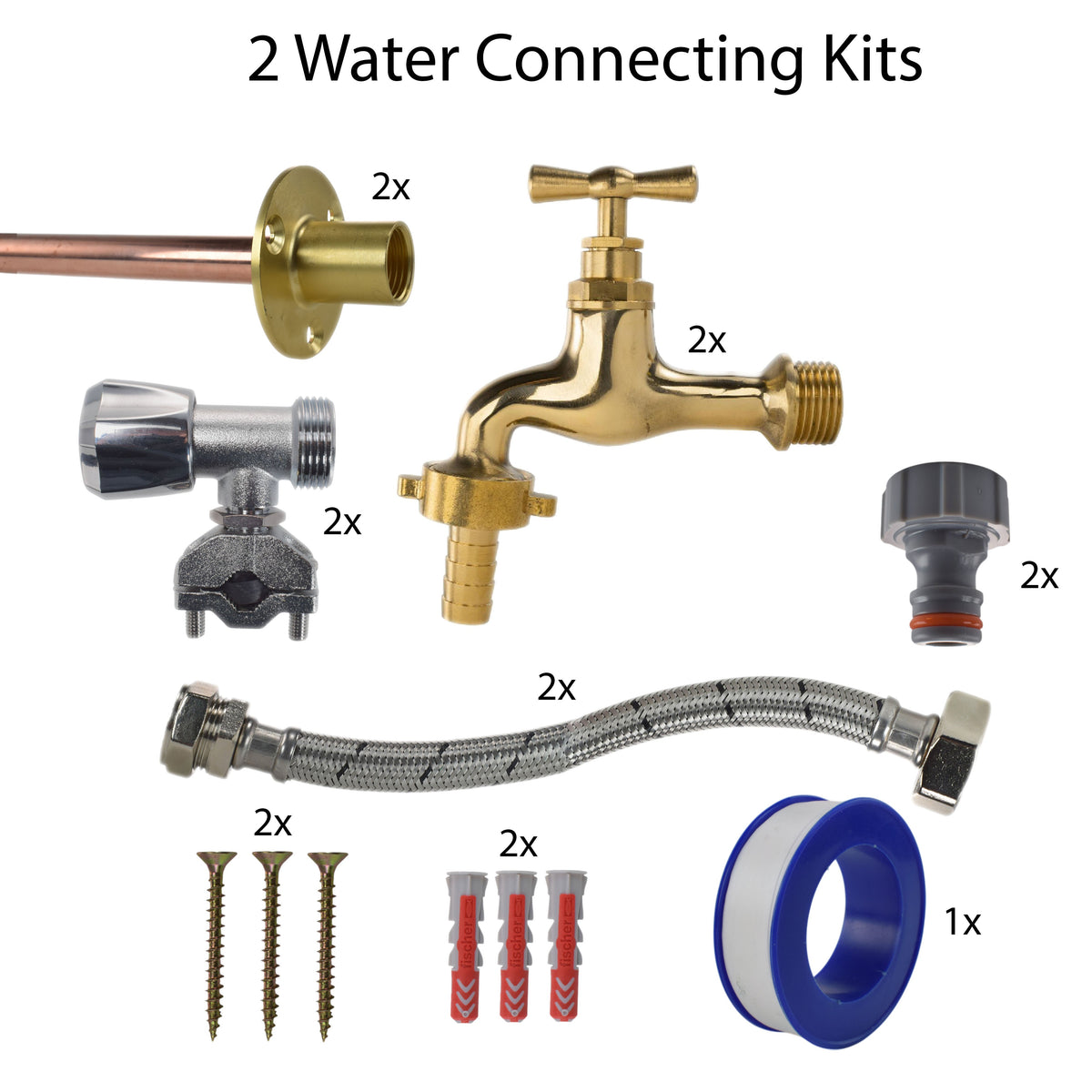

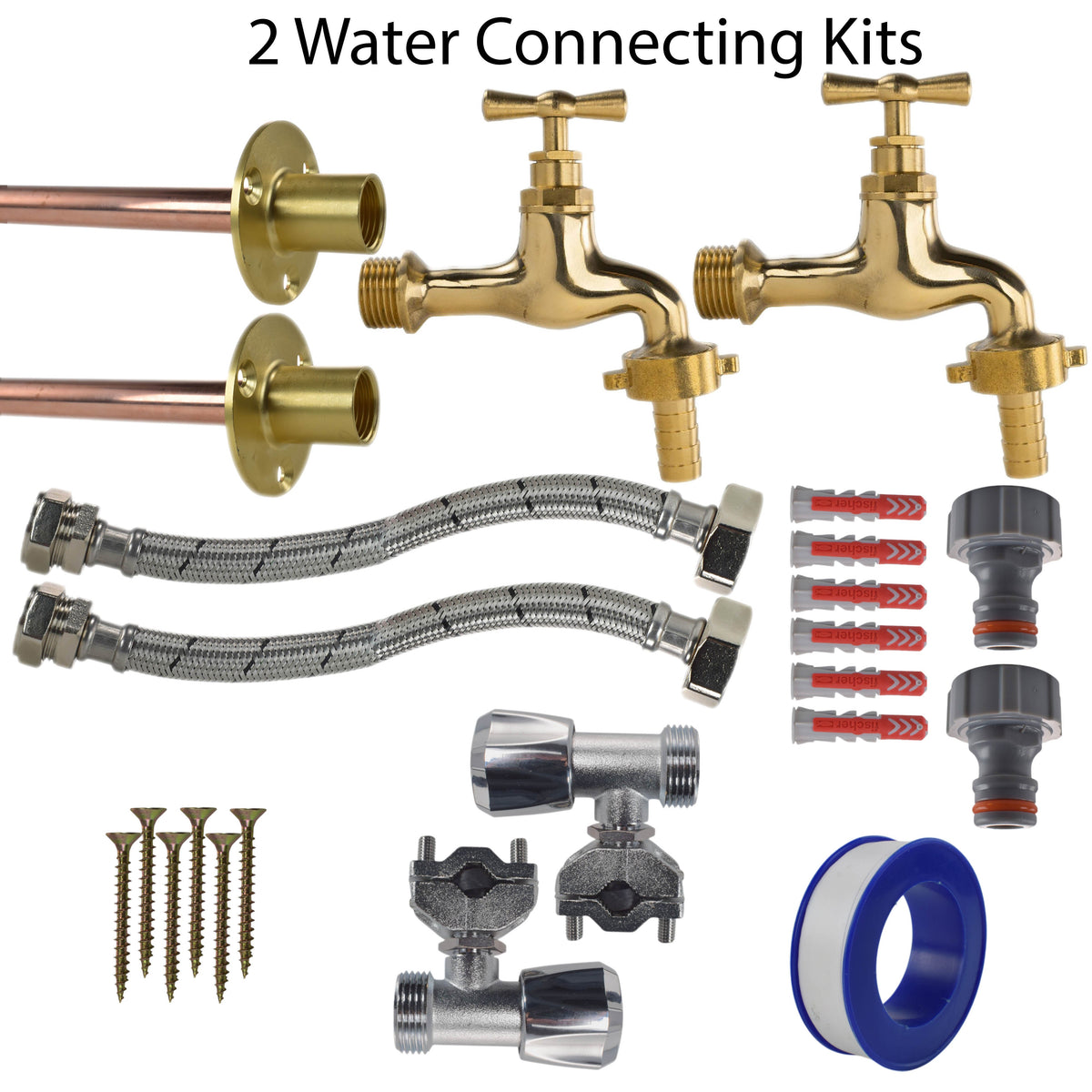

What is included

• Two through-wall tap plates and copper tails
• Two flexible connection hoses
• Two self-cutting supply valves
• Two polished brass barb taps
• Six 4.5 × 40mm screws
• Six Fischer DuoPower 6mm wall plugs
• One roll of PTFE tape
• Two ¾″ BSP female quick-connect tap adapters

Hose connector options

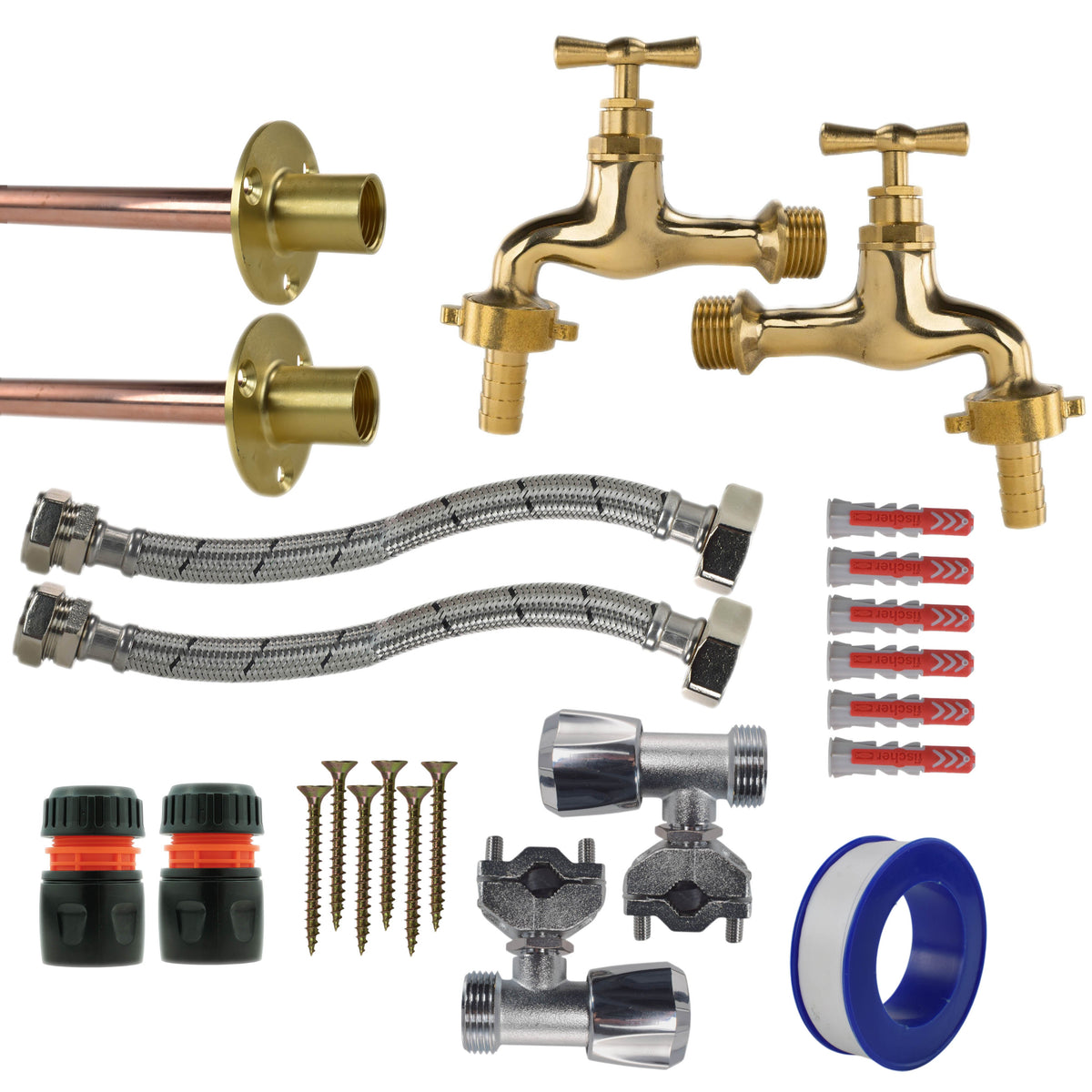

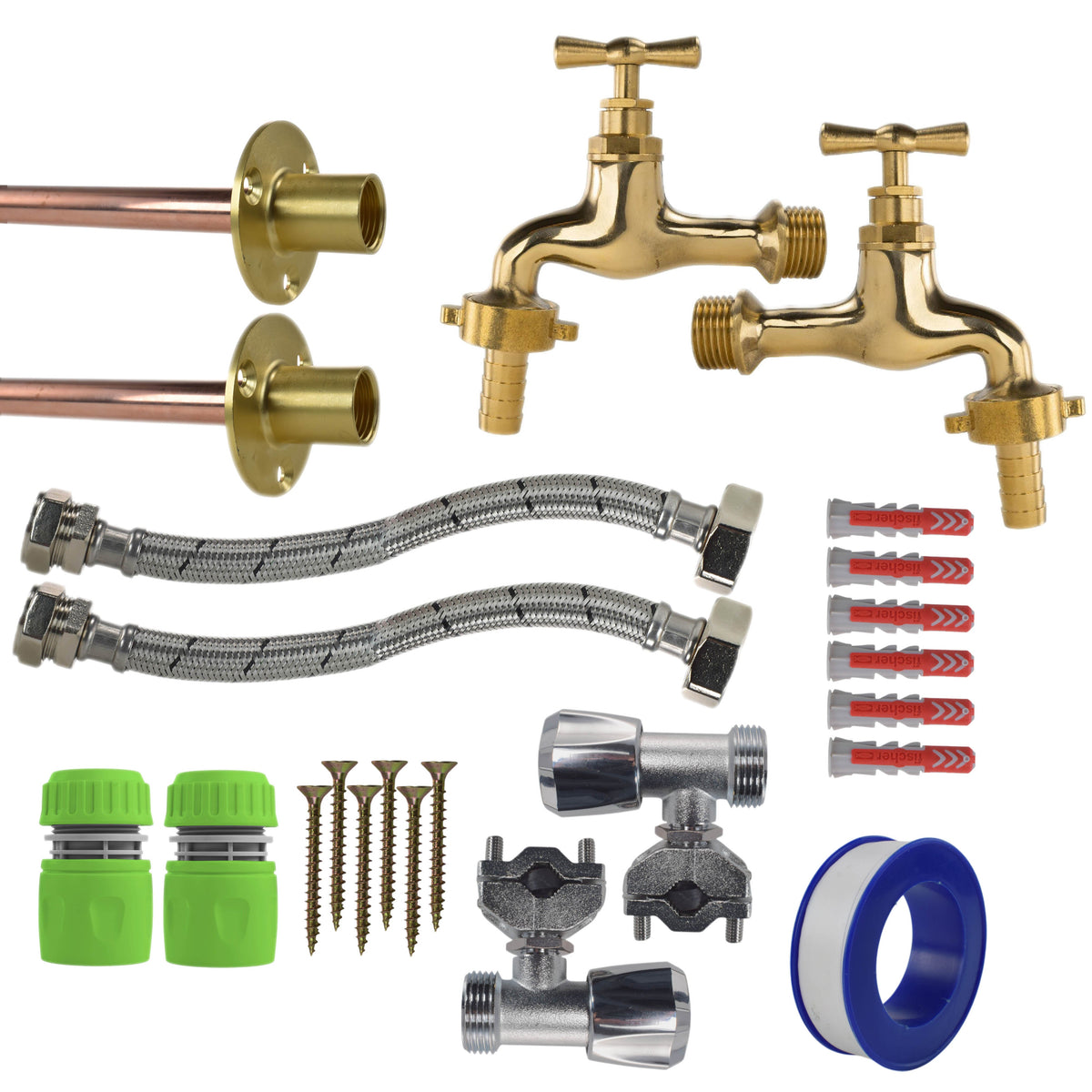

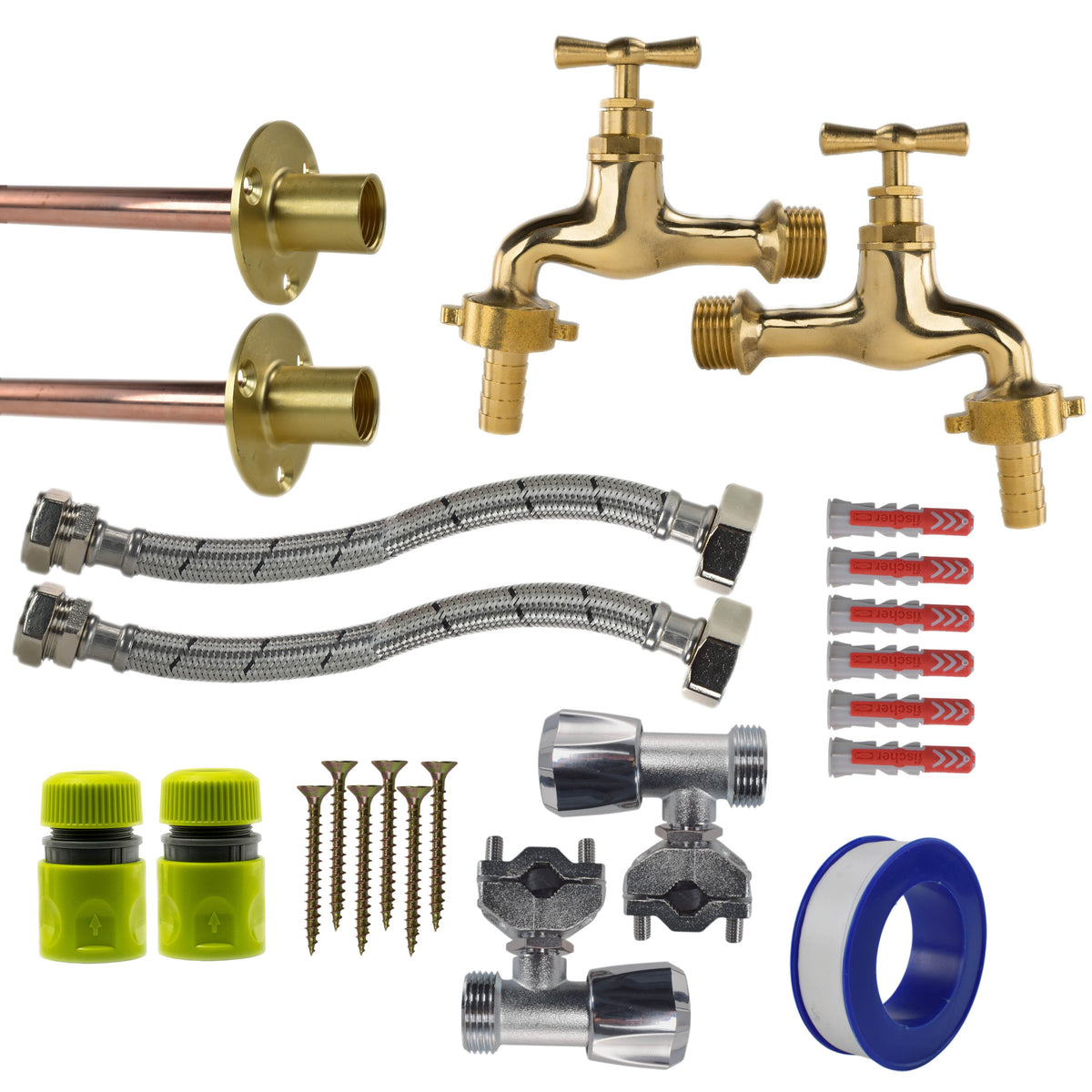

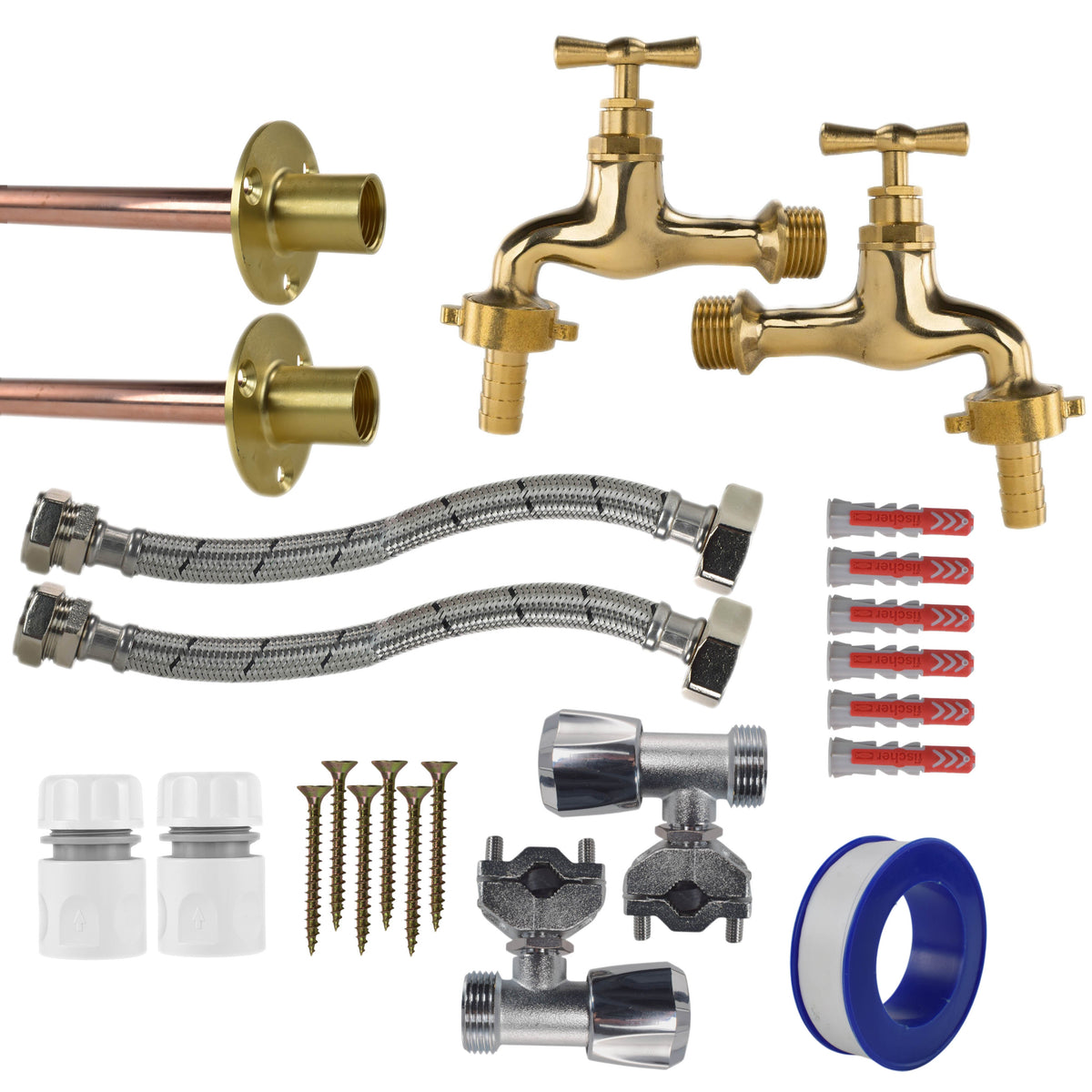

The base set includes no additional hose-end sockets. Each named connector option adds two sockets in the selected finish: White Line, Lime Line, Lime/Grey, White/Grey, Brass, Black/Green, Black/Orange or Black/Yellow.

Fitting and use

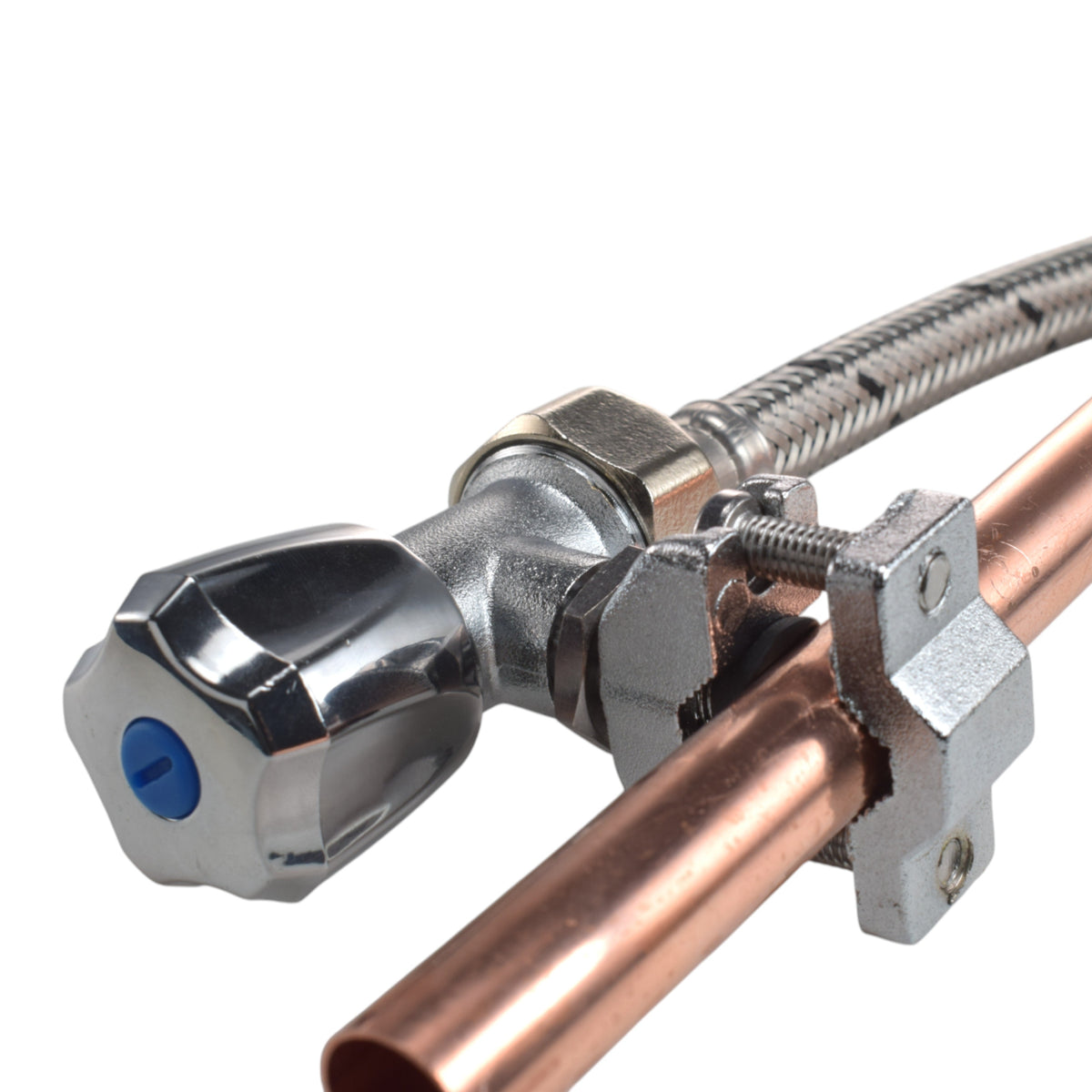

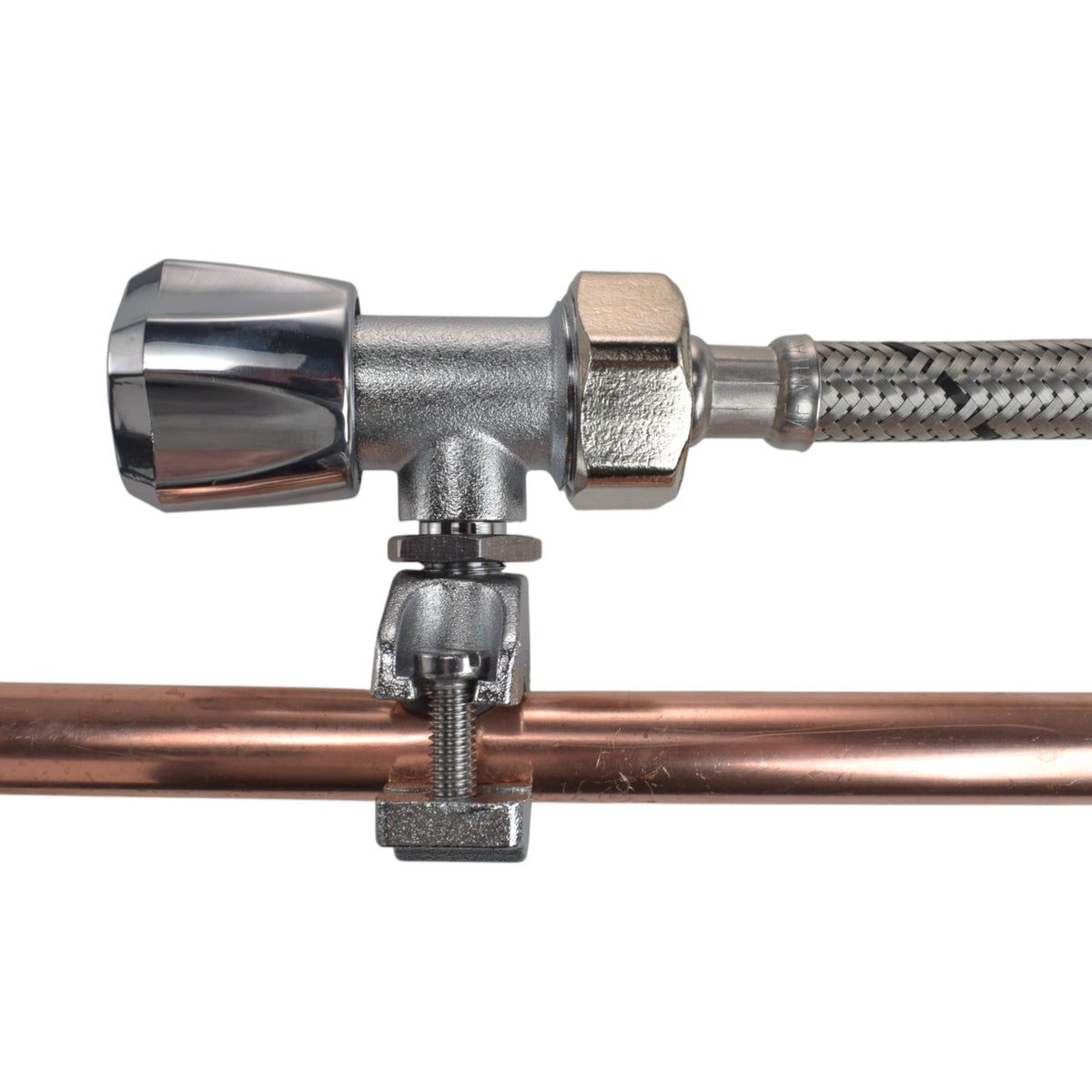

Check the wall thickness, supply pipe, fixing surface and installation suitability before fitting. Each self-cutting valve makes a permanent hole in the supply pipe, so confirm its position first. Check any additional isolation and backflow-protection requirements for the installation. No pressure or drinking-water certification for the complete assembly is established here. Tools, additional pipework, hose and any extra installation components are supplied separately.
