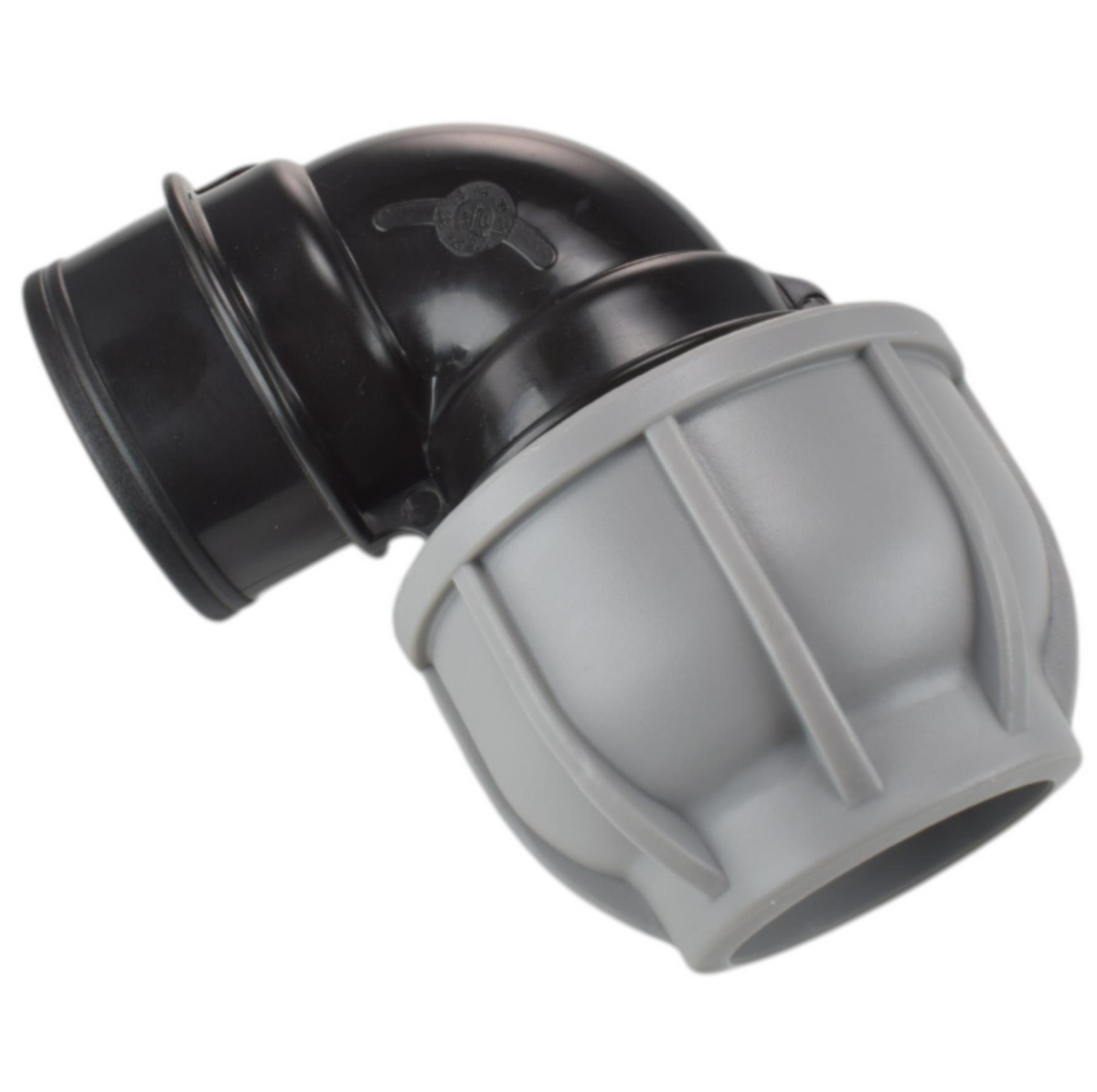

MDPE Compression Elbow – 50mm Pipe × 1½″ BSP Female

Change direction between suitable MDPE pipe and a matching threaded fitting with a 90° compression elbow.

Product details

• Pipe connection: 50mm compression, for pipe outside diameter
• Thread: 1½″ BSP female
• Bend: 90°
• Supplier pressure designation: PN10, subject to the fitting and system operating conditions
• Quantity: one elbow
• Reference: MDPEELB50-15BSPF001

What is included

1 × MDPE compression elbow

Fitting and use

Match the pipe material and outside diameter, insert the pipe fully and assemble according to the fitting manufacturer’s instructions. Use an appropriate sealing method for the threaded connection. Nominal BSP size differs from measured thread diameter. Confirm the complete system’s pressure and temperature limits before use; no gas or potable-water approval is specified here. Pipe and mating fitting are supplied separately.
