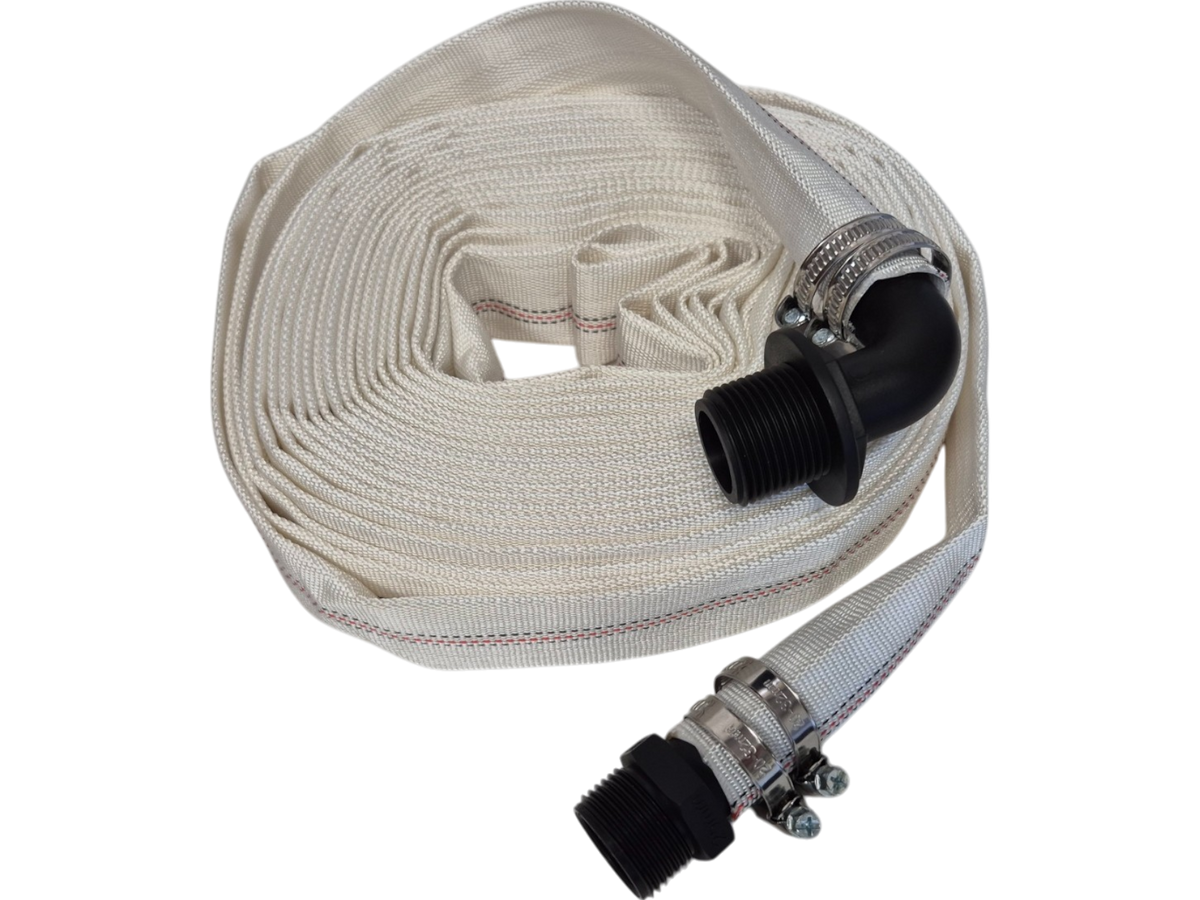

White Lined Layflat Hose Kit – Male Straight & Elbow

Move water for delivery, discharge or irrigation work with a white lined hose that rolls flat for storage. This set includes the listed connection fittings and hose clips. Select the internal hose diameter and length together; each option supplies one hose in that size.

Product details

• Hose: white lined layflat
• Available internal diameters: 1″, 1¼″ or 2″
• Length choices: 1″ and 2″: 10m, 15m, 20m or 30m; 1¼″: 10m, 15m or 20m
• Hose working pressure: supplier-stated 8 bar for the hose; not an assembled-kit rating
• Hose clips: 4
• Set reference: F
• Supplied fitting sizes: 1″ hose: 1″ BSP / 25mm barb; 1¼″ hose: 1¼″ BSP / 32mm barb; 2″ hose: 2″ BSP / 50mm barb

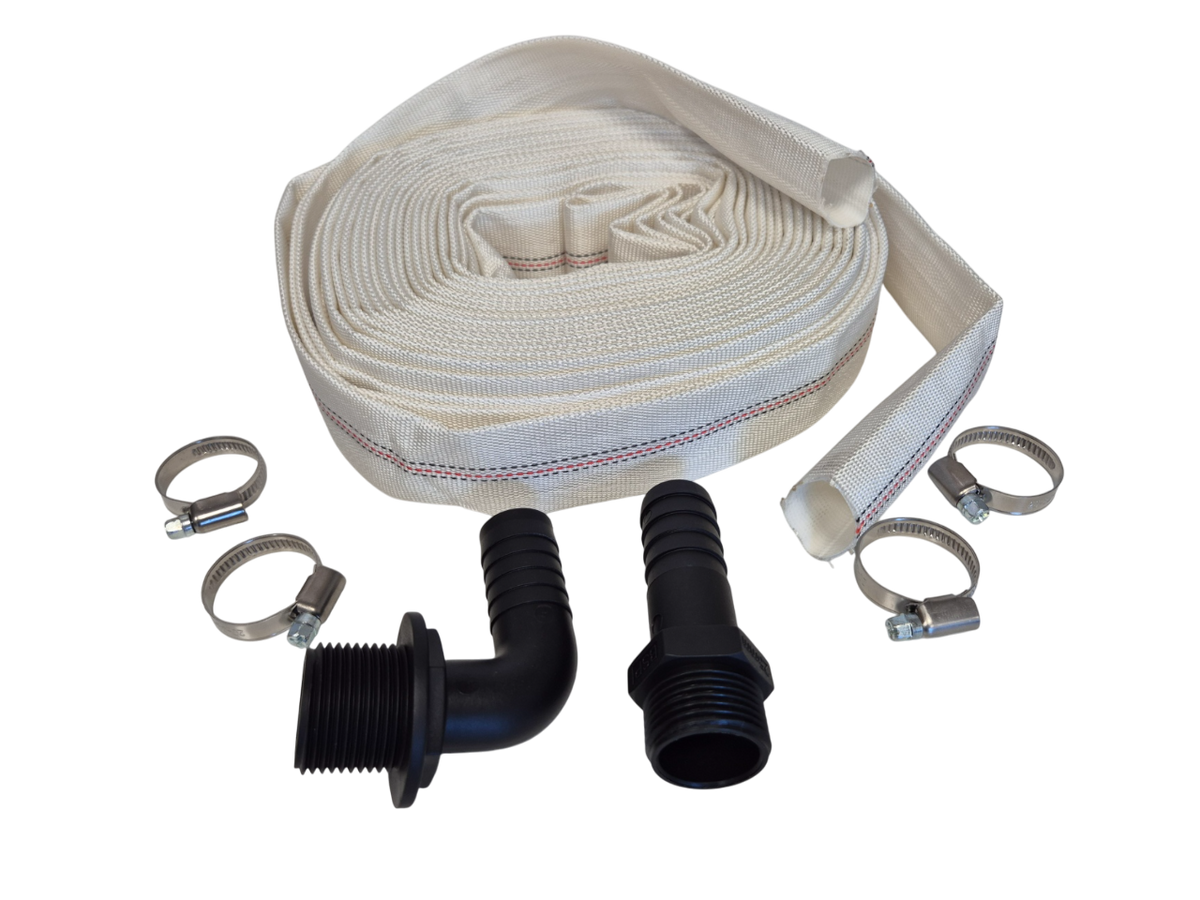

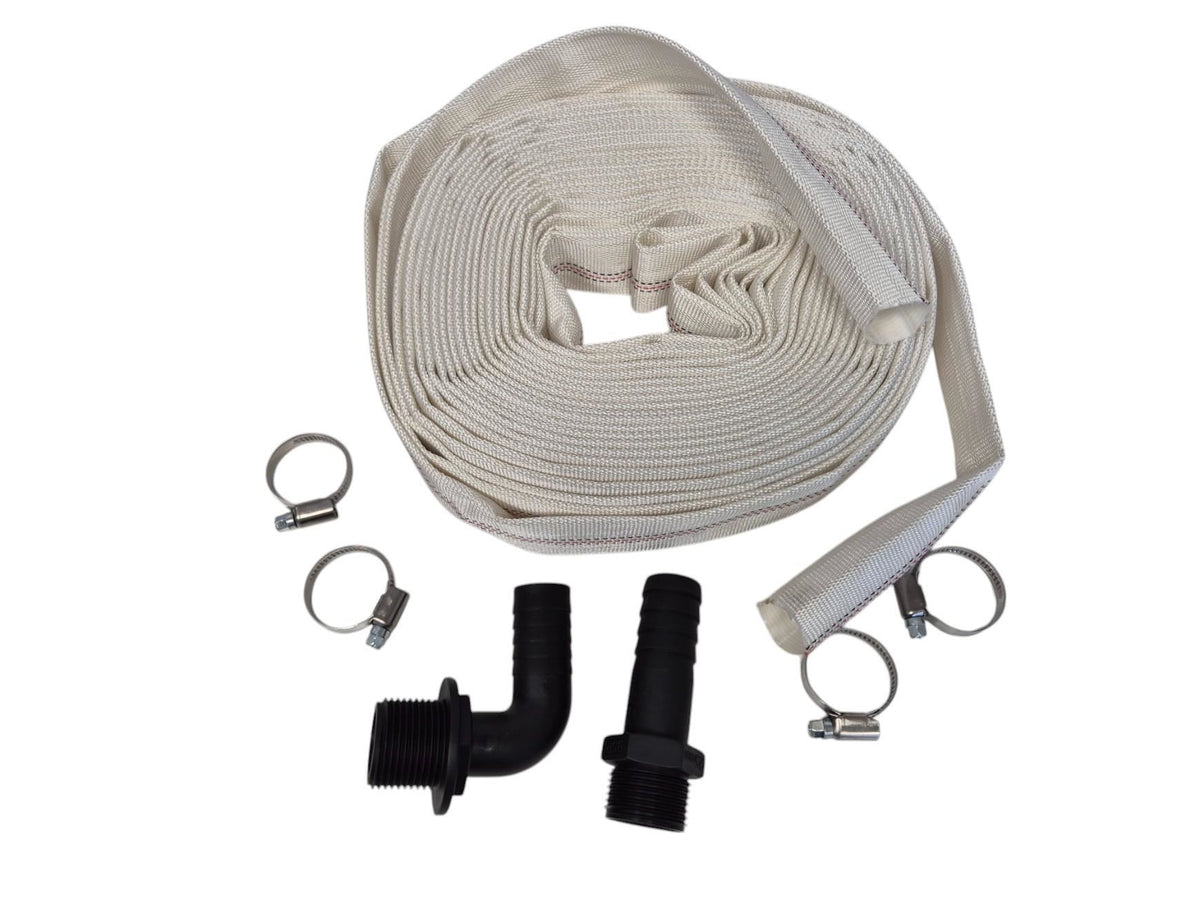

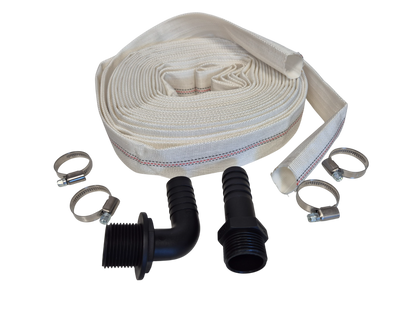

What is included

• 1 × white lined layflat hose in the selected size and length
• 1 × straight hose tail with male BSP thread
• 1 × elbow hose tail with male BSP thread
• 4 × hose clips

Check compatibility

Match the selected bore, fitting connections and mating equipment before assembly. The camlock or threaded connection style matters as well as the nominal size. Fit and secure the supplied components appropriately, lay the hose out for use and check all joints before operation. Follow the pressure limit of the lowest-rated component in the complete assembly; the hose figure alone does not rate its connectors or clips. Drain and roll up for storage. Pump and extra mating fittings are supplied separately.
