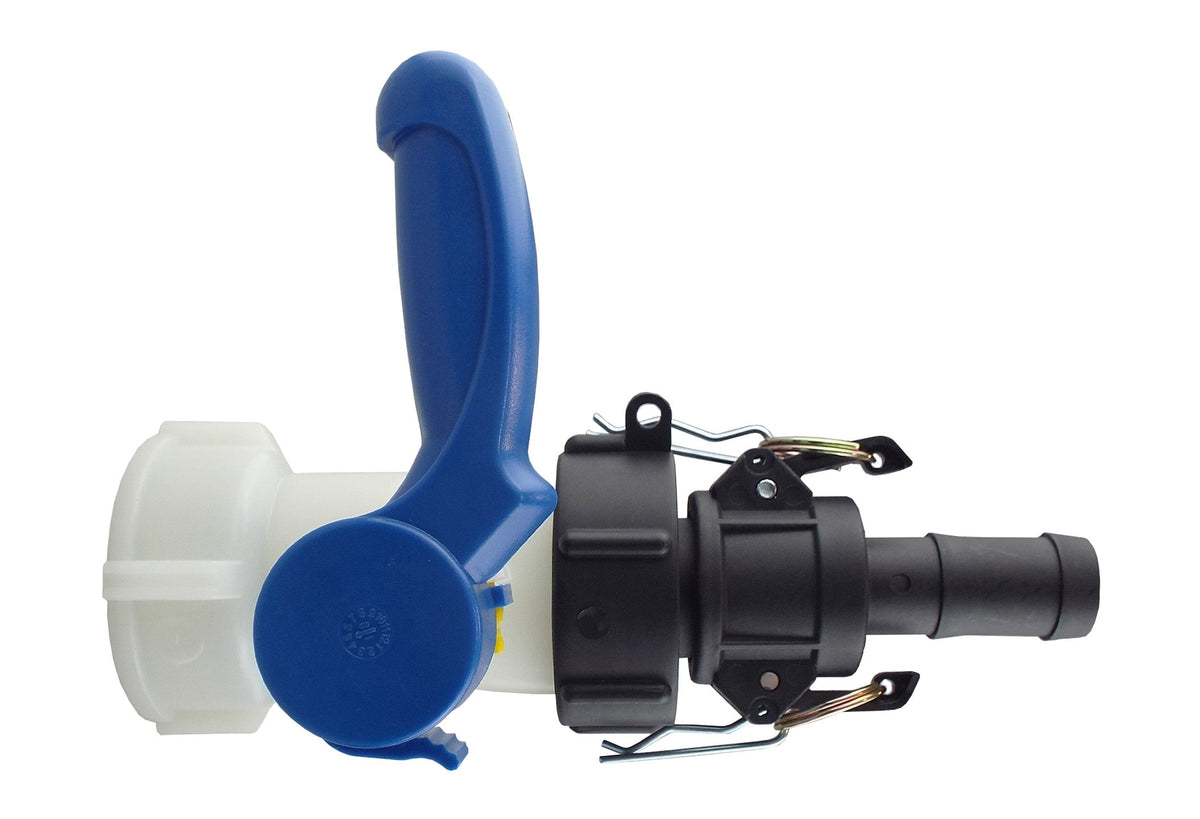

IBC 75mm Inlet Valve Kit – 1½″ Hose Tail

Replace a matching tank valve and add a camlock connection with this plastic IBC valve and S60X6-to-camlock adapter. A Type C female coupler finishes the assembly with a 1½″ hose tail.

Product details

• Valve tank inlet: 75mm female thread, supplier-stated; verify actual tank thread profile
• Valve outlet: S60X6 male

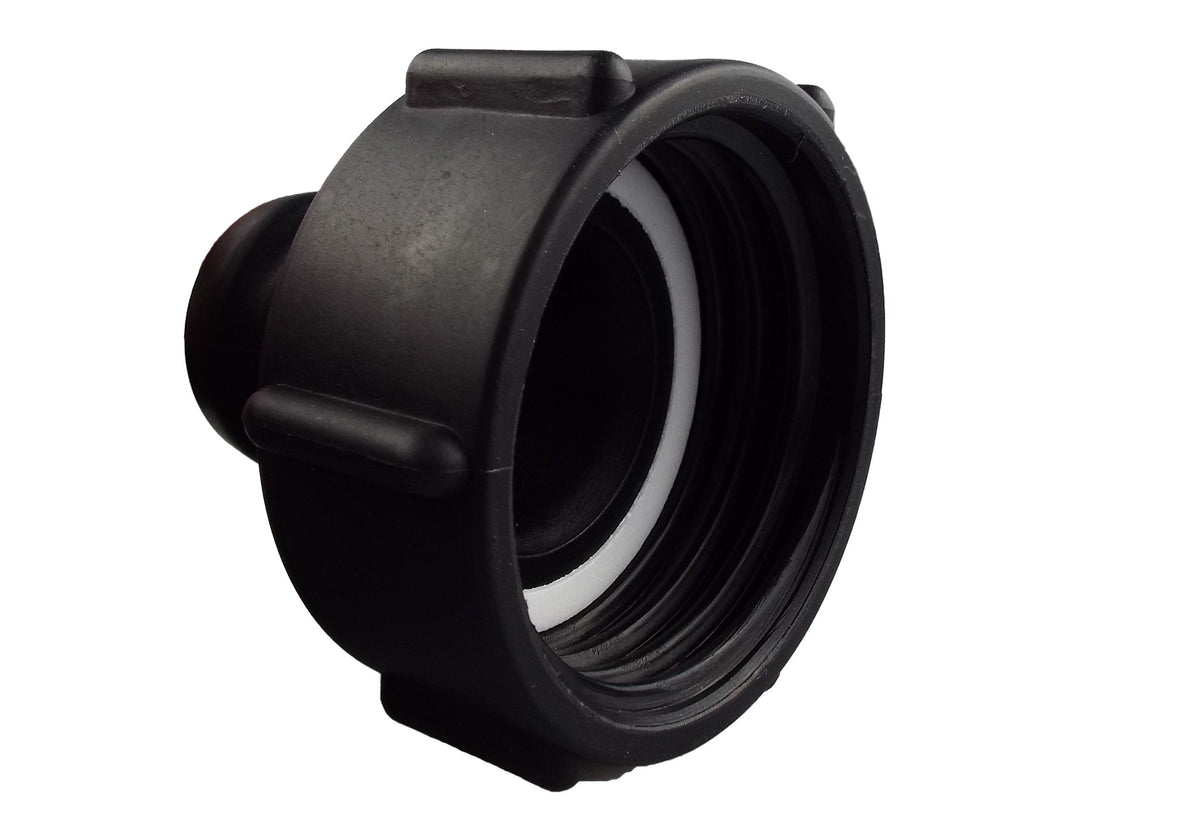

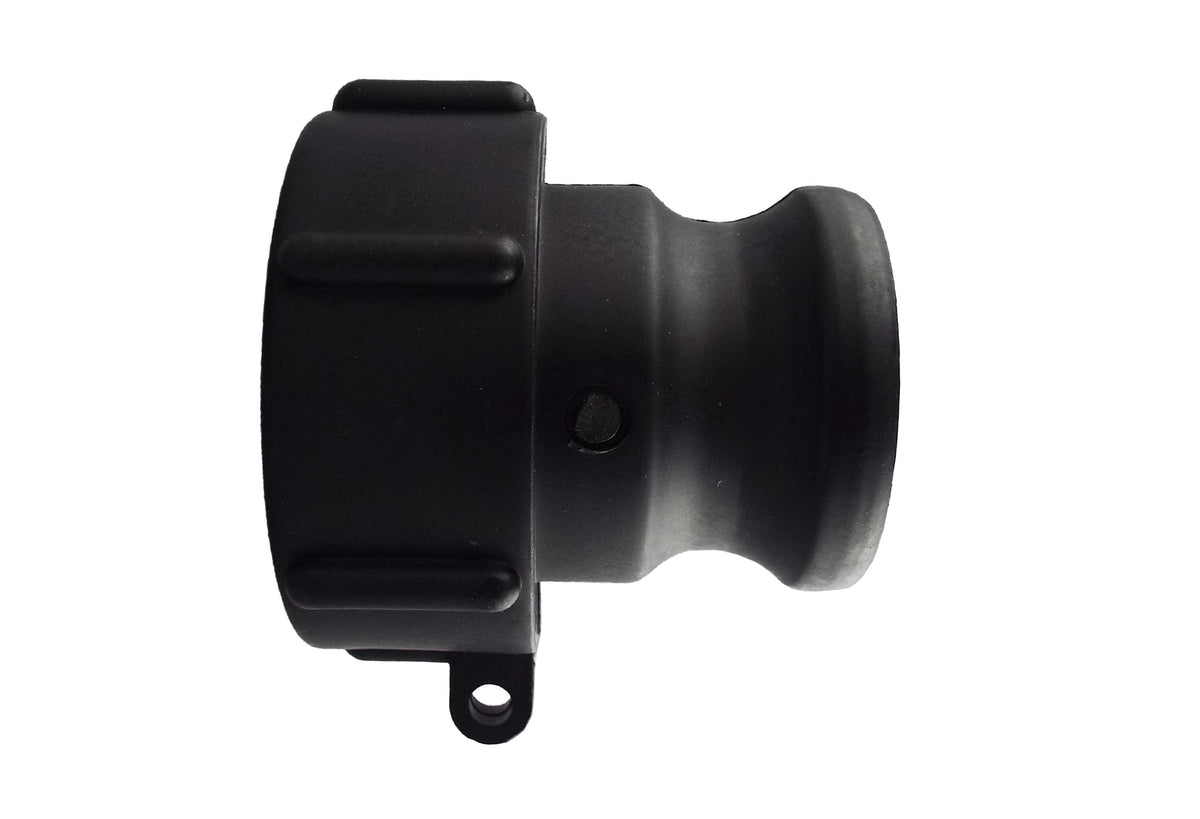

• Adapter: S60X6 female to 2″ male camlock

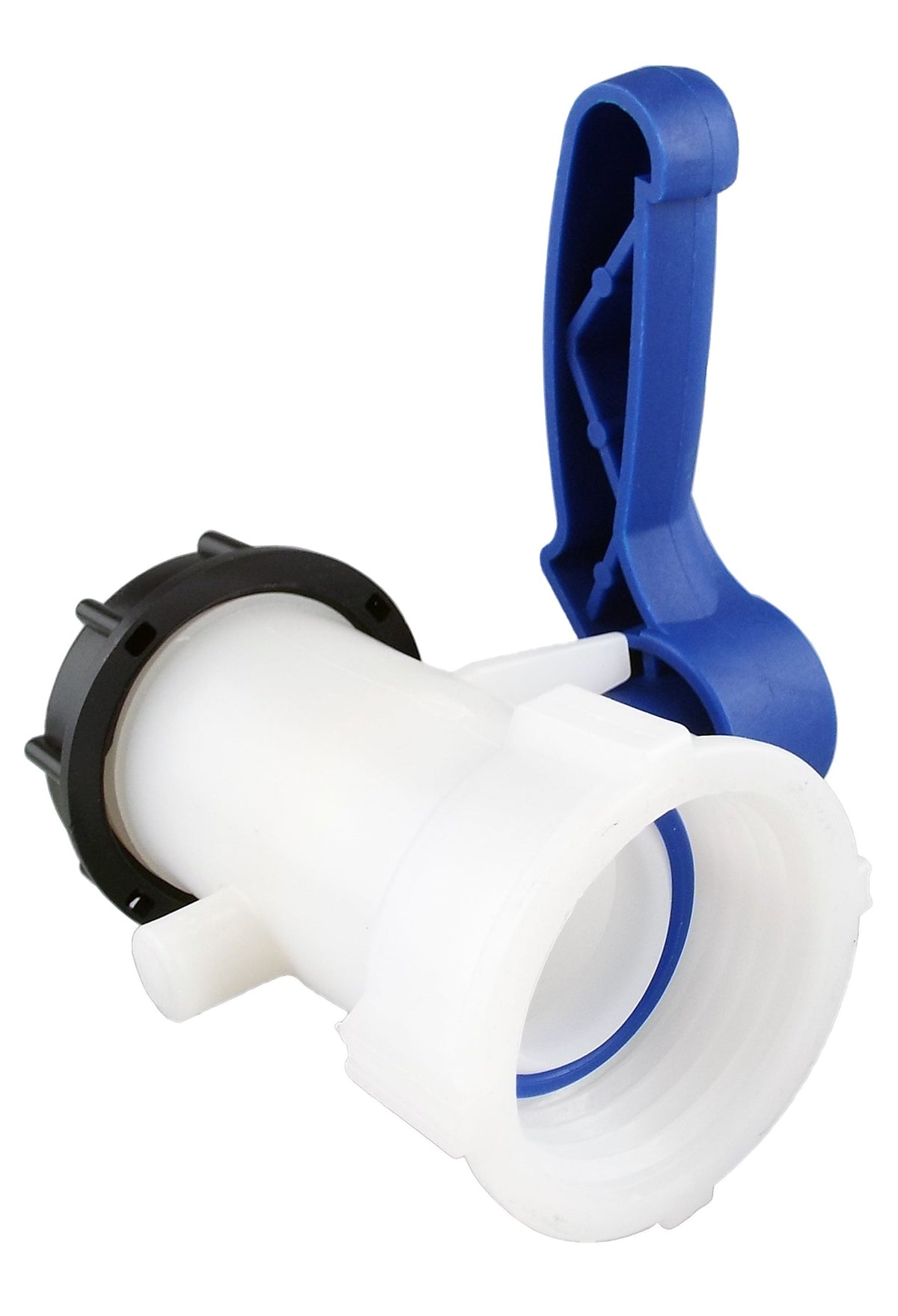

• Valve: manual plastic valve with blue handle and supplied cap

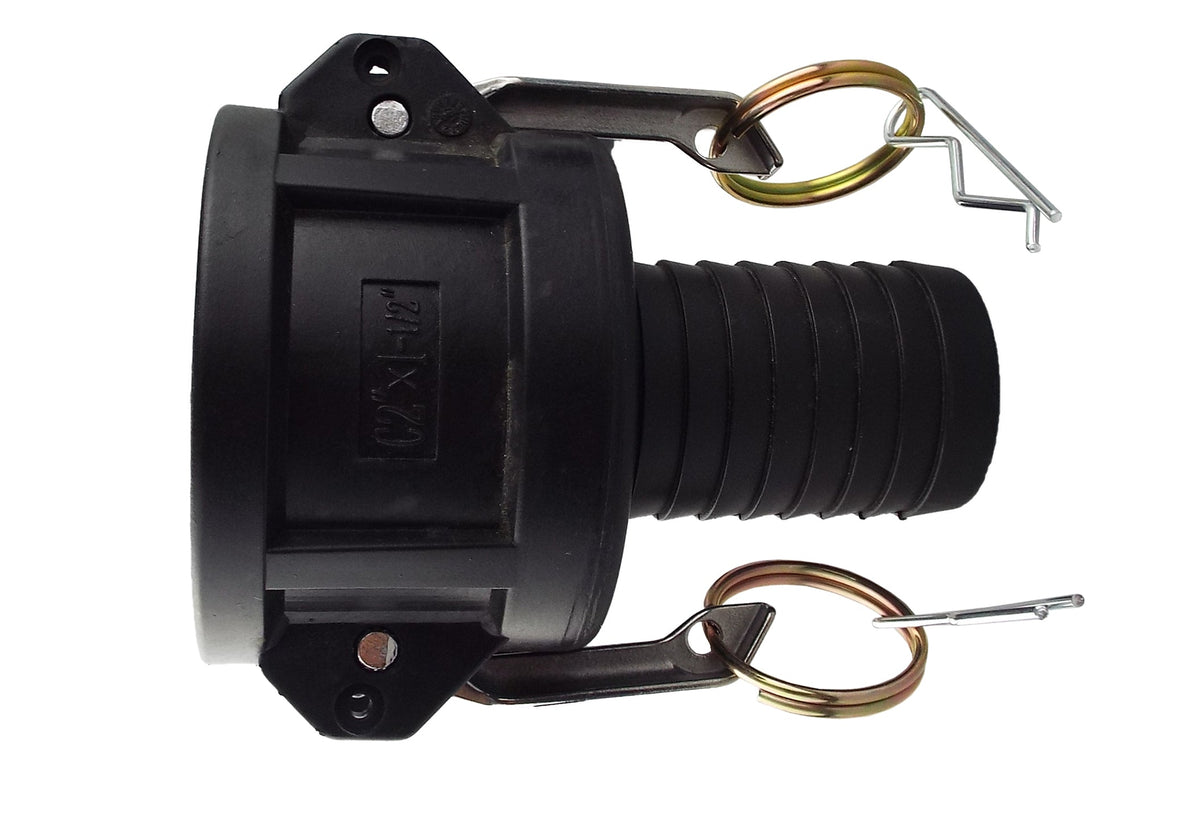

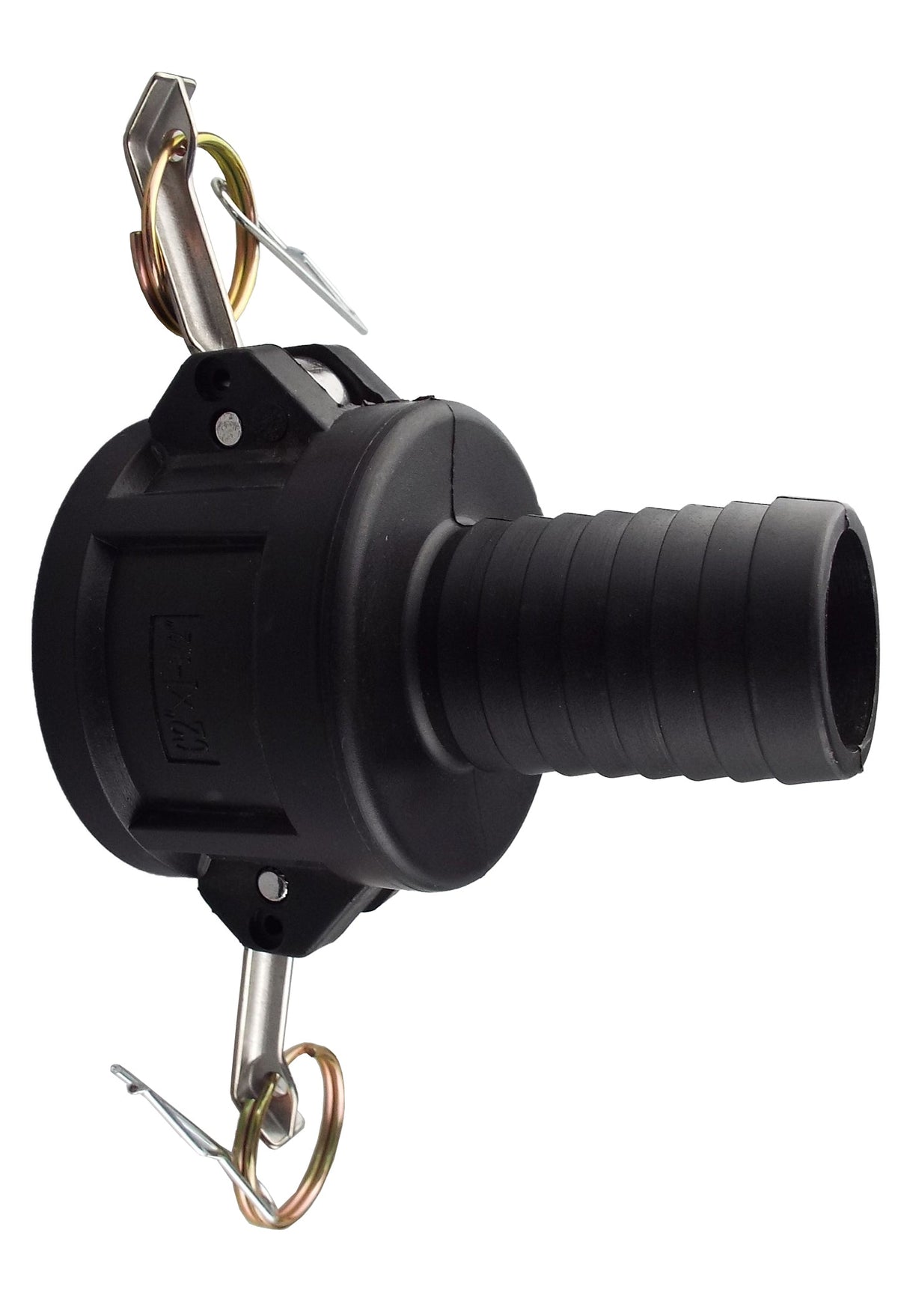

• Camlock coupler: 2″ female Type C, polypropylene
• Hose barb: 1½″
• Reference: IBC023D

What is included

• 1 × IBC valve with 75mm female inlet, S60X6 male outlet and cap
• 1 × S60X6 female-to-2″ male camlock adapter
• 1 × polypropylene Type C camlock coupler, 2″ female to 1½″ hose tail

Fitting your product

Match the tank-side female thread to your existing valve connection before purchase, including its measured diameter and thread profile. The 75mm supplier designation is not a claim of 3″ BSP compatibility. Drain and isolate the tank before replacing its valve; assemble and check all seals before refilling. Check every component is suitable for the intended liquid and operating conditions. Tank, hose, hose clips and PTFE tape are supplied separately. The 2″ camlock size and 1½″ hose barb are separate dimensions. Match your hose bore to the barb and secure it appropriately.
