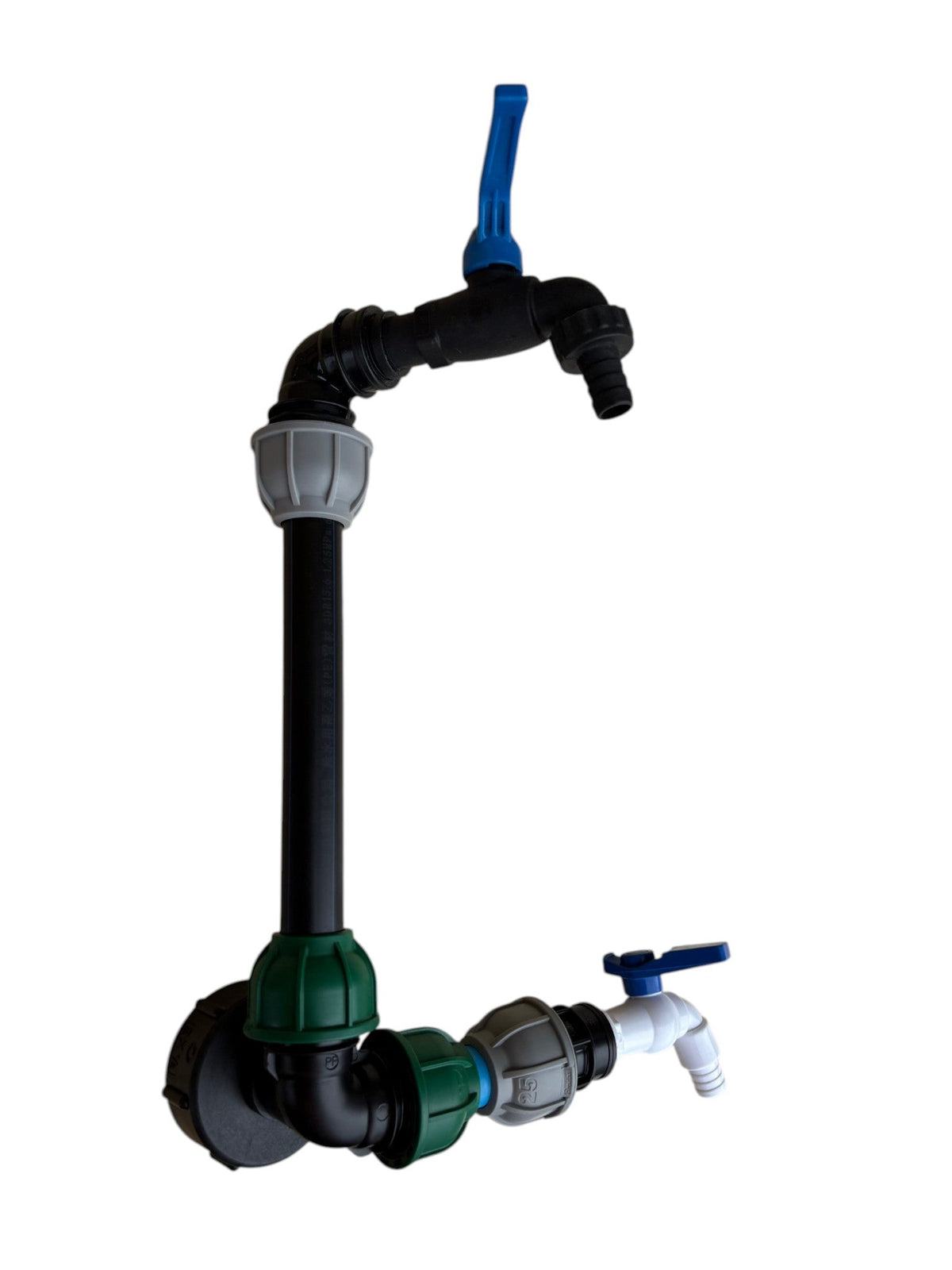

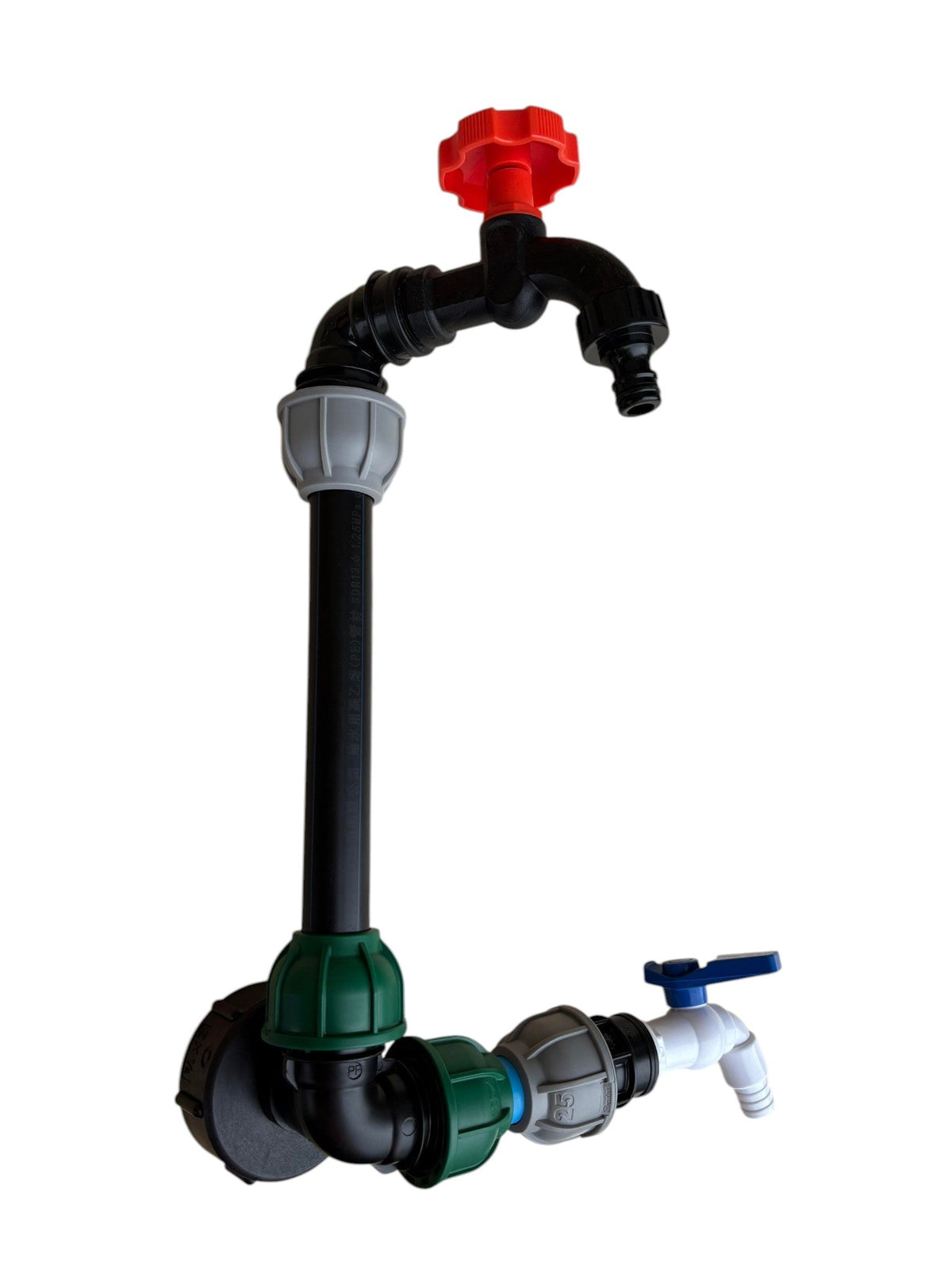

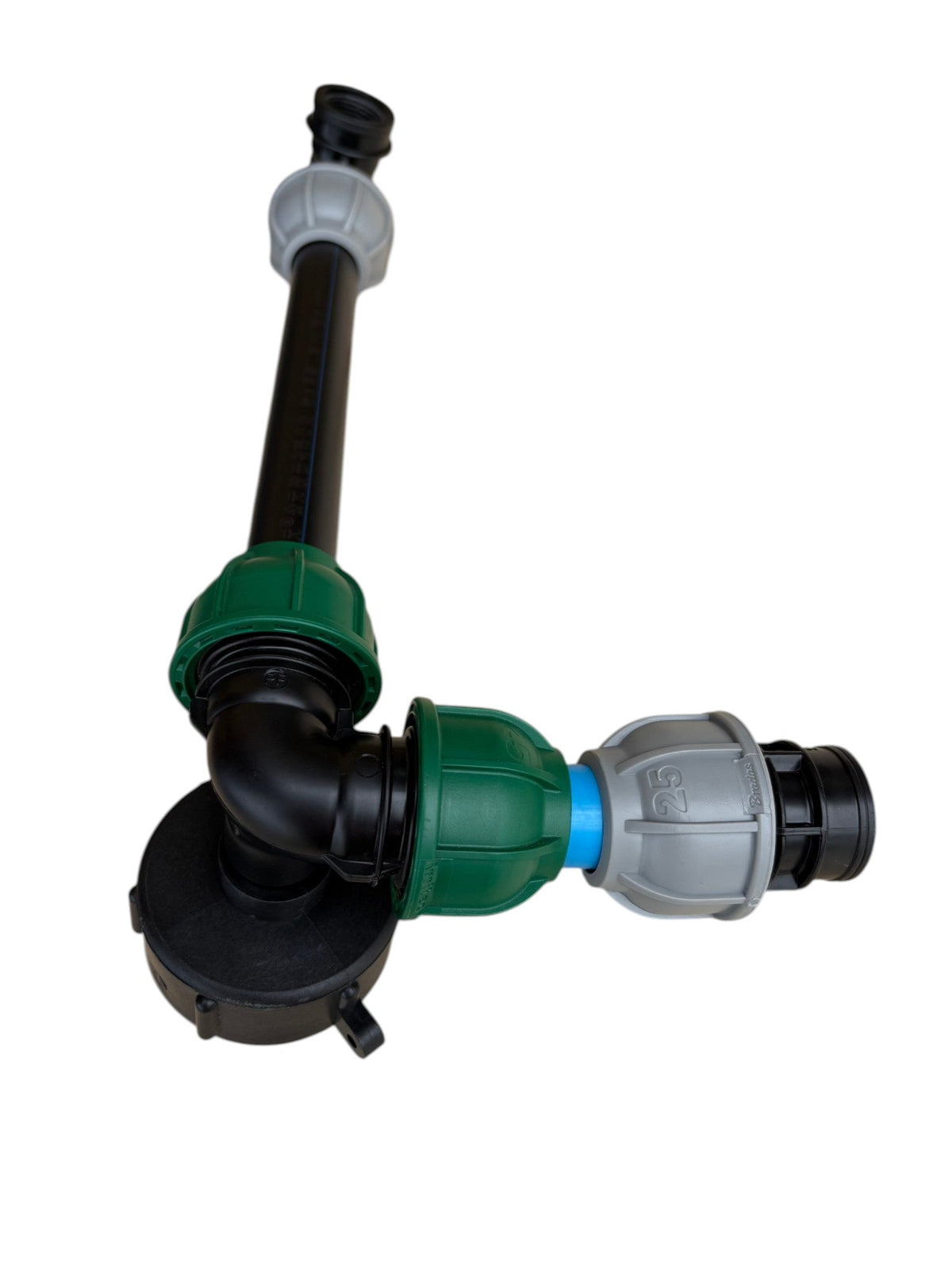

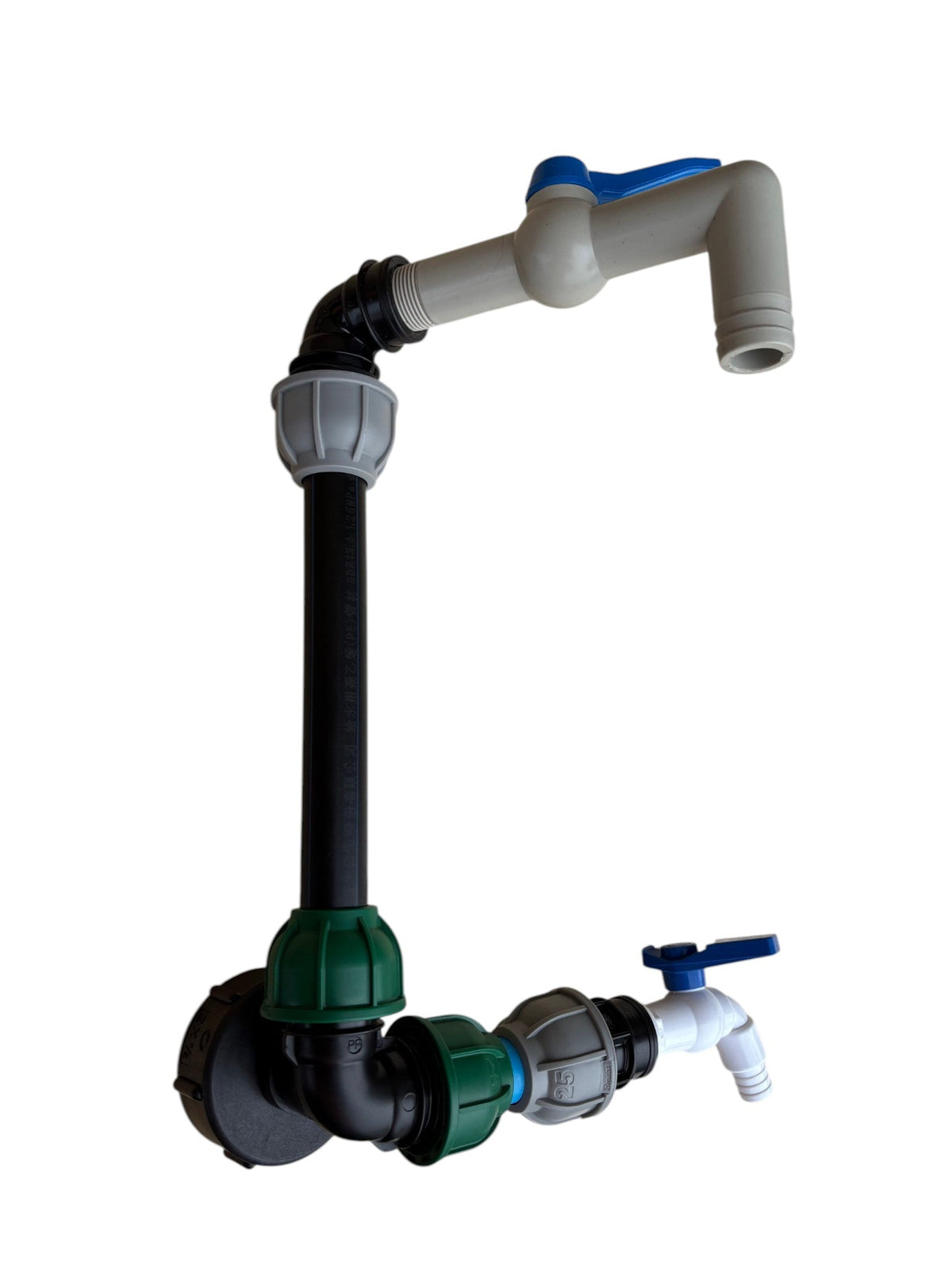

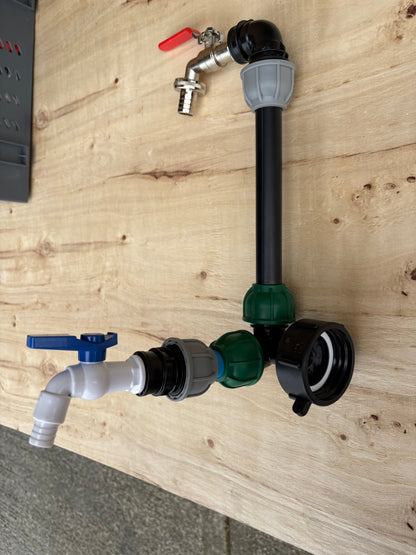

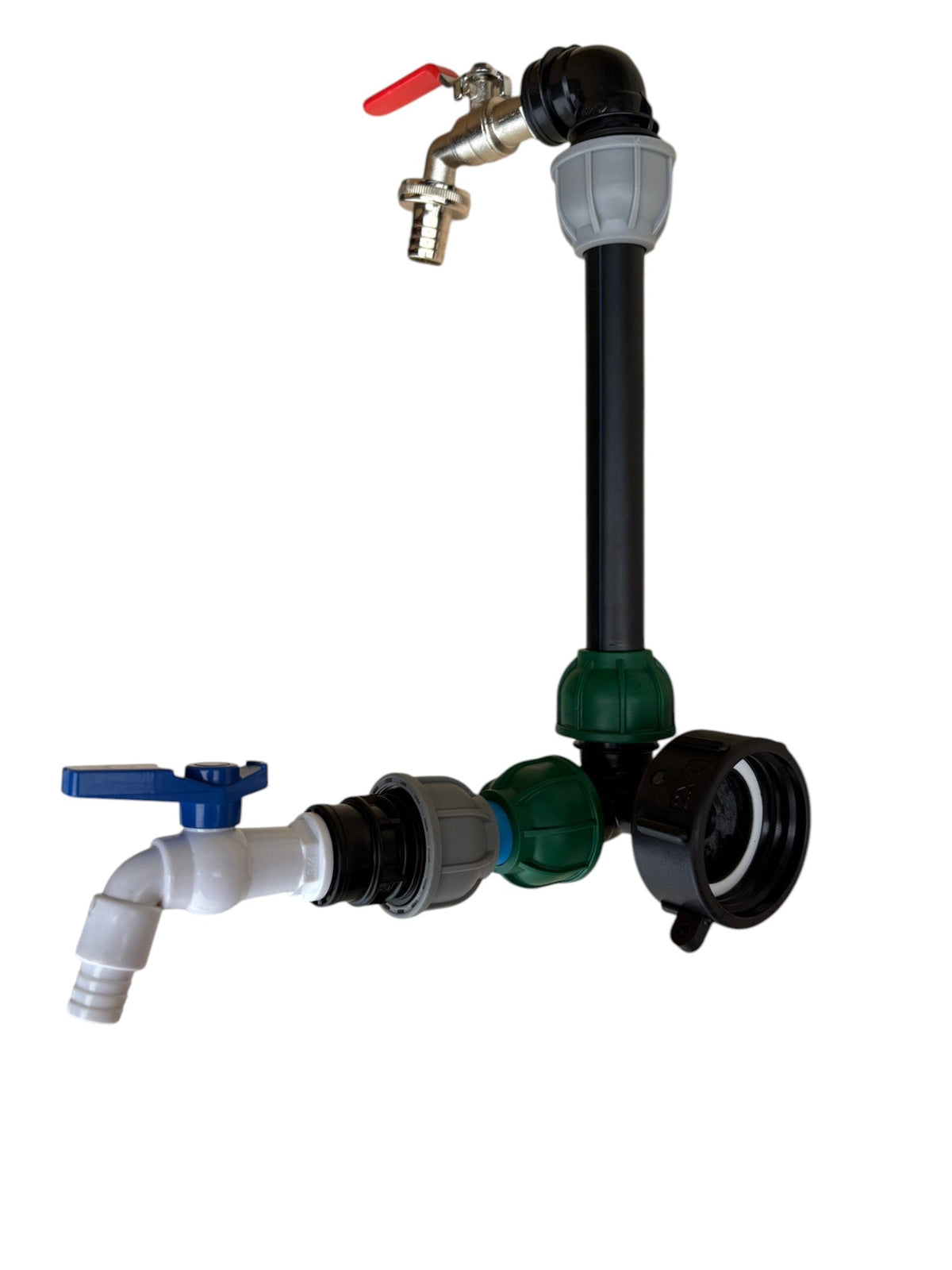

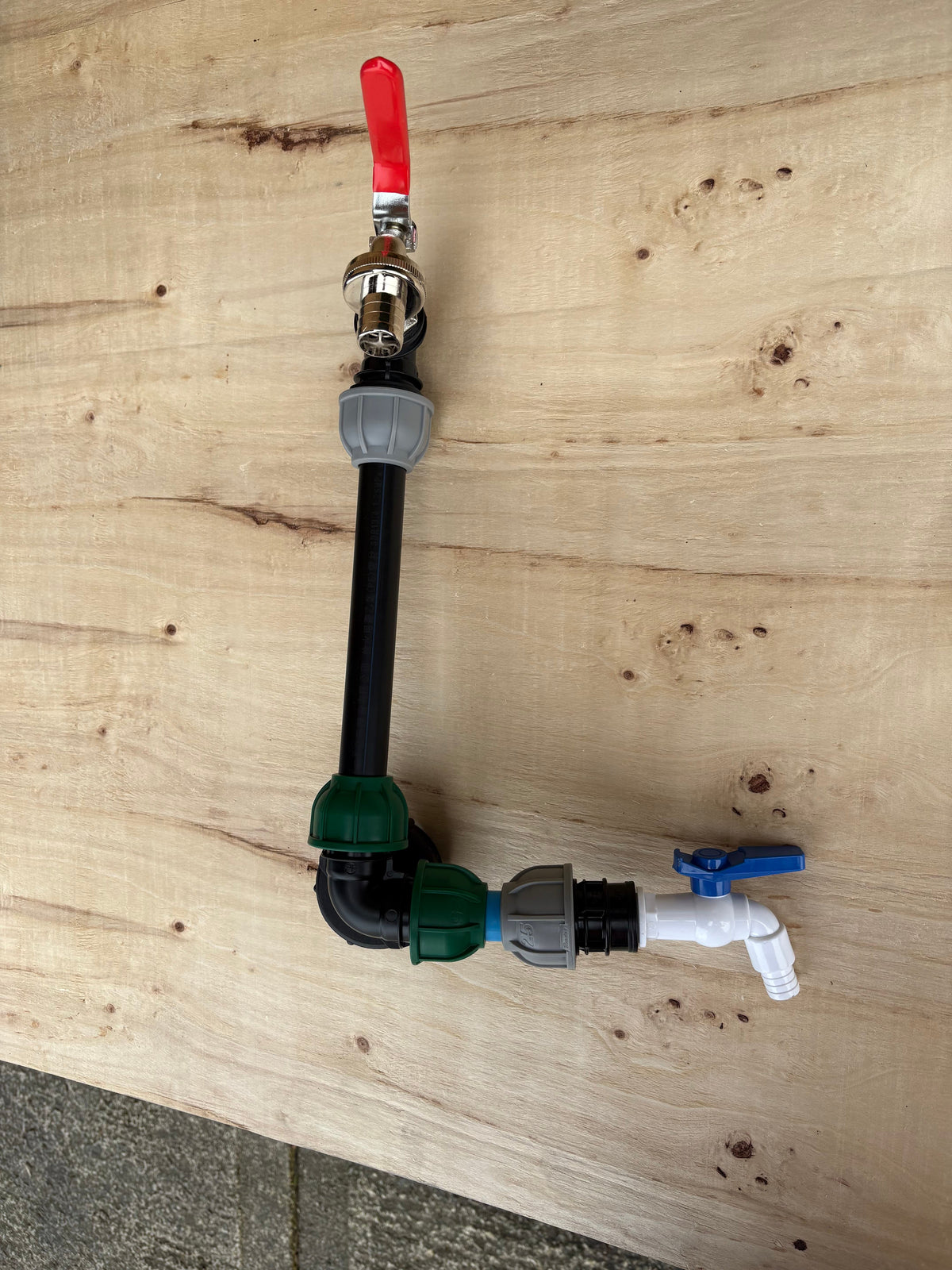

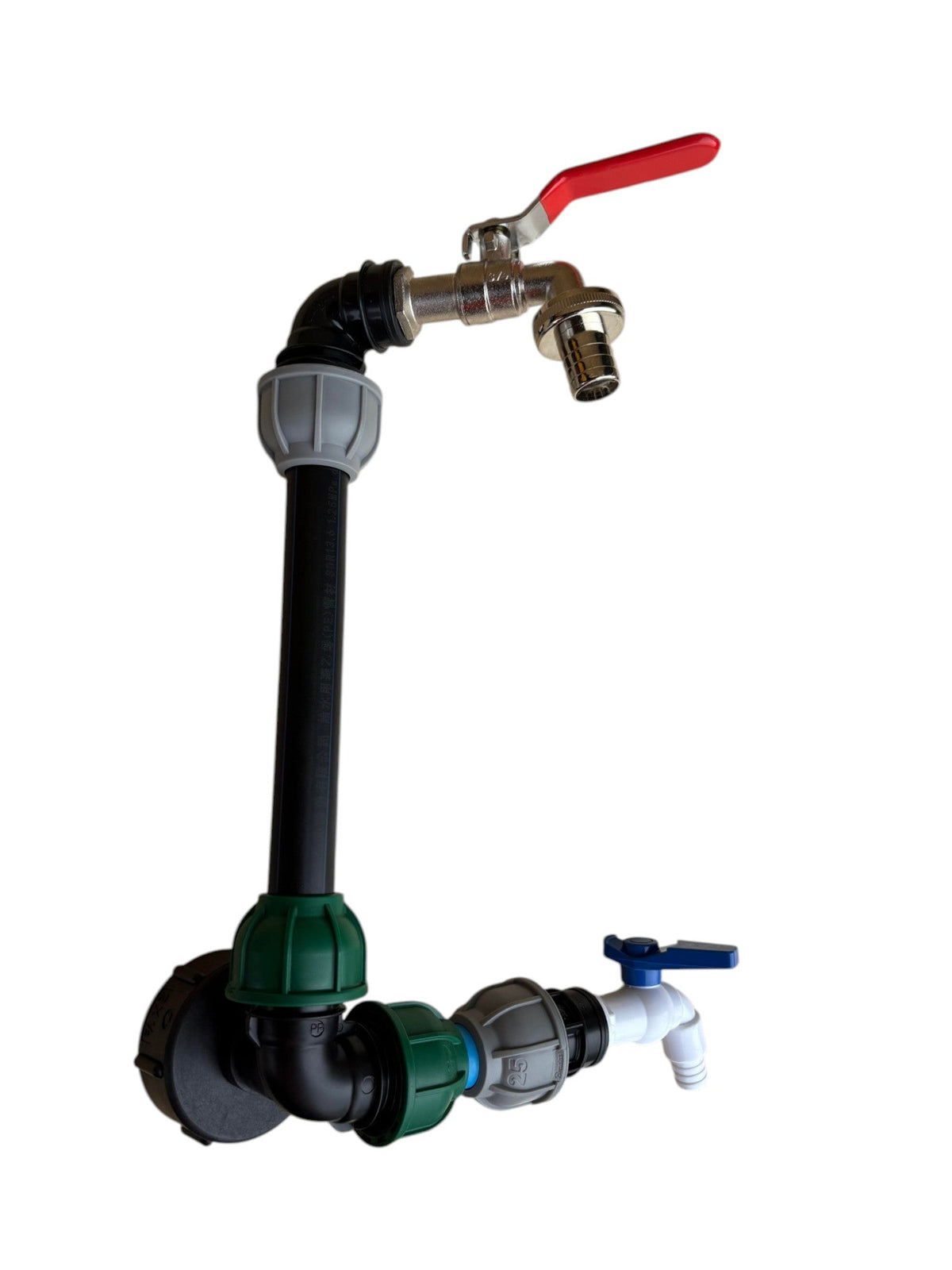

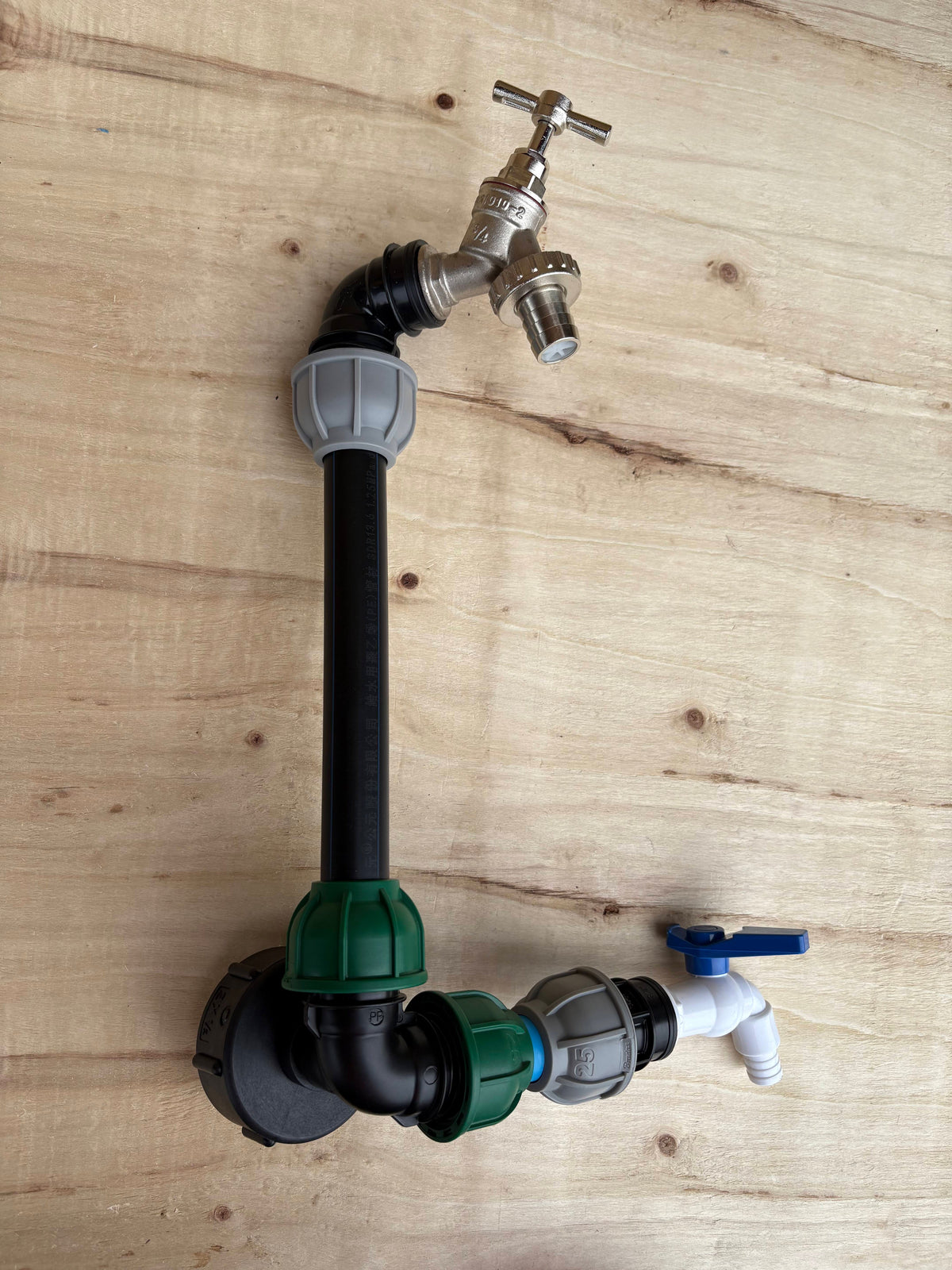

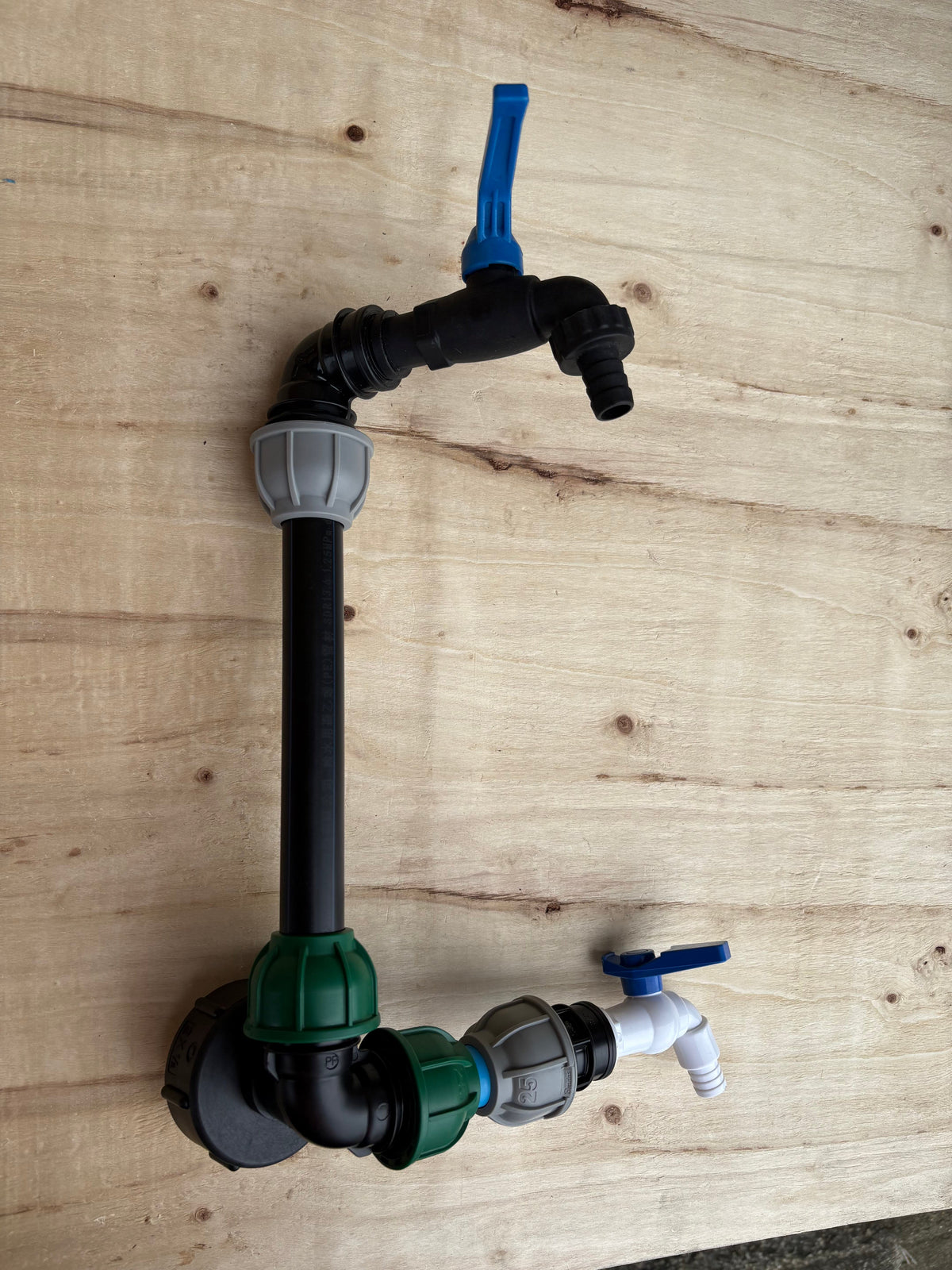

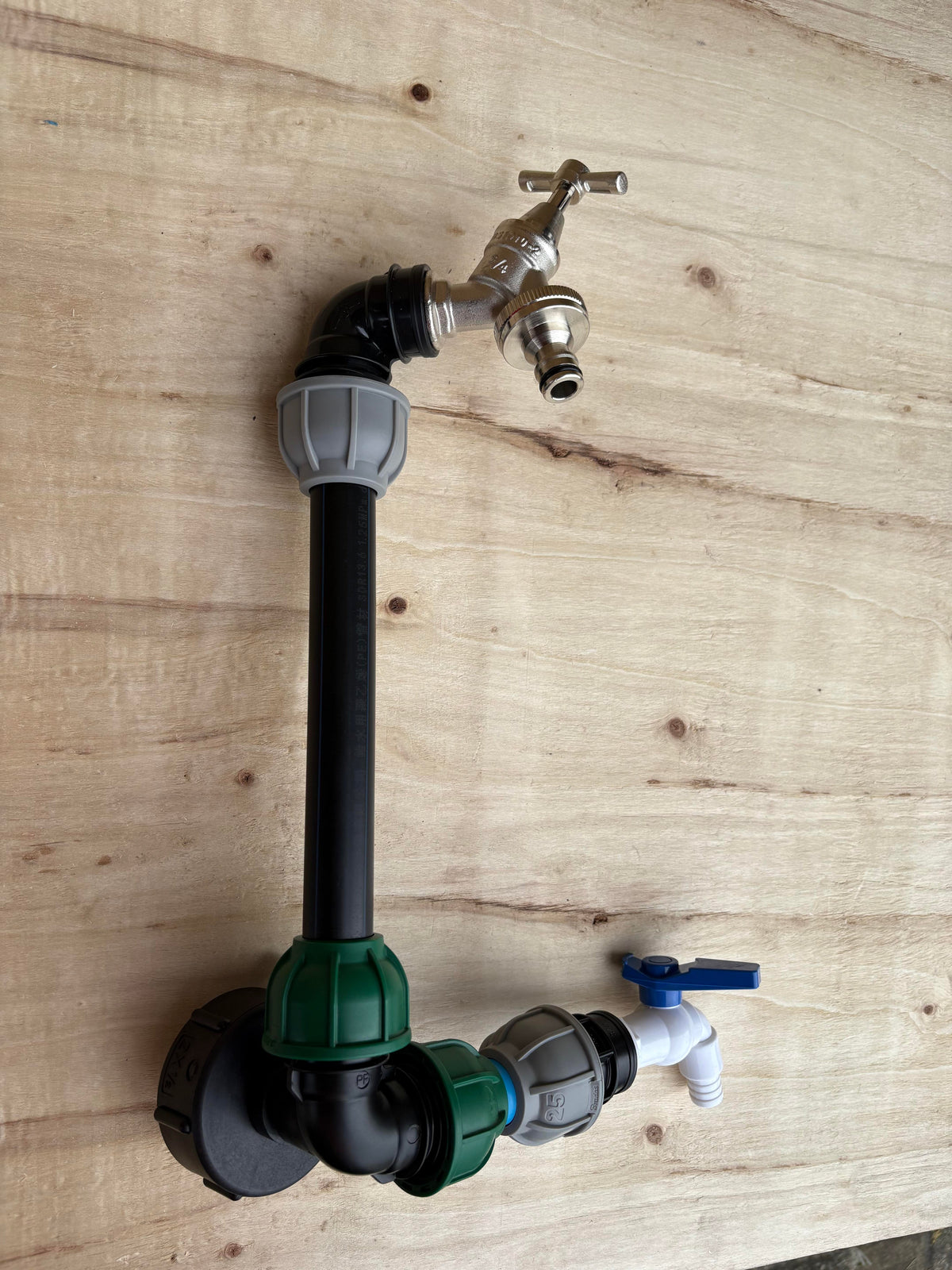

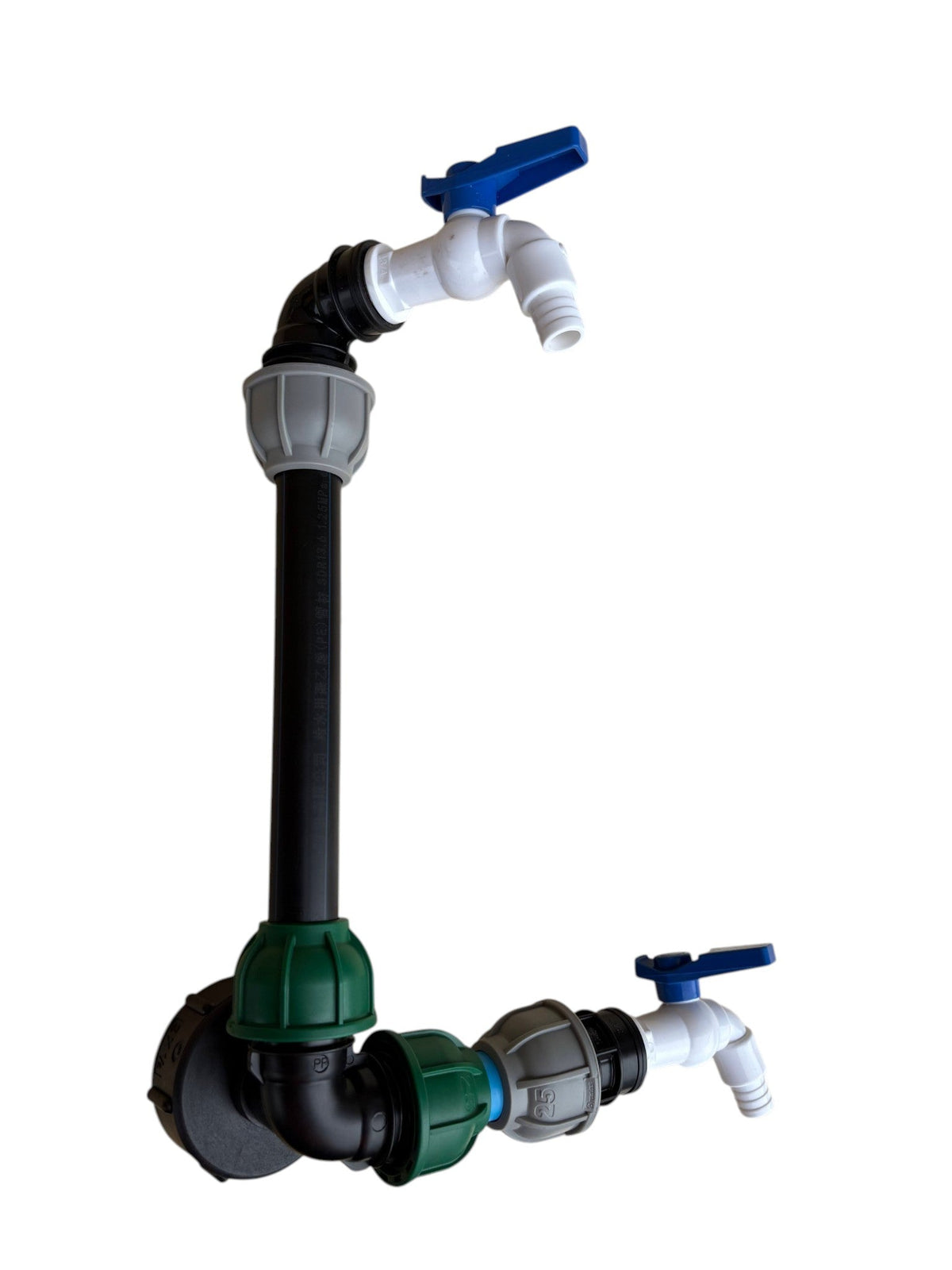

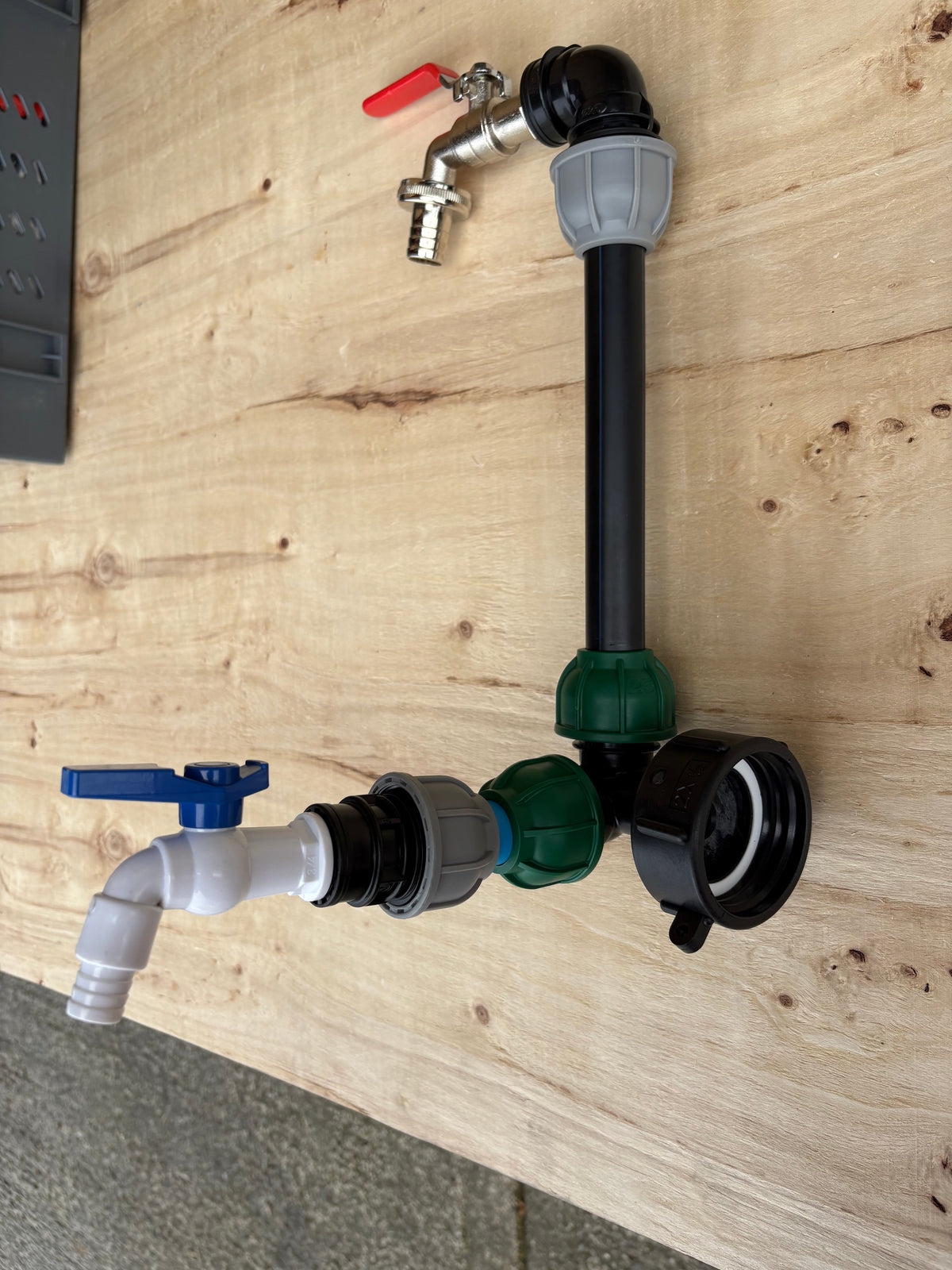

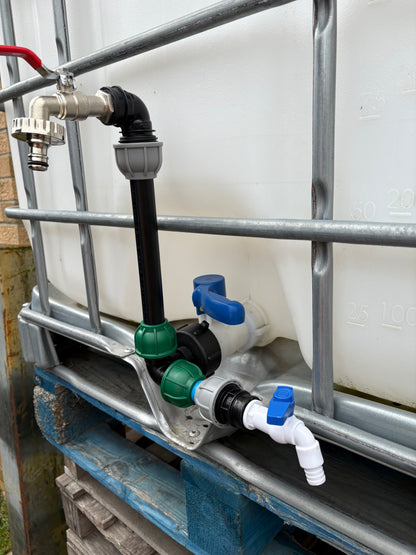

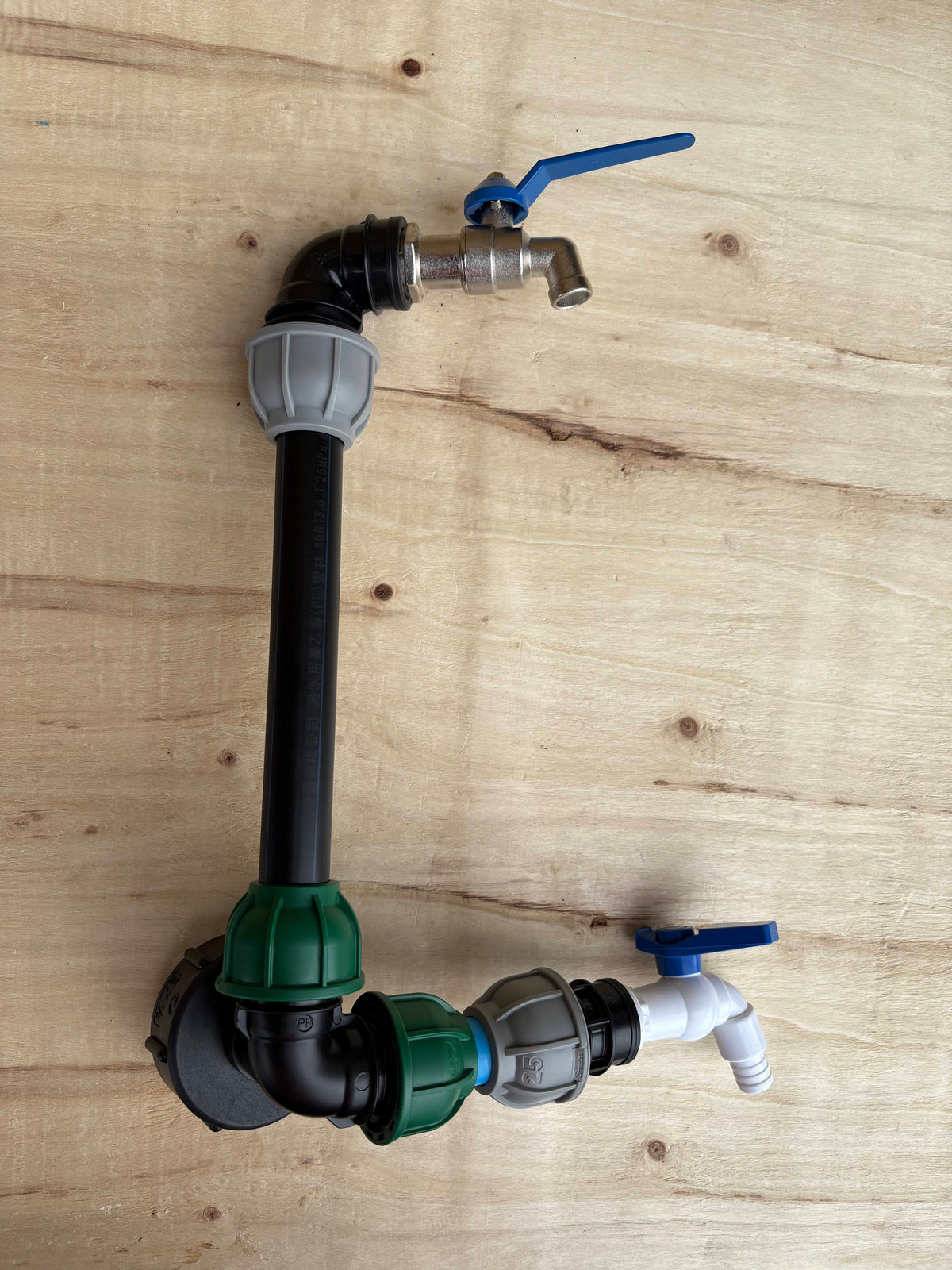

IBC 25cm Side-Outlet Riser Kit – Tap Style Options

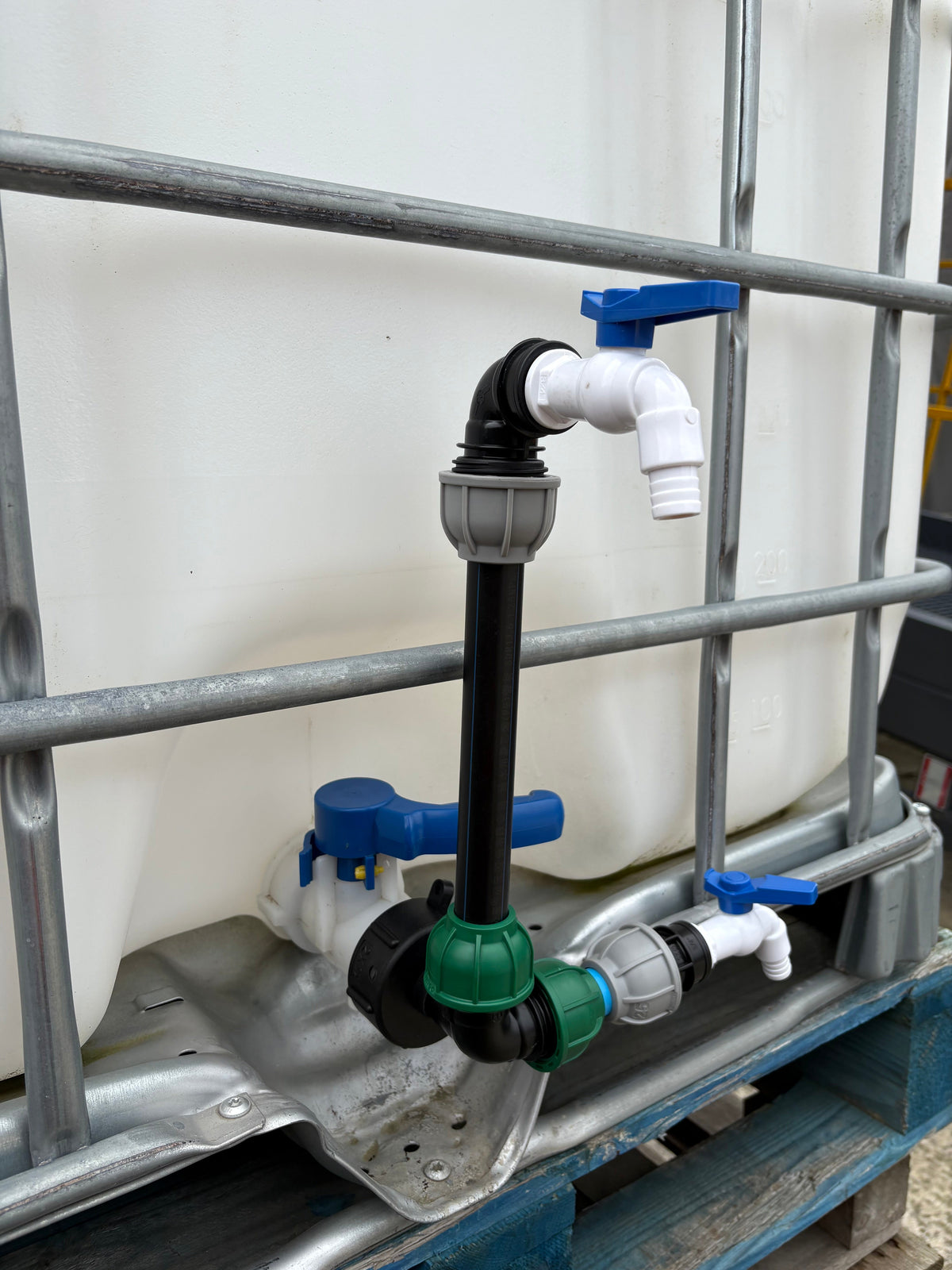

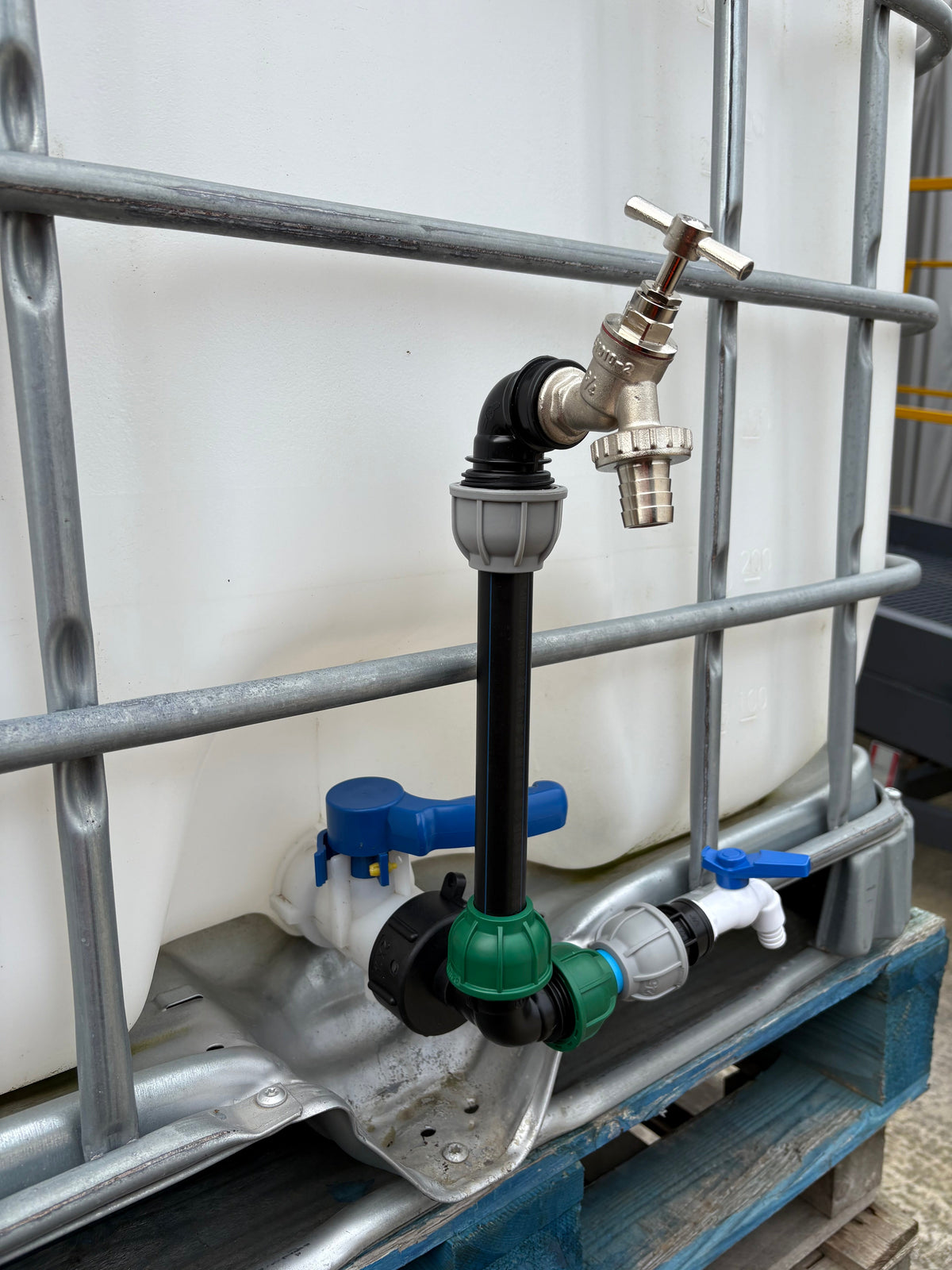

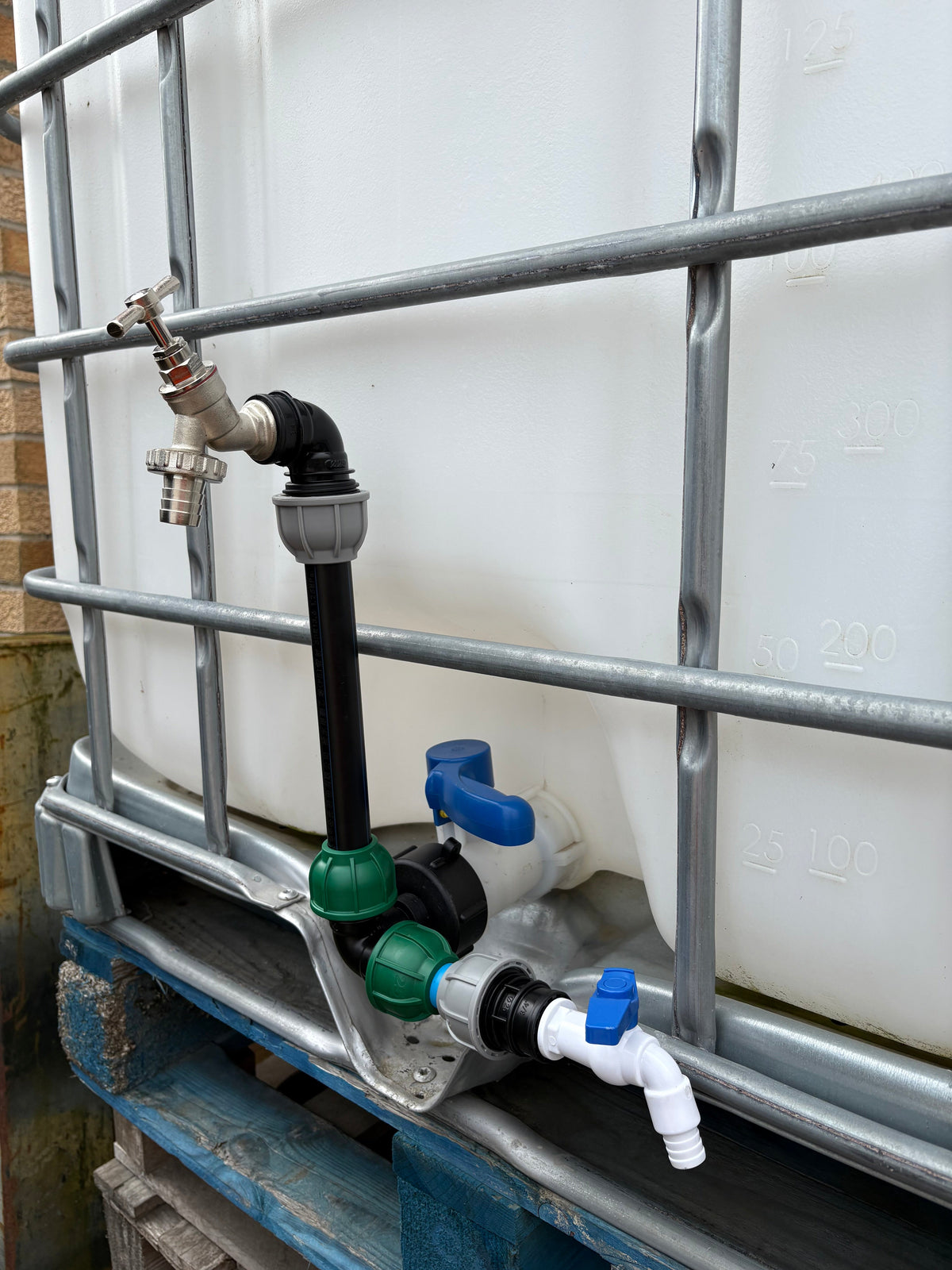

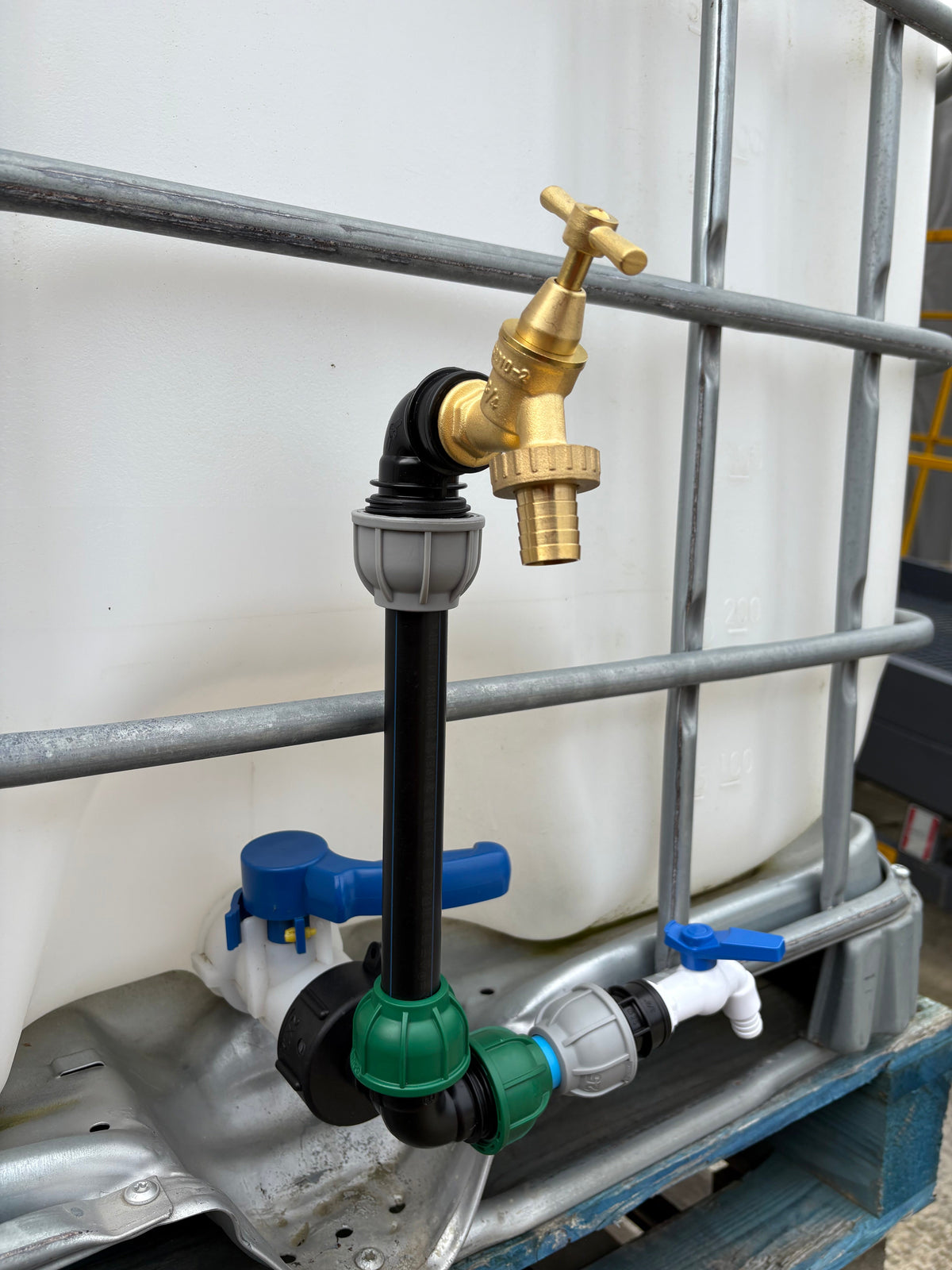

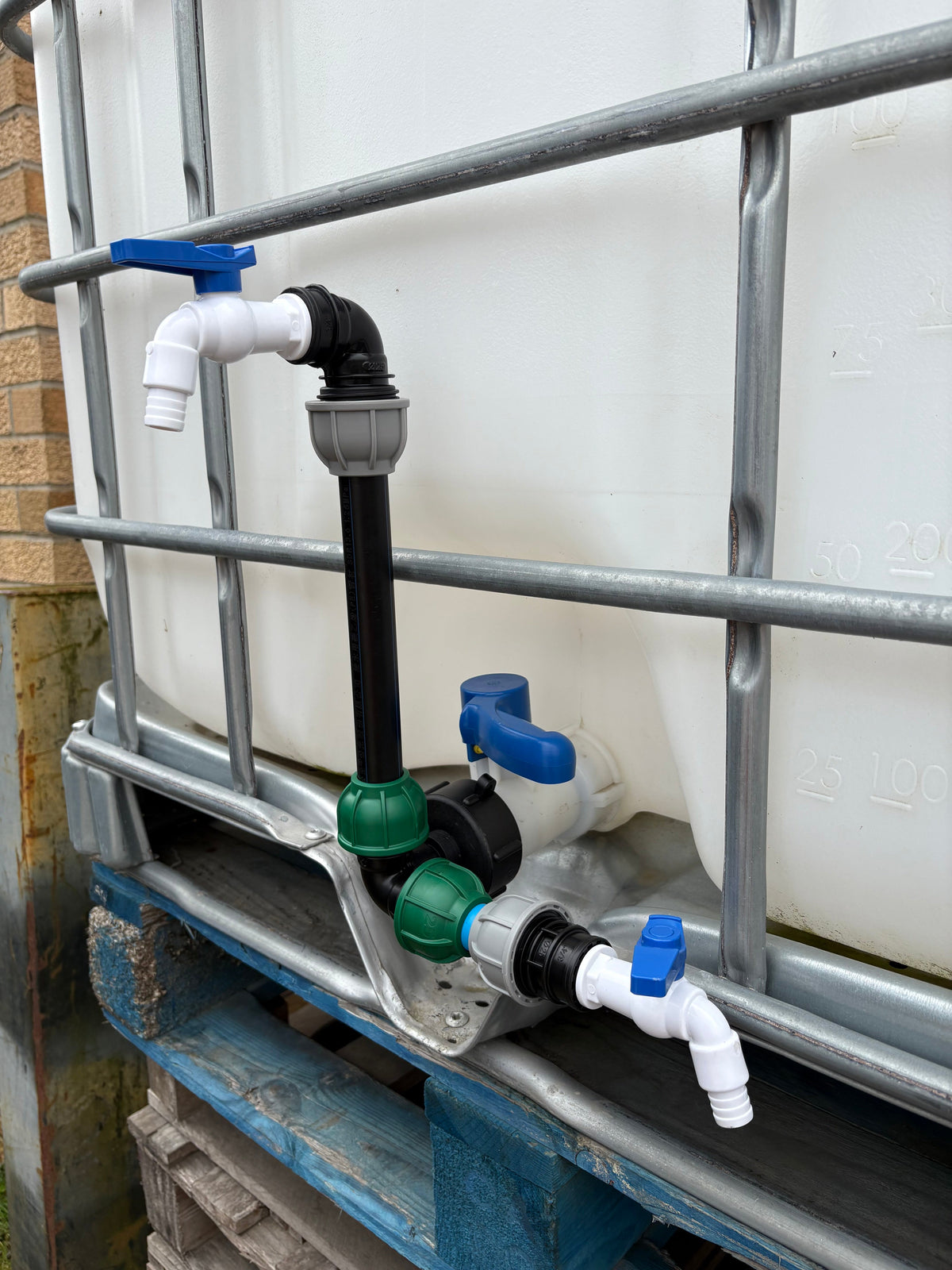

Raise an IBC tank connection and create two outlet positions using a 25cm riser with a side branch.

Product details

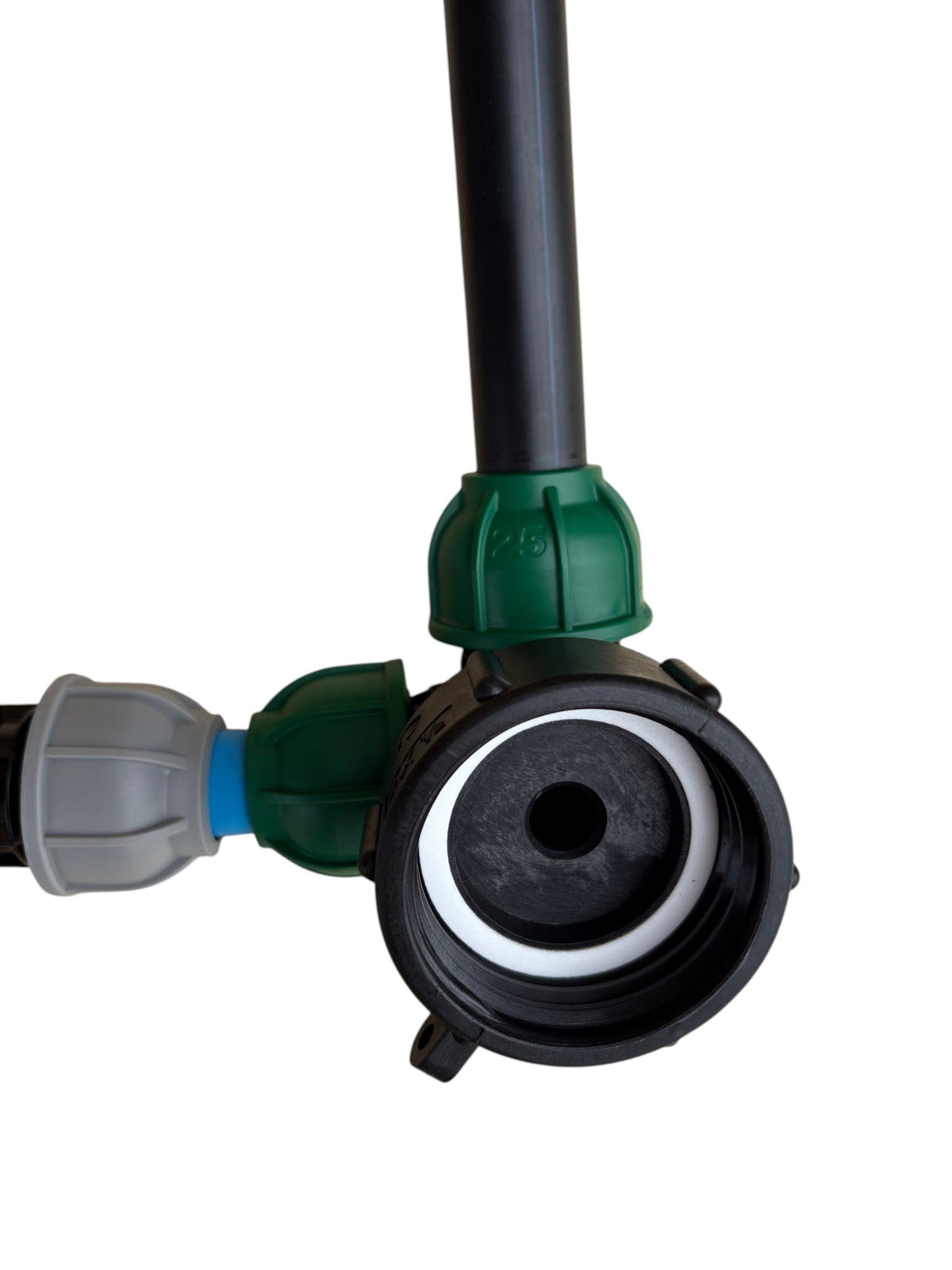

• Tank connection: S60×6 IBC adapter with ½″ BSP male connection, as detailed in existing kit contents

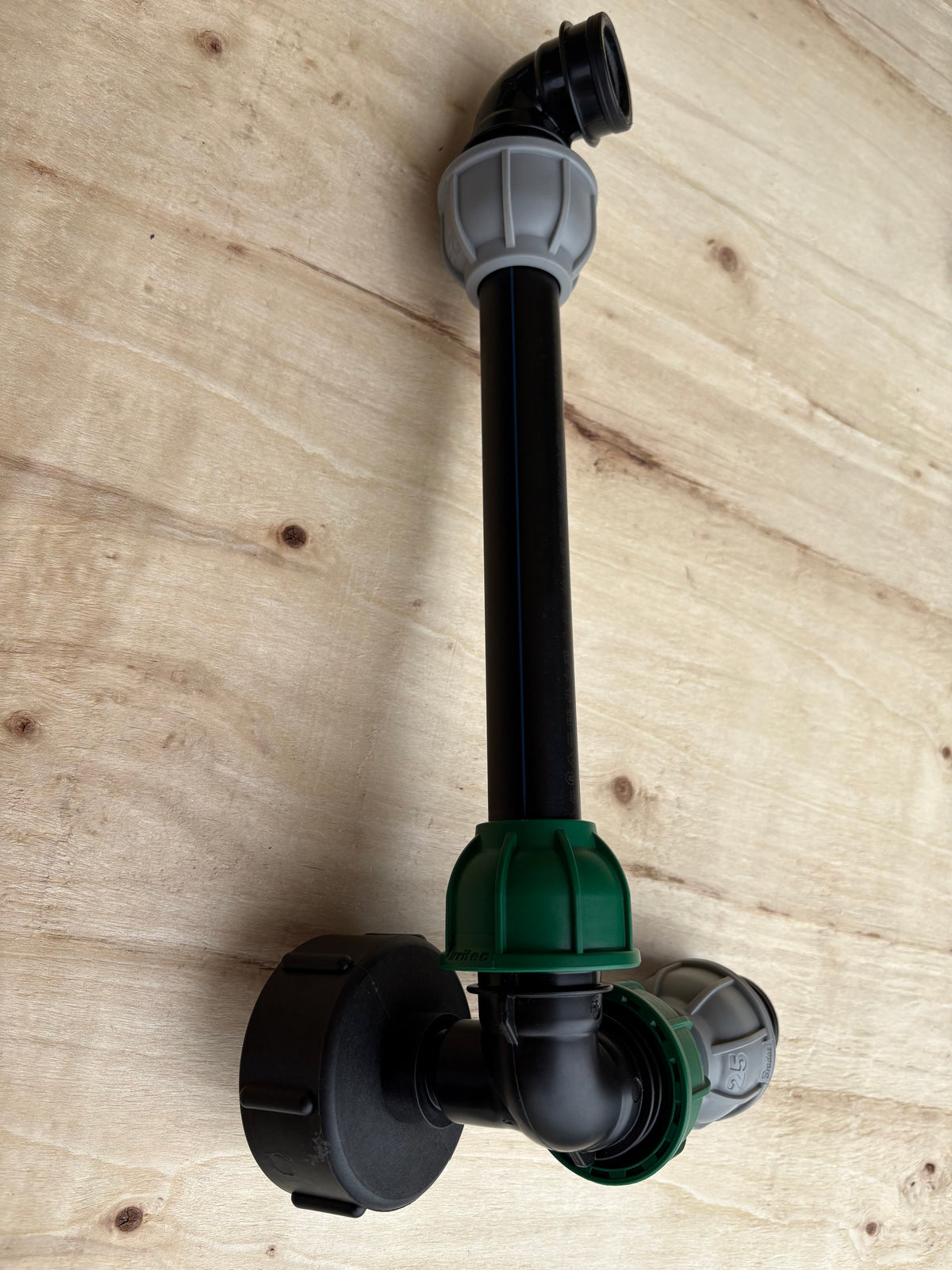

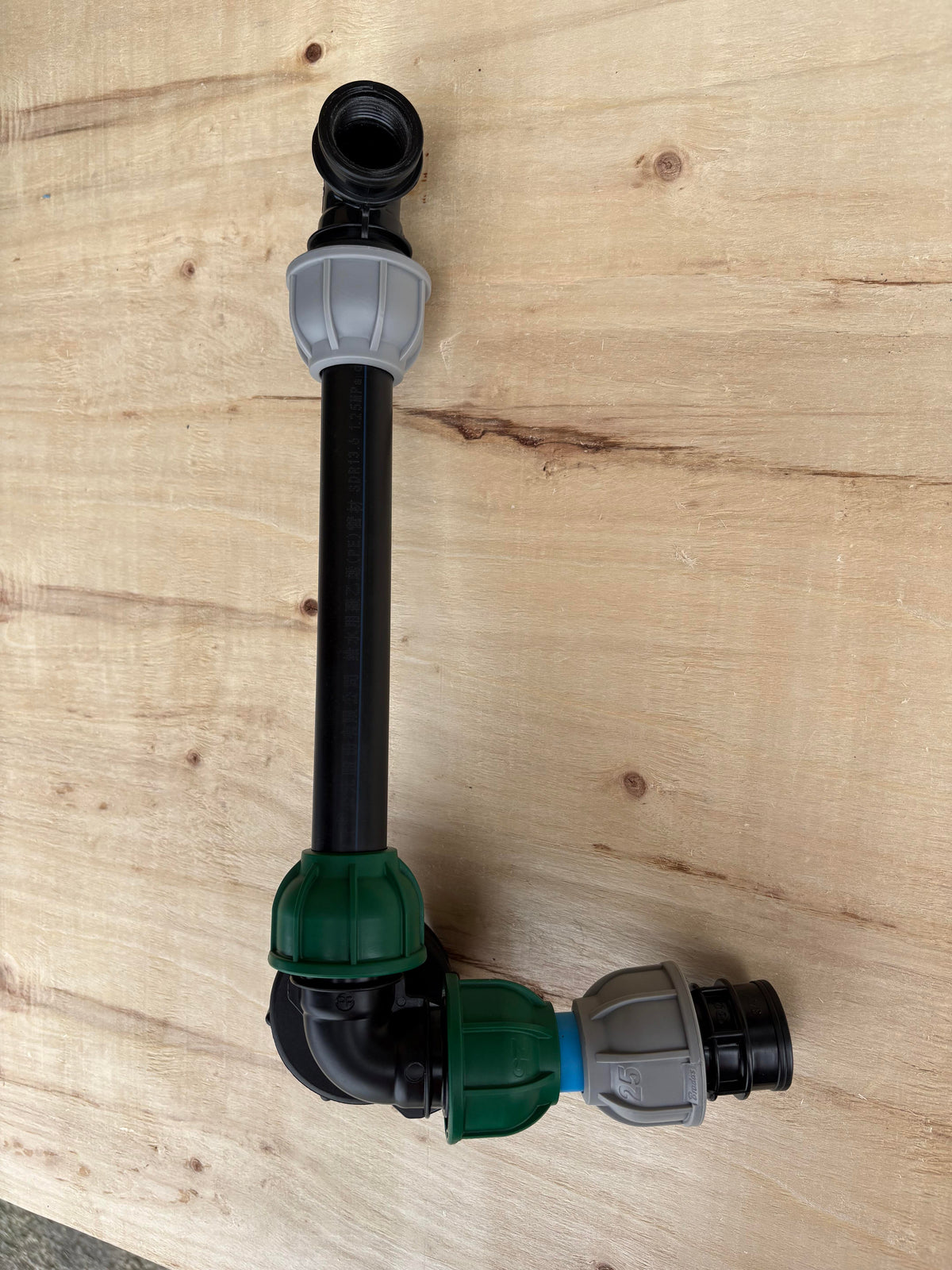

• Riser: one 25cm pipe section with MDPE compression fittings

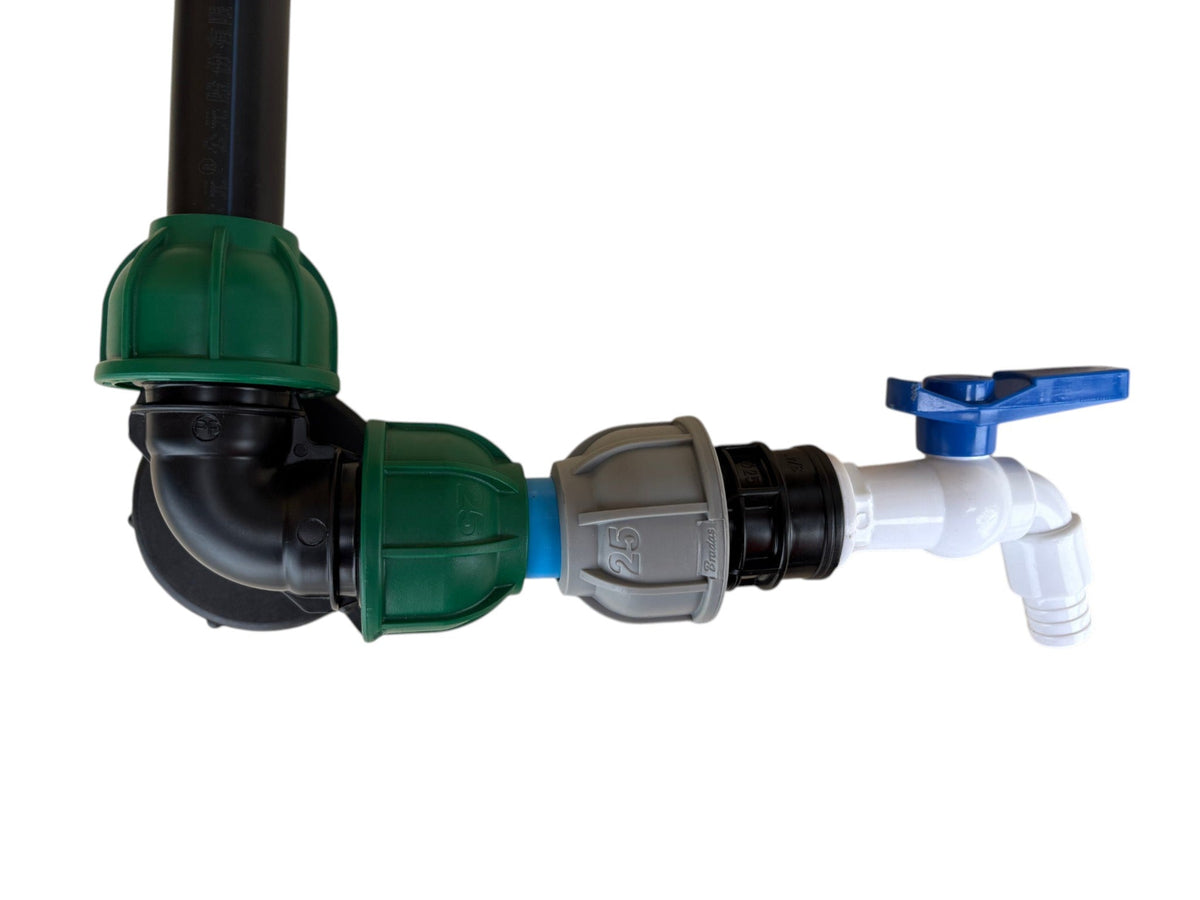

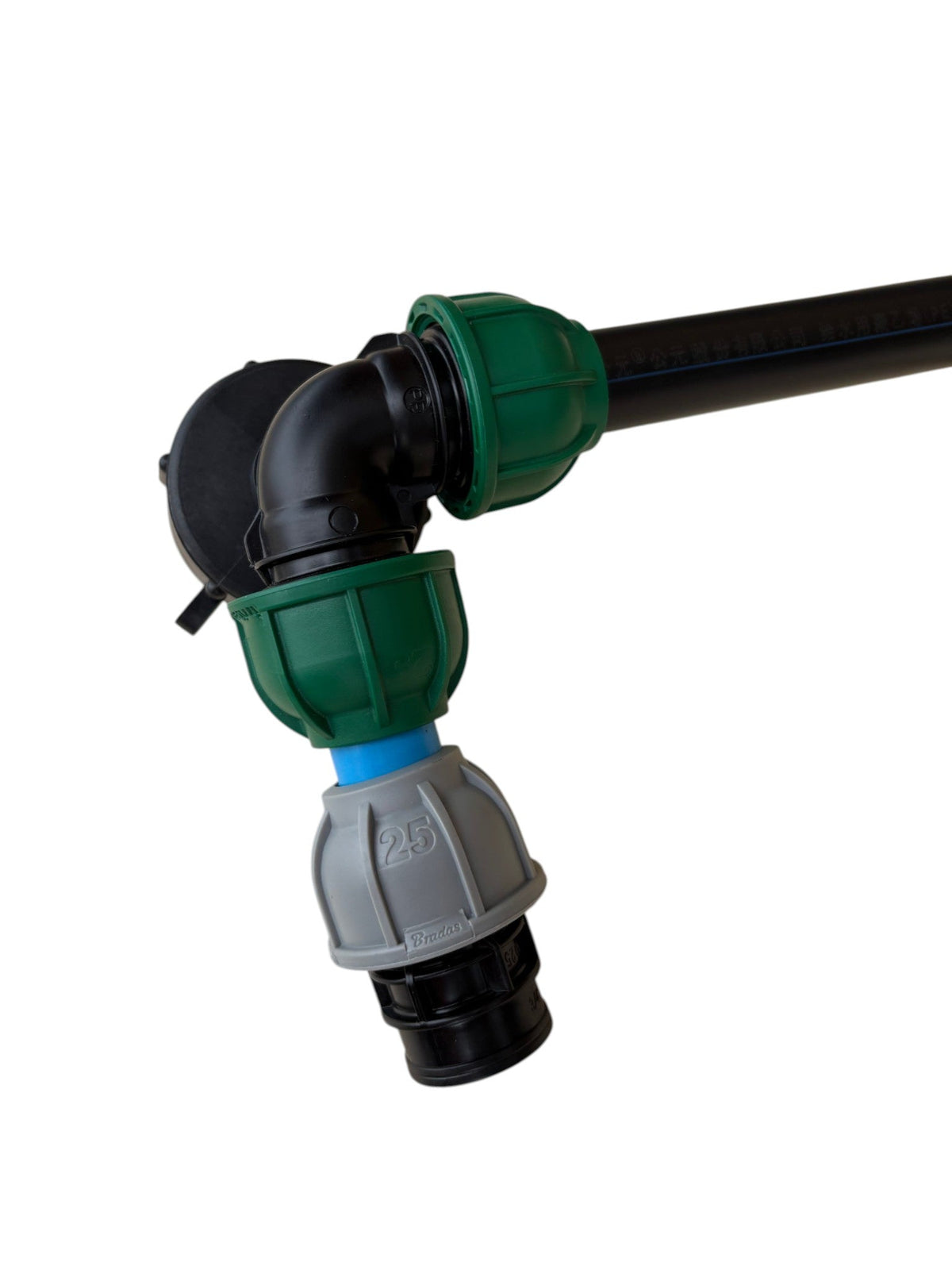

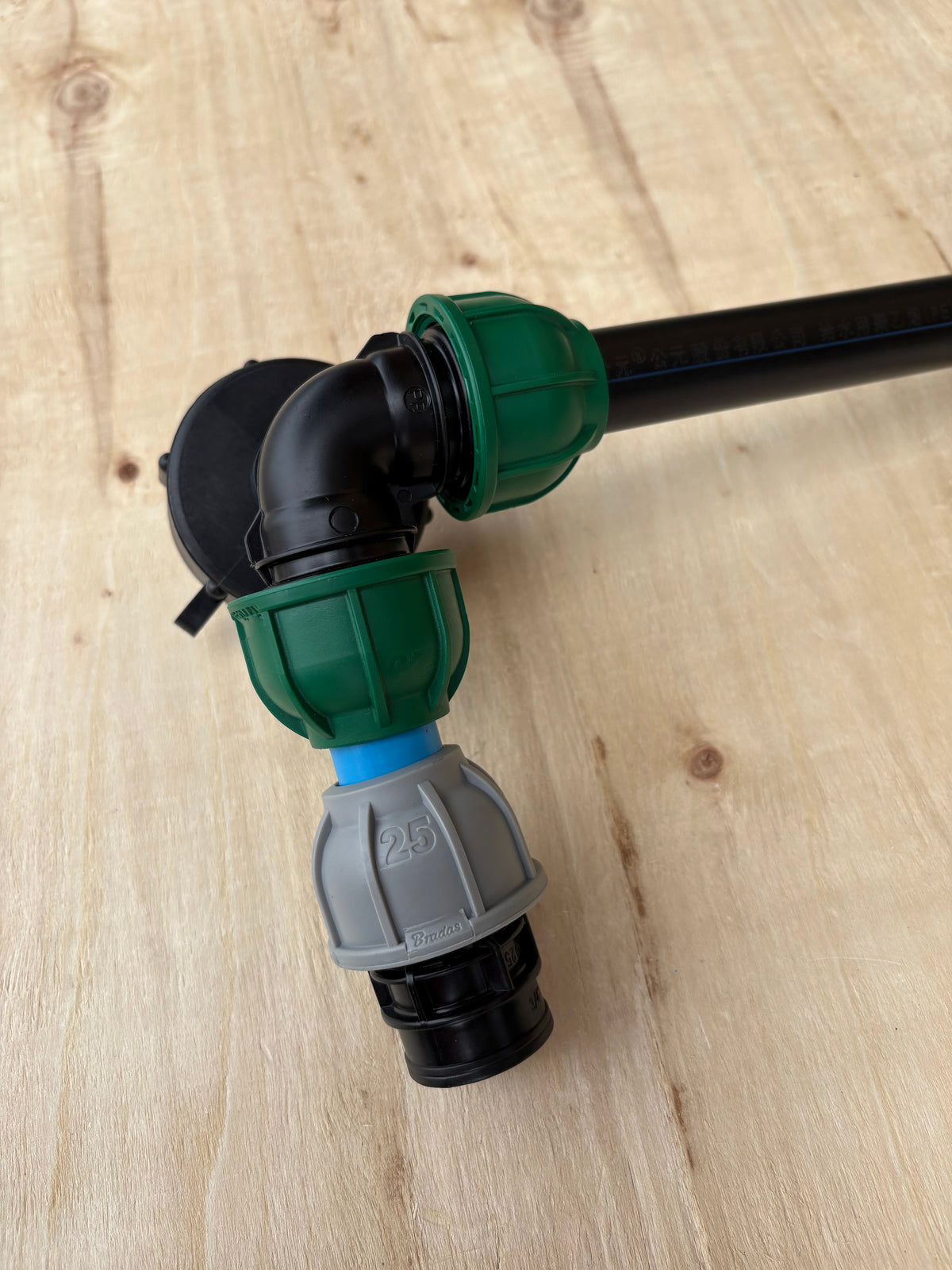

• Branch components: one elbow-tee, one upper elbow, one short pipe section and one straight outlet fitting
• Sealing material: two rolls of PTFE tape, as detailed in existing kit contents
• Tap options: select a two-tap kit or the no-tap riser kit above
• Reference: IBC-25CM-RISER-SIDE-KIT-A, IBC-25CM-RISER-SIDE-KIT-B, IBC-25CM-RISER-SIDE-KIT-C, IBC-25CM-RISER-SIDE-KIT-D, IBC-25CM-RISER-SIDE-KIT-E, IBC-25CM-RISER-SIDE-KIT-F, IBC-25CM-RISER-SIDE-KIT-G, IBC-25CM-RISER-SIDE-KIT-H, IBC-25CM-RISER-SIDE-KIT-J, IBC-25CM-RISER-SIDE-KIT-K, IBC-25CM-RISER-SIDE-KIT-L, IBC-25CM-RISER-SIDE-KIT-M, IBC-25CM-RISER-SIDE-KIT-N, IBC-25CM-RISER-SIDE-KIT-001

Choose the tap arrangement

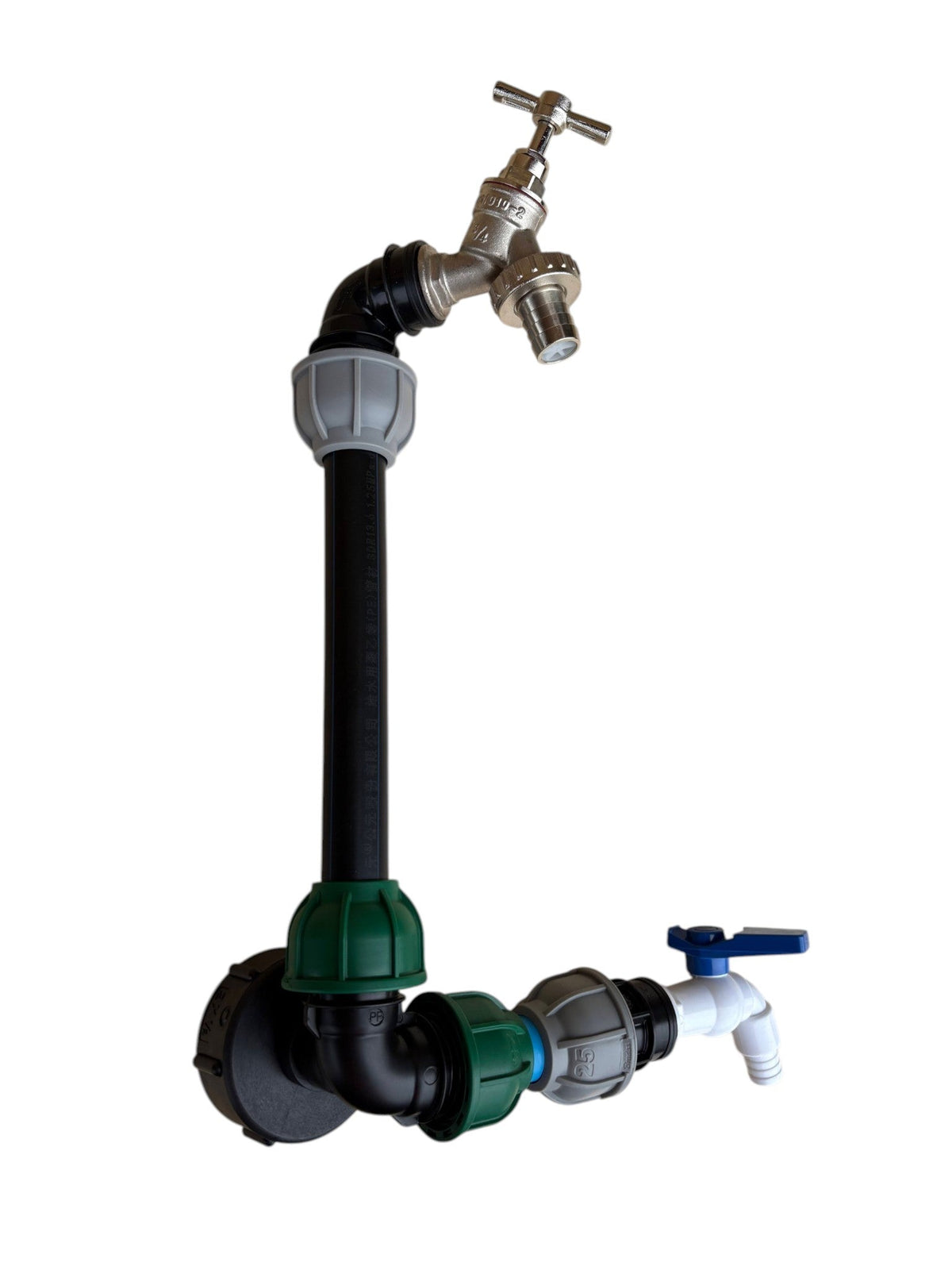

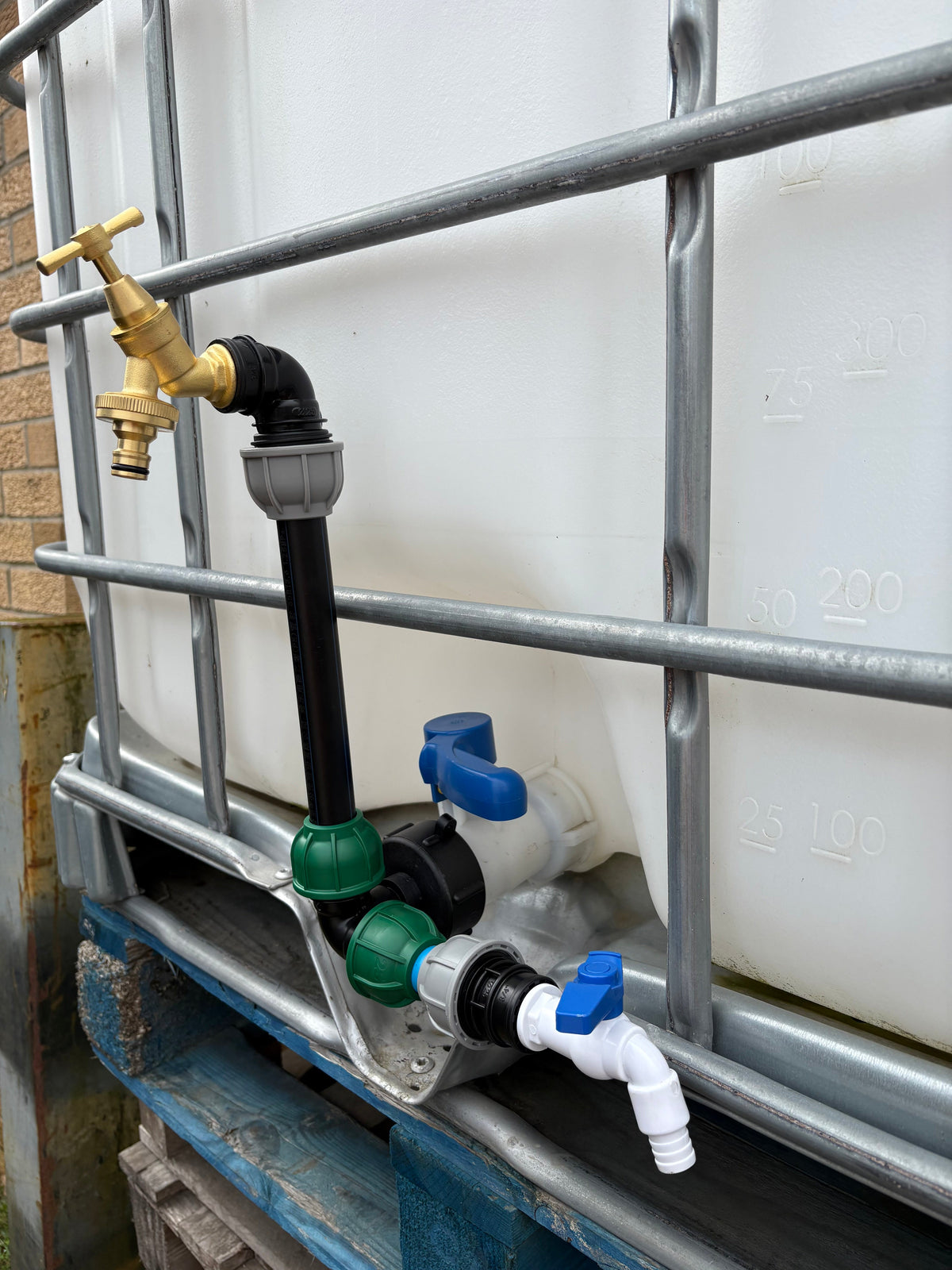

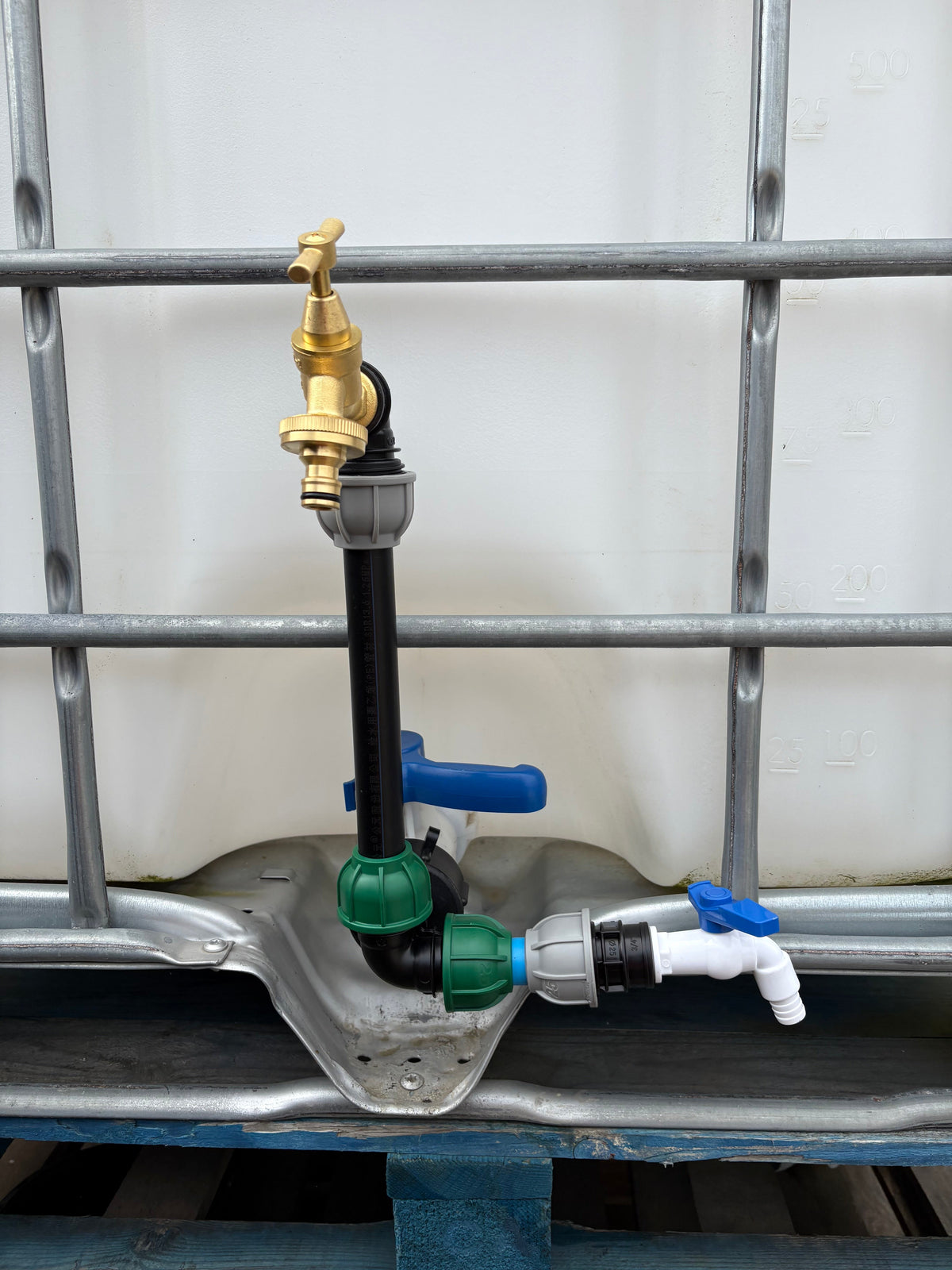

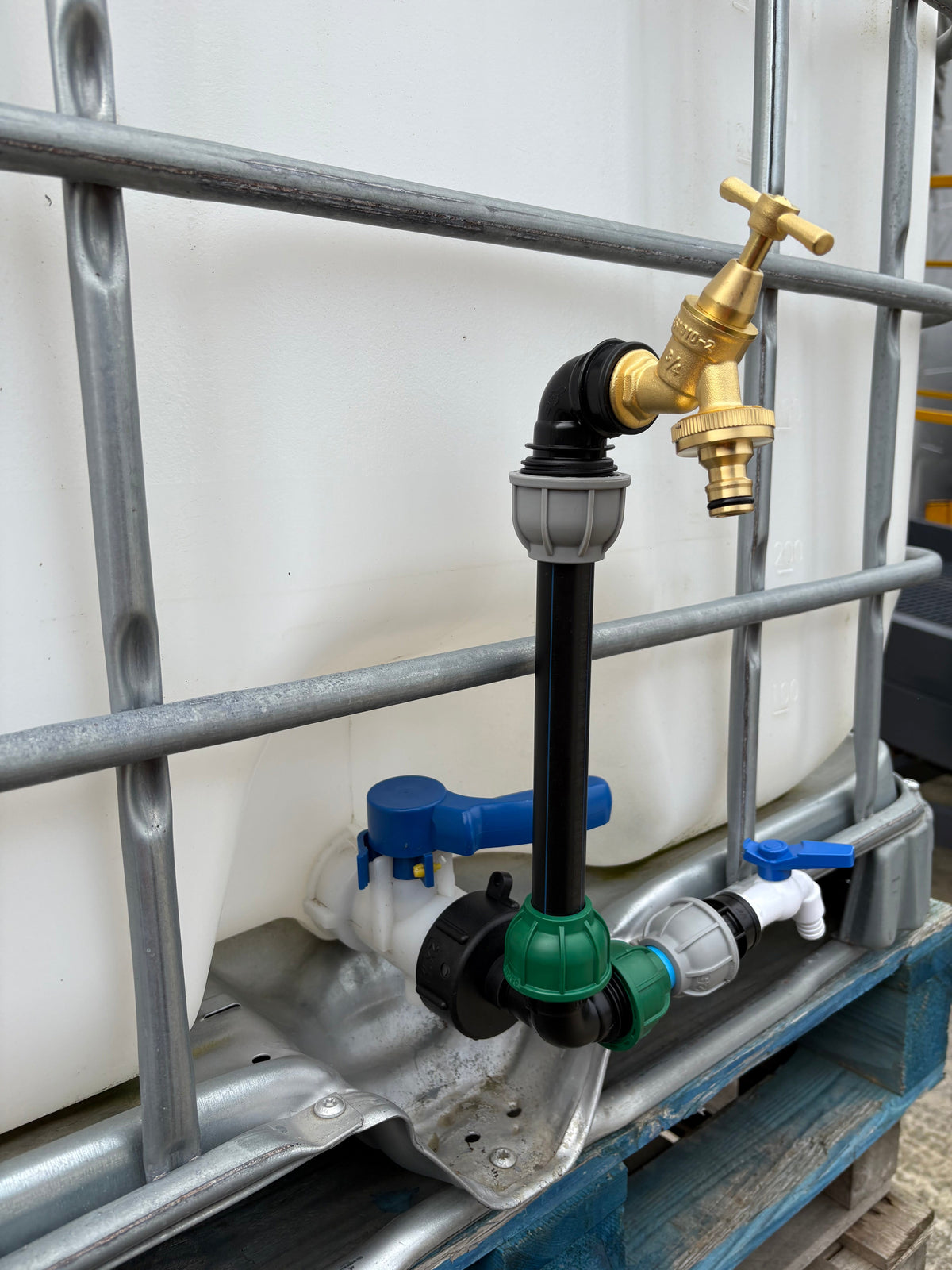

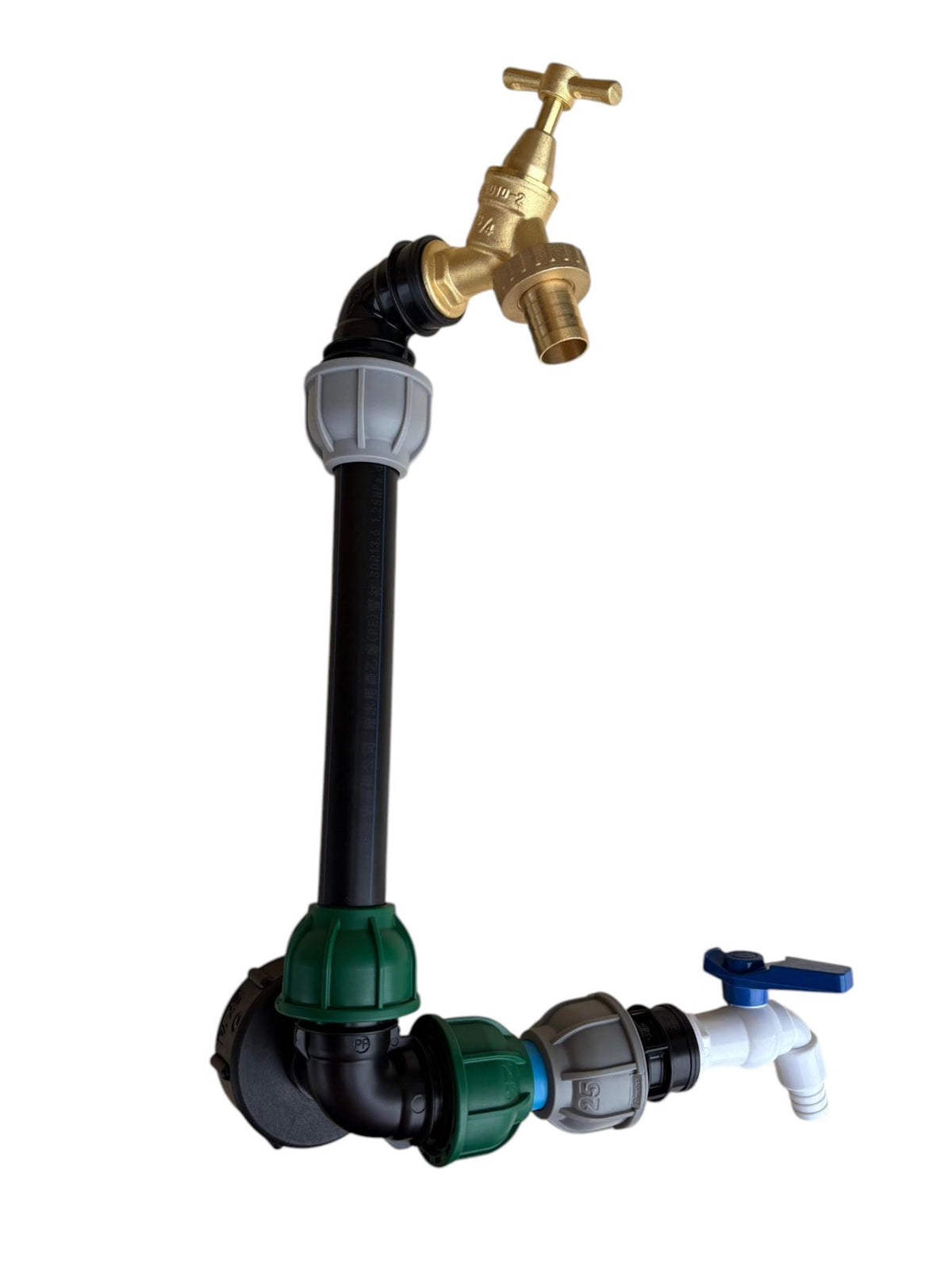

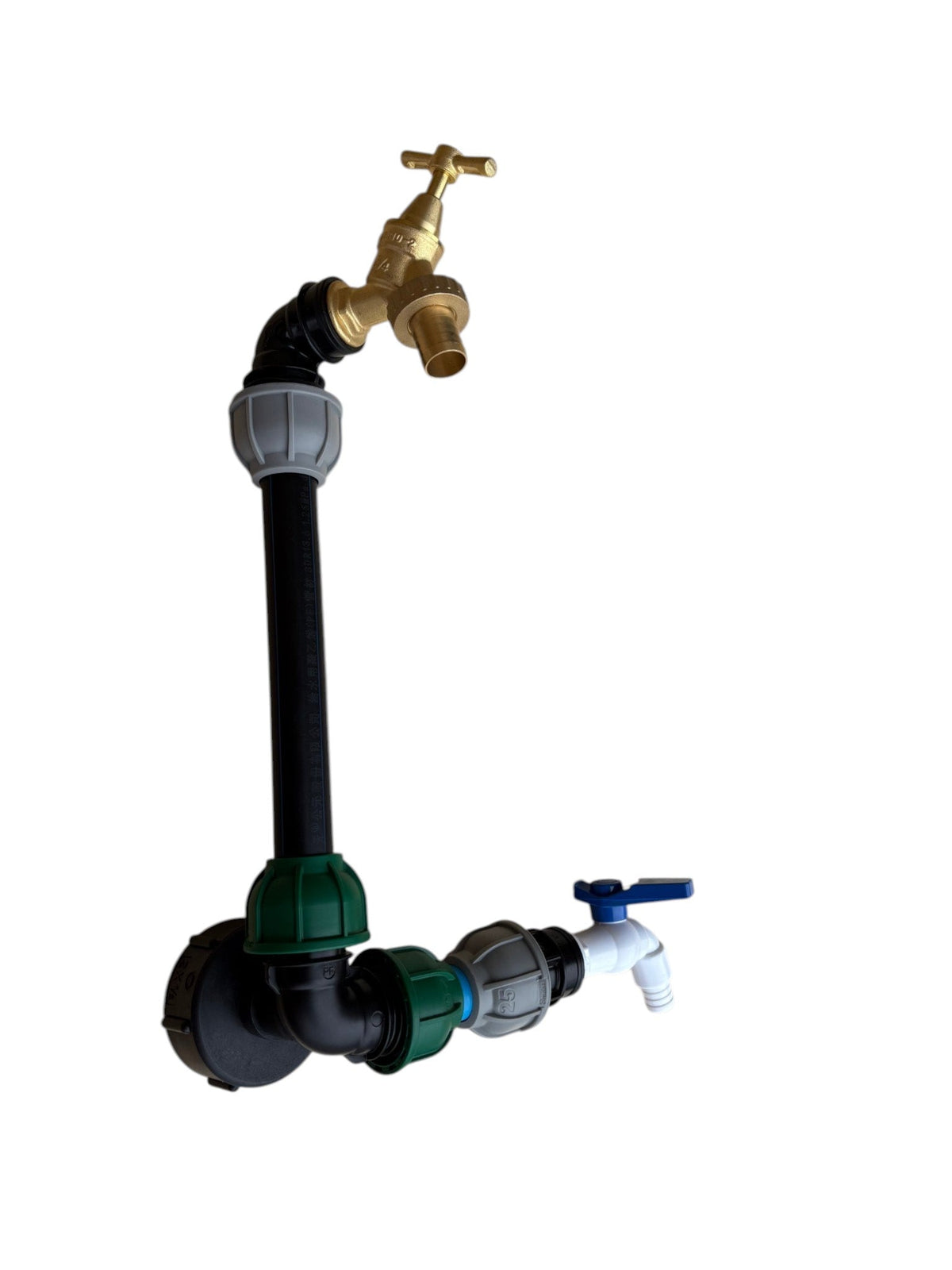

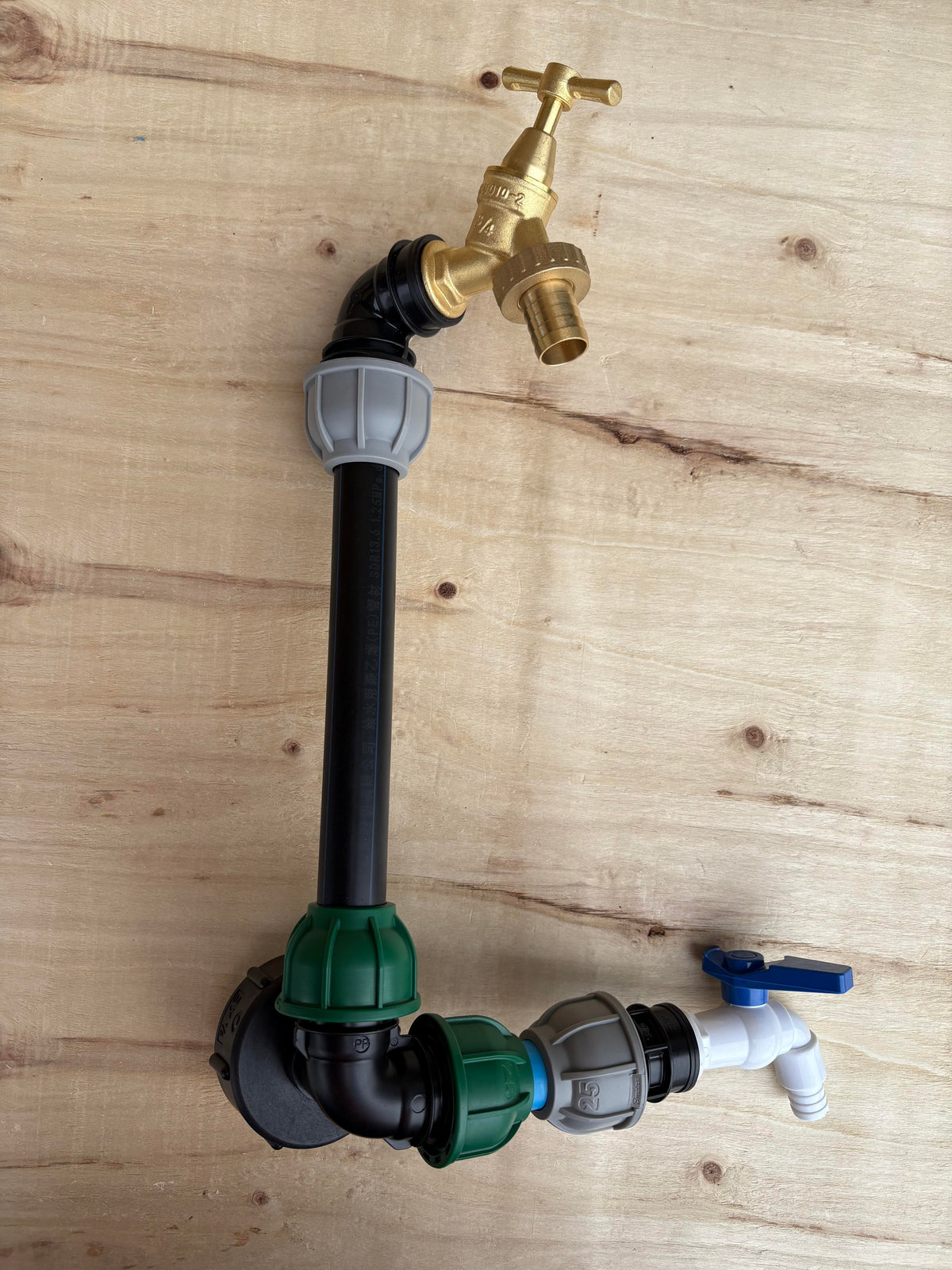

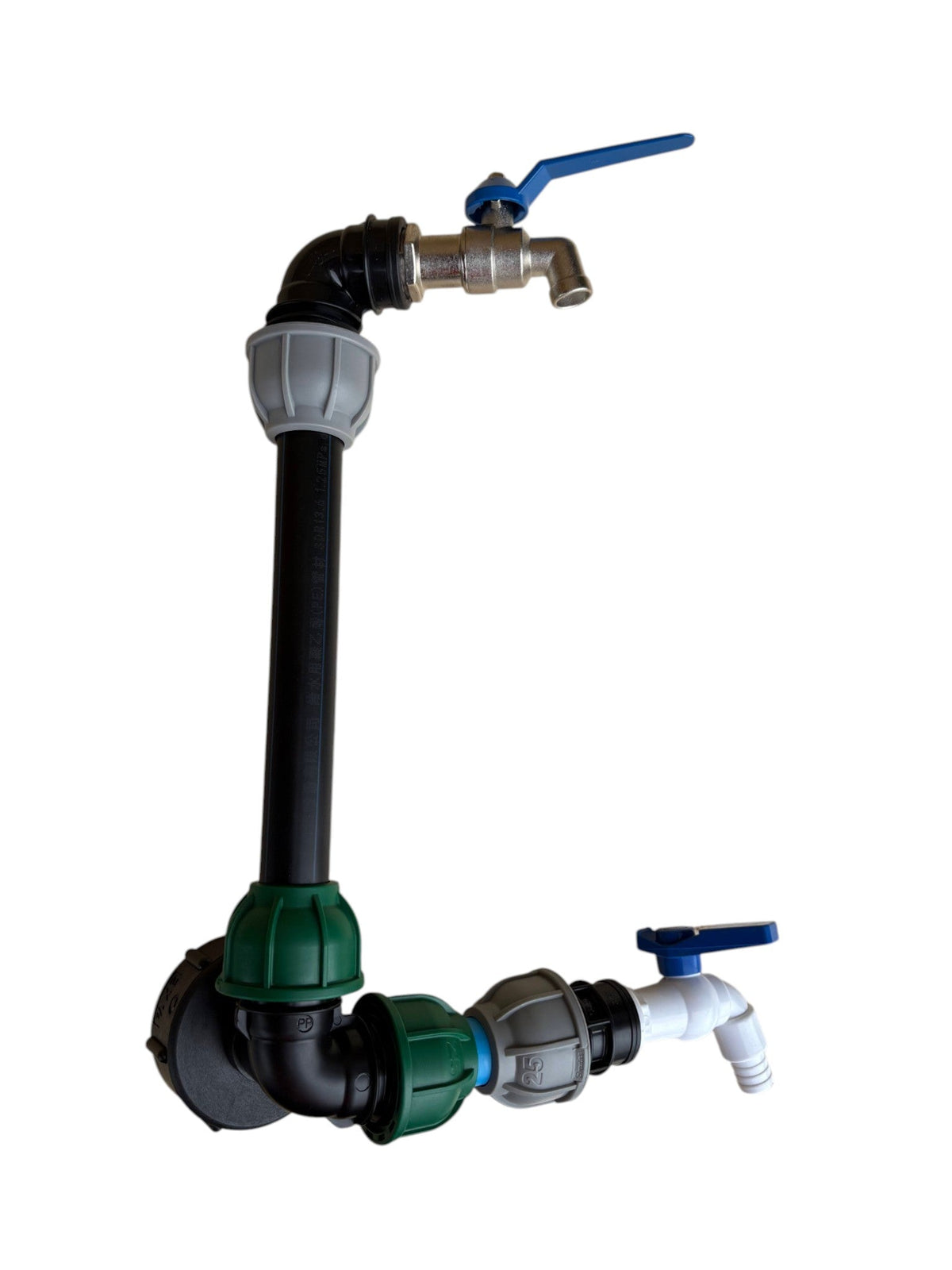

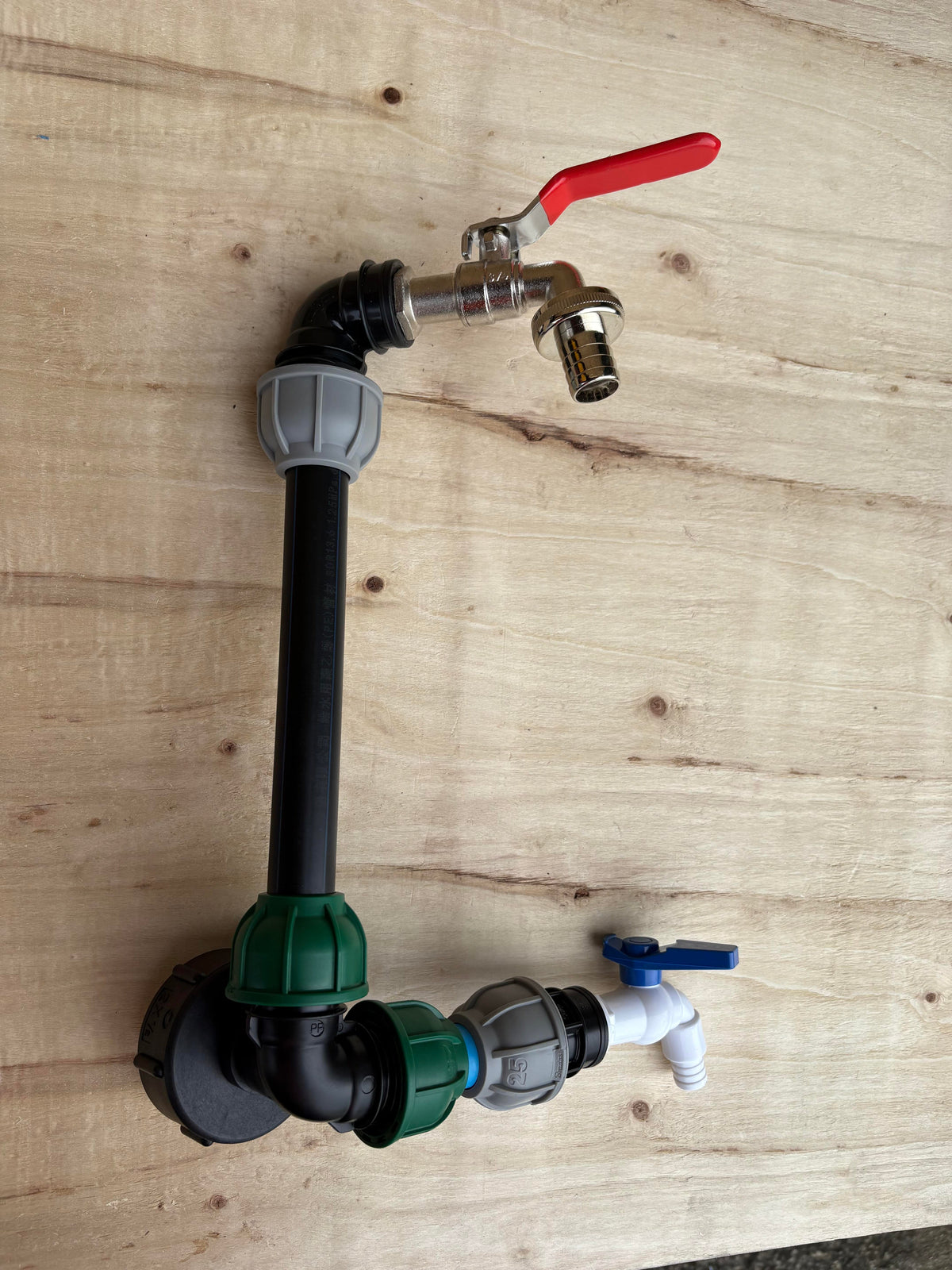

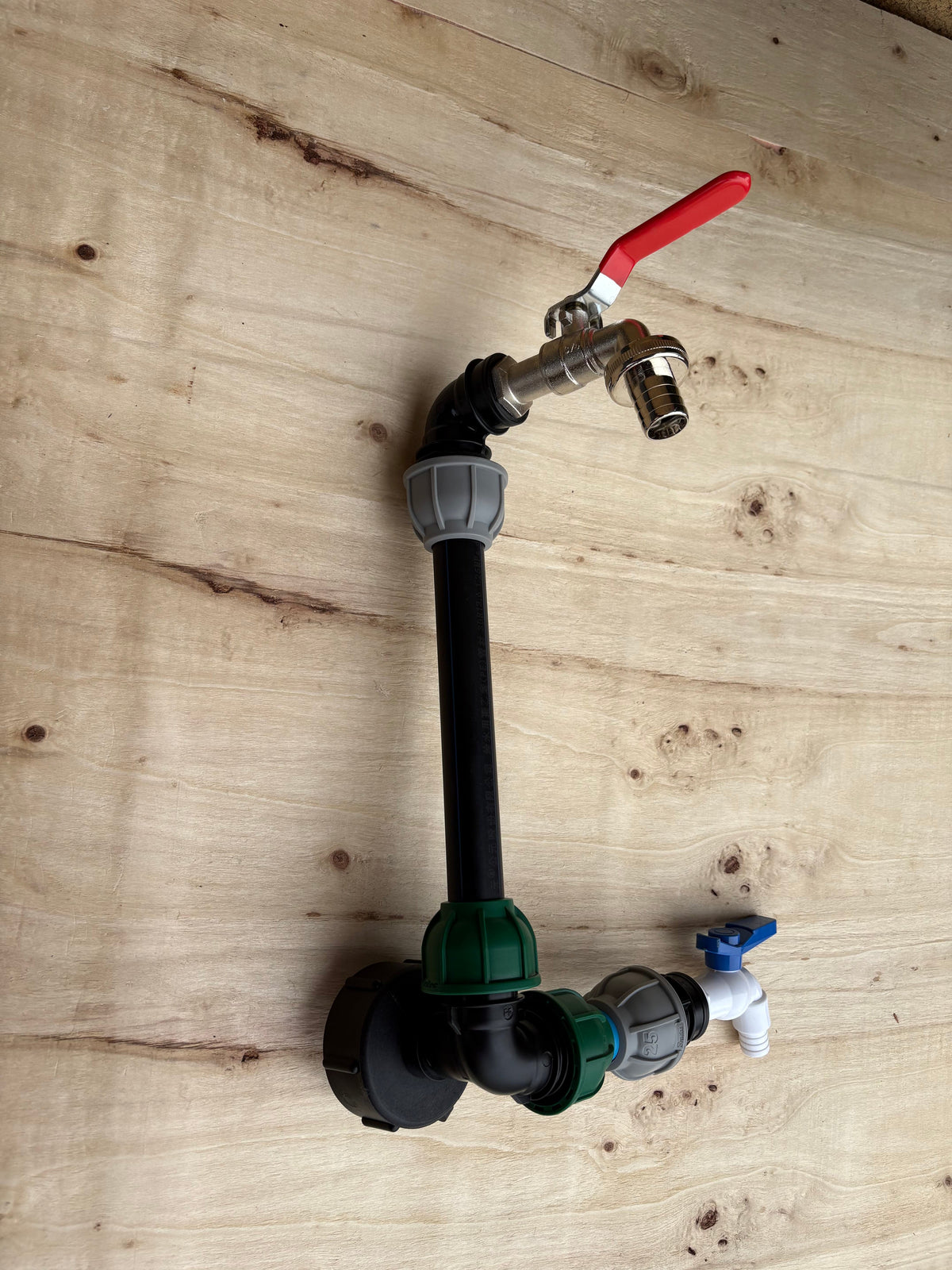

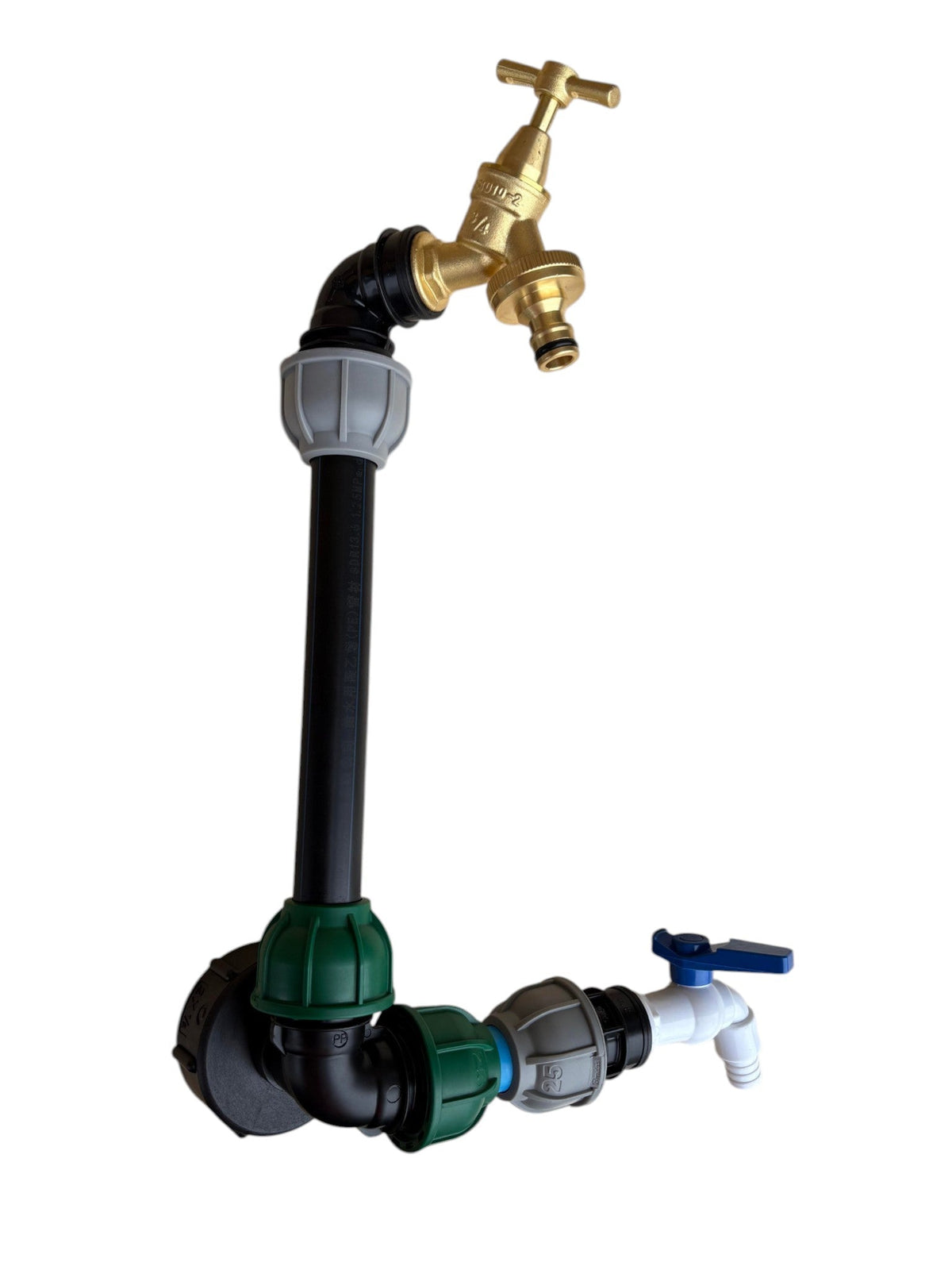

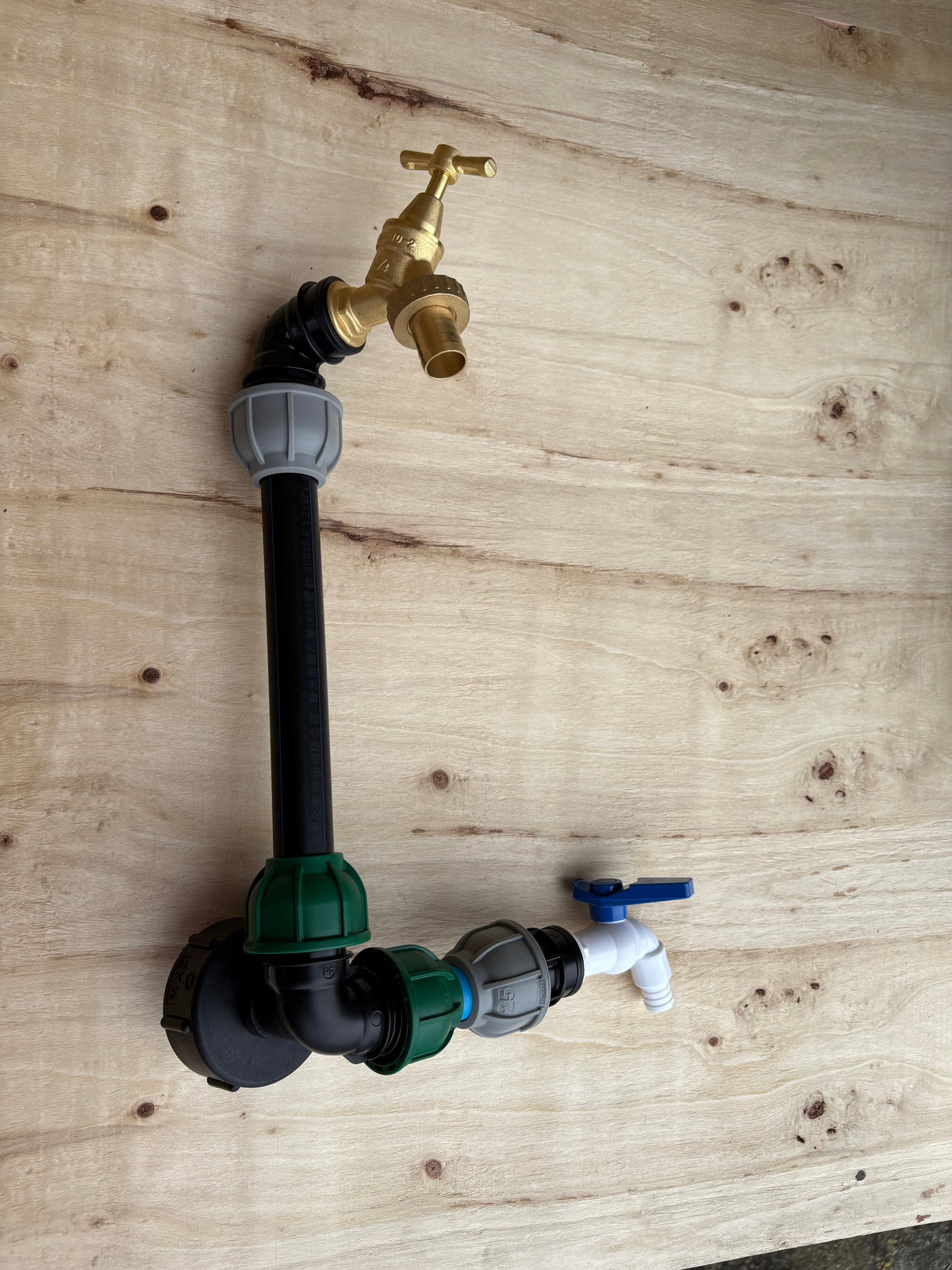

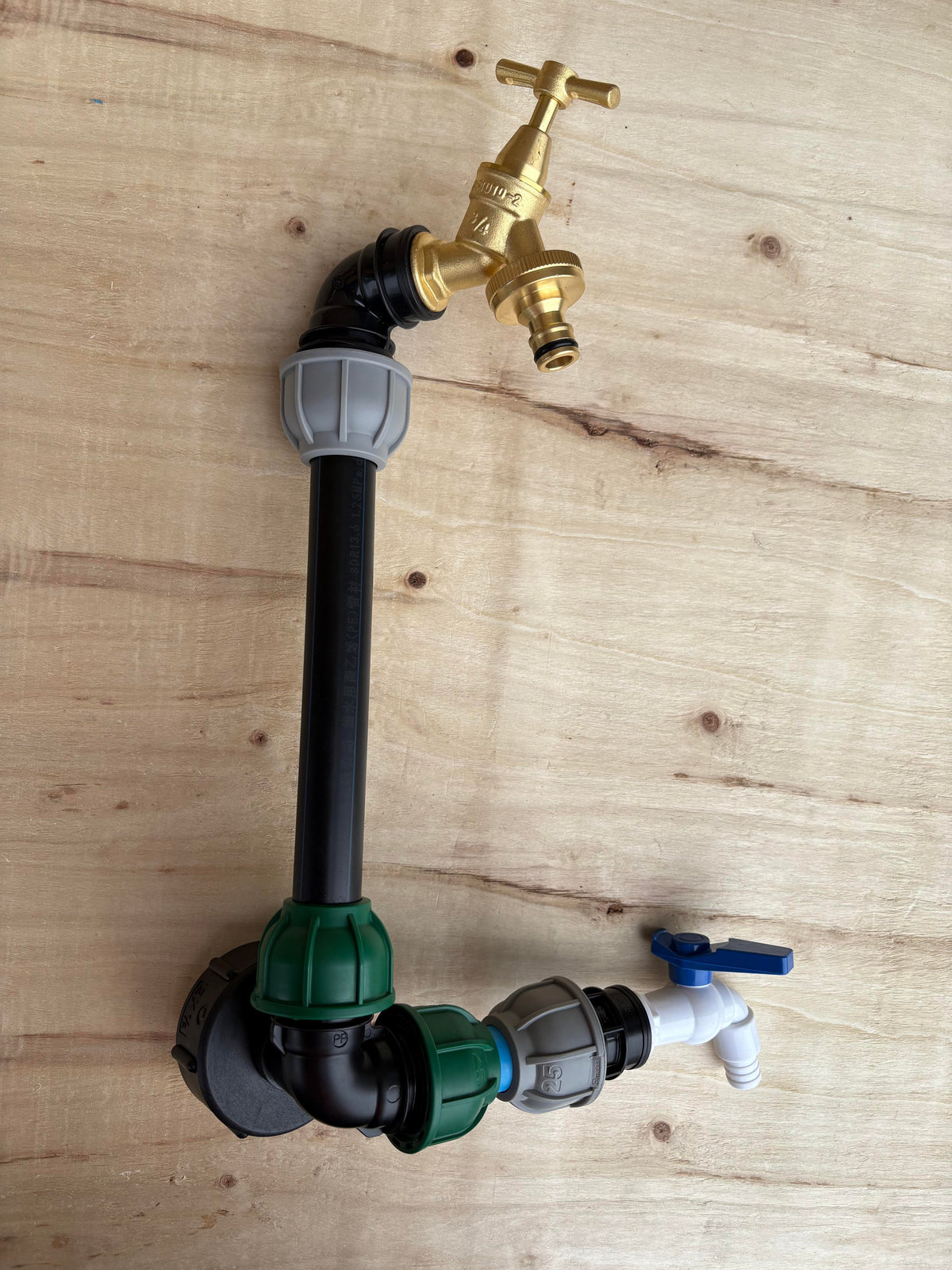

• GTBIB34BRASS001: brass bib tap with barbed outlet (¾″ BSP male inlet)

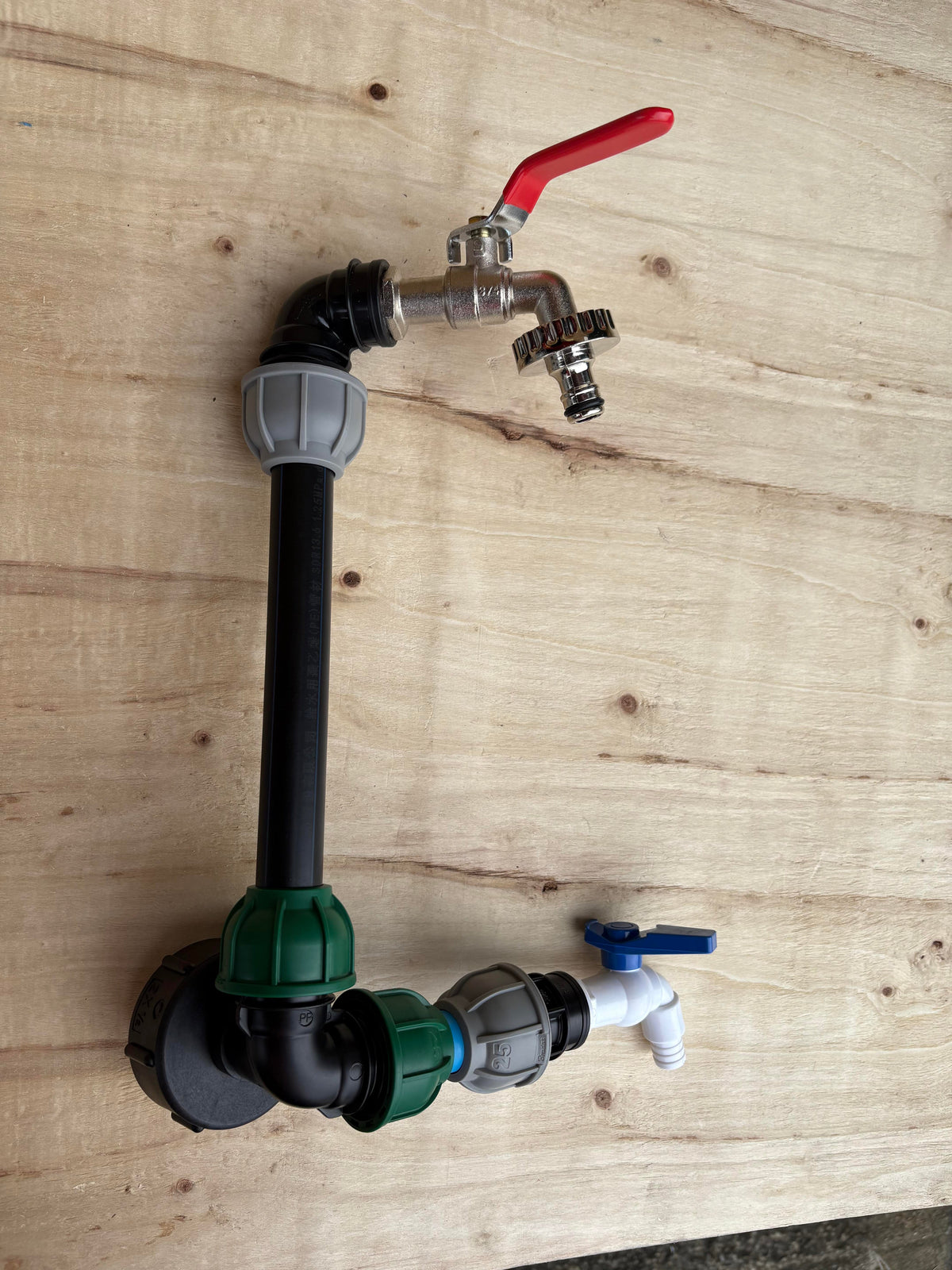

• GTBIB34BRASS001Q: brass bib tap with quick-connect outlet (¾″ BSP male inlet)

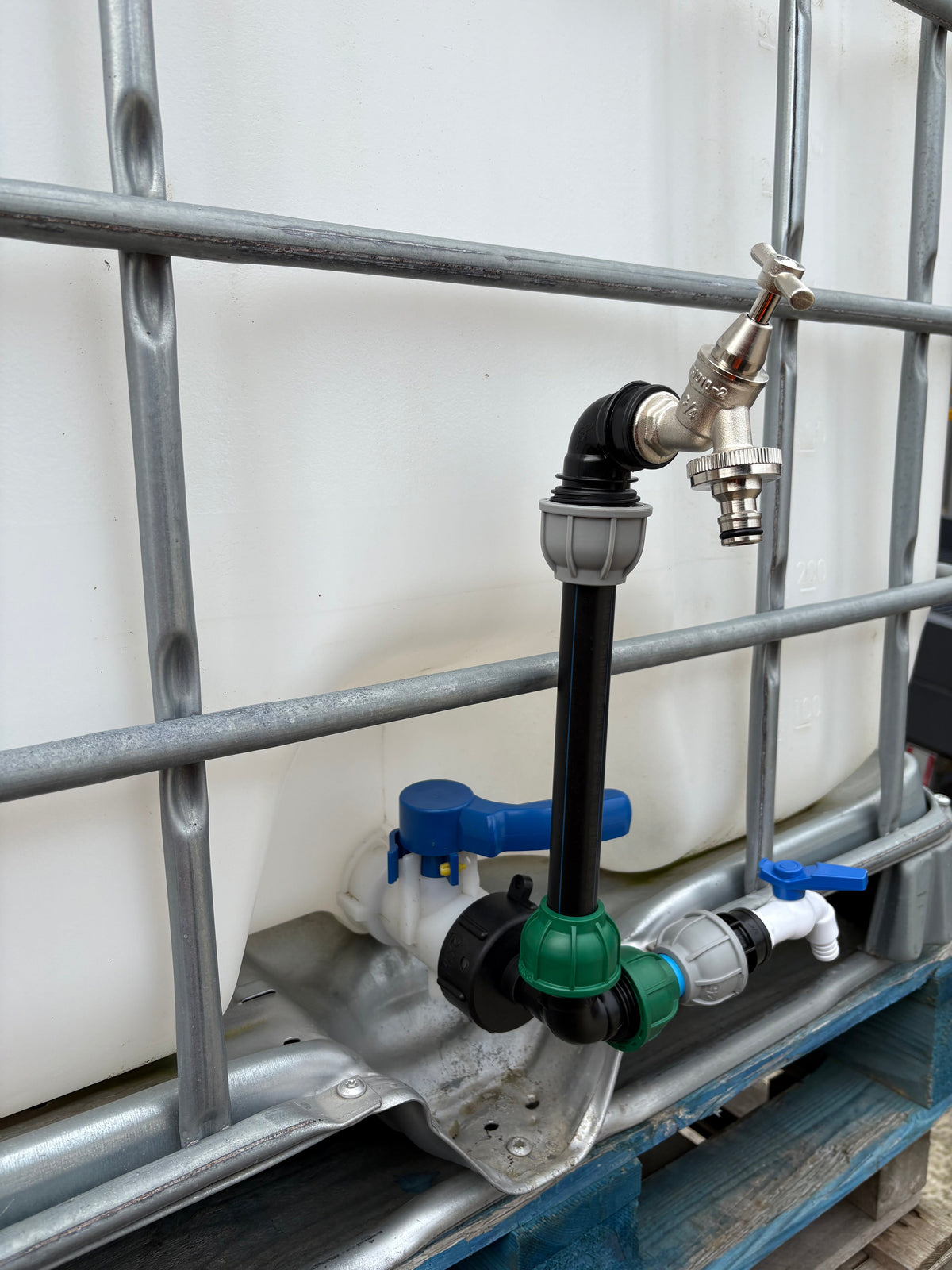

• GTBIB34BRASS001N: nickel-plated brass bib tap with barbed outlet (¾″ BSP male inlet)

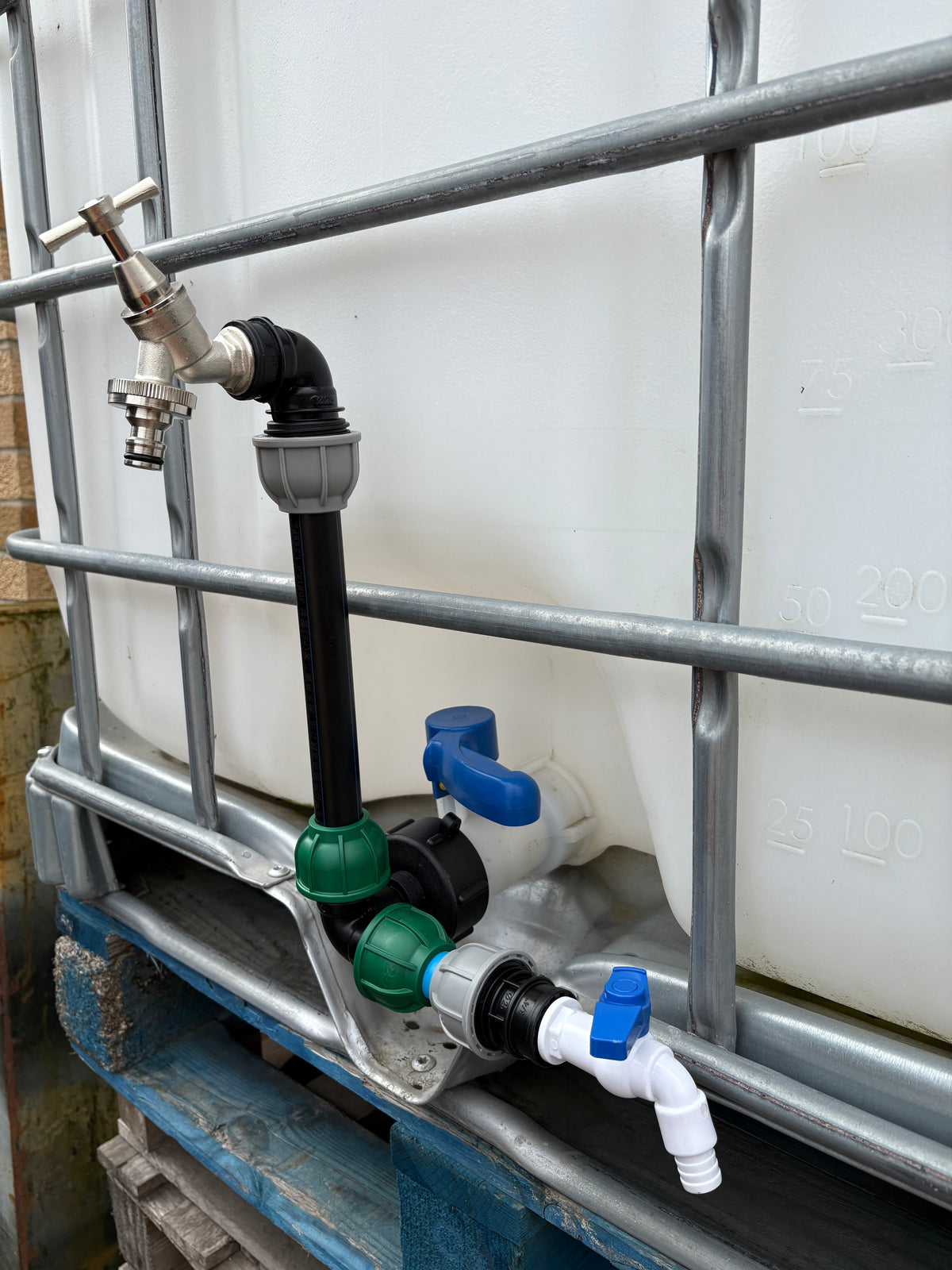

• GTBIB34BRASS001NQ: nickel-plated brass bib tap with quick-connect outlet (¾″ BSP male inlet)

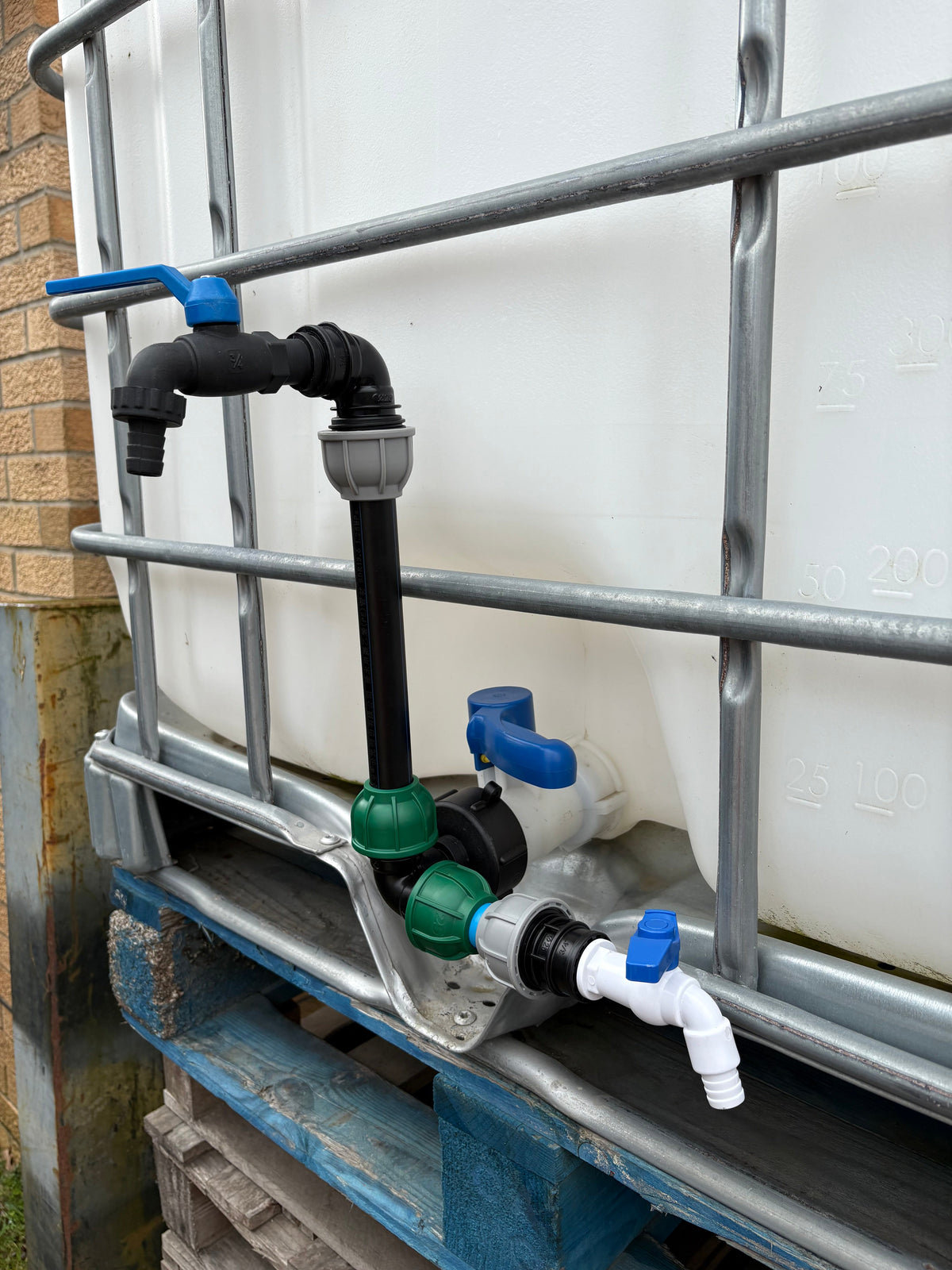

• GTBR03434NN-001: black nylon tap with barb (¾″ BSP male inlet)

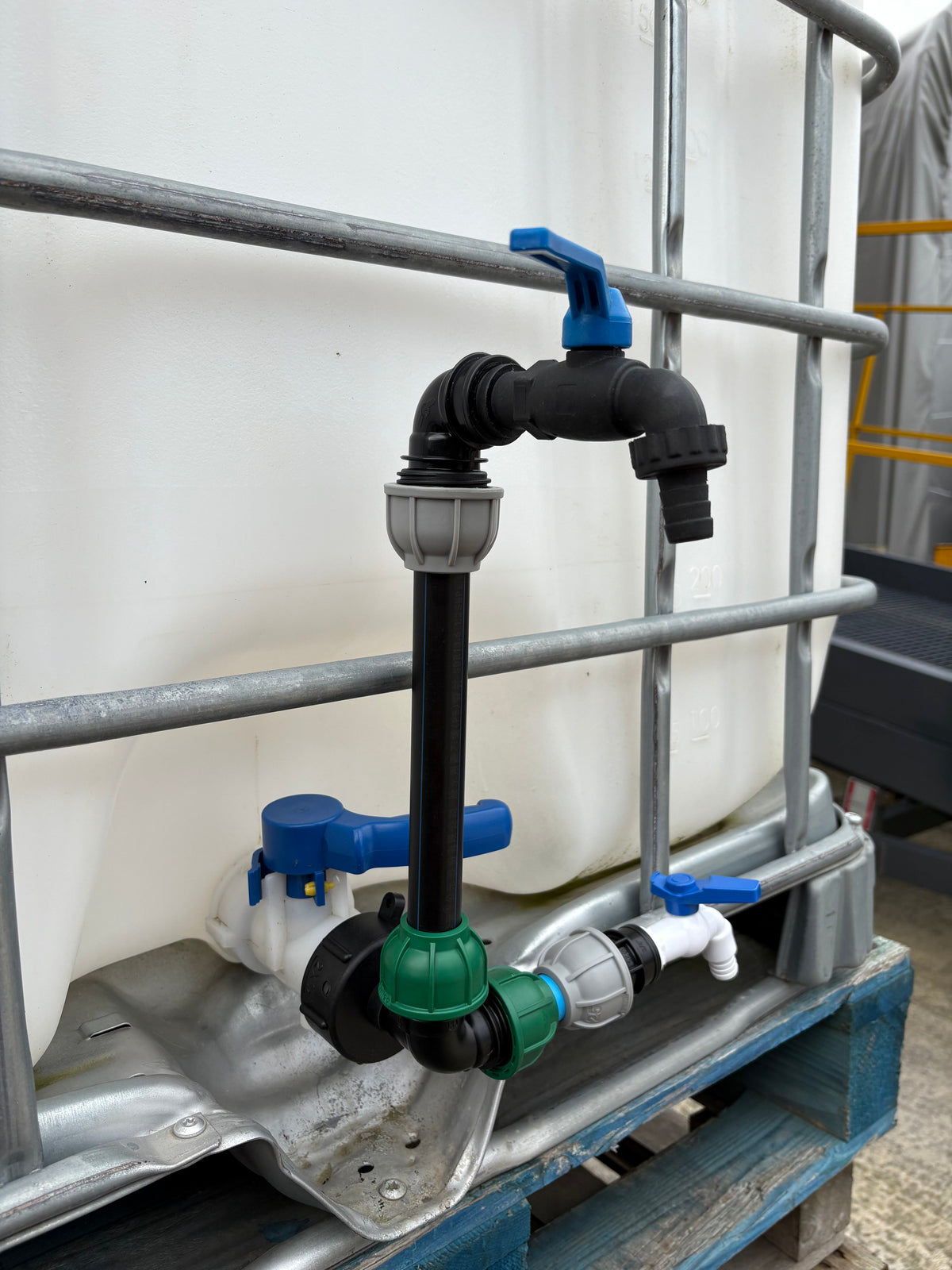

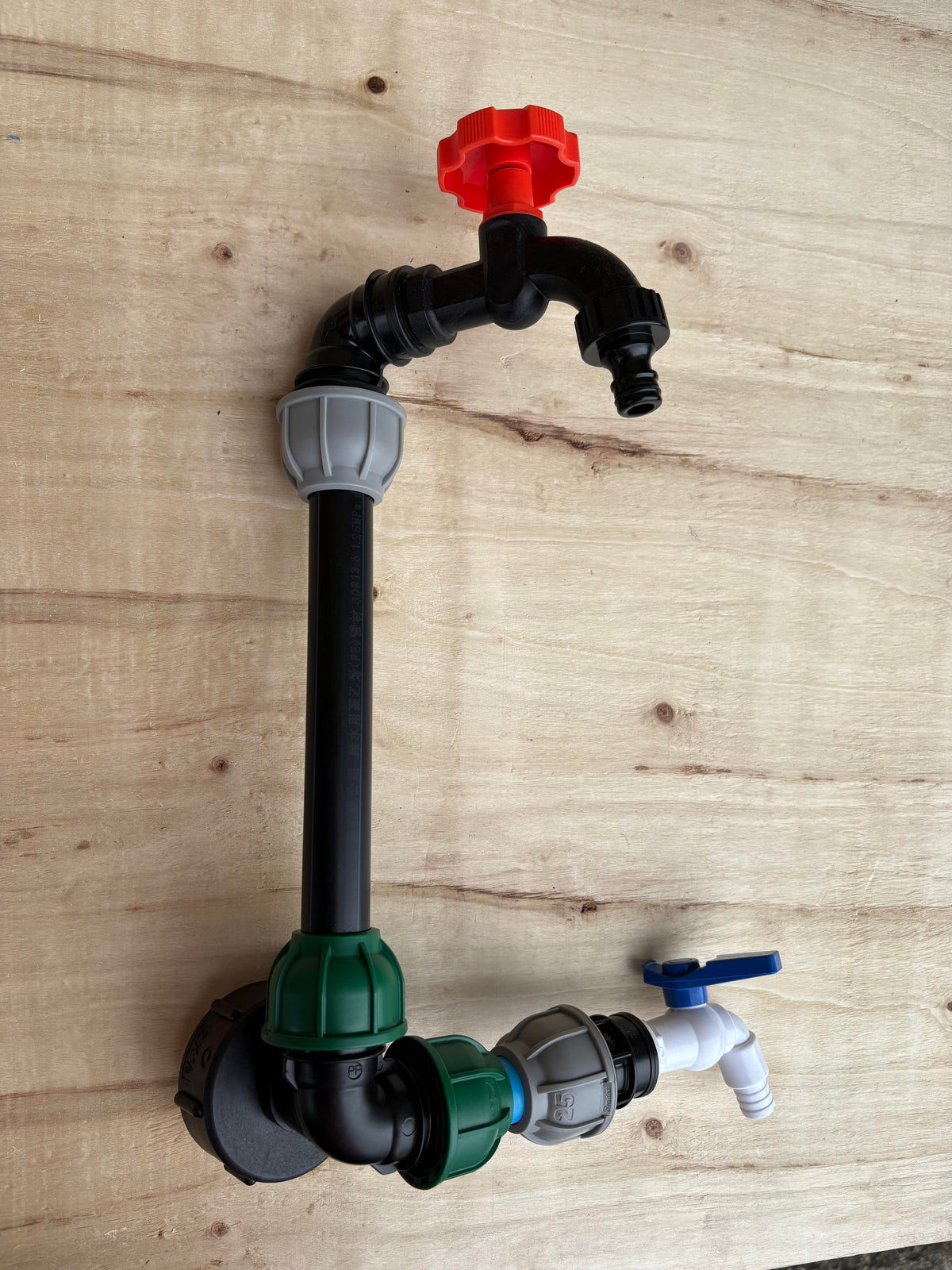

• GT-BL-34-001: black/orange plastic tap (¾″ BSP male inlet)

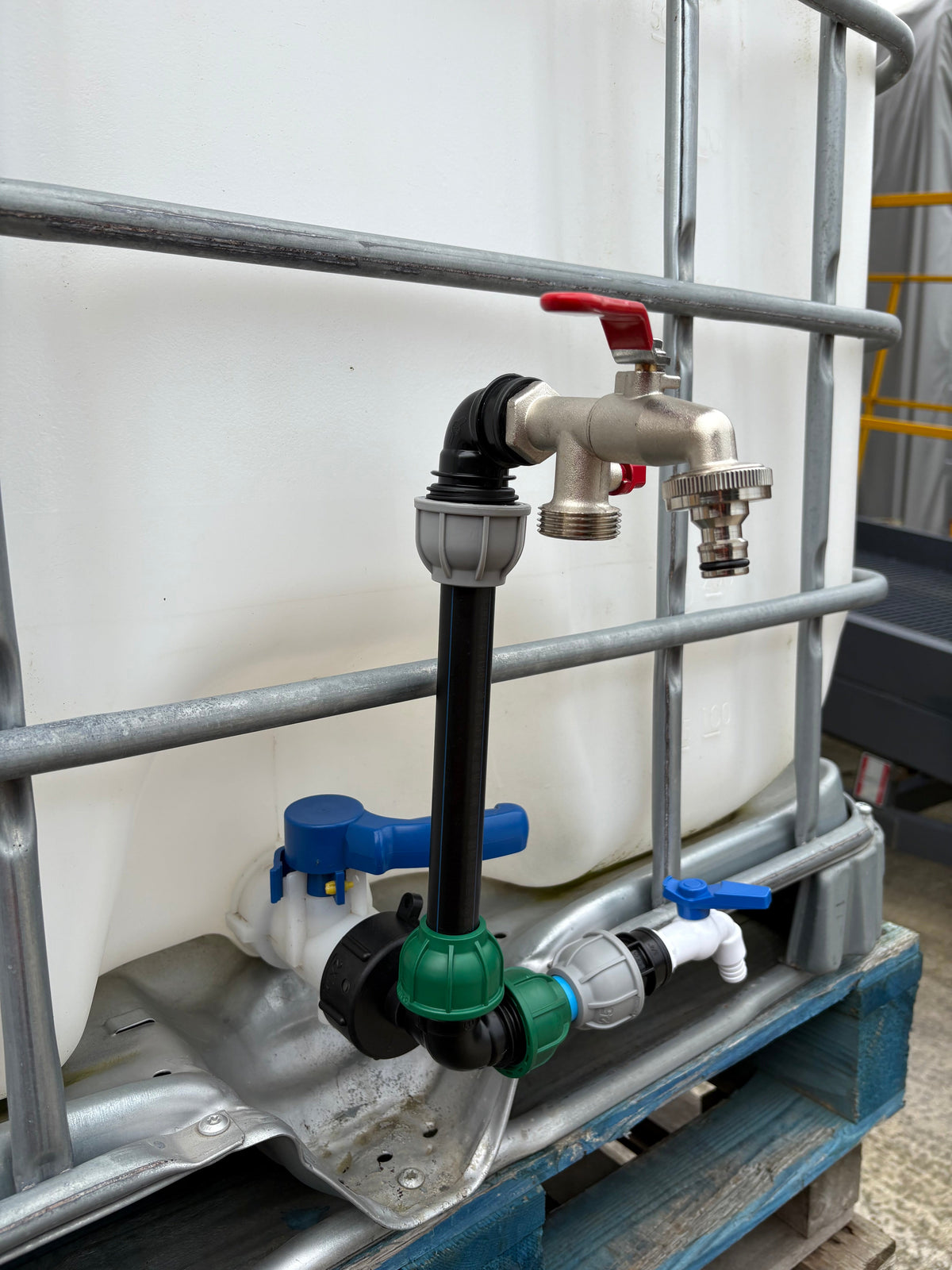

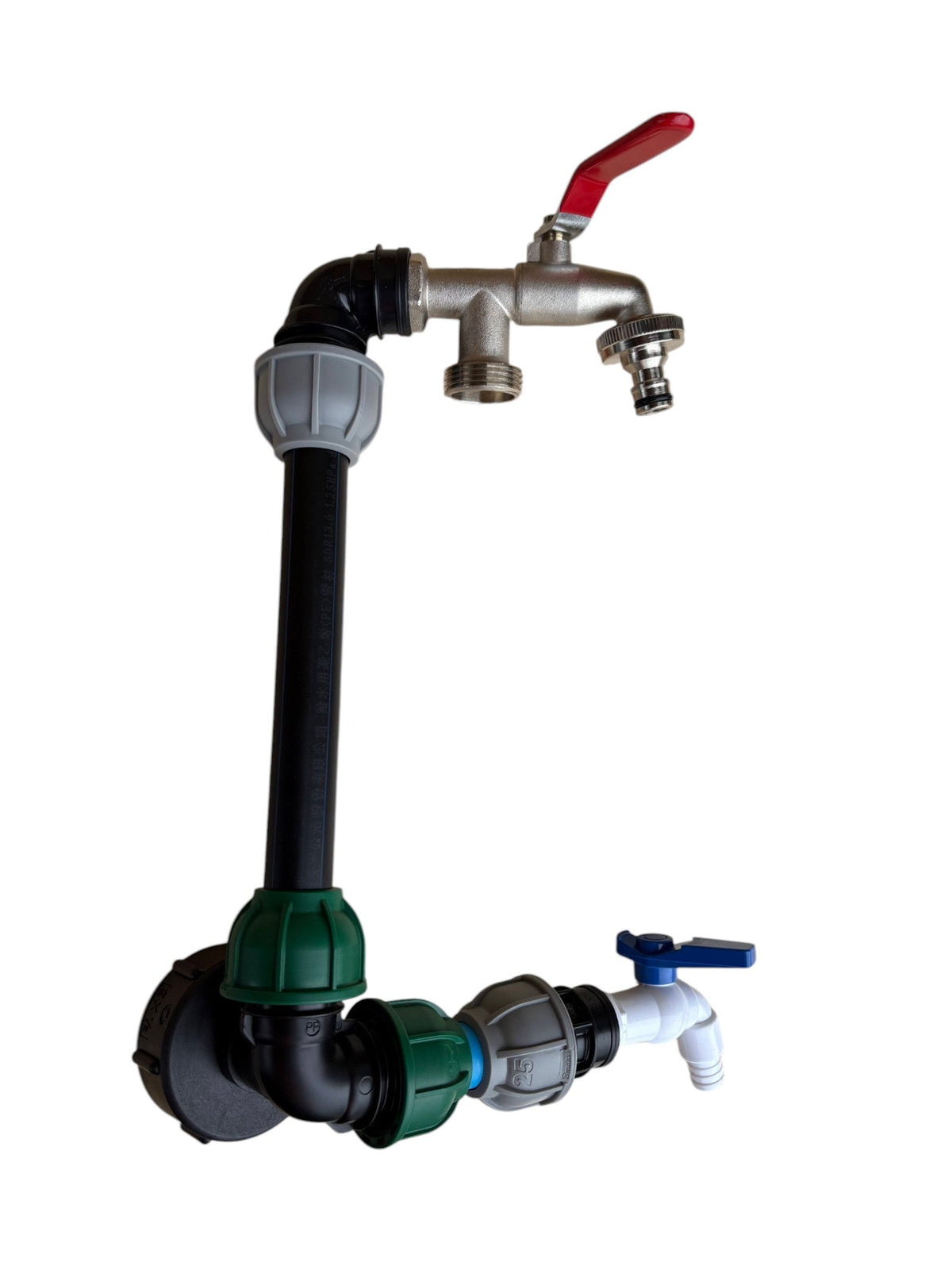

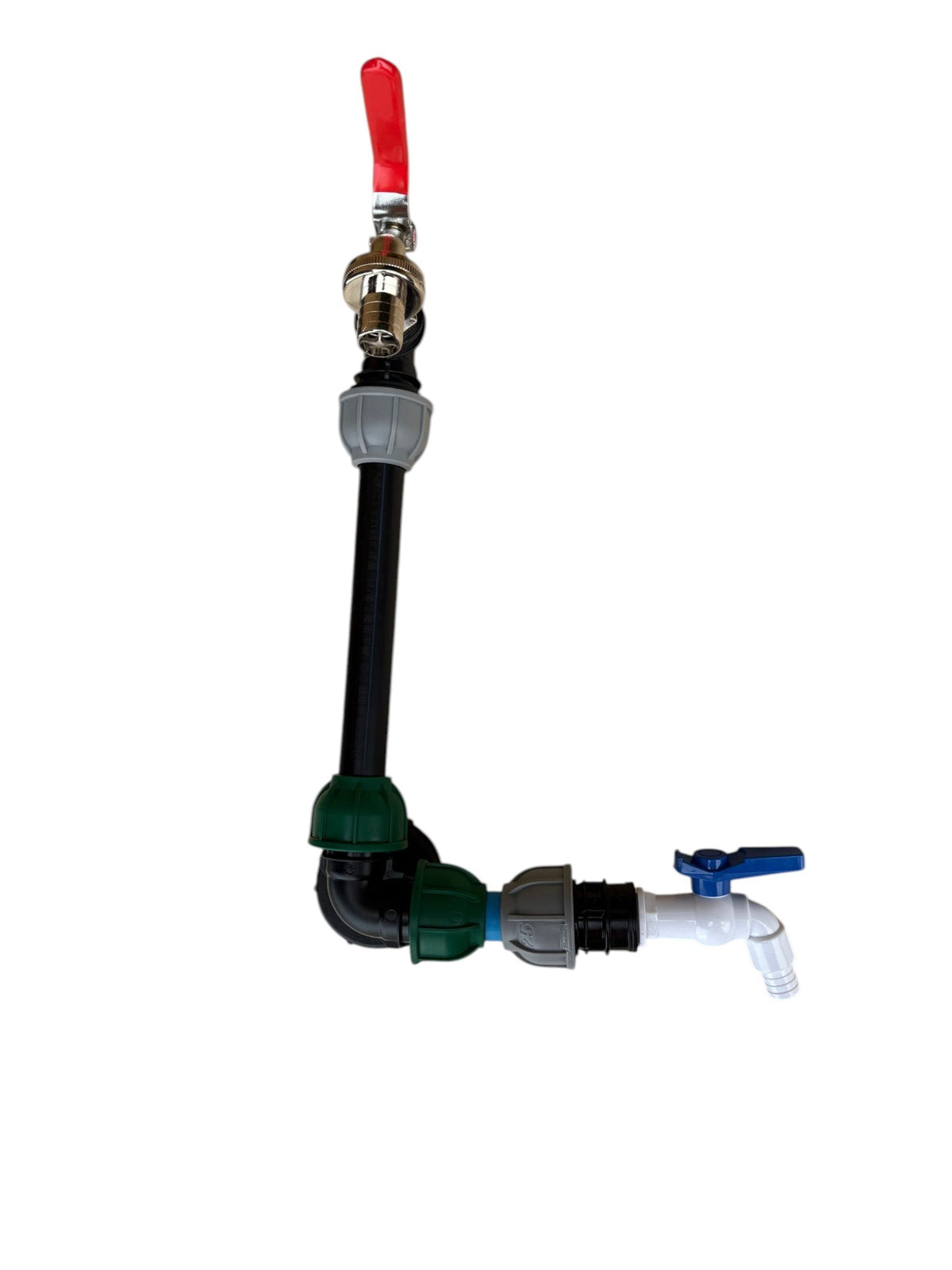

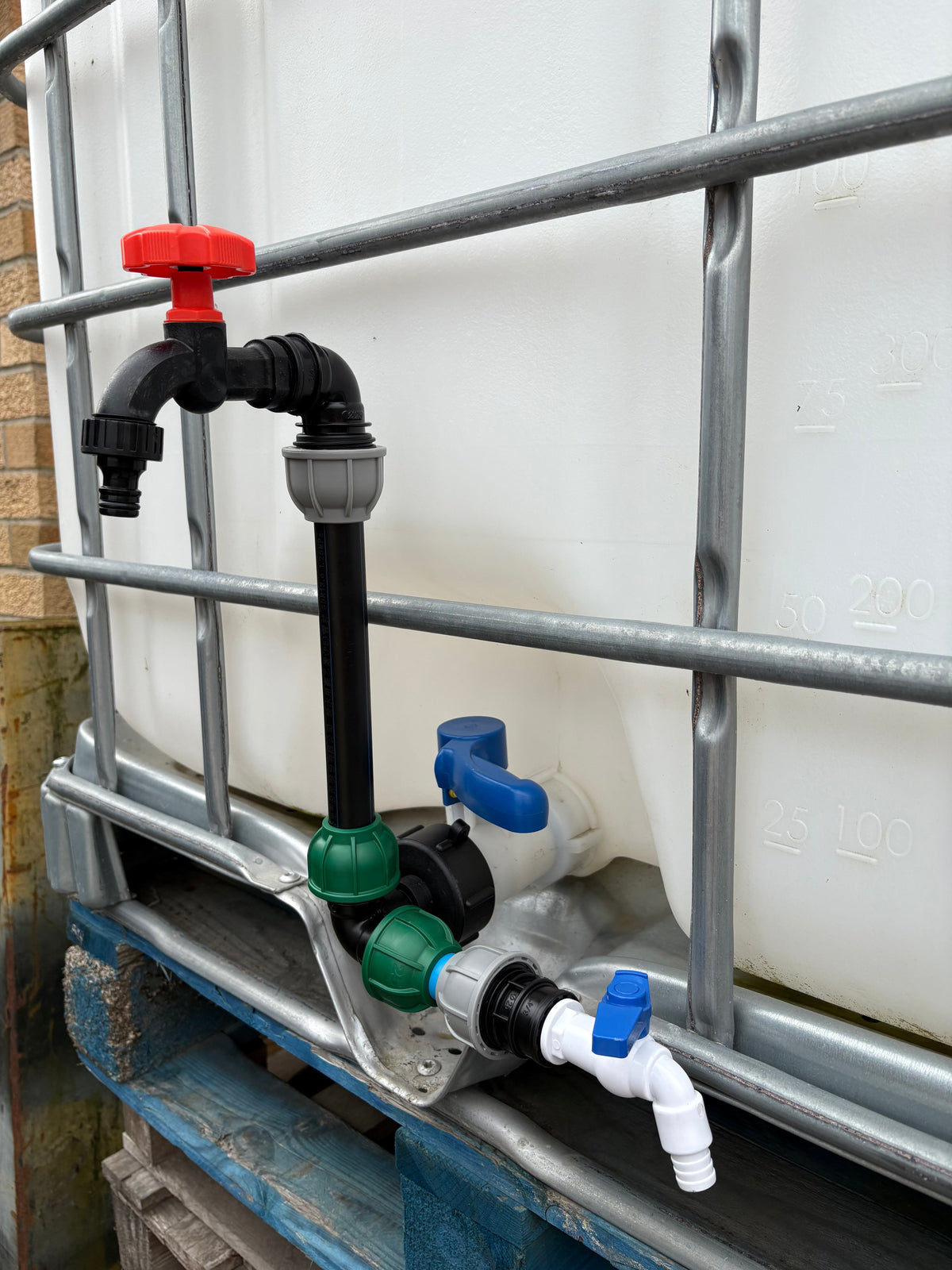

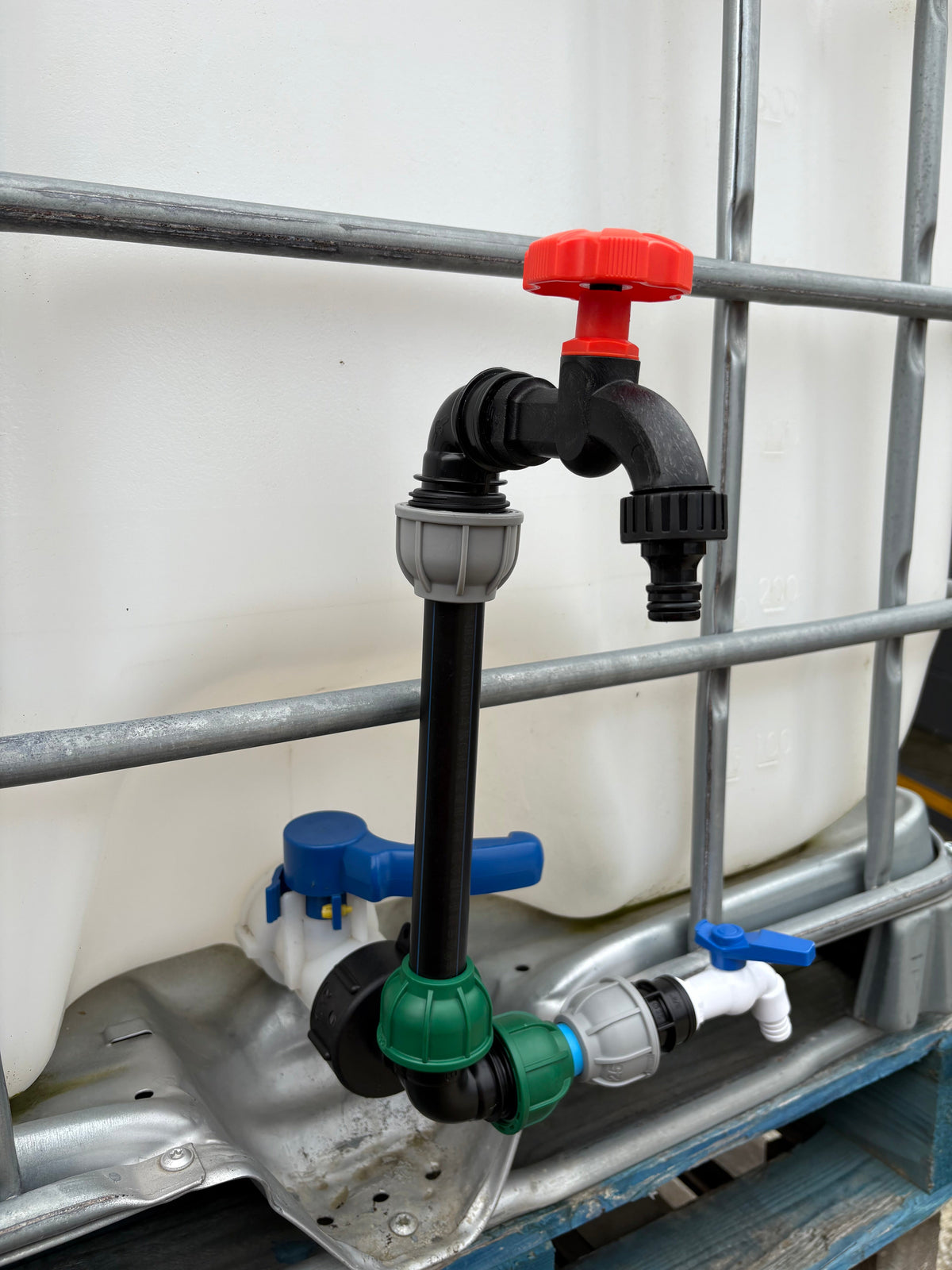

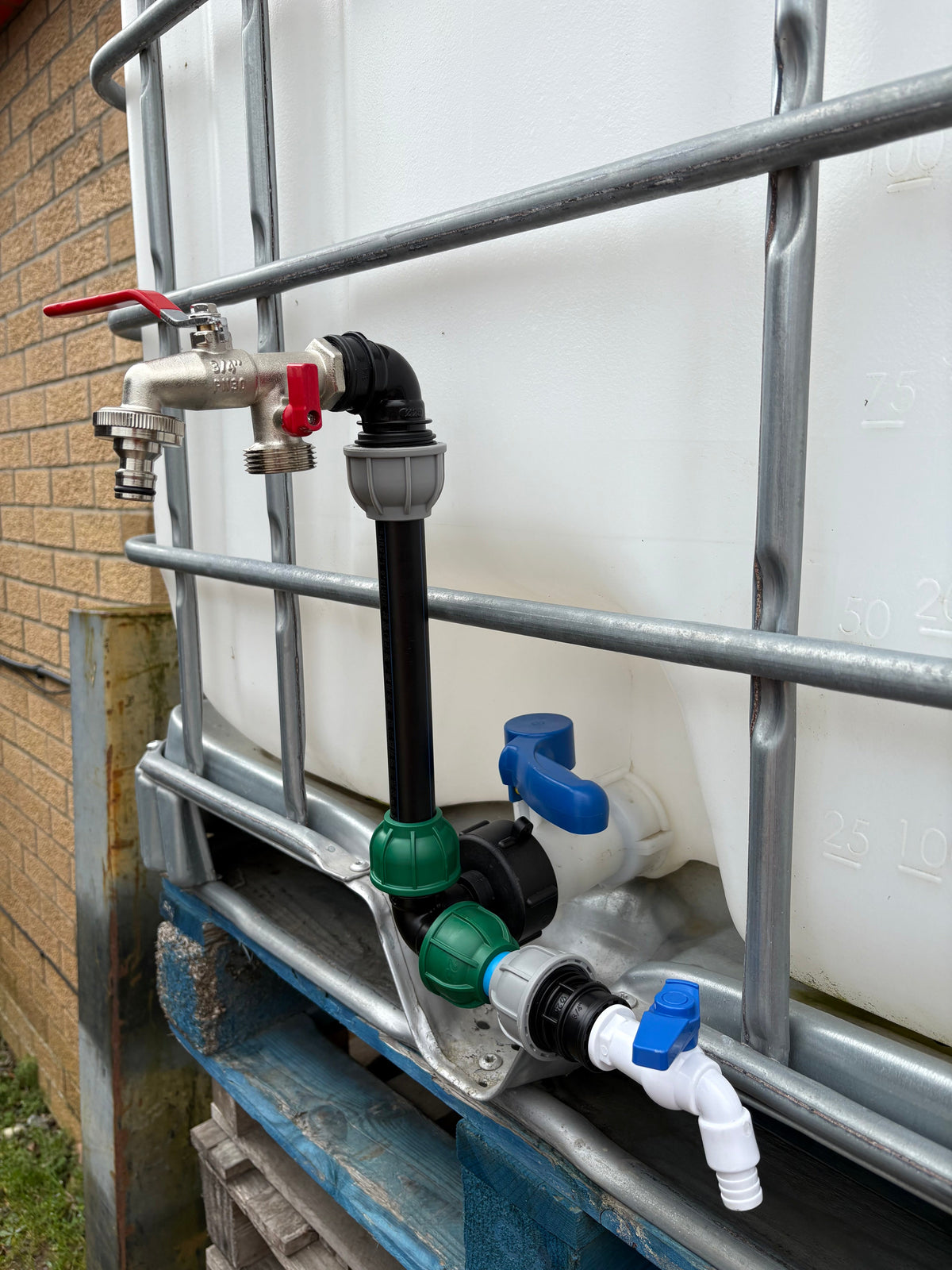

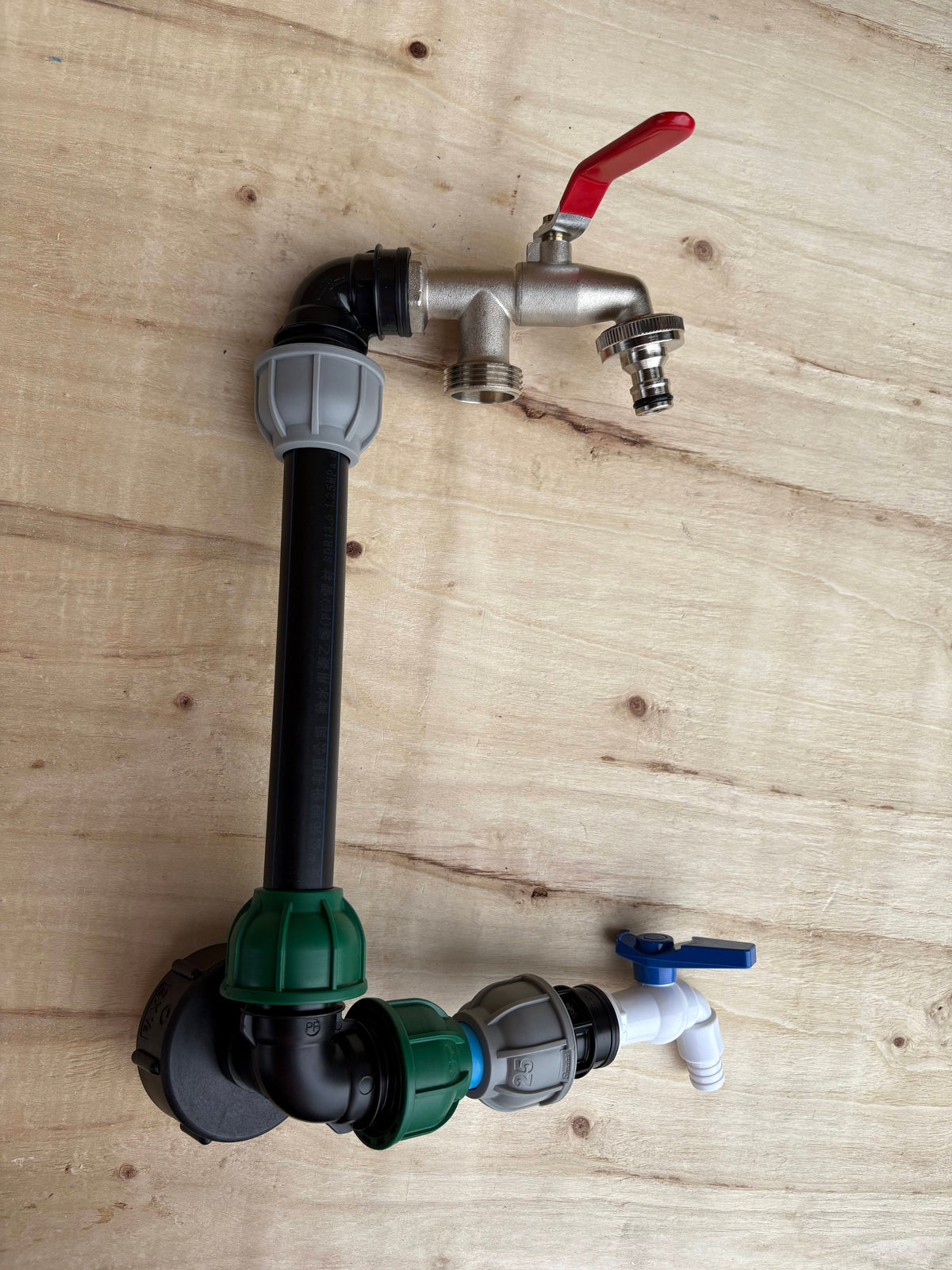

• GT-D-LEVER34Q001: double lever tap (¾″ BSP male inlet)

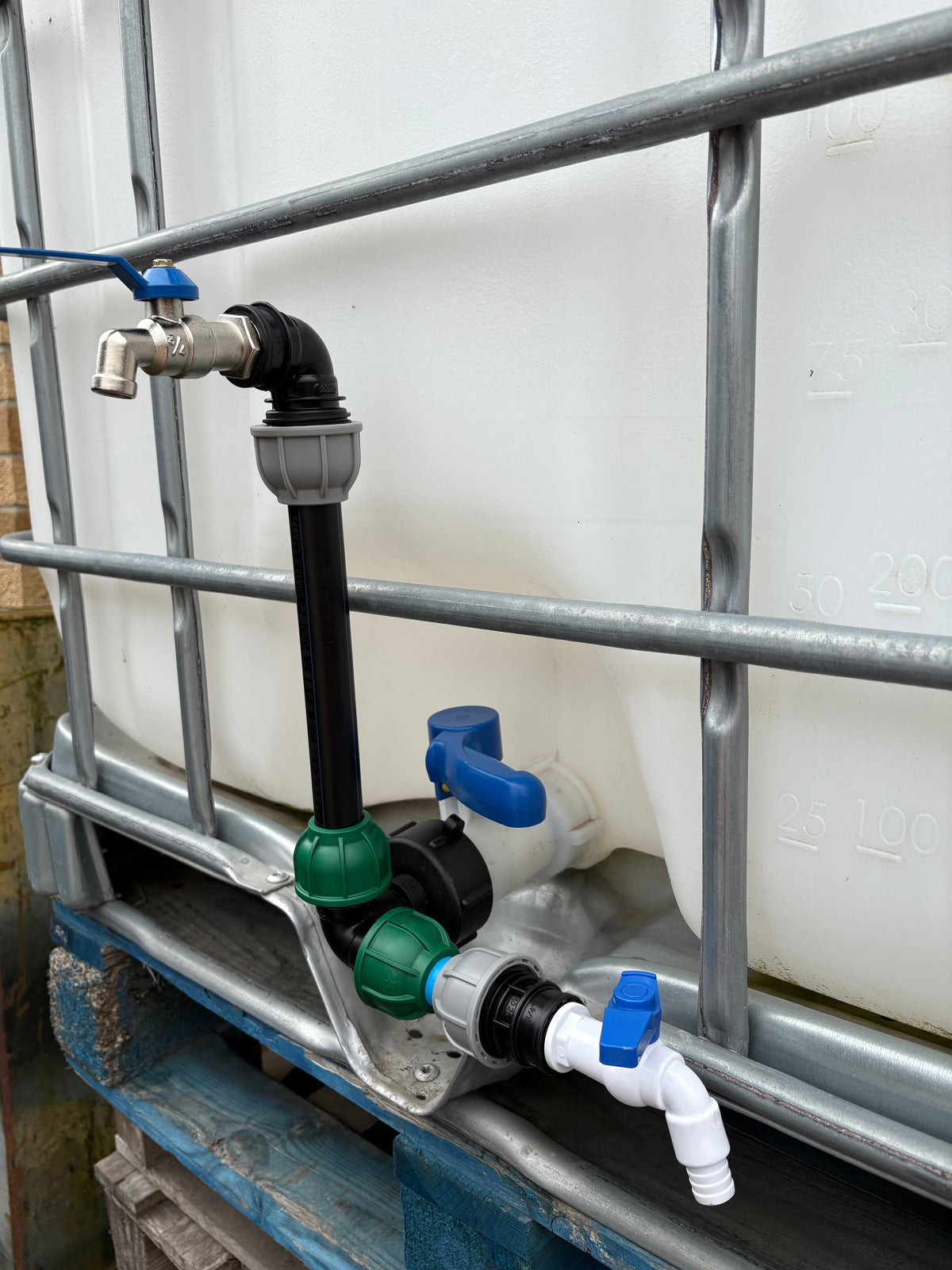

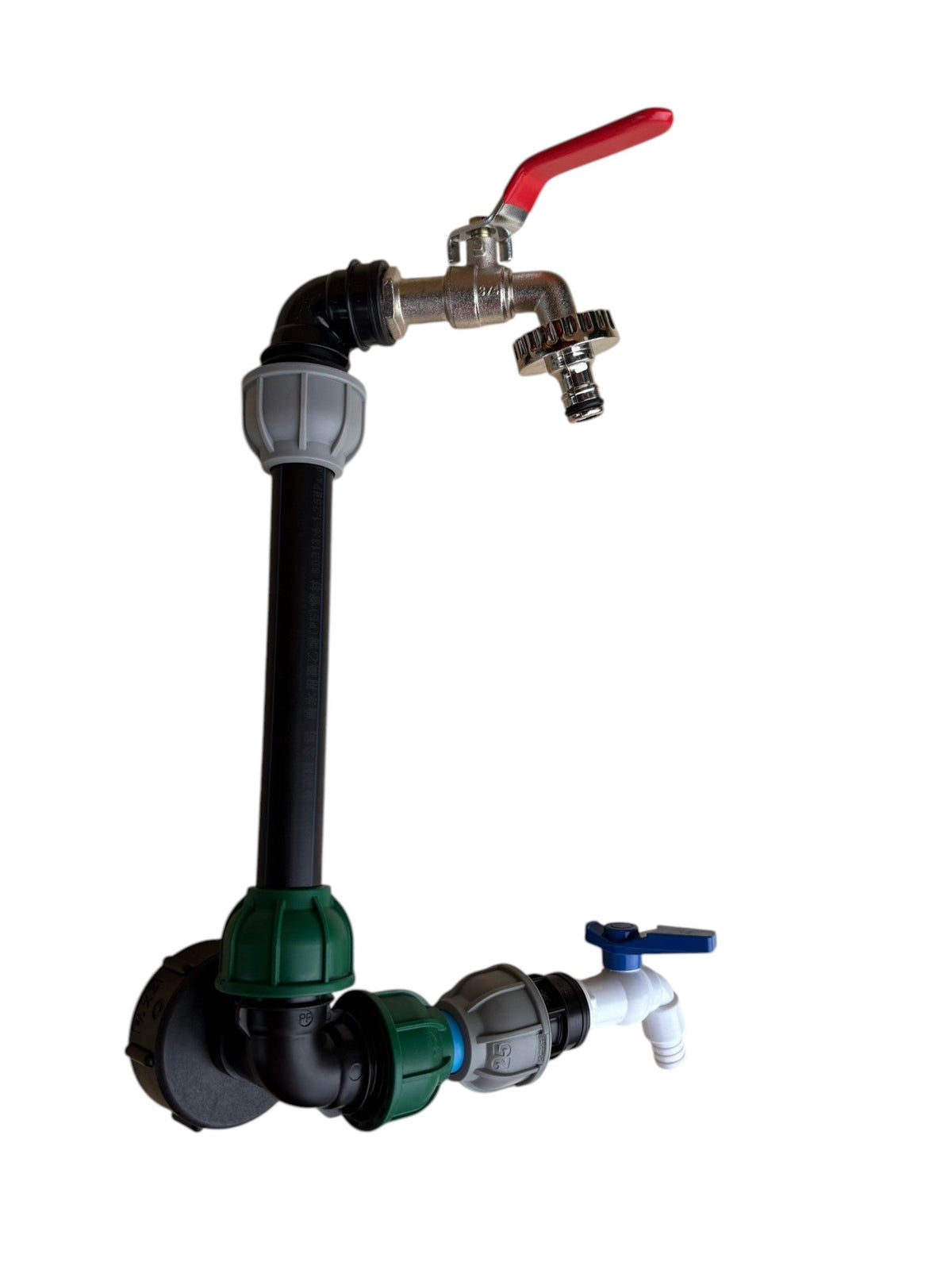

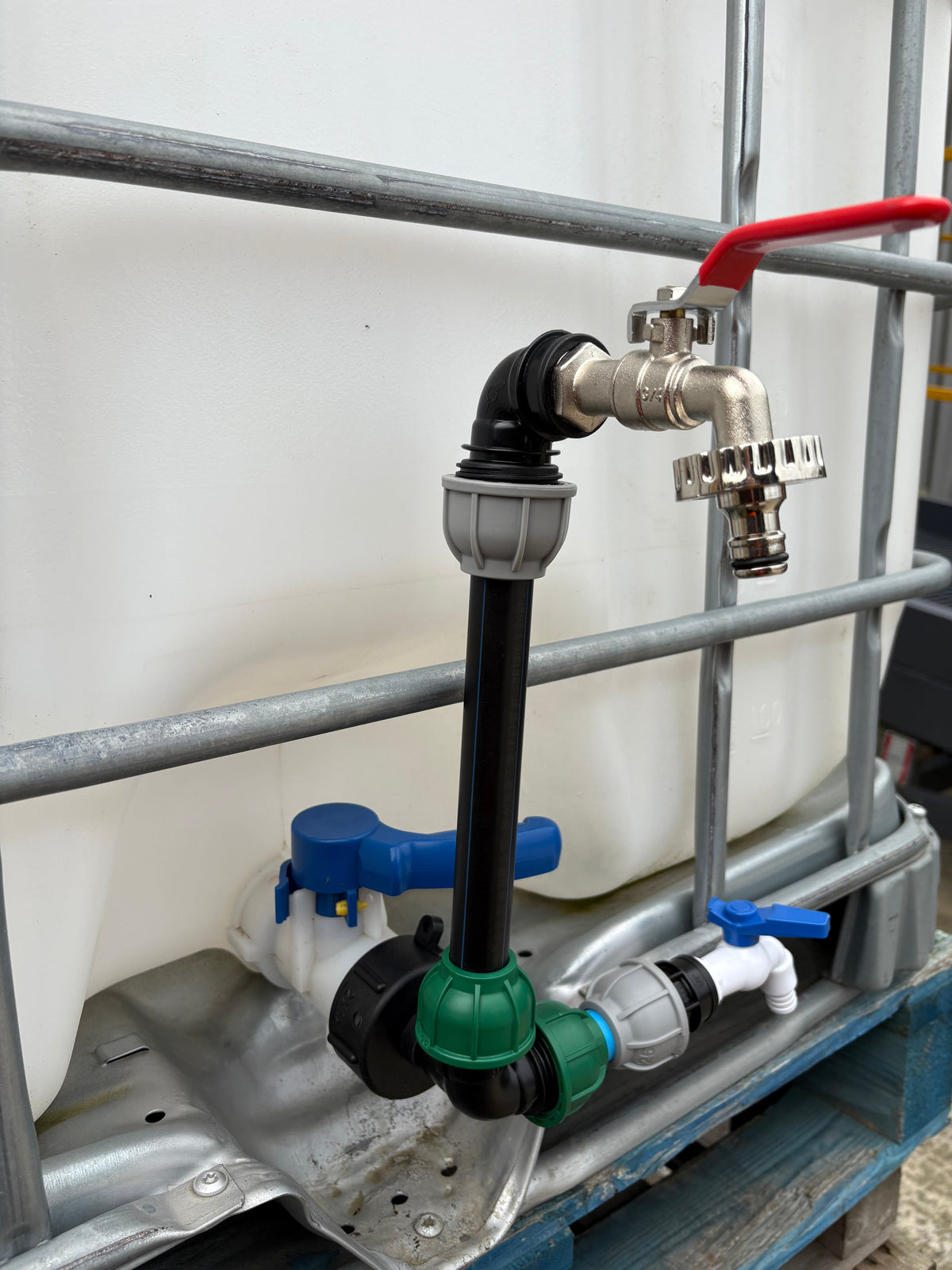

• GTLEVER-ZINC34B001: zinc nickel-plated lever tap with barb (¾″ BSP male inlet)

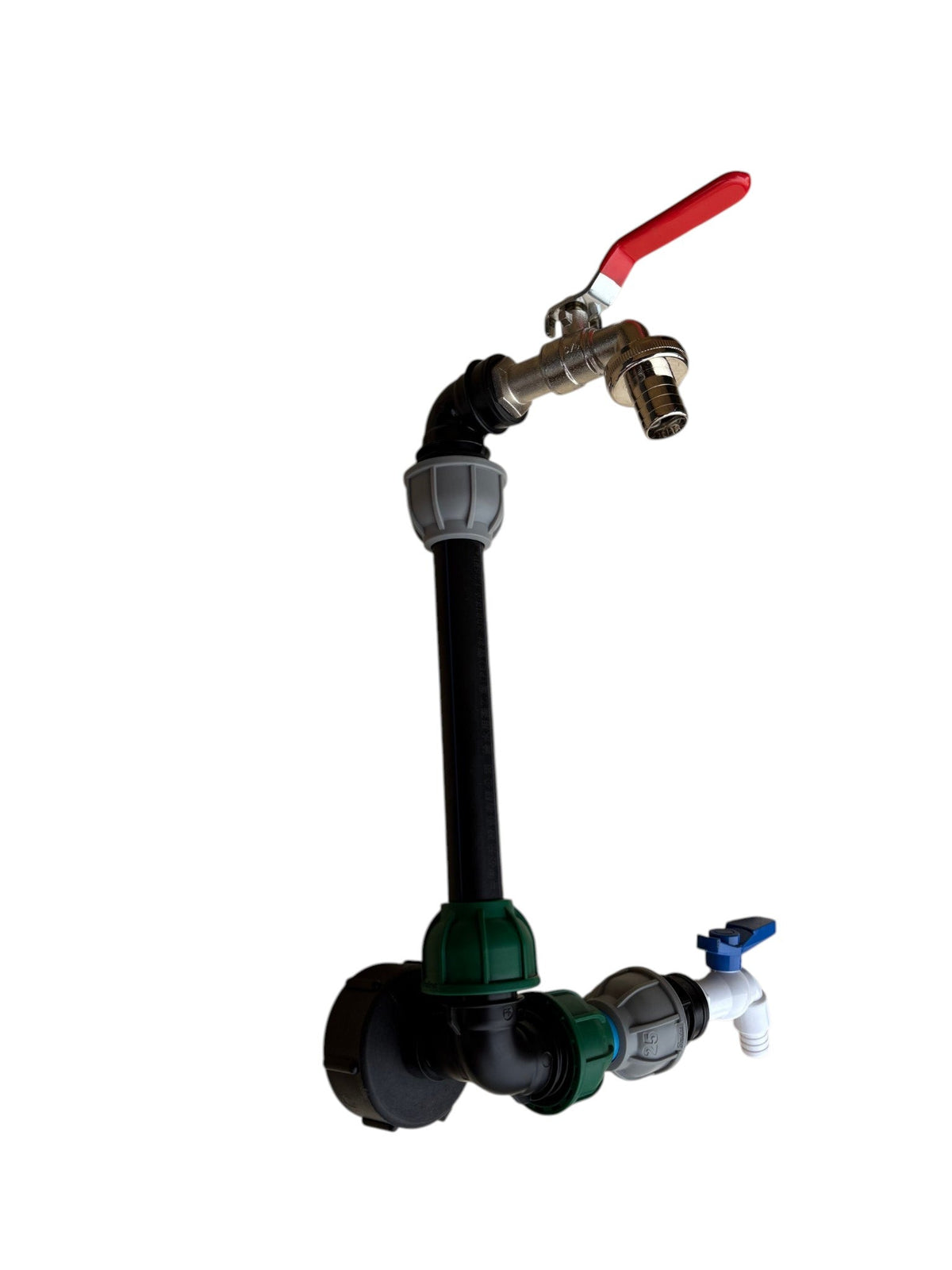

• GTLEVER-ZINC34Q001: zinc nickel-plated lever tap with quick connector (¾″ BSP male inlet)
• GTLEVER34ST001: basic lever tap with plain outlet (¾″ BSP male inlet)
• GTM3412PVC-001: second white/blue plastic tap (¾″ BSP male inlet)

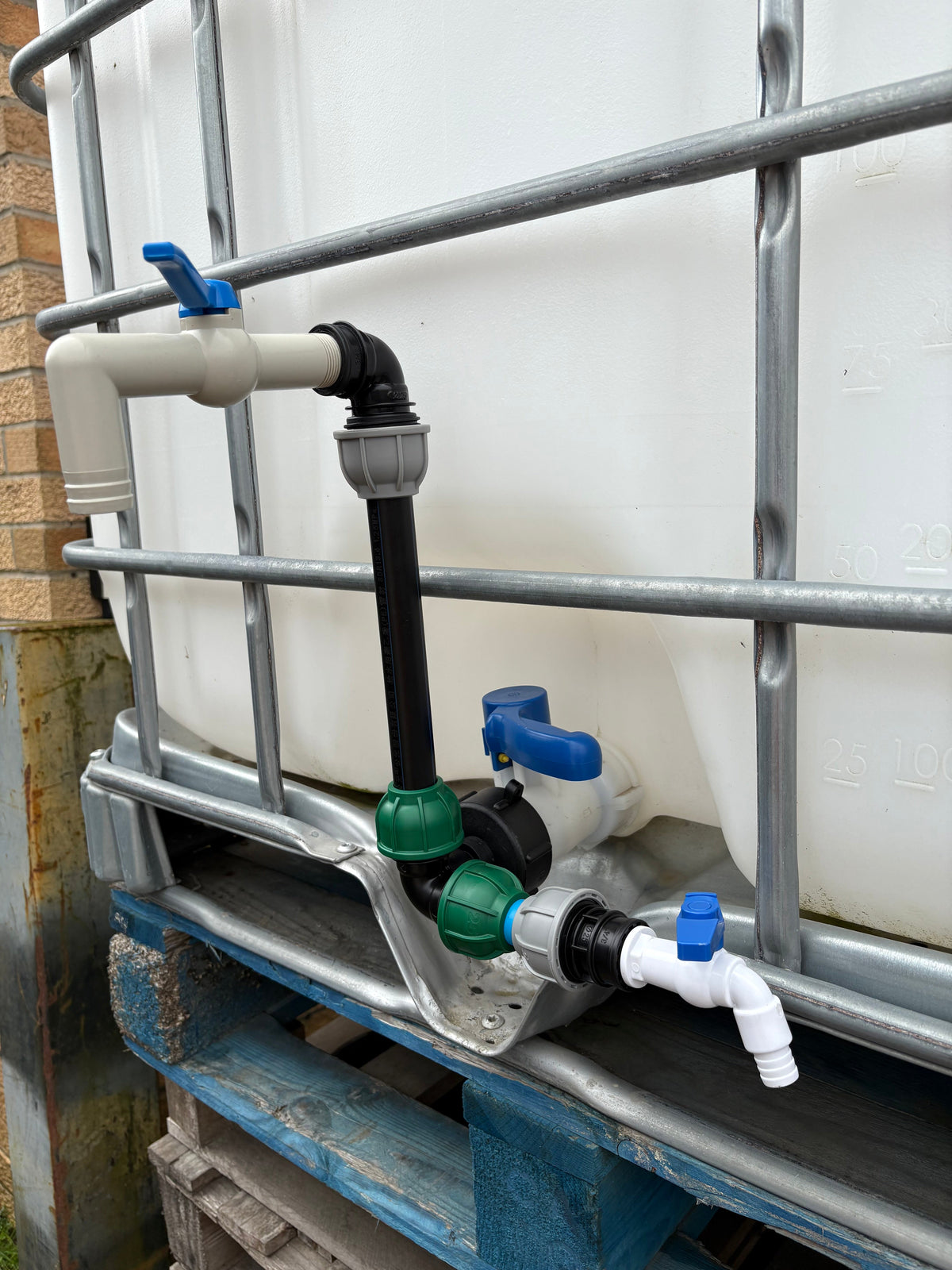

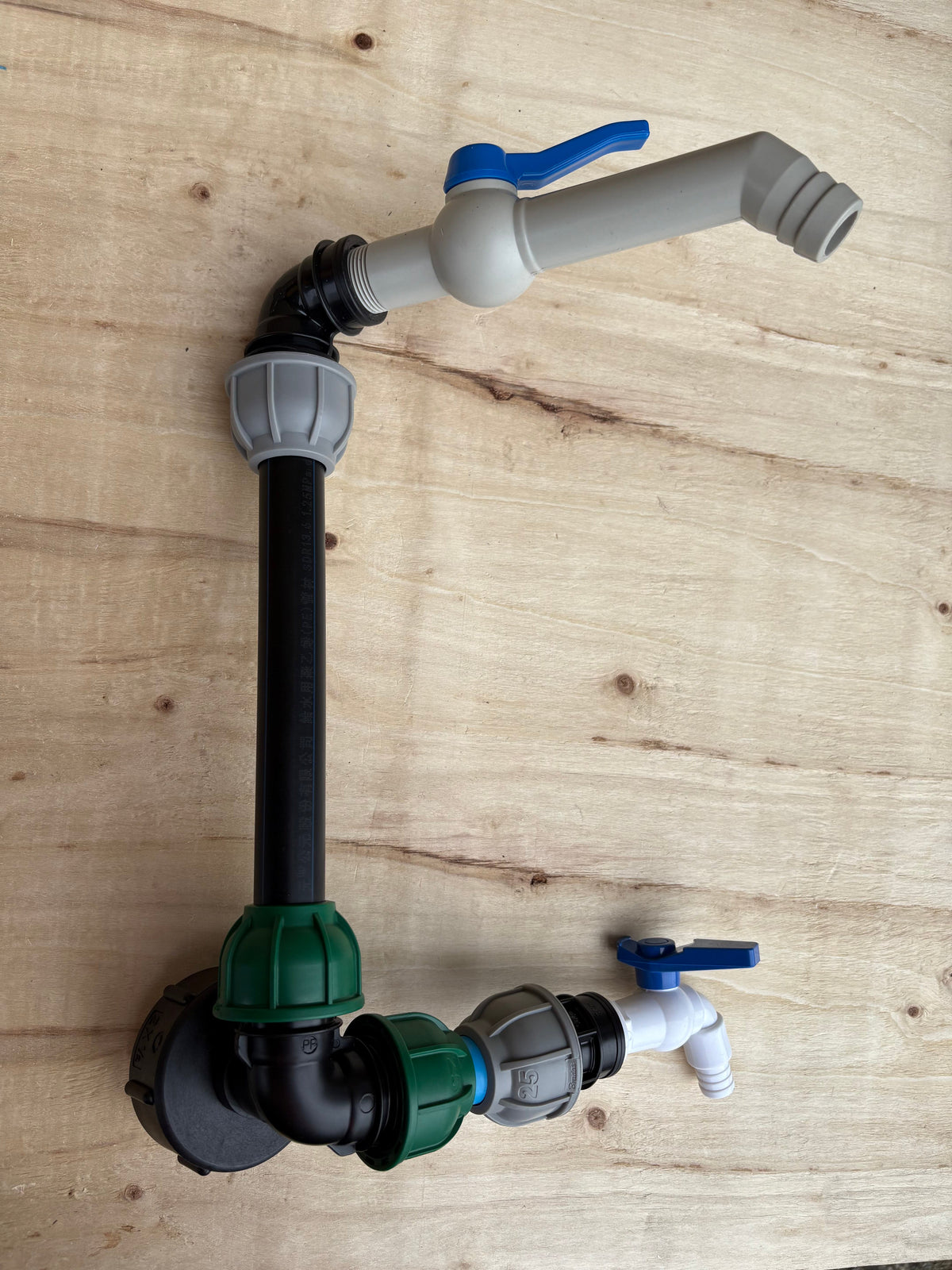

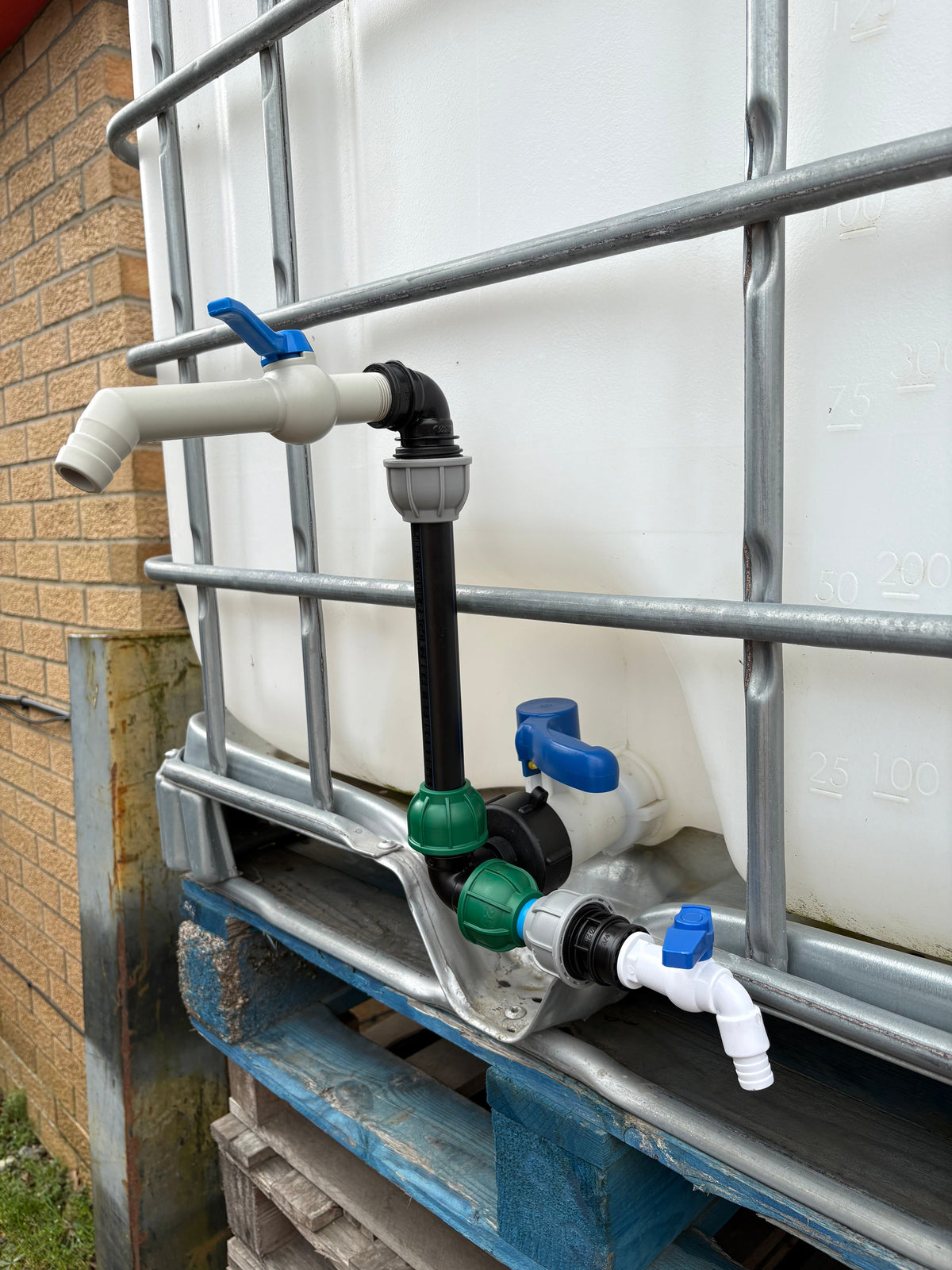

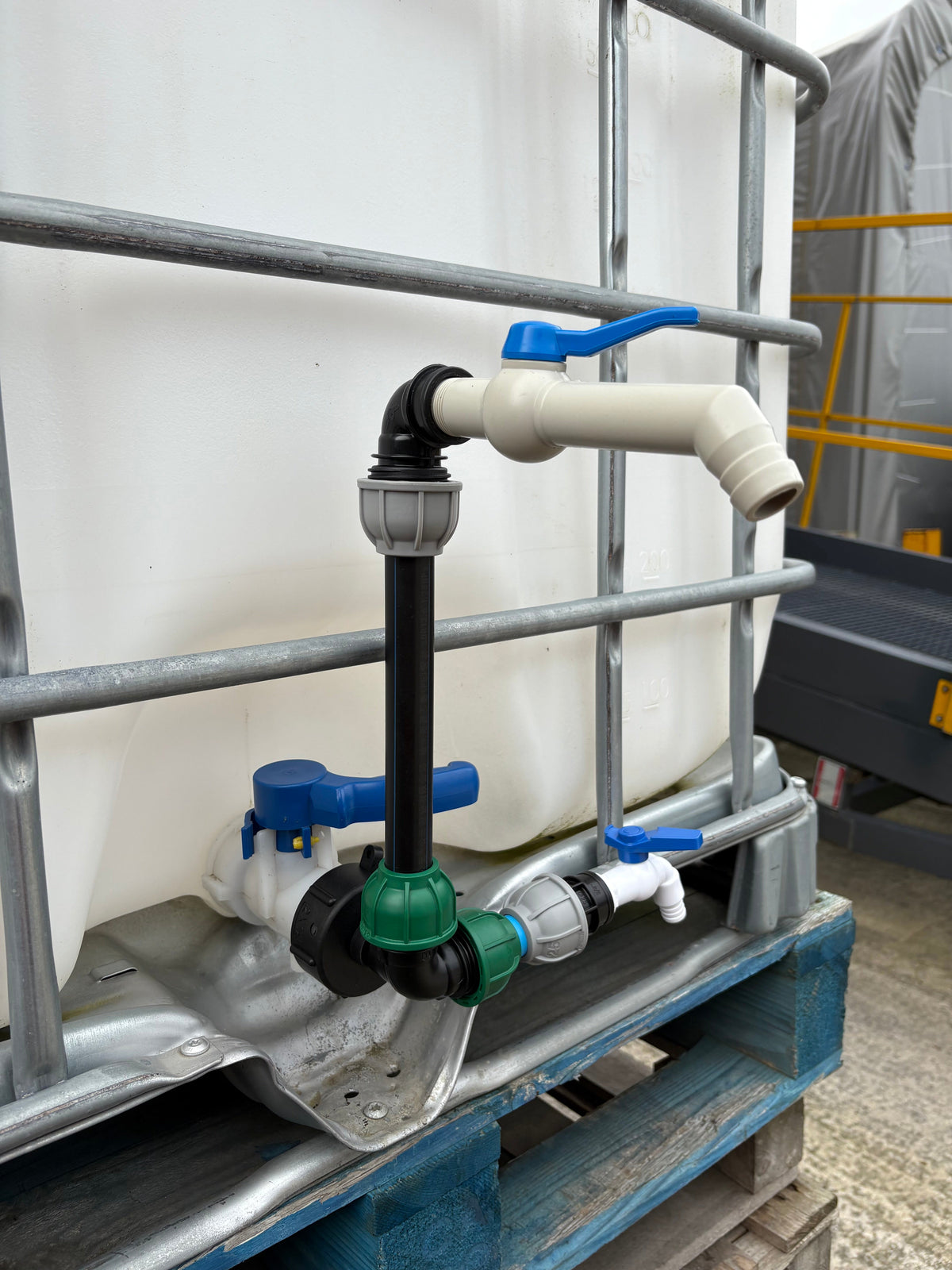

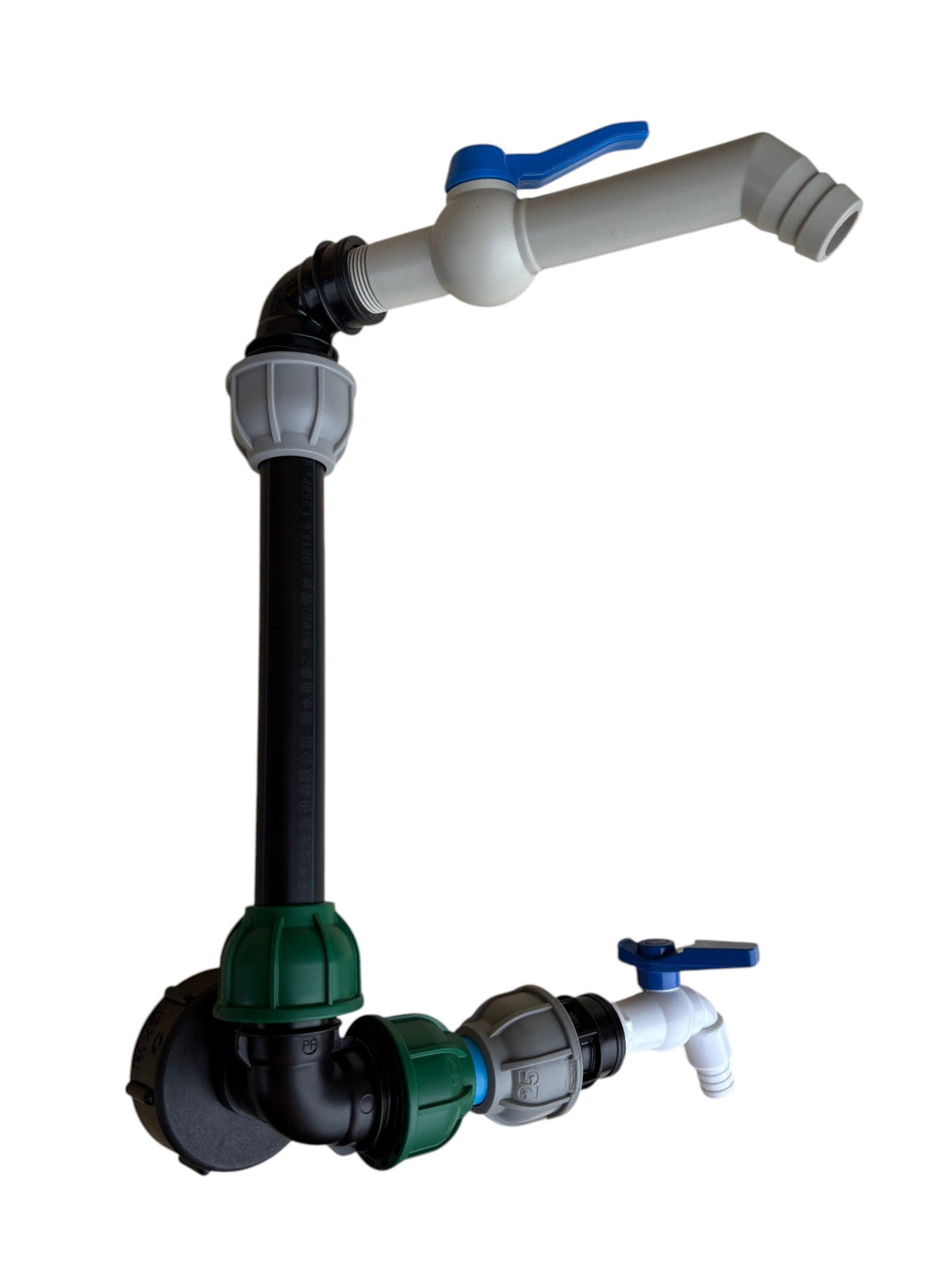

• IBCTAP34BSPM-45D-001: polypropylene 45° tap, 190mm (¾″ BSP male inlet)

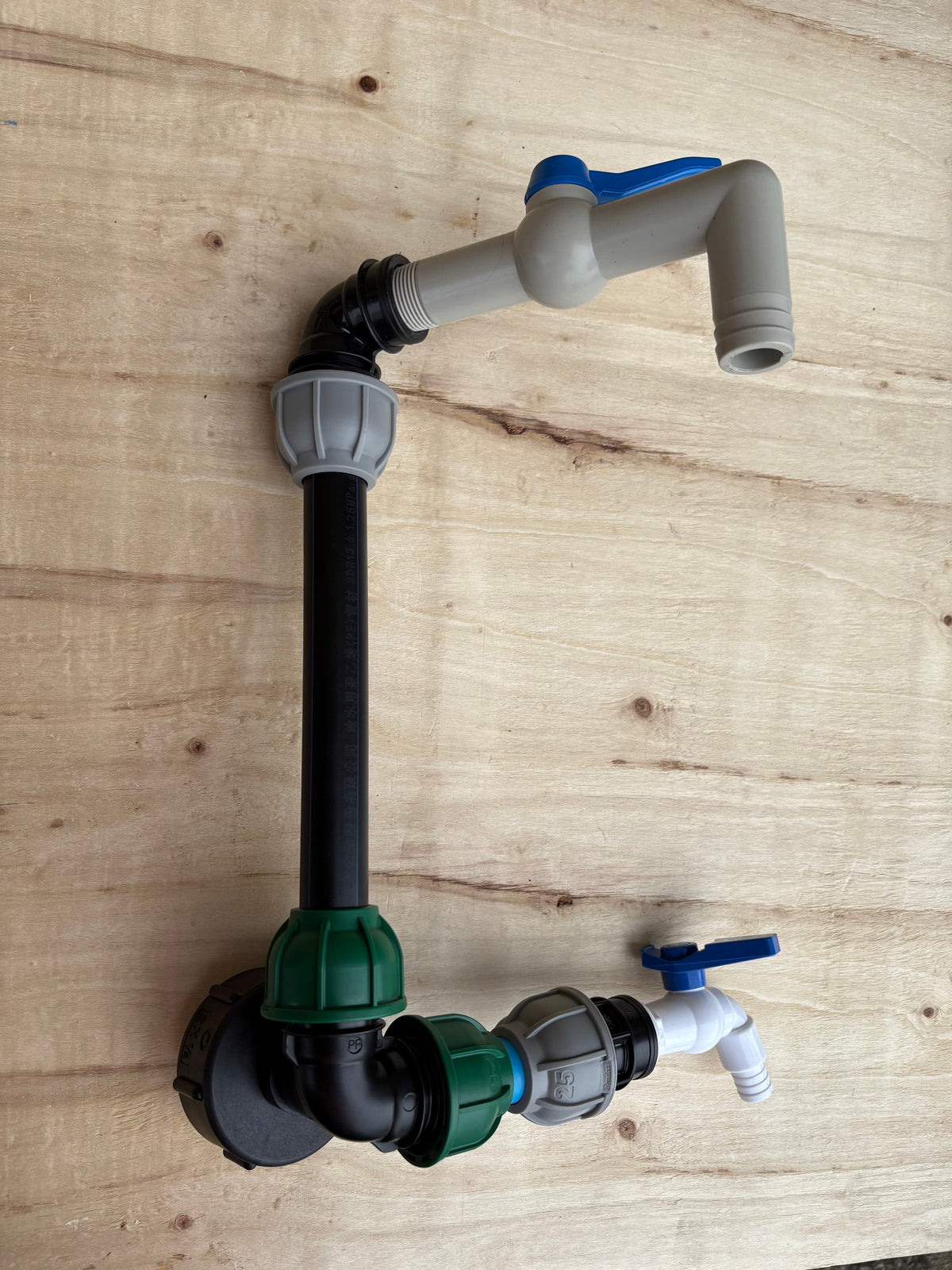

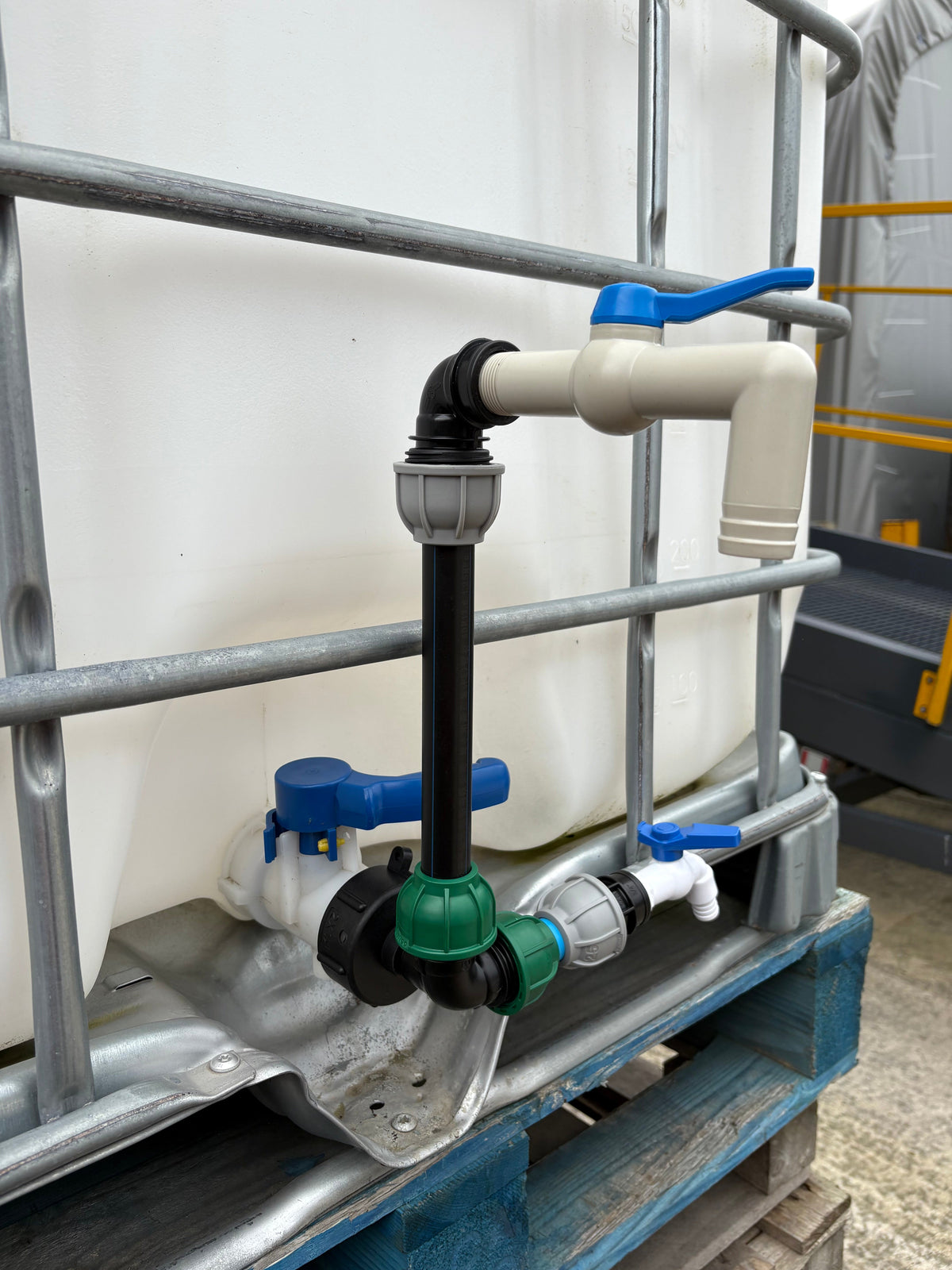

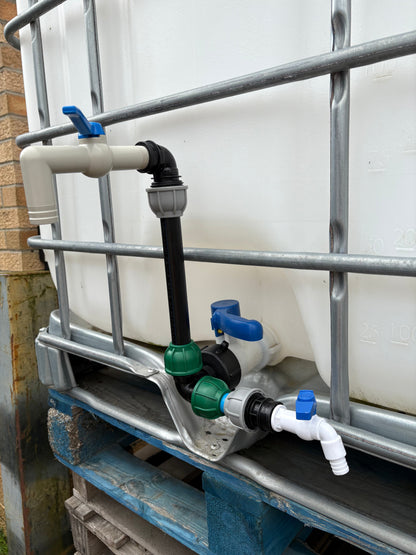

• IBCTAP34BSPM-90D-001: polypropylene 90° tap, 160mm (¾″ BSP male inlet)

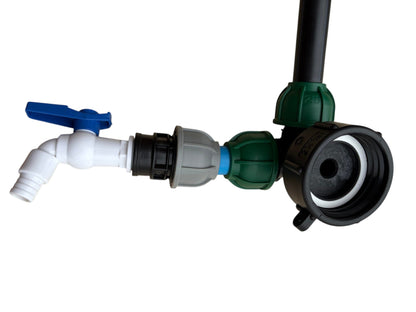

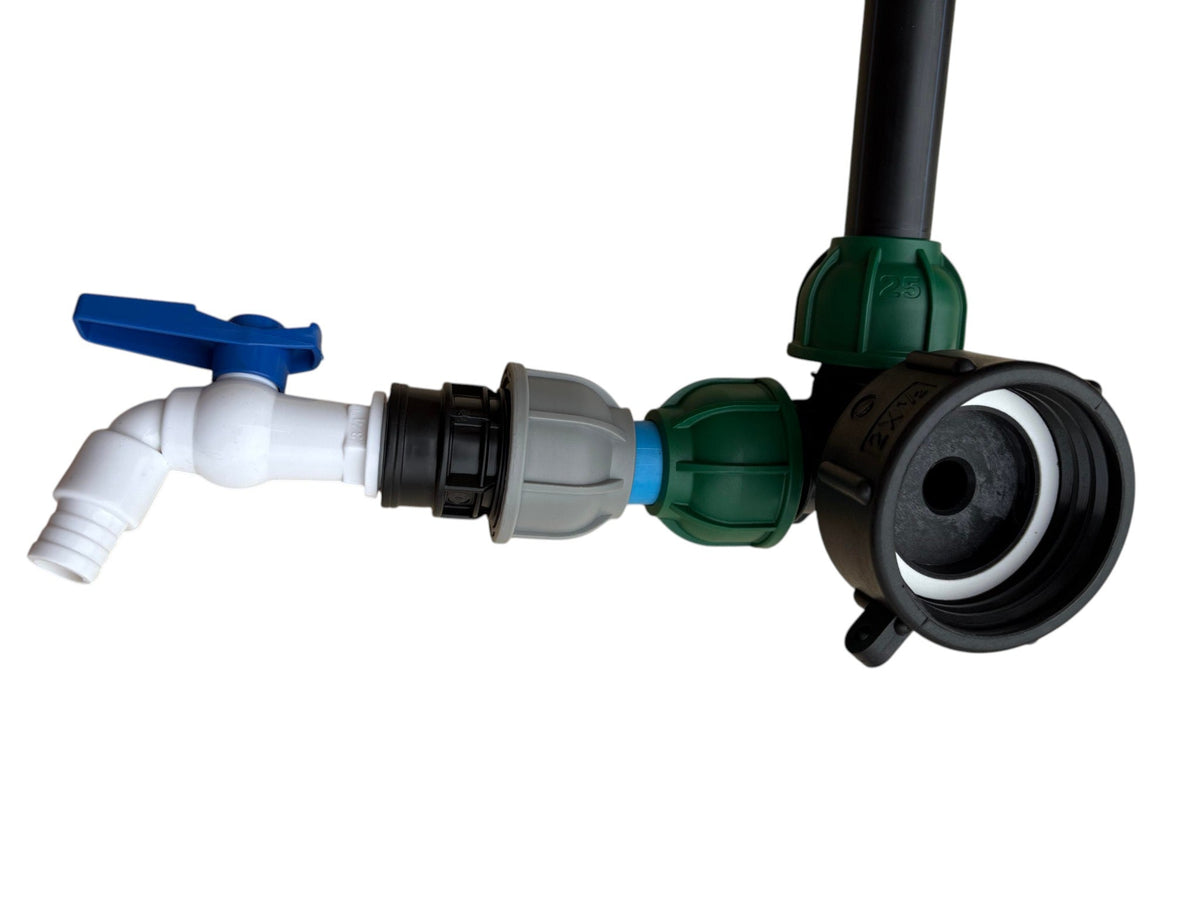

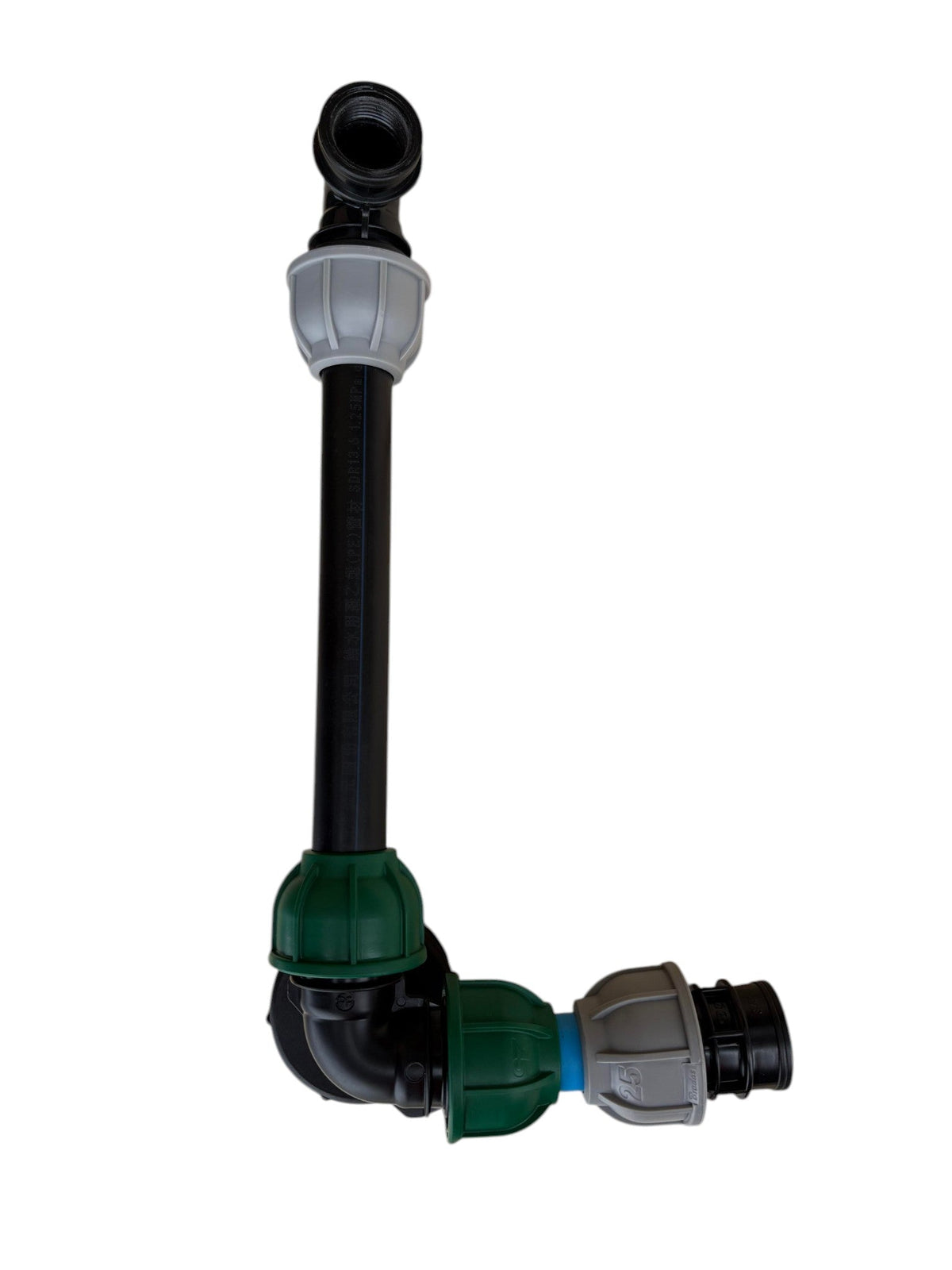

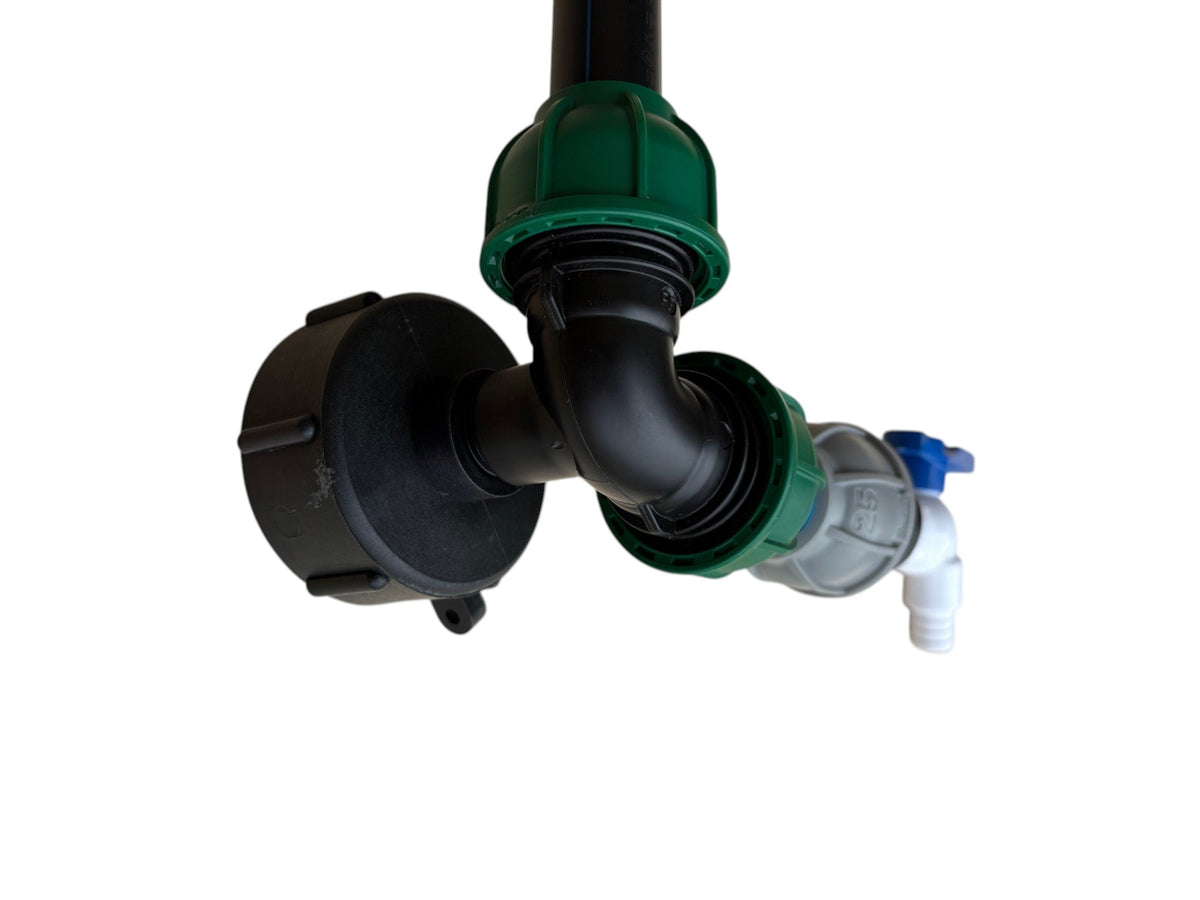

• Side Riser Kit (No Tap): no taps

What is included

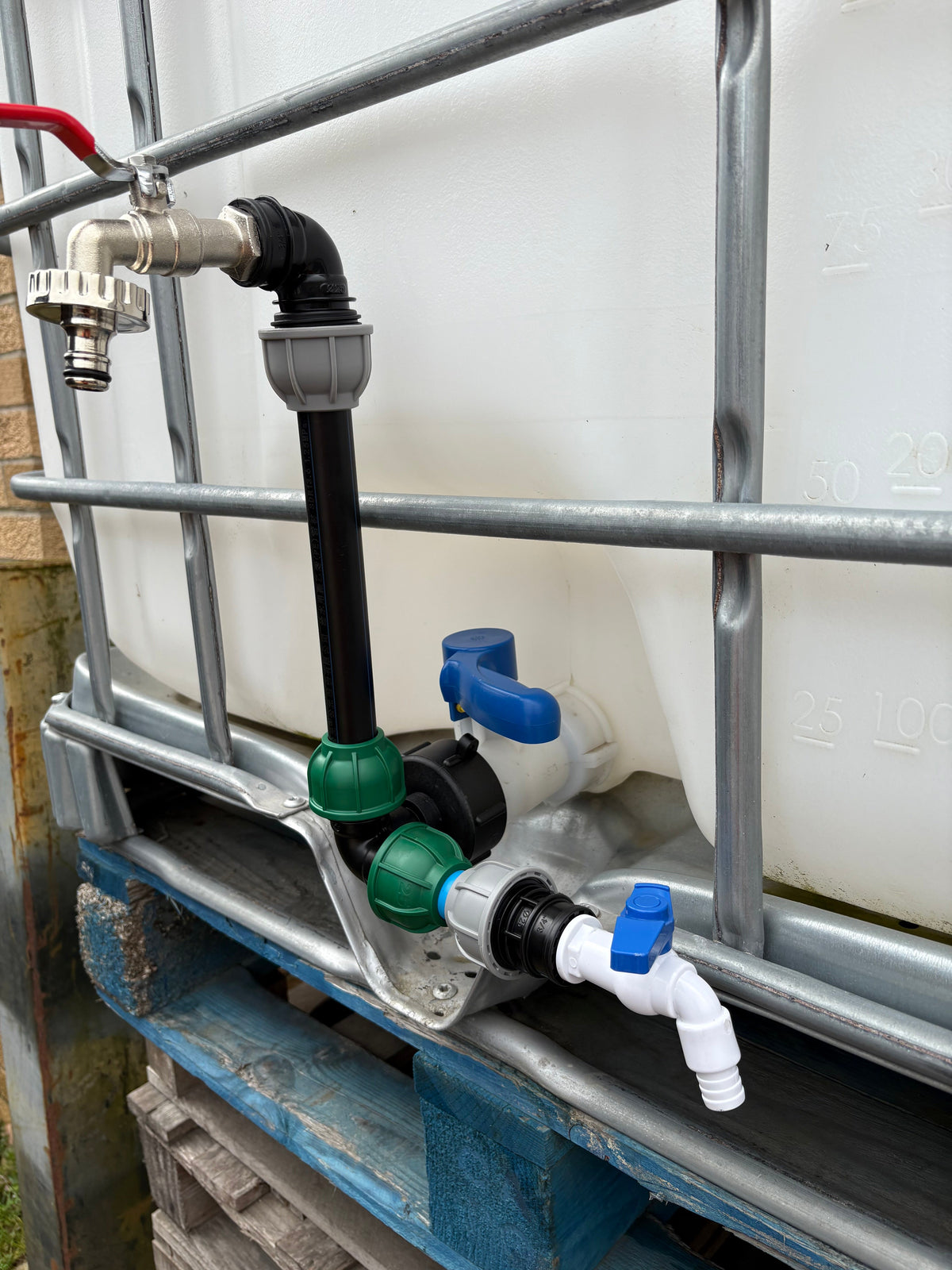

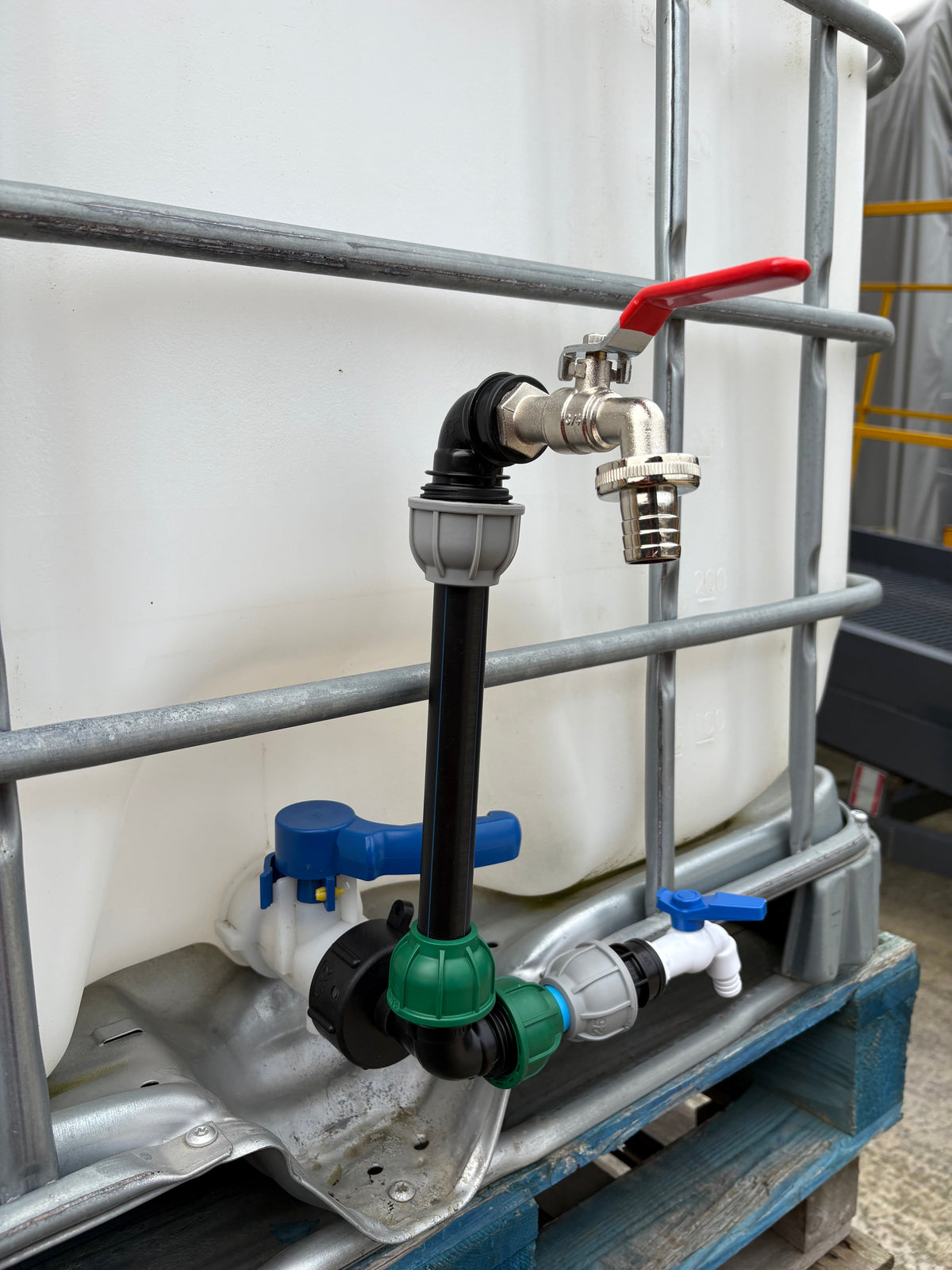

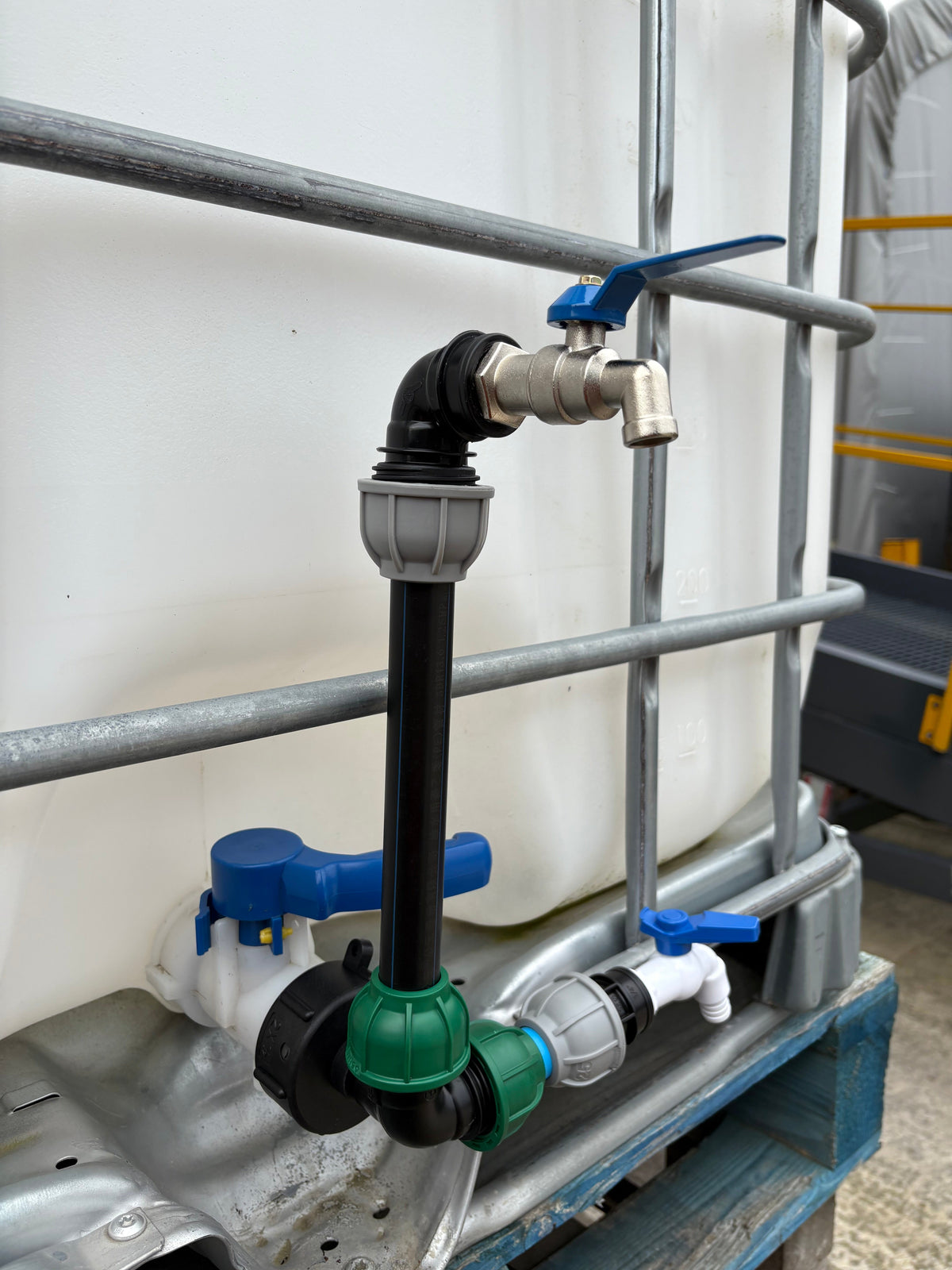

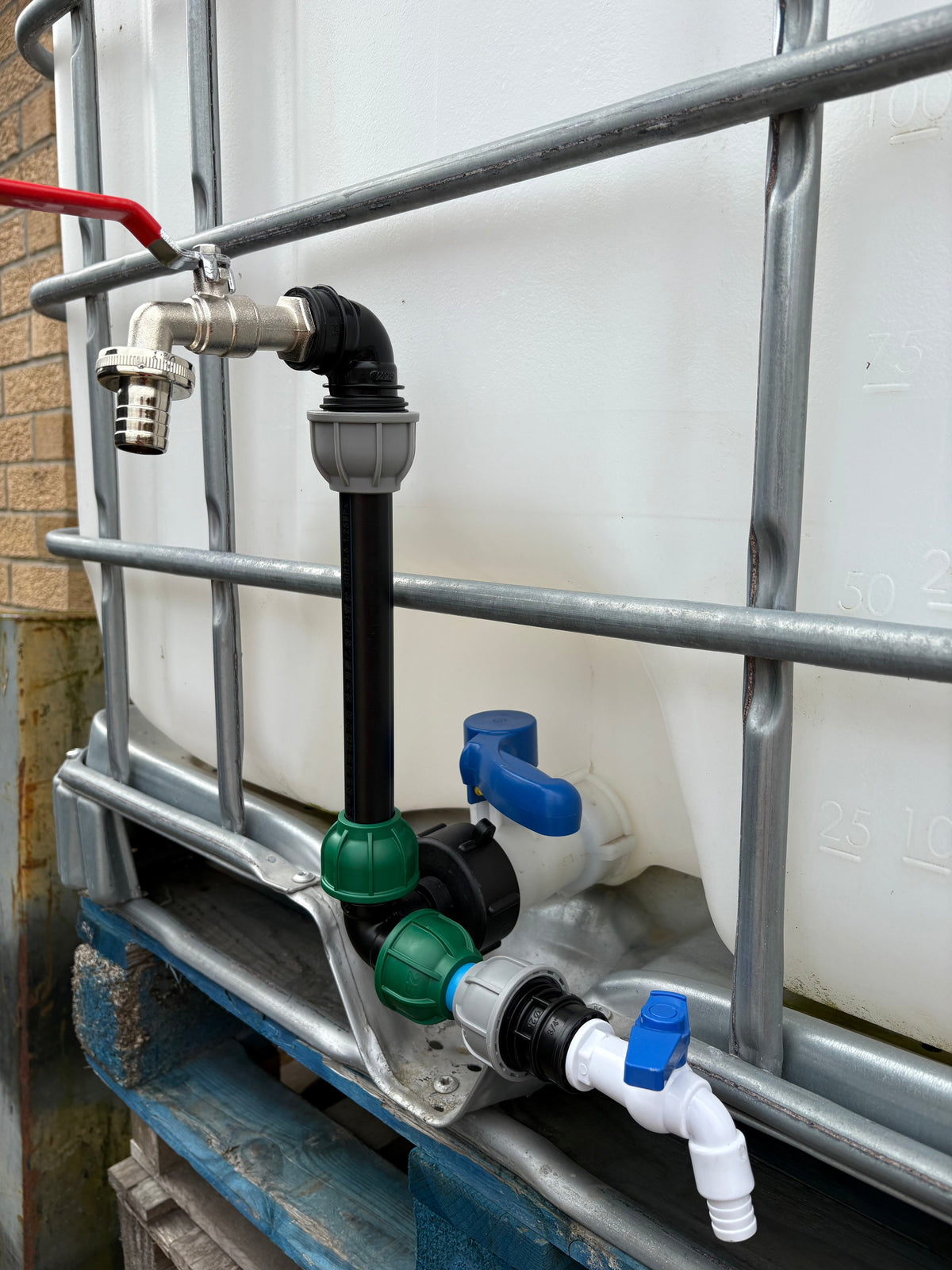

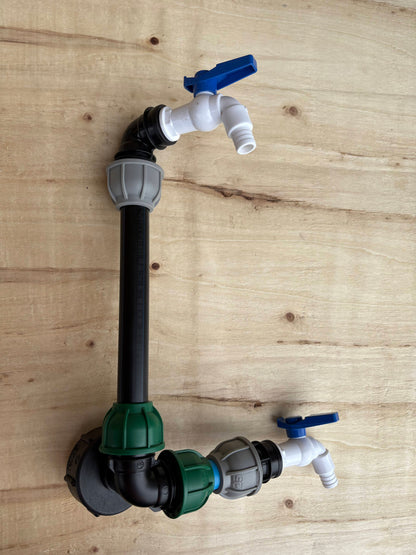

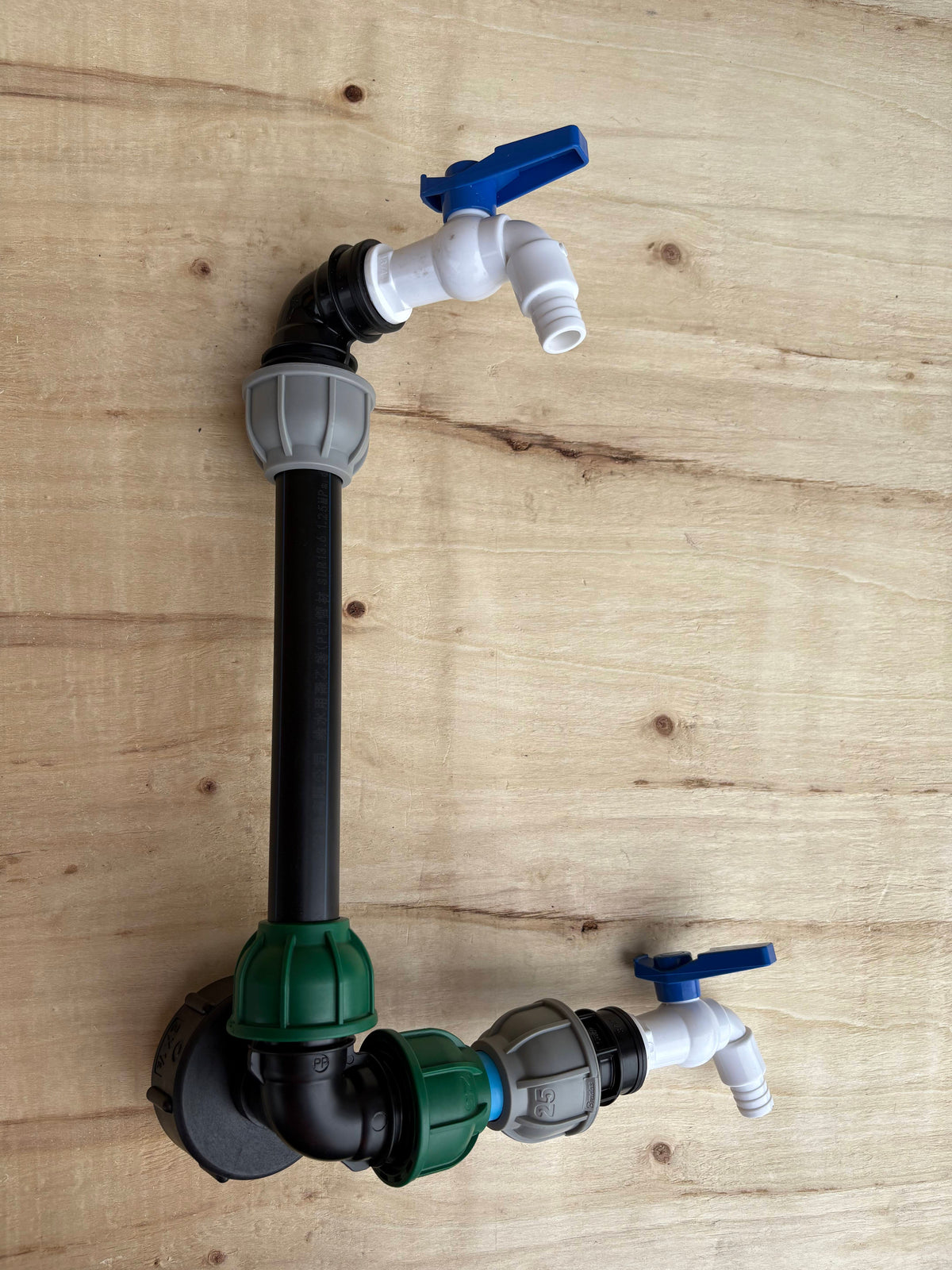

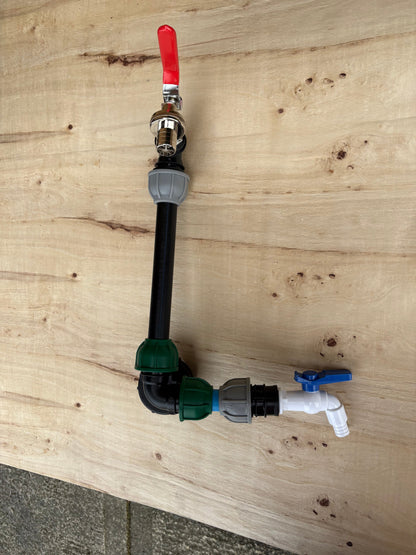

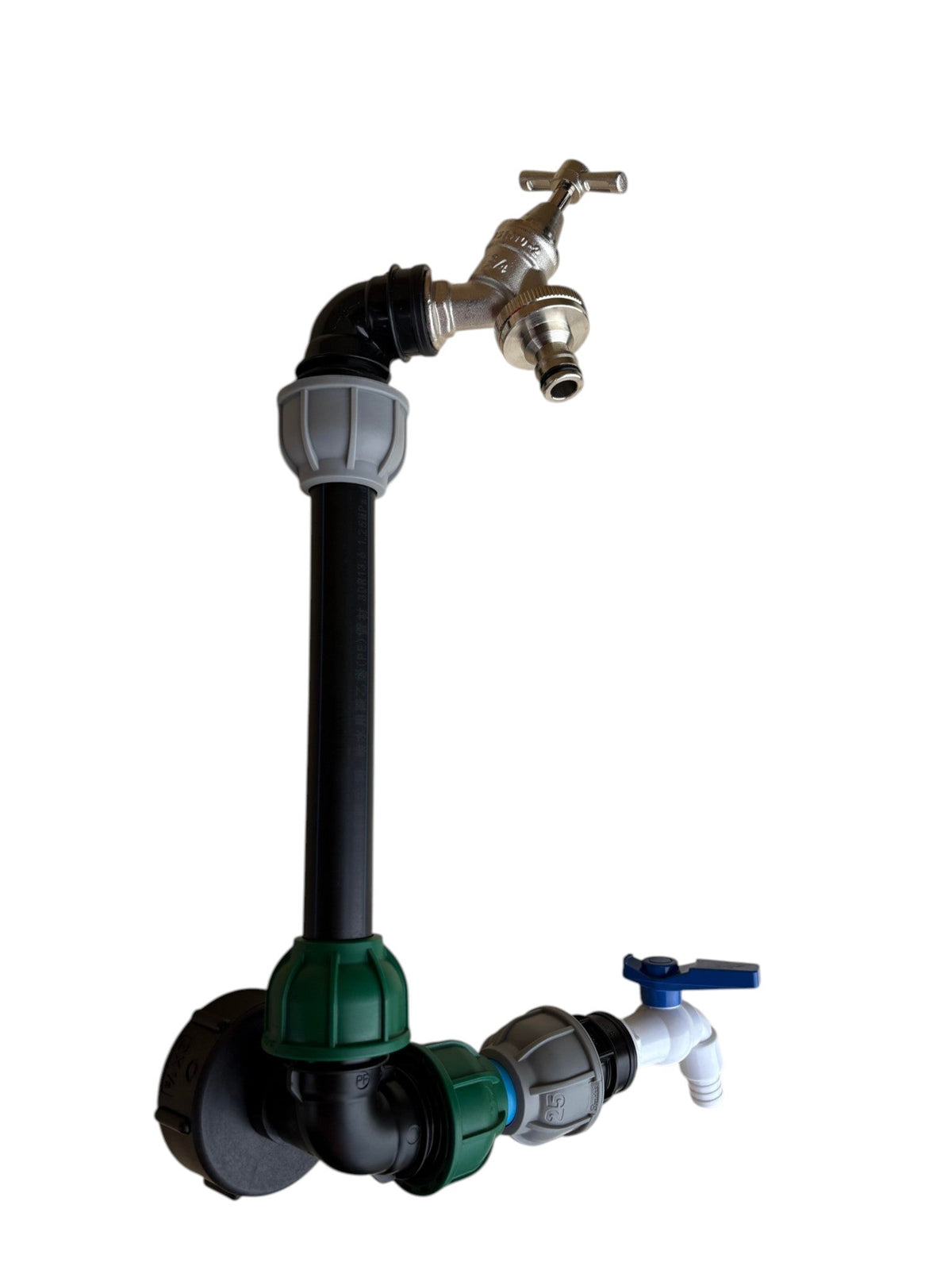

One selected side-outlet riser kit. Every tap-equipped choice includes one white/blue plastic ¾″ BSP male tap plus the selected second tap; the no-tap option includes neither tap.

Fitting and use

Match the tank thread and the selected outlet arrangement before ordering. S60×6 is an IBC thread, distinct from BSP. Support the assembly and install the fittings correctly. The 25cm dimension is the riser pipe length rather than a guaranteed finished outlet height. Flow depends on the tank head and connected equipment; the kit does not include a pump. Tank, hoses, mounting supports and downstream fittings are supplied separately.
