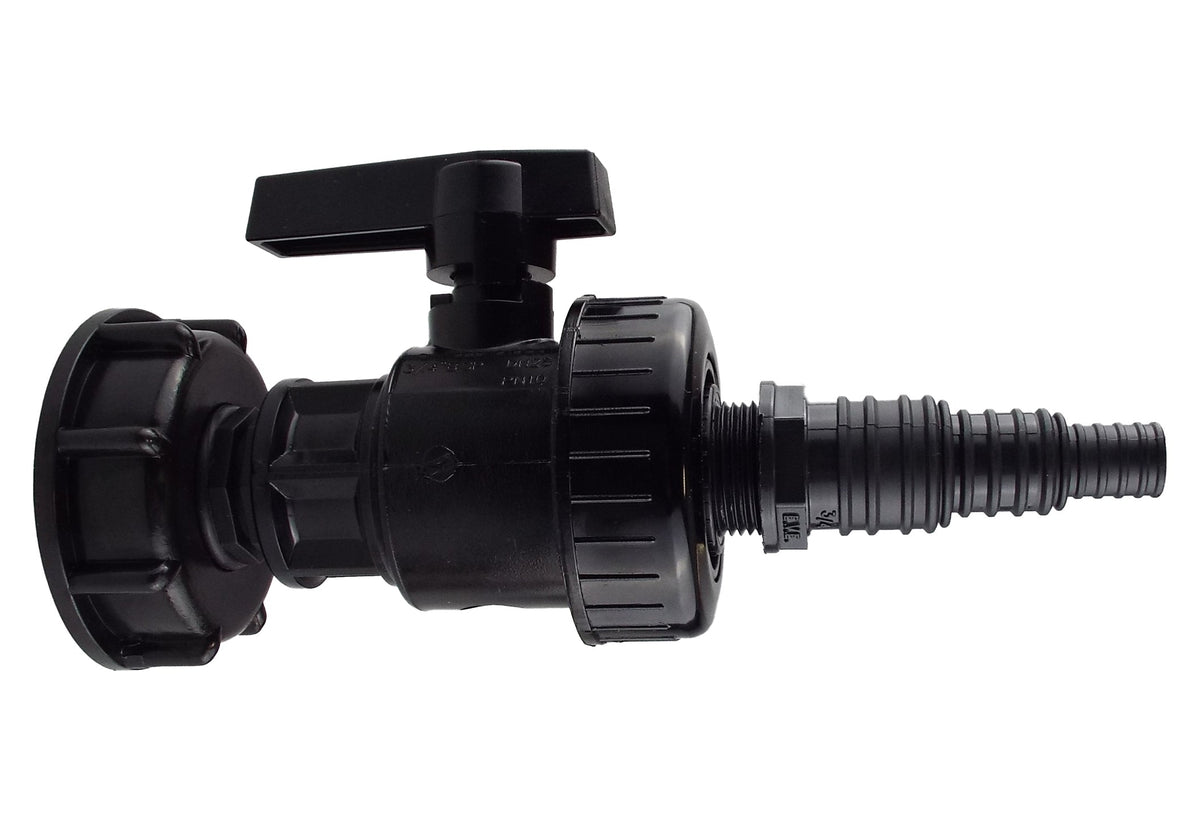

Adapt a compatible IBC outlet to a 13mm, 20mm or 25mm stepped hose tail with manual control at a large-lever ball valve.
Product details
Tank connection: S60X6 female
Cap thread: ¾″ BSP female
Valve: large polypropylene single-union ball valve, ¾″ BSP male/female
Hose-tail thread: ¾″ BSP male
Finished outlet: 13mm, 20mm or 25mm stepped hose tail
Reference: IBC008K

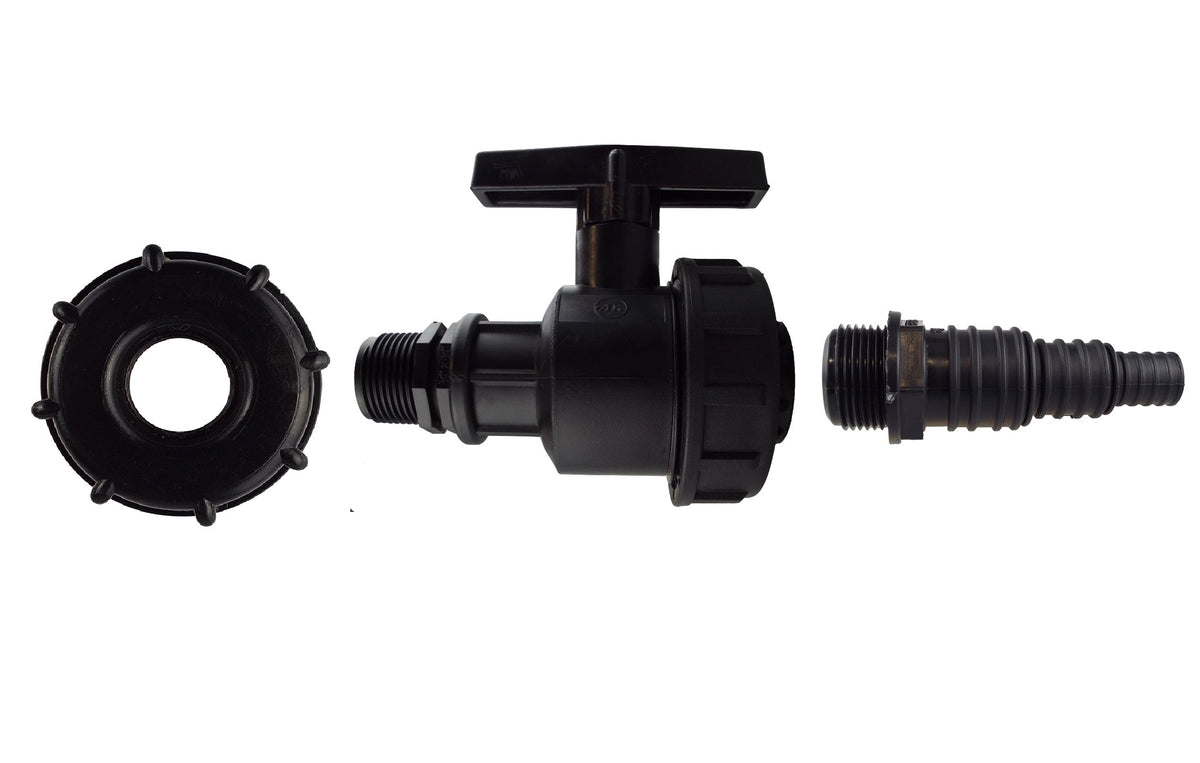

What is included

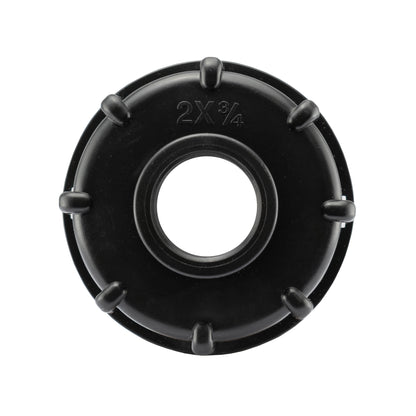

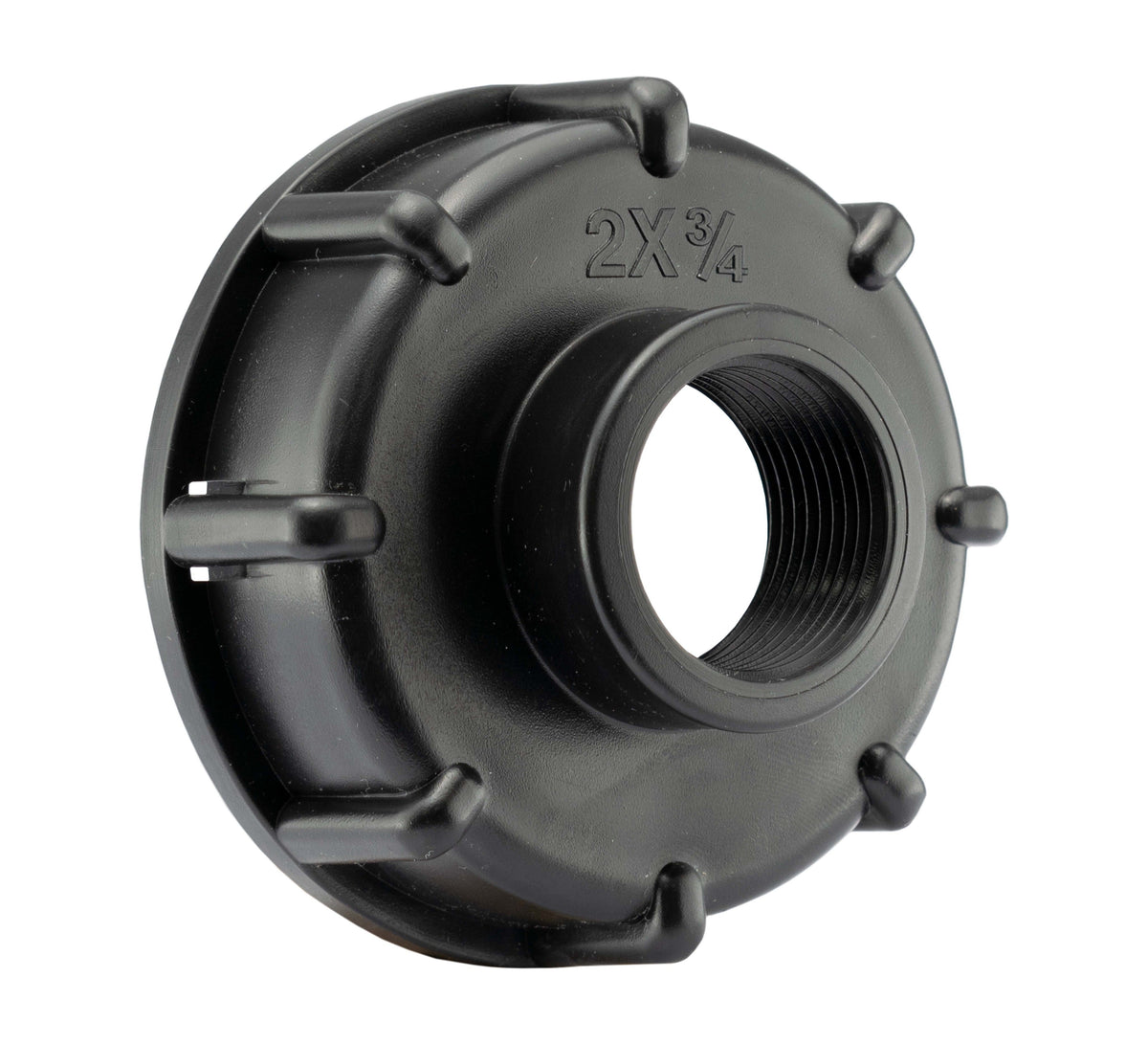

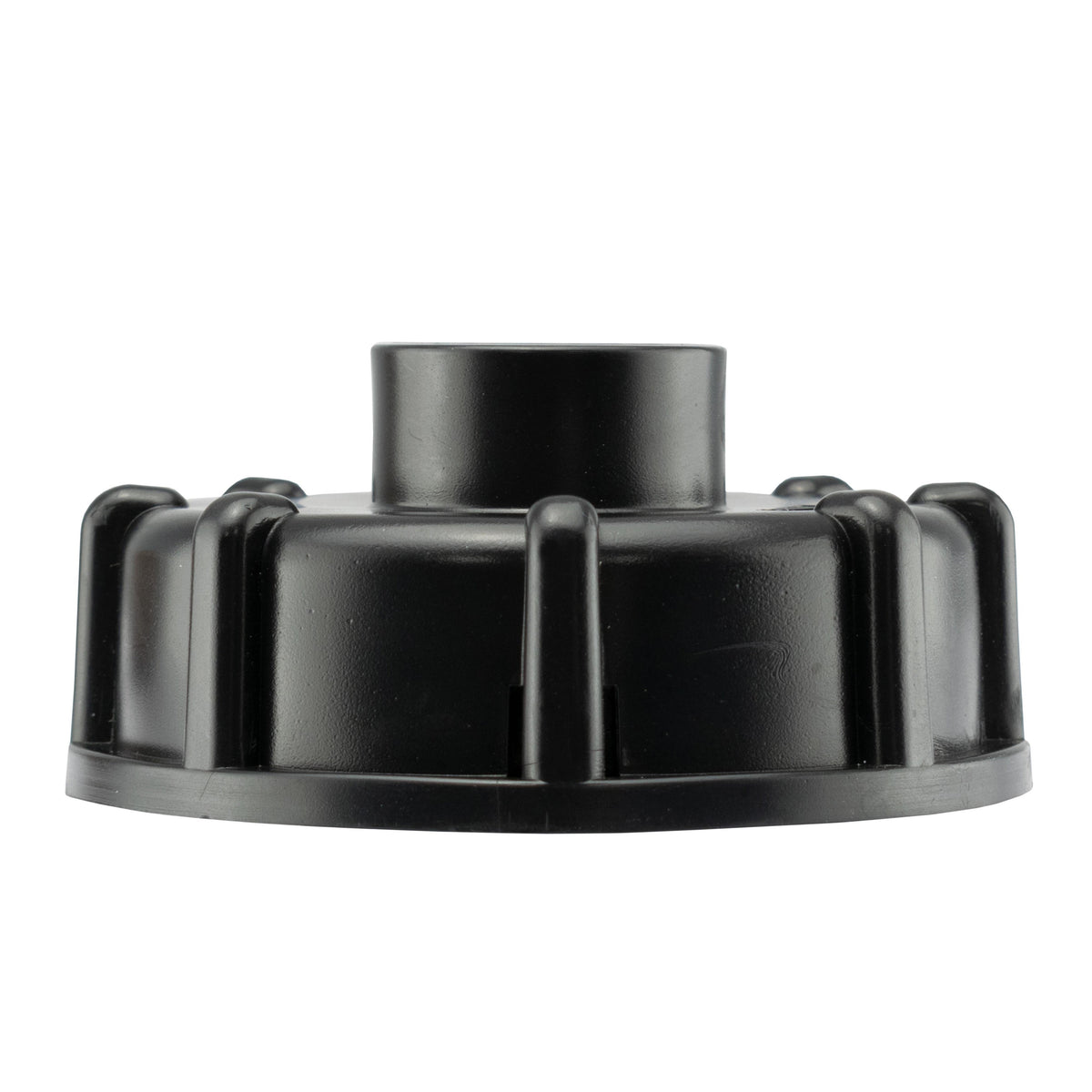

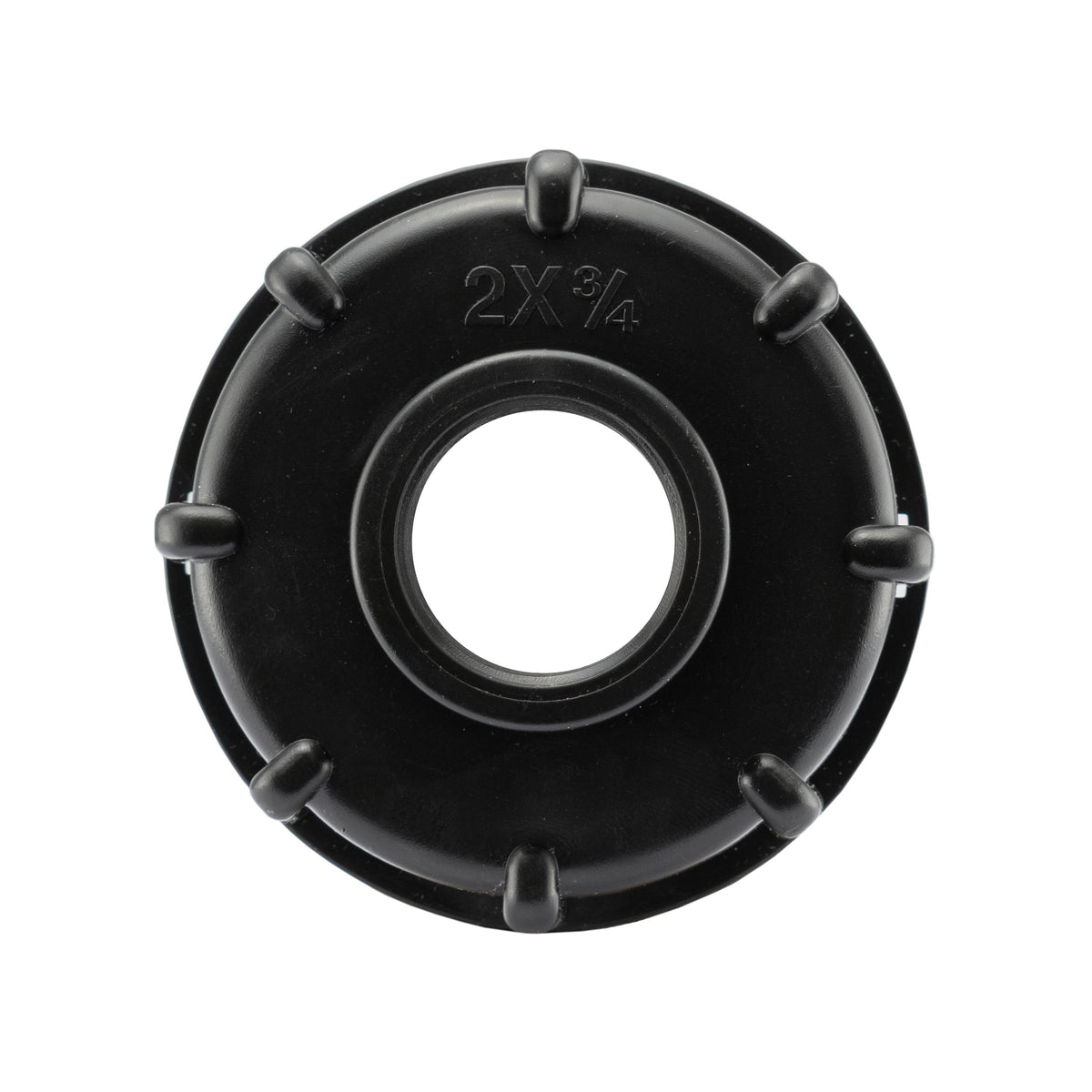

1 × S60X6 female cap with ¾″ BSP female thread

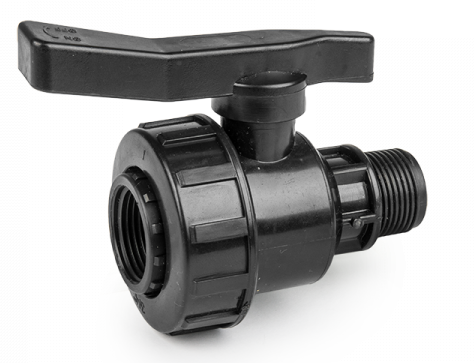

1 × large polypropylene single-union ball valve, ¾″ BSP male/female

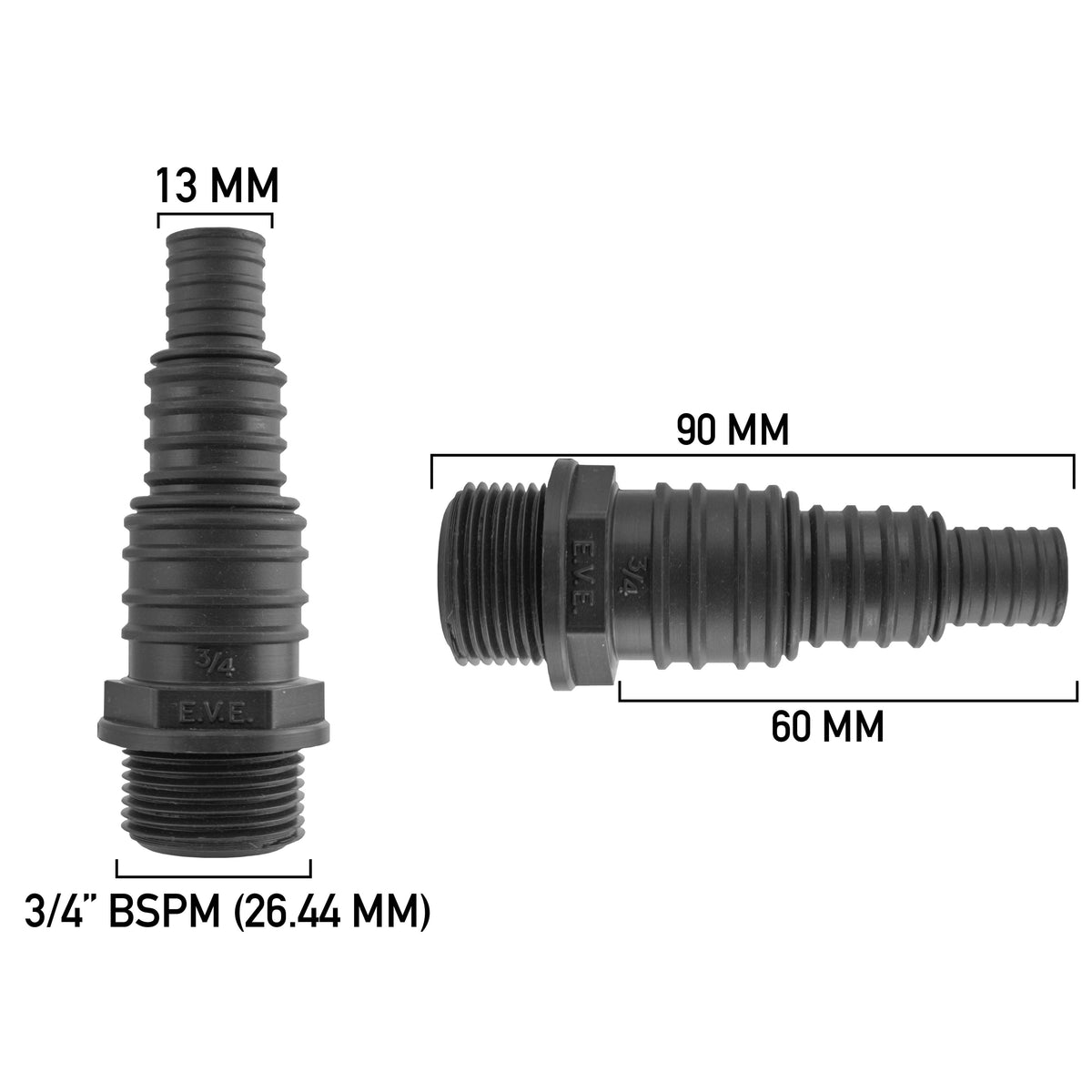

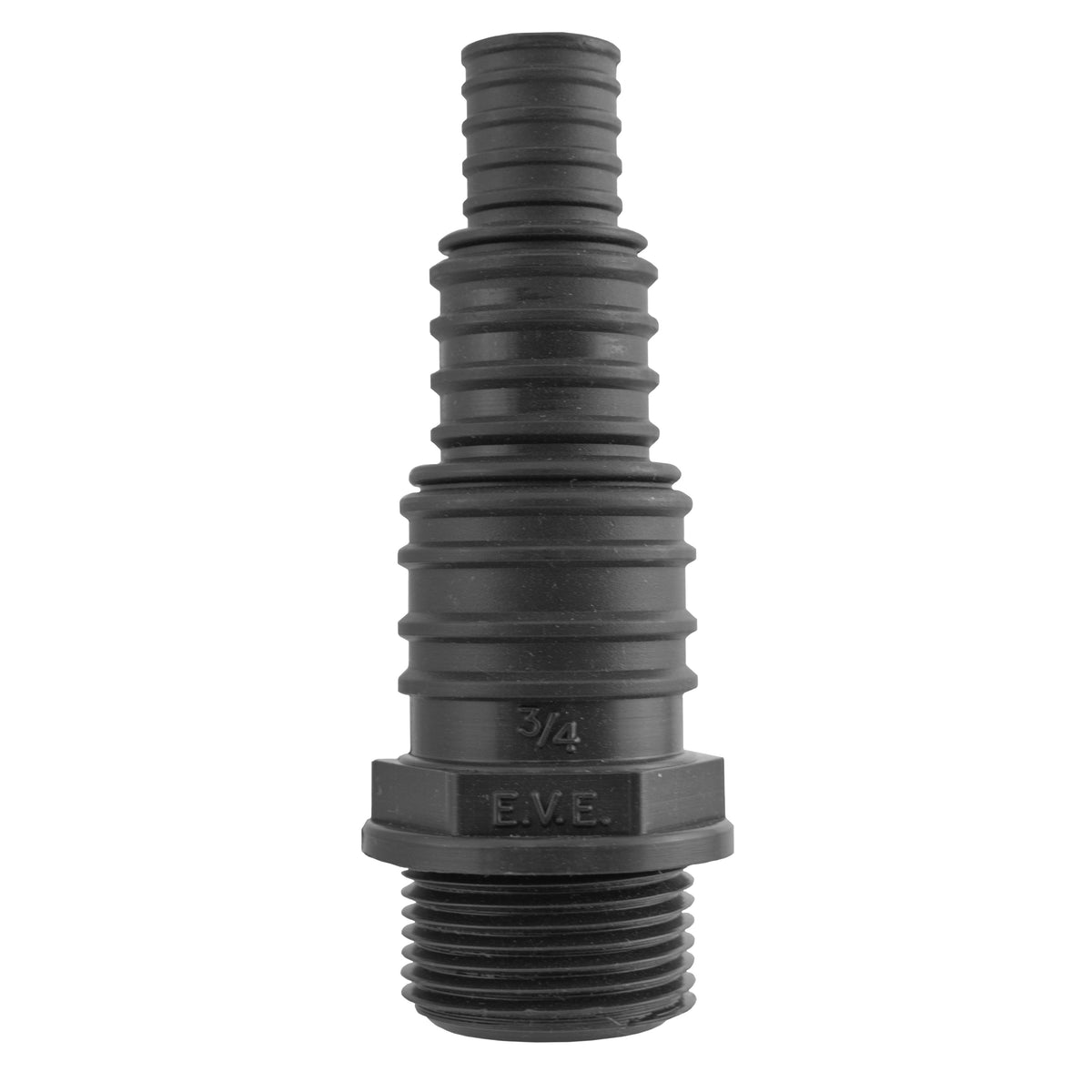

1 × plastic stepped hose tail, 13/20/25mm barb to ¾″ BSP male
Fitting your product
Check that your tank has the matching S60X6 male outlet. S60X6 and BSP are different thread systems. Match the final connection to your intended hose or fitting, assemble and inspect the joints before opening the tank outlet. IBC tank, hose, separate hose clips and PTFE tape are supplied separately. Match the hose bore and use suitable fastening. The stepped sizes are alternatives on one tail; check the fitting instructions and intended hose connection before assembly.
