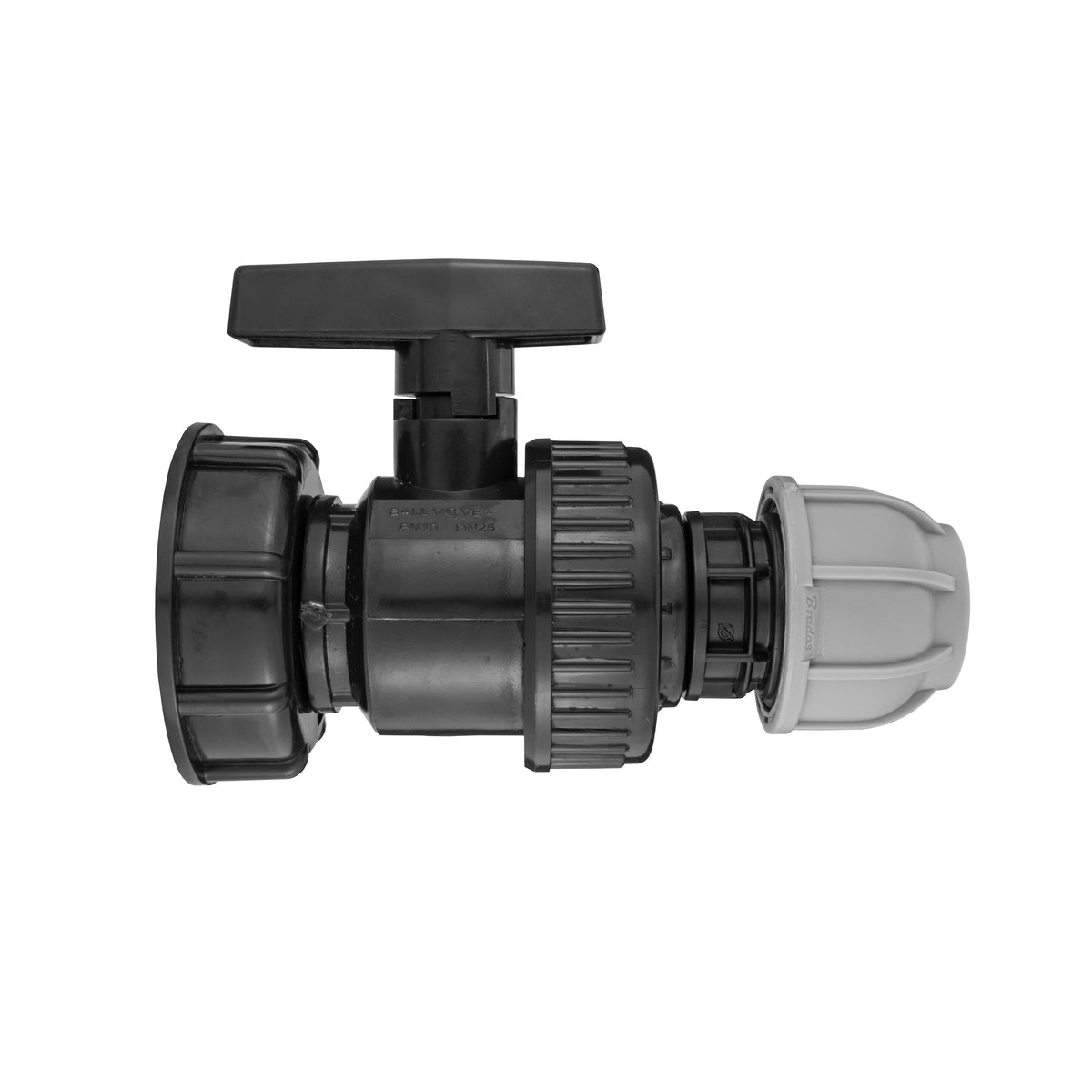

Add manual water-flow control at a compatible IBC outlet with a cap and large-lever polypropylene single-union ball valve. A straight compression connector joins compatible 32mm MDPE pipe.
Product details
Tank connection: S60X6 female
Cap thread: 1″ BSP female
Valve ends: 1″ BSP male/female
Valve construction: polypropylene, single union
Pipe connection: 32mm MDPE compression
Reference: IBC025G
What is included

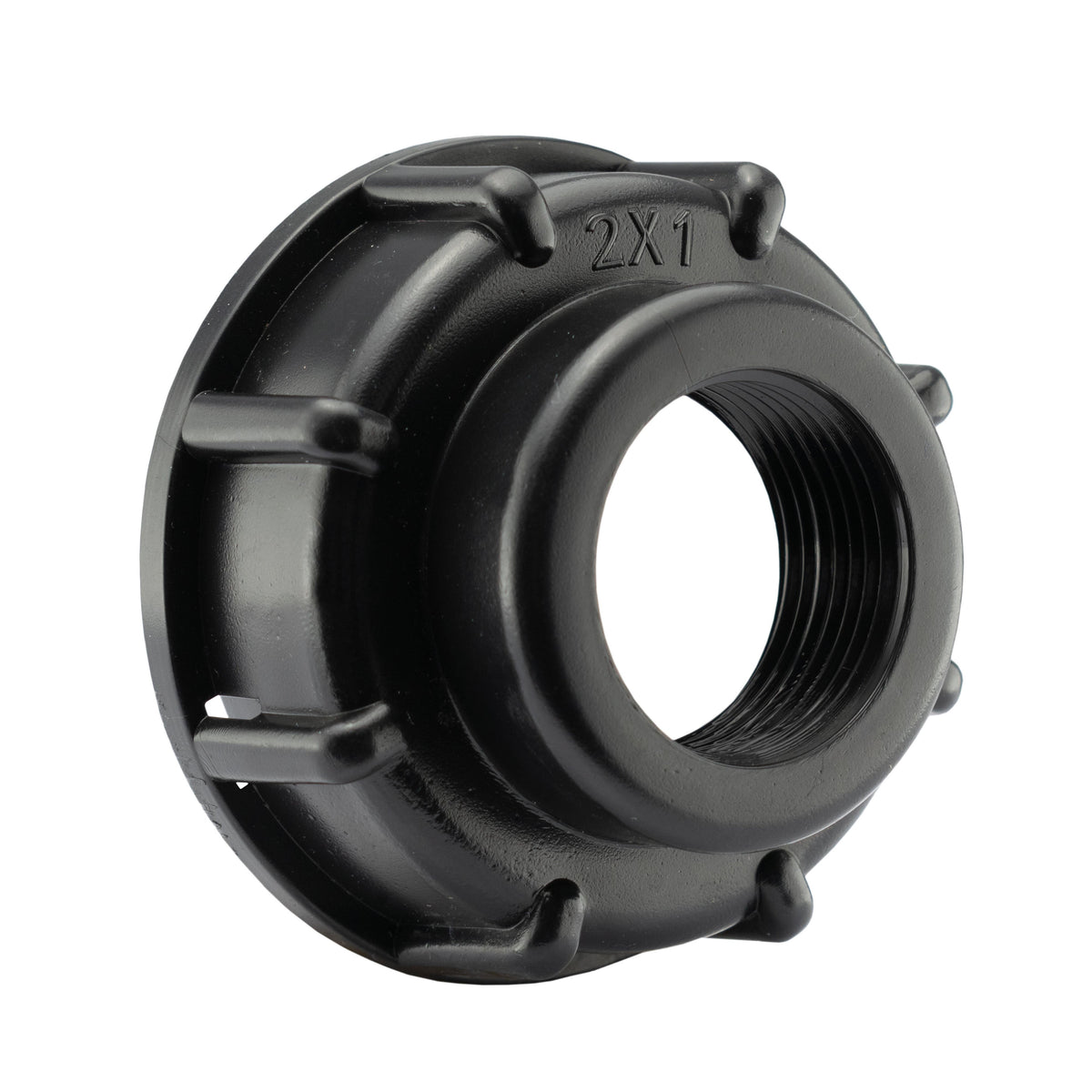

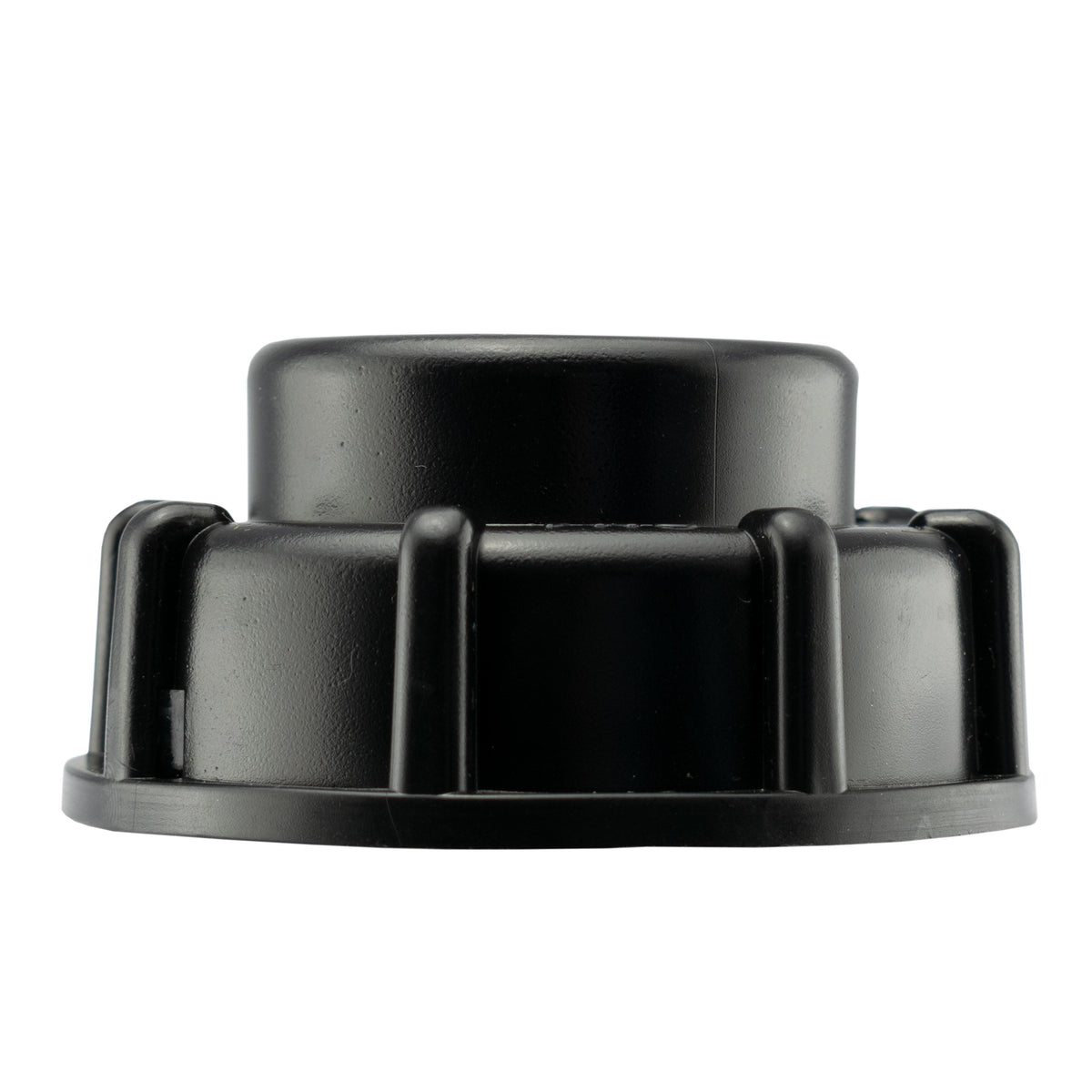

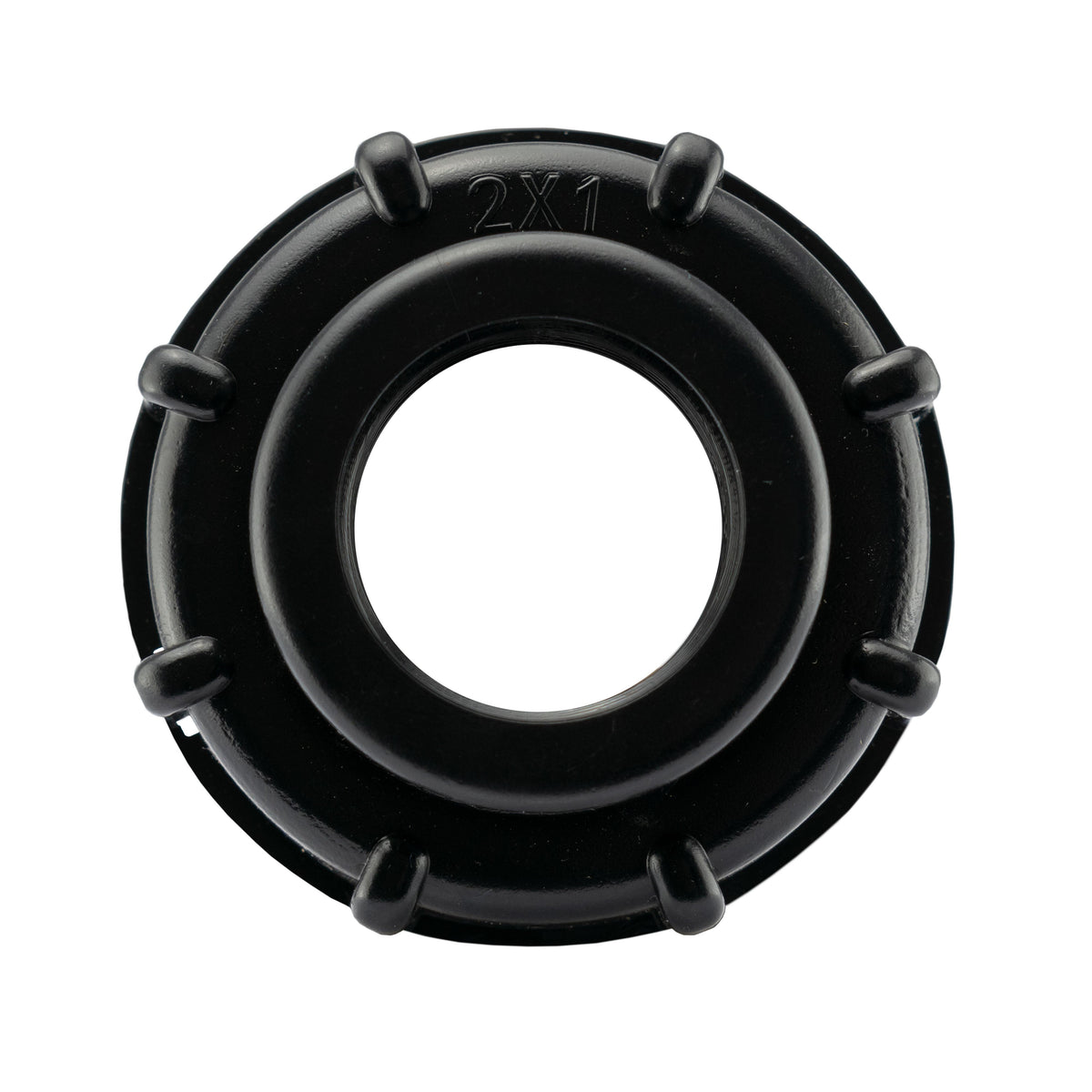

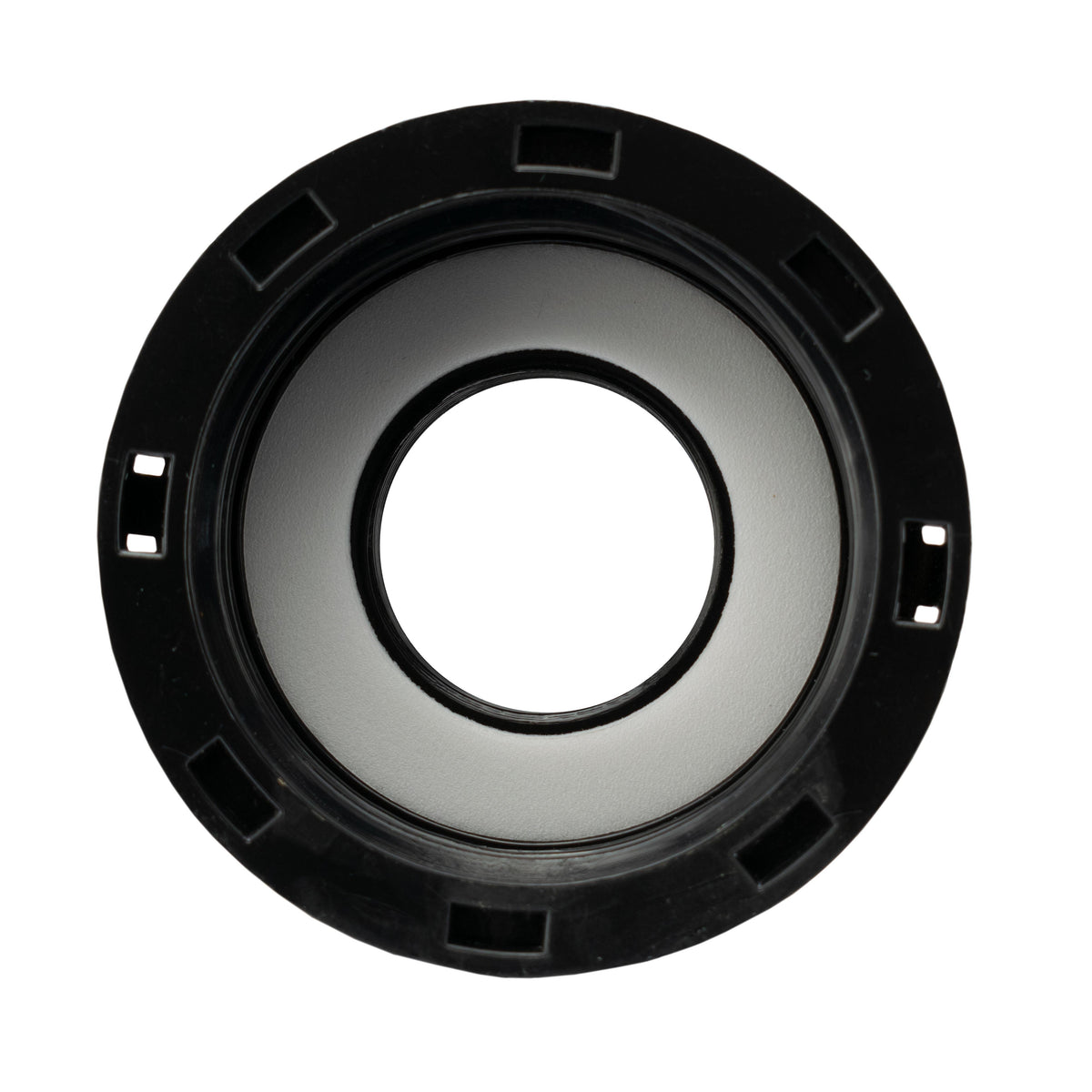

1 × S60X6 female cap with 1″ BSP female thread

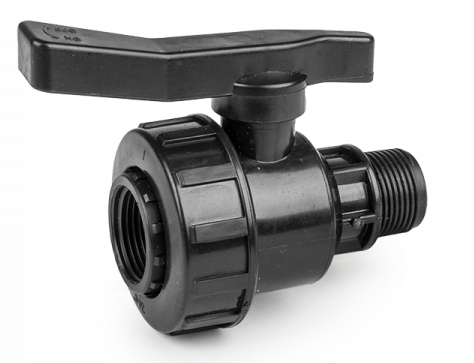

1 × large polypropylene single-union ball valve, 1″ BSP male/female

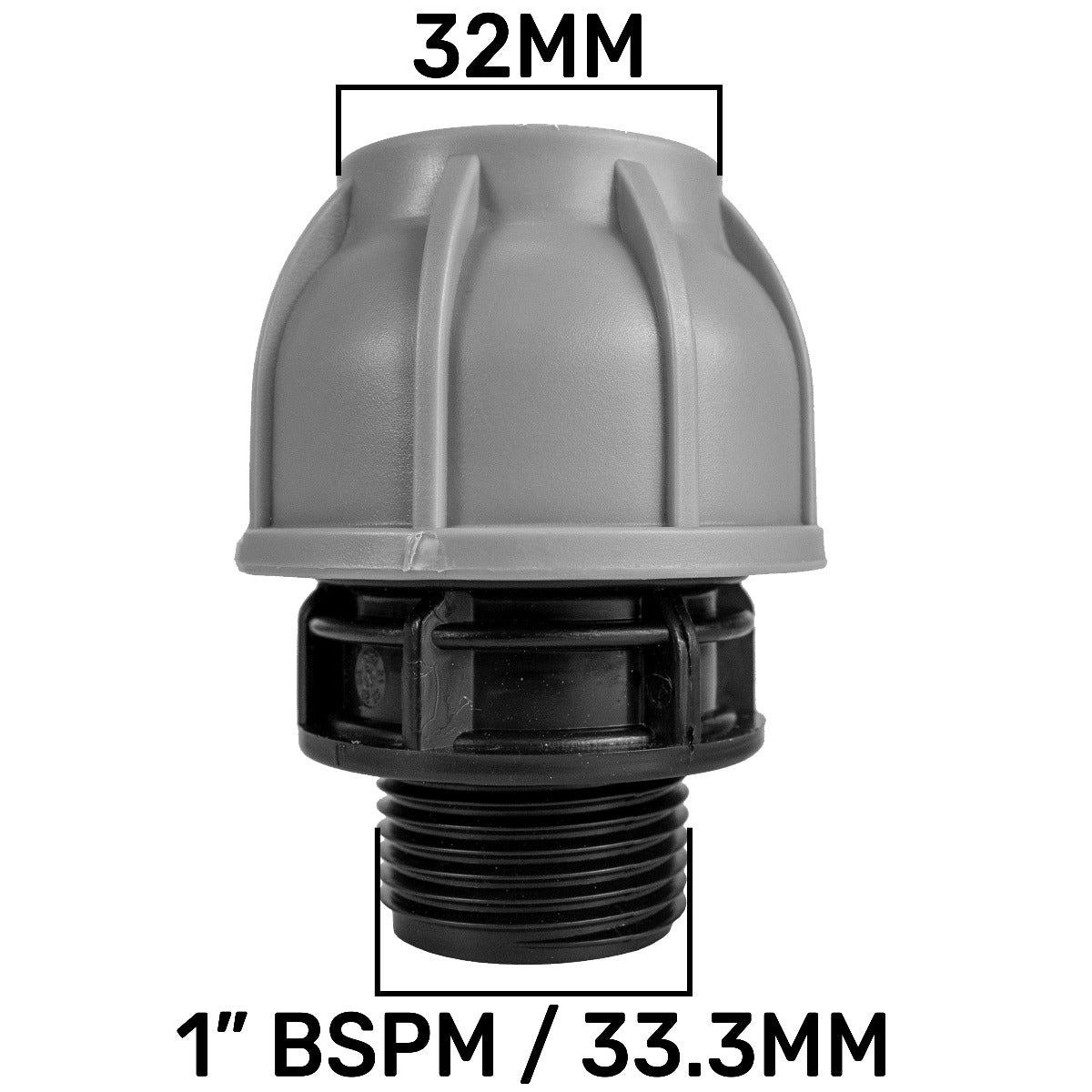

1 × 32mm MDPE straight compression connector with 1″ BSP male thread
Fitting your product
Check that your tank has the matching S60X6 male outlet. S60X6 and BSP are different thread systems. Match the finished connection to your intended hose or fitting, assemble and inspect all joints before opening the tank outlet. IBC tank, hose, separate hose clips and PTFE tape are supplied separately. MDPE size refers to pipe outside diameter. Use compatible pipe and follow the fitting instructions for preparation and insertion.
