IBC S60X6 Cap & Large Valve – 19mm Brass Hose Tail

Fit a manually controlled 19mm hose outlet to a compatible IBC using a cap, threaded nipple, large ball valve and brass hose tail.

Product details

• Tank connection: S60X6 female
• Cap thread: ¾″ BSP female
• Nipple: ¾″ BSP male at both ends
• Valve: polypropylene single-union ball valve, ¾″ BSP female/female
• Finished outlet: 19mm brass hose barb
• Reference: IBC008M

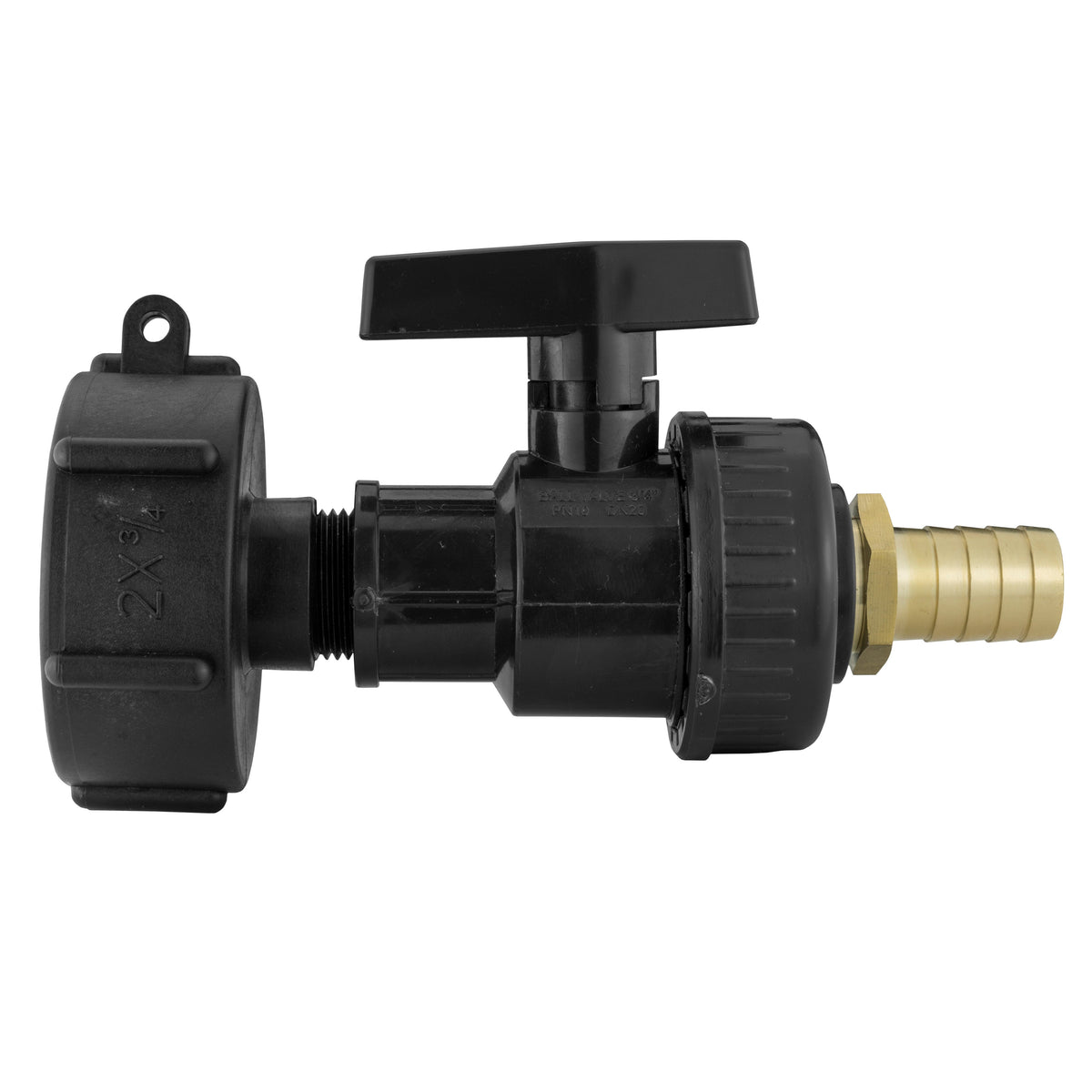

What is included

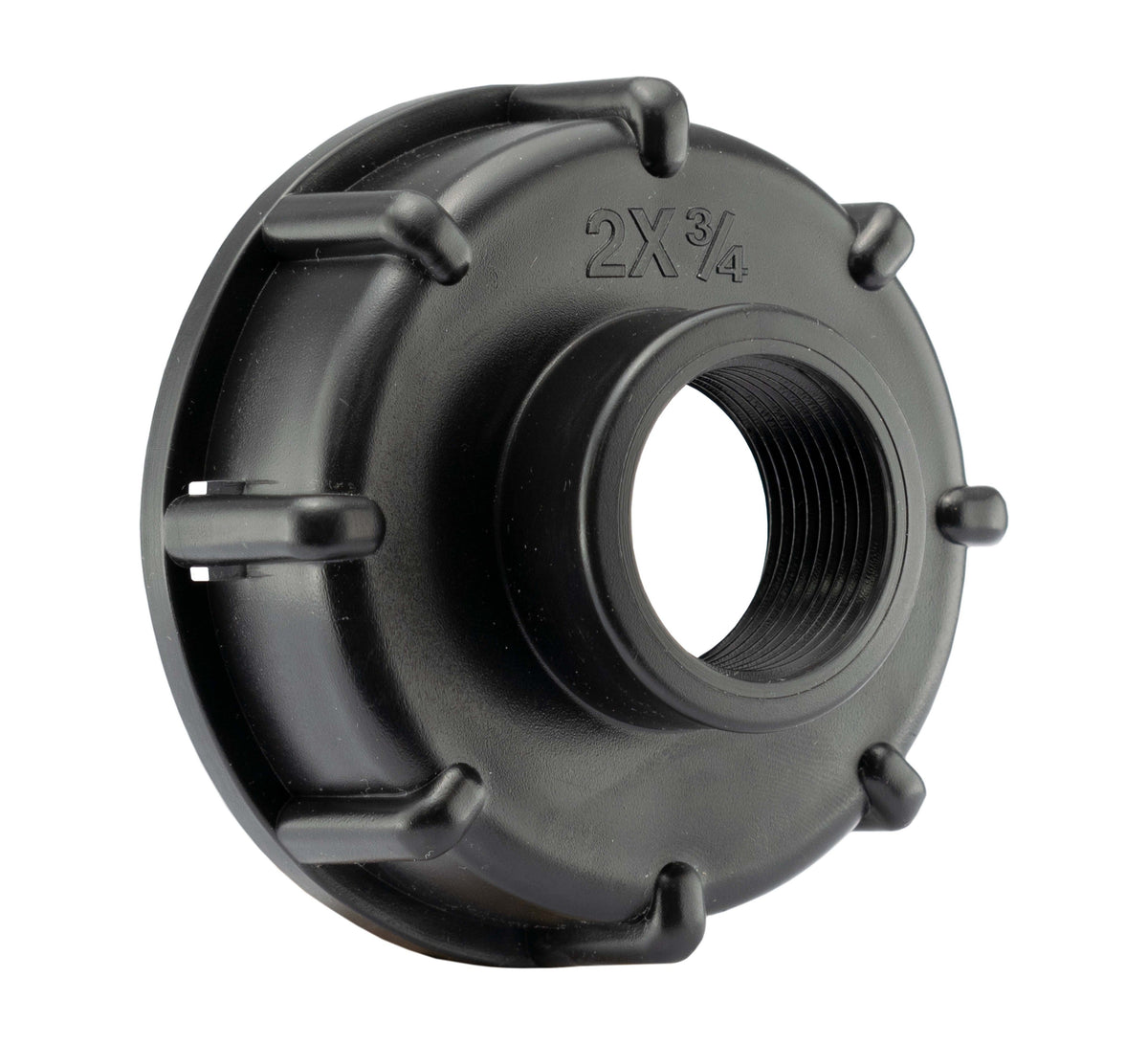

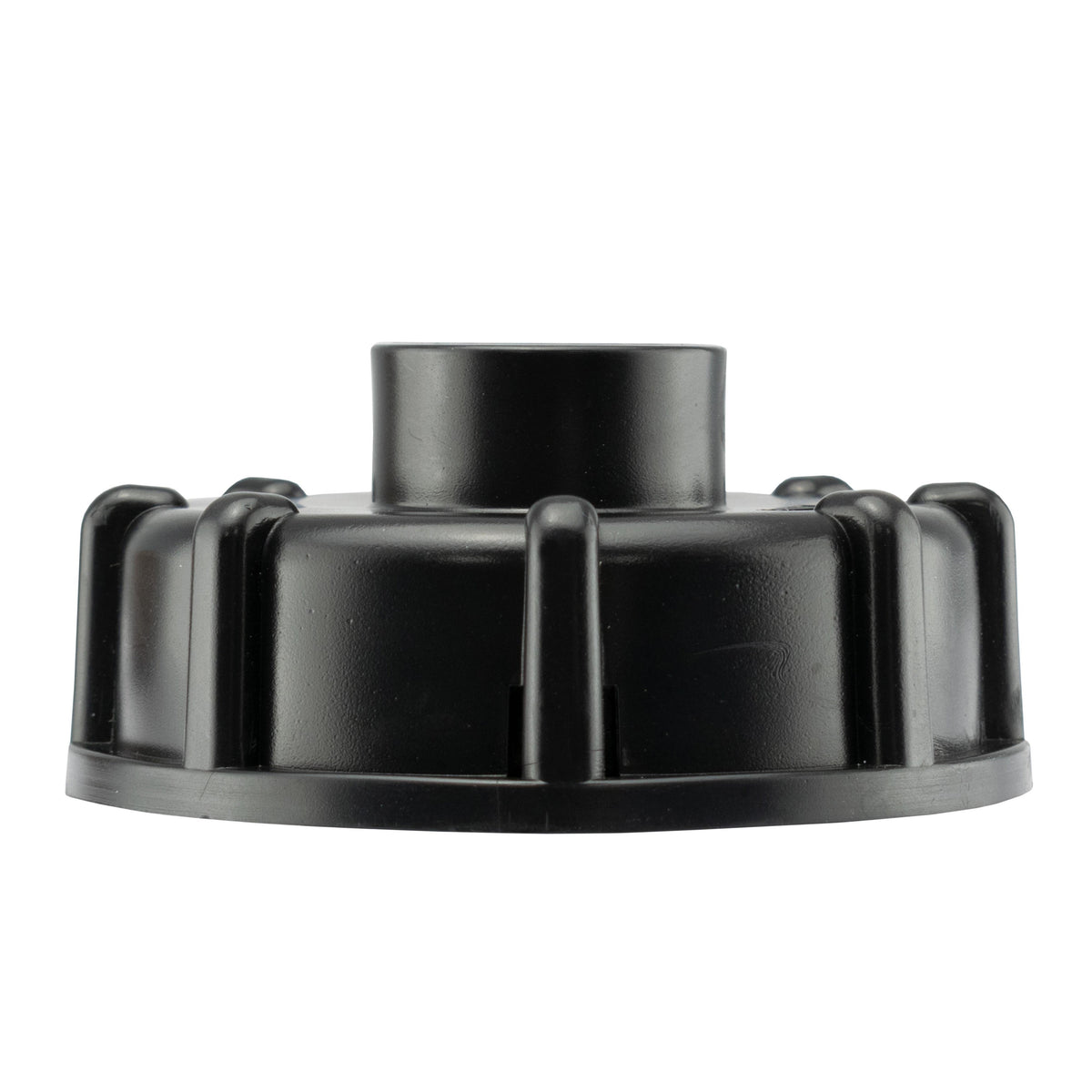

• 1 × S60X6 female cap with ¾″ BSP female thread

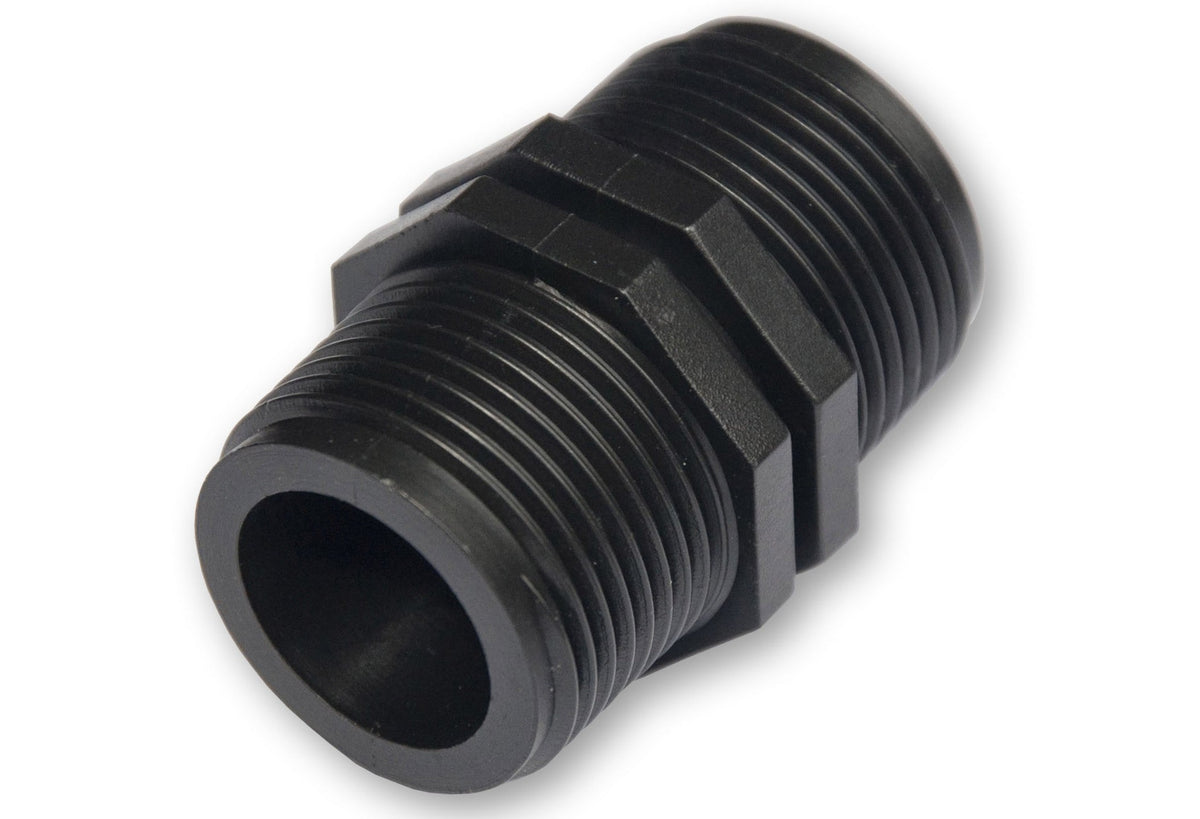

• 1 × ¾″ BSP male/male nipple

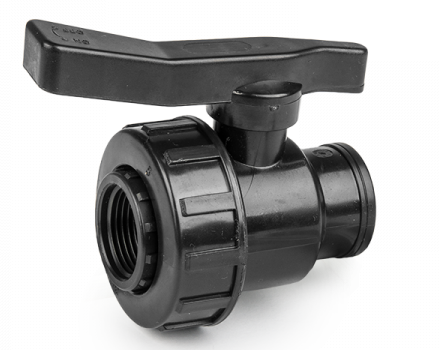

• 1 × large polypropylene single-union ball valve, ¾″ BSP female/female

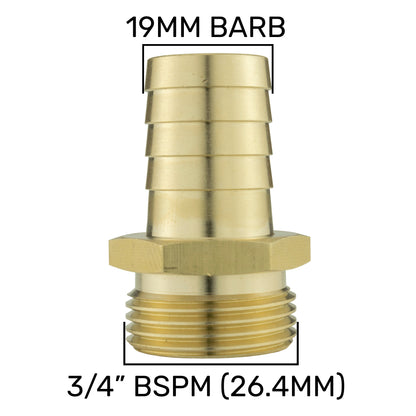

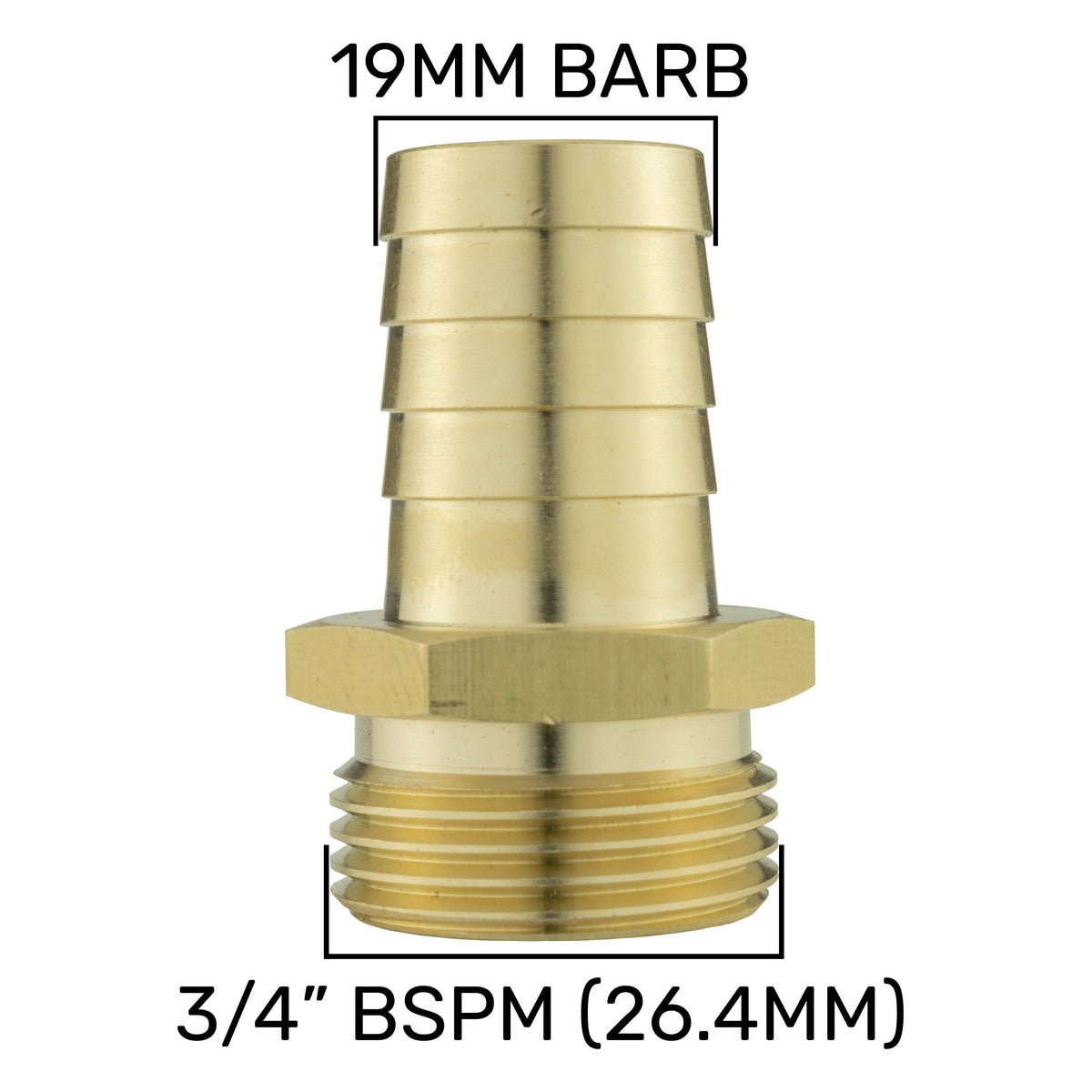

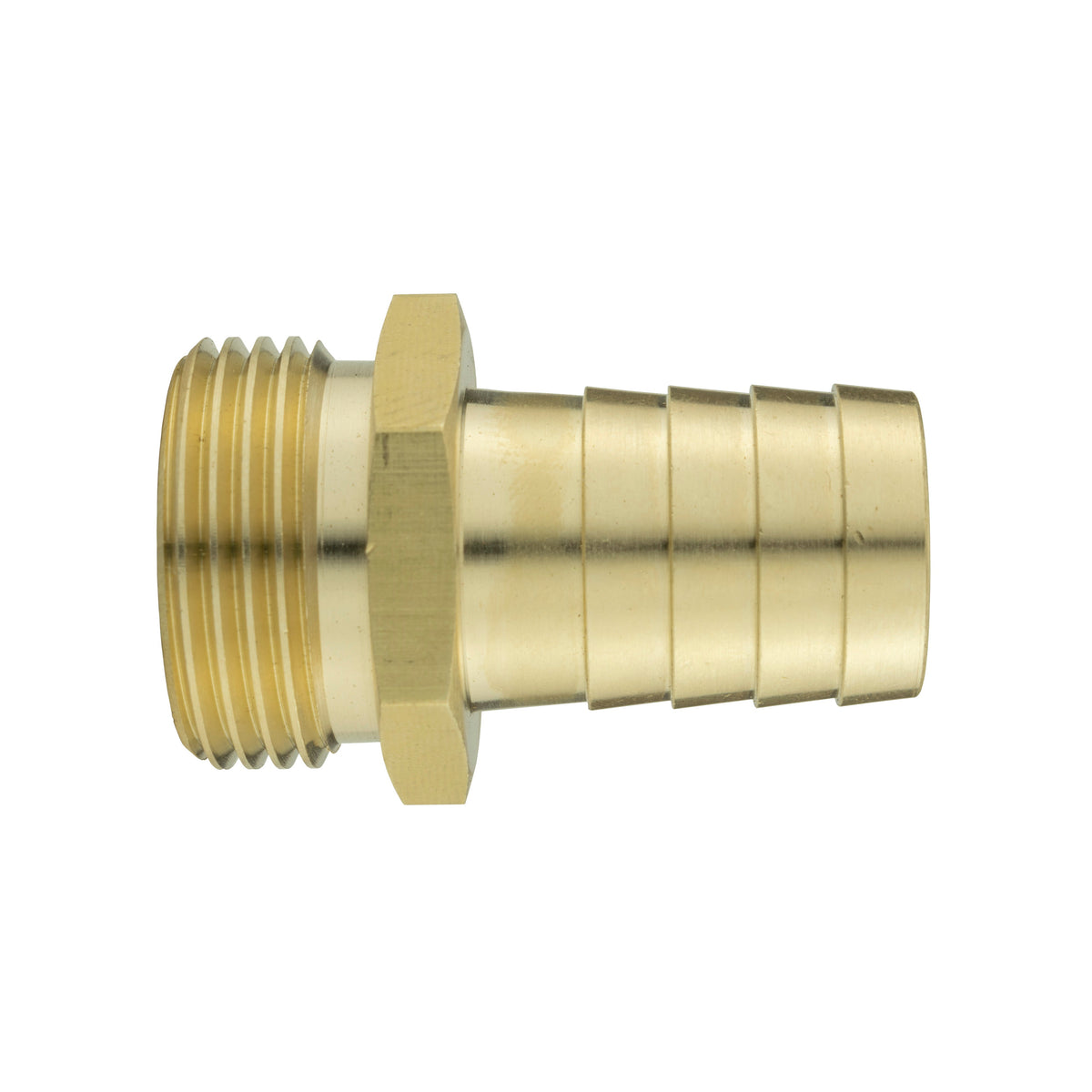

• 1 × brass straight hose tail, 19mm barb to ¾″ BSP male

Fitting your product

Check that your tank has the matching S60X6 male outlet. S60X6 and BSP are different thread systems. Match the final connection to your intended hose or fitting, assemble and inspect the joints before opening the tank outlet. IBC tank, hose, separate hose clips and PTFE tape are supplied separately. Match the hose bore and use suitable fastening.
