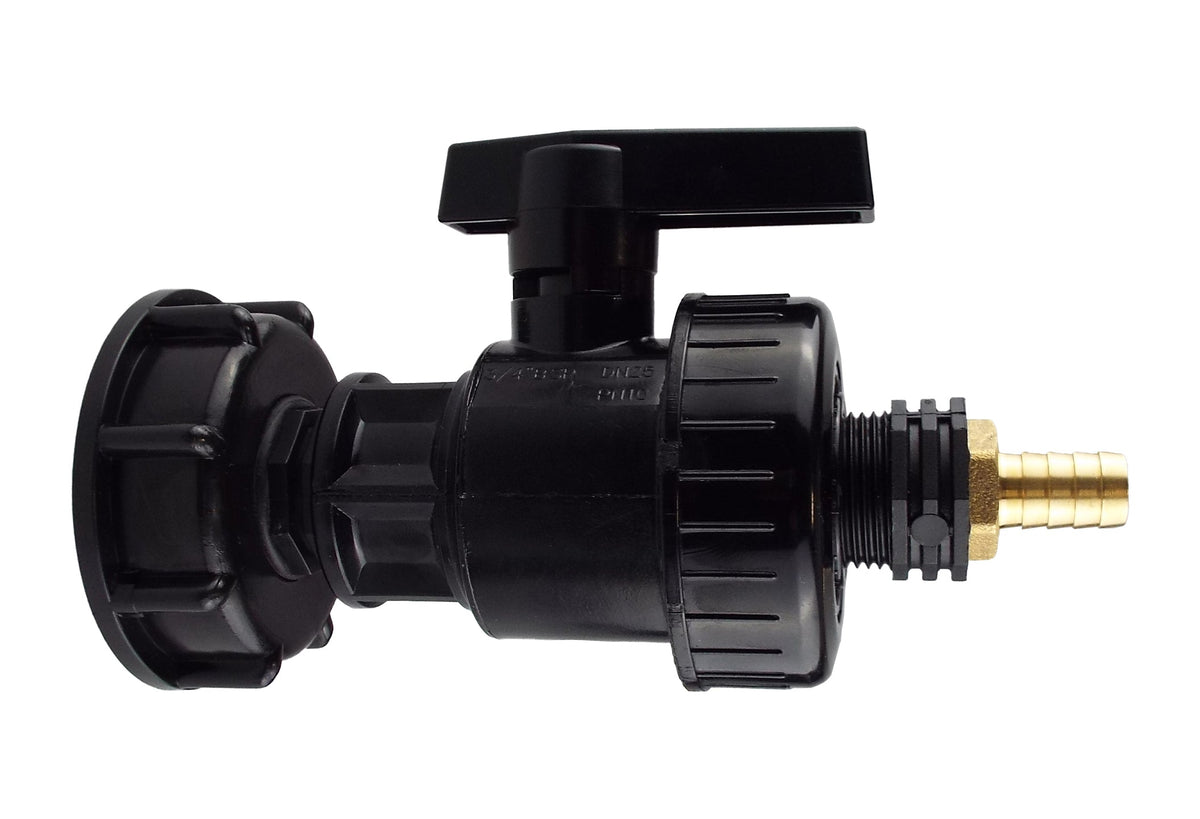

Adapt a compatible IBC outlet to a 13mm brass hose barb with manual control at a large-lever ball valve.
Product details
Tank connection: S60X6 female
Cap thread: ¾″ BSP female

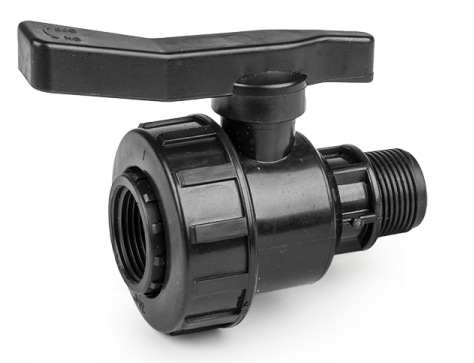

Valve: large polypropylene single-union ball valve, ¾″ BSP male/female
Reducer: ¾″ BSP male to ½″ BSP female
Hose-tail thread: ½″ BSP male
Finished outlet: 13mm brass hose barb
Reference: IBC008S

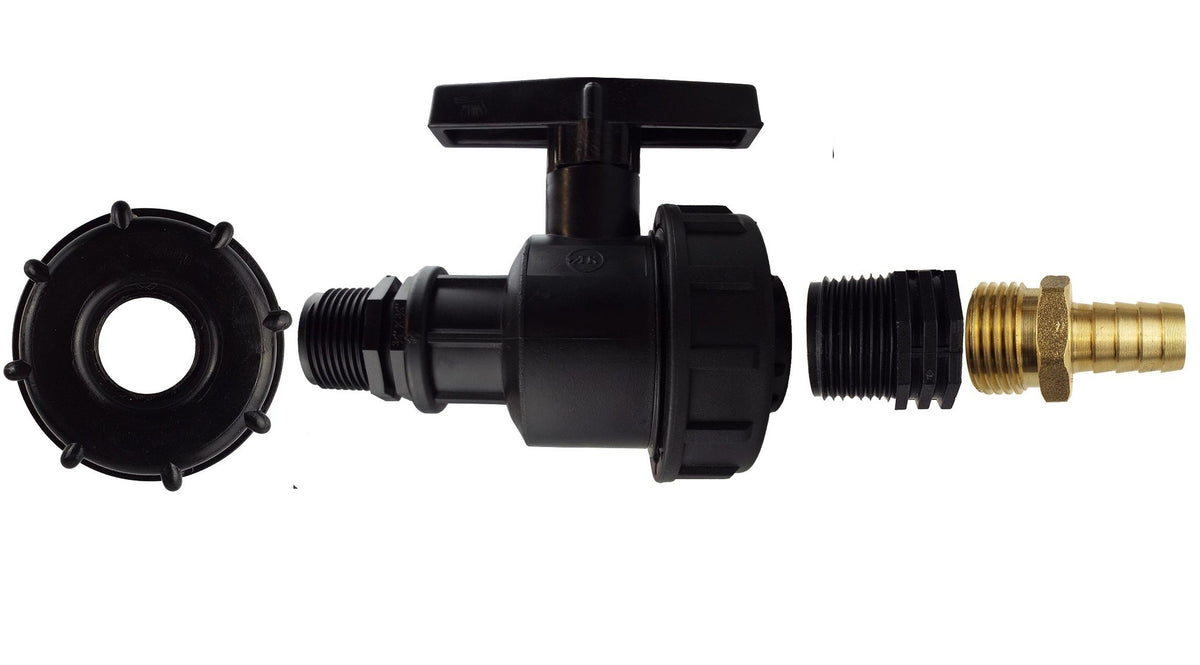

What is included

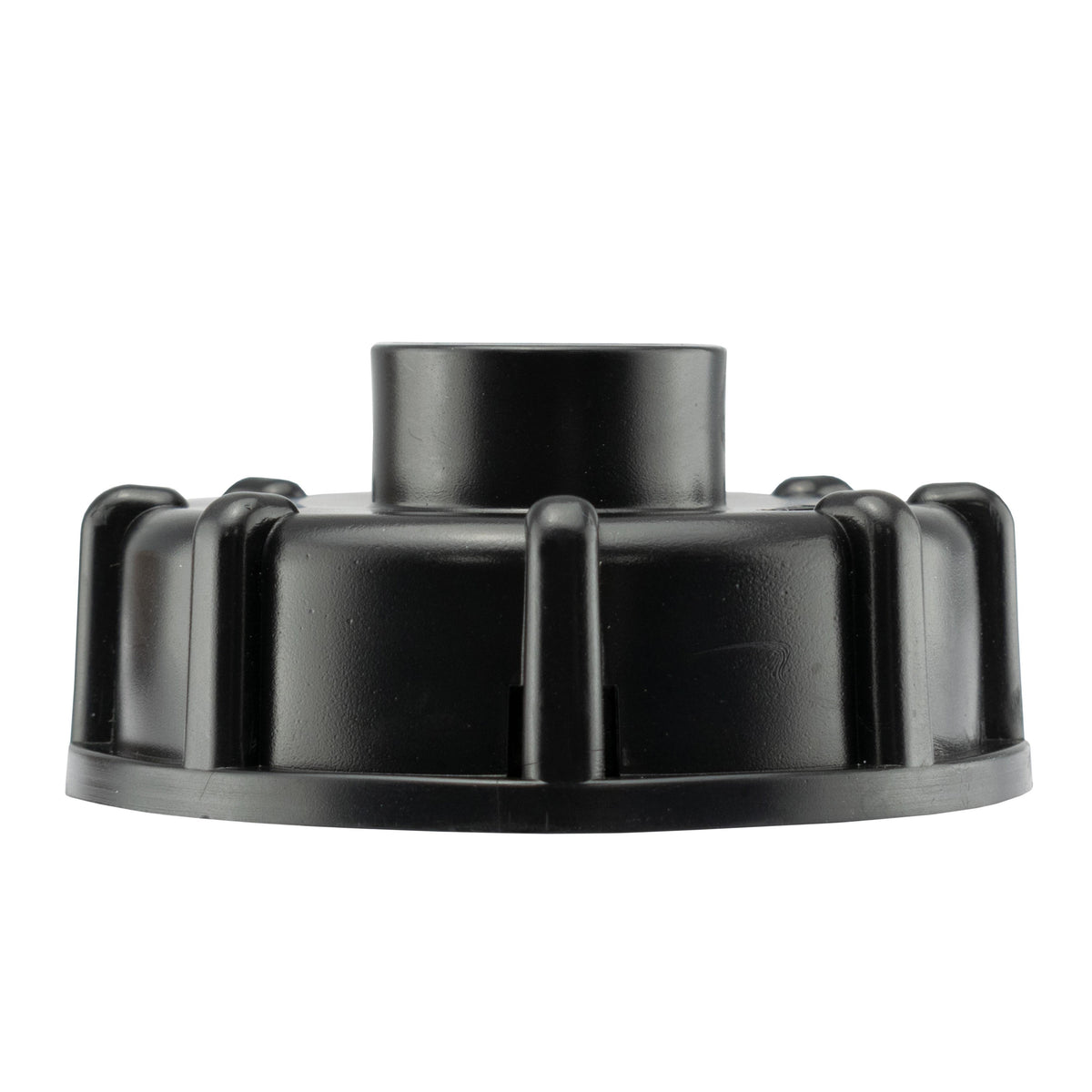

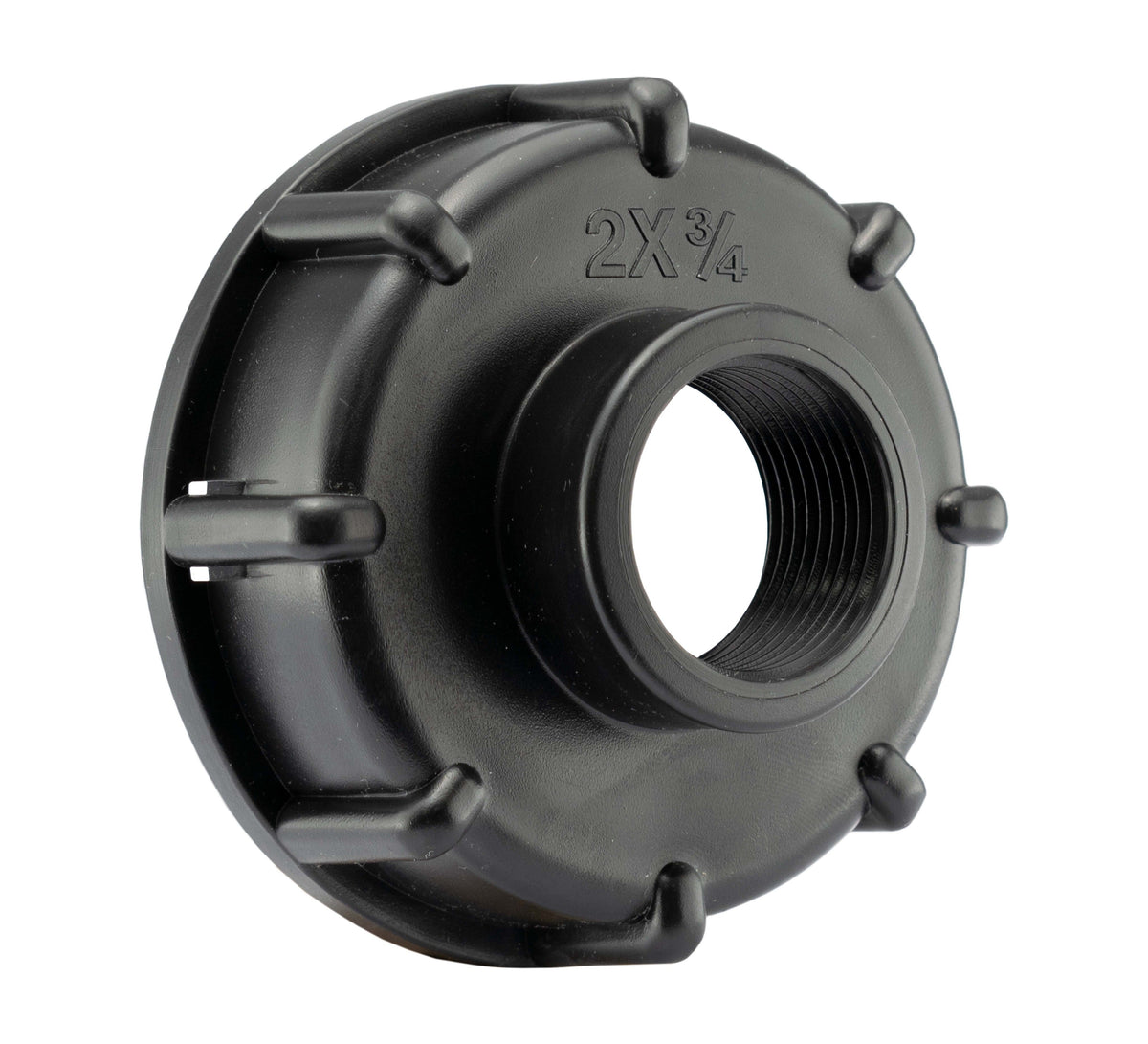

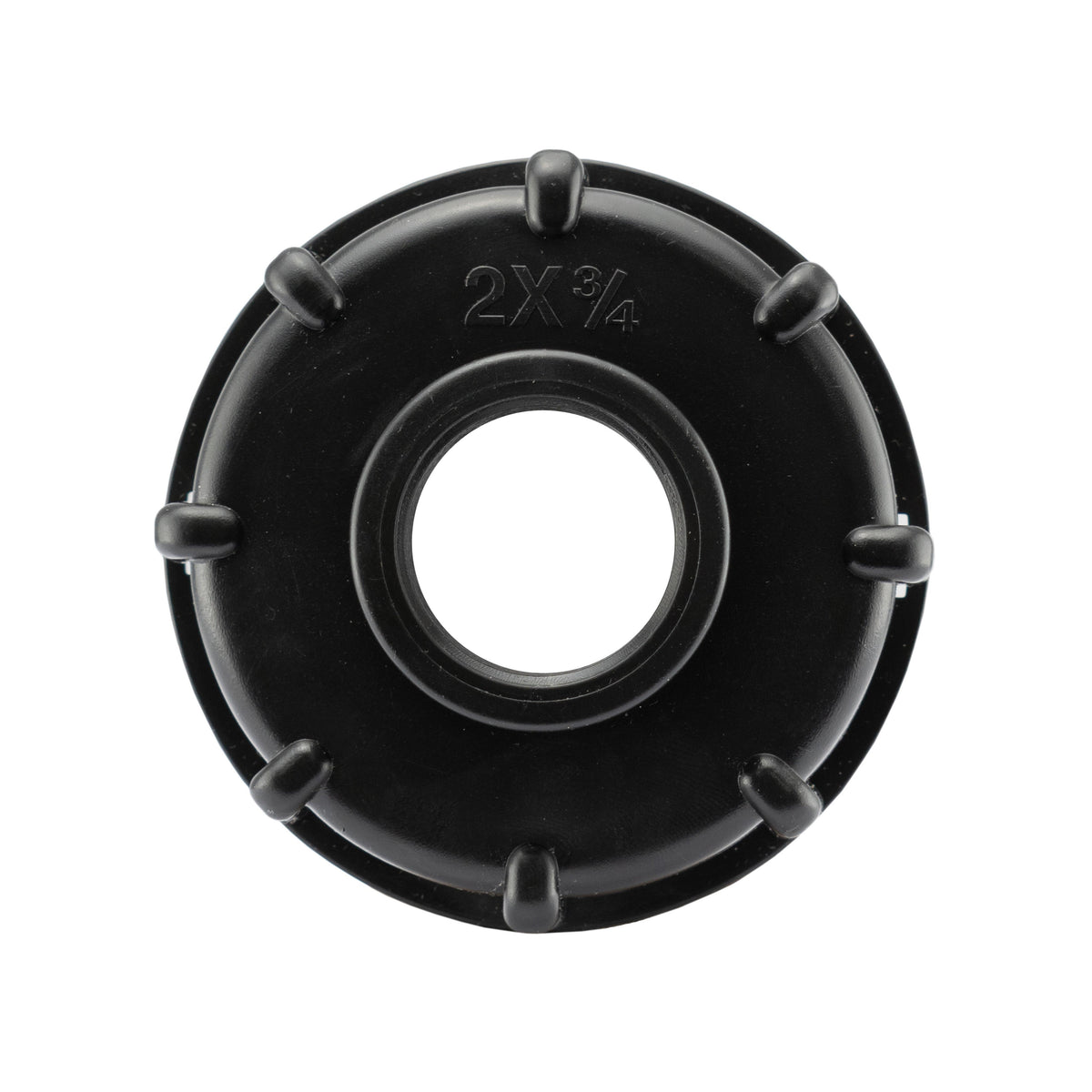

1 × S60X6 female cap with ¾″ BSP female thread
1 × large polypropylene single-union ball valve, ¾″ BSP male/female

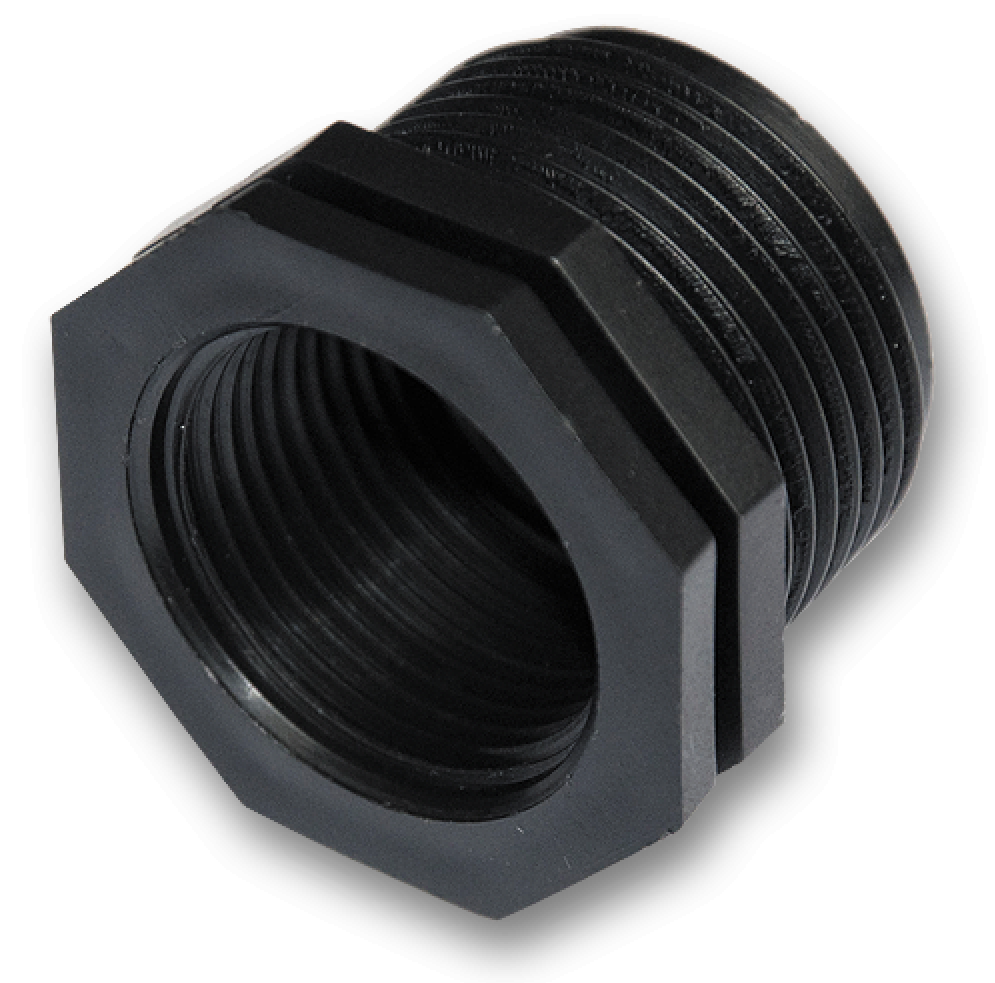

1 × reducing bush, ¾″ BSP male to ½″ BSP female

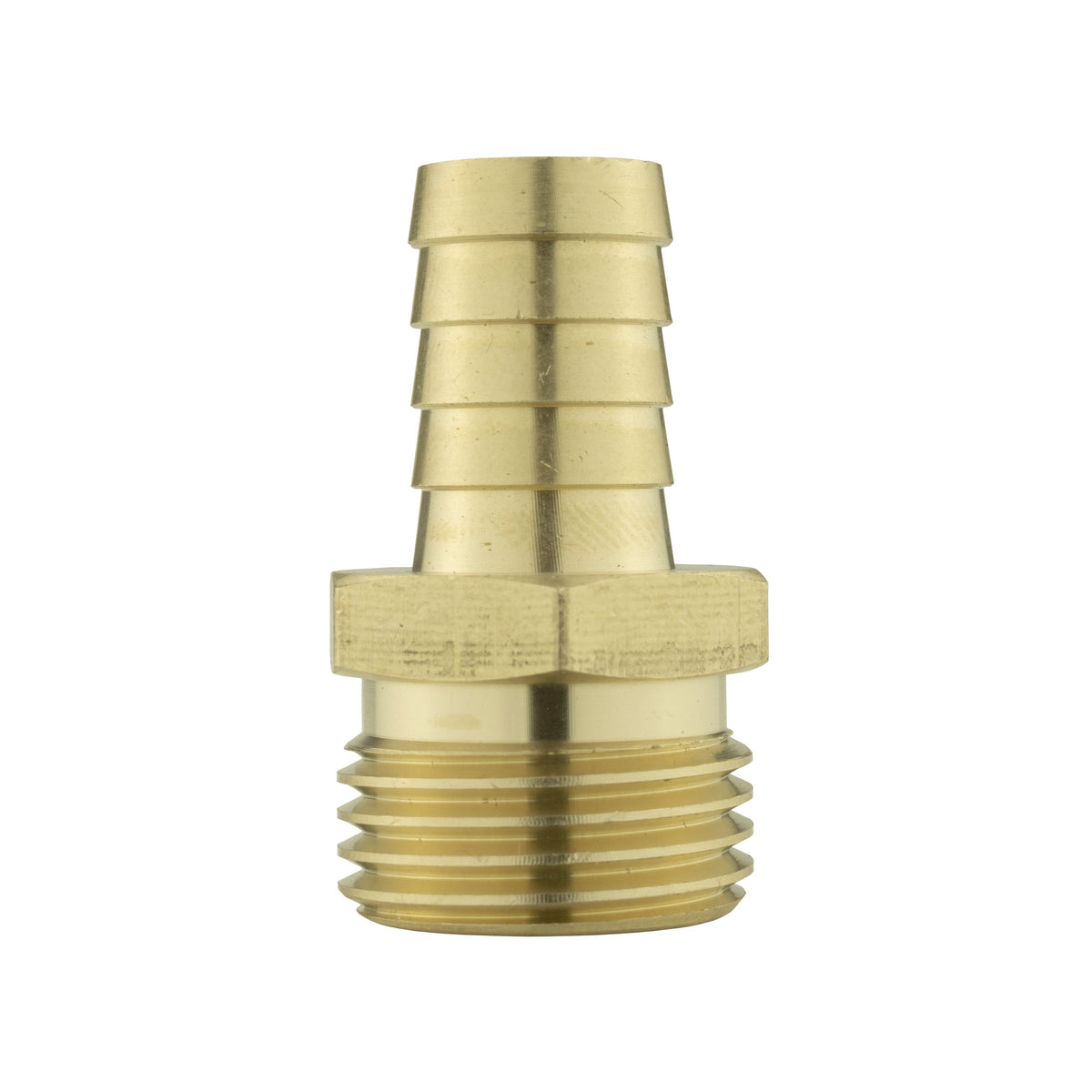

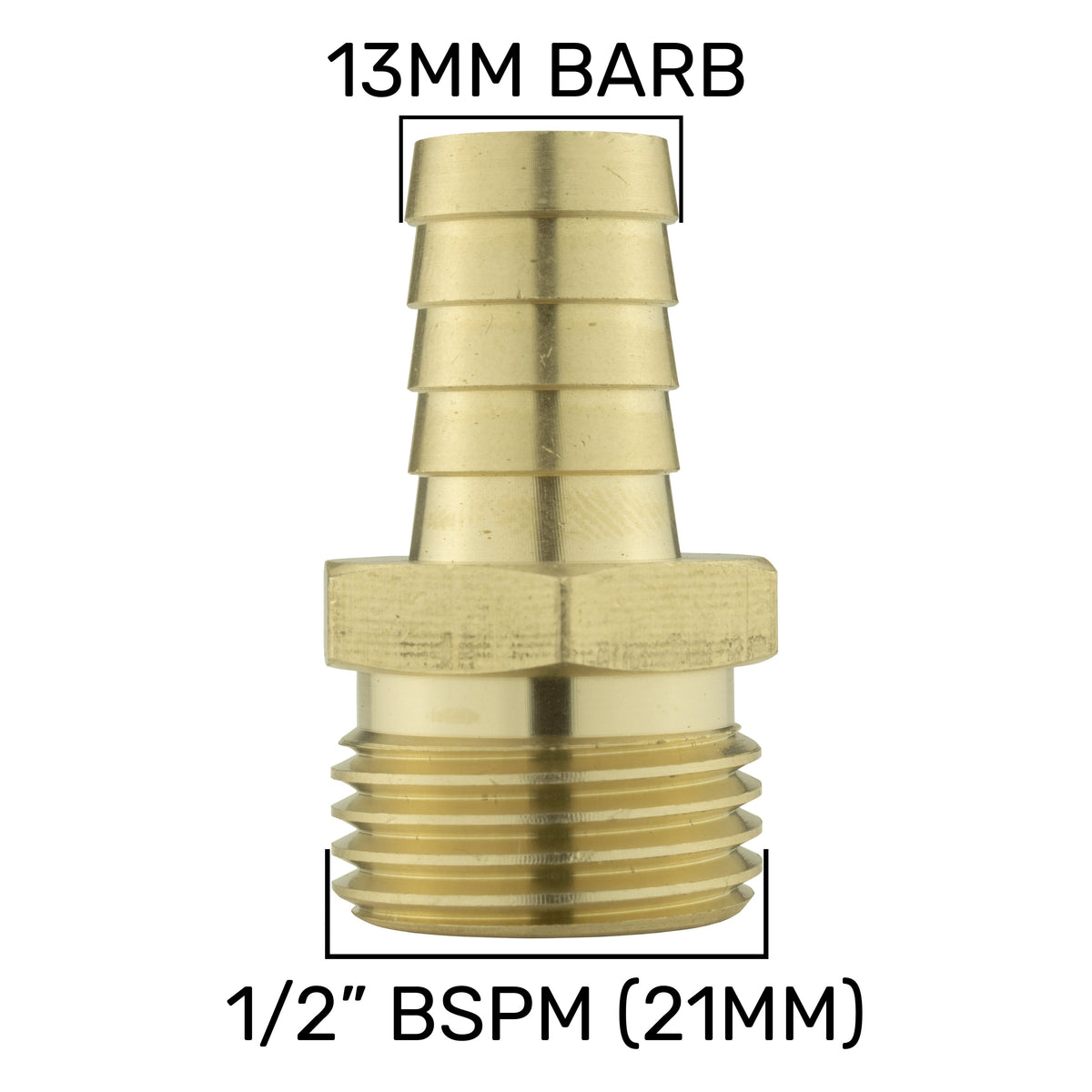

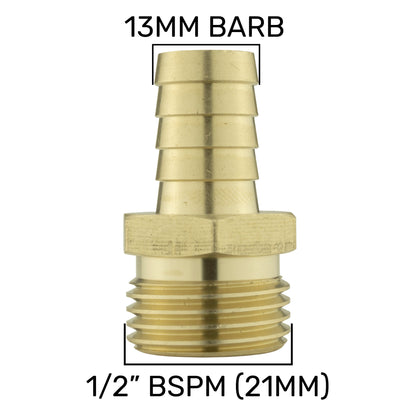

1 × brass straight hose tail, 13mm barb to ½″ BSP male
Fitting your product
Check that your tank has the matching S60X6 male outlet. S60X6 and BSP are different thread systems. Match the final connection to your intended hose or fitting, assemble and inspect the joints before opening the tank outlet. IBC tank, hose, separate hose clips and PTFE tape are supplied separately. Match the hose bore and use suitable fastening.
