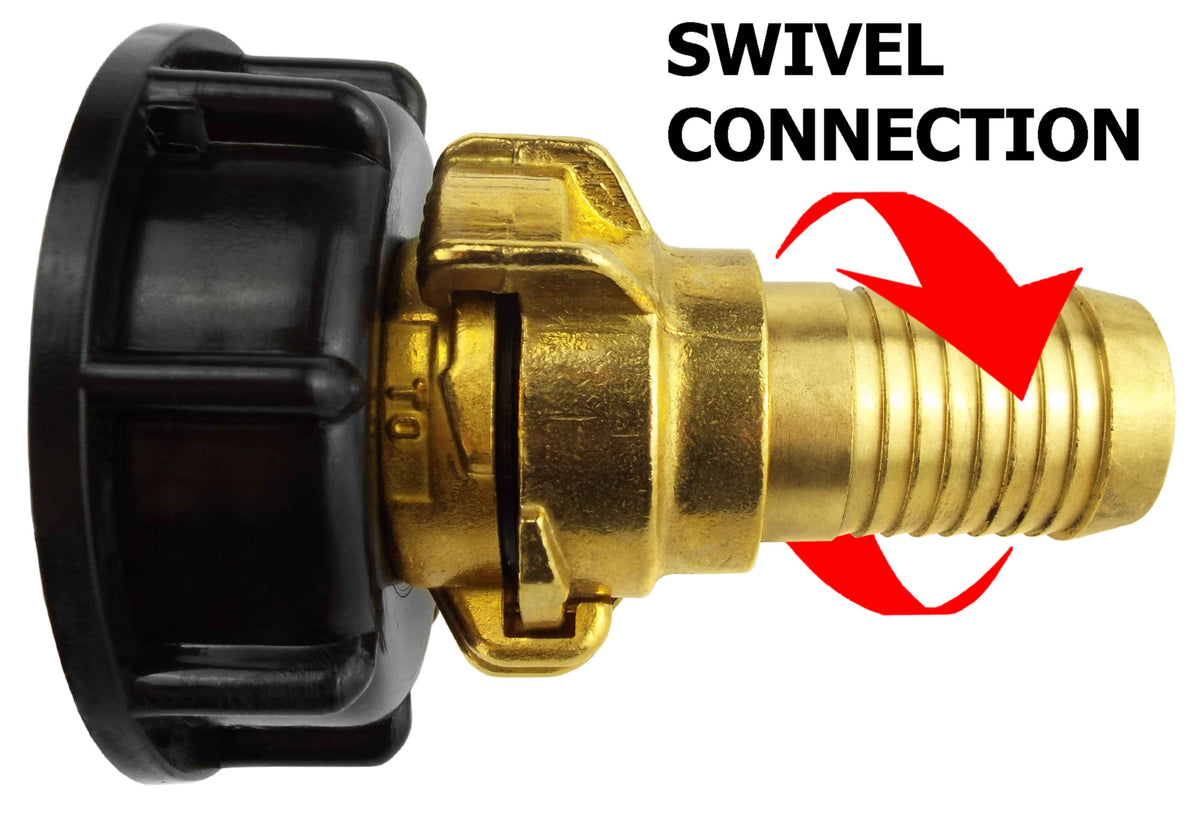

IBC S60X6 Cap & Brass Claw Fittings – 13mm Swivel Tail

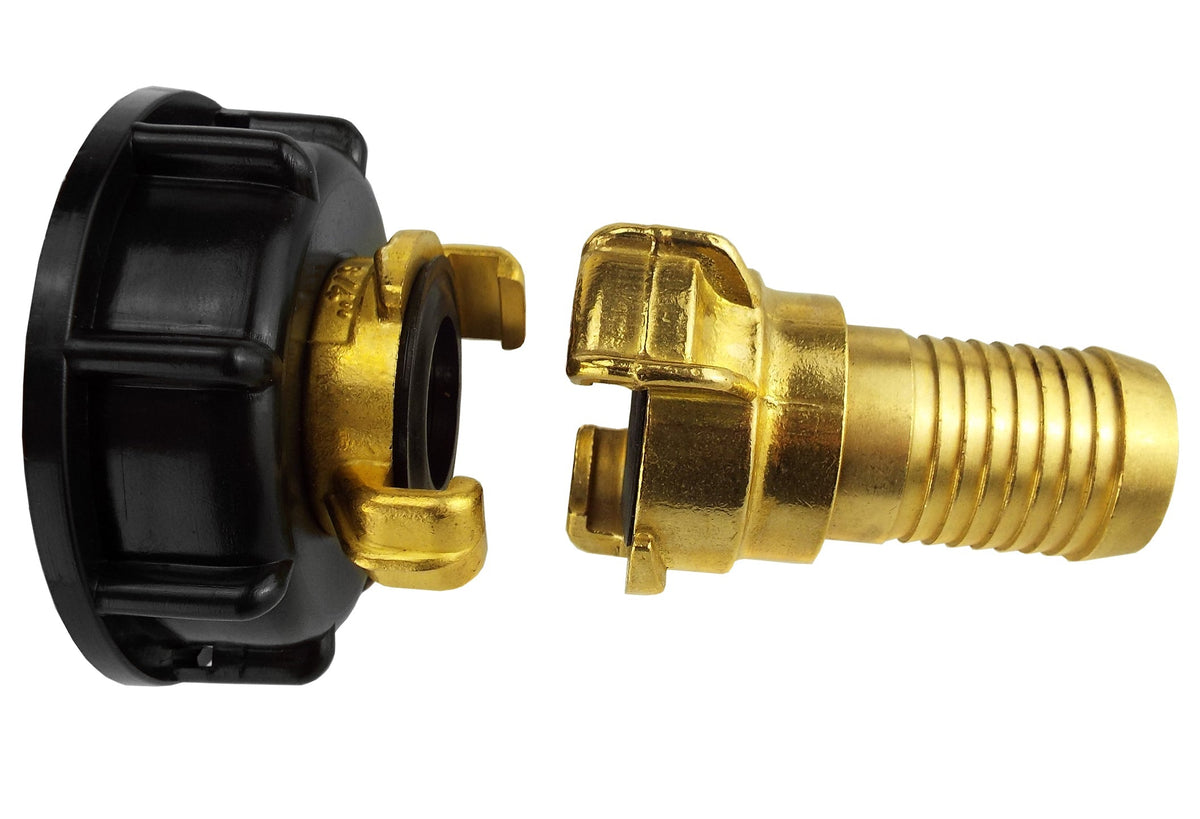

Join a 13mm hose to a compatible IBC tank with an S60X6 cap and two brass Geka-type claw fittings. The hose-side fitting has a straight swivel tail.

Product details

• Tank connection: S60X6 female
• Cap / threaded claw connection: ½″ BSP female / male
• Hose barb: 13mm
• Claw fittings: brass, Geka-type
• Hose-side fitting: straight swivel hose tail
• Reference: IBC006D

What is included

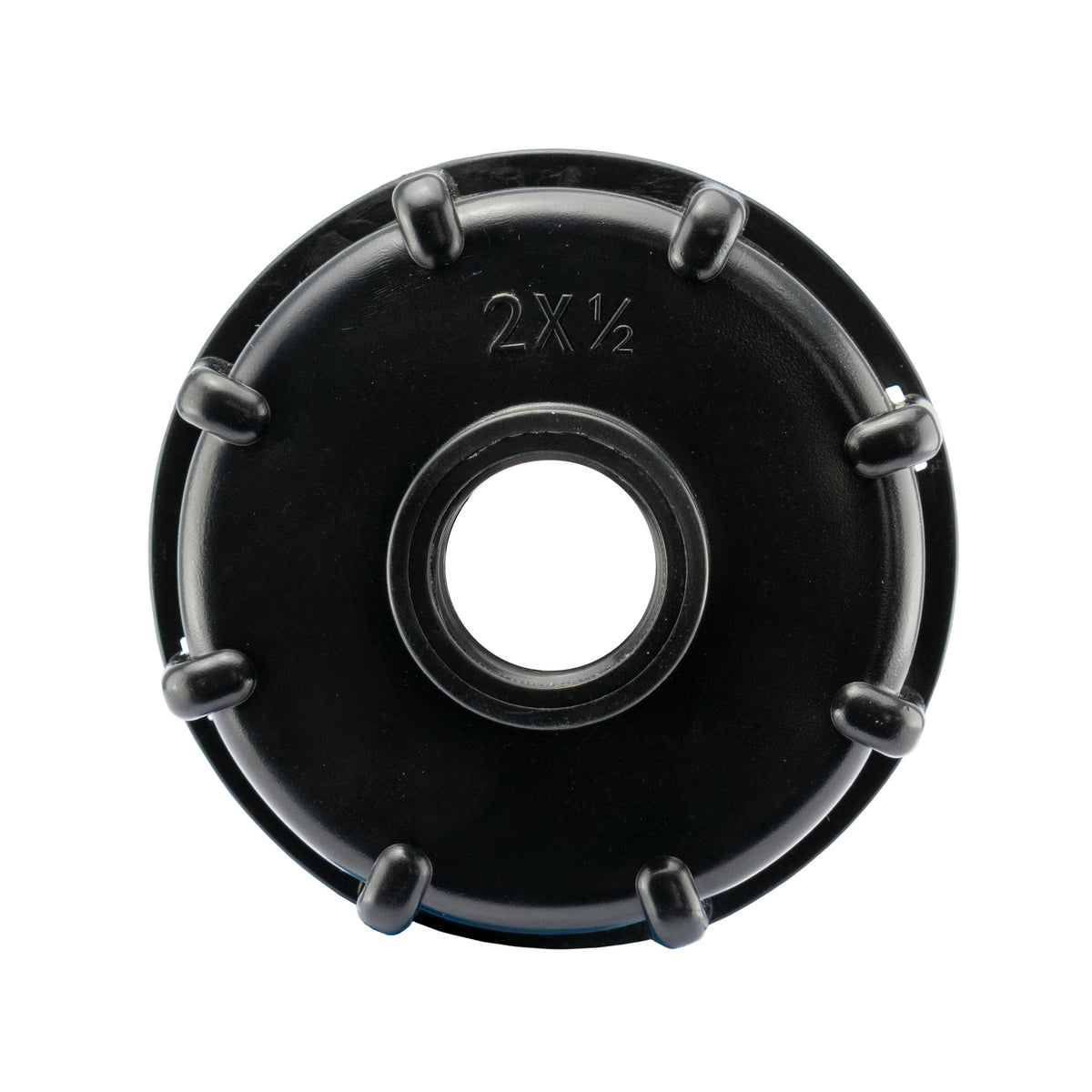

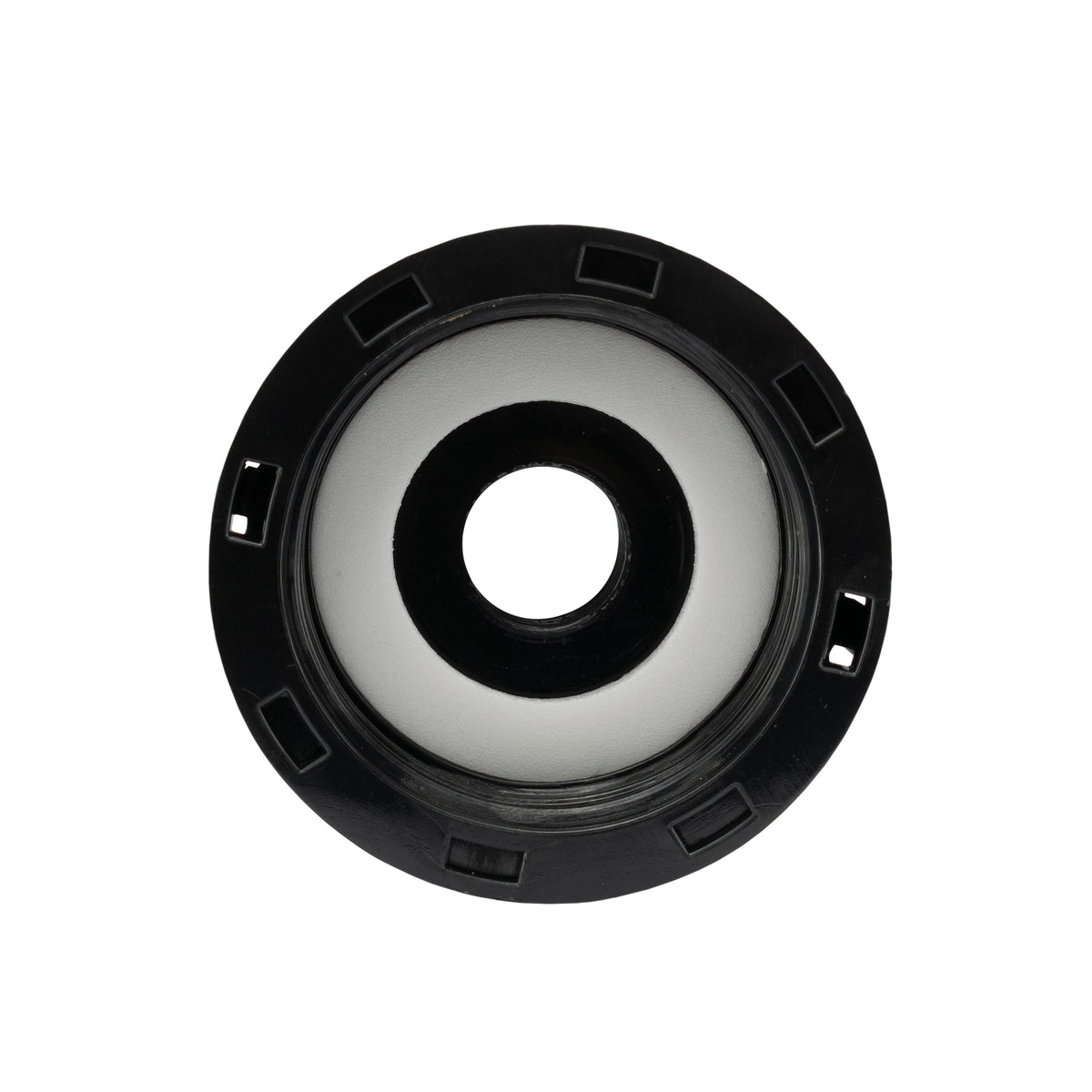

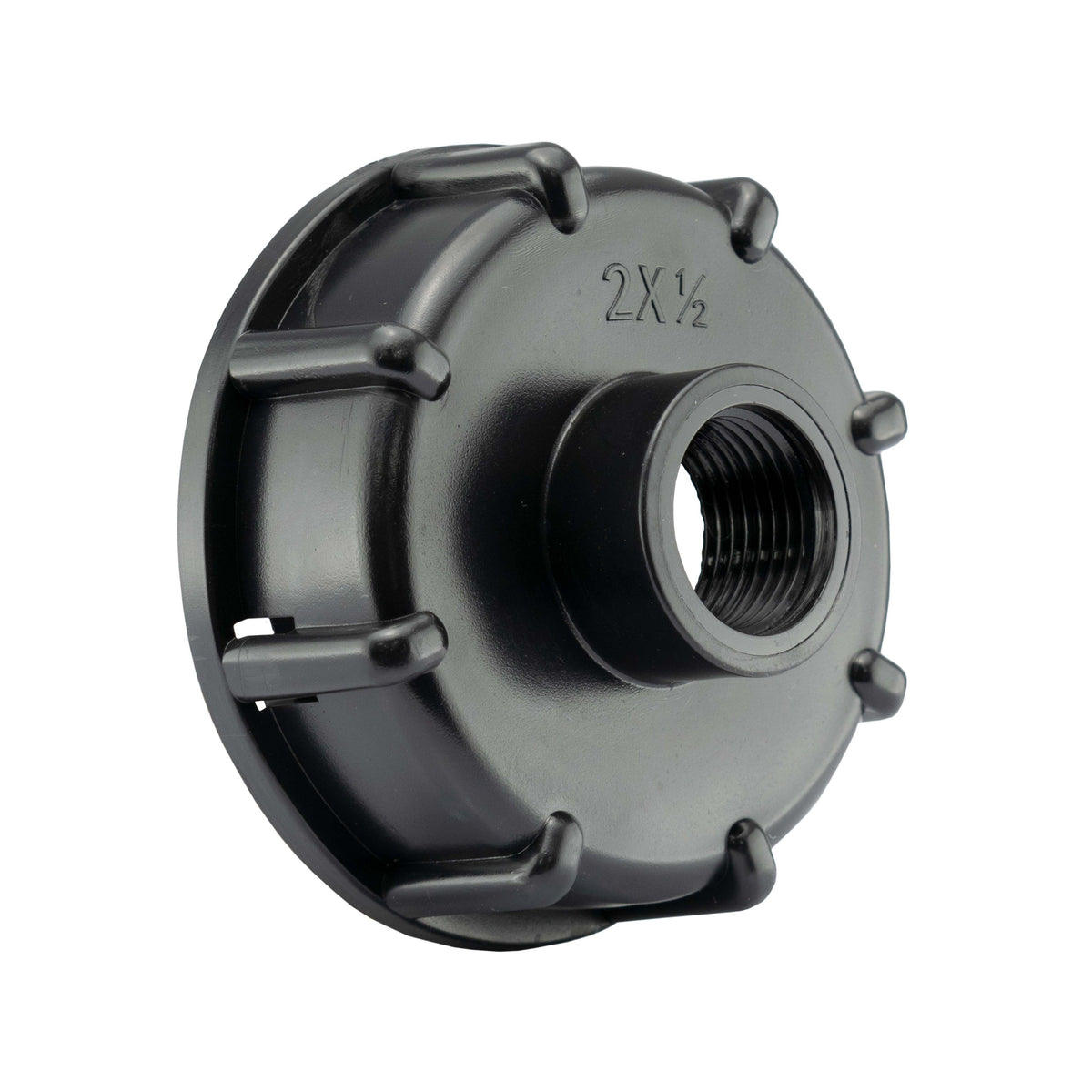

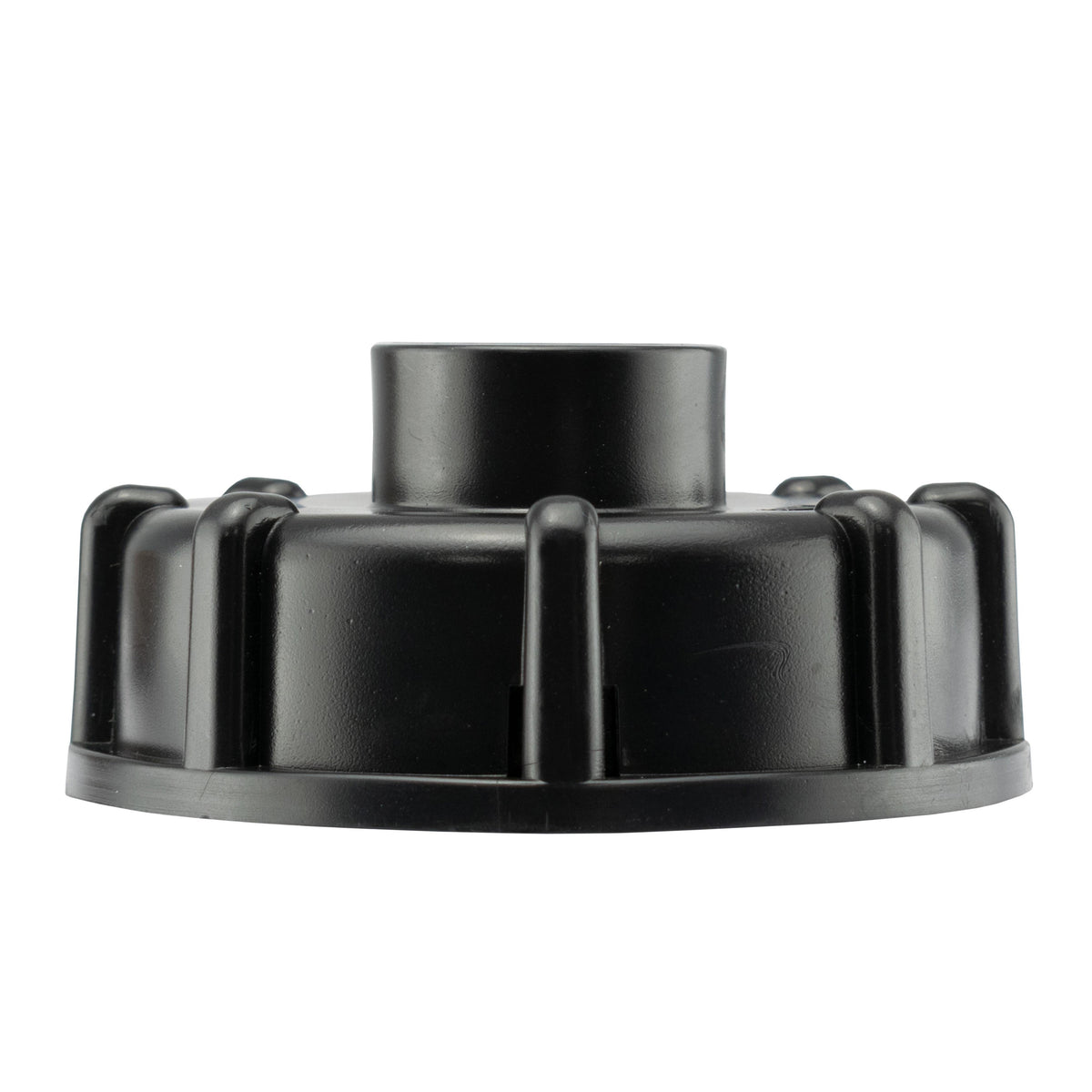

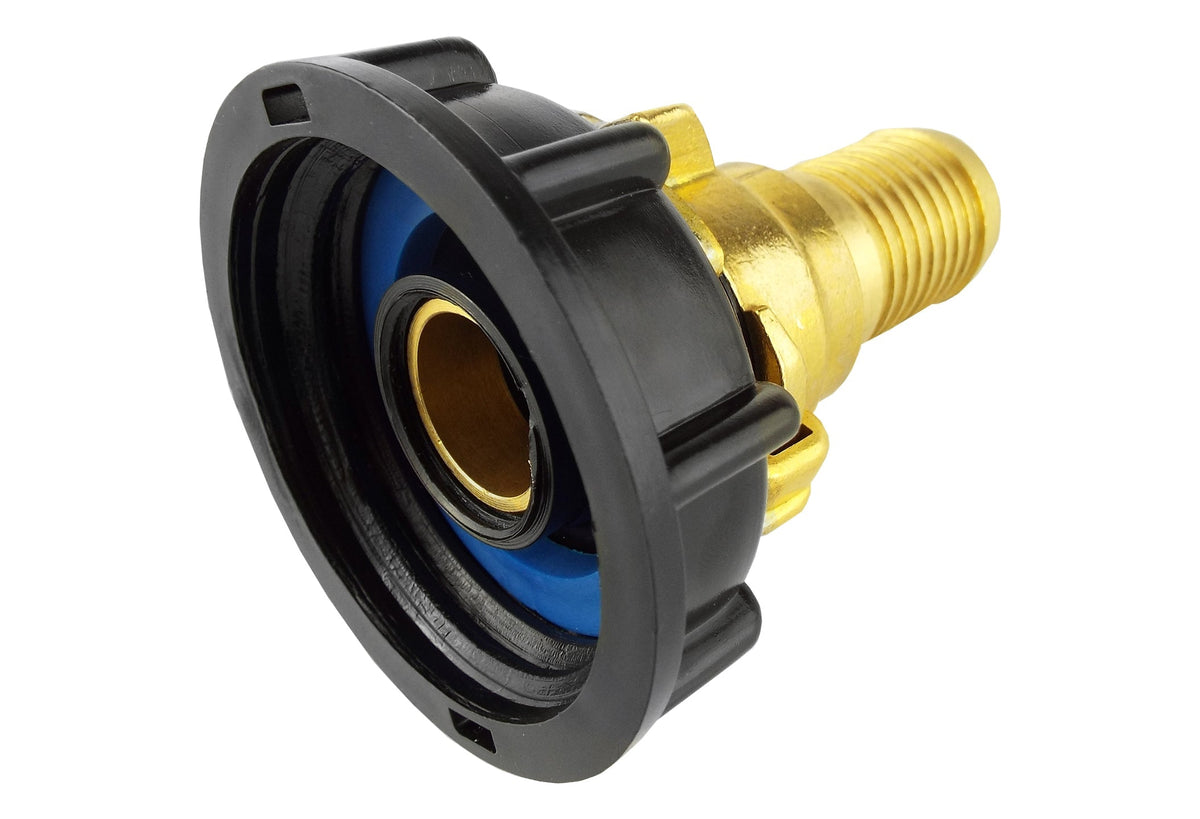

• 1 × S60X6 female cap with ½″ BSP female thread

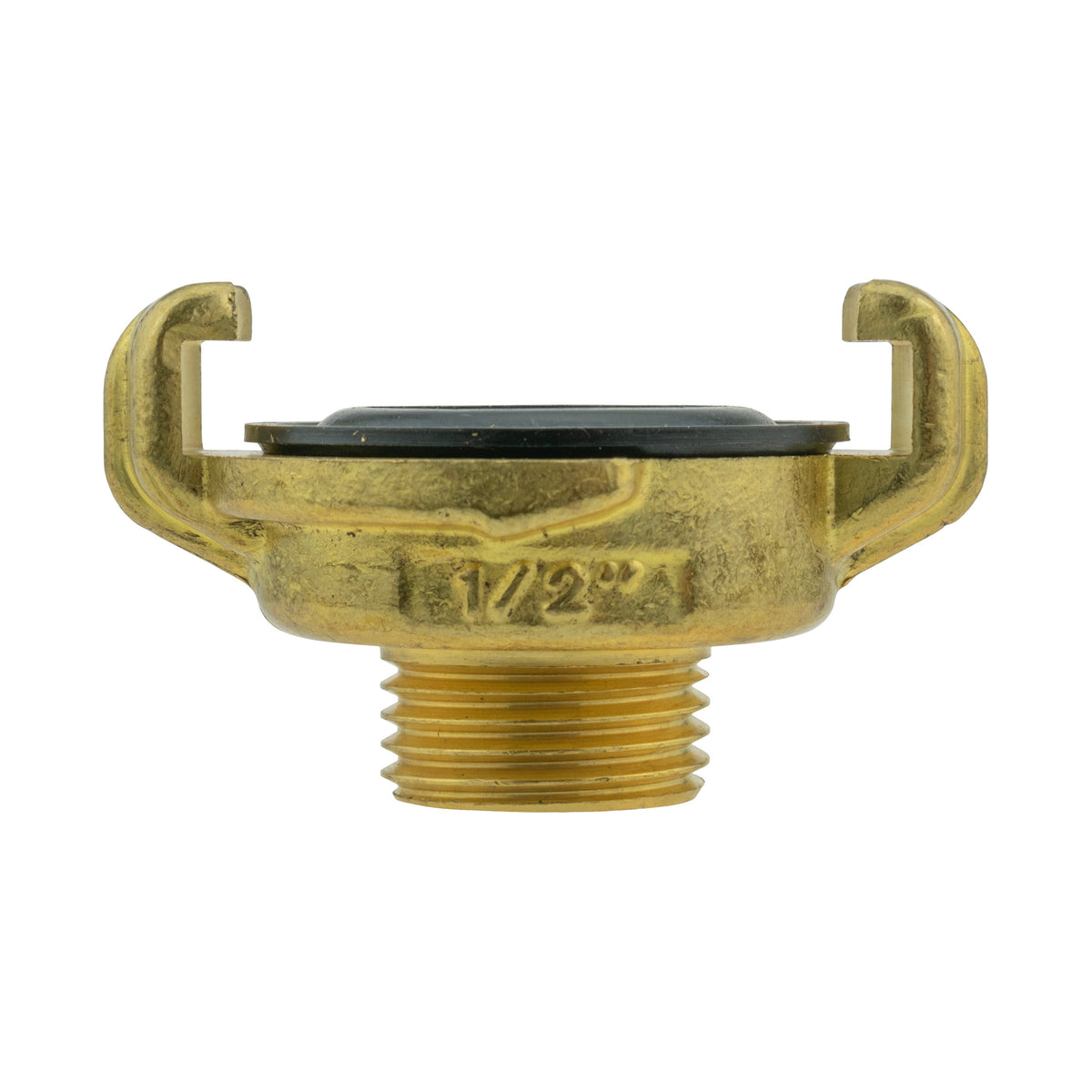

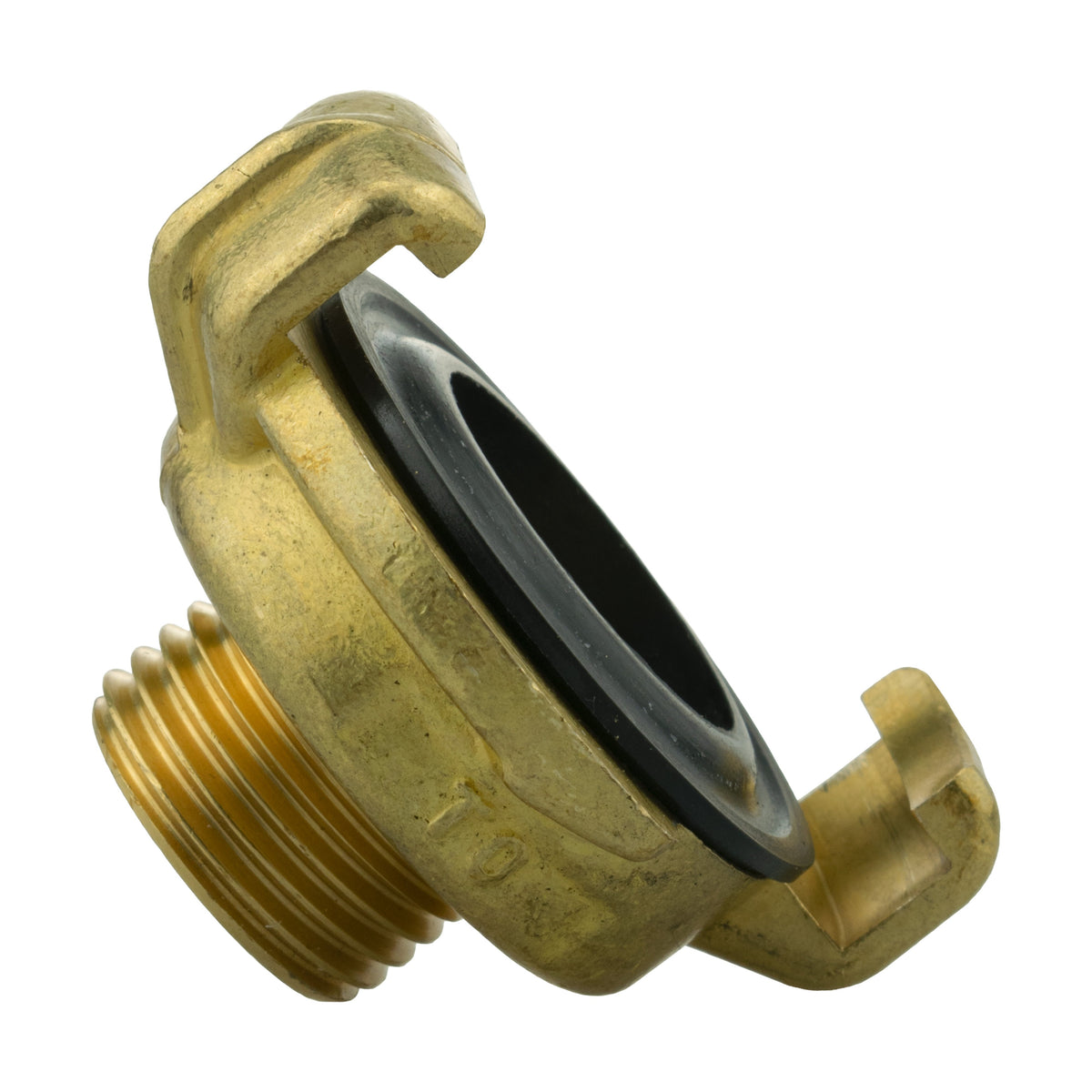

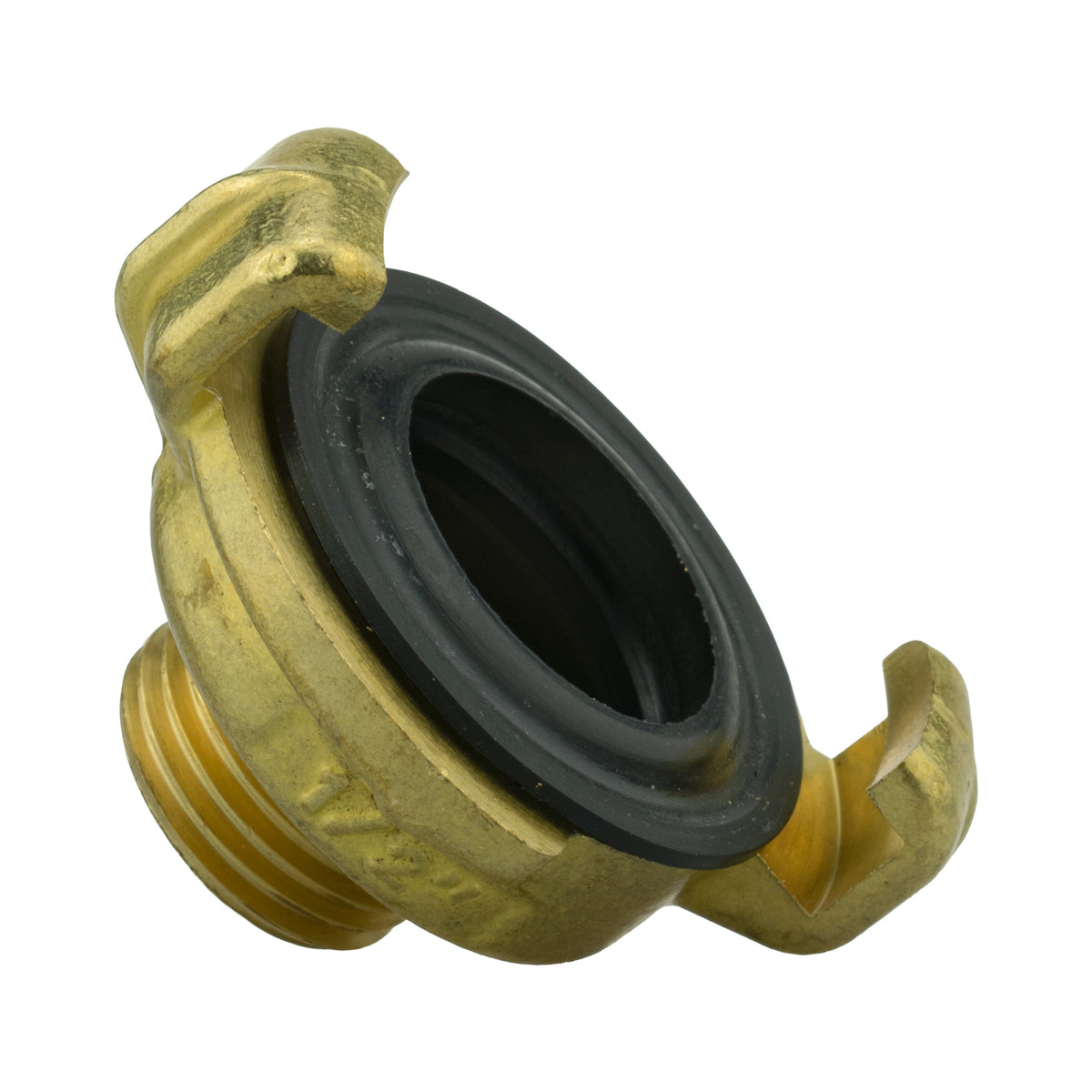

• 1 × brass Geka-type claw fitting with ½″ BSP male thread

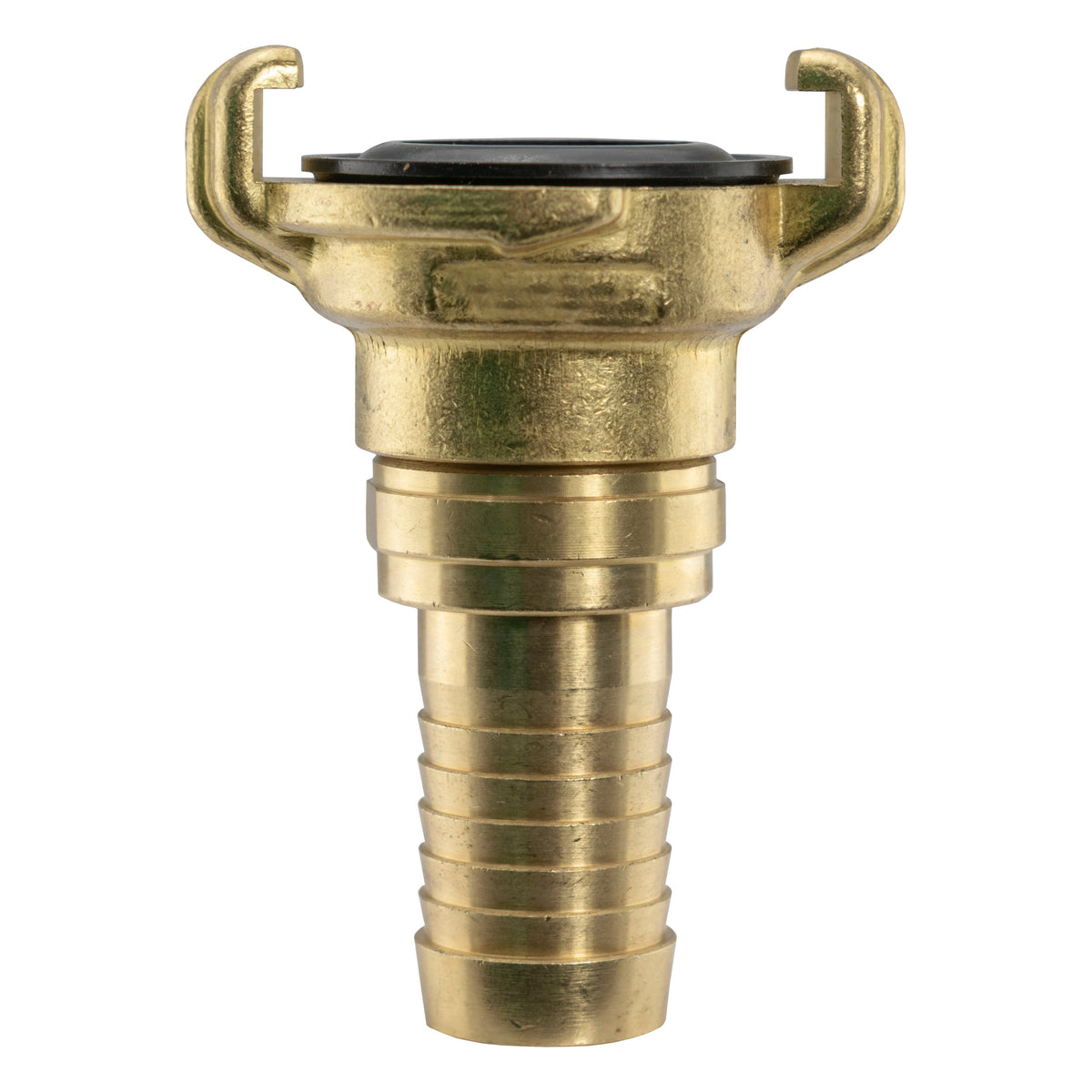

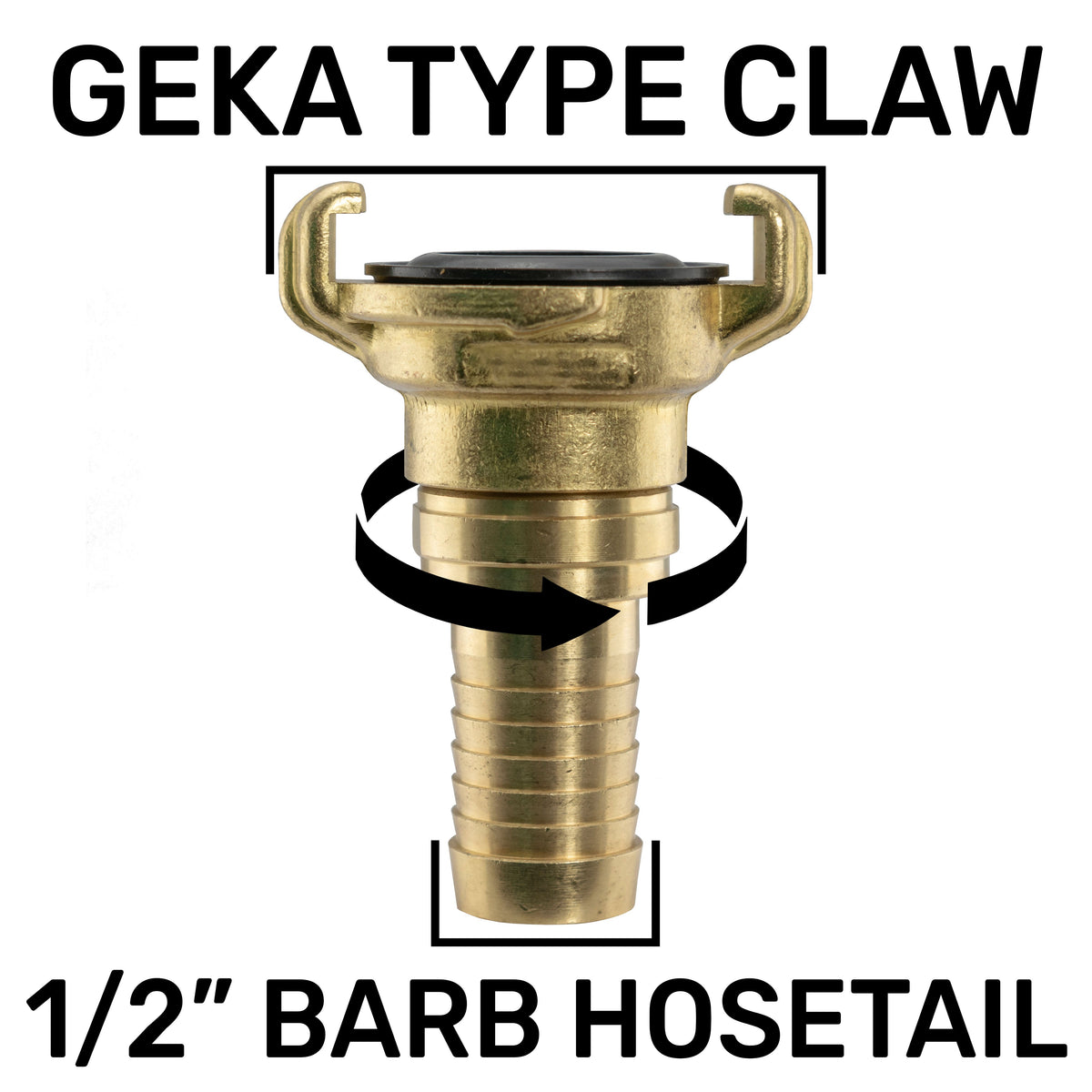

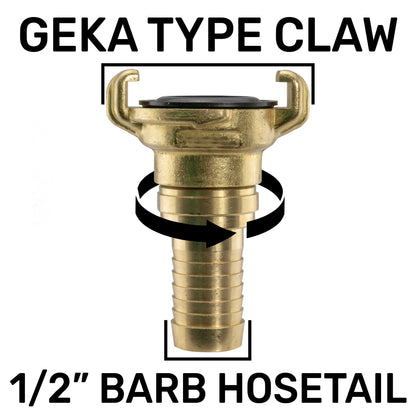

• 1 × brass Geka-type swivel claw fitting with 13mm hose barb

Fitting your product

Check that the tank outlet has the matching S60X6 male thread. S60X6 and BSP are different thread systems. Match the final connection to your intended pipe or hose, assemble and inspect all joints before opening the tank outlet. IBC tank, pipe, hose, separate hose clips and PTFE tape are supplied separately. Check the mating claw profile and sealing faces, match the hose bore and use suitable fastening.
