Connect a compatible IBC outlet to 28mm copper pipe with a brass compression elbow for a 90° turn. A brass lever valve adds manual flow control.
Product details
Tank connection: S60X6 female
Cap thread: 1″ BSP female
Valve ends: 1″ BSP male/female
Valve: brass lever valve
Compression connection: 28mm copper pipe
Fitting mounting thread: 1″ BSP male
Fitting shape: 90° elbow
Reference: IBC016M

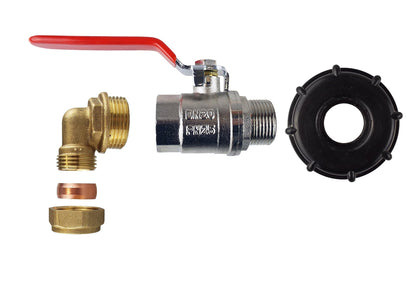

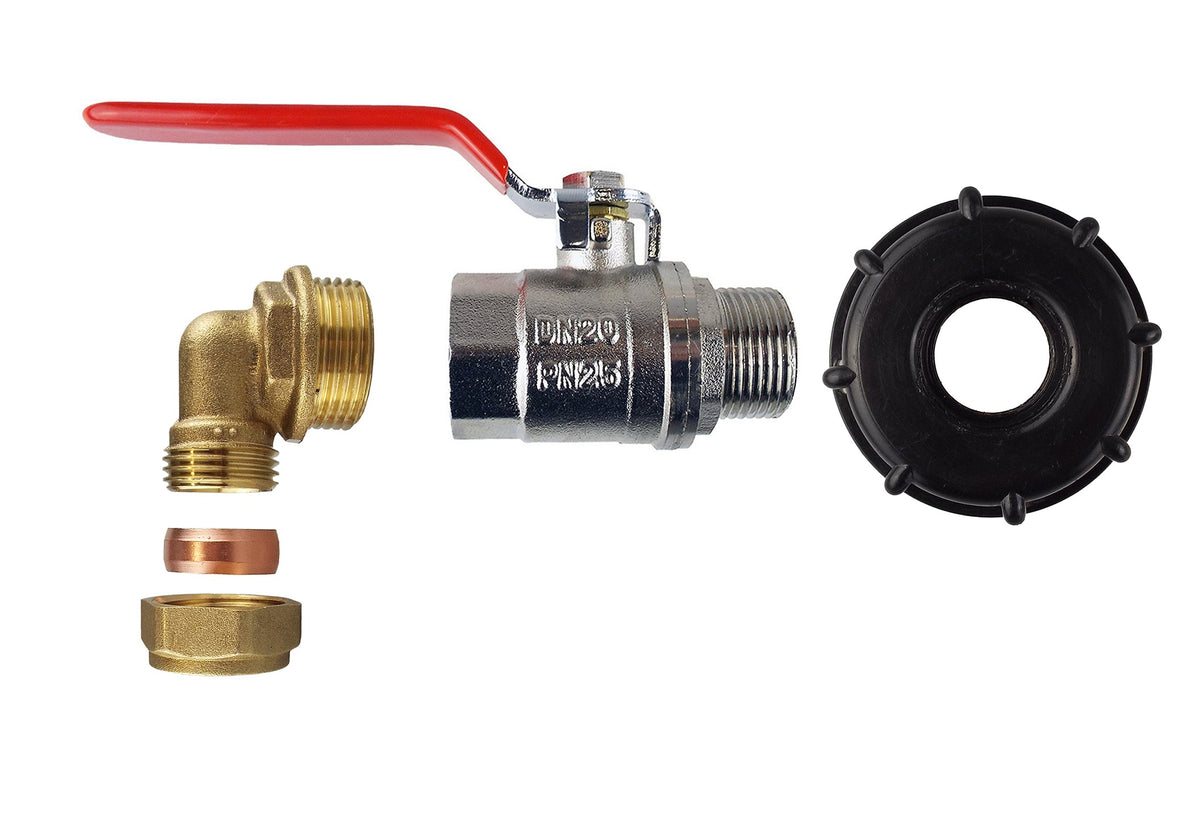

What is included

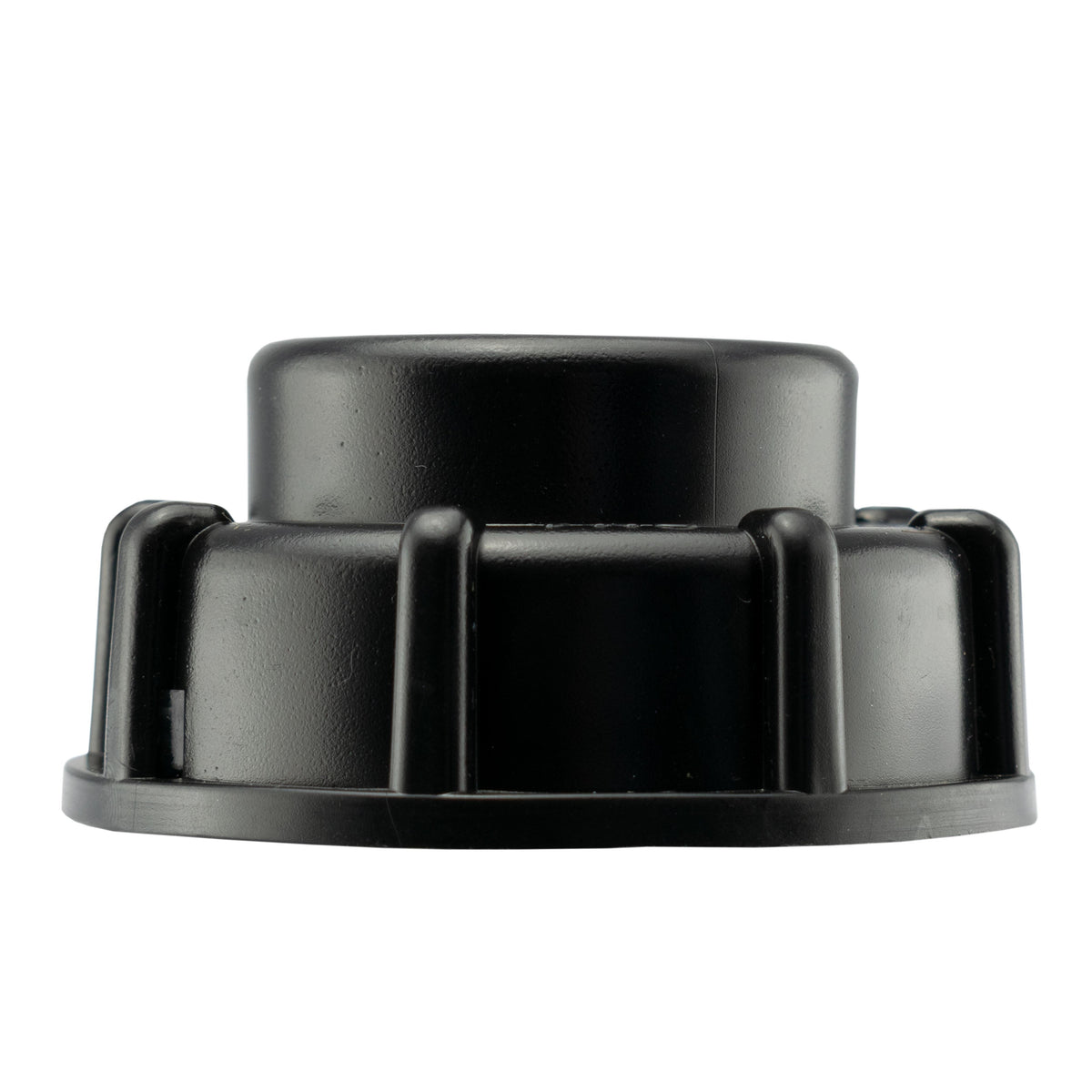

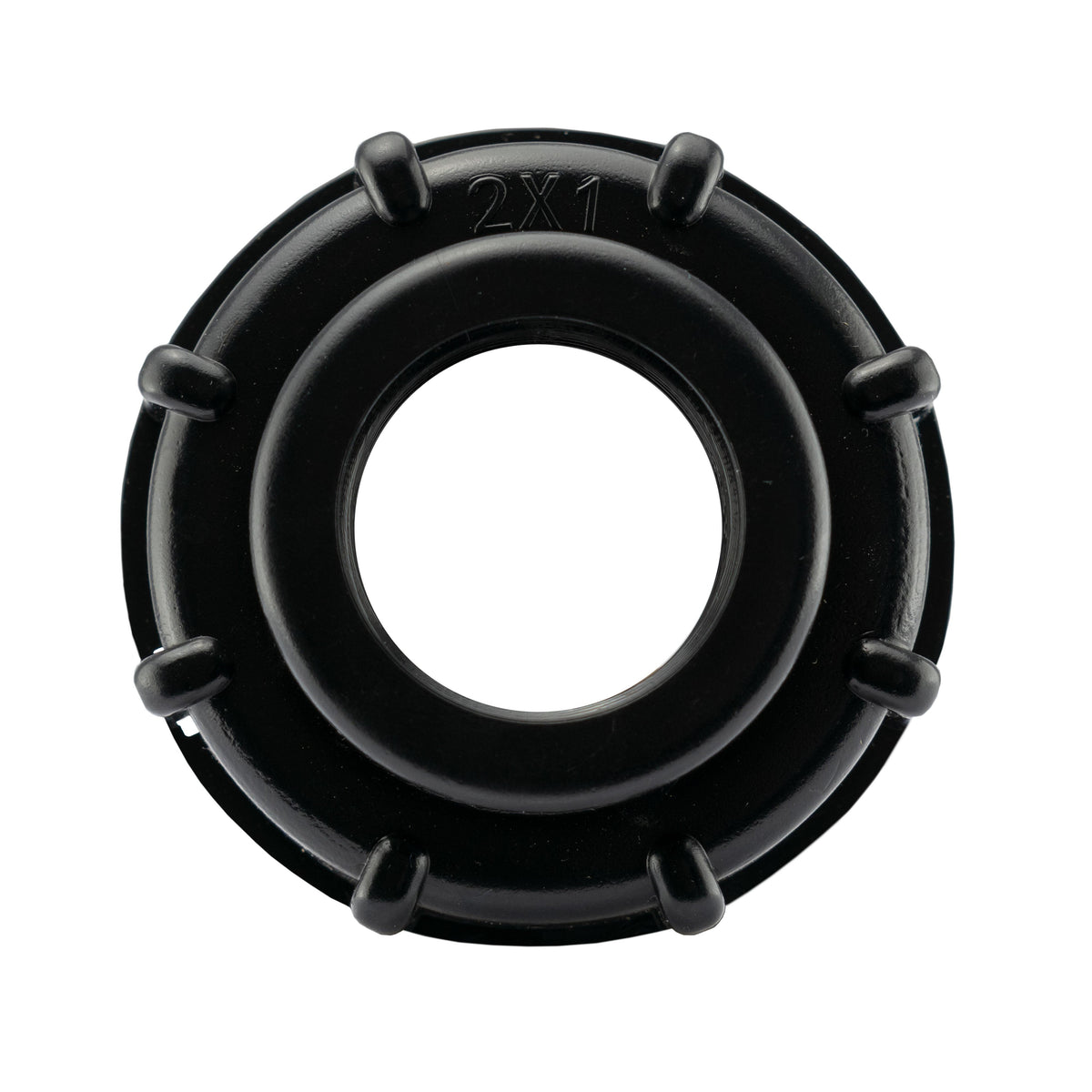

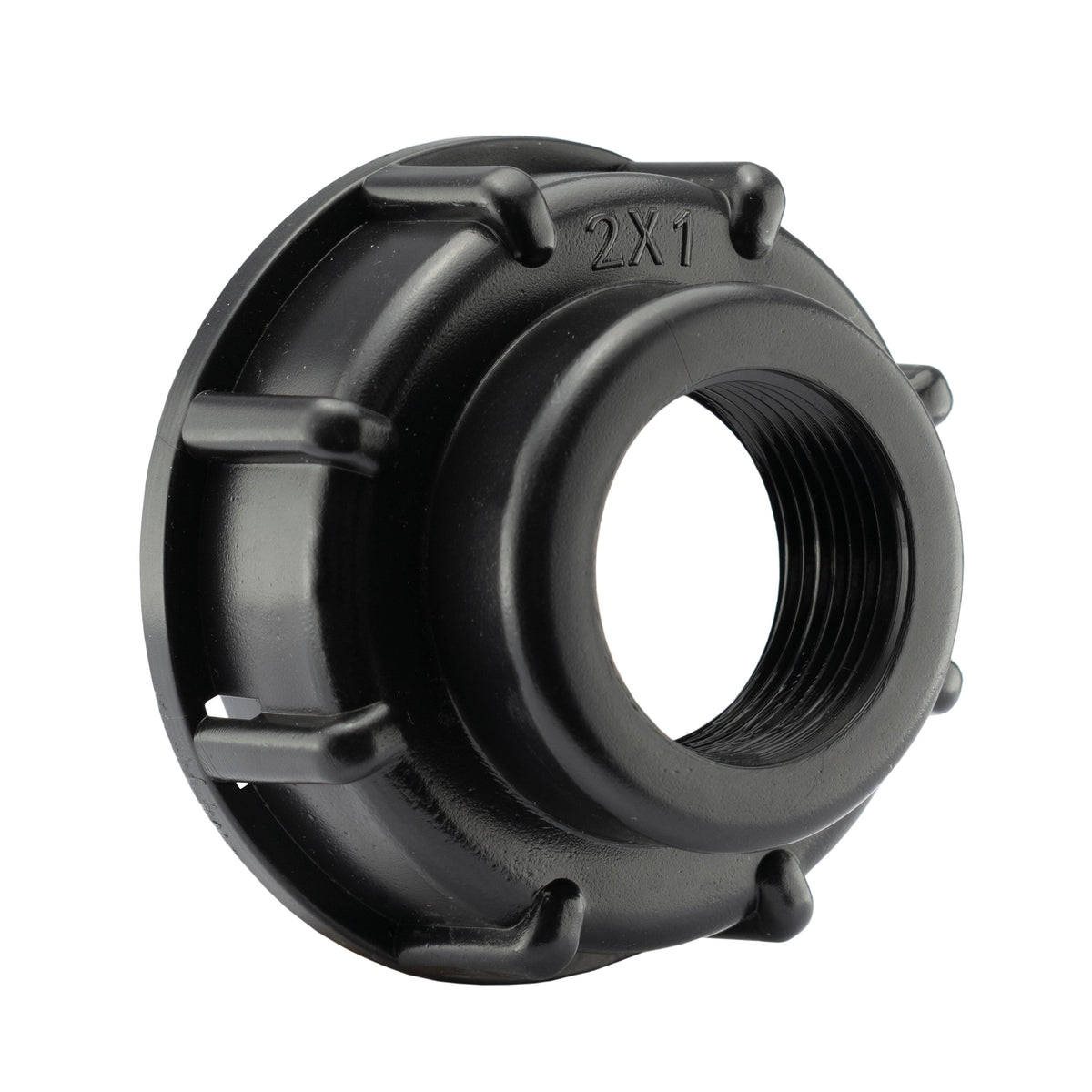

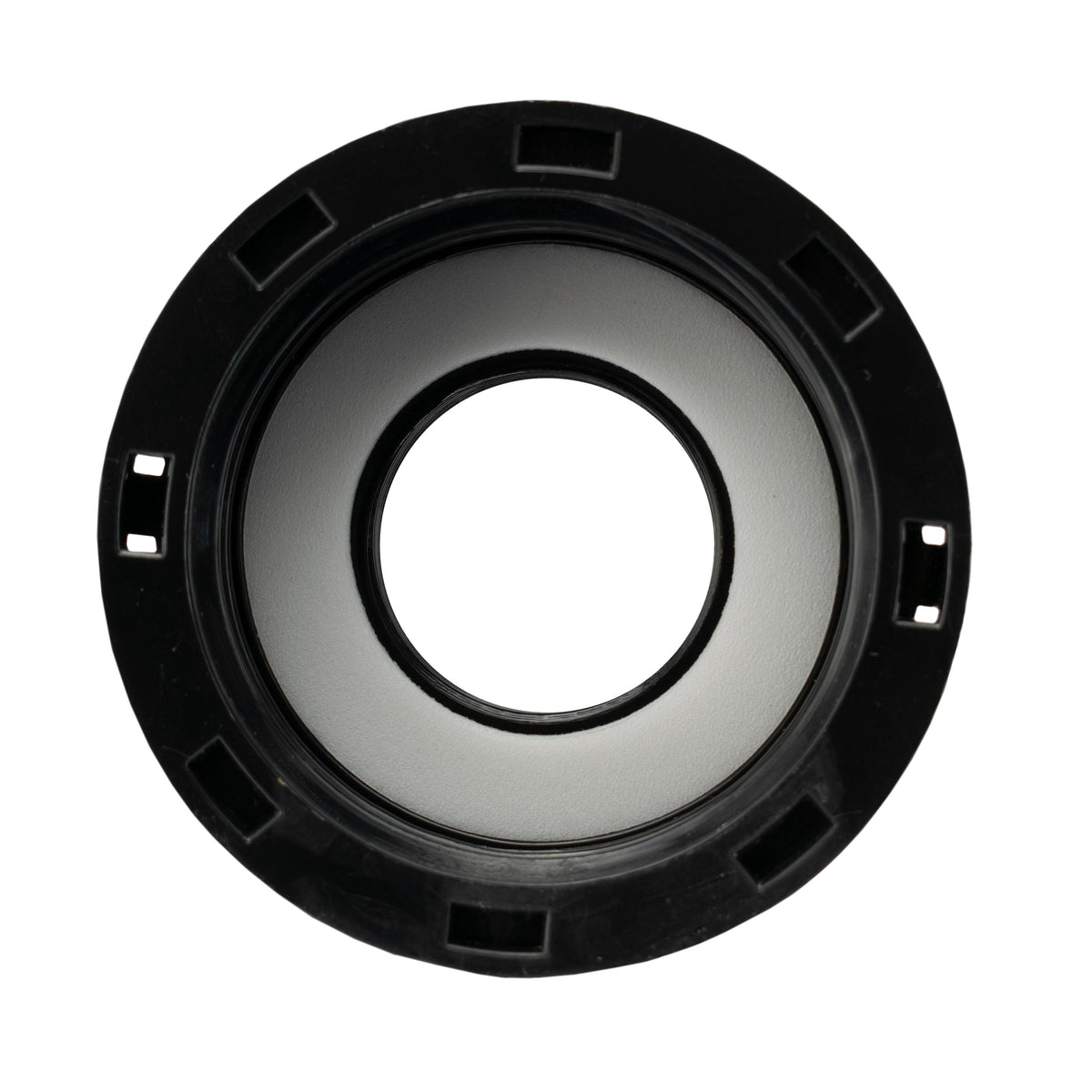

1 × S60X6 female cap with 1″ BSP female thread

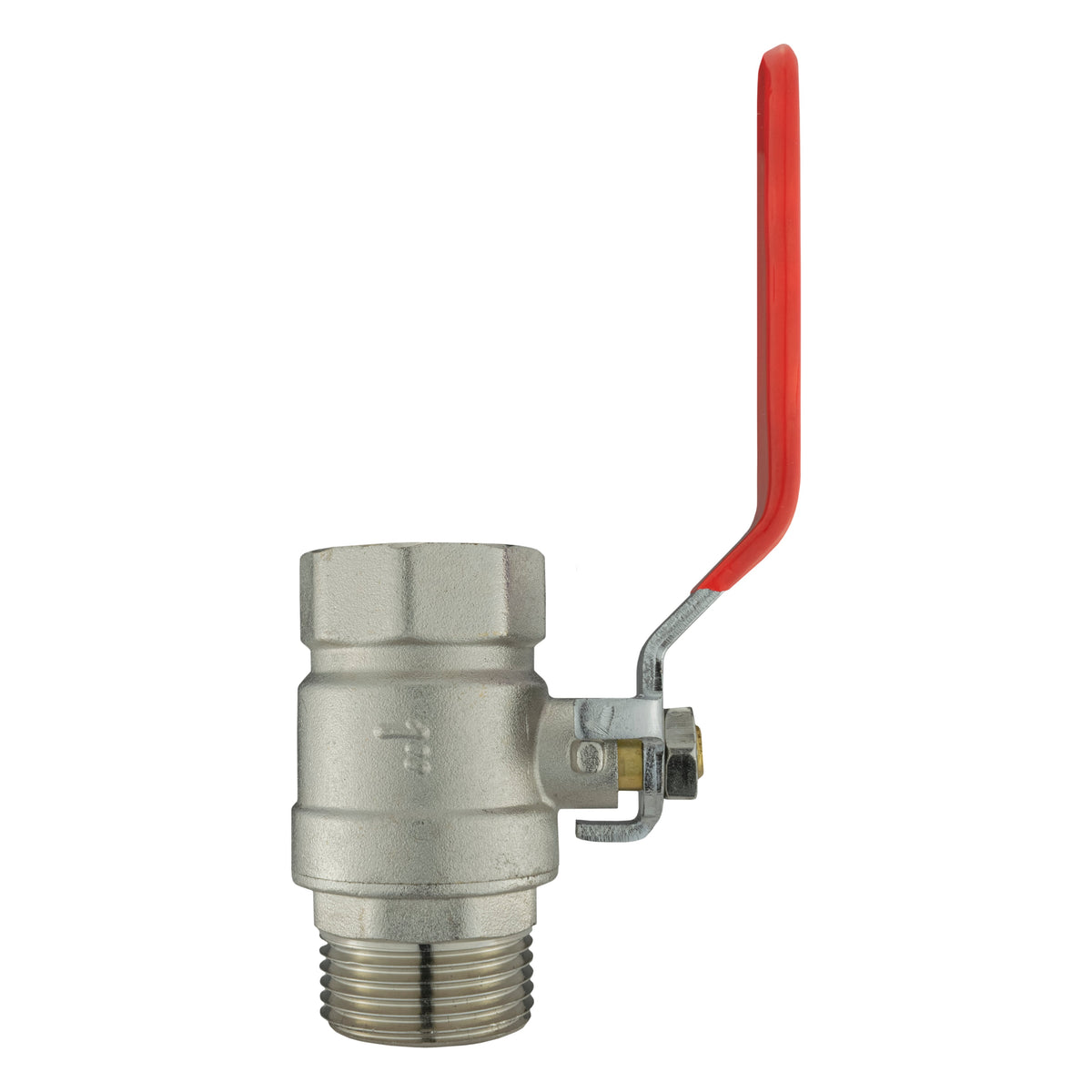

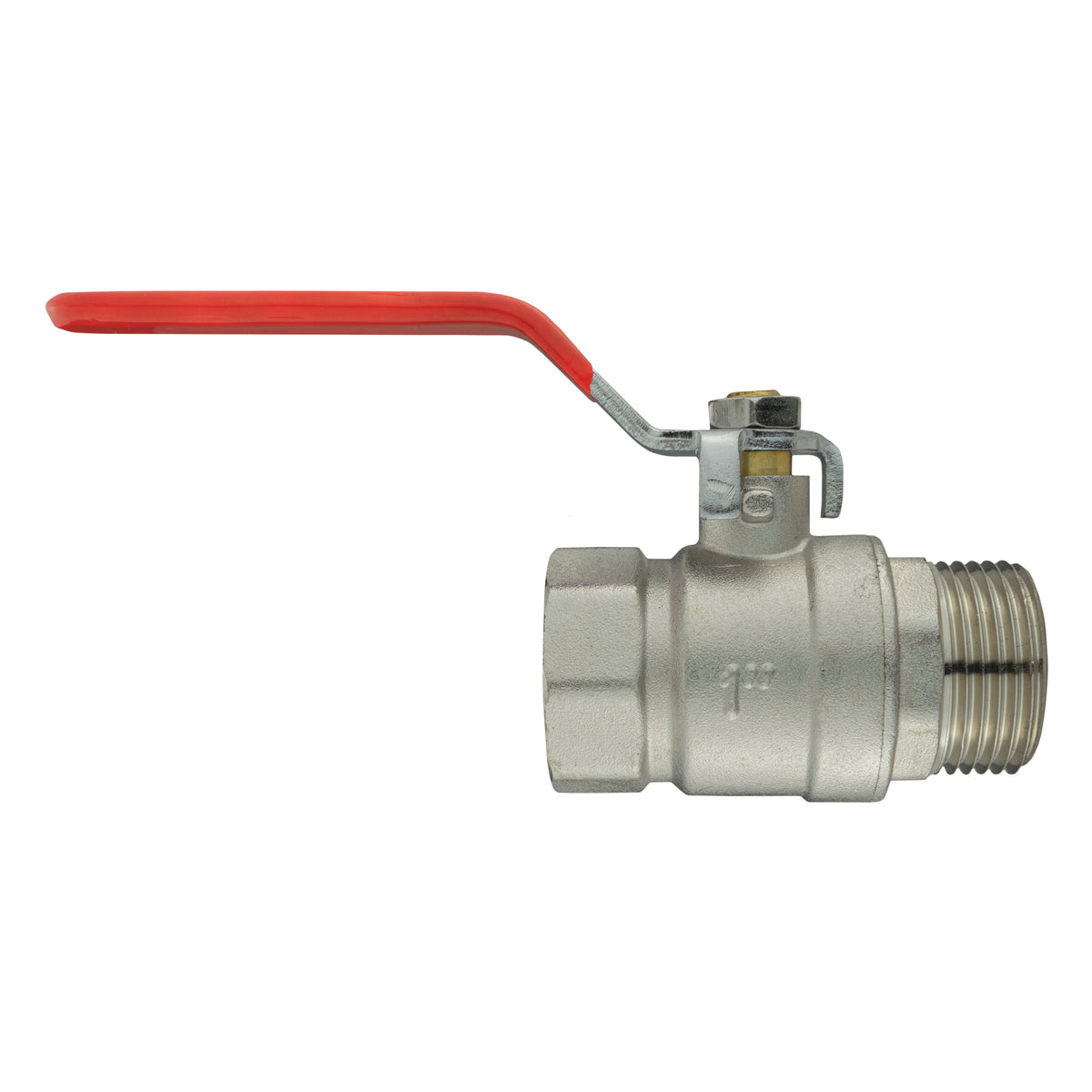

1 × brass lever valve, 1″ BSP male/female

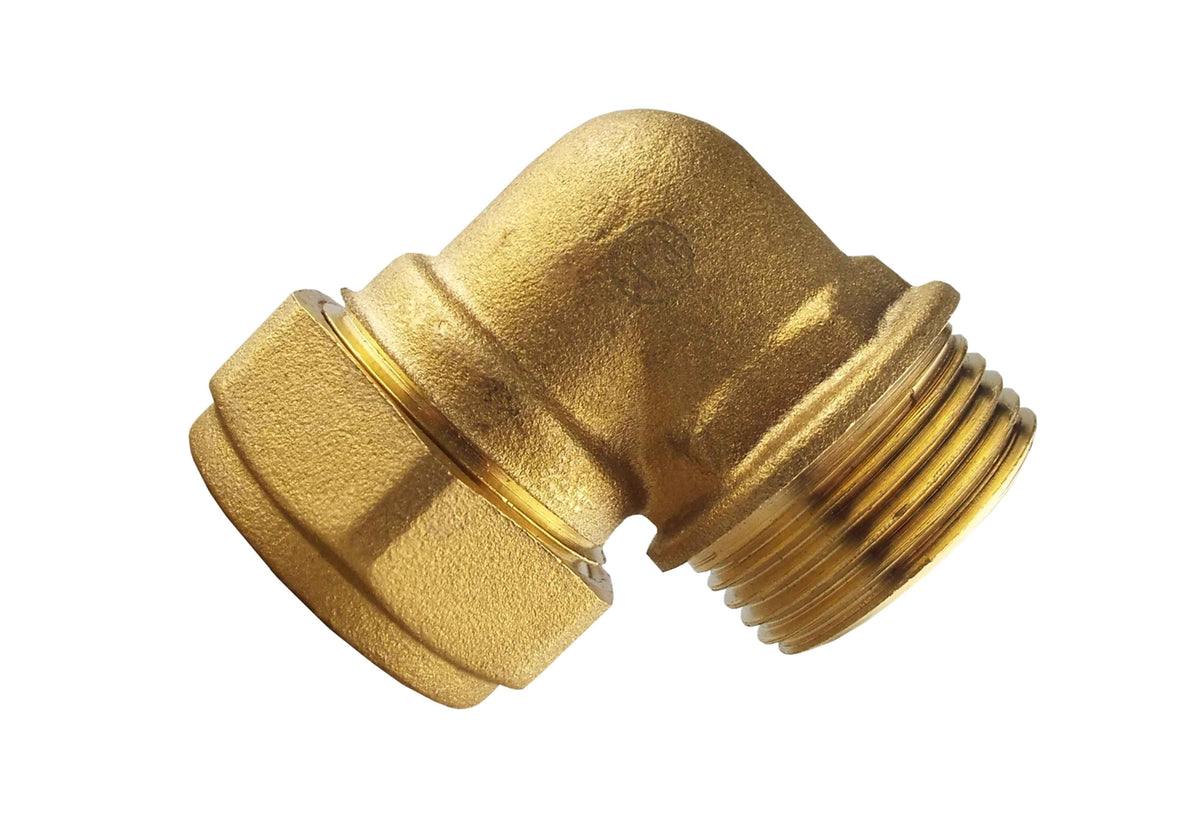

1 × brass compression 90° elbow, 28mm to 1″ BSP male, with compression nut and olive
Fitting your product
Check that the tank outlet has the matching S60X6 male thread. S60X6 and BSP are different thread systems. Match the final connection to your intended pipe or hose, assemble and inspect all joints before opening the tank outlet. IBC tank, pipe, hose, separate hose clips and PTFE tape are supplied separately. The compression size refers to pipe outside diameter. Use compatible copper pipe, prepare its end correctly and follow the fitting instructions for insertion and tightening.
