IBC S60X6 Valve Kit – 22mm Brass Compression Elbow

Connect a compatible IBC outlet to 22mm copper pipe with a brass compression elbow for a 90° turn. A brass lever valve adds manual flow control.

Product details

• Tank connection: S60X6 female
• Tank adapter outlet: ¾″ BSP male
• Valve ends: ¾″ BSP female/female
• Valve: brass lever valve
• Compression connection: 22mm copper pipe
• Fitting mounting thread: ¾″ BSP male
• Fitting shape: 90° elbow
• Reference: IBC016T

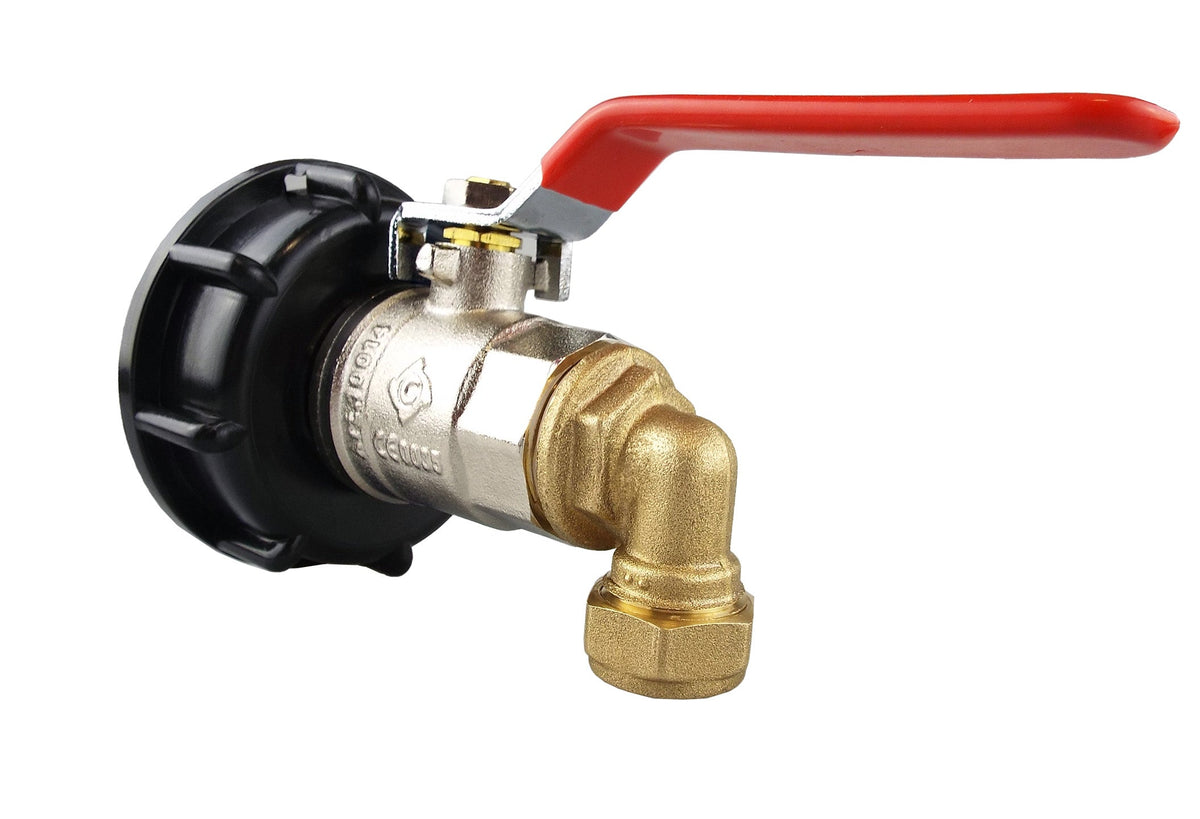

What is included

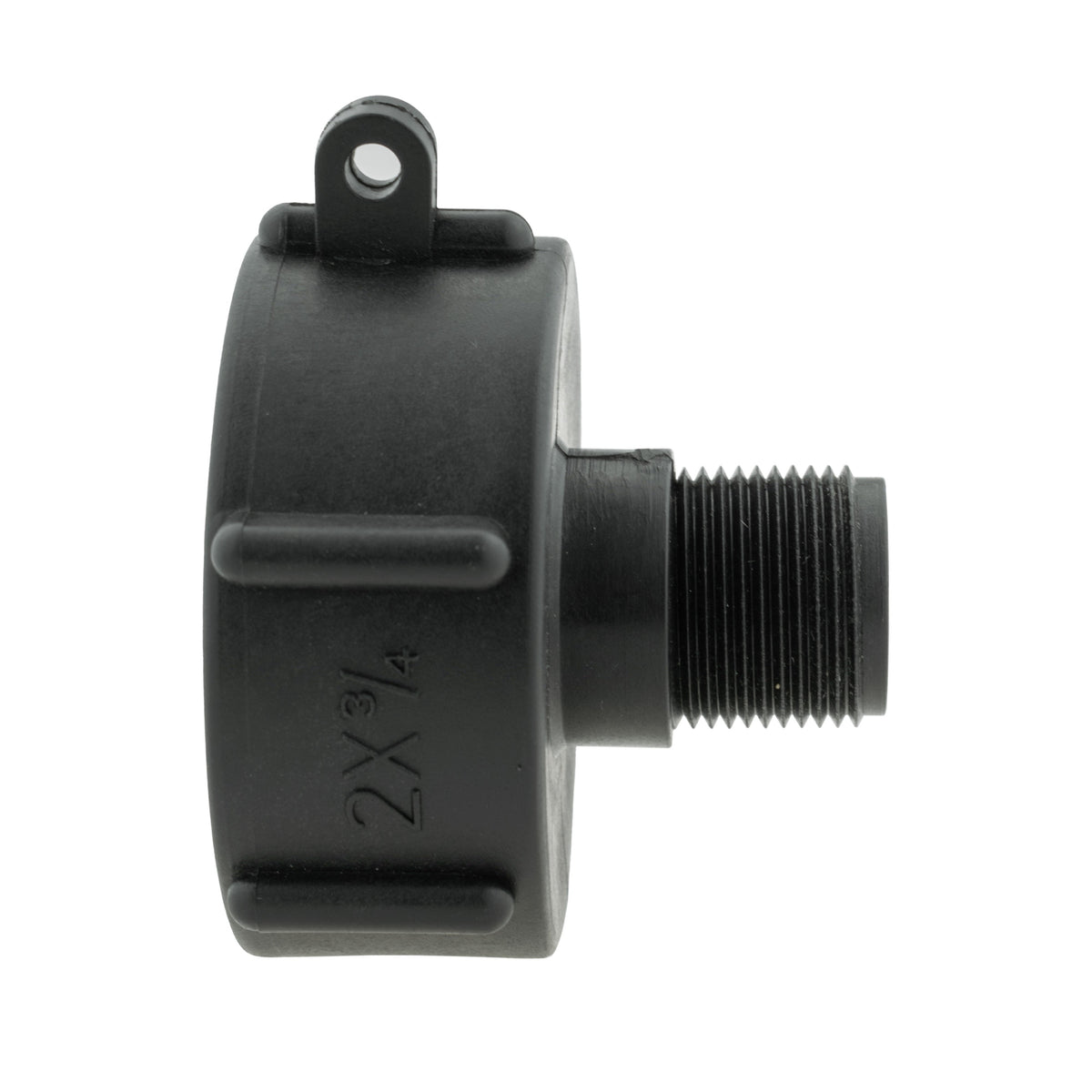

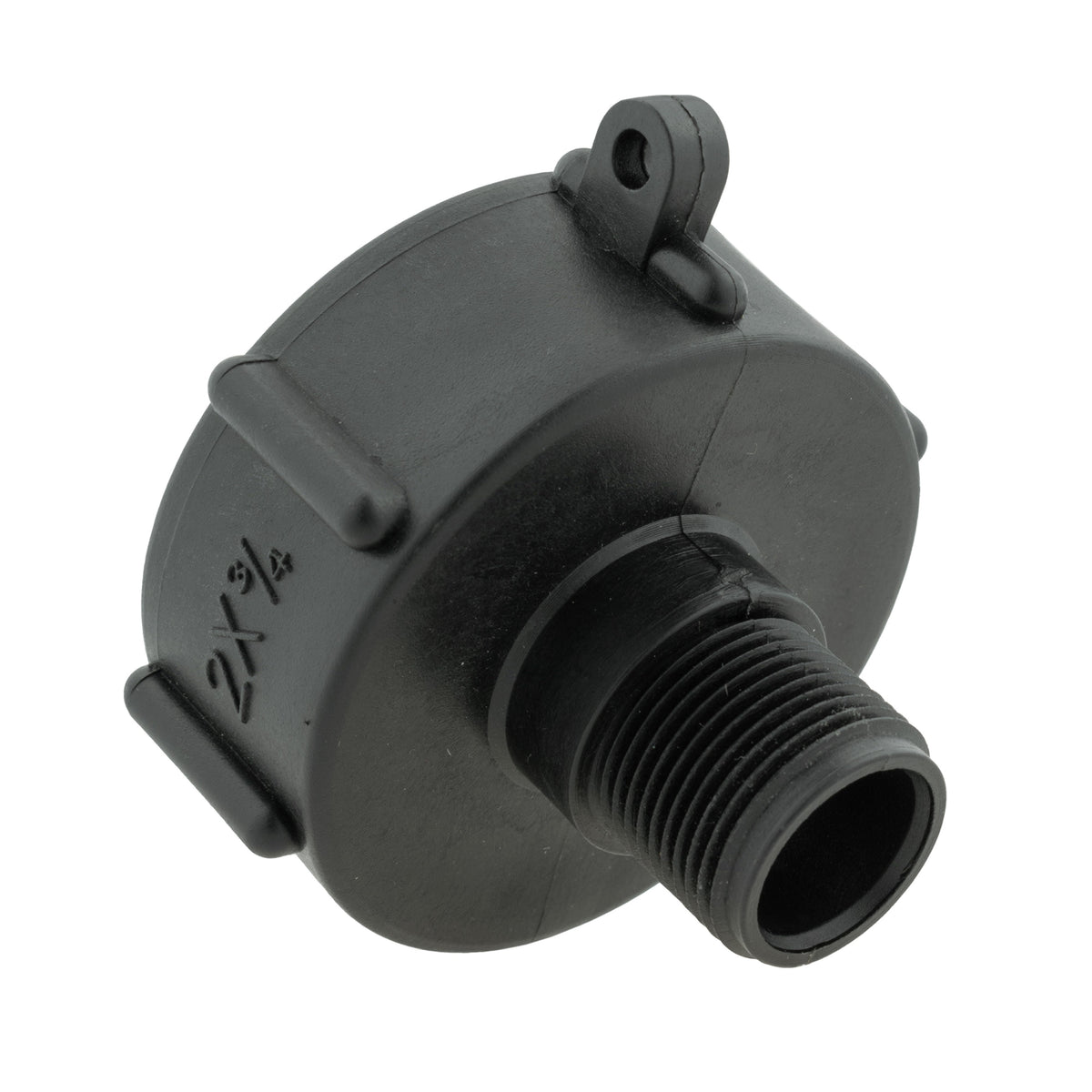

• 1 × S60X6 female-to-¾″ BSP male tank adapter

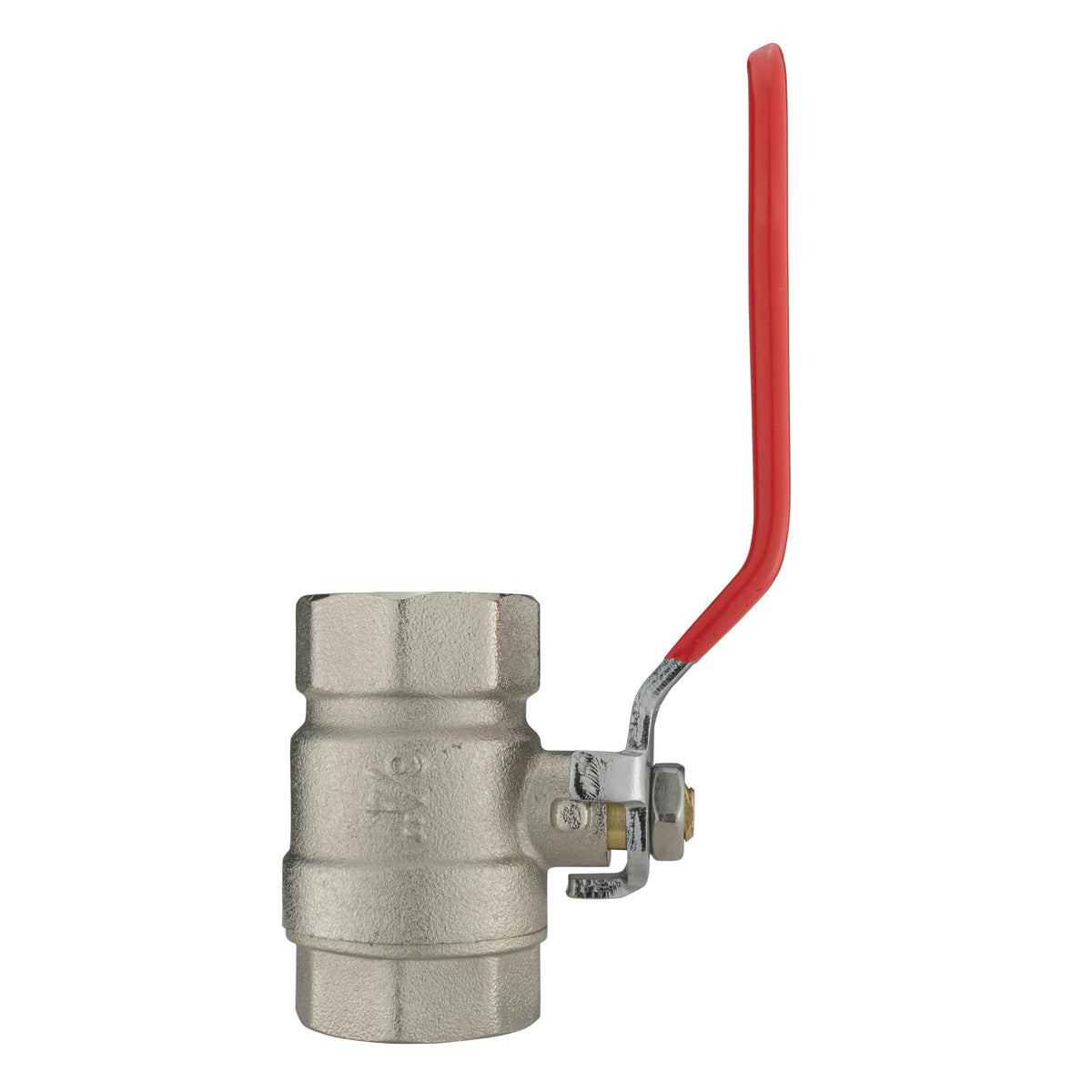

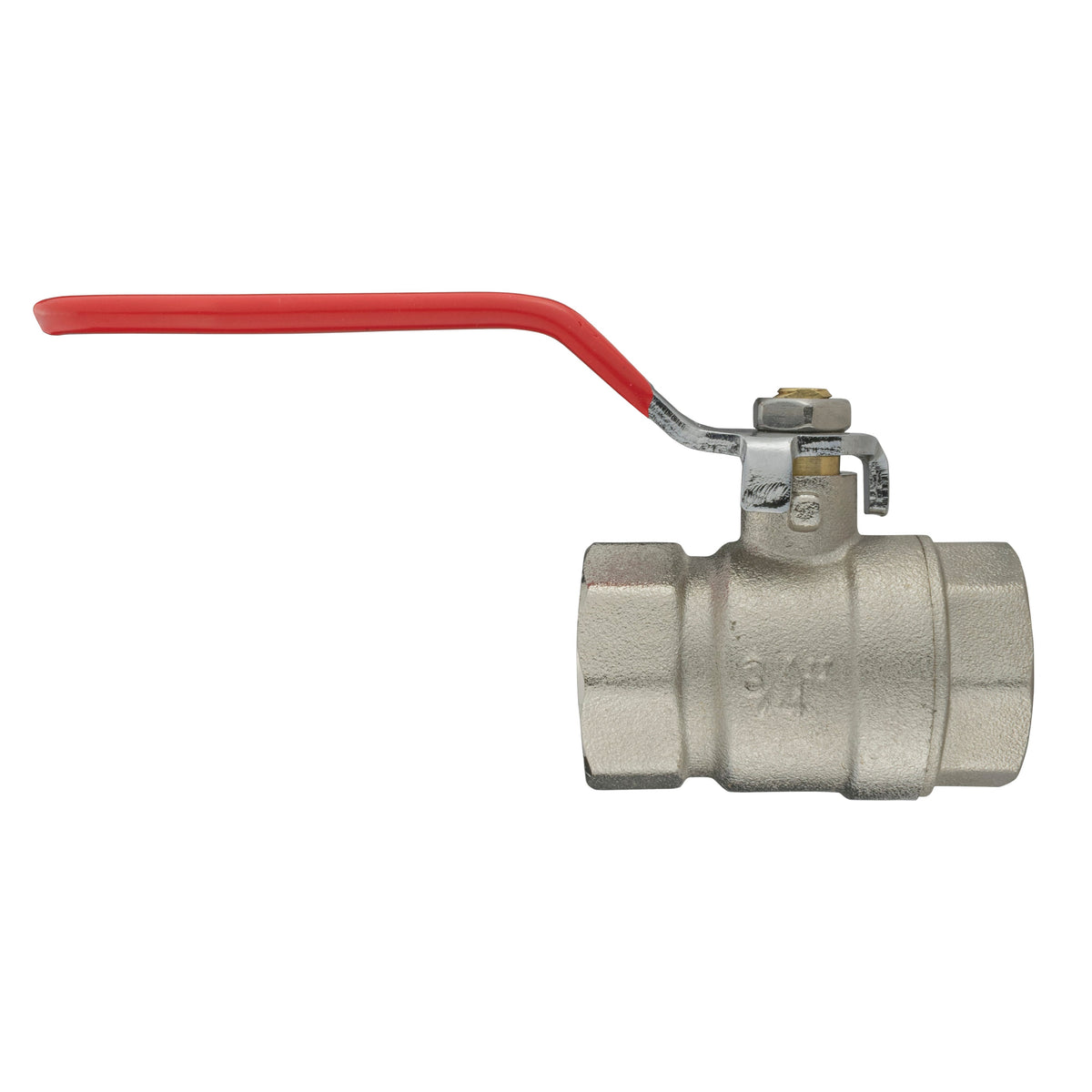

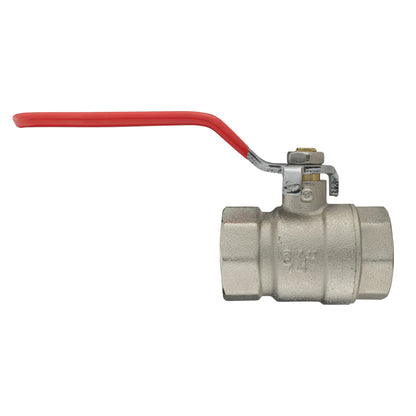

• 1 × brass lever valve, ¾″ BSP female/female

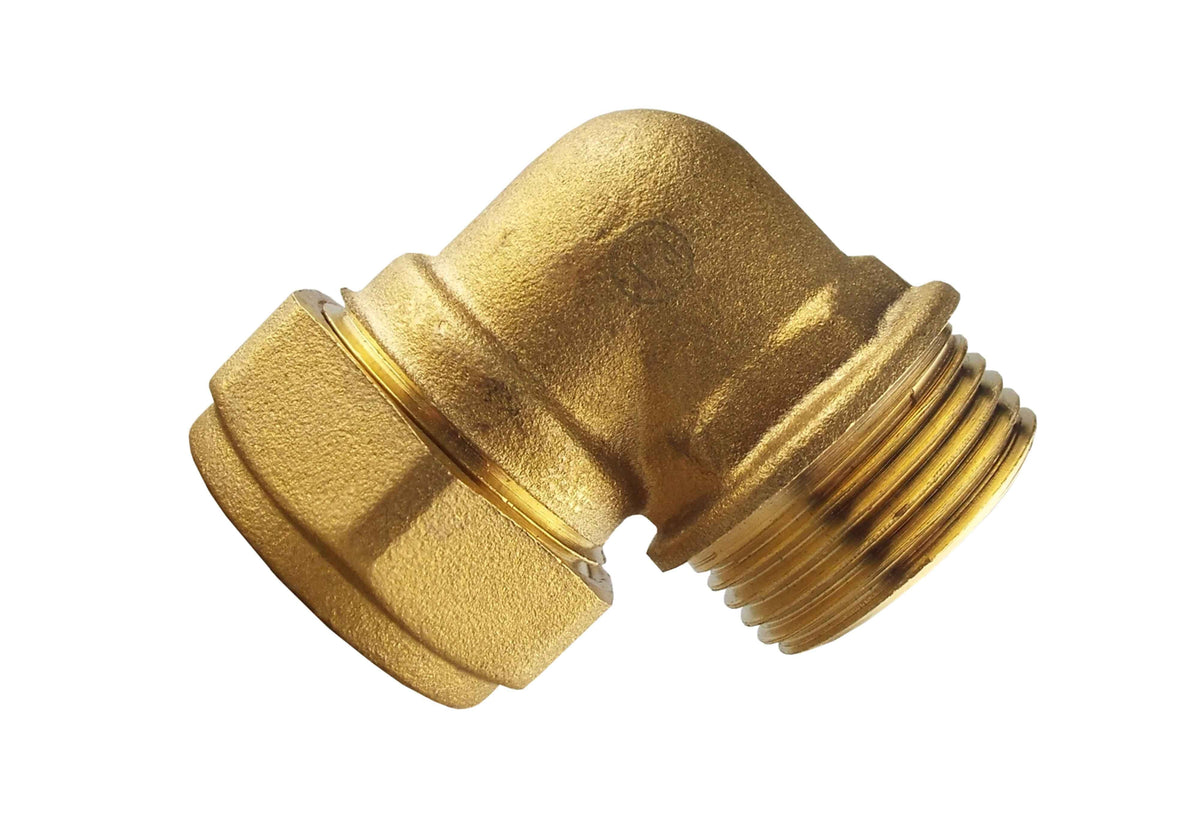

• 1 × brass compression 90° elbow, 22mm to ¾″ BSP male, with compression nut and olive

Fitting your product

Check that the tank outlet has the matching S60X6 male thread. S60X6 and BSP are different thread systems. Match the final connection to your intended pipe or hose, assemble and inspect all joints before opening the tank outlet. IBC tank, pipe, hose, separate hose clips and PTFE tape are supplied separately. The compression size refers to pipe outside diameter. Use compatible copper pipe, prepare its end correctly and follow the fitting instructions for insertion and tightening.
