IBC S60X6 Cap – 15mm Brass Compression Elbow

Connect a compatible IBC outlet to 15mm copper pipe with a brass compression elbow for a 90° turn. This set supplies a cap and fitting without a separate valve.

Product details

• Tank connection: S60X6 female
• Cap thread: ¾″ BSP female
• Compression connection: 15mm copper pipe
• Fitting mounting thread: ¾″ BSP male
• Fitting shape: 90° elbow
• Reference: IBC016C

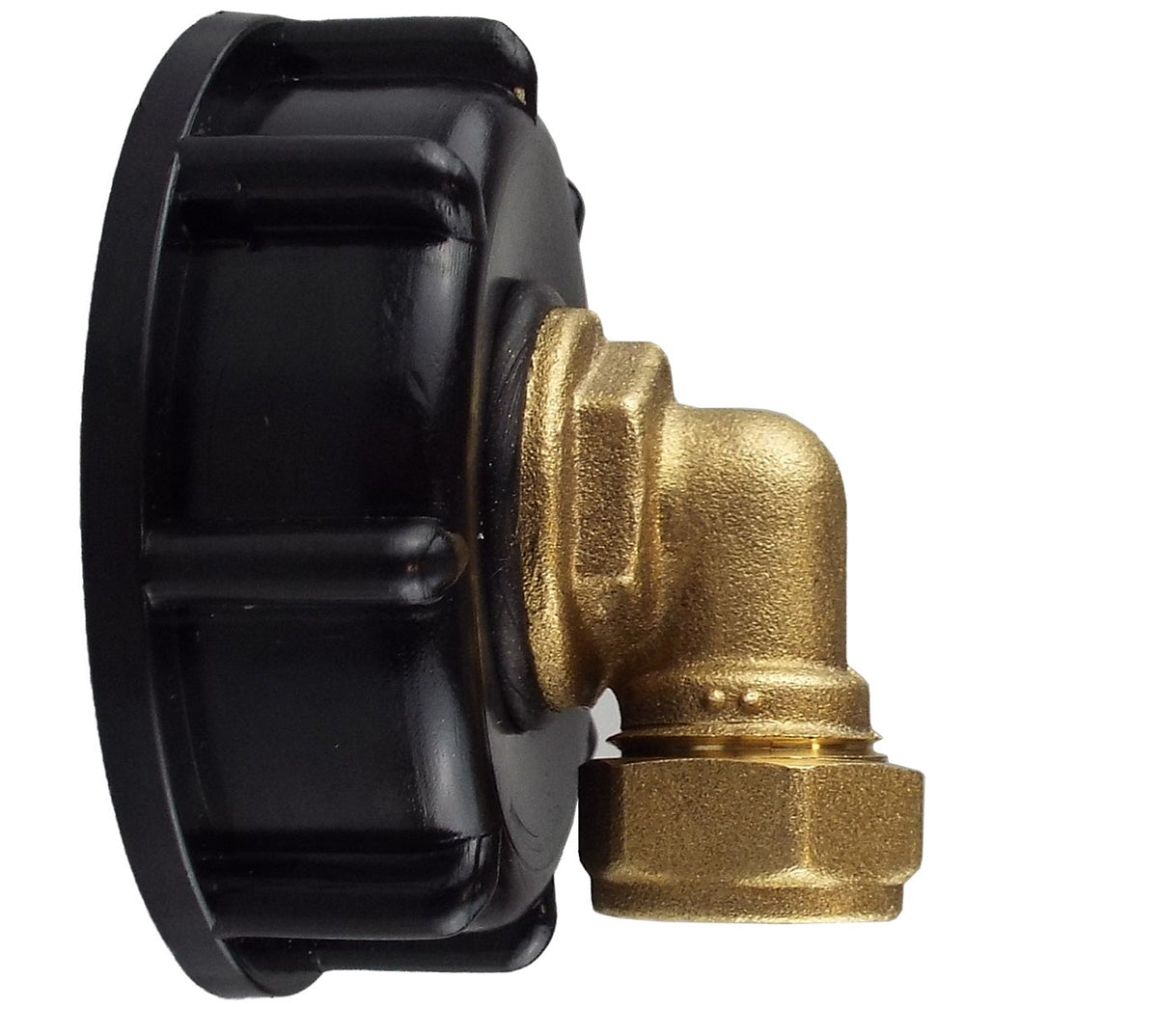

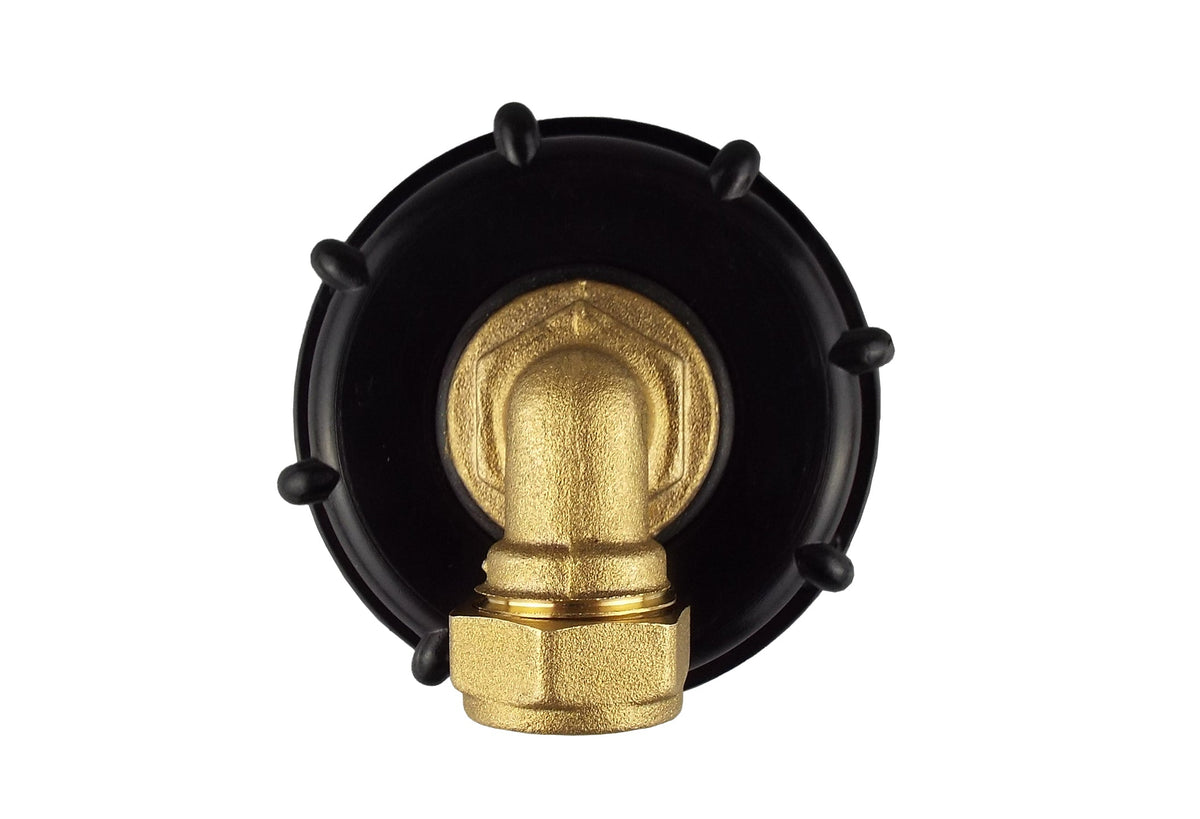

What is included

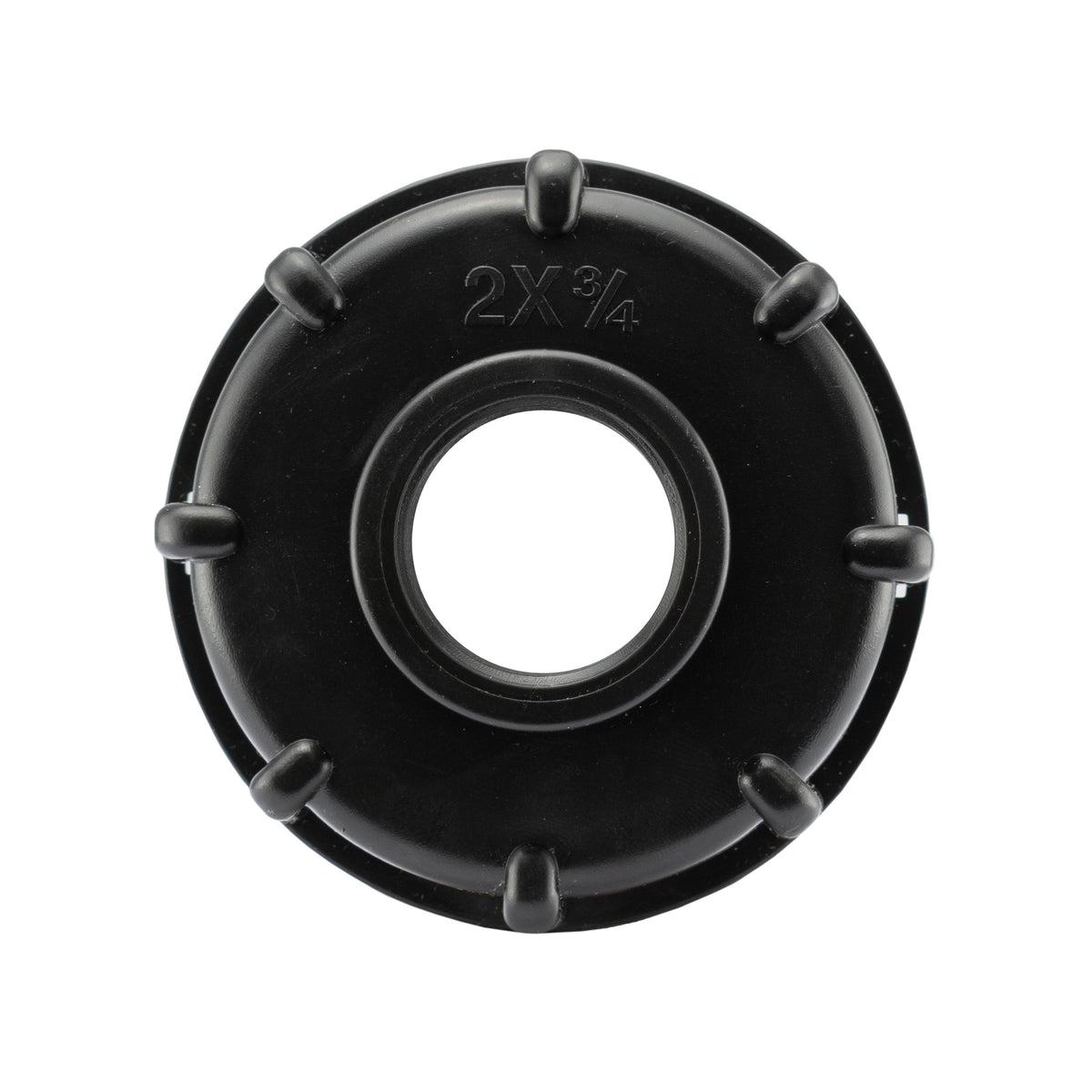

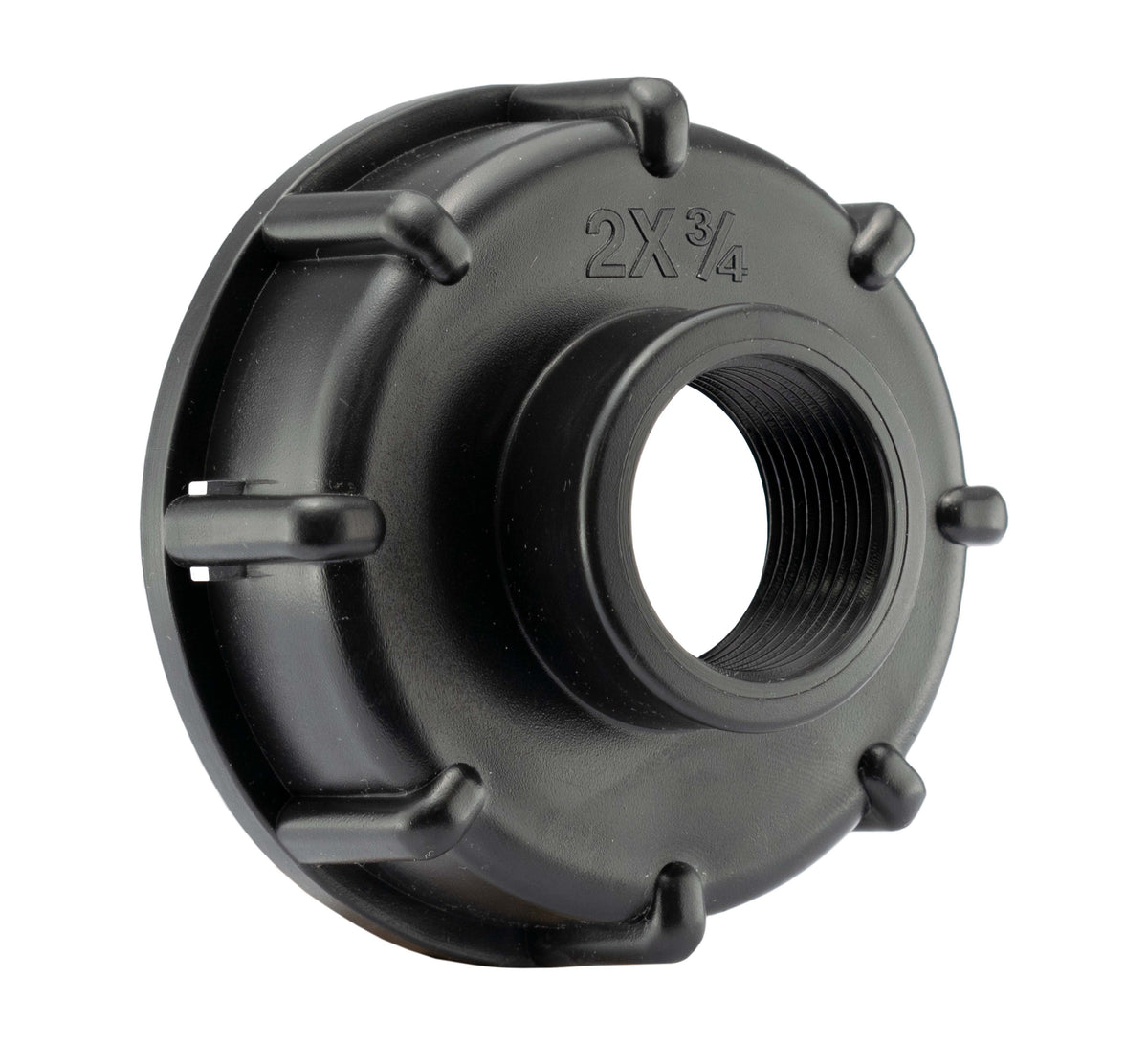

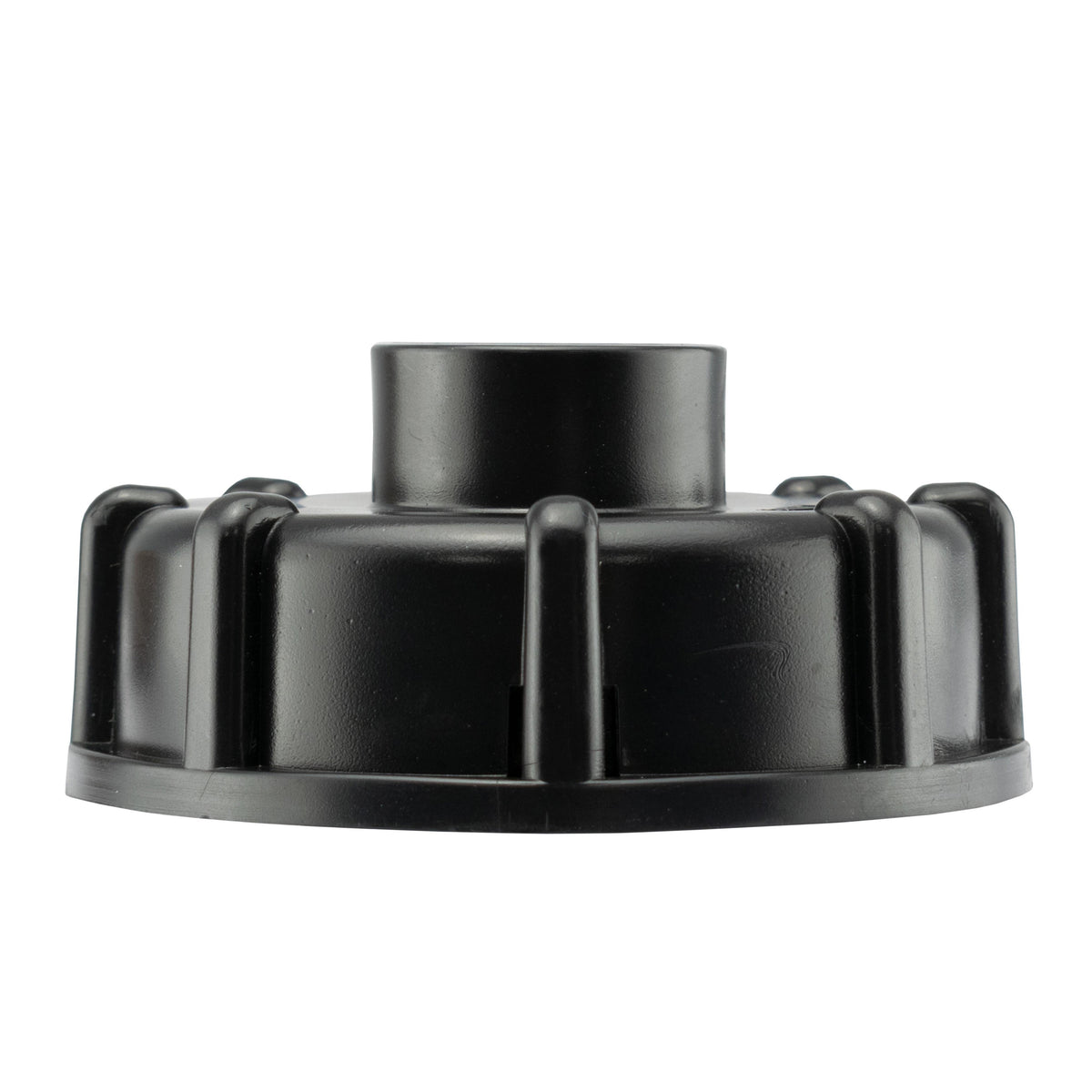

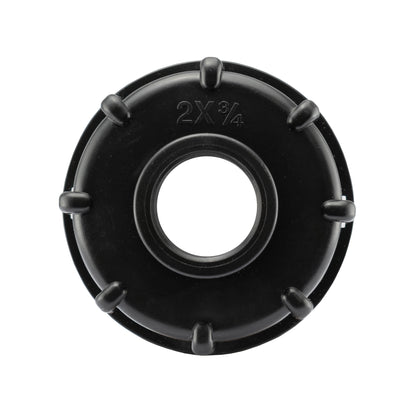

• 1 × S60X6 female cap with ¾″ BSP female thread

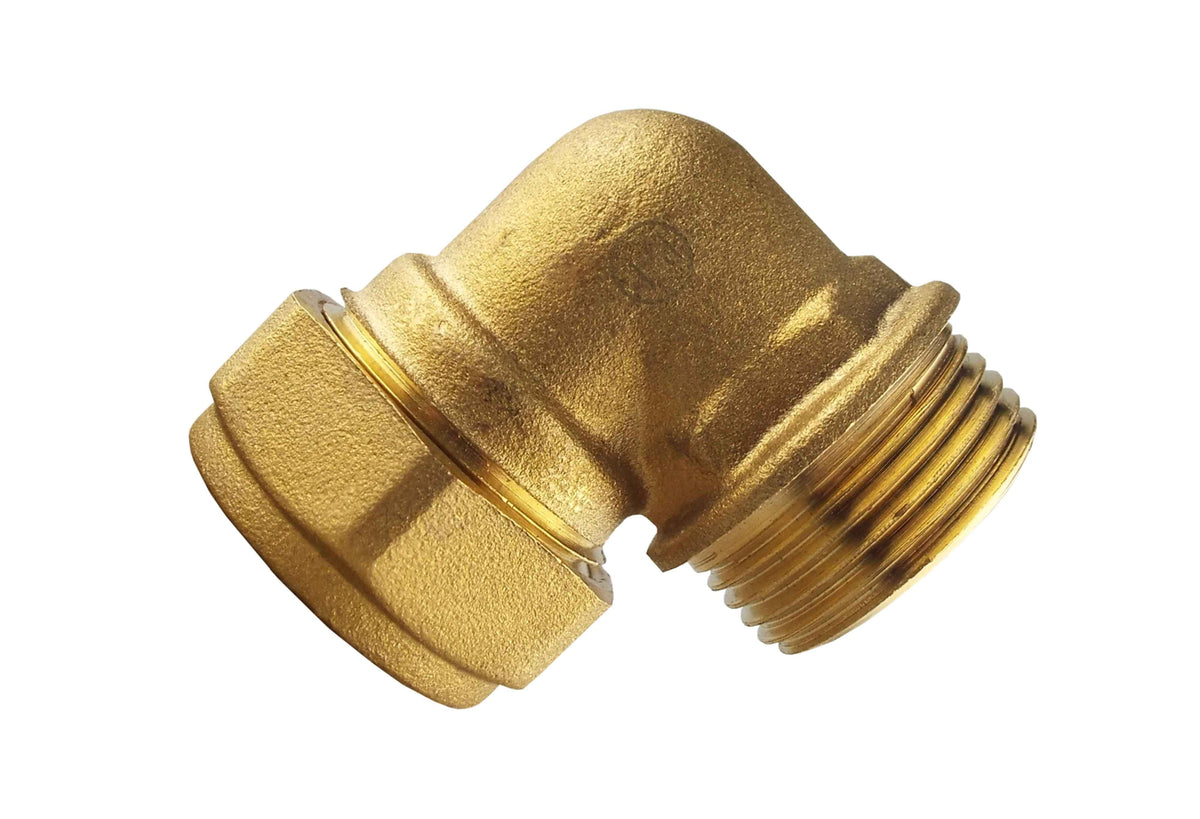

• 1 × brass compression 90° elbow, 15mm to ¾″ BSP male, with compression nut and olive

Fitting your product

Check that the tank outlet has the matching S60X6 male thread. S60X6 and BSP are different thread systems. Match the final connection to your intended pipe or hose, assemble and inspect all joints before opening the tank outlet. IBC tank, pipe, hose, separate hose clips and PTFE tape are supplied separately. The compression size refers to pipe outside diameter. Use compatible copper pipe, prepare its end correctly and follow the fitting instructions for insertion and tightening.
