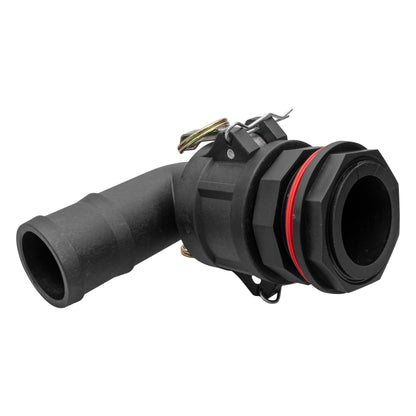

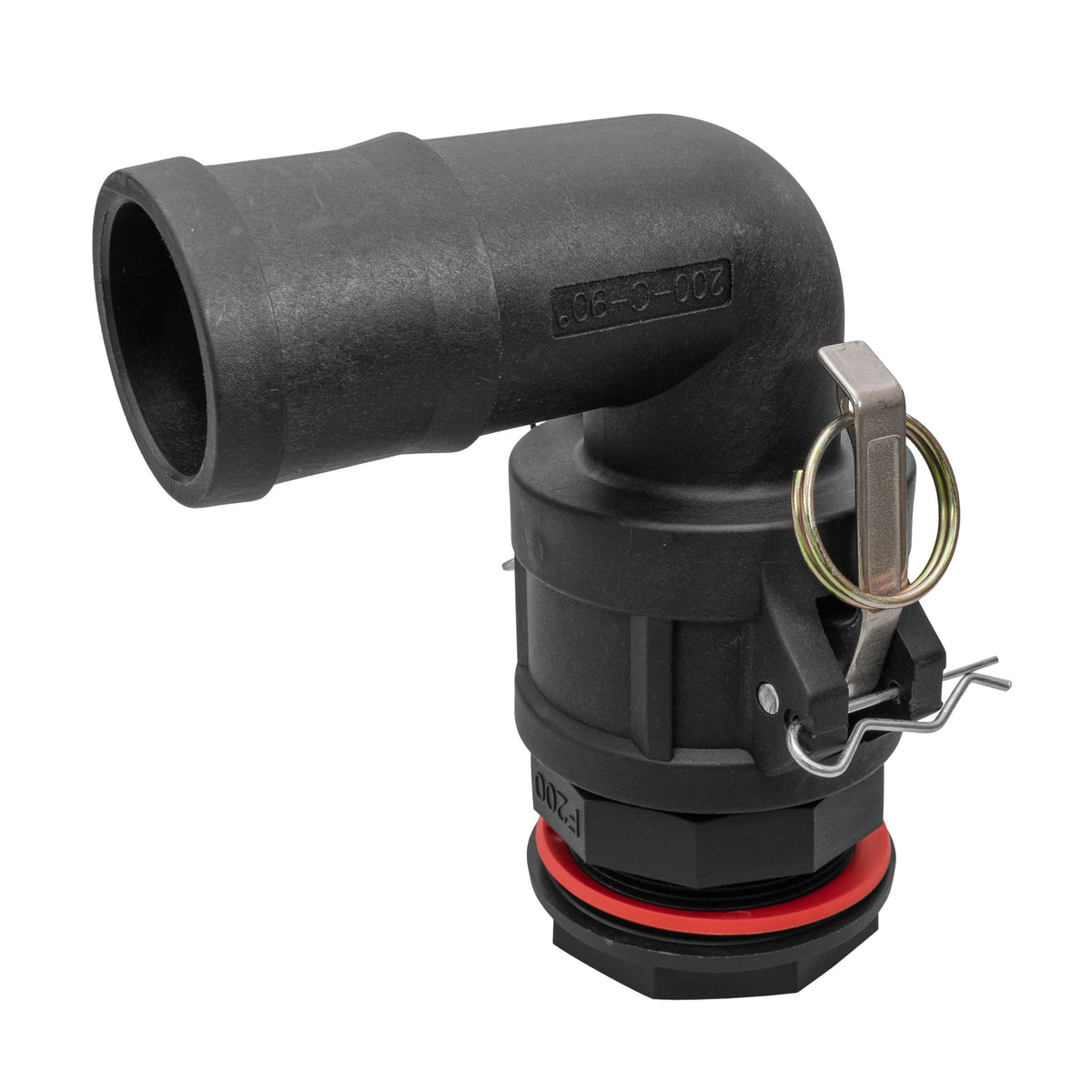

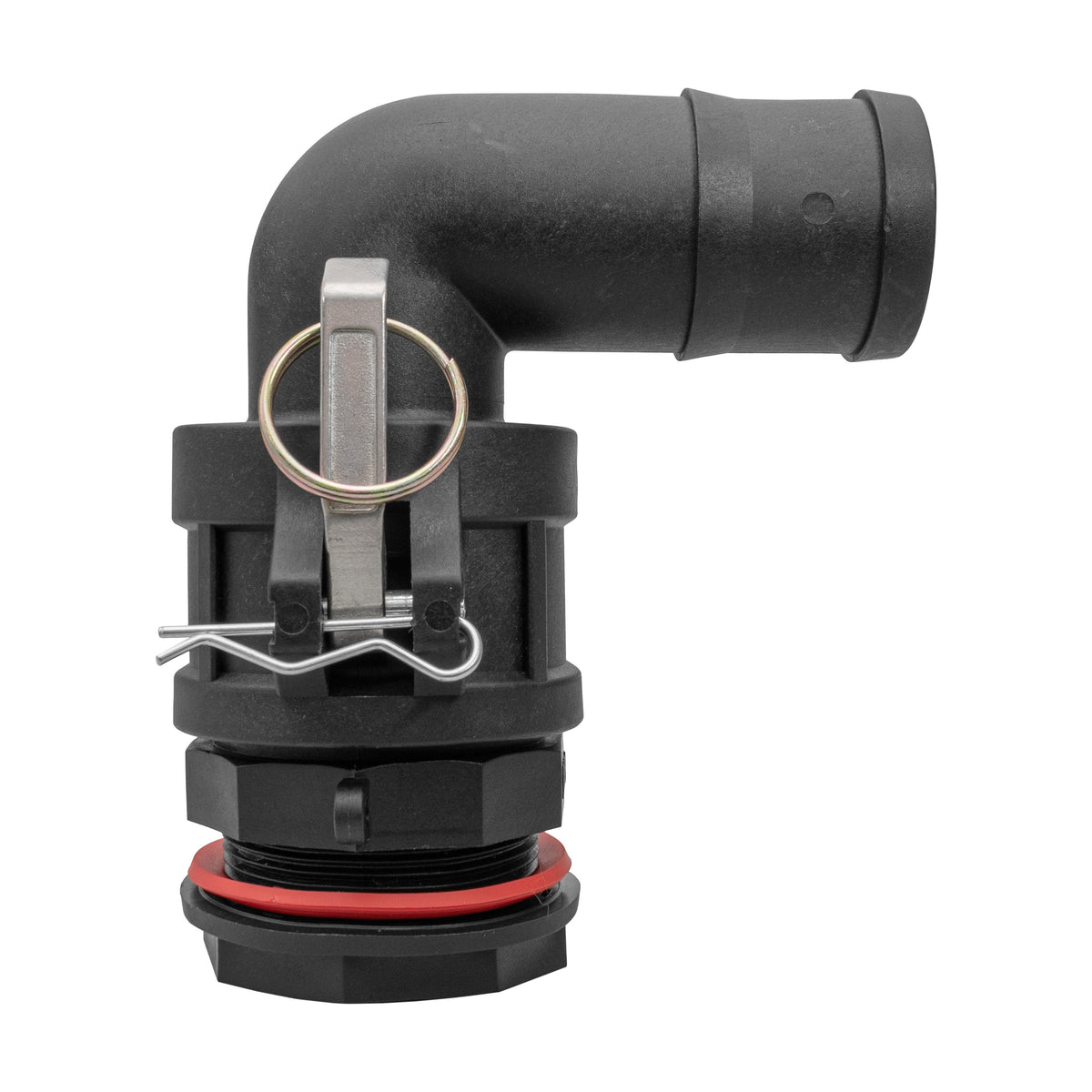

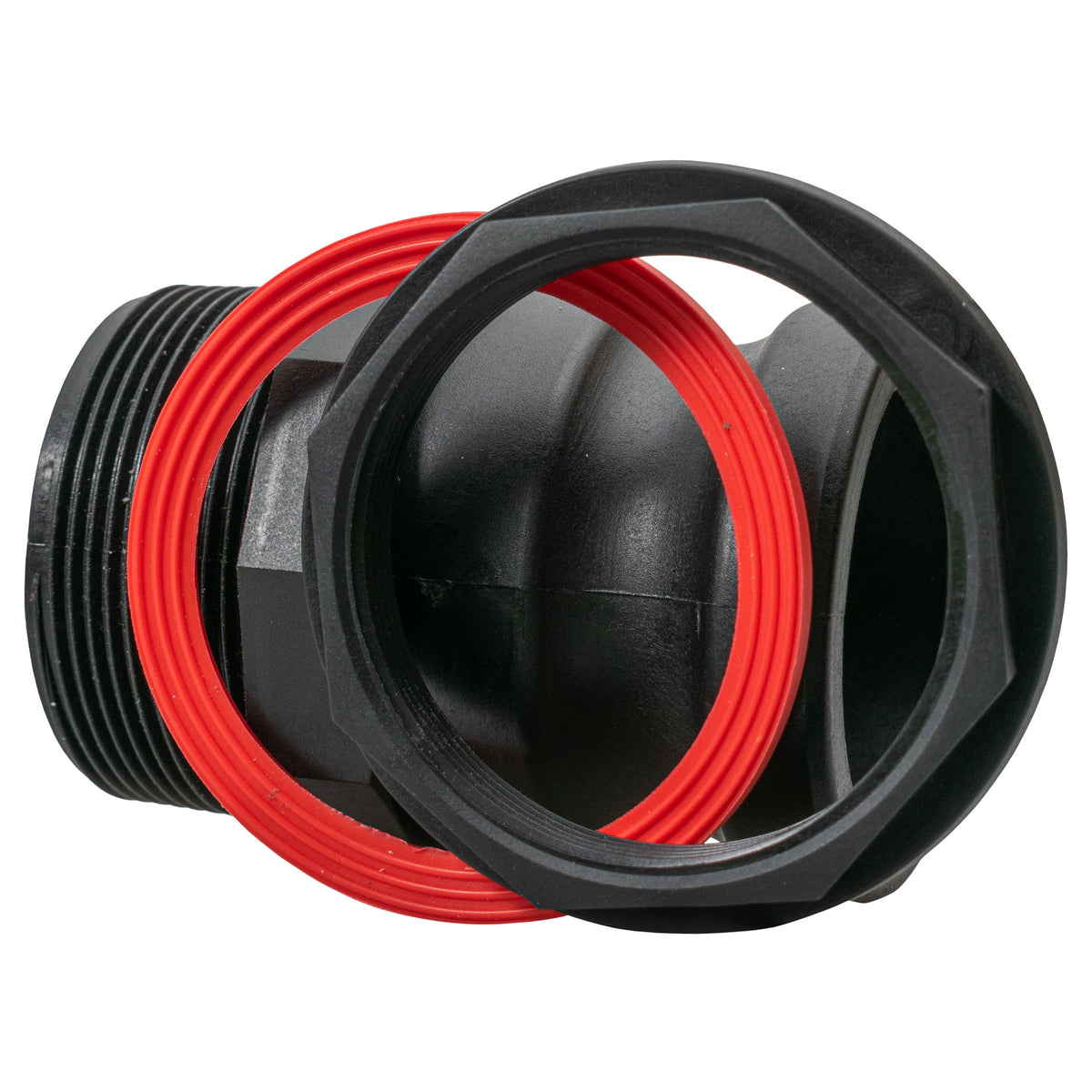

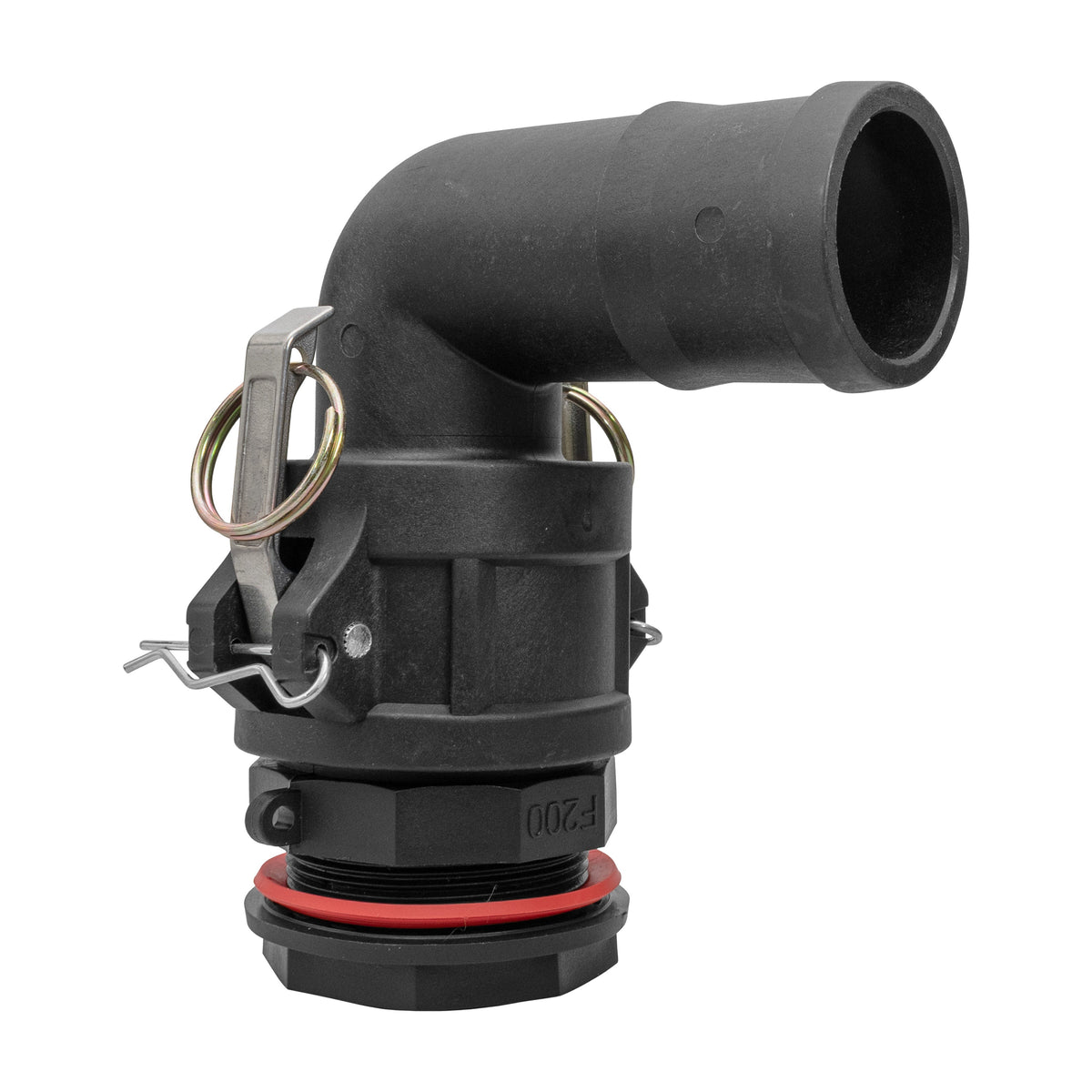

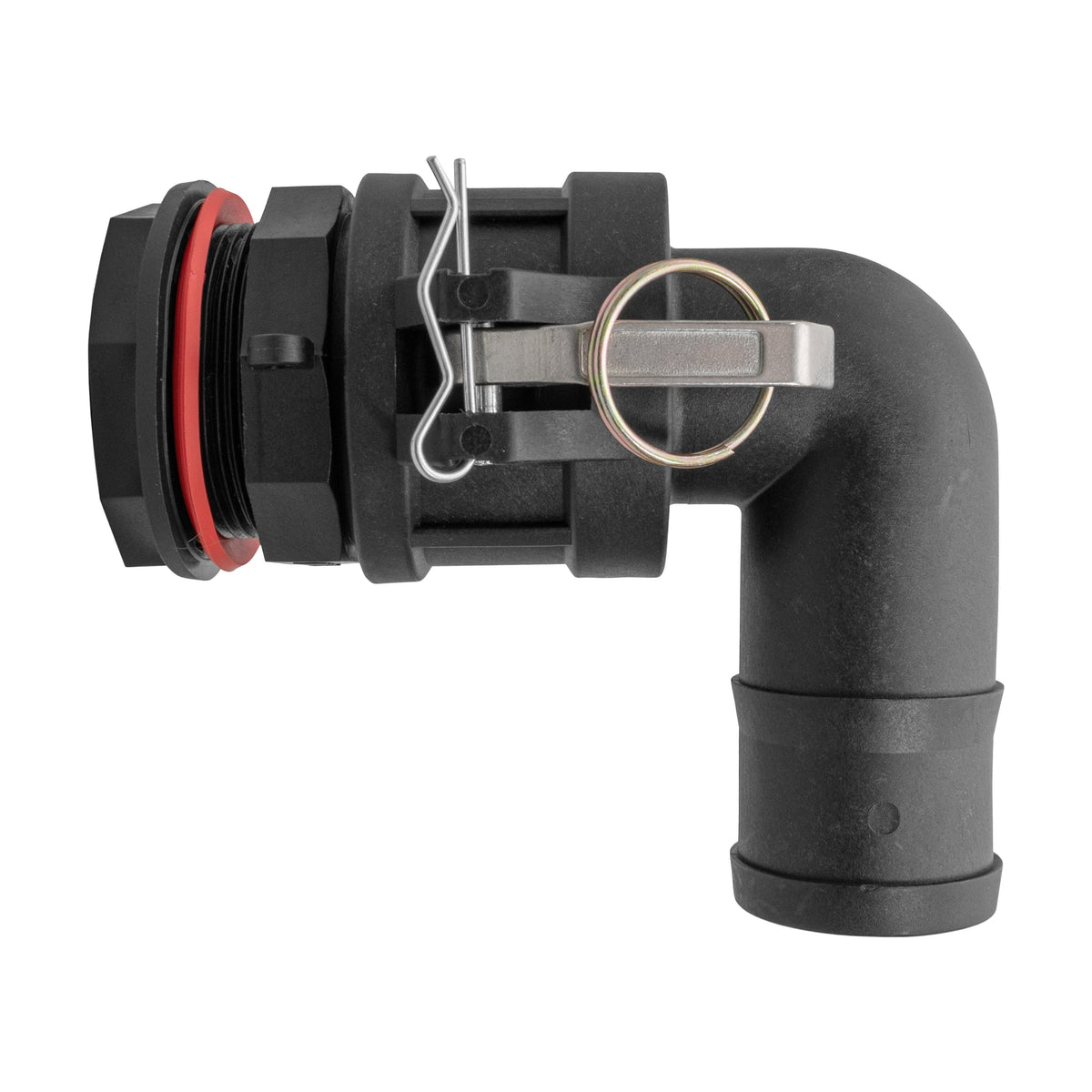

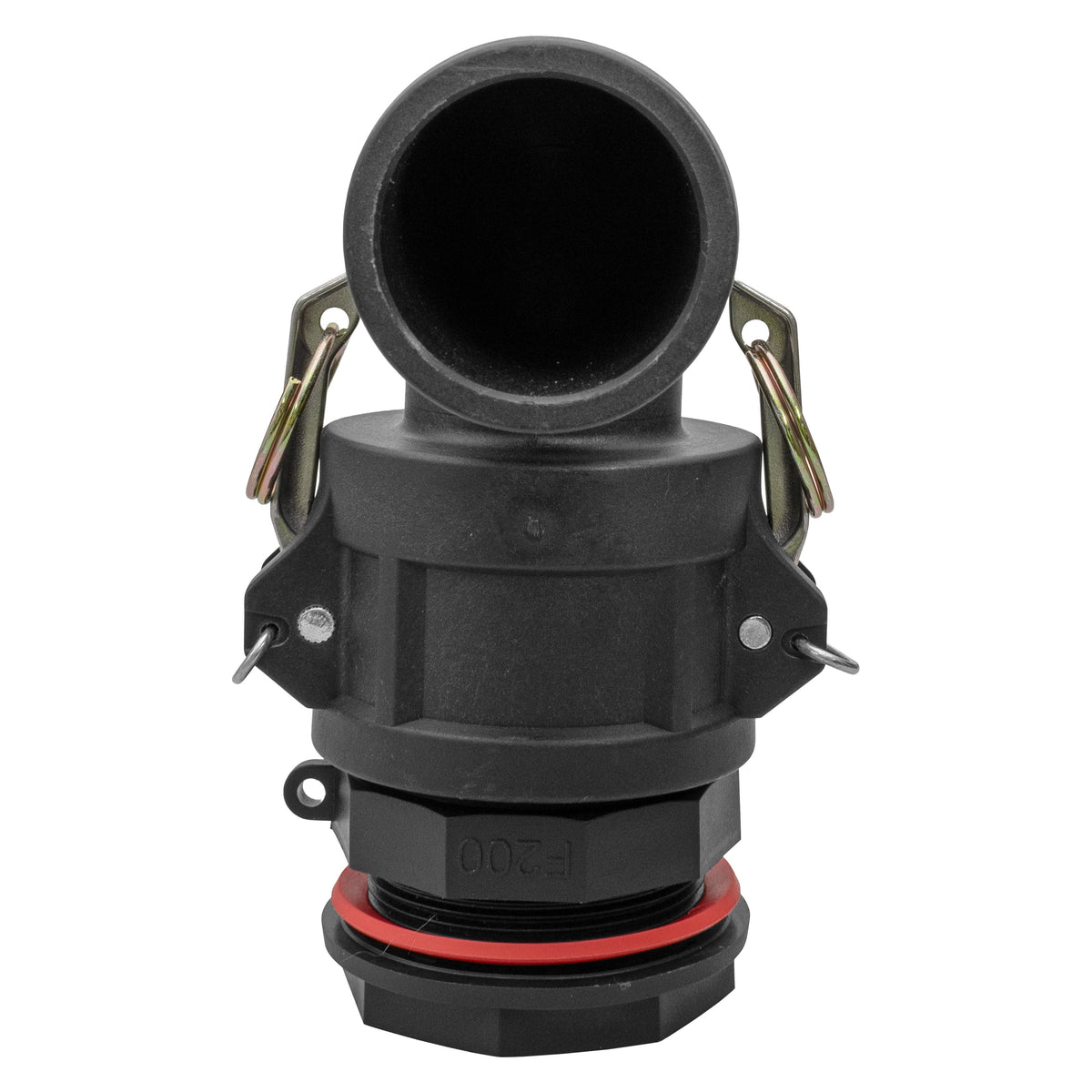

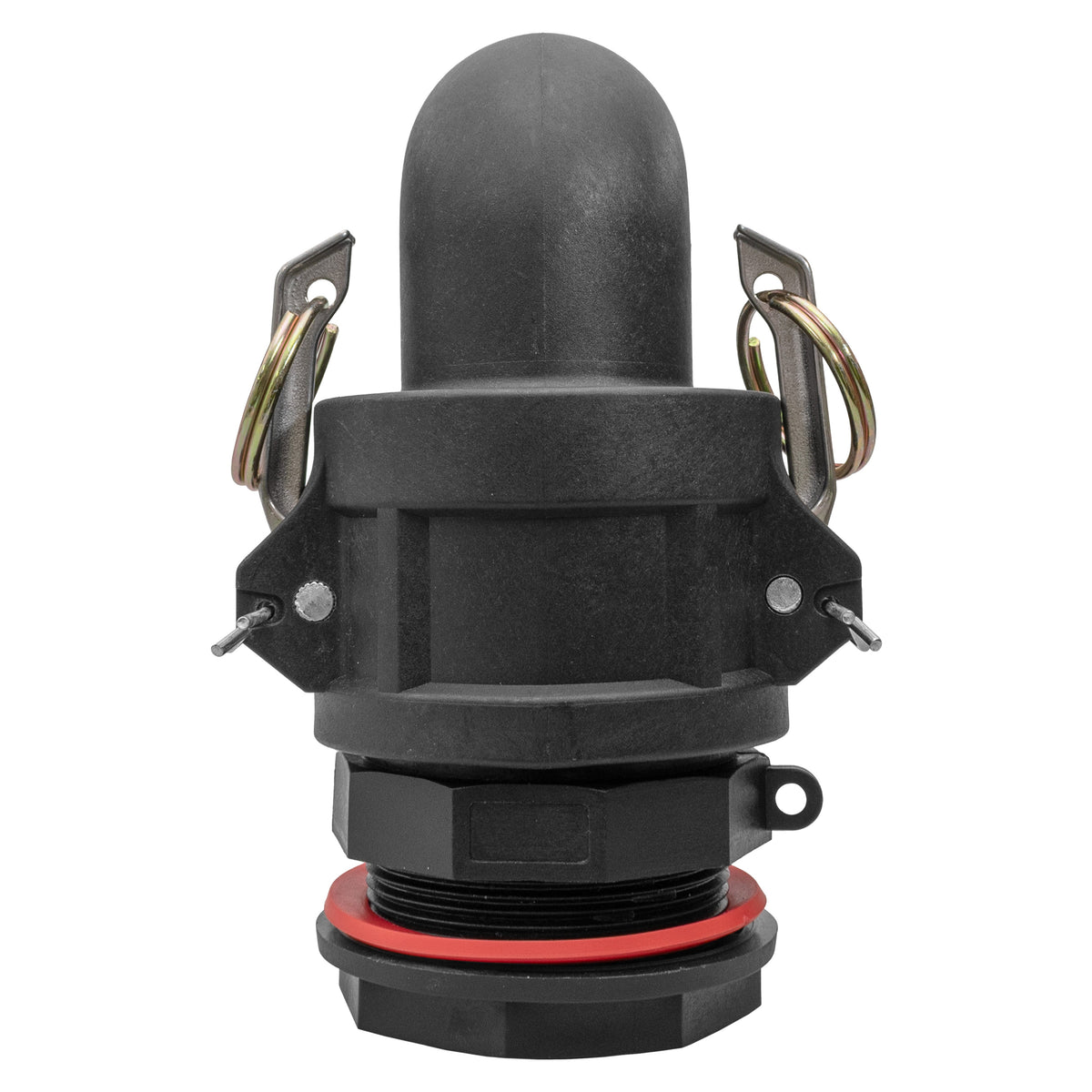

Fit a matching male Camlock adapter through a suitable tank wall with a back nut and sealing washer.
Product details
Connection: Type F male Camlock adapter with male BSP mounting thread
Body material: polypropylene
Size: choose the required nominal size from the options
Finished outlet: barbed hose tail on a 90-degree elbow
What is included
1 × Type F male Camlock adapter
1 × back nut
1 × sealing washer
1 × matching Type C female Camlock elbow with hose tail
Available options
Reference
Selected size or length
CAMT1F+C-ELB+NUT+WASHER
1″
CAMT15F+C-ELB+NUT+WASHER
1.5″
CAMT2F+C-ELB+NUT+WASHER
2″
Fitting and use

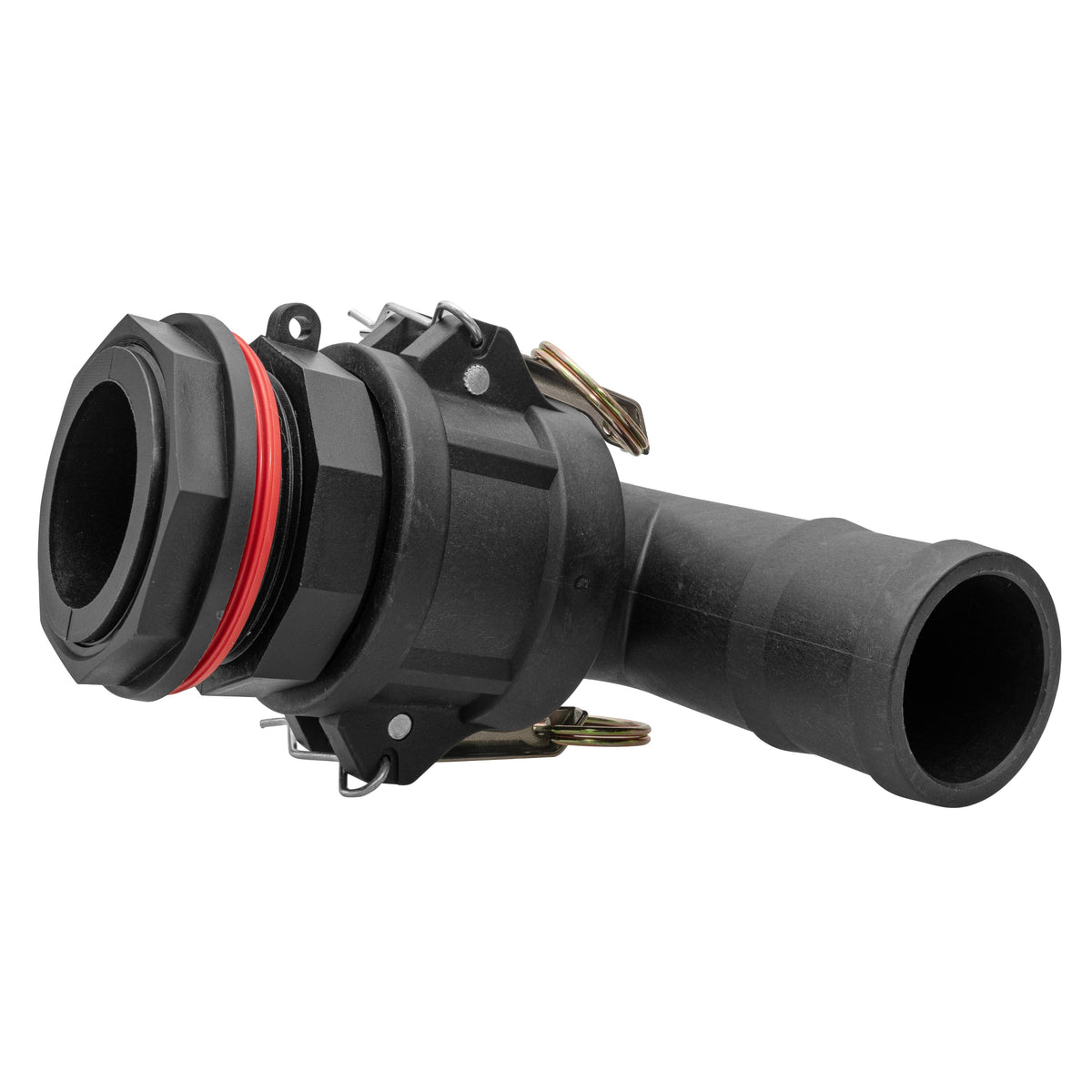

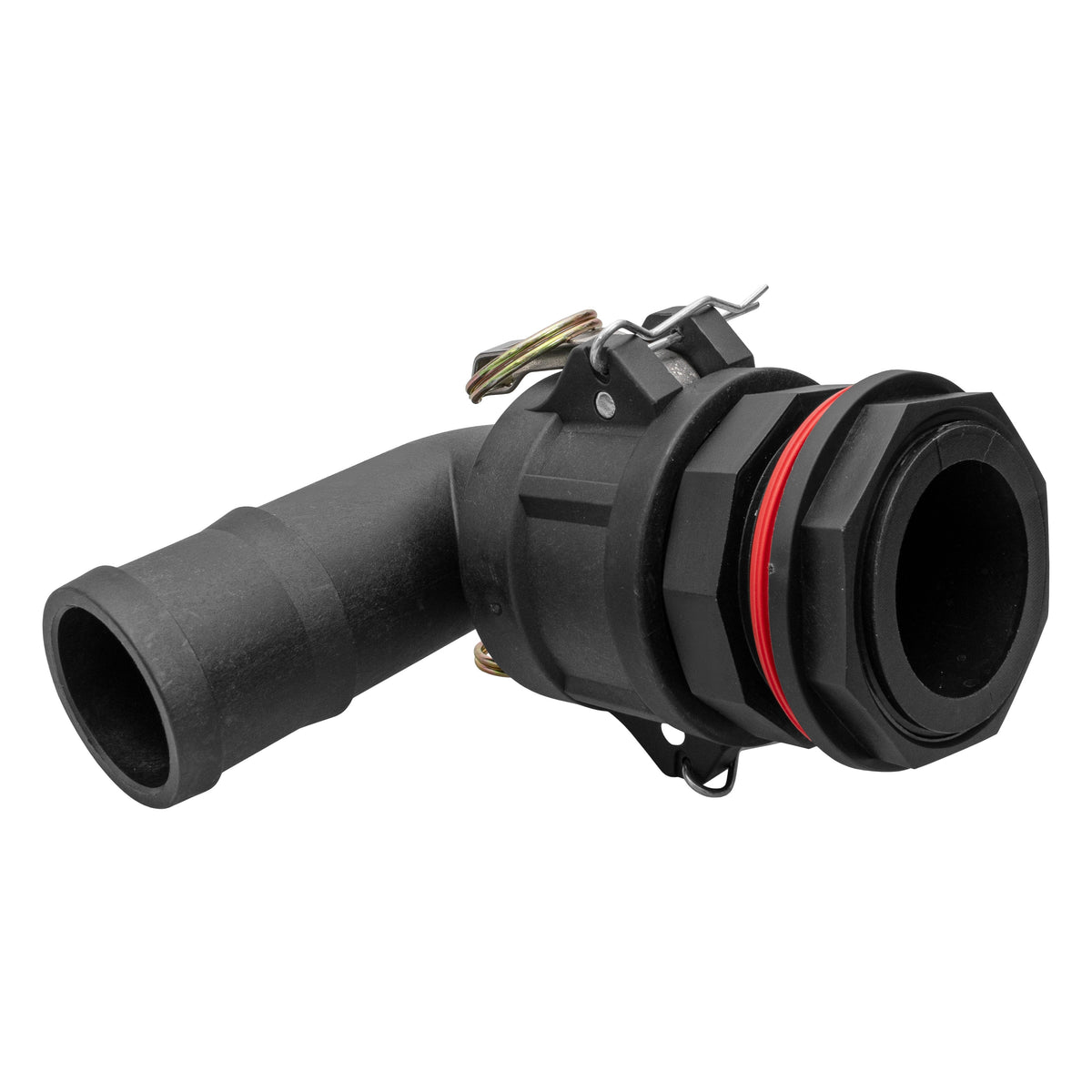

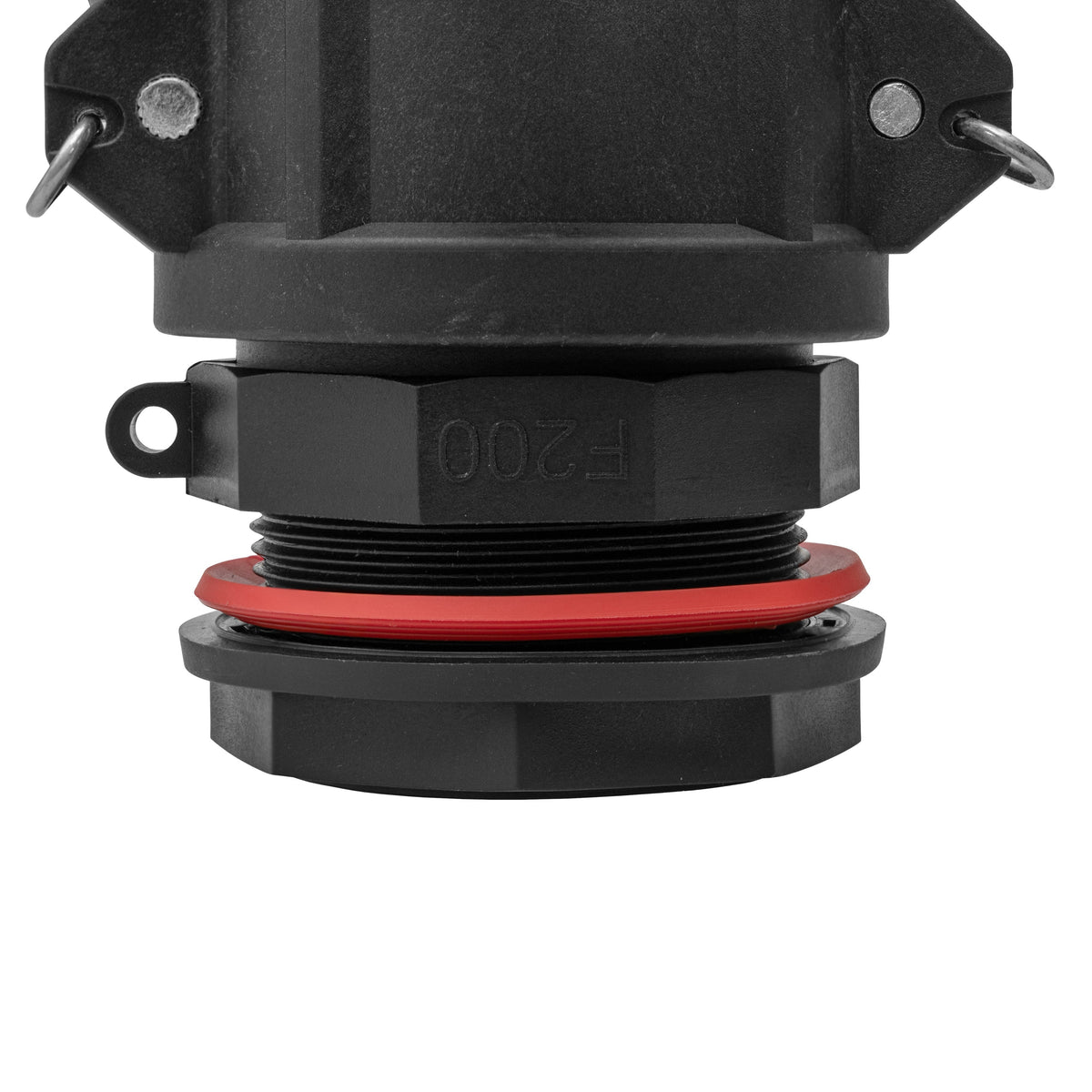

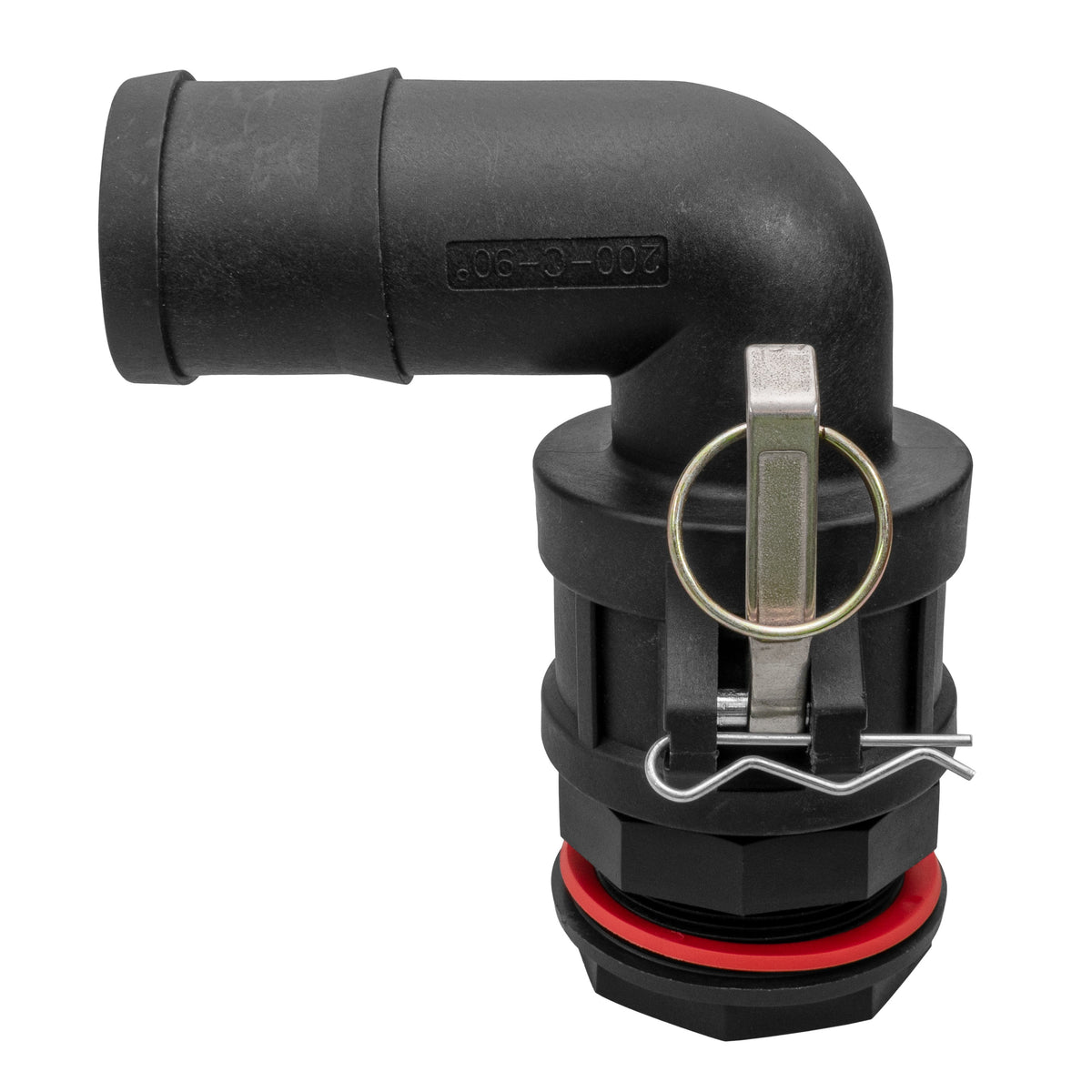

Choose the correct size for the tank and mating hose fitting. Measure the supplied mounting thread and follow installation instructions before drilling. Inspect the washer and joints before filling. Tank, hose, separate hose fastening and any other fittings are supplied separately. Camlock dimensions vary by selected size; photos show the fitting design.
