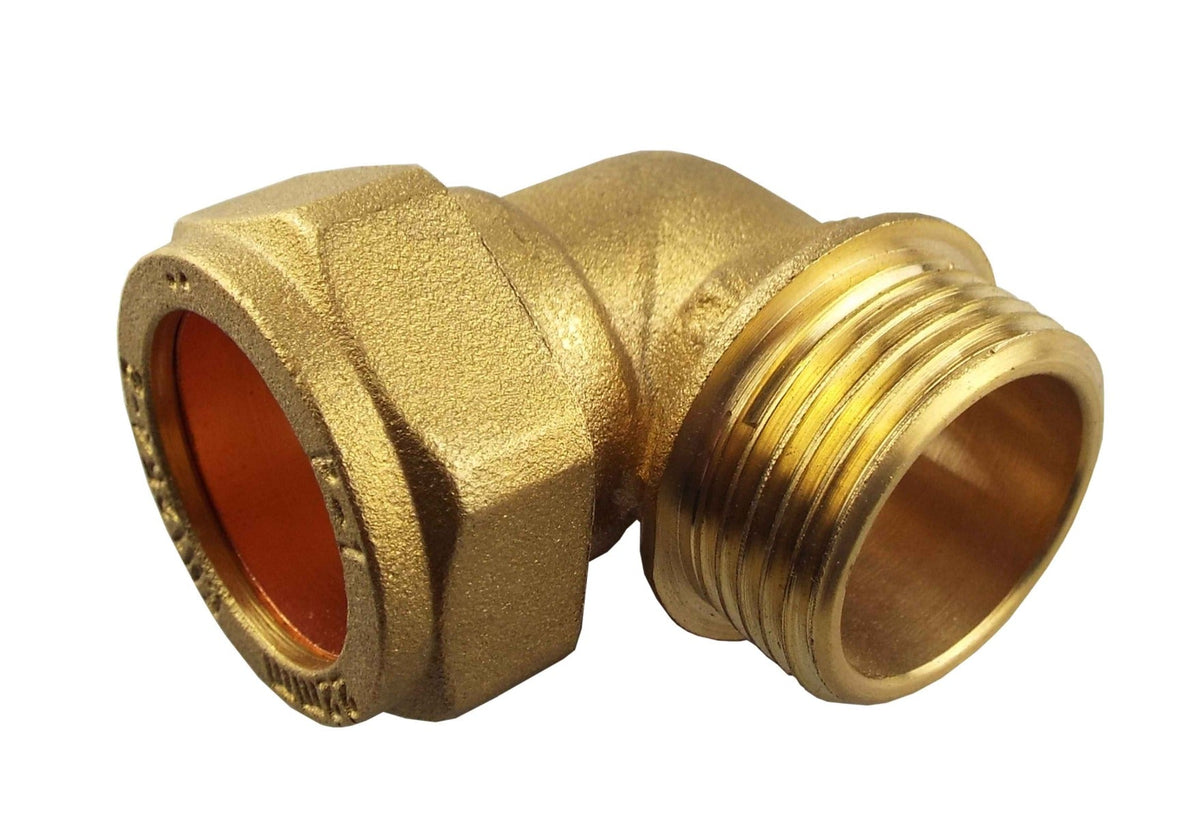

Brass Compression Elbow – 28mm Pipe × 1″ BSP Male

Connect suitable pipe to a matching female-threaded fitting using a brass 90° elbow to change direction.

Product details

• Pipe connection: 28mm compression, for pipe outside diameter
• Thread: 1″ BSP male
• Shape: 90° elbow
• Material: brass
• Reference: BRCELB28-1BSPM001

What is included

1 × brass compression elbow with nut and olive

Fitting and use

Confirm the pipe material and mating thread before assembly. Follow the appropriate compression-fitting method and use a thread seal suitable for the application. Nominal BSP size differs from measured thread diameter. Check fluid compatibility and system limits; no pressure rating or gas approval is specified here. Pipe, mating fitting and sealing materials are supplied separately.
