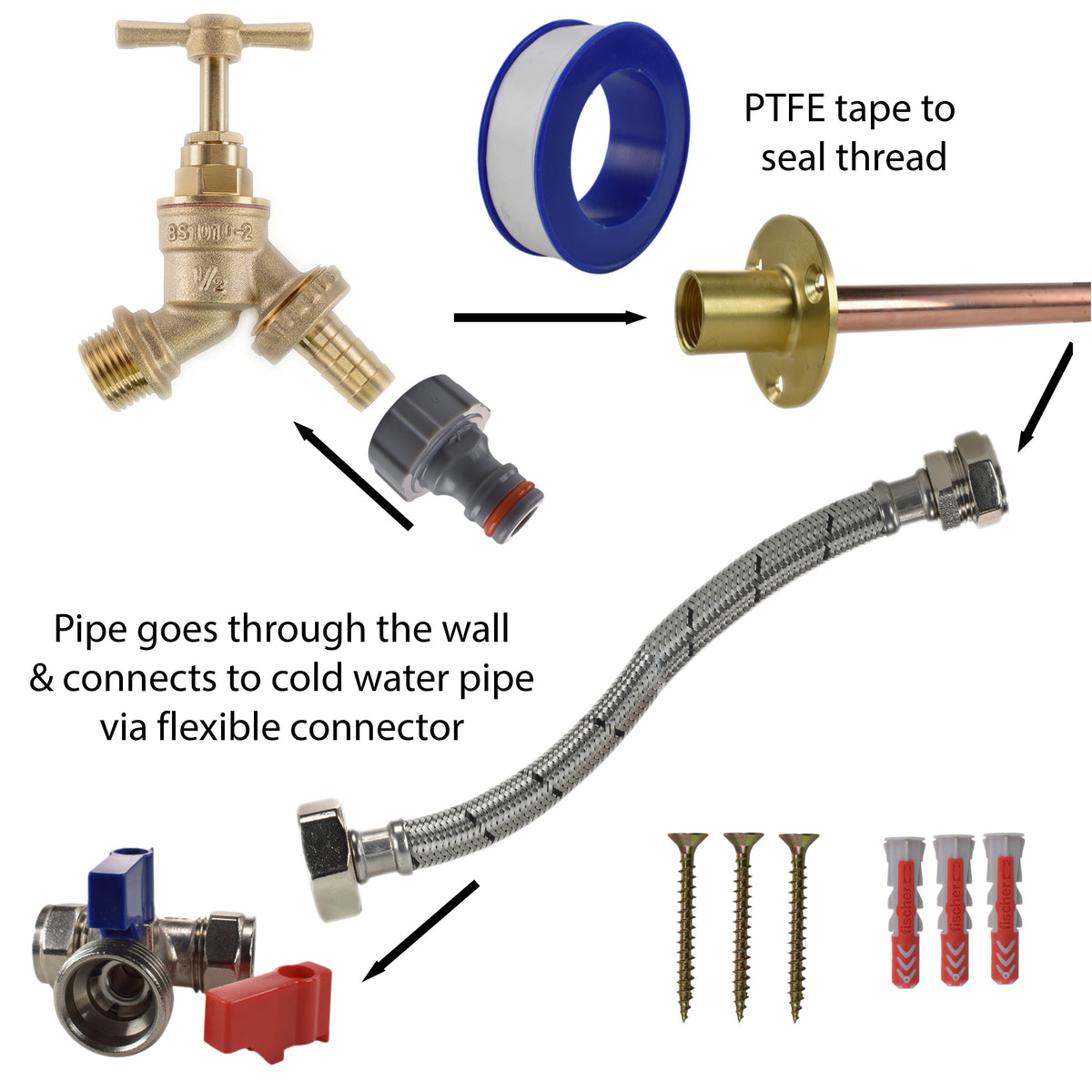

Fit an outdoor water point using a brass barbed bib tap and a brass wall plate with a through-wall pipe. This standard kit includes a compression tee valve and flexible connector.
Product details
Tap: brass bib tap with barbed outlet
Tap inlet: ½″ BSP male

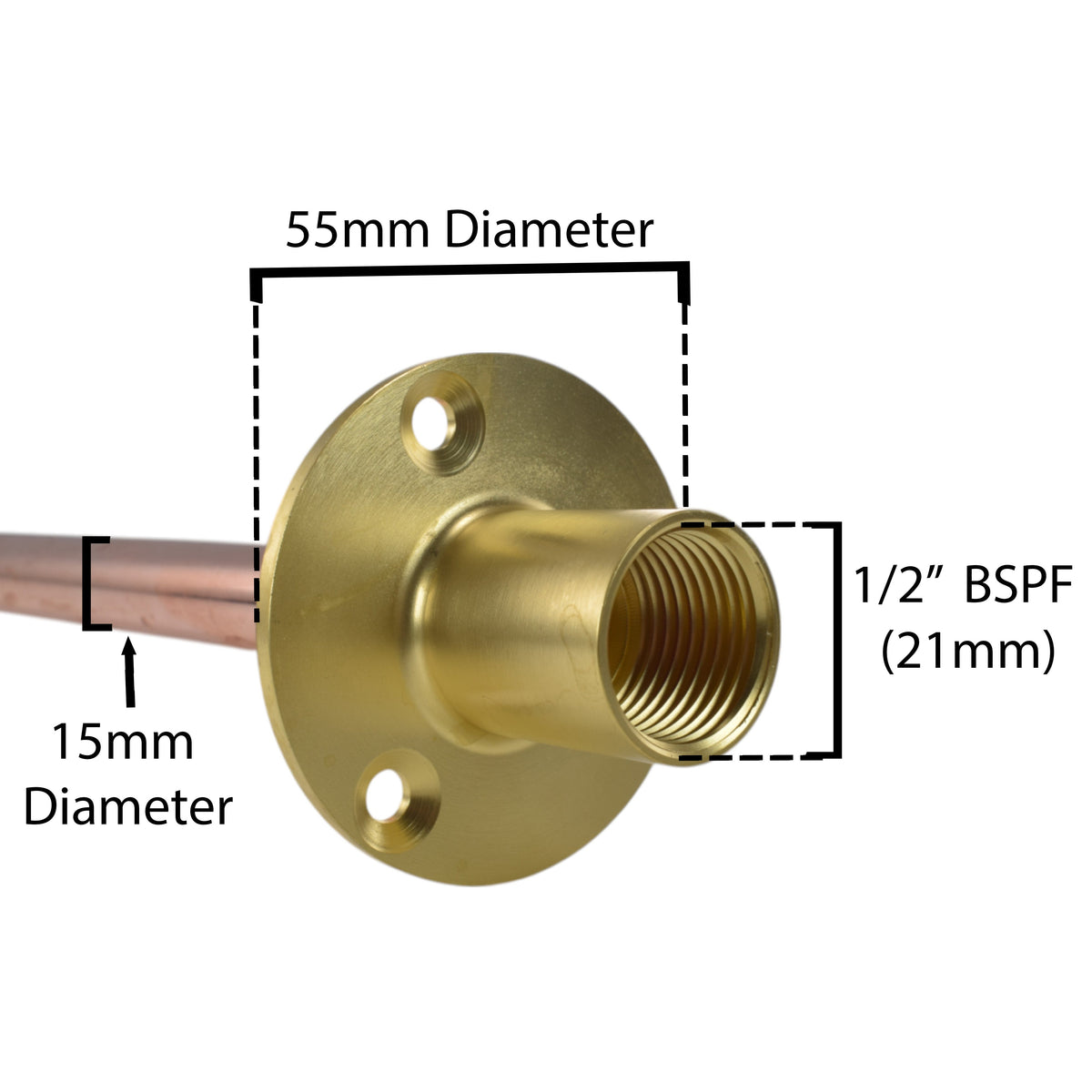

Wall plate: brass, with ½″ BSP female tap socket

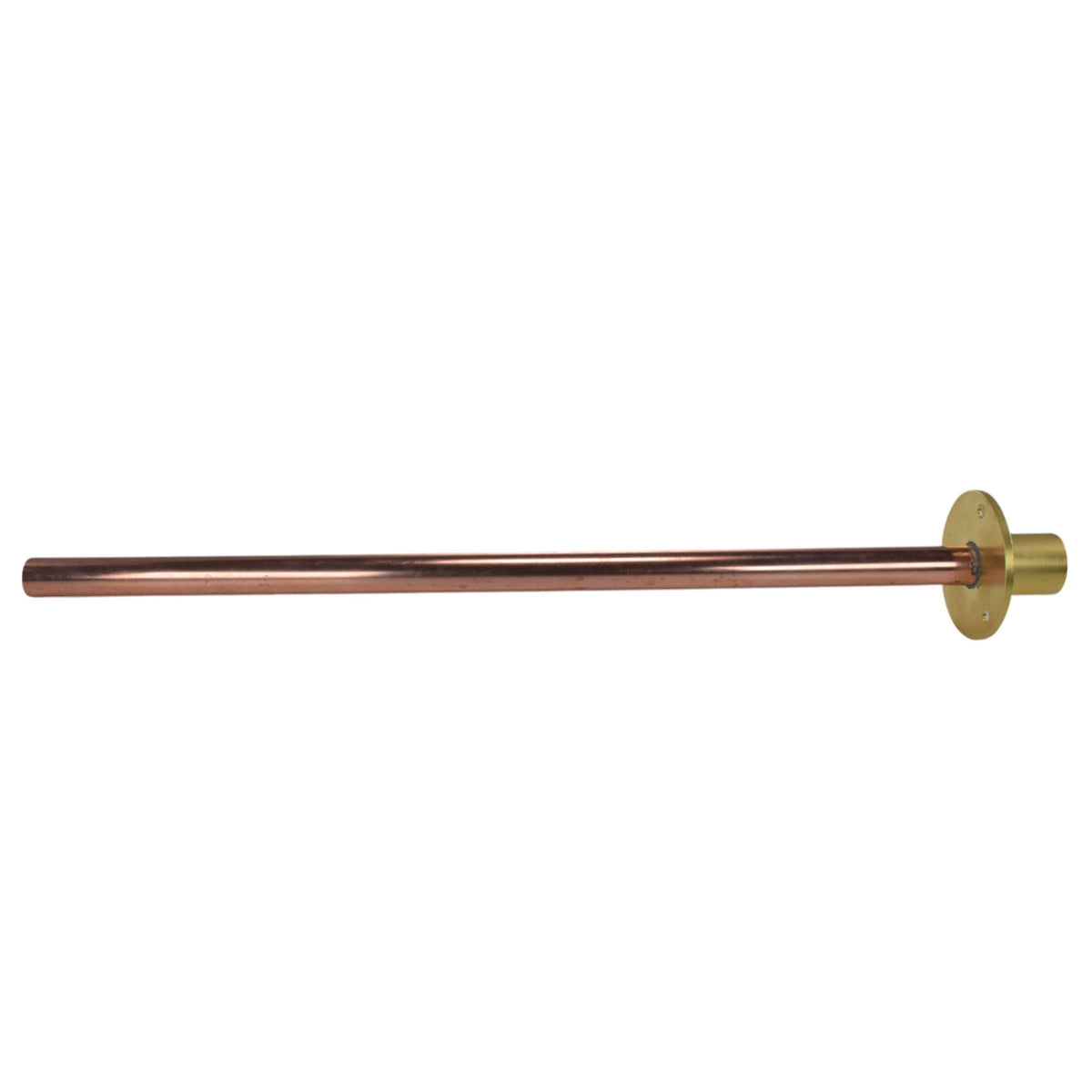

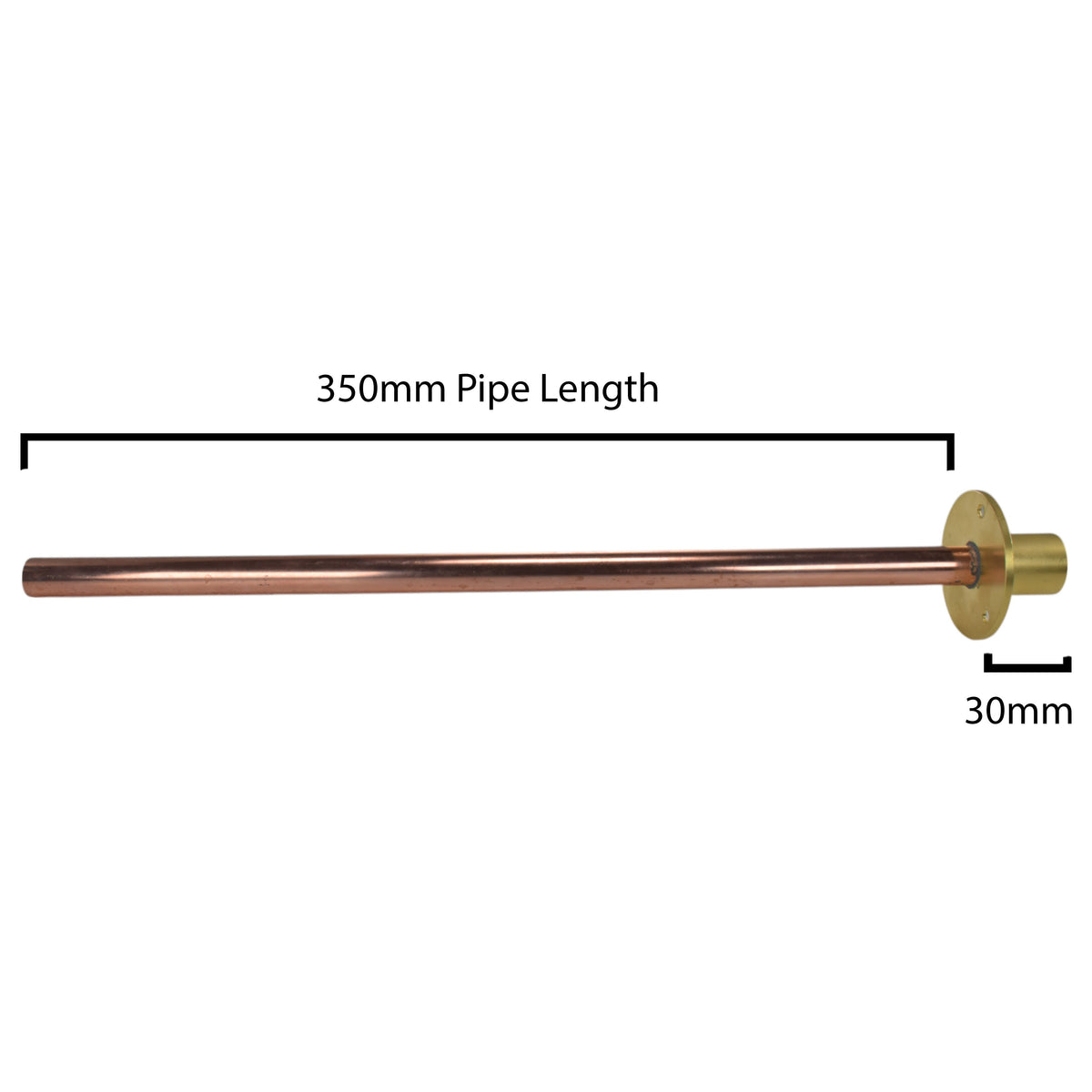

Through-wall pipe: 350mm long, 15mm diameter
Kit version: compression tee

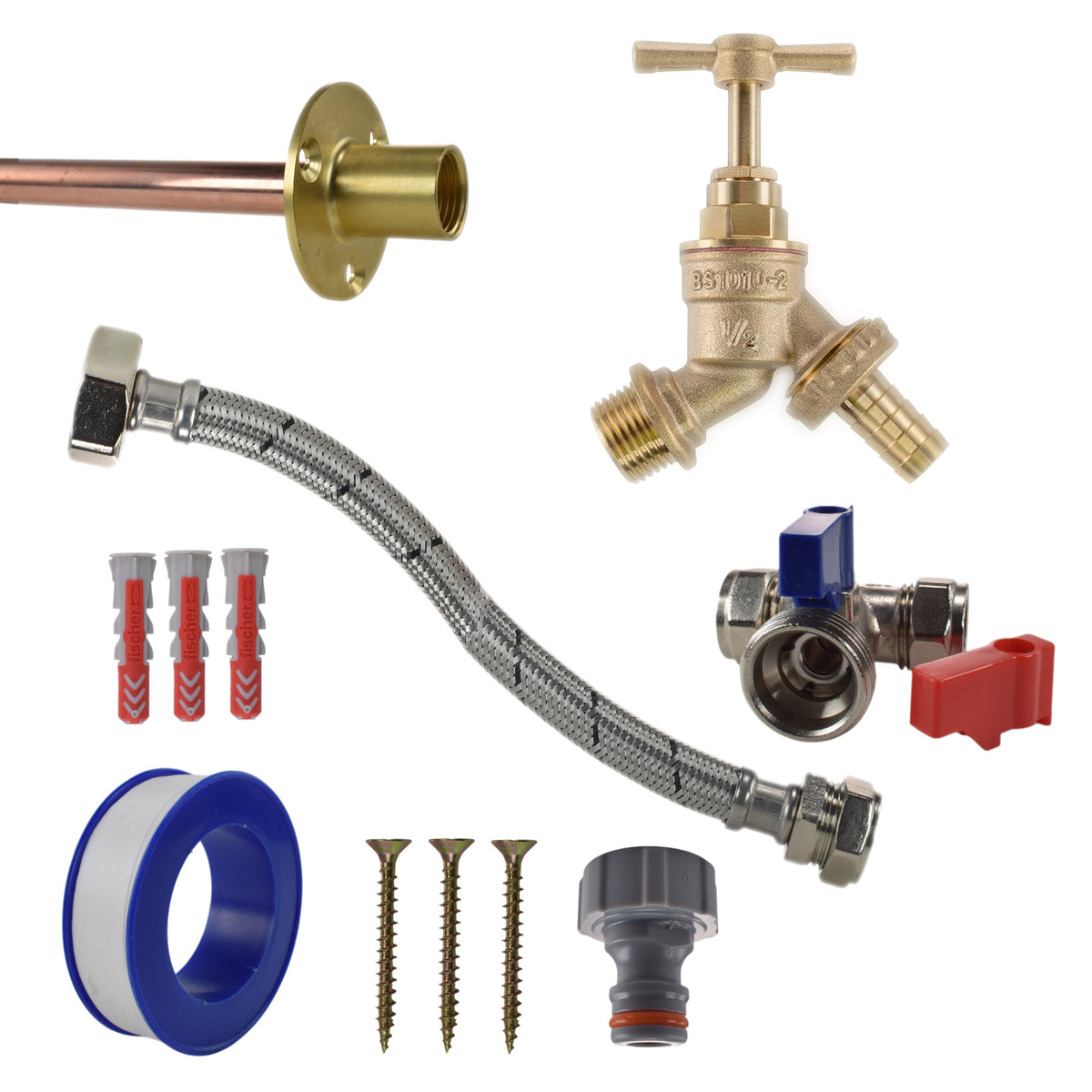

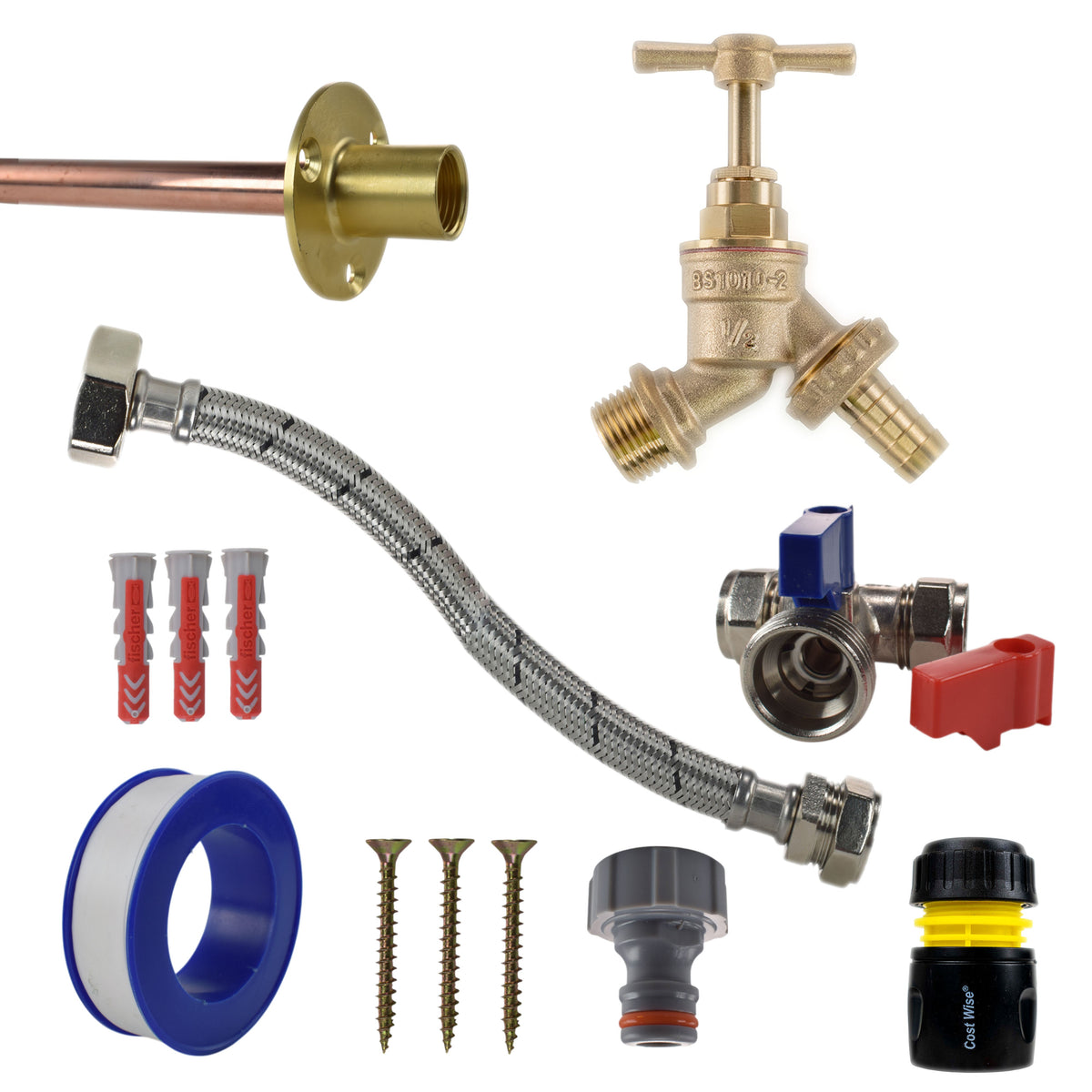

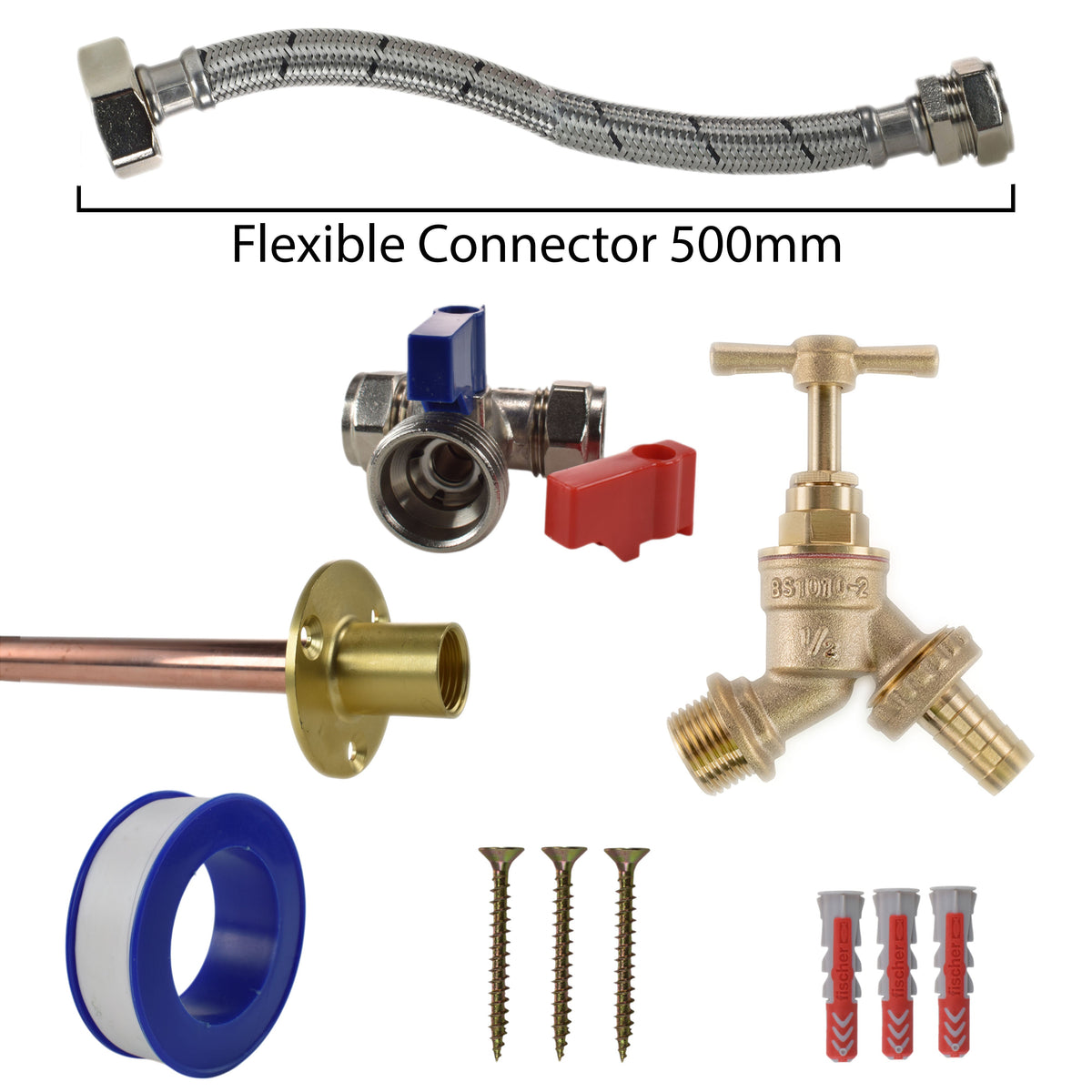

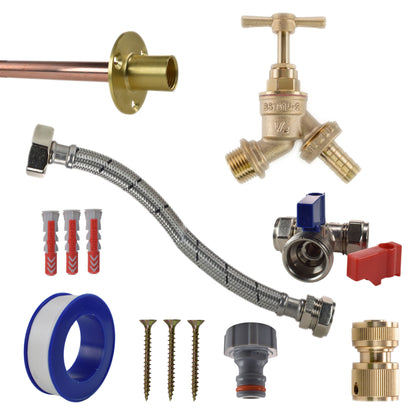

What is included
1 × brass bib tap with barbed outlet (GTBIB12BRASS)

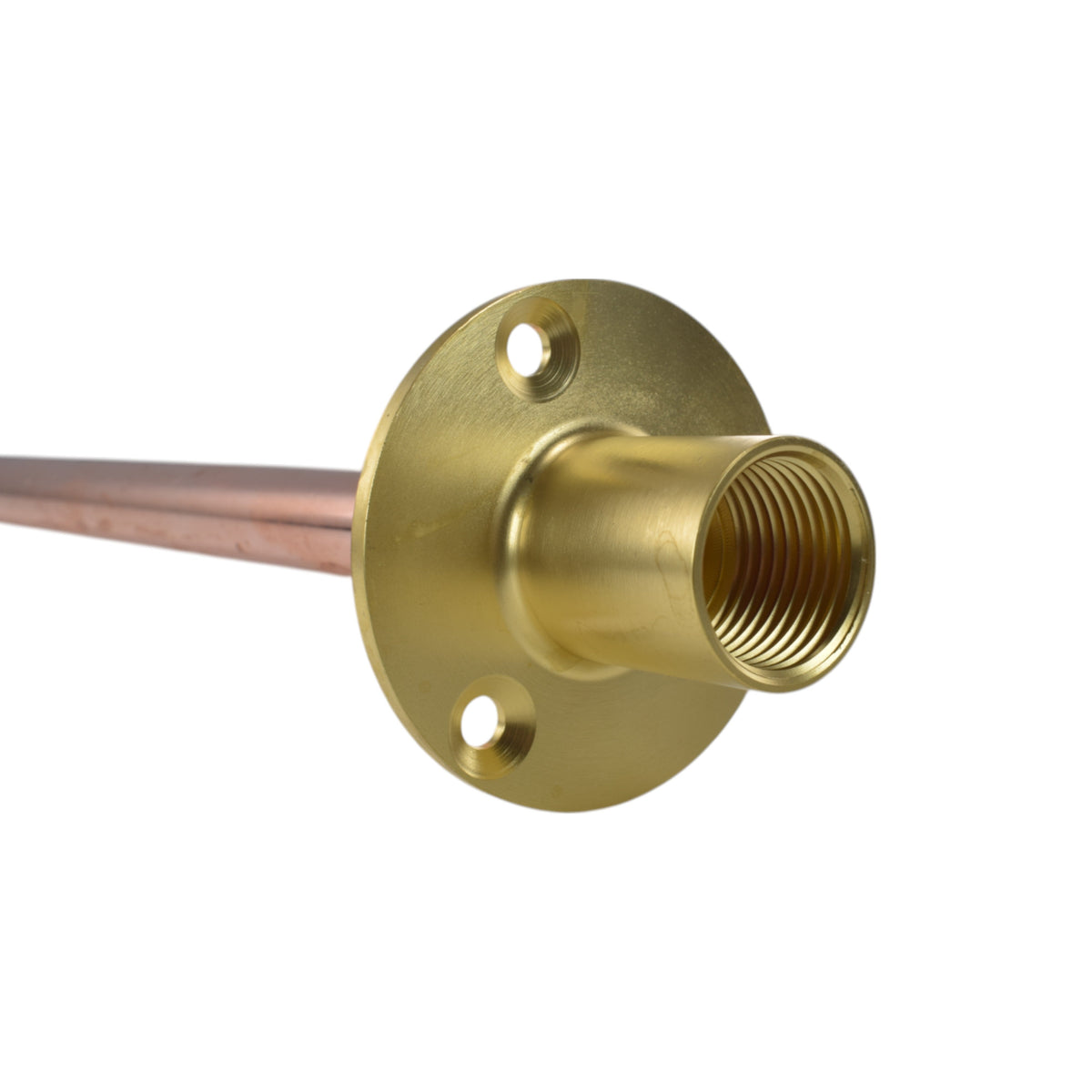

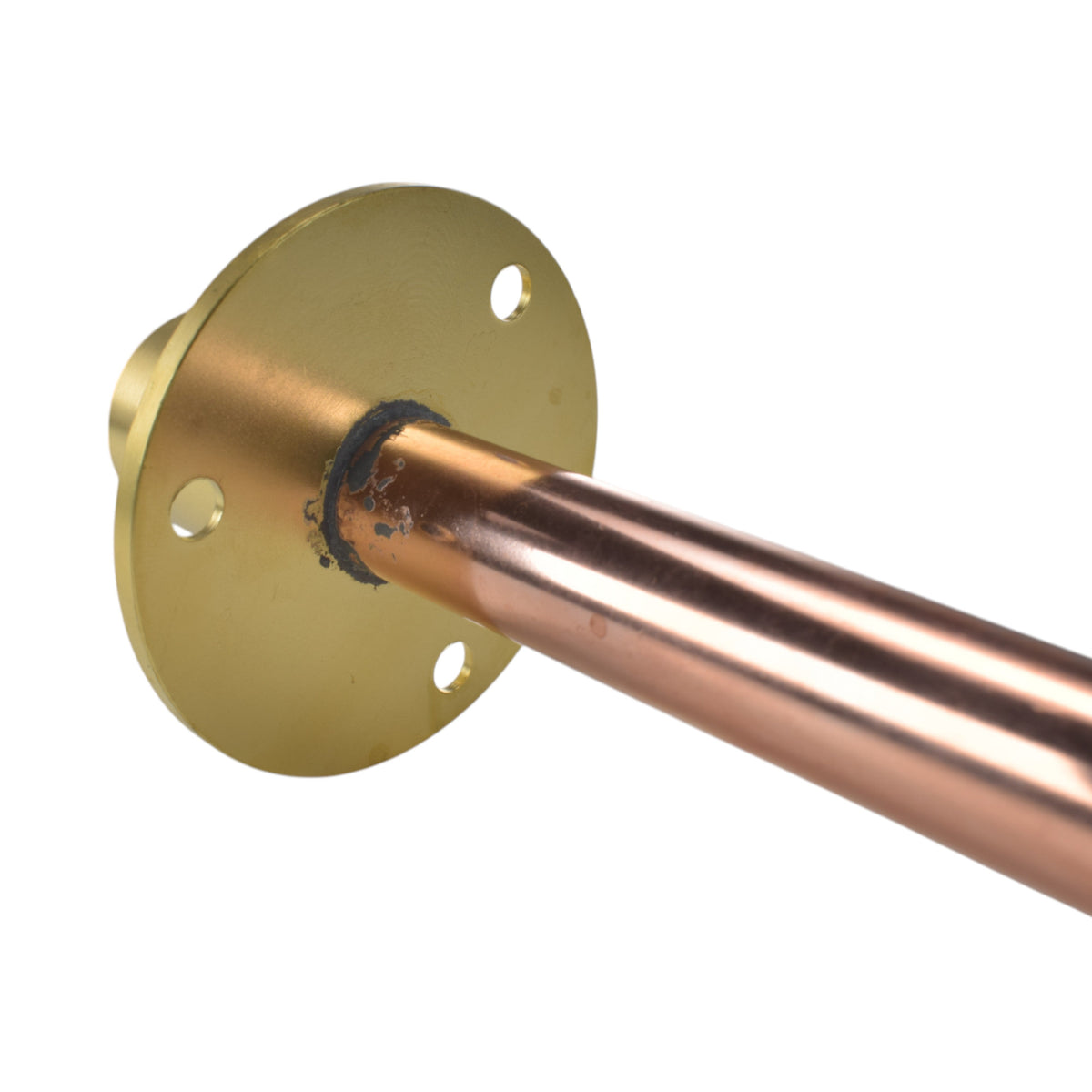

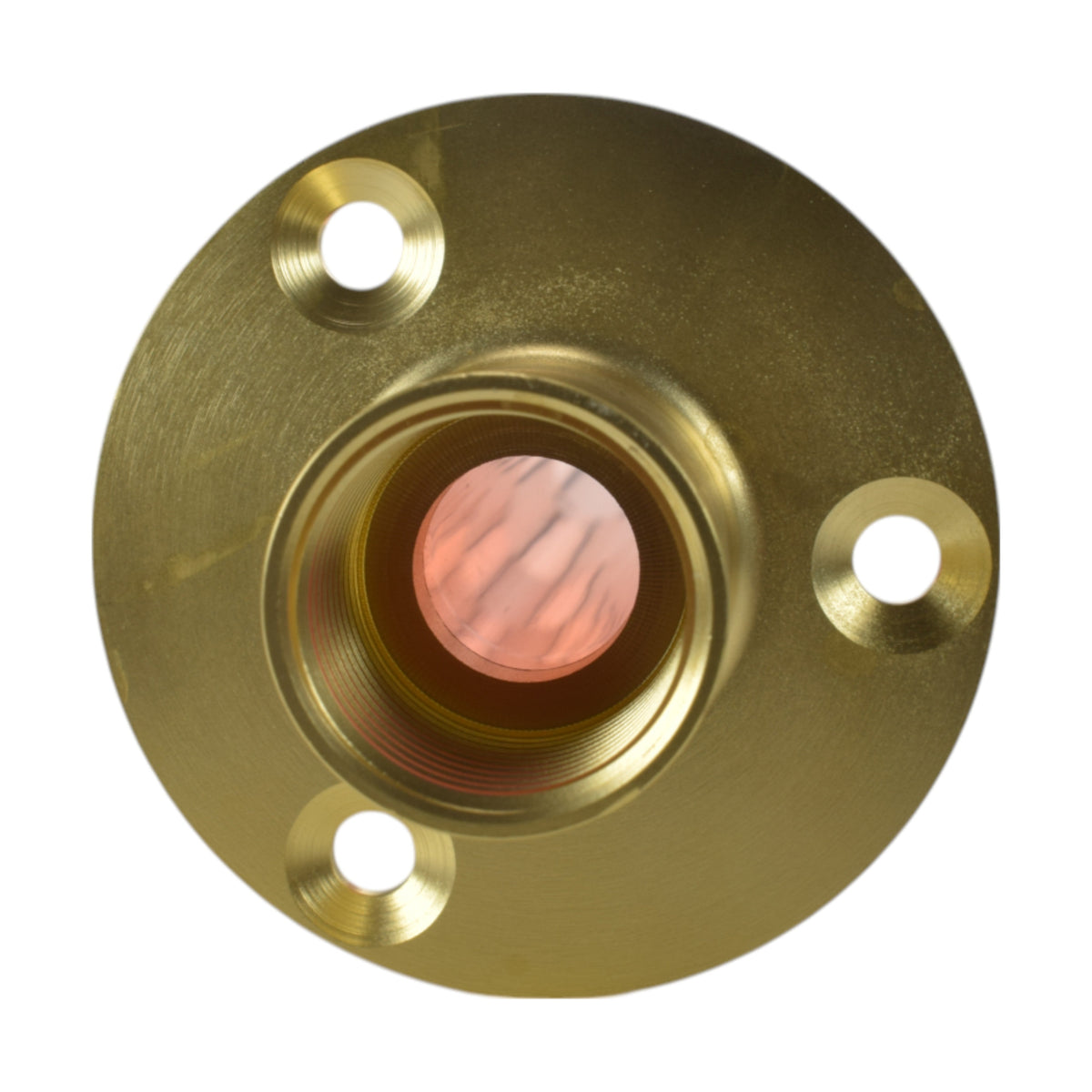

1 × brass wall plate with 350mm × 15mm pipe and ½″ BSP female socket
3 × 4.5 × 40mm screws
3 × Fischer DuoPower 6mm wall plugs
1 × roll of PTFE tape

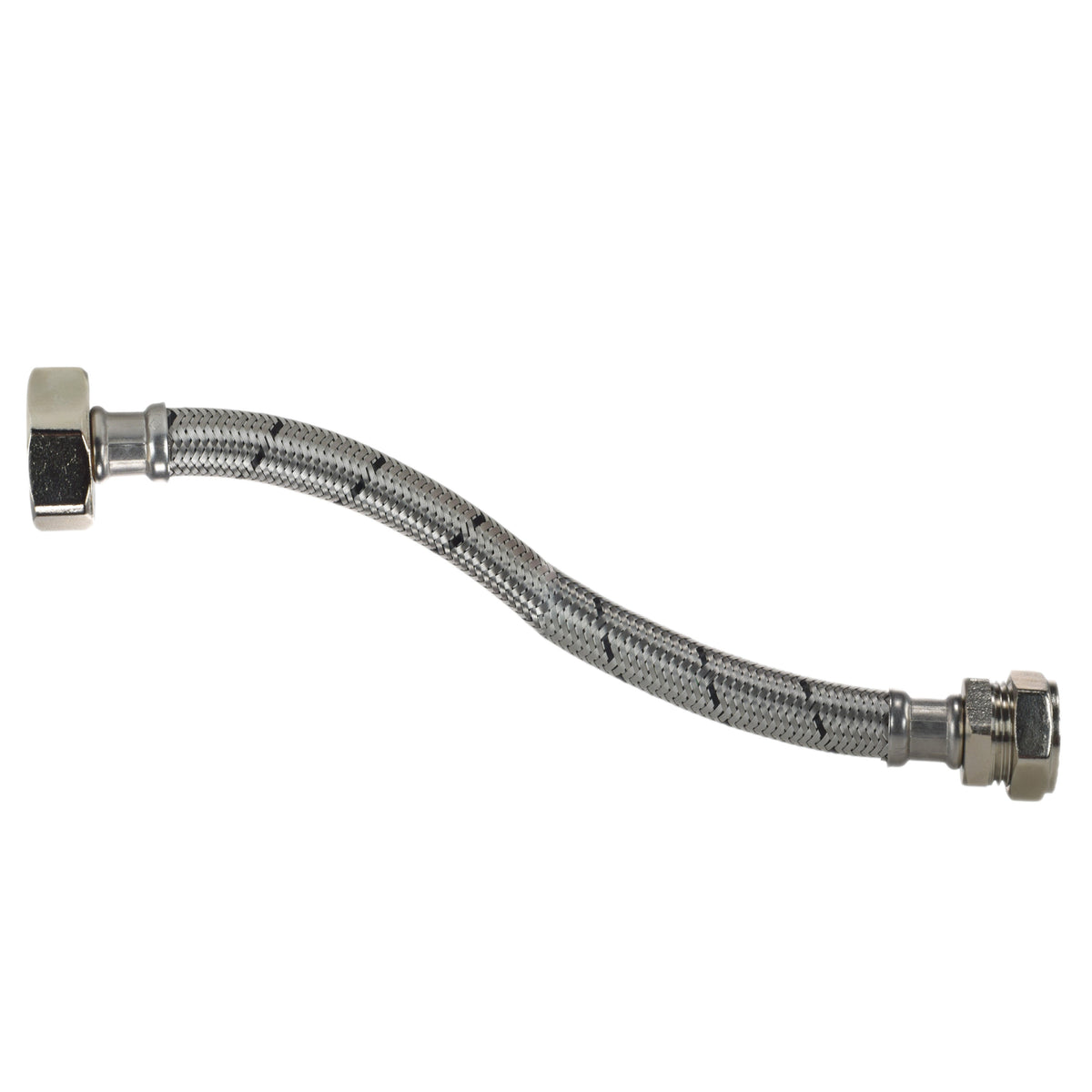

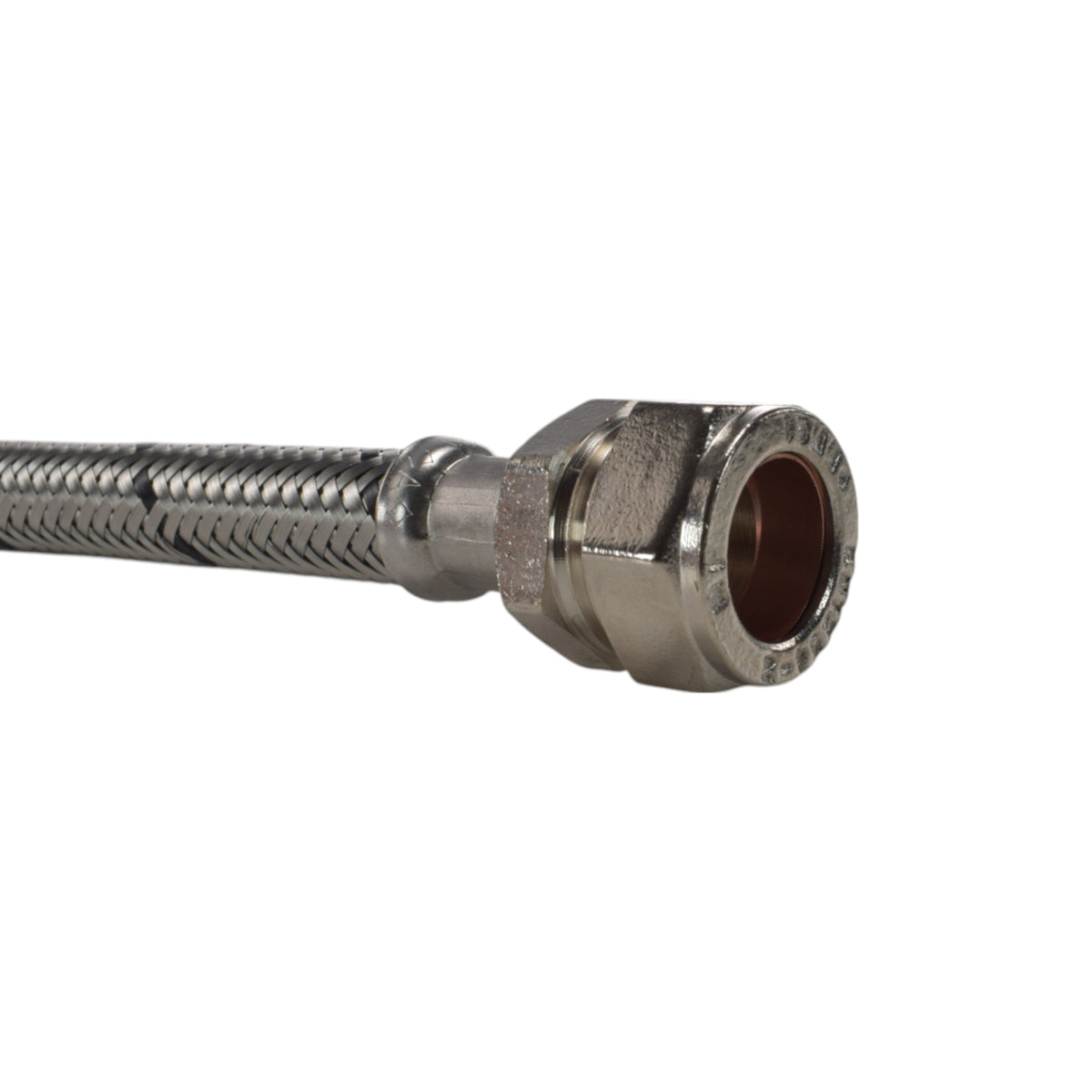

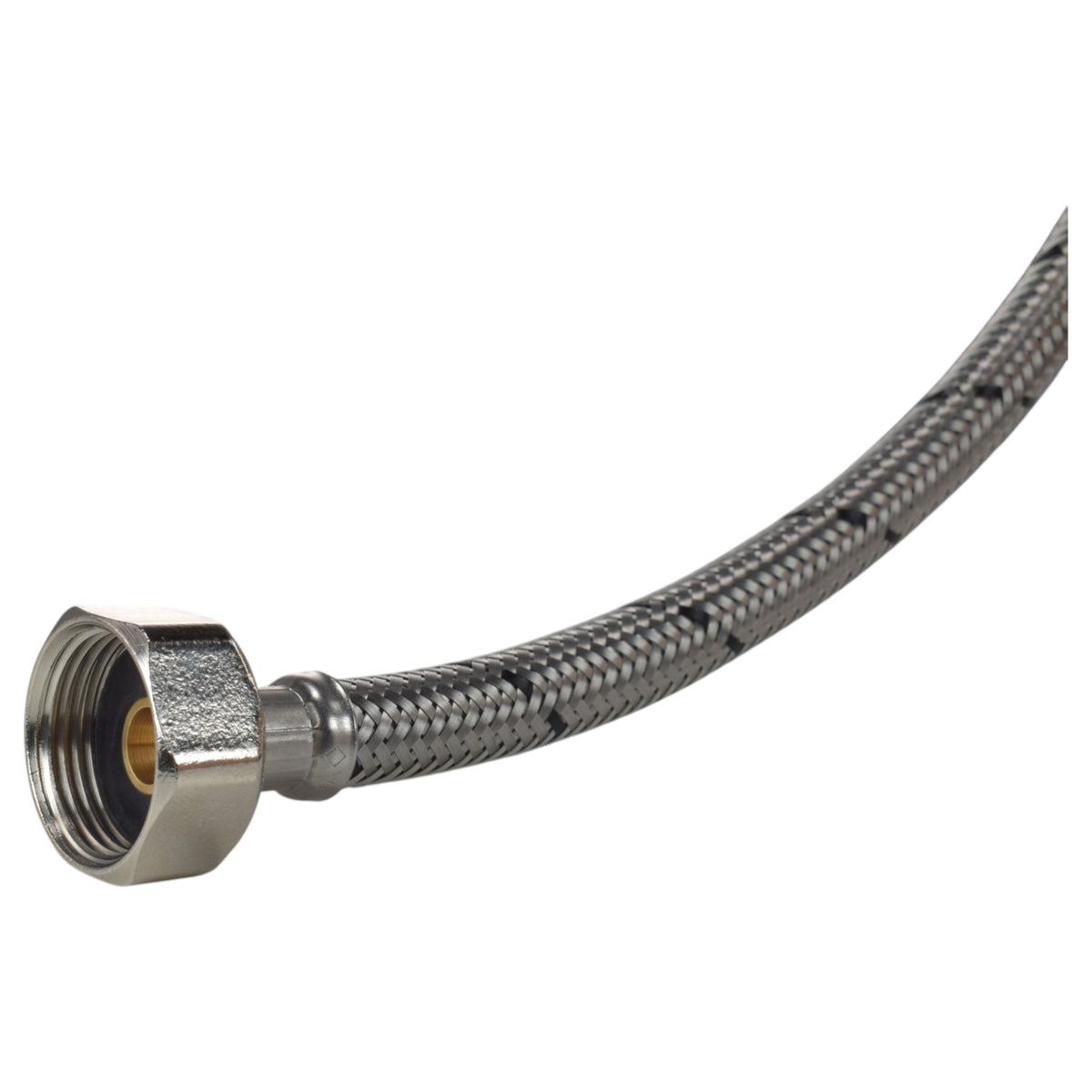

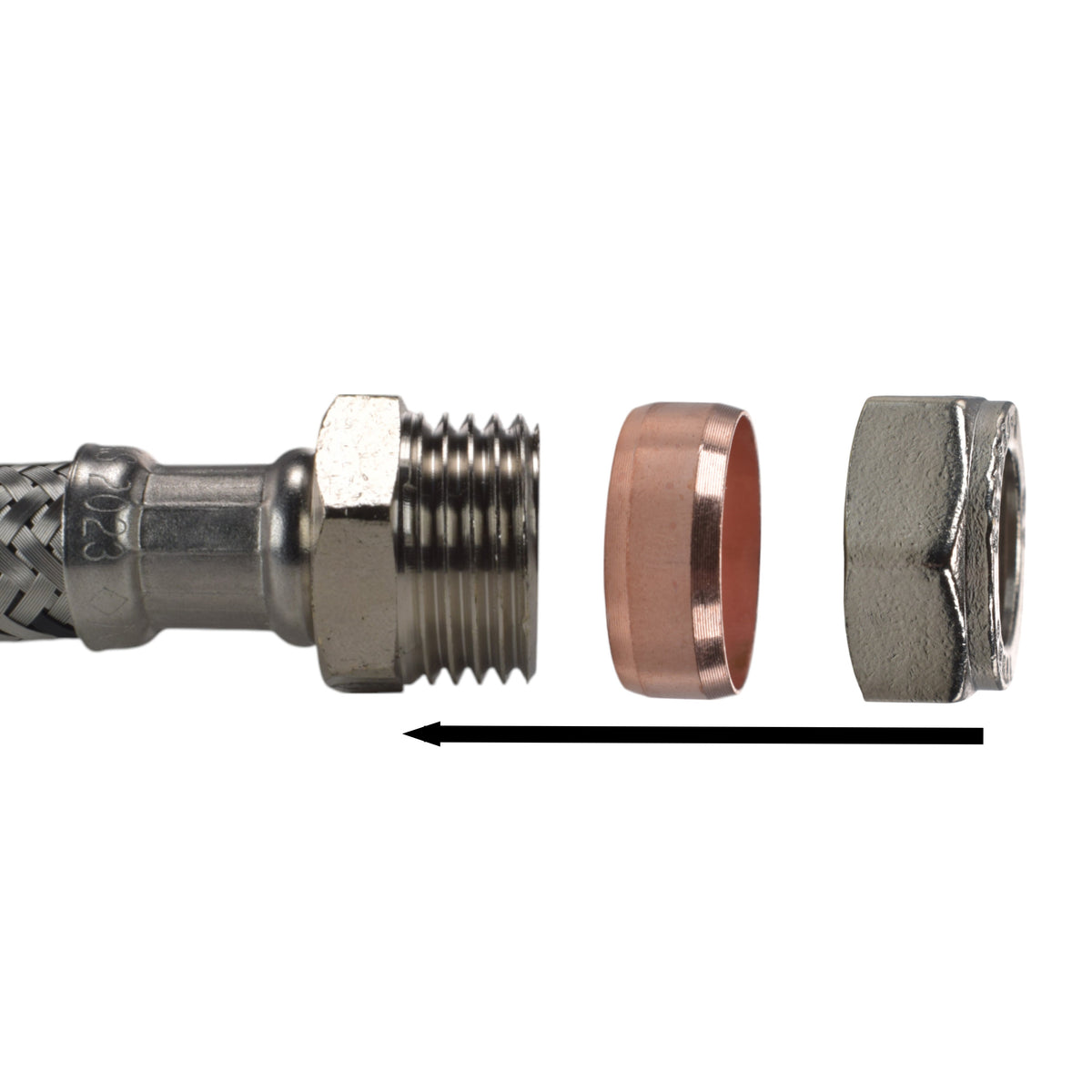

1 × 500mm flexible connector with 15mm compression end and ¾″ BSP female end

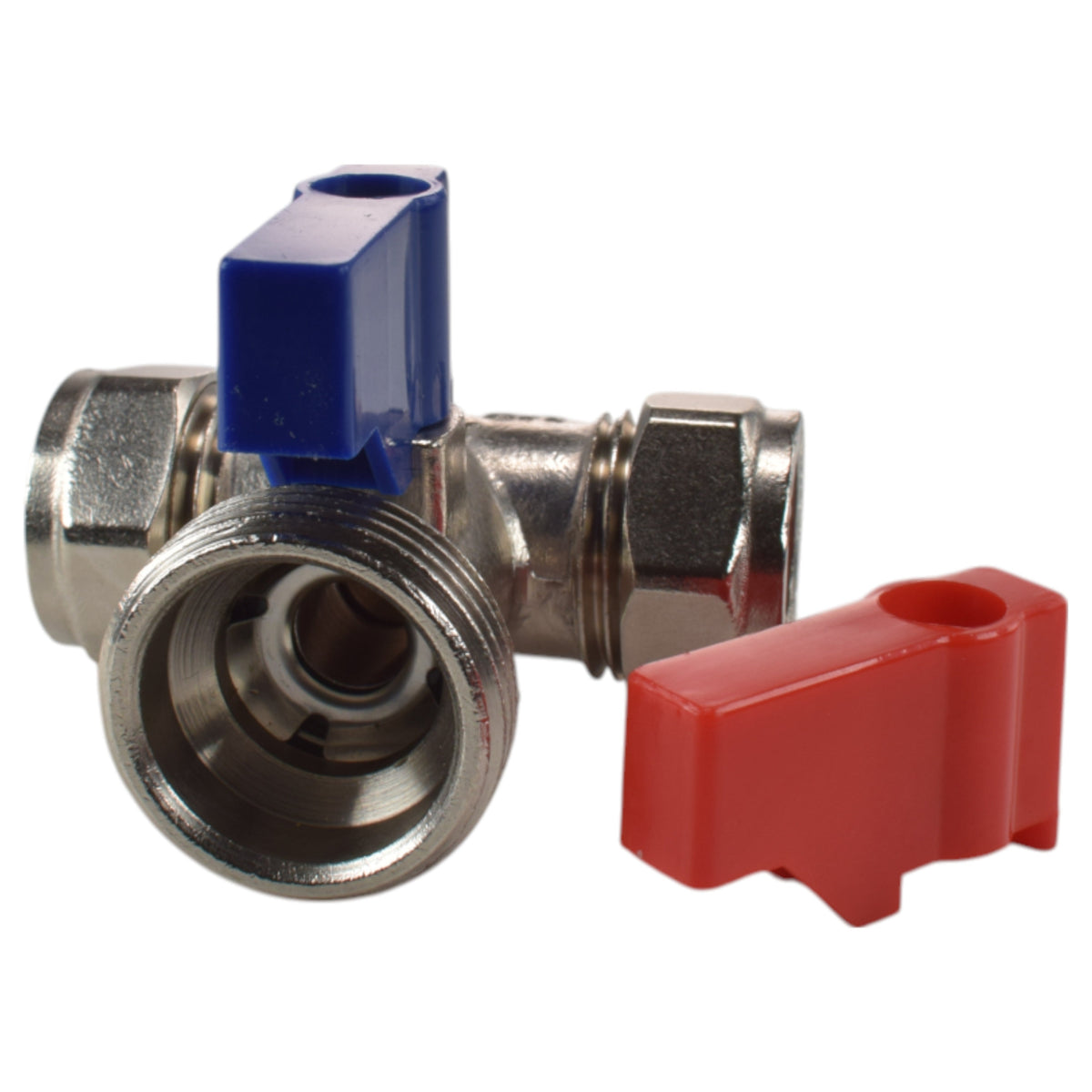

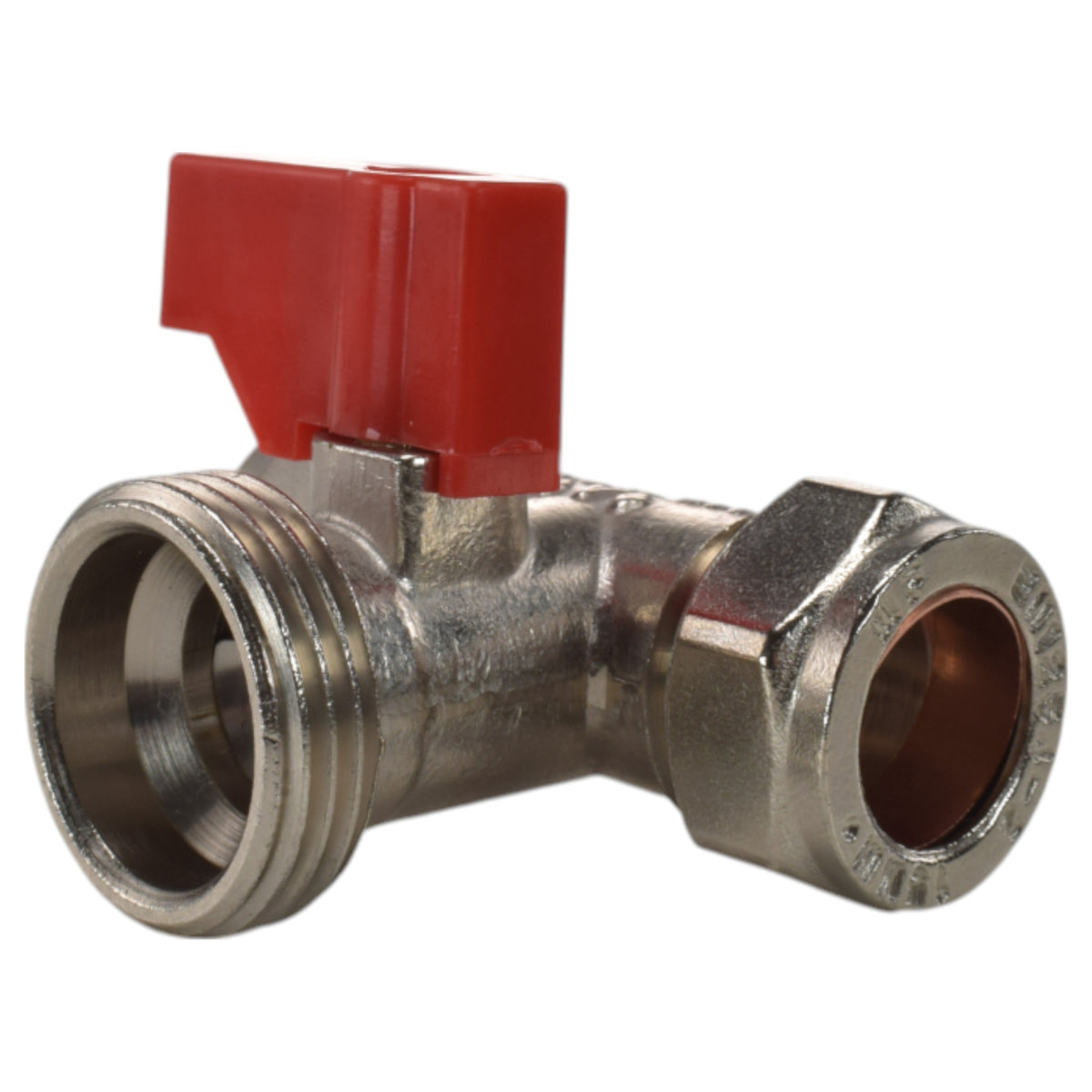

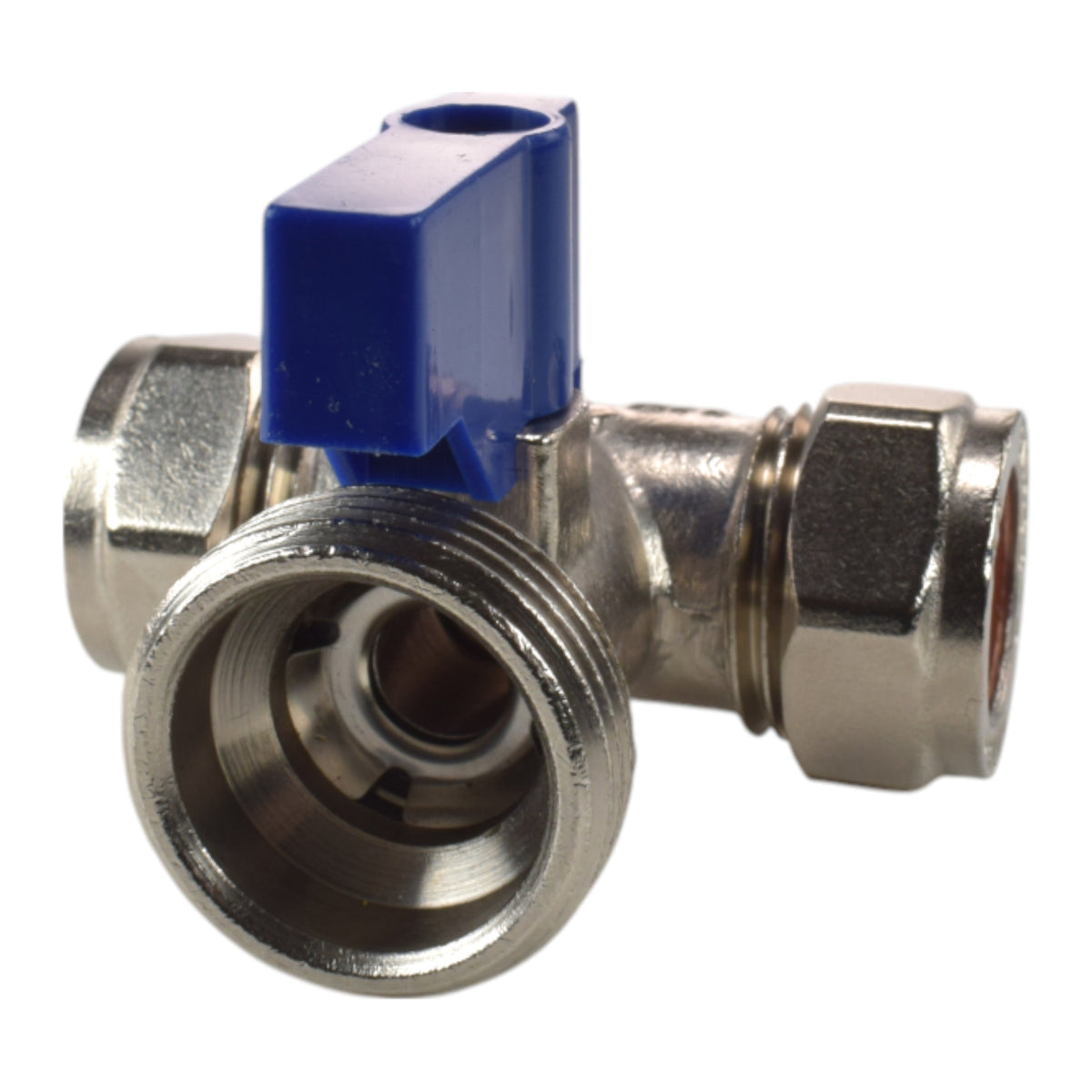

1 × 15mm compression tee valve with ¾″ BSP male branch
1 × ¾″ BSP female tap-to-snap-on adapter
Check before ordering
Check your wall thickness, supply-pipe size and all threaded connections before choosing the kit. The pipe length must also allow for the connection and fitting arrangement. Use fixings suitable for the wall material. Installation tools and any additional supply pipework are not included.

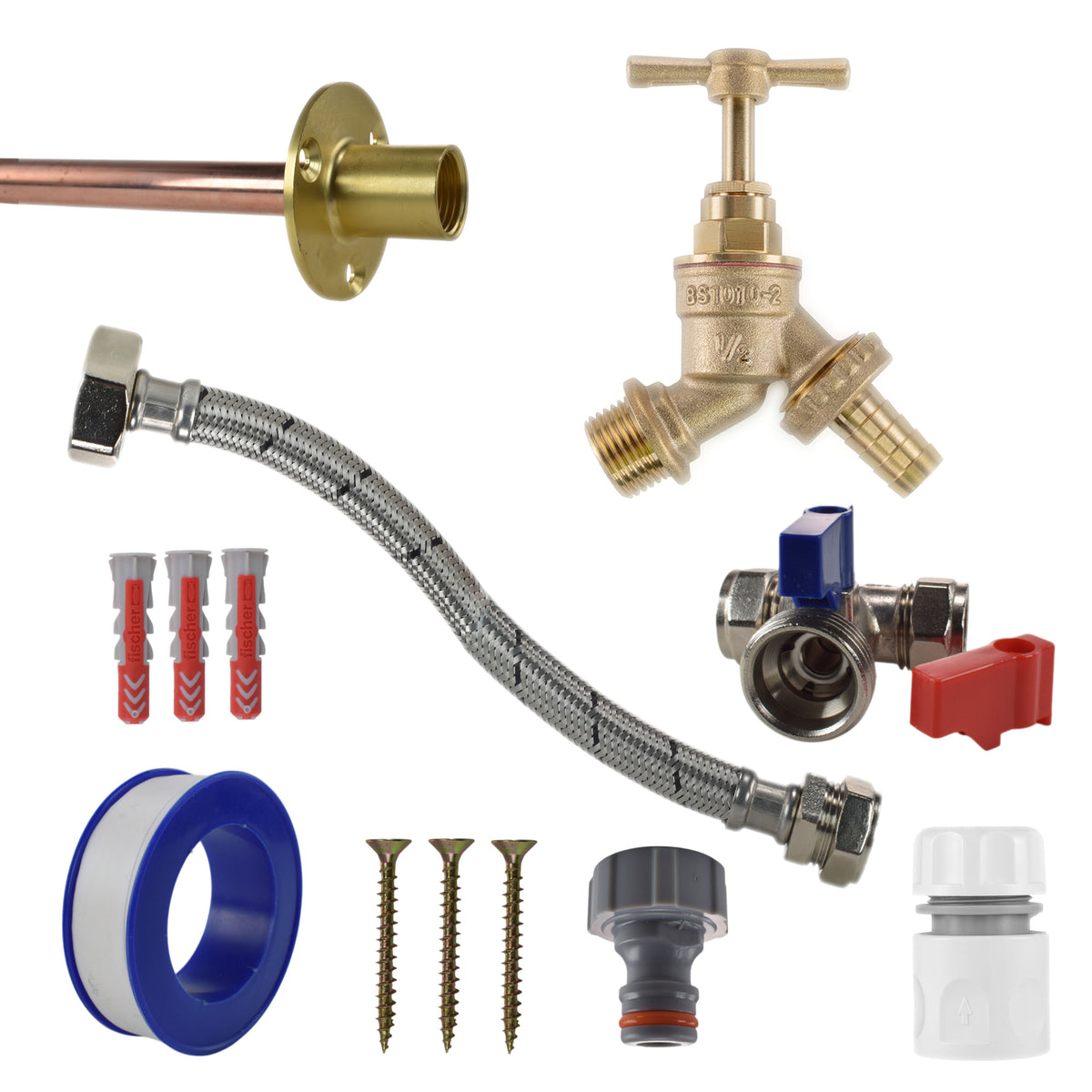

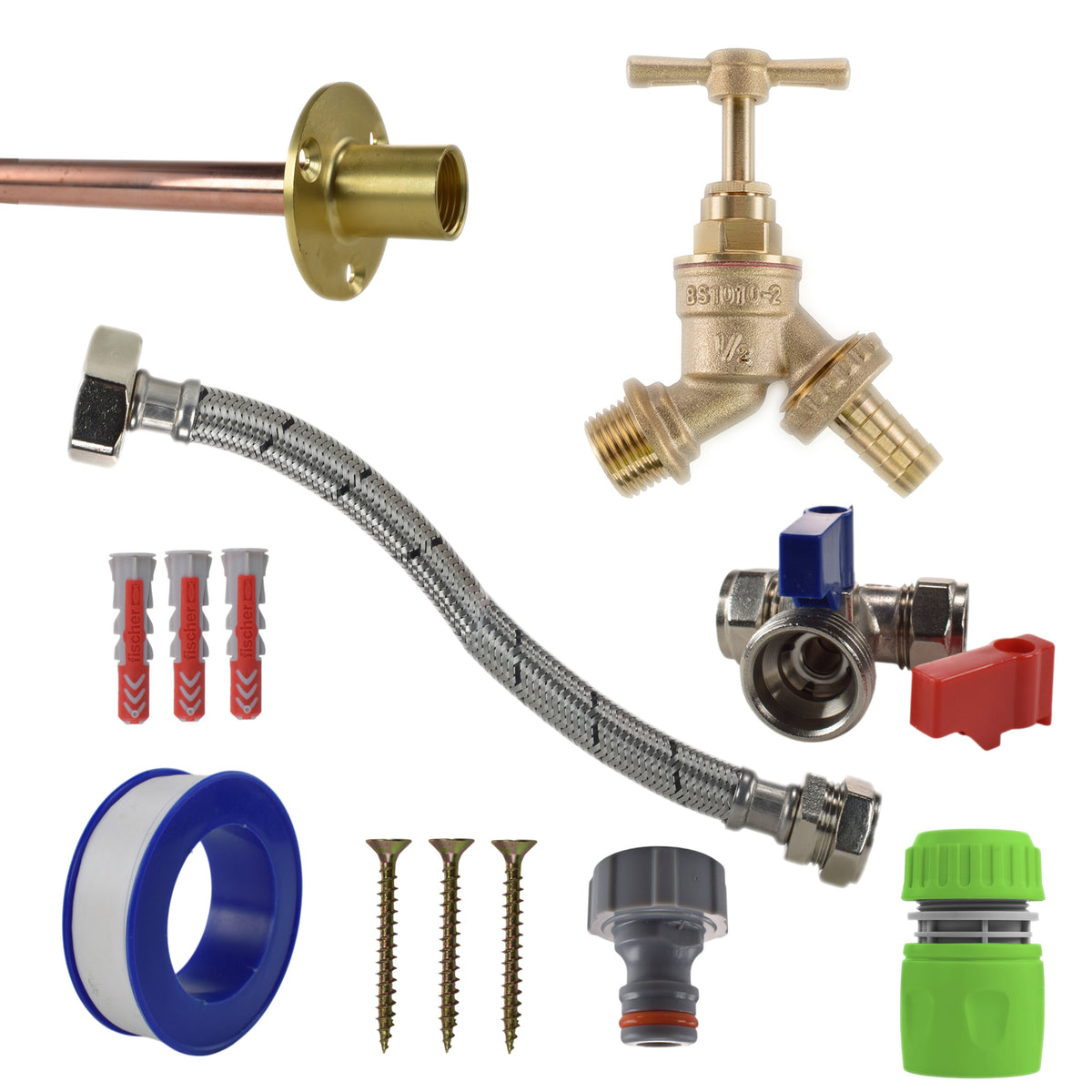

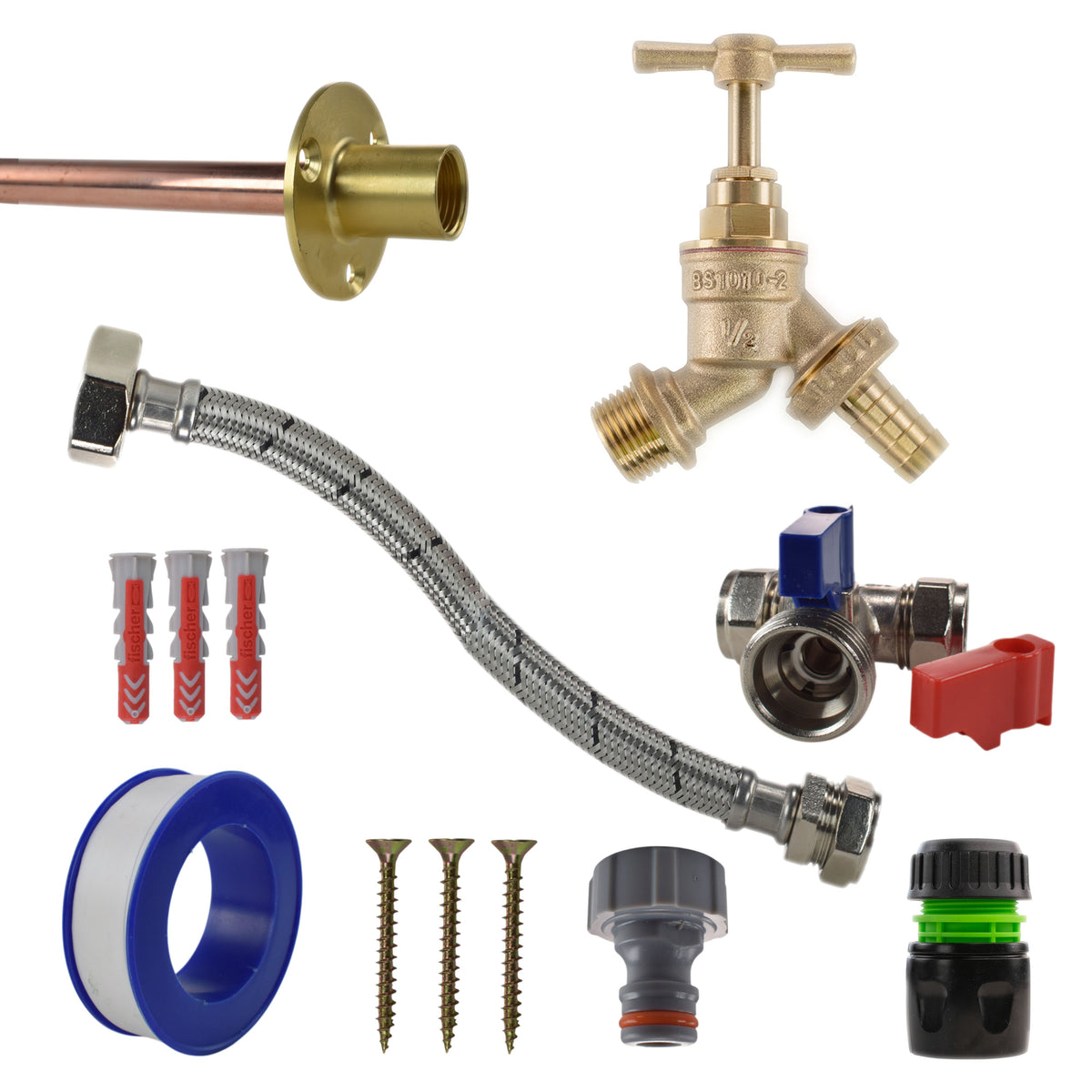

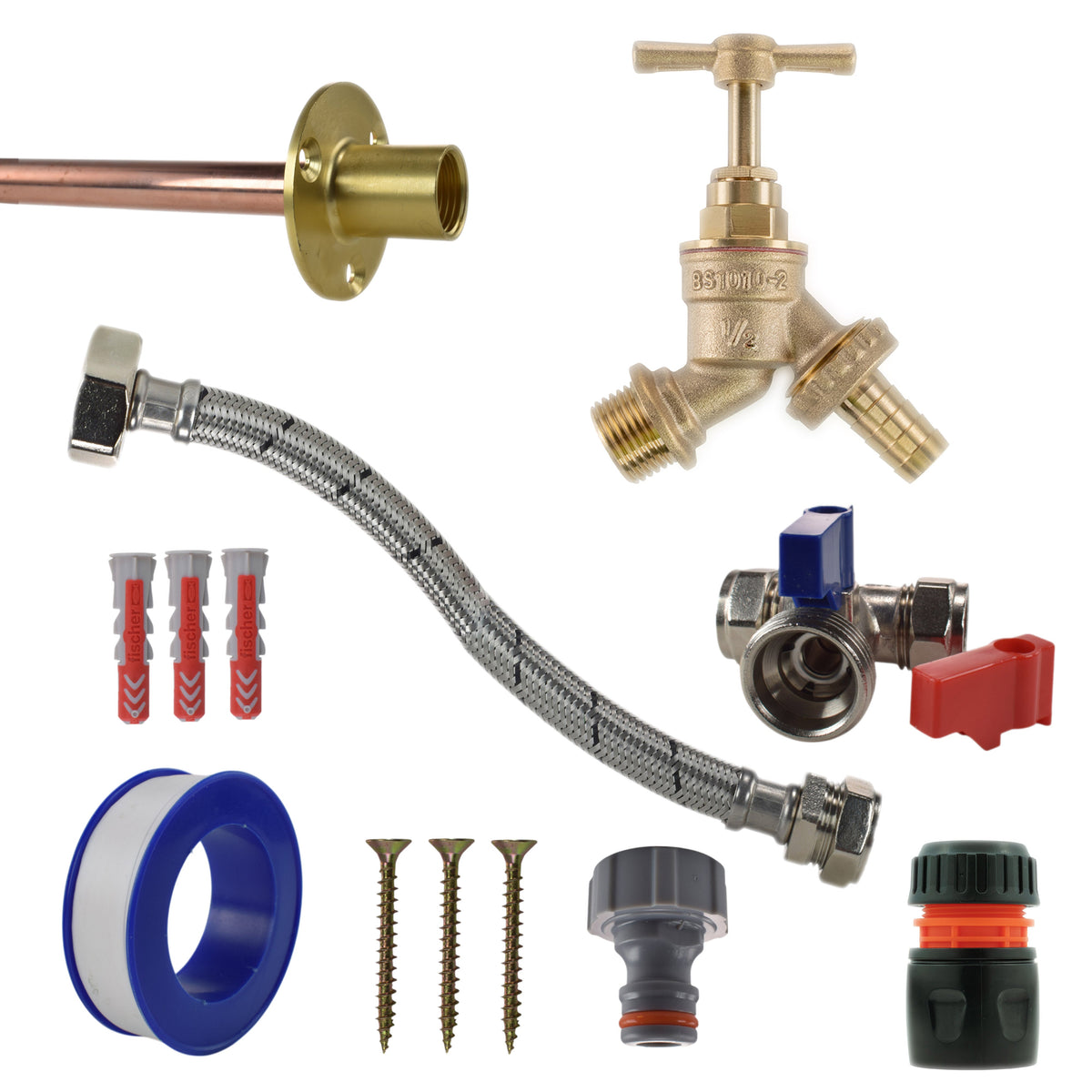

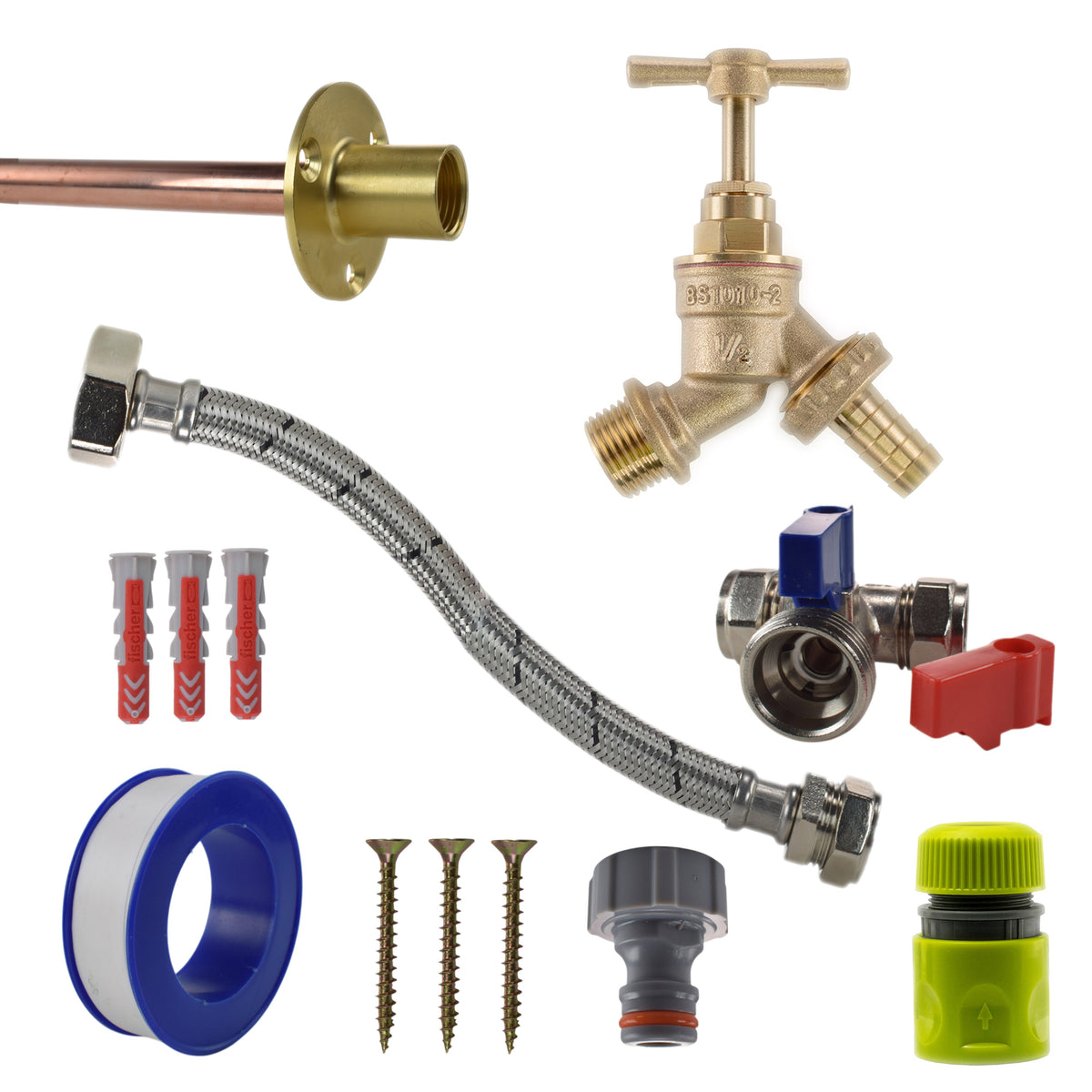

Choose the kit option
The base kit contains the components above. Each “Kit with … Hose Connector” option adds one female hose connector in the selected finish. Choose White Line, Lime Line, Lime/Grey, White/Grey, Brass, Black/Green, Black/Orange or Black/Yellow in the selector. A garden hose is not included.
