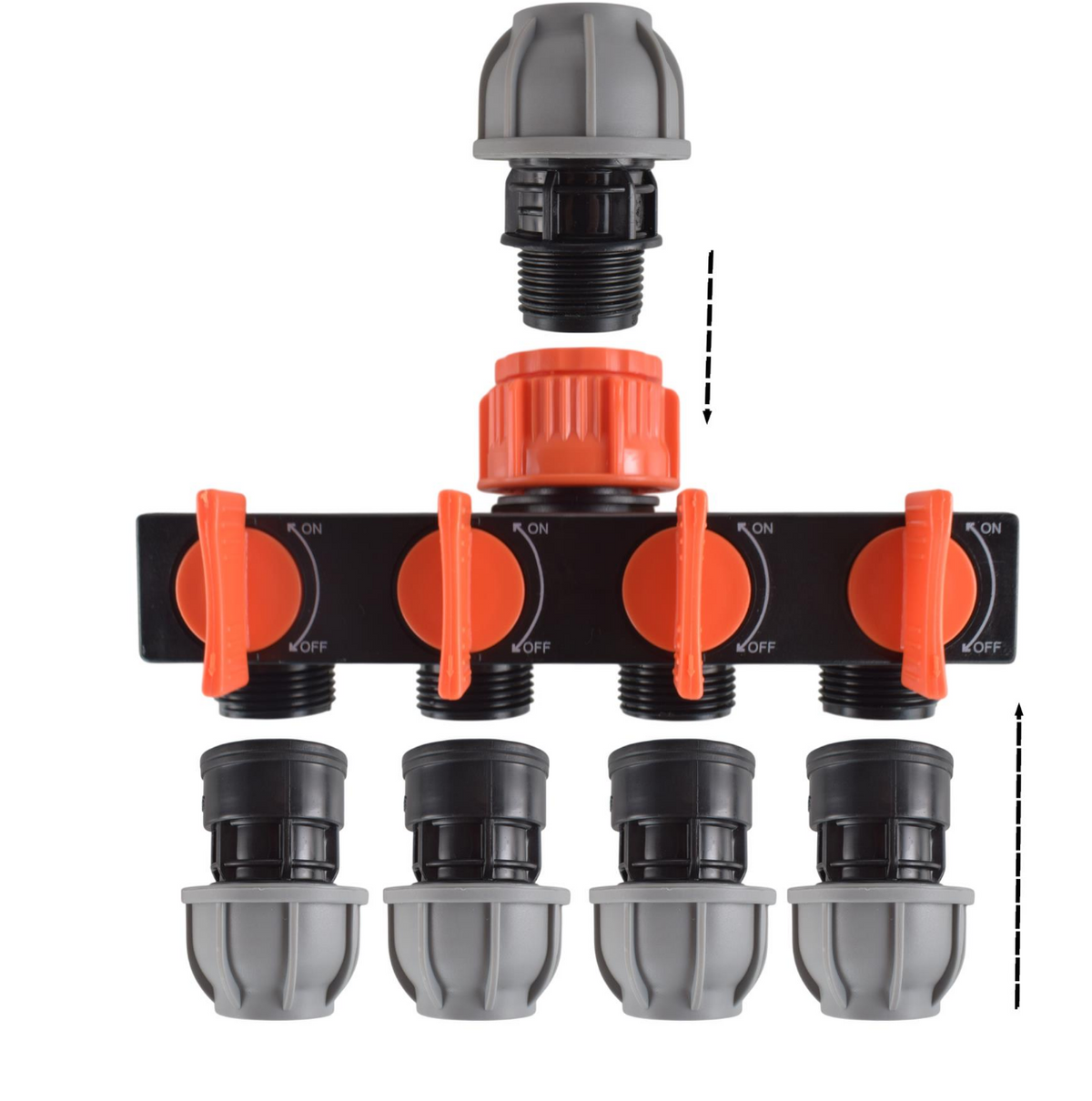

20mm MDPE 4-Way Manifold Kit – Straight Inlet

Create 4 separately controlled pipe branches with a garden splitter and matching 20mm compression adapters.

Product details

• Manifold: one 4-WAYTAPCON001B four-way splitter with manual valves

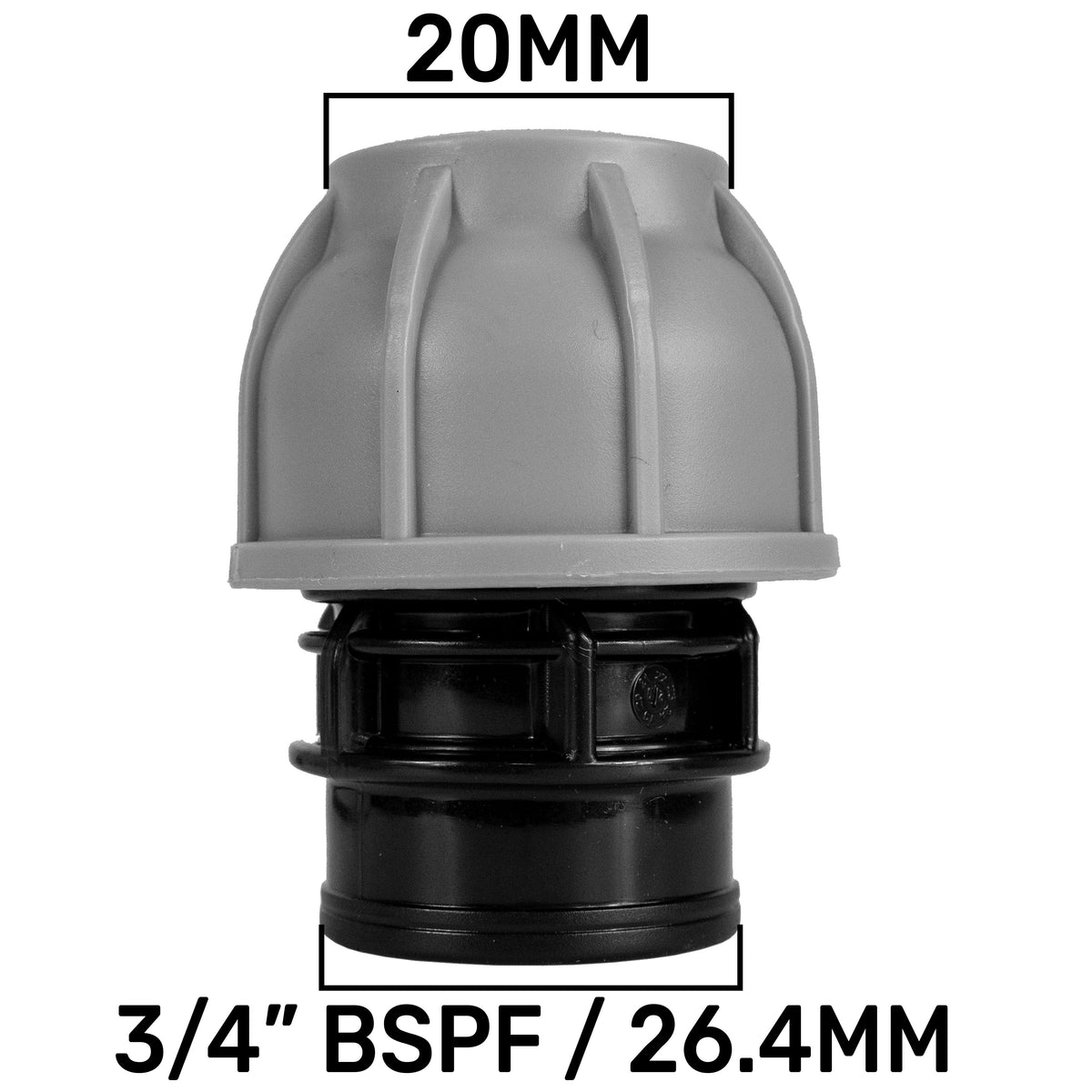

• Outlet adapters: 4 × 20mm compression to ¾″ BSP female

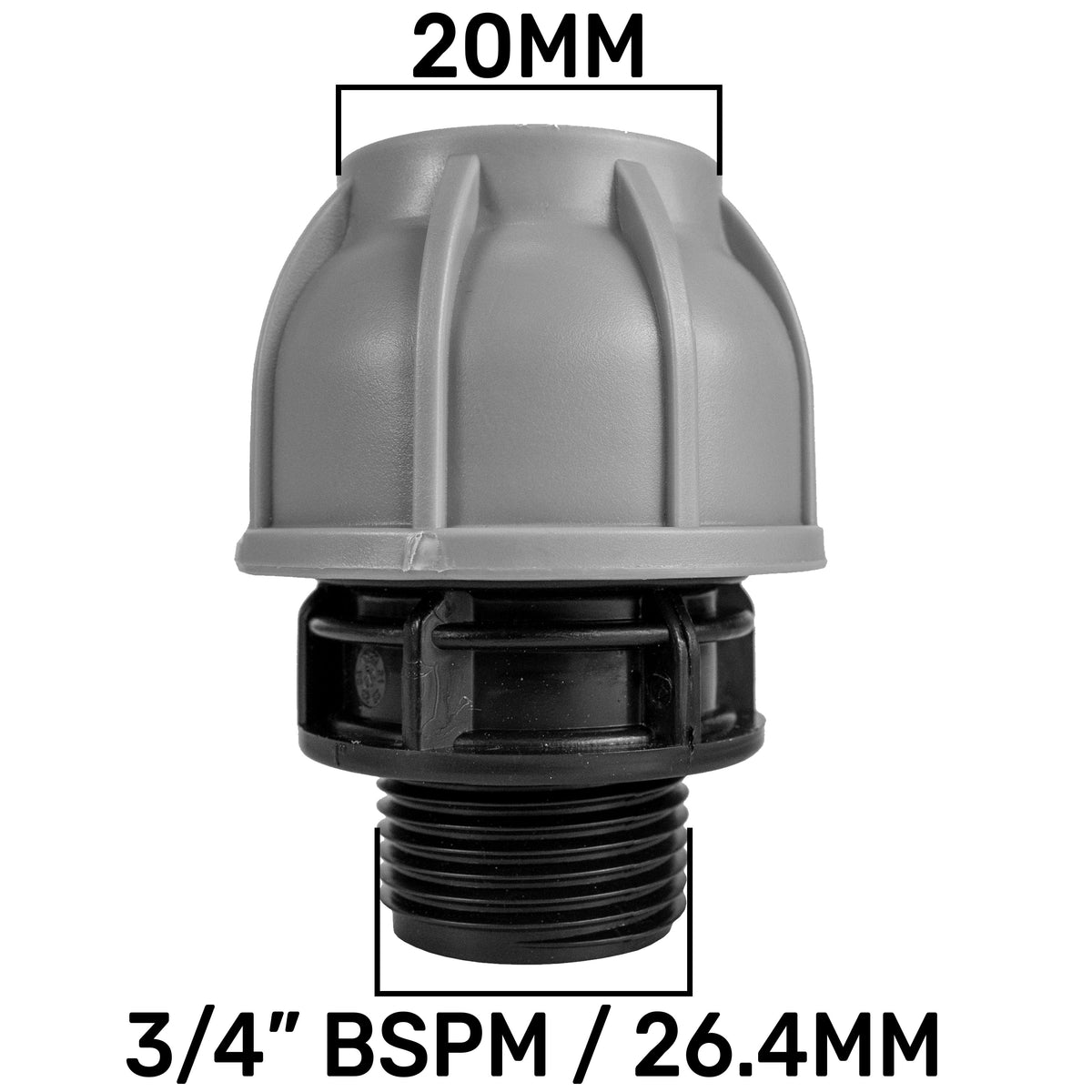

• Inlet adapter: one 20mm compression to ¾″ BSP male straight adapter
• Pipe size: 20mm outside diameter
• Reference: MDPE-4WAY3033-20MM-STR

What is included

One manifold, 4 outlet adapters and the straight inlet adapter

Fitting and use

Match the pipe outside diameter and assemble each compression joint correctly. Connect the matching BSP threads using an appropriate seal. An individual adapter PN10 designation does not establish the garden splitter kit rating; confirm limits for the complete assembly. The outlets are configured with the supplied pipe adapters rather than simultaneous pipe and quick-connect fittings. Pipe and sealing materials are supplied separately.
