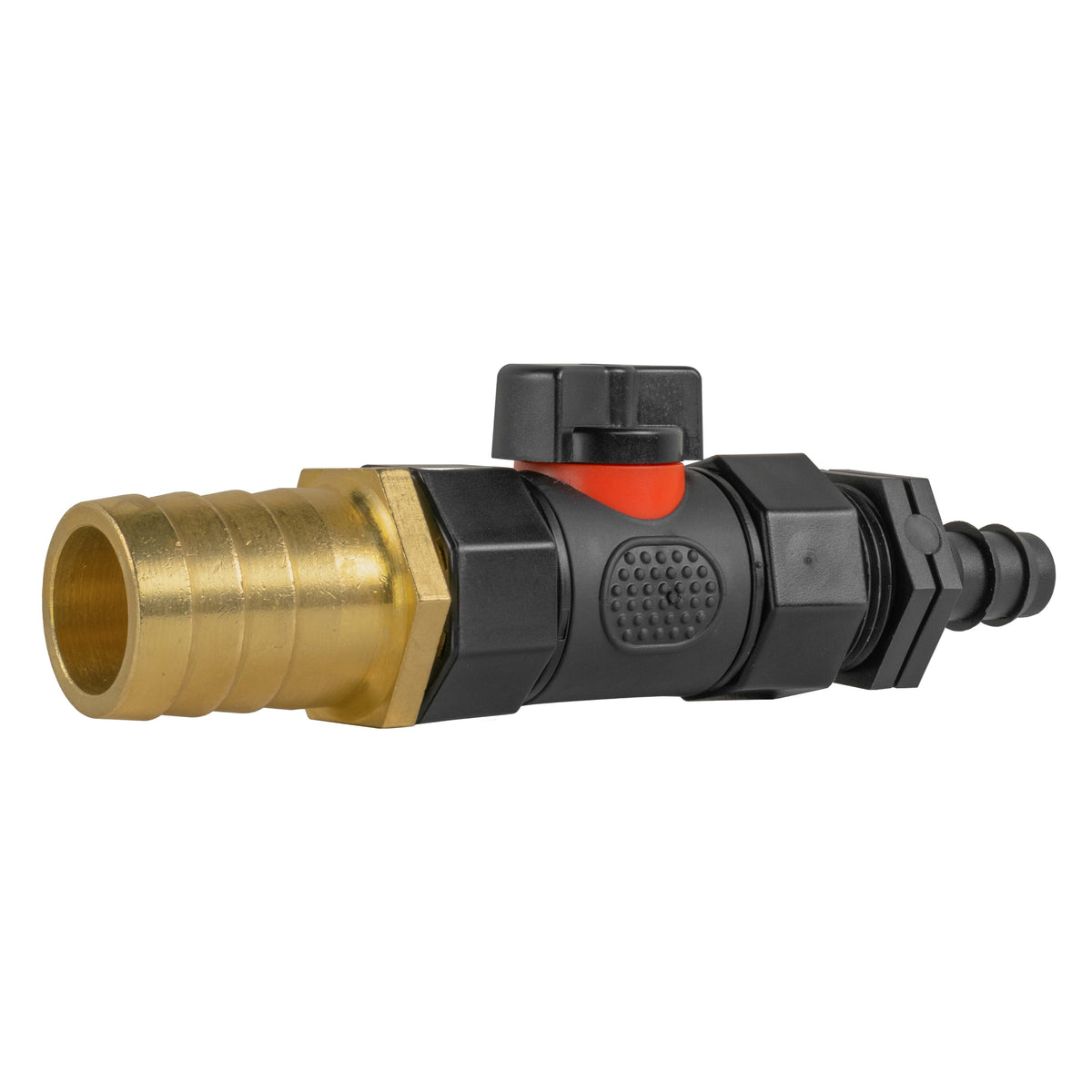

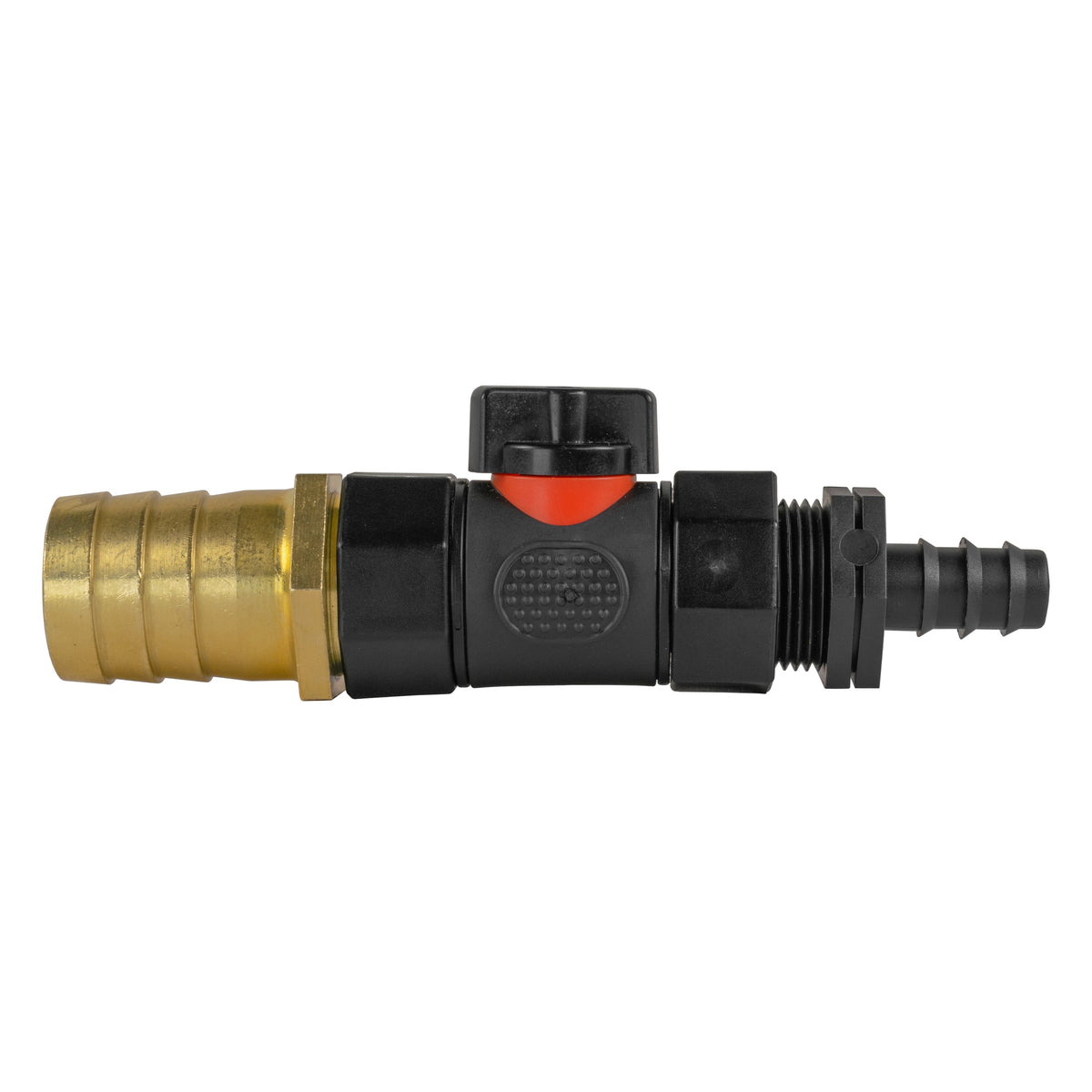

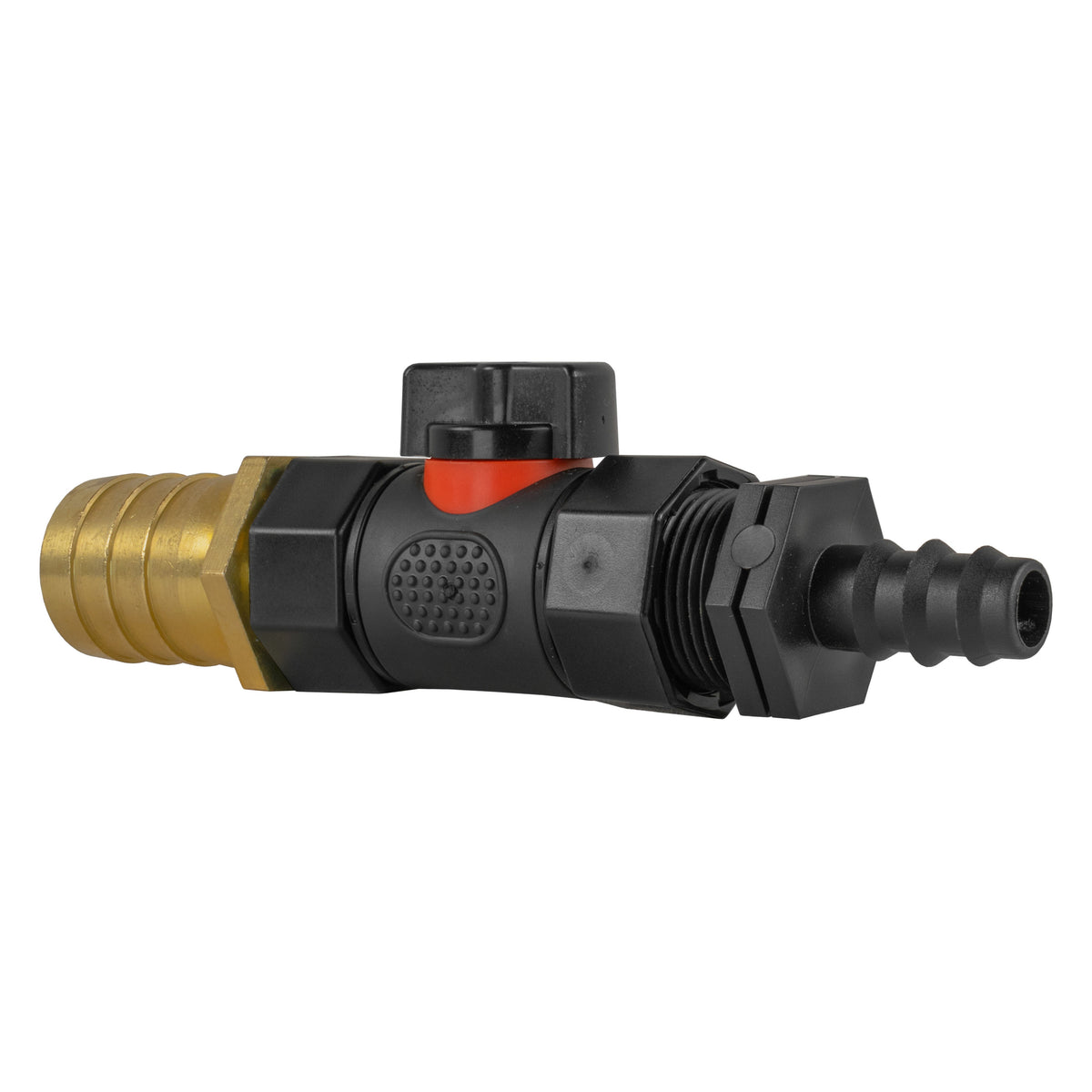

Add manual water-flow control between 16mm irrigation-pipe barb and 25mm brass hose barb connections with this inline fitting kit. The black soft-touch valve uses ¾″ BSP female threads at both internal connection points; the supplied adapters create the finished connections listed below.
Product details
Connection A: 16mm irrigation-pipe barb
Connection B: 25mm brass hose barb
Valve threads: ¾″ BSP female/female
Valve material: plastic
Valve control: manual turn on/off
Kit reference: HCVKIT003C

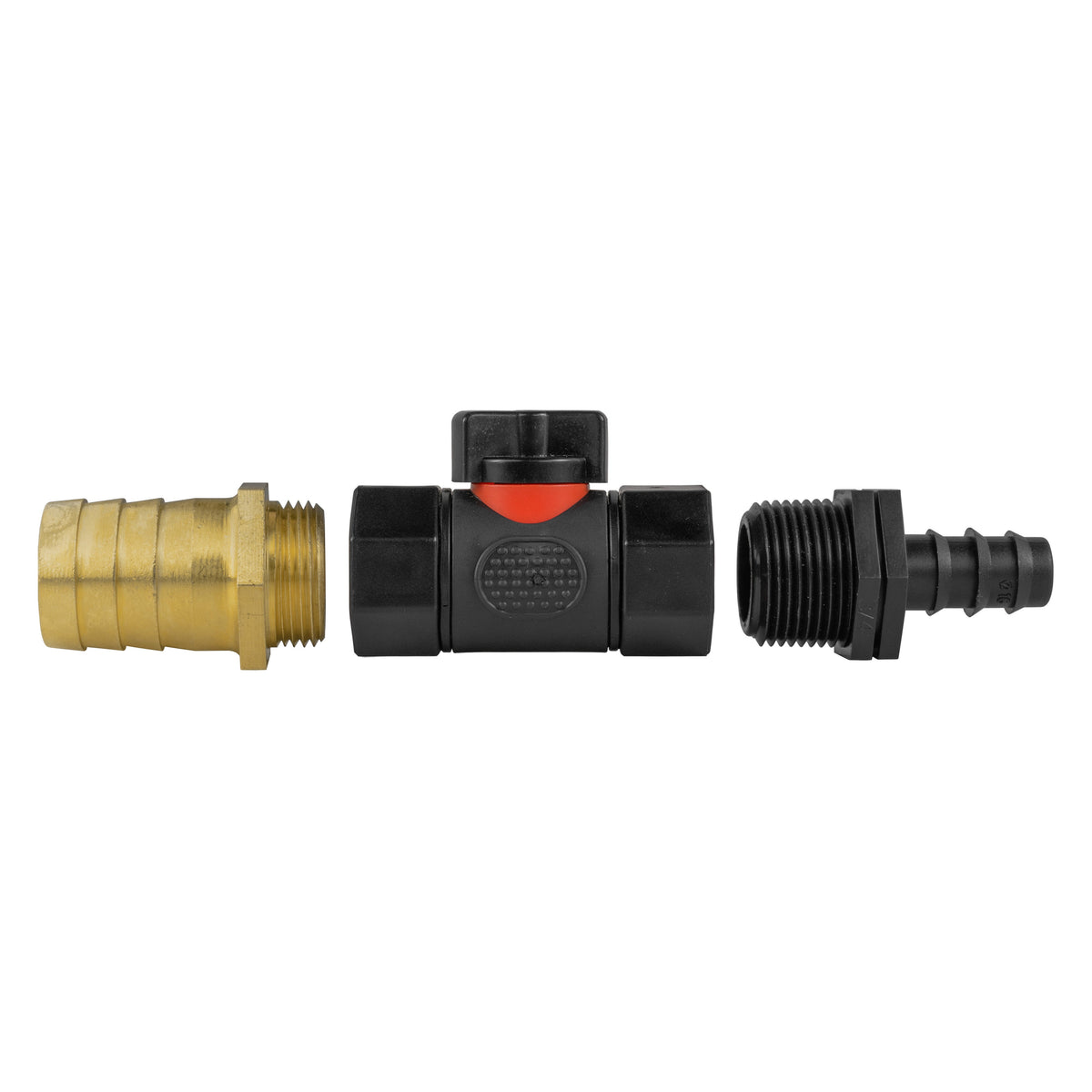

What is included
1 × black soft-touch inline valve, ¾″ BSP female/female

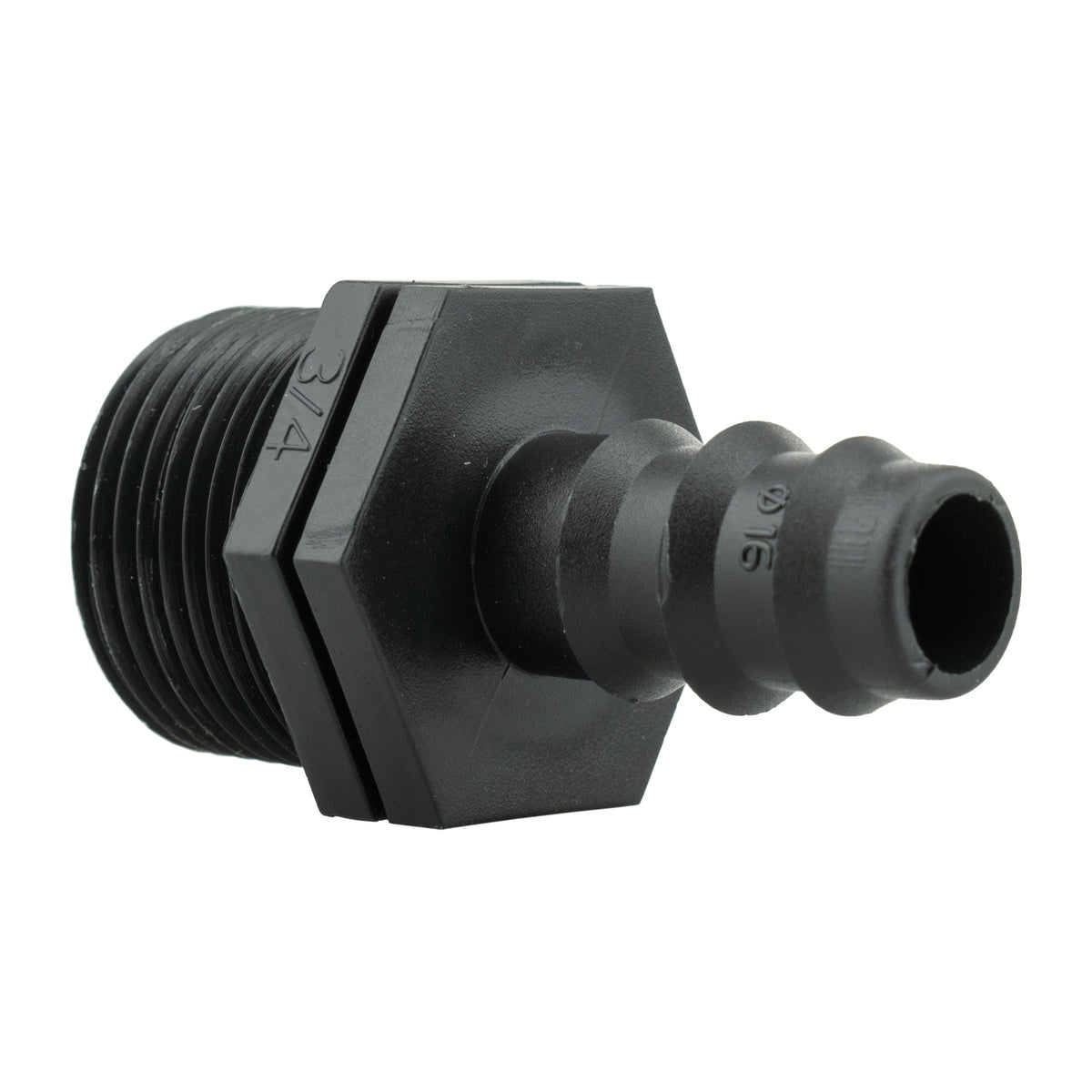

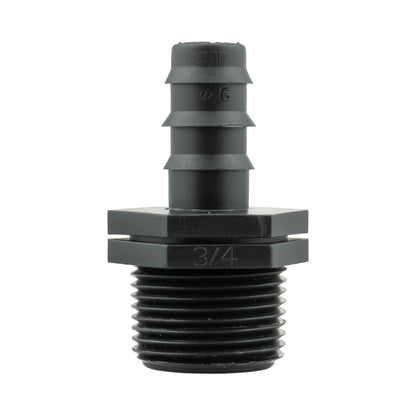

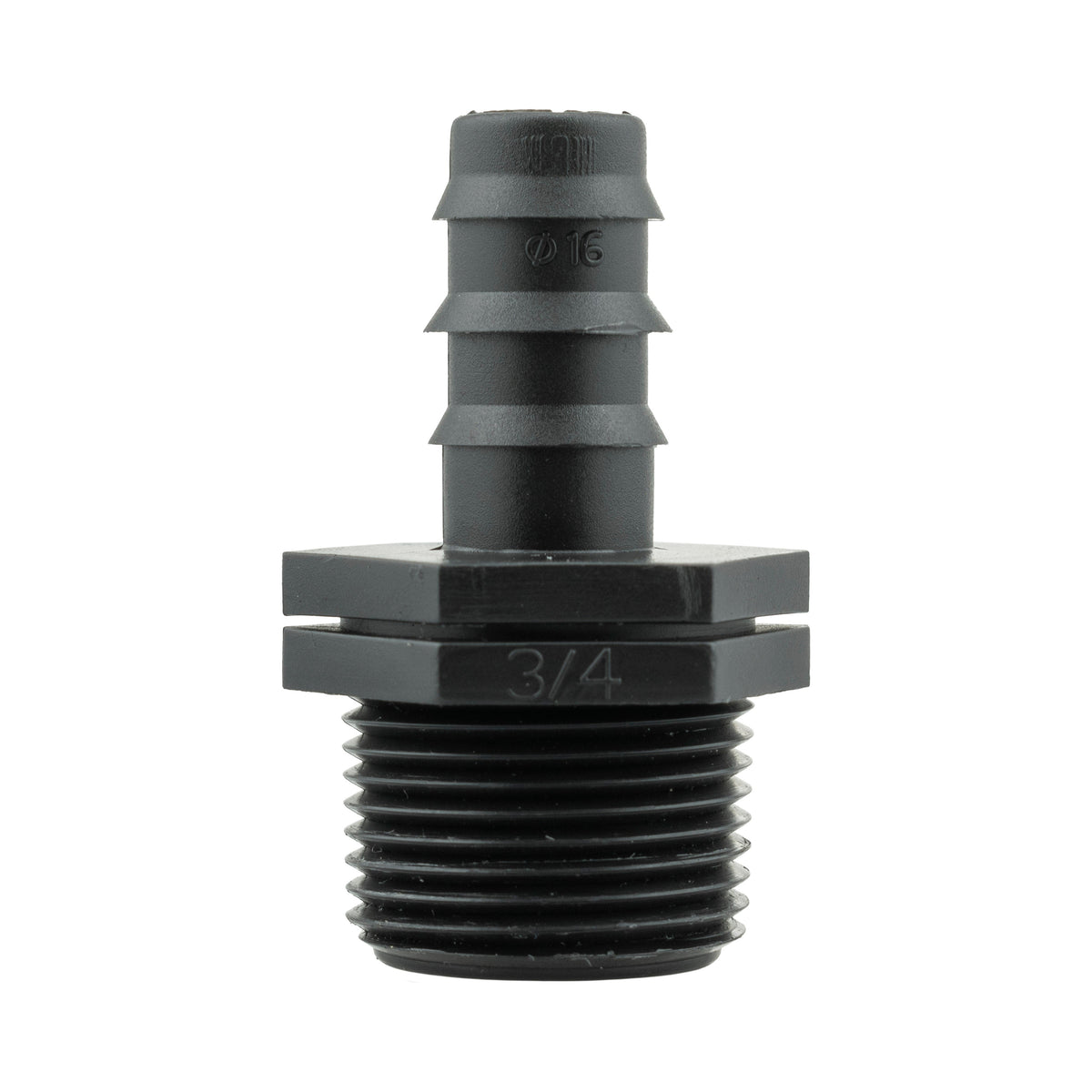

1 × 16mm irrigation-pipe barb with ¾″ BSP male thread
1 × 25mm brass hose-tail adapter with ¾″ BSP male thread
Check compatibility
Check both finished connections against your pipe, hose or mating fitting before ordering. Hose and pipe are not included. Use suitable hose fastening where required, assemble the threaded joints and check the connection before use. The 16mm adapter is described by the source for nominal ½″ irrigation pipe; check the pipe specification and fit rather than treating the nominal name as an internal-diameter measurement.
